Deckel S11, NEW 1997, ACCESSOIRES, TOOL & CUTTER GRINDERS

Price on Request

Make:: Deckel

Model:: S11, NEW 1997, ACCESSOIRES,

Year:: 1997

Ref #:: 161849

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

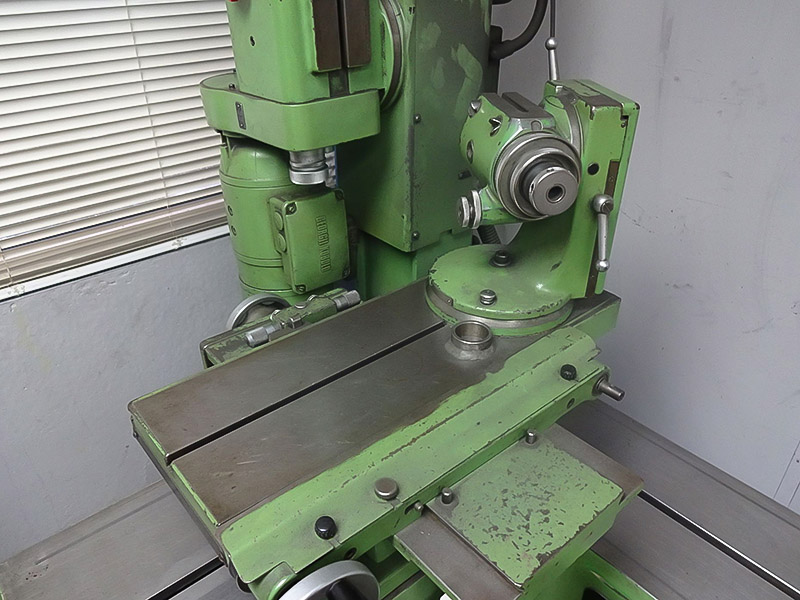

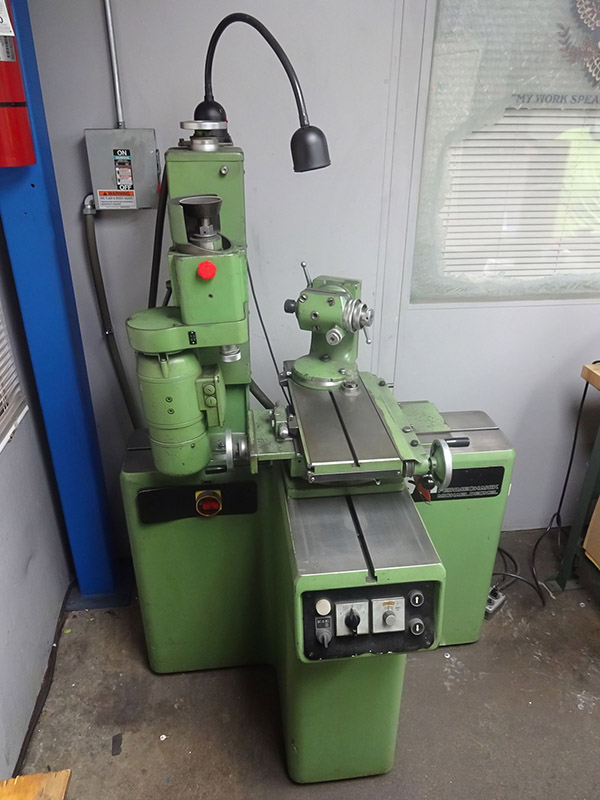

DECKEL UNIVERSAL TOOL & CUTTER GRINDER
 WITH MANY ACCESSORIES & CABINET SHOWN IN OUR PHOTOS

** ADJUSTABLE THROUGH 360 DEG. IN 5 AXES **

TYPE: S11      S/N: 1951     NEW: 1997

WORTABLE LONGITUDINAL TRAVEL .................. 7.5"
WORKTABLE CROSS TRAVEL ........................ 4"
SPINDLE, VERTICAL TRAVEL ...................... 13"
SPINDLE AXIAL FEED ............................ 0.187"
MAX. WORKPIECE DIA. BETWEEN CENTERS ........... 13.5"
MAX. WORKPIECE LENGTH BETWEEN CENTERS ......... 37"
SPINDLE COLUMN SWIVEL, HORIZONTAL ............. 360 DEG.
SPINDLE COLUMN SWIVEL, VERTICAL ............... 360 DEG.
WORKTABLE SWIVEL .............................. 360 DEG.
UNIVERSAL INDEX HEAD SWIVE, HORIZONTAL ........ 360 DEG.
UNIVERSAL INDEX HEAD SWIVEL, VERTICAL ......... 360 DEG.
MAX. WHEEL DIAMETER ........................... 5"
MAX. CUT-OFF WHEEL DIAMETER ................... 8"
SPINDLE MOTOR ................................. 1.75 H.P.
SPINDLE SPEED RANGE (RPM) ..................... 2,000 TO 10k

EQUIPPED WITH:

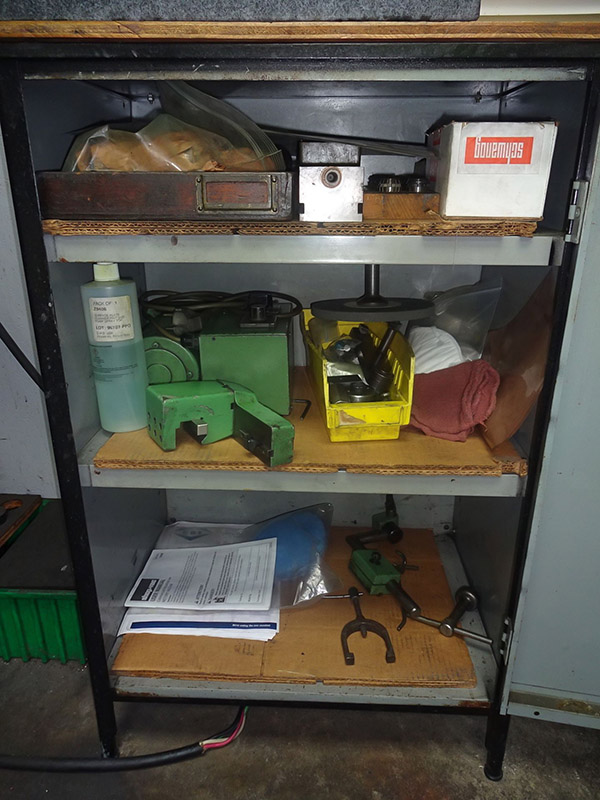

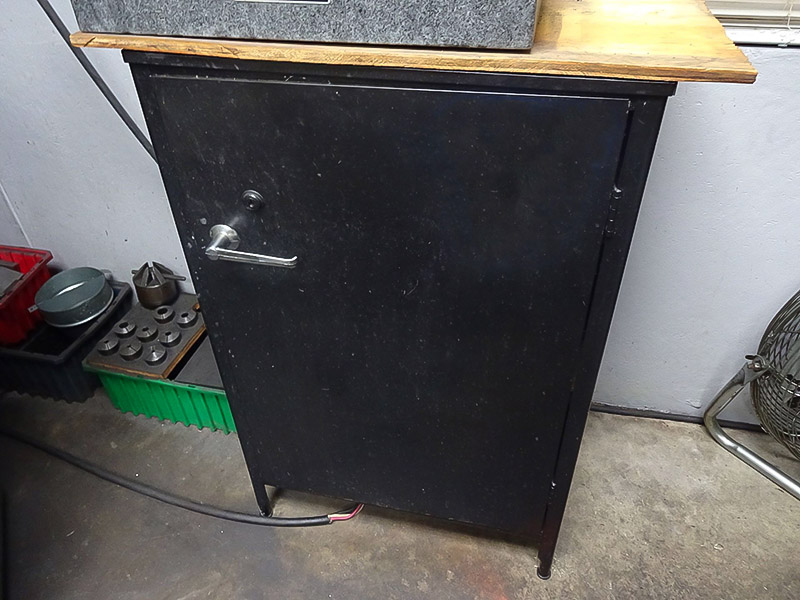

Tool cabinet for accessories:

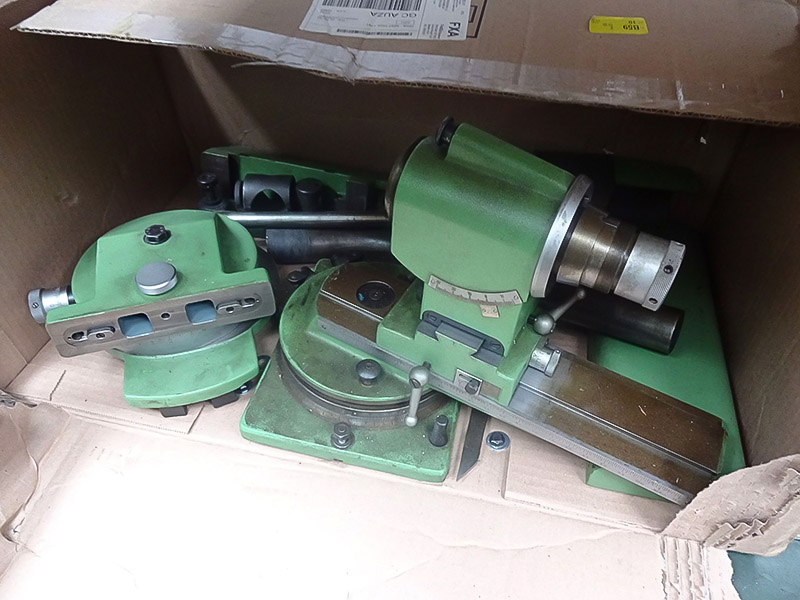

Universal Index Head ST-40
Drive motor unit 100 t0 1000 RPM.
 CW CCW rotation 220 volt, for universal index head
Radius Grinding Attachment ST-40
Spiral Form Reliving Attachment
Wired Presently for 3/50-60 Hz/220 Volts, 14 Amps

** EXCEPTIONAL CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
