Doosan Puma 2100SY CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Doosan

Model:: Puma 2100SY

Year:: 2013

Ref #:: 178833

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

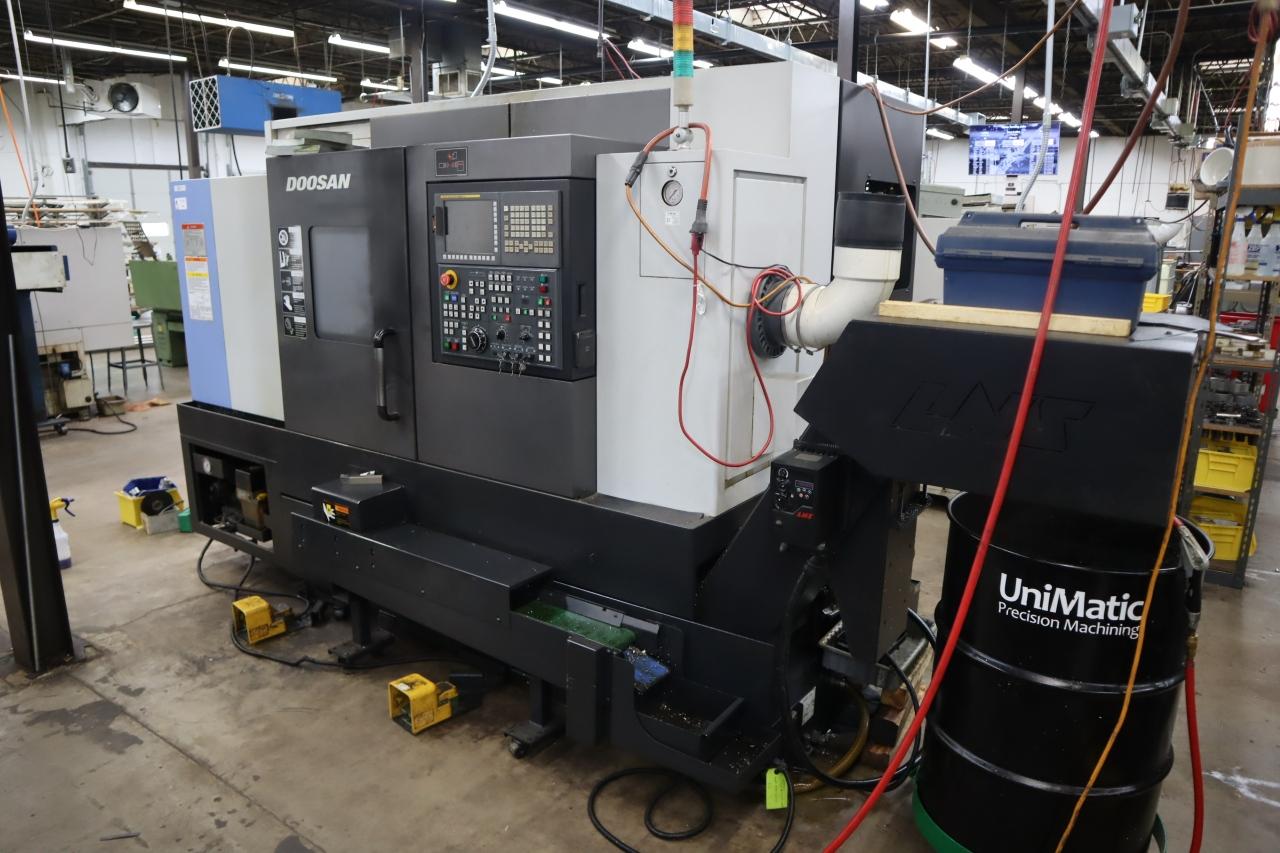

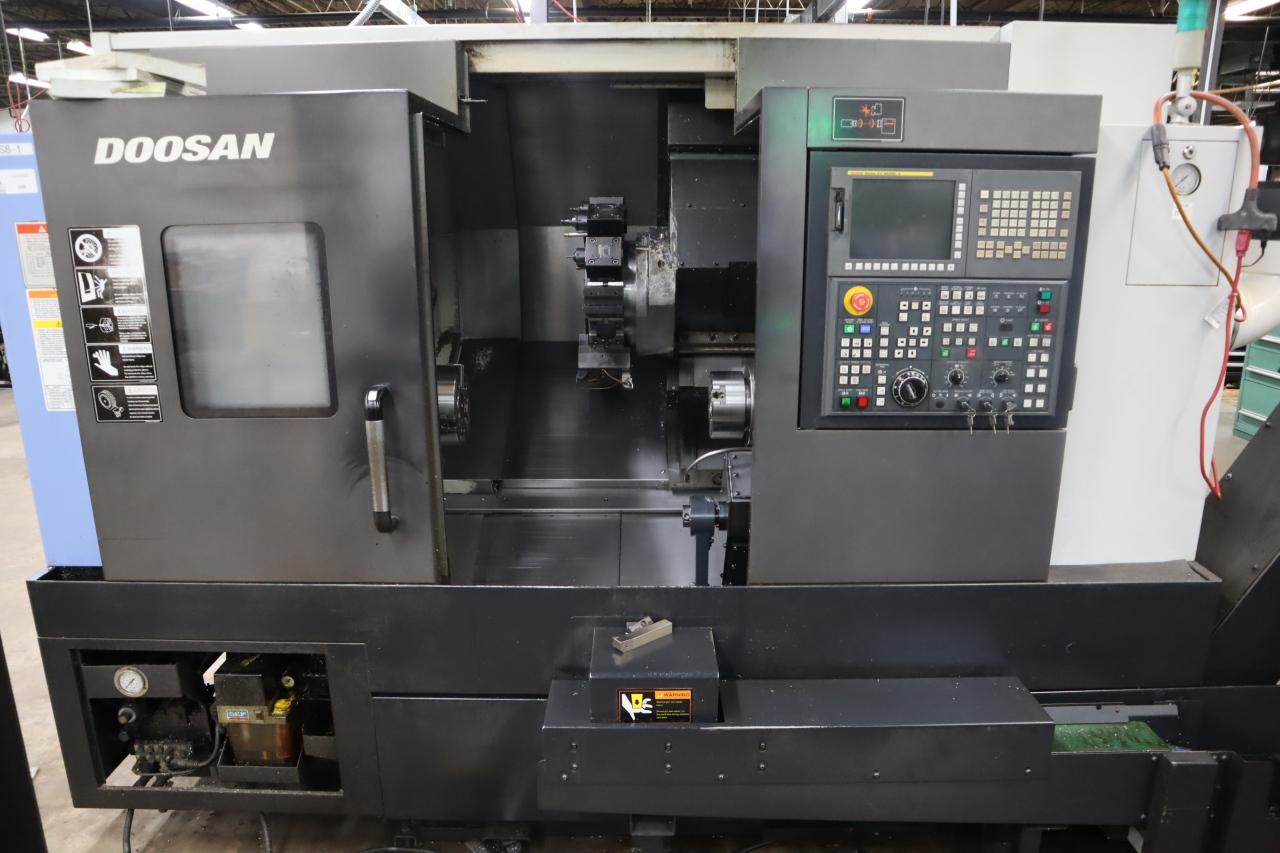

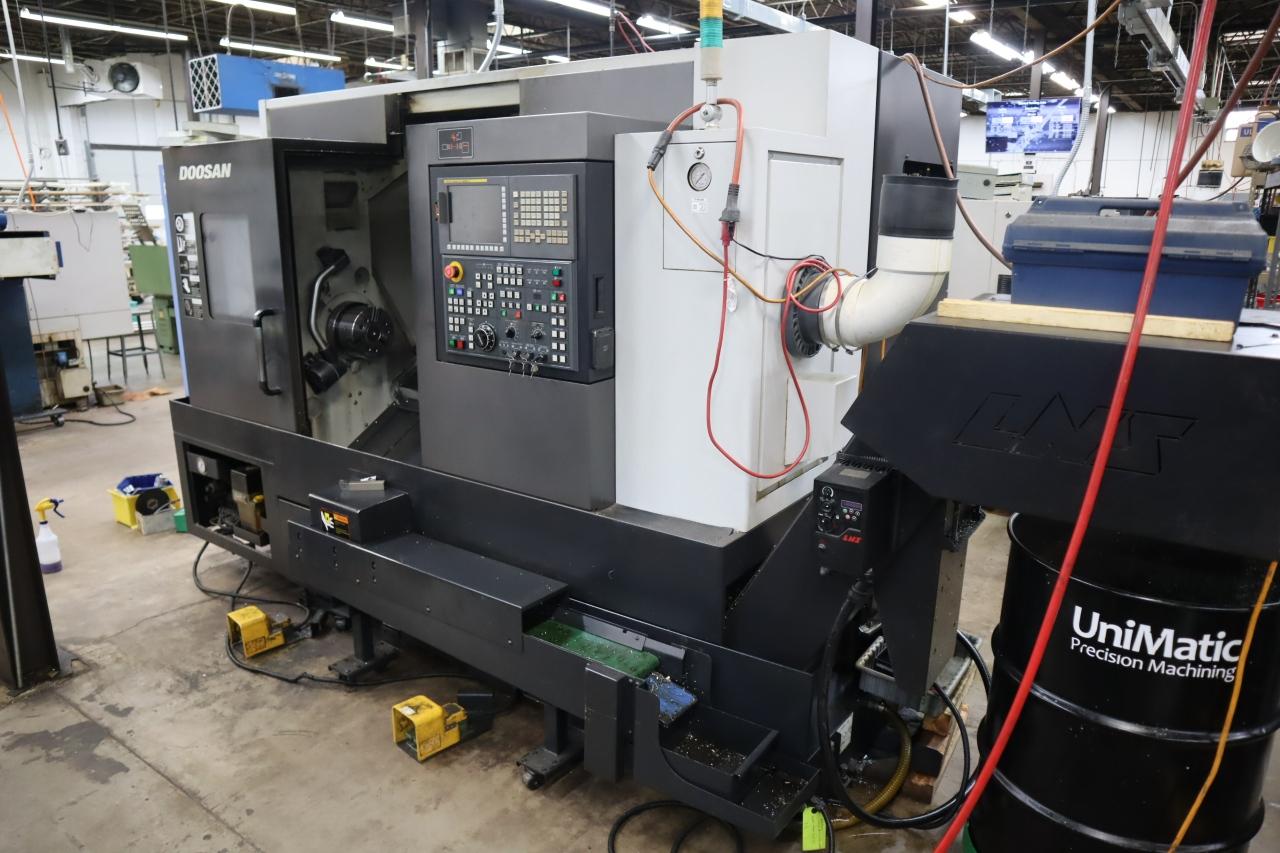

DOOSAN PUMA 2100SY MULTI-AXIS CNC Turning Center
New: 2013

Specifications:

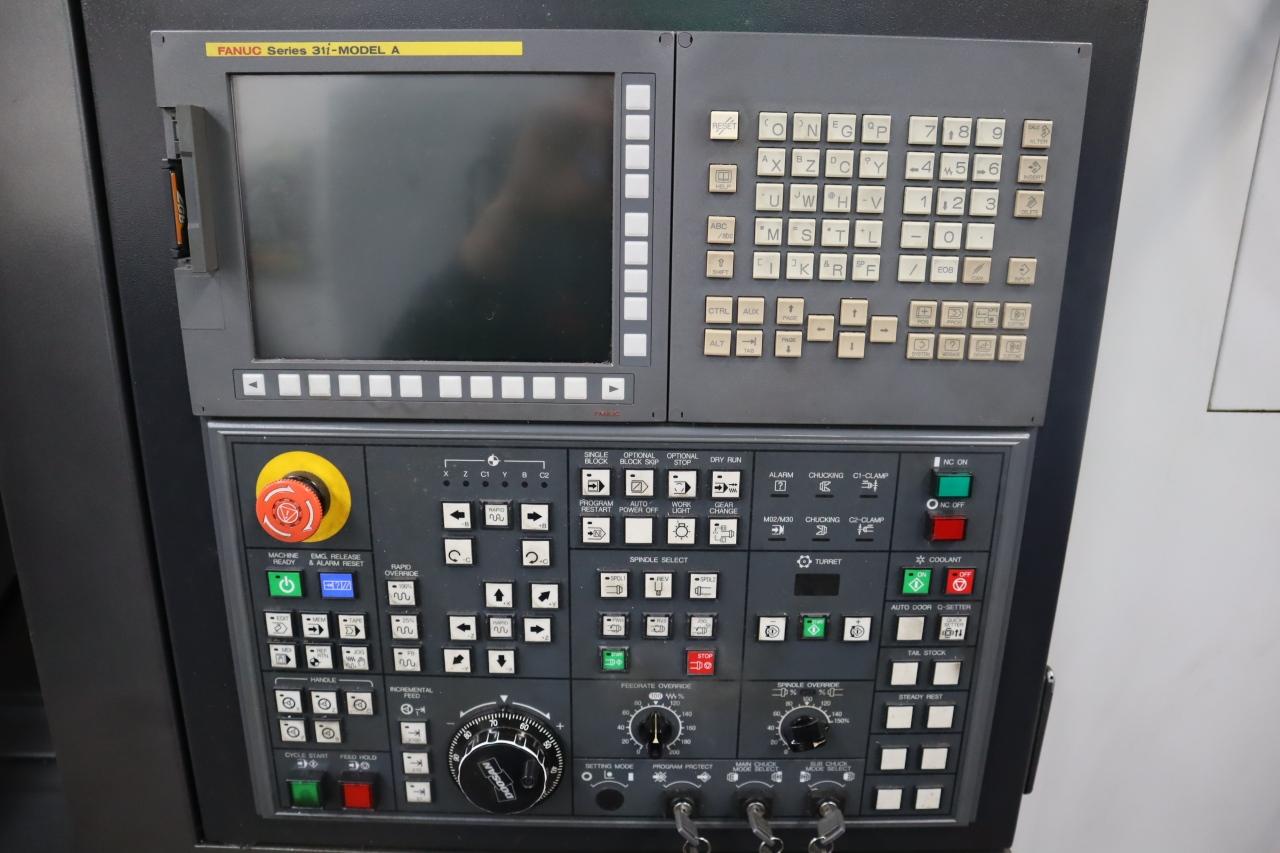

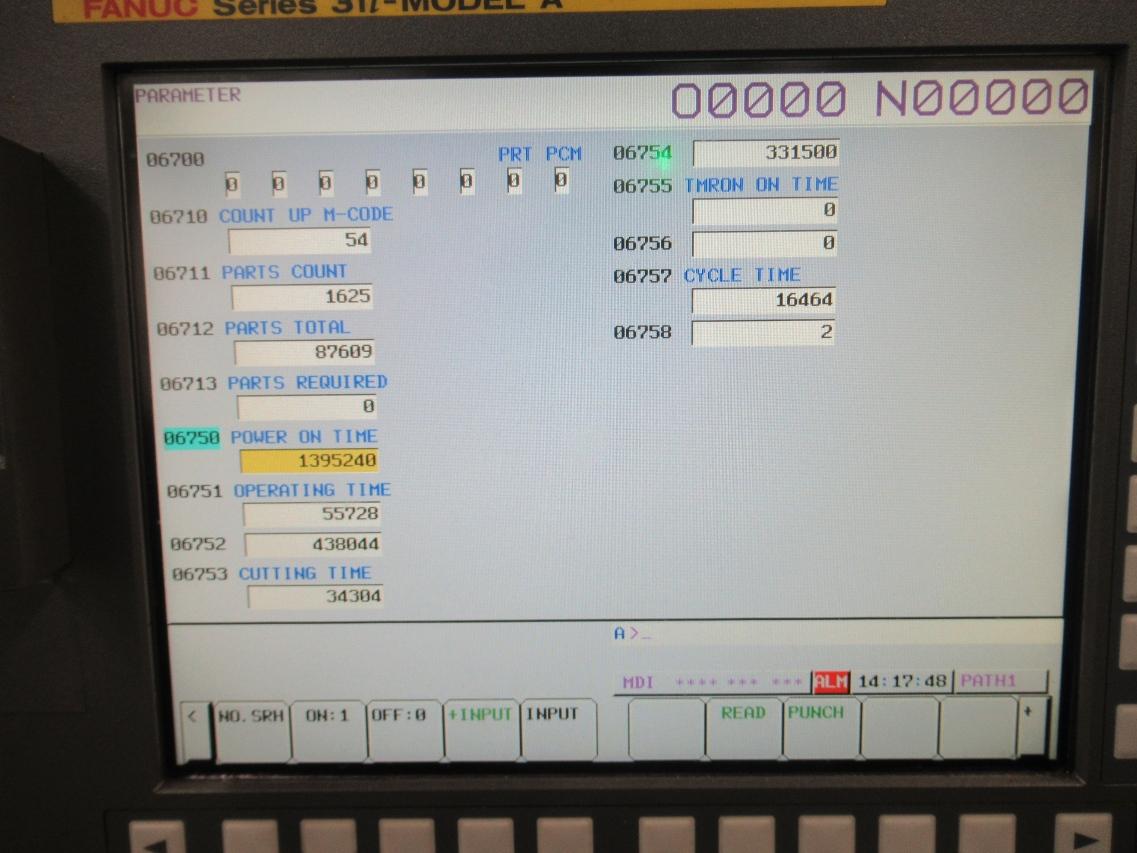

Control: Fanuc 31i - Model A CNC Control
Spindle Nose: A2-6
Main Spindle Chuck Size: 8"
Sub-SpindleChuck Size: 6"
Max Swing Over Bed: 30.7"
Max Swing Over Cross Slide: 24.8"
Max Turning Diameter: 16.0"
Max Turning Length: 20.5"
Sub-Spindle Travel: 23.2"
Main Spindle Speeds : 4500 RPM
Main Spindle Orientation: Full C-Axis (.001 Degree)
Main Spindle Drive: 25 HP
Sub-Spindle Drive : 10 HP
Live Tool Drive Motor: 7 HP
Sub-Spindle Speeds : 4500 RPM
Sub-Spindle Orientation: Full C-Axis (.001 Degree)
Main Bar Capacity: 2.6"
Sub-Spindle Bar Capacity: 2.45"
Turret Capacity: 12 Station Live Milling Capable
Turret Travels (X/Z): 10.2" x 23.2"
Live Tool Speeds: 4500 RPM
Rapids: 1,181 IPM X/Z/B Axes; 393.7 IPM Y axis
Hole Thru Spindle: 3.0"

Equipped With:

Fanuc Series 31i-Model S CNC Control

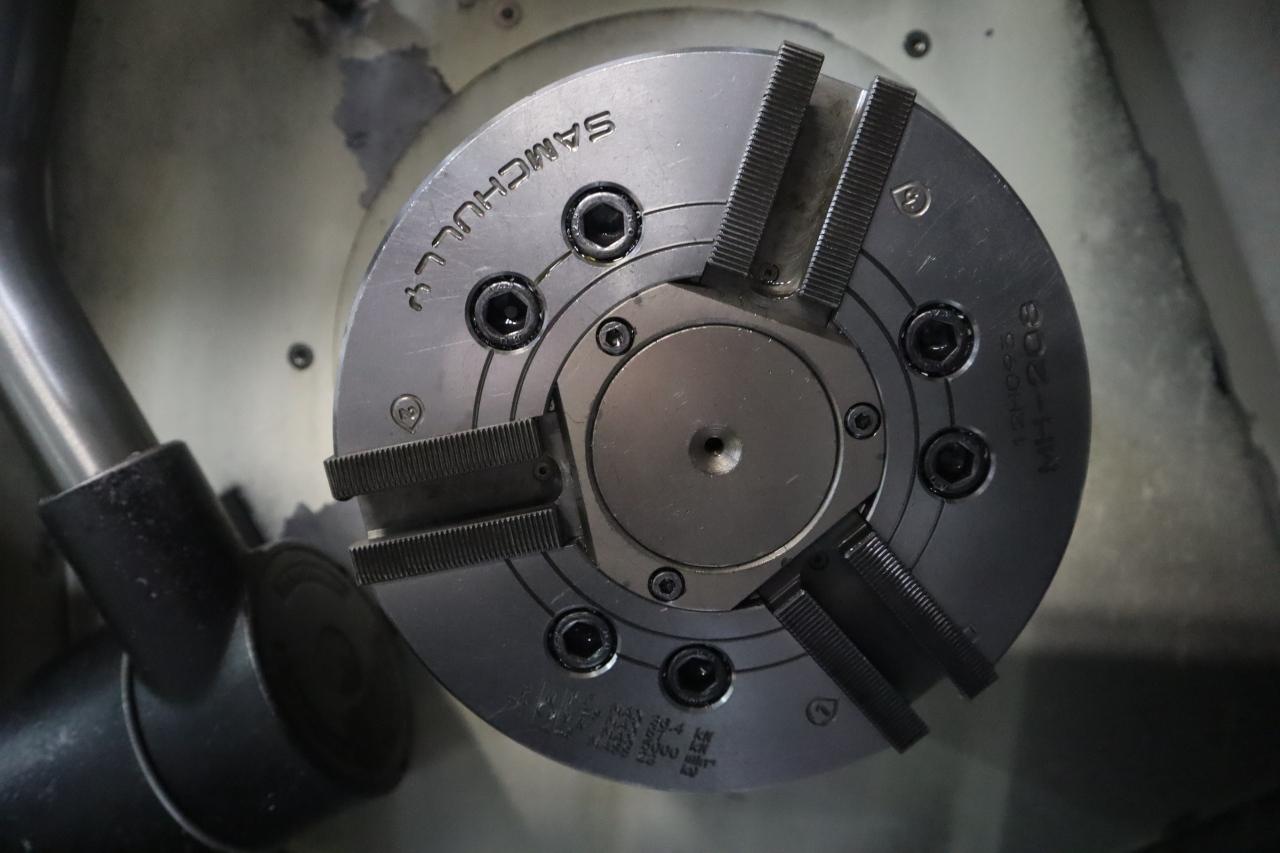

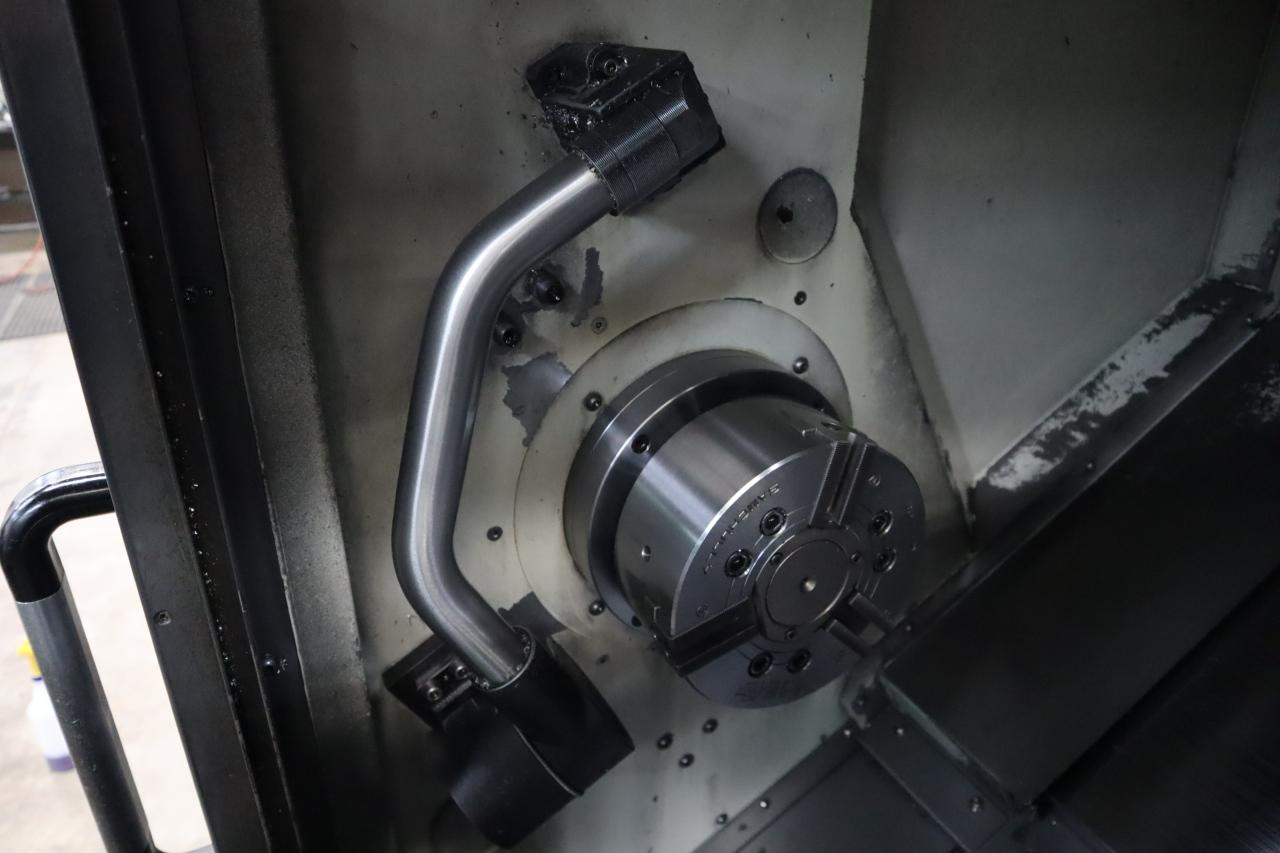

Samchully MH-208 8" 3-Jaw Main Chuck

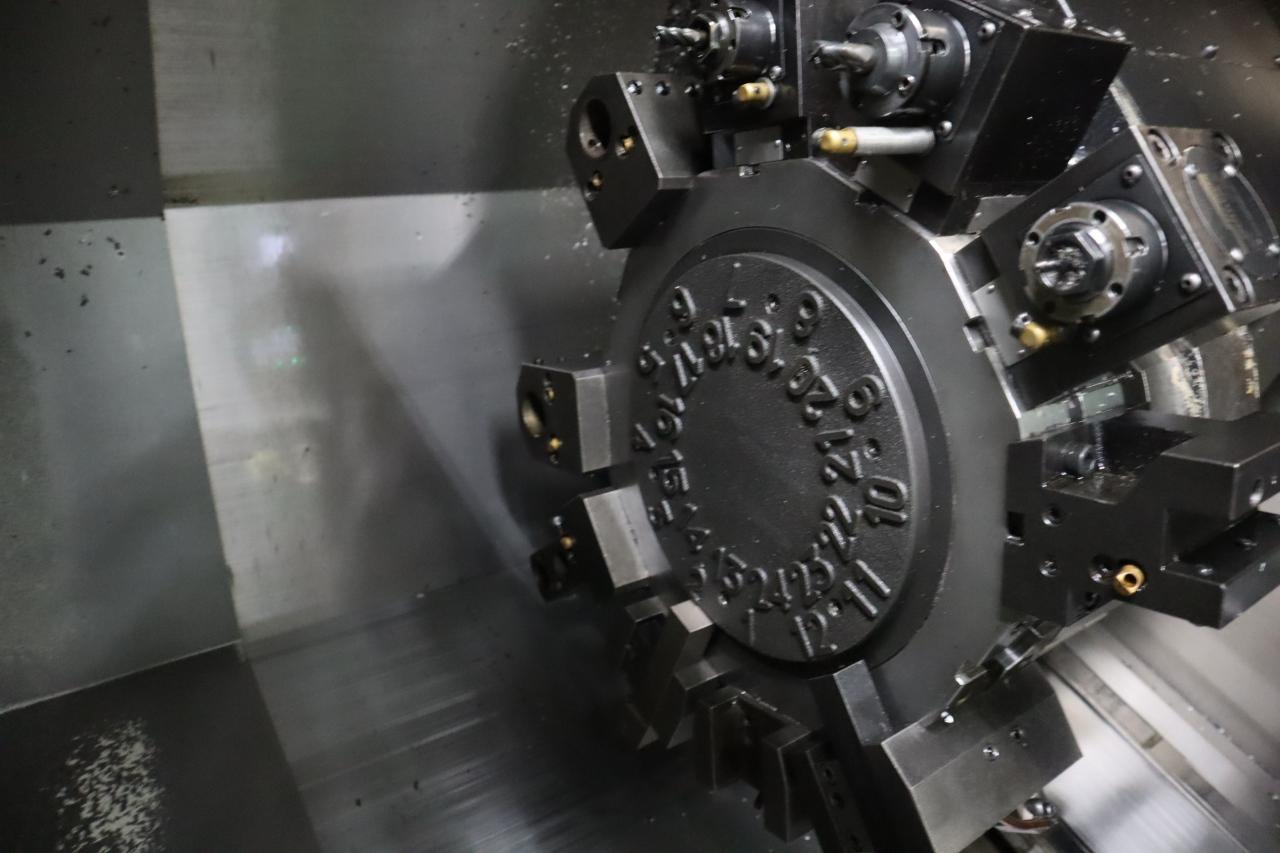

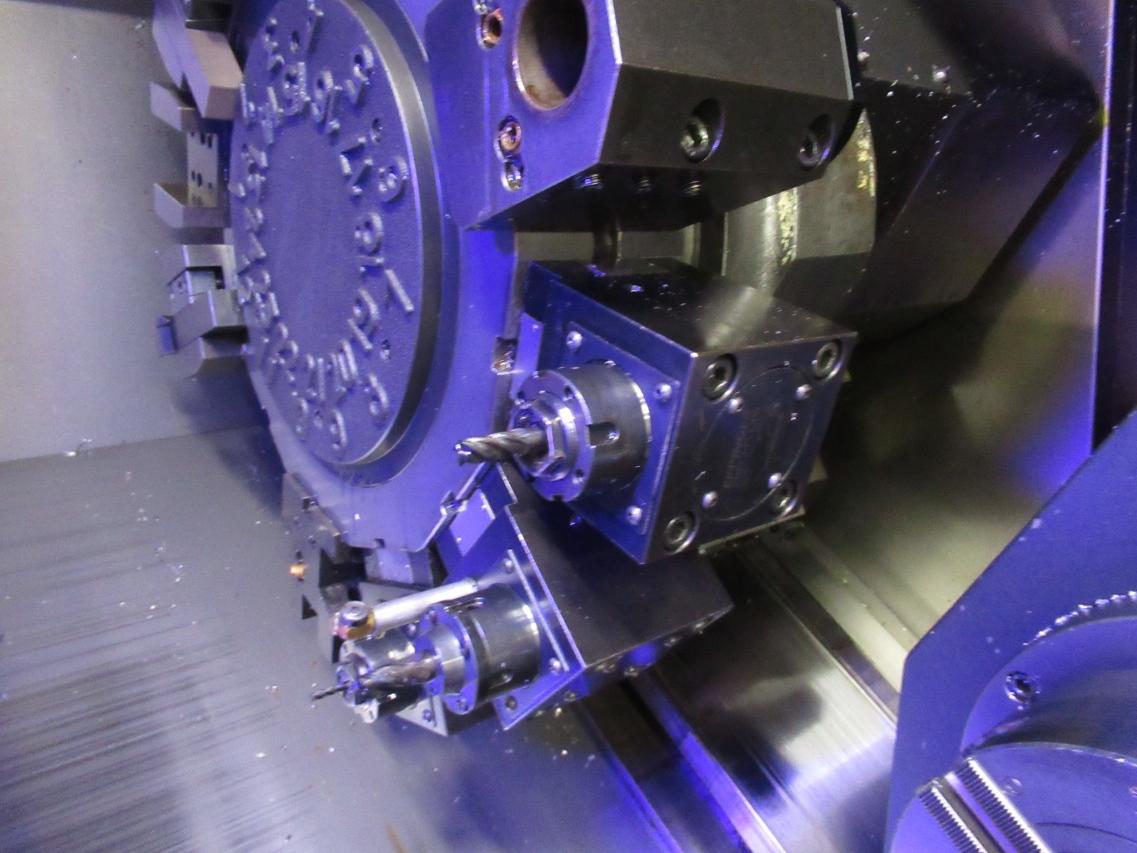

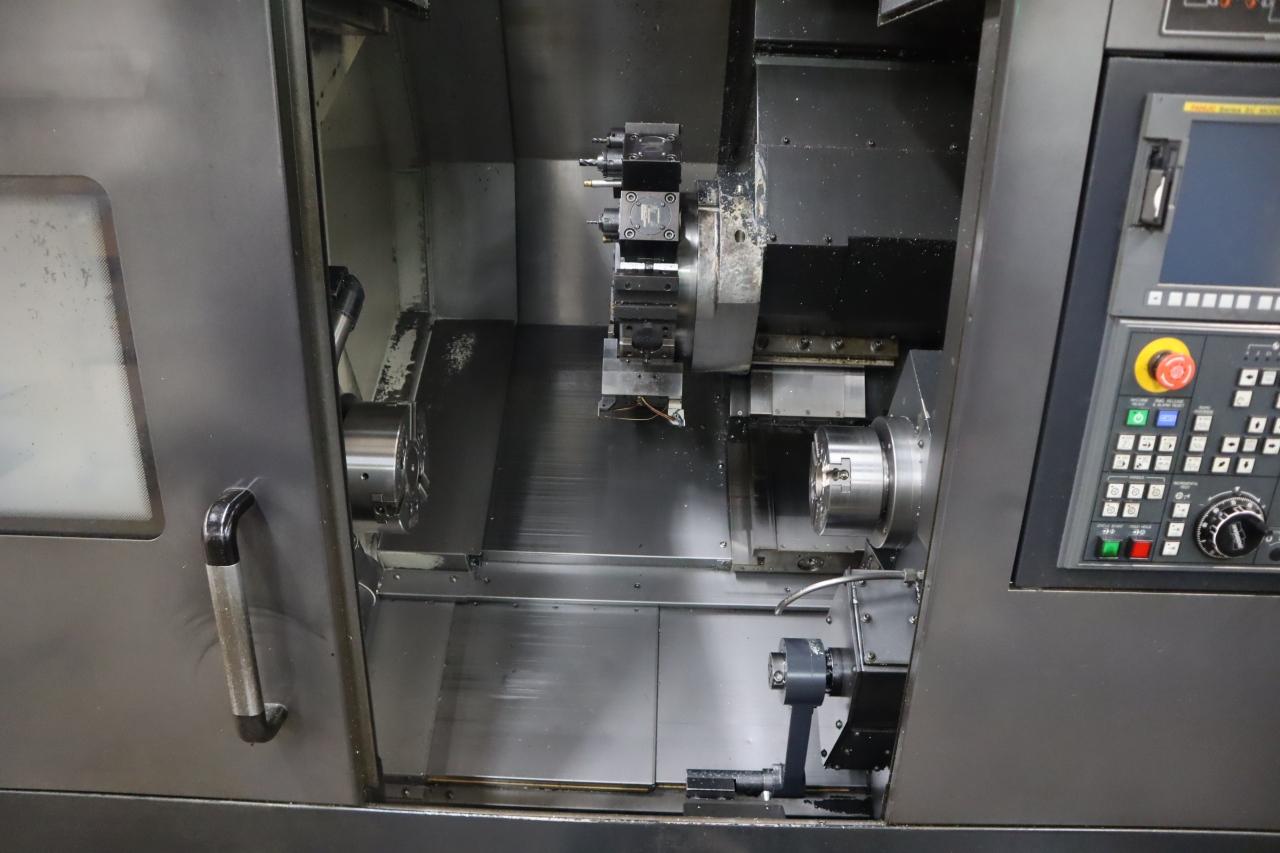

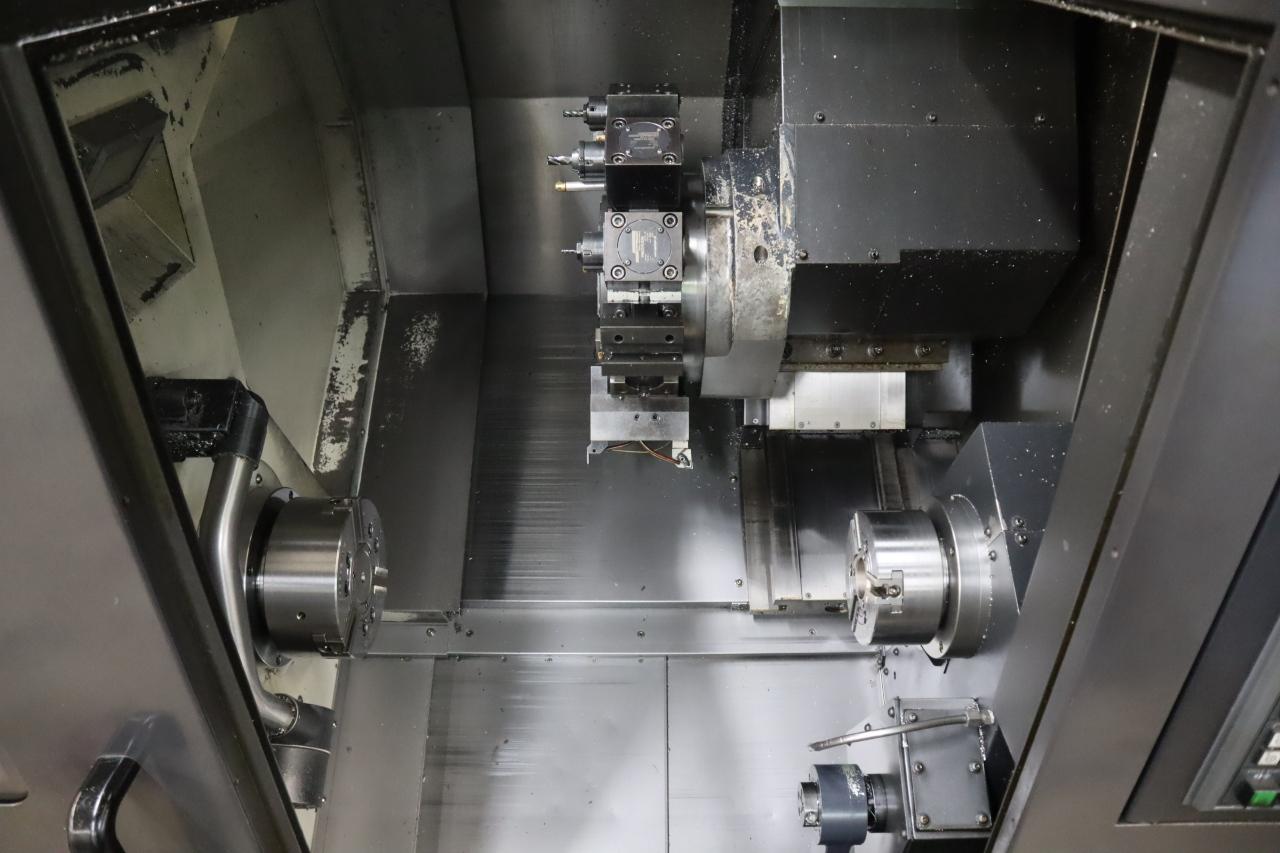

12 Station Turret with Live Milling
Y-Axis Programmable Turret

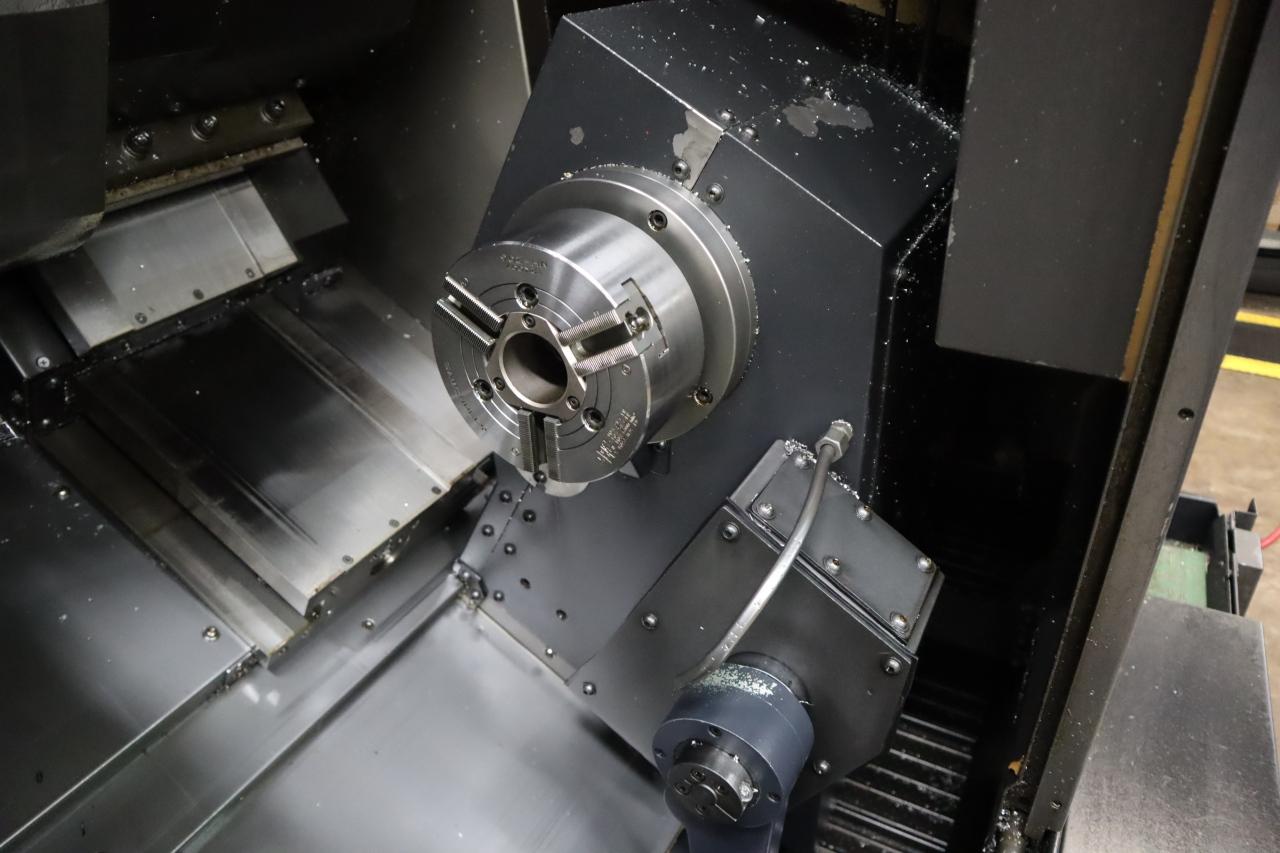

Sub-Spindle
C-Axis Main and Sub-Spindles

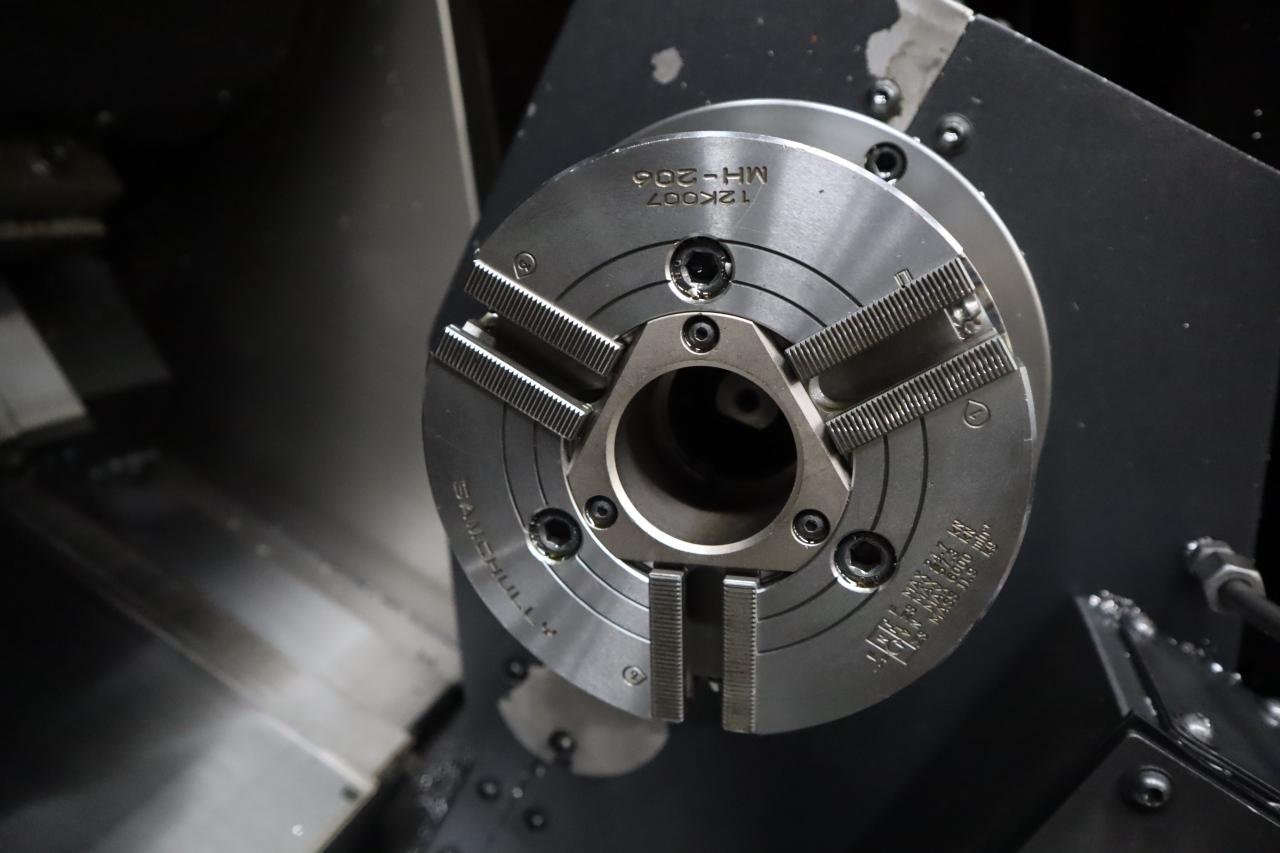

Samchully MH-206 6" 3-Jaw Chuck on Sub-Spindle
Auto Tool Presetter

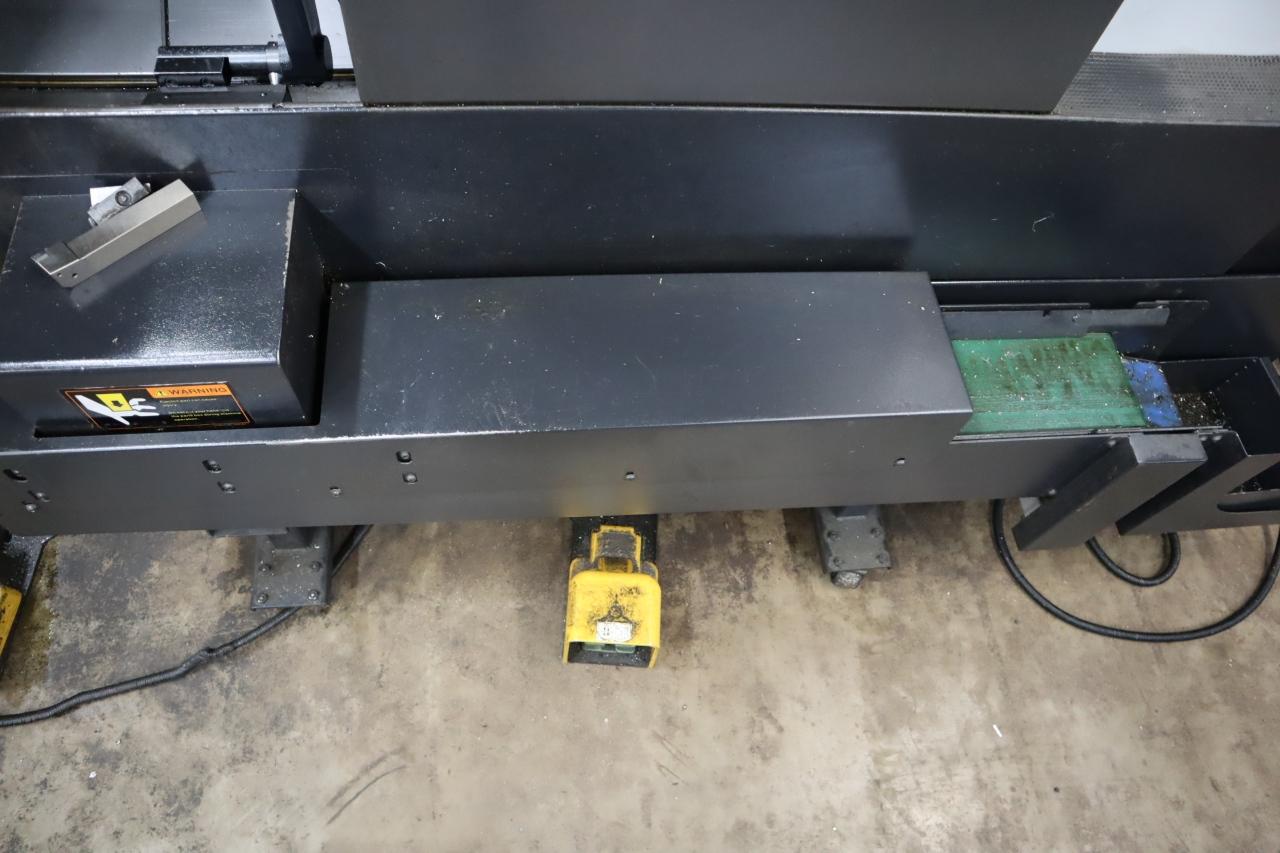

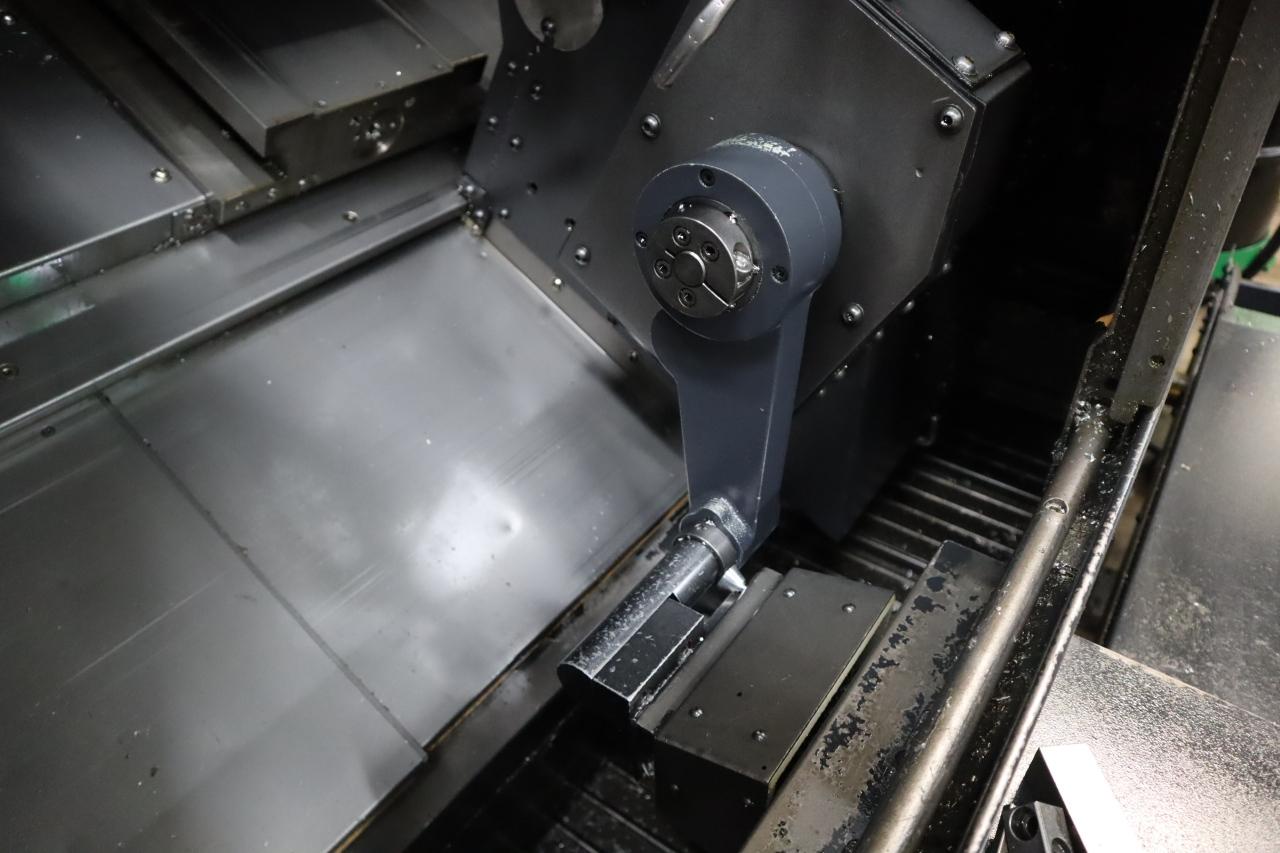

Parts Catcher and Parts Conveyor
Chip Conveyor
High Pressure Coolant System

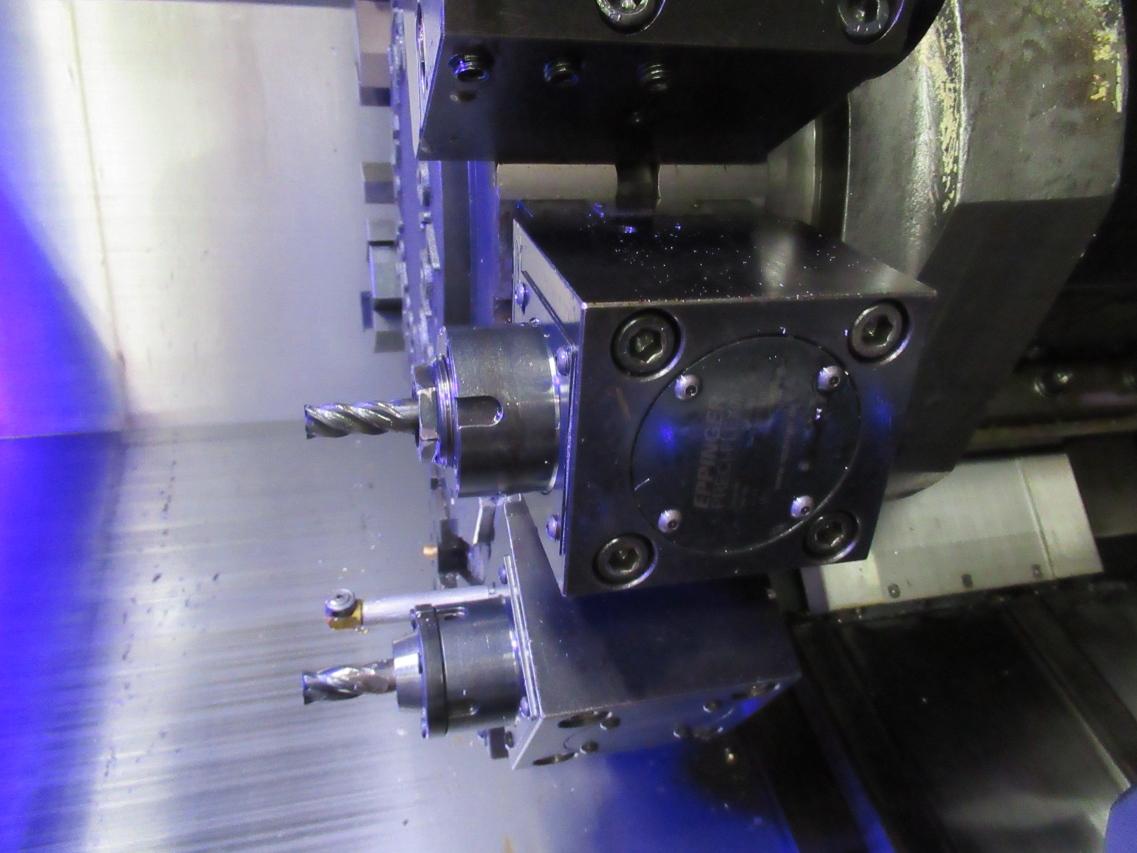

Complement of Static Boring Bars and Turret Tool Holders, (3) Eppinger Radial Live Tools

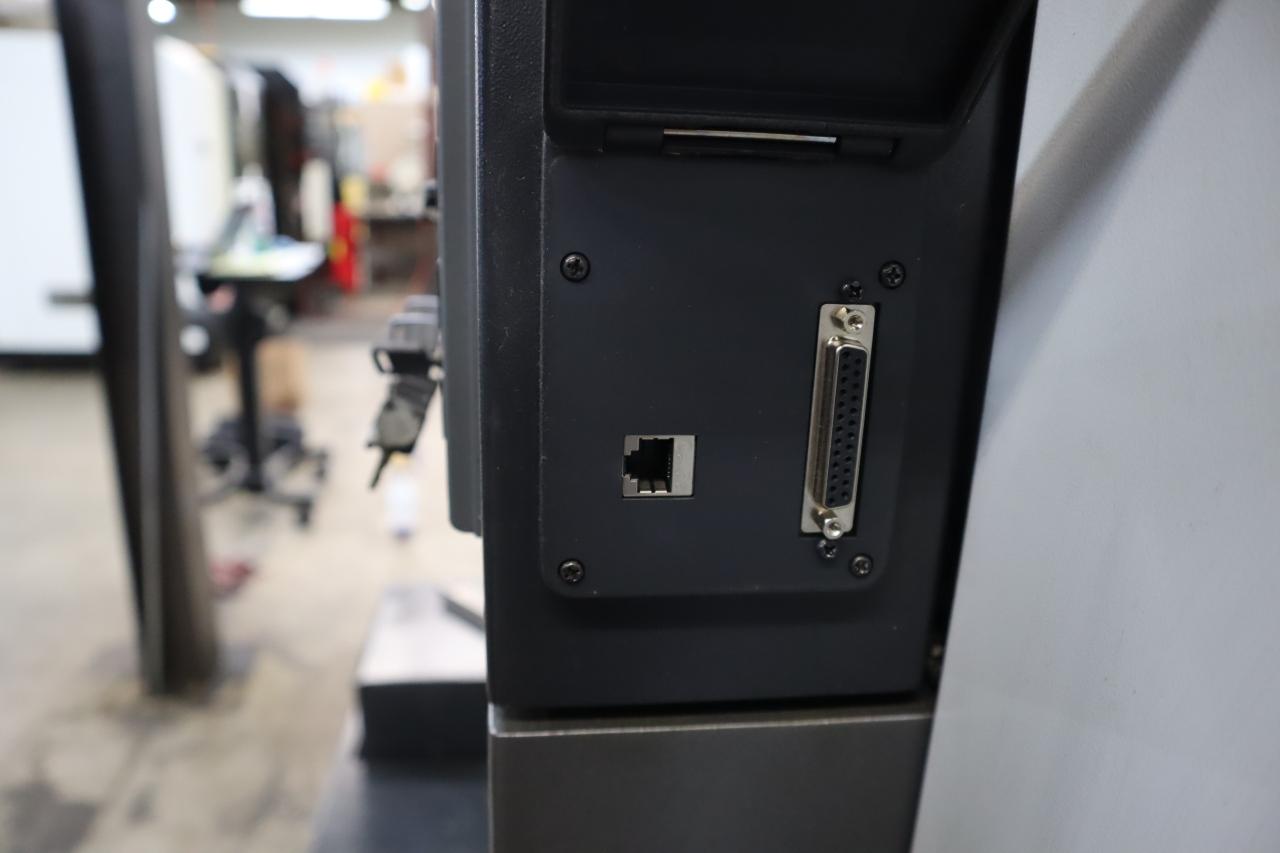

RS232 Port, Compact Flash, Ethernet

Main Unit Approx Weight: 12,015 lbs
Main Unit Dimensions (in inches): Length: 130.30" Width: 73.30" Height: 85.20"
Components:

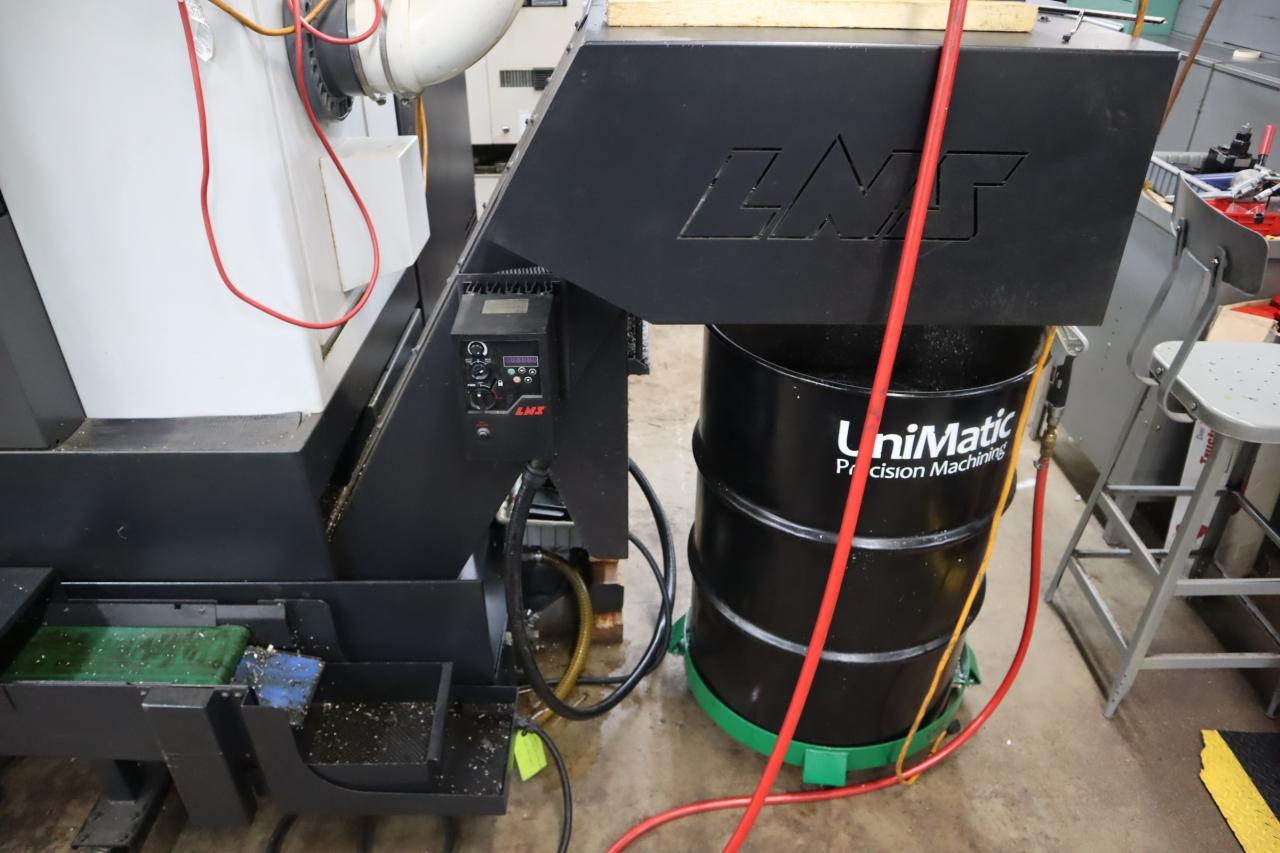

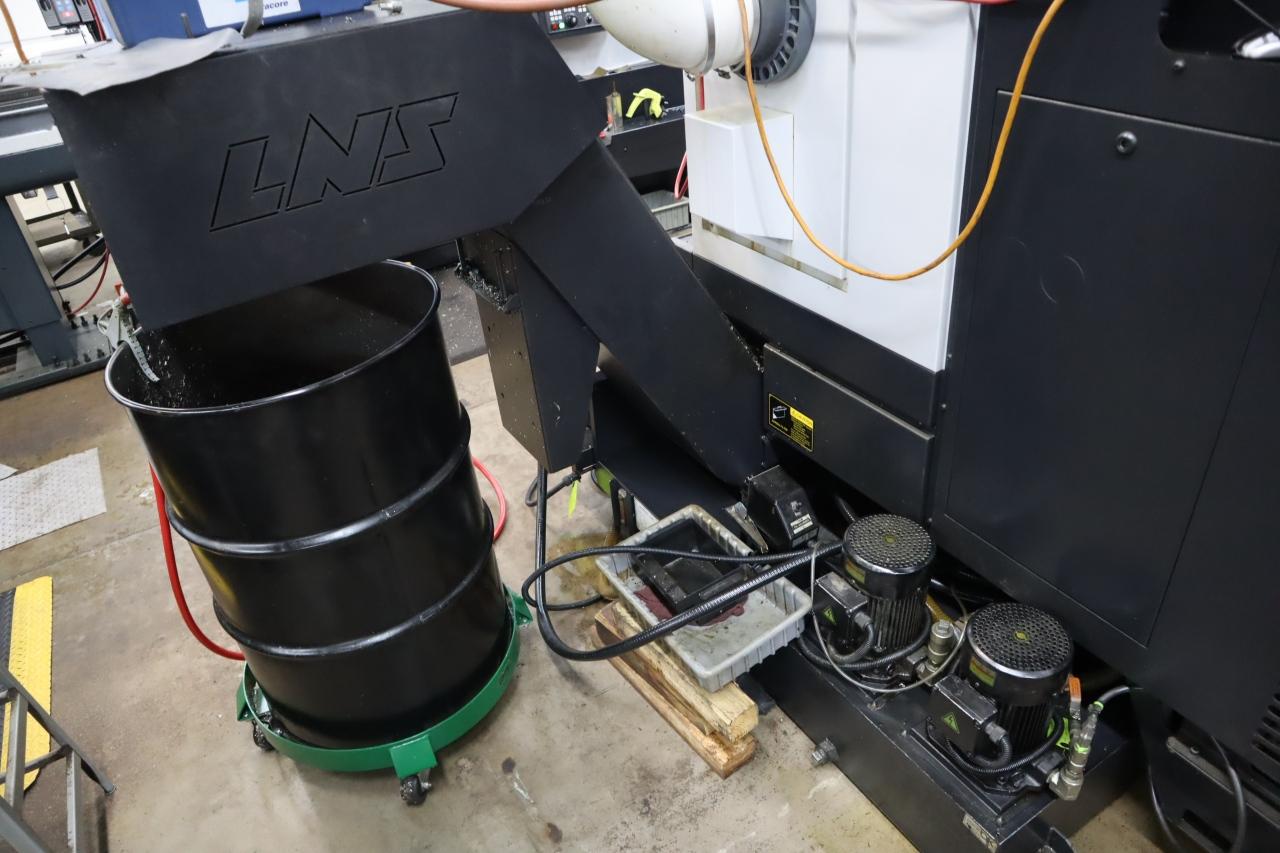

LNS Chip Conveyor: Length: 124.00" Width: 24.00" Height: 56.00"
Coolant Pumps and Tank: Length: 53.00" Width: 21.00" Height: 21.00"
Machine Dimensions on Floor: Length: 160.00" Width: 78.00" Height: 85.00"
