Doosan PUMA MX-2100ST CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Doosan

Model:: PUMA MX-2100ST

Year:: 2015

Ref #:: 178802

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

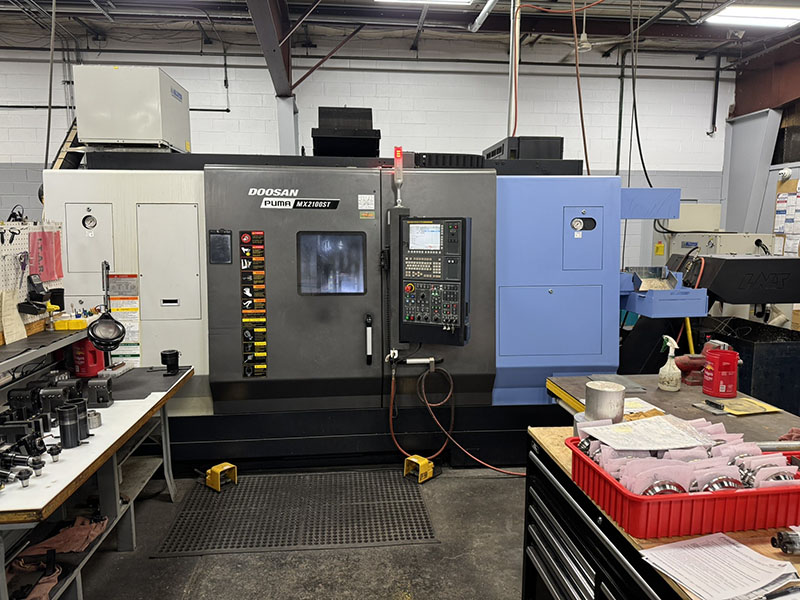

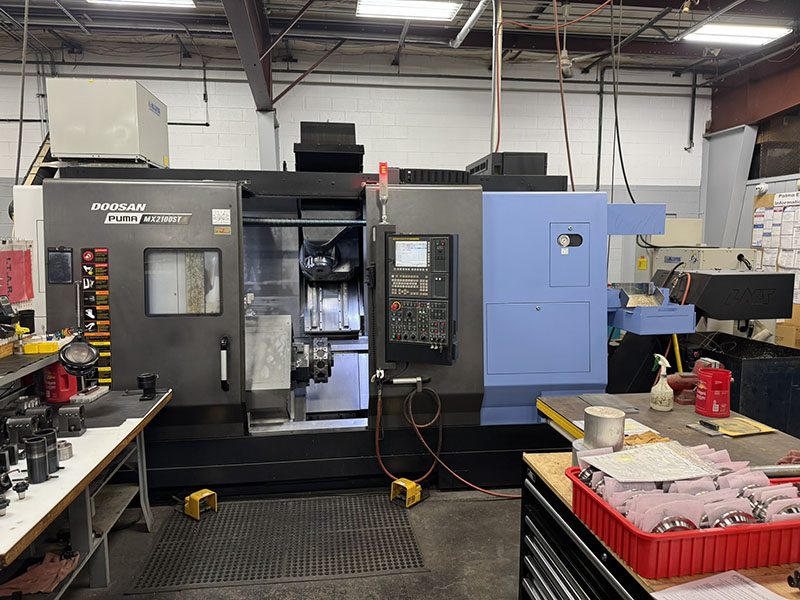

DOOSAN PUMA MX-2100ST 5-AXIS CNC TURNING CENTER
NEW: 2015

CAPACITY
Swing over bed 29.5"
Swing over saddle 25.6"
Recom. Turning diameter 8.3"
Max. Turning diameter 21.3"
Max. Turning length 40.2"
Chuck size inch 8"
Bar working diameter 2.6"

TRAVELS DISTANCE
X1-axis 22.2"
Z1-axis 41.3"
Y-axis 6.7"
X2-axis 7.4"
Z2-axis 41.3"
A-axis 41.3"
B-Axis Rotation +- 120 Degrees

FEEDRATES RAPID TRAVERSE RATE
X1-axis m/min (ipm) 36 (1417.3)
Z1-axis m/min (ipm) 36 (1417.3)
Y-axis m/min (ipm) 26 (1023.6)
X2-axis m/min (ipm) - - 24 (944.9)
Z2-axis m/min (ipm) - - 36 (1417.3)
A-axis m/min (ipm) - 30 (1181.1) - 30 (1181.1)

LEFT SPINDLE
Max. Spindle speed r/min 5000
Spindle nose A2-6
Spindle through hole 3.0"
Min. spindle Indexing angle(C-axis) deg 0.0001
Spindle Motor 30 HP

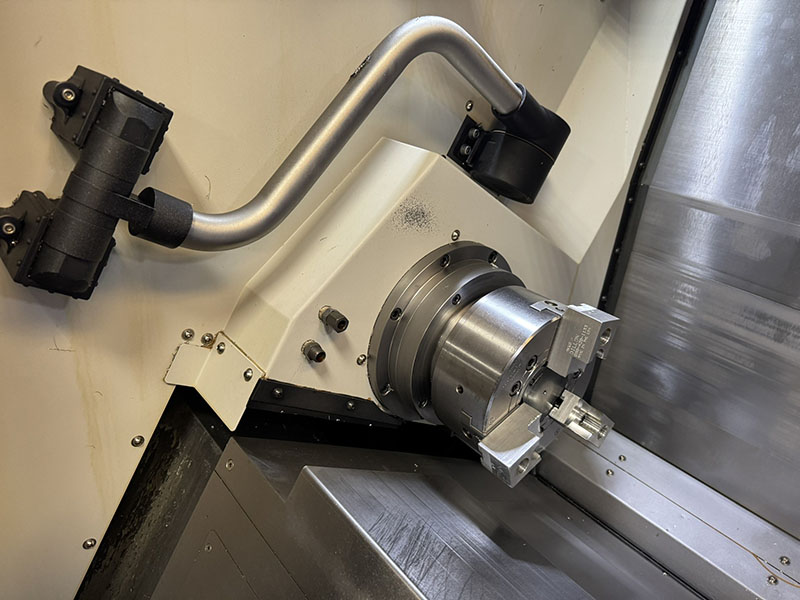

RIGHT SPINDLE
Max. Spindle speed 5000 RPM
Spindle nose A2-6
Spindle through hole 3.0"
Min. spindle Indexing angle(C-axis) deg - 0.001
Spindle Motor 30 HP

MILLING SPINDE
Milling spindle Max. spindle speed 12,000 RPM
Min. spindle Indexing angle(B-axis) deg. 0.001
Tool storage capacity 40
Tool changer arm SWING ARM
Spindle Motor 25 HP

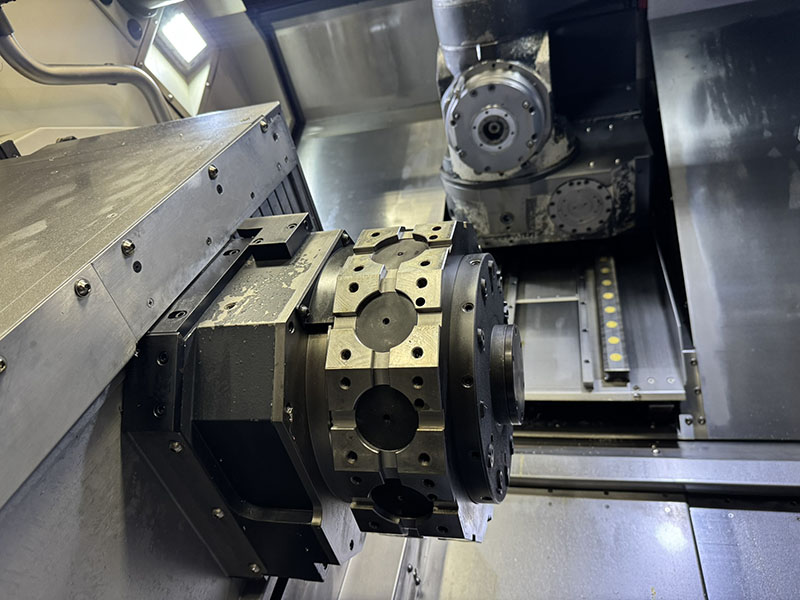

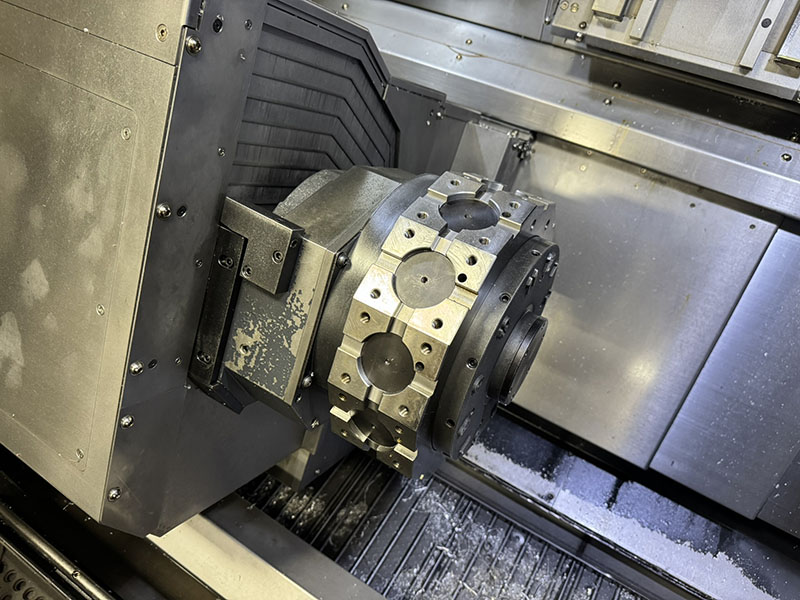

LOWER TURRET
No. of tool stations  12
Max. Rotary tool speed 5,000 RPM
Rotary Tool Spindle Motor Power 7.4 HP

Equipped With:

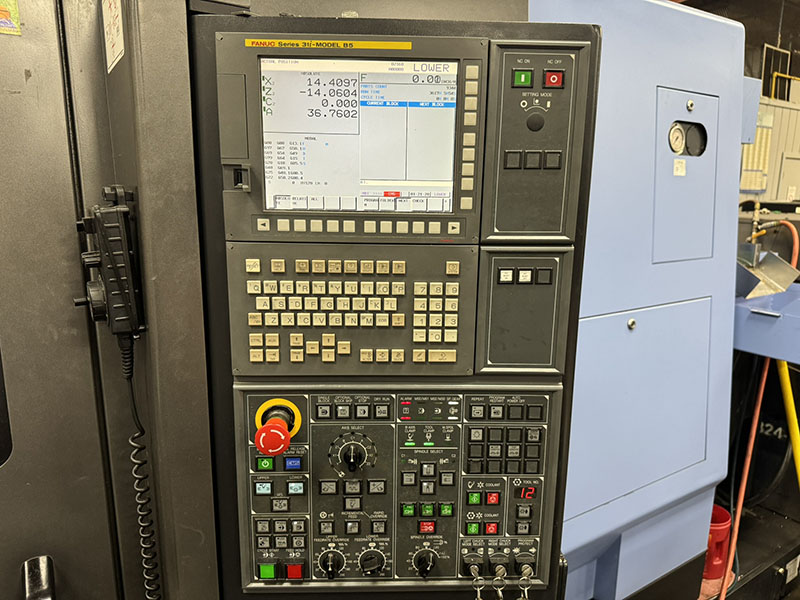

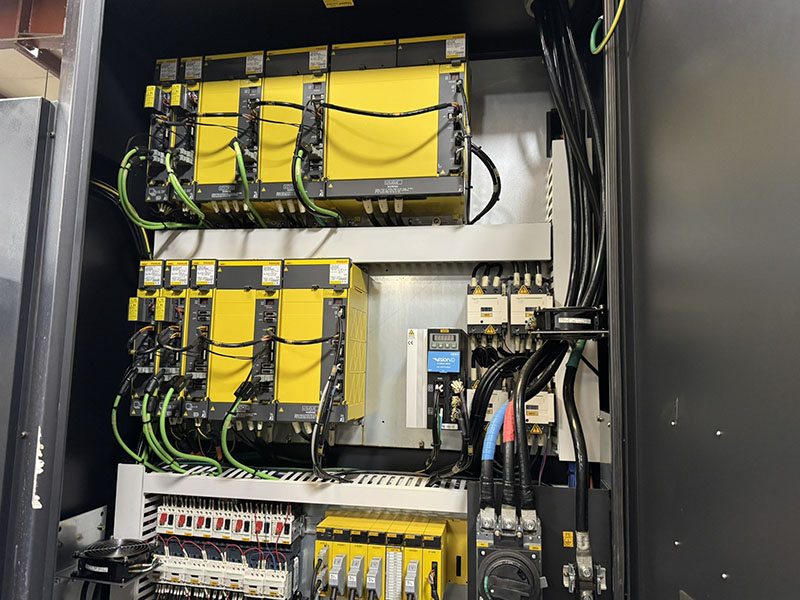

FANUC 31i Model B5, 5-Axis CNC Control
Tool Setter
Parts Unloader & Conveyor
Chip conveyor

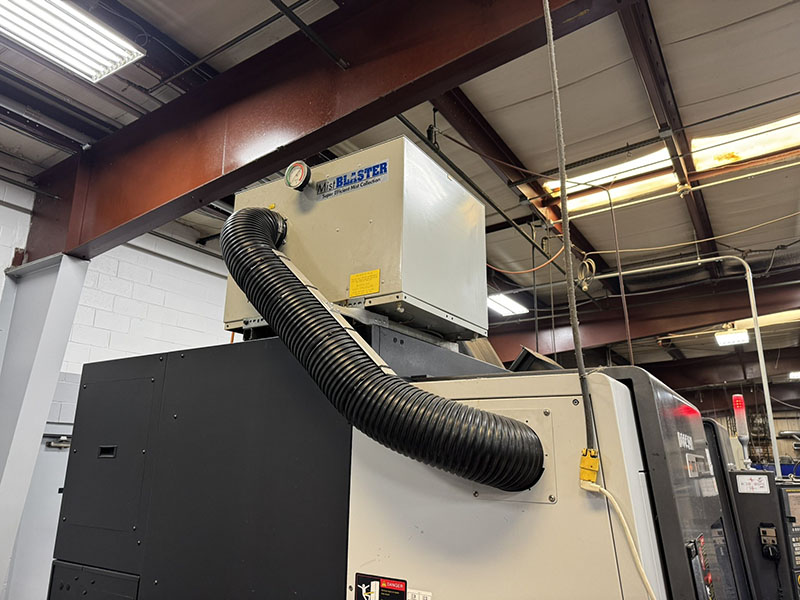

Mist Collector

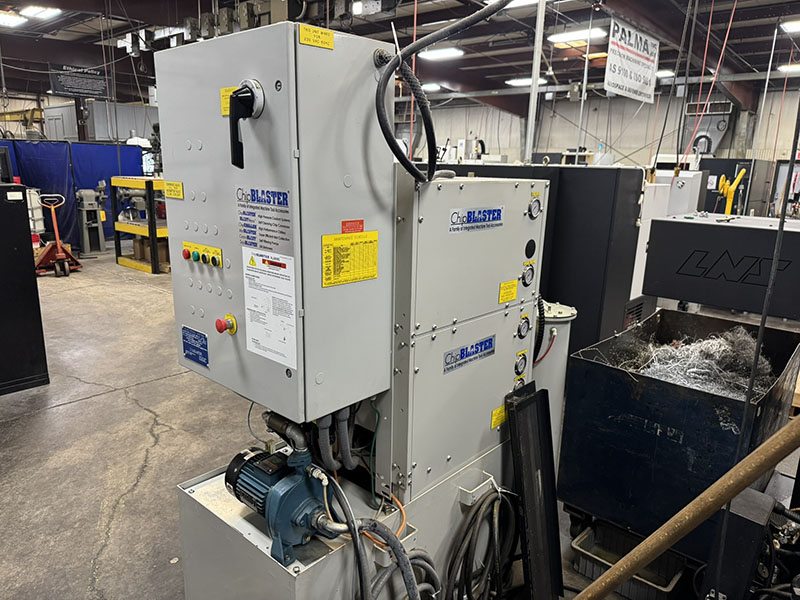

Through Spindle Coolant with High pressure ChipBlaster Unit

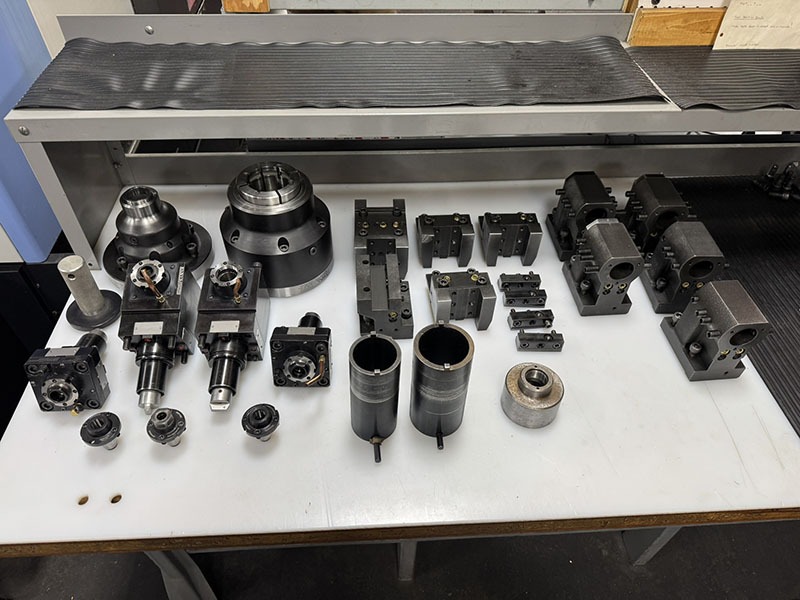

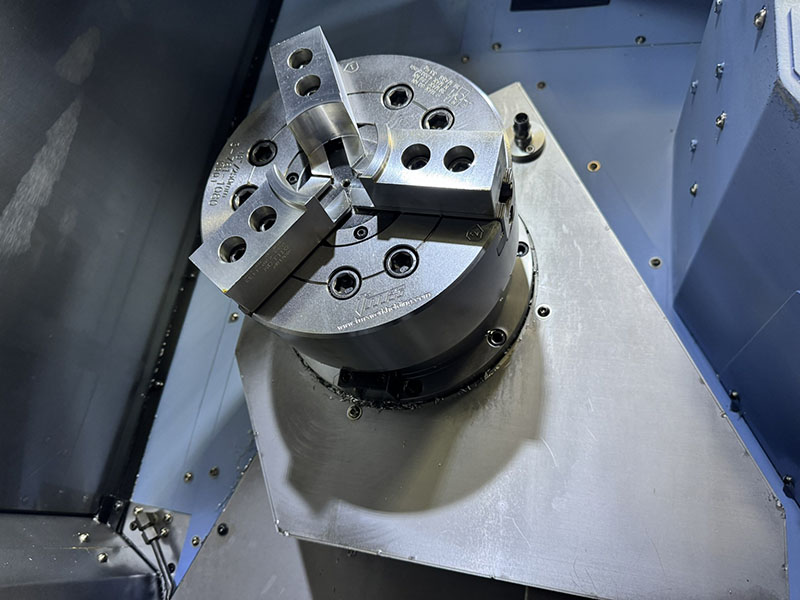

Chucks and Collets for Main and Sub Spindles

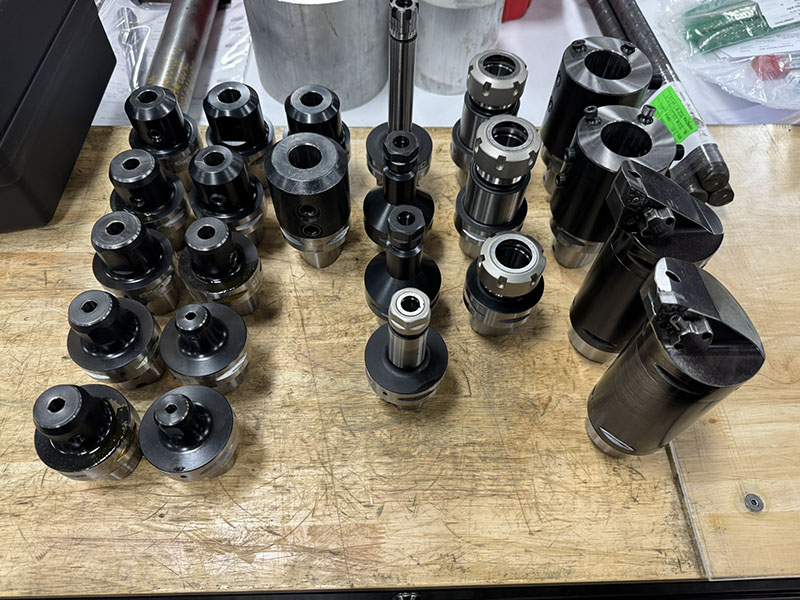

All Available tooling

Inspect Under Power in Shop
Hours as of 11/11/25:

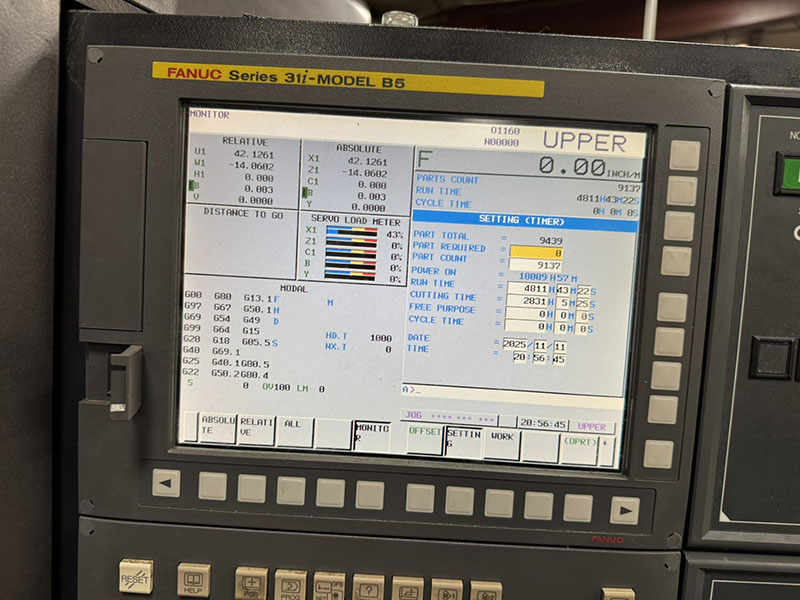

UPPER
Power On 18009
Run Time 4811
Cut 2831

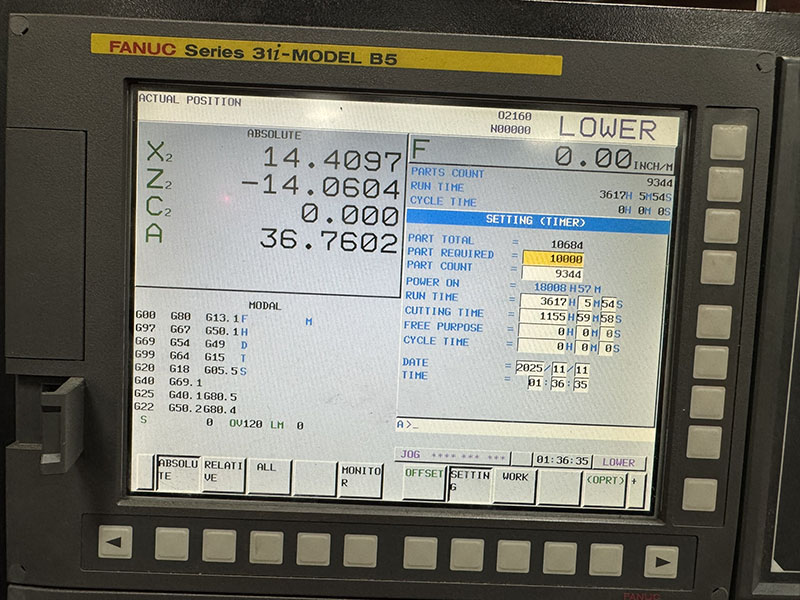

LOWER
Power On 18009
Run Time 3617
Cut 1155

VIDEO LINK: https://youtu.be/nxvaecPGOGs?si=Z30YET5vXvfnC_XE
