Fanuc ROBODRILL D21MiB5-24K-STD, UNIVERSAL 5-AXIS MACHINING CENTER

Price on Request

Make:
Fanuc
Model:
ROBODRILL D21MiB5-24K-STD,
Year:
2017
Ref #:
164108

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com


FANUC ROBODRILL 5-AXIS MACHINING CENTER
MODEL: D21MIB5-24K-STD, YEAR: 2017

SPECIFICATIONS
X-AXIS TRAVEL: ..................... 19.7″
Y-AXIS TRAVEL: ..................... 15.7
Z-AXIS TRAVEL: ..................... 15.7
SPINDLE TO TABLE: .................. 3.1-18.9
TABLE SIZE: ........................ 25.6 X 15.7
TABLE CAPACITY: .................... 881 LBS
TOOL TO TOOL CHANGE TIME: .......... 0.7 SEC
CHIP TO CHIP CHANGE TIME: .......... 1.3 SEC
MAX TOOL LENGTH: ................... 9.8″
MAX TOOL DIAMETER: ................. 3.14″
SPINDLE TAPER: ..................... BBT-30
SPINDLE SPEED: ..................... 24,000 RPM
18.7* / 7.5** HP
X-AXIS RAPID TRAVERSE: ............. 2125 IPM
Y-AXIS RAPID TRAVERSE: ............. 2125 IPM
Z-AXIS RAPID TRAVERSE: ............. 2125 IPM

MACHINE WEIGHT: .................... 4850 LBS
DIMENSIONS: ........................ 63” X 63” X 90”

EQUIPPED WITH:

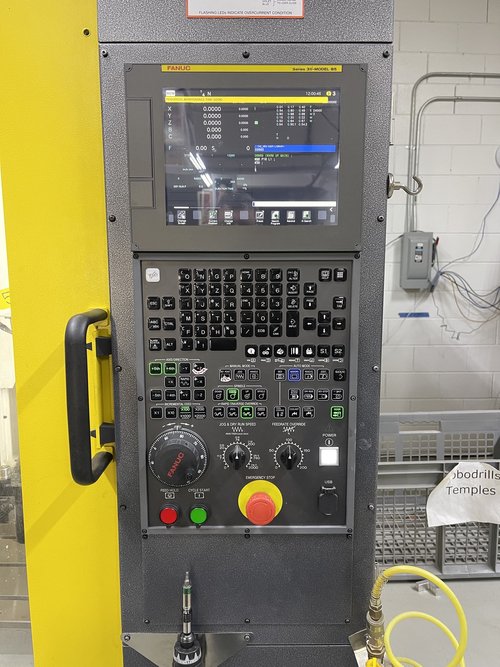

B5 CONTROLLER
24K SPINDLE
BBT30 TAPER

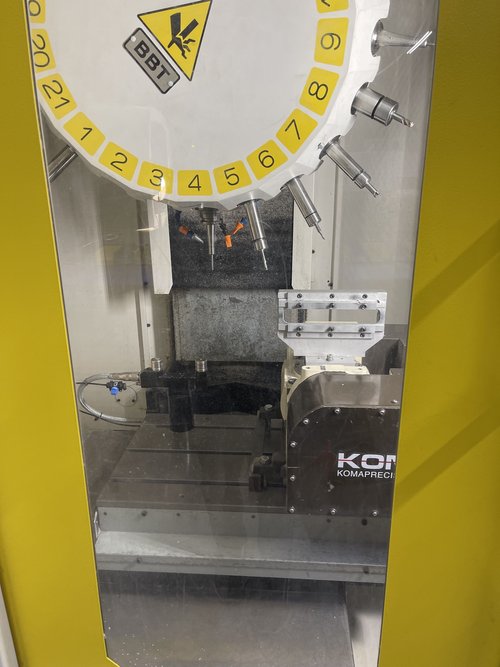

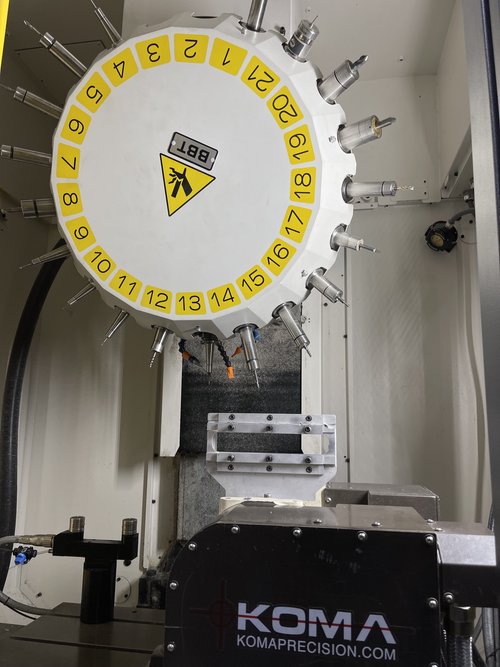

21 ATC
COLUMN RISER
EXTENDED MEMORY

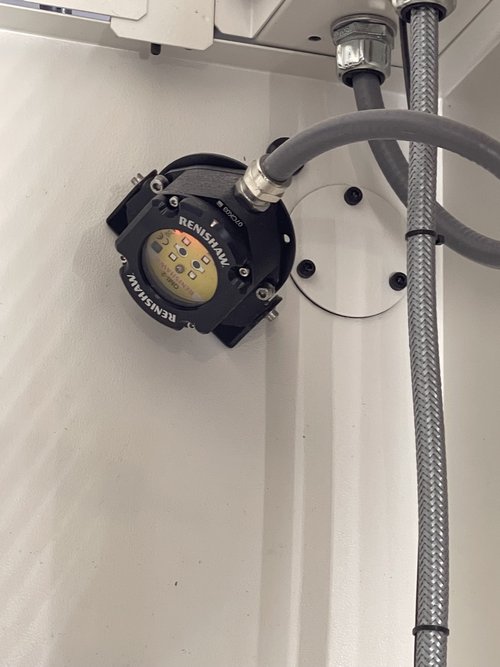

OMP 40 SPINDLE PROBE
NC4 TOOL SETTER

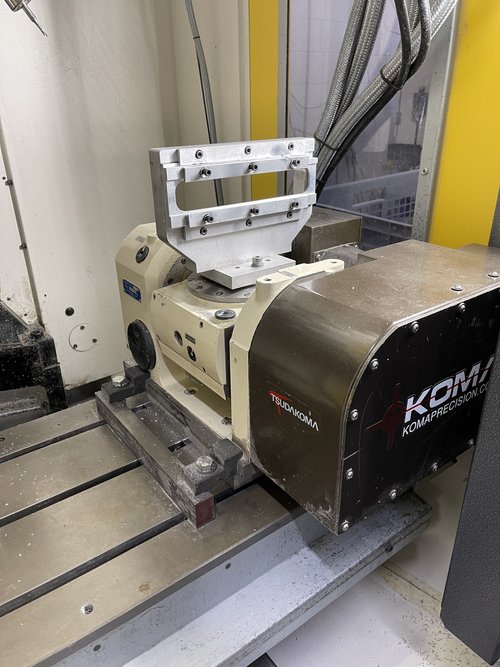

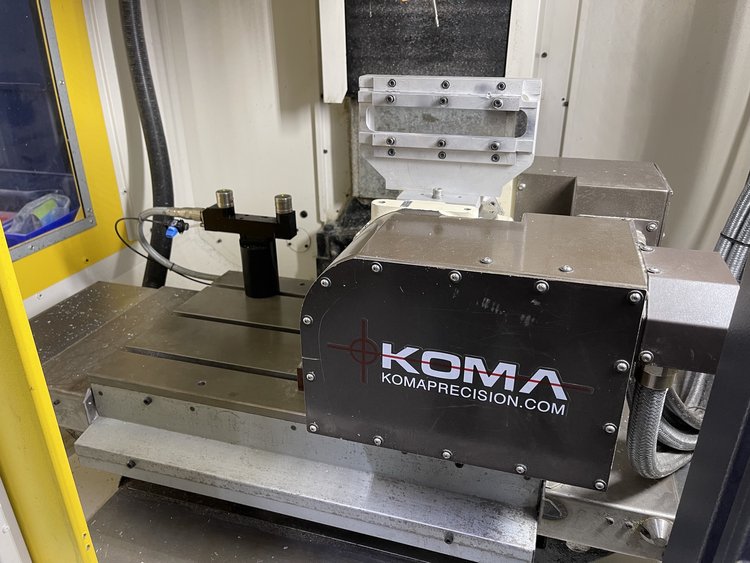

KOMA - TWA-130 2-AXIS ROTARY TABLE
5-AXIS HI-SPEED PRECISION PACKAGE
THROUGH SPINDLE COOLANT (CURRENTLY BEING USED FOR AIR)
OPERATING TIME: 125,067 MINUTES = 2,084 HOURS
CUTTING TIME: 90,358 MINUTES = 1,506 HOURS

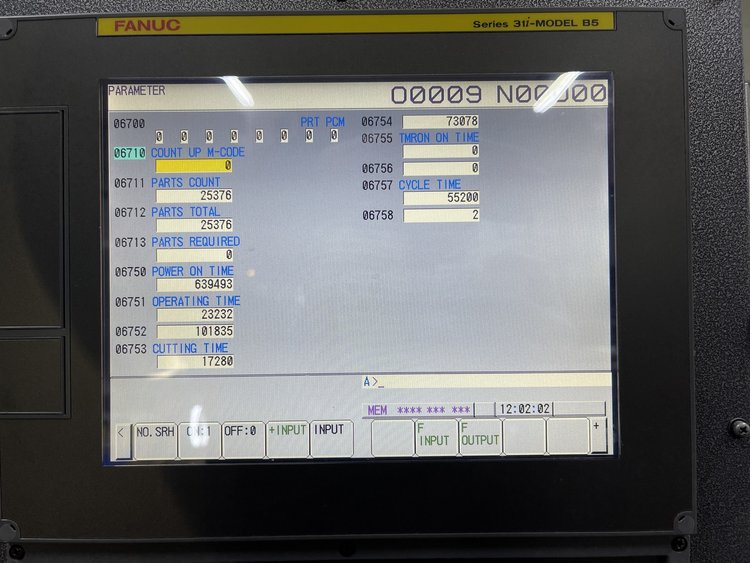

* FANUC PARAMETERS IN THE PHOTO SCREEN SHOTS ARE IN MINUTES

** IMMEDIATE AVAILABILITY
** SINGLE OWNER, EXCLUSIVELY USED FOR PLASTIC
** MACHINE UNDER POWER AND AVAILABLE FOR IN-PERSON INSPECTION.

DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
