Gallmeyer & Livingston 373, USA MADE, 2000, AUTO IDF, 3X AUTO SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:
Gallmeyer & Livingston
Model:
373, USA MADE, 2000, AUTO IDF, 3X AUTO
Year:
2000
Ref #:
168894

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

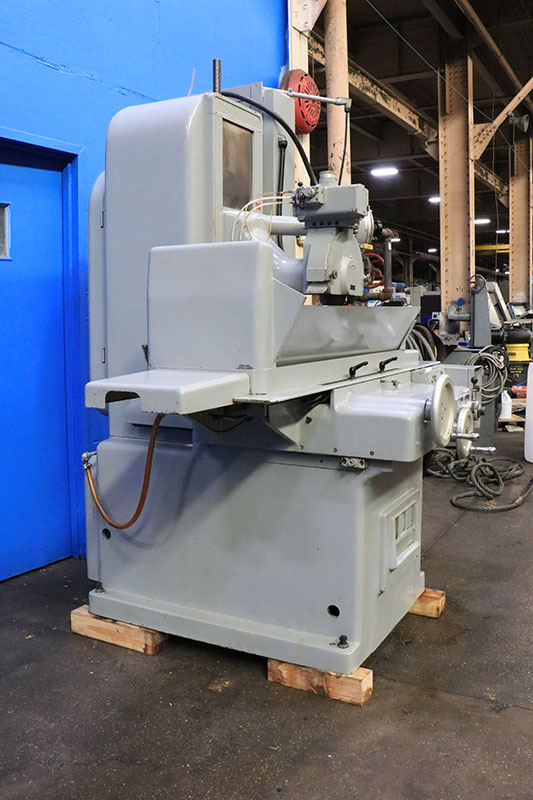

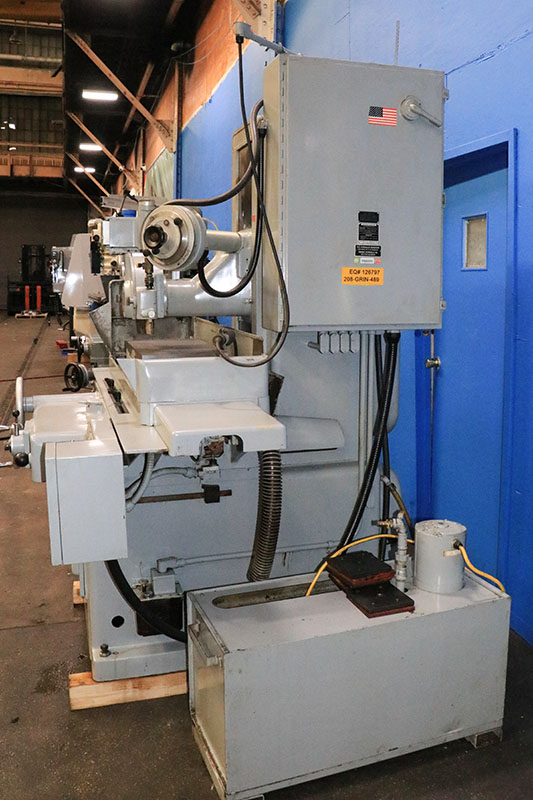

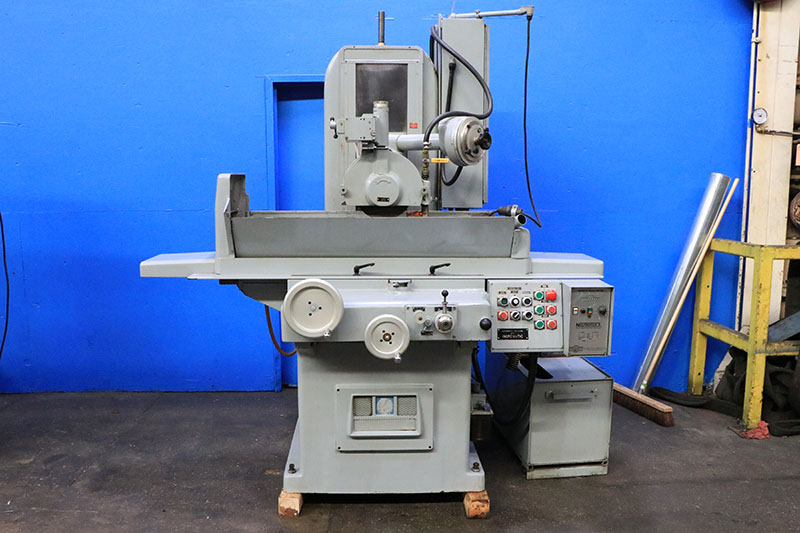

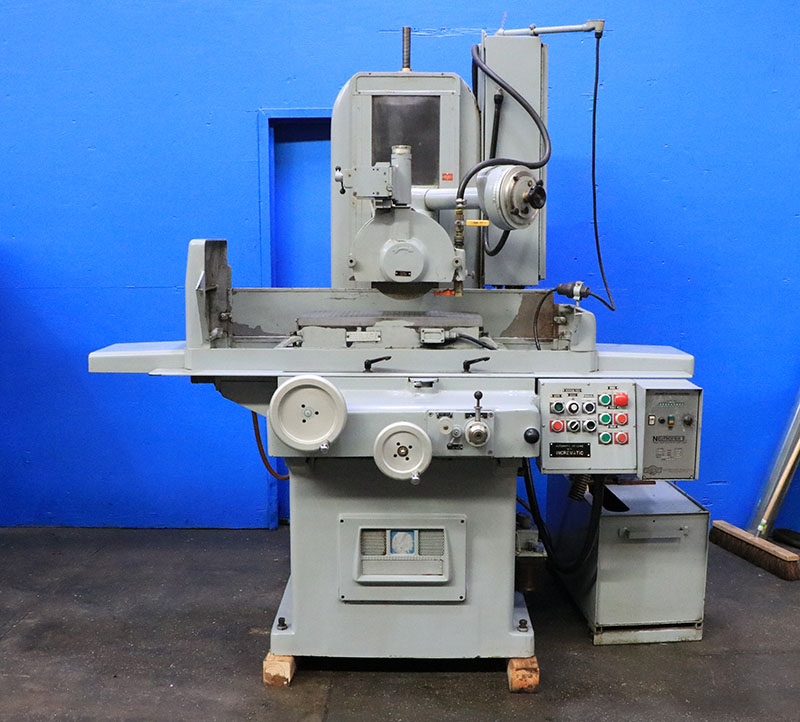

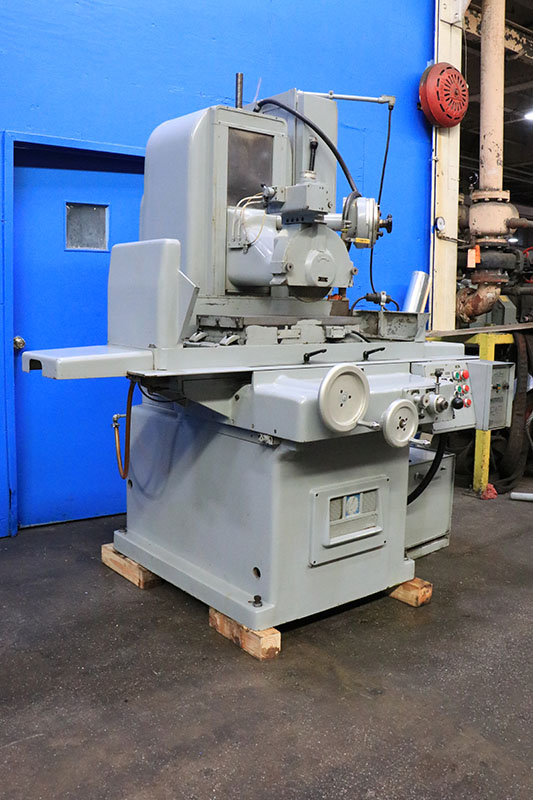

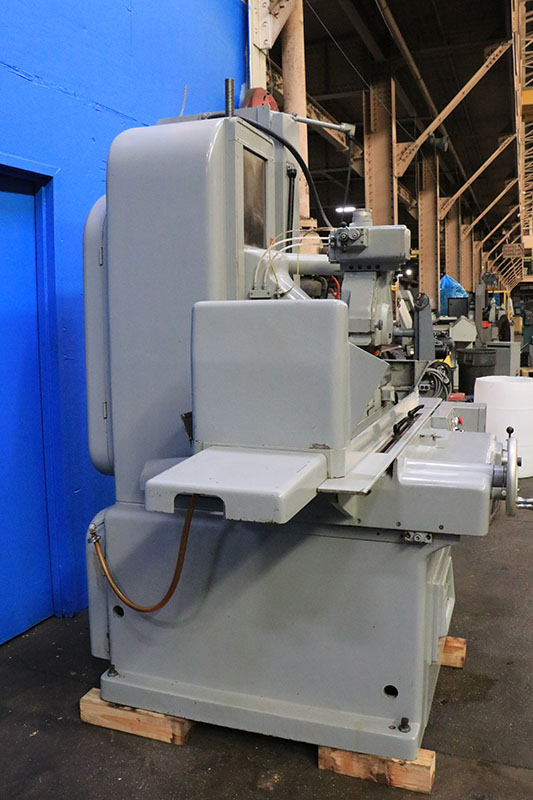

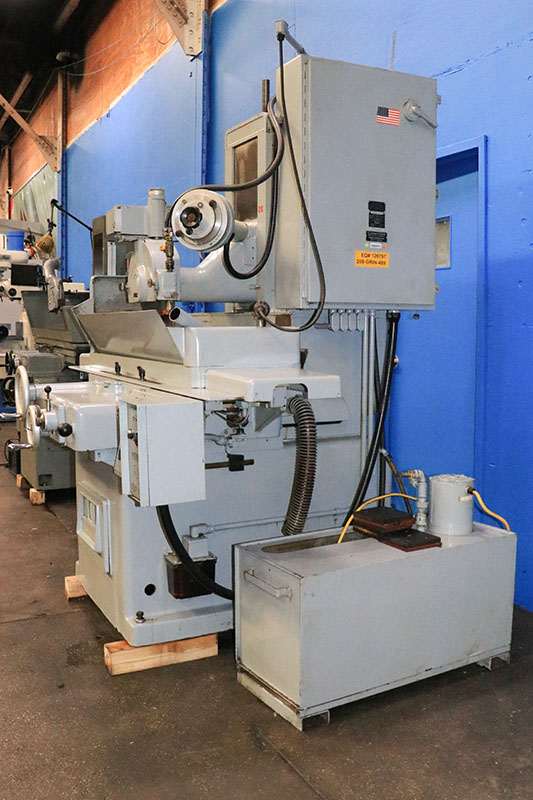

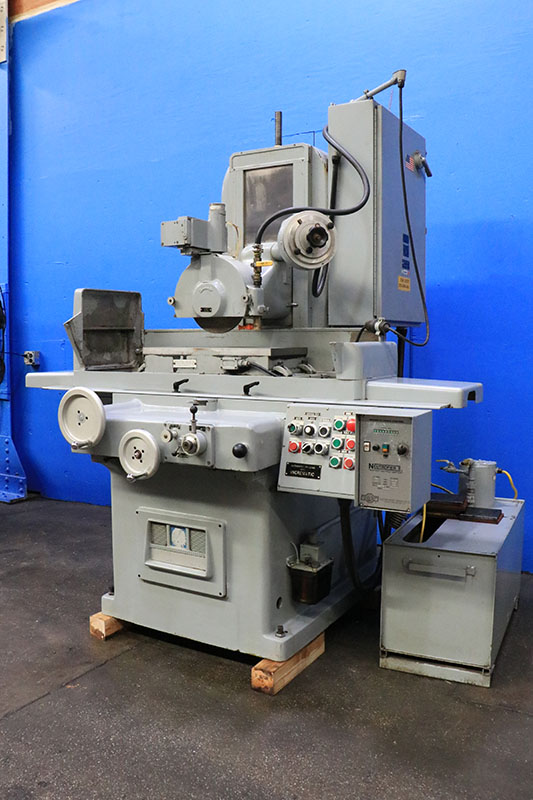

12" X 24" GALLMEYER & LIVINGSTON "GRAND RAPIDS"
    "MADE IN USA" - BEAUTIFULLY MADE
 3-AXIS AUTOMATIC PRECISION HYDRAULIC SURFACE GRINDER
        WITH EXTRA VERTICAL CAPACITY

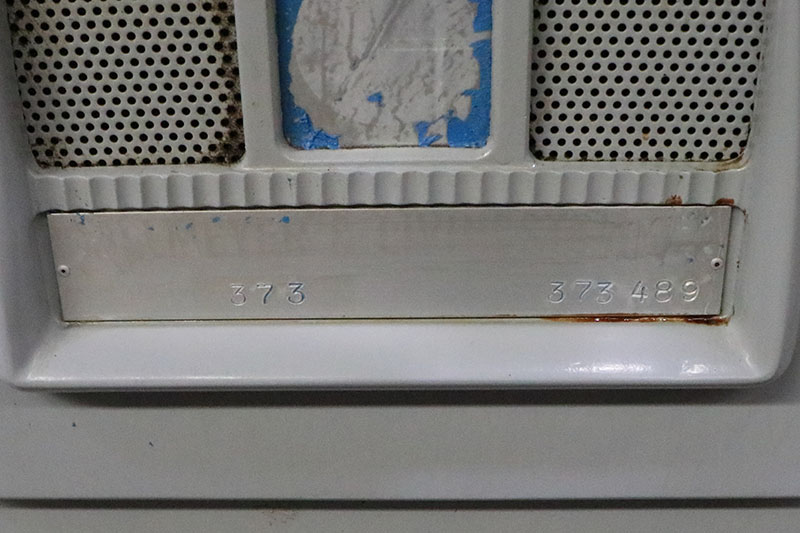

MODEL: 373      S/N: 373-489       NEW: 2000

WORKING SURFACE OF TABLE ................. 12" X 24"
HYDRAULIC TABLE TRAVEL, LONGITUDINAL ….... 29-1/2"
HYDRAULIC TABLE TRAVEL, CROSS ............ 13-1/4"

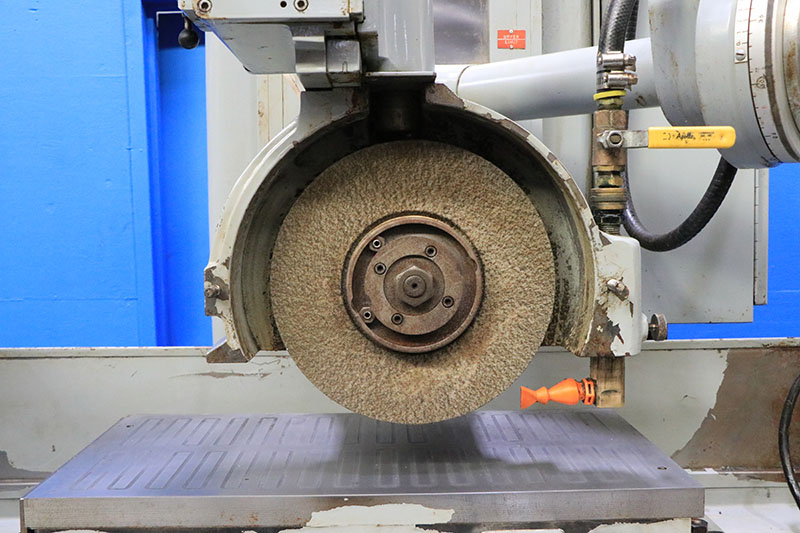

WHEEL SIZE ............................... 12" X 1" X 3"
GRINDING WHEEL SPEEDS (2) ................ 2000 & 2400 RPM
LONGITUDINAL TABLE SPEEDS ................ 3" - 150" IPM
AUTO CROSS FEED TO TABLE PER STROKE ...... 0.01" TO 1/2"
CONTINUOUS CROSS SPEED ................... 120" IPM
AUTO INCREMENTAL DOWNFEED INCREMENTS ..... 0.001" TO .0001"
MAX. TOTAL DOWNFEED FEED AMOUNT .......... 0.050"
VERTICAL MOVEMENT OF WHEELHEAD ........... 19"
MAXIMUM DISTANCE FROM WHEEL TO TABLE ..... 18"

APPROXIMATE FLOOR SPACE ............... 109"W x 73"D x 93"H
APPROXIMATE WEIGHT ....................... 5,700 LBS

  EQUIPPED WITH:
EXTRA 3" VERTICAL CAPACITY, HIGHER COLUMN, NOT A RISER BLOCK

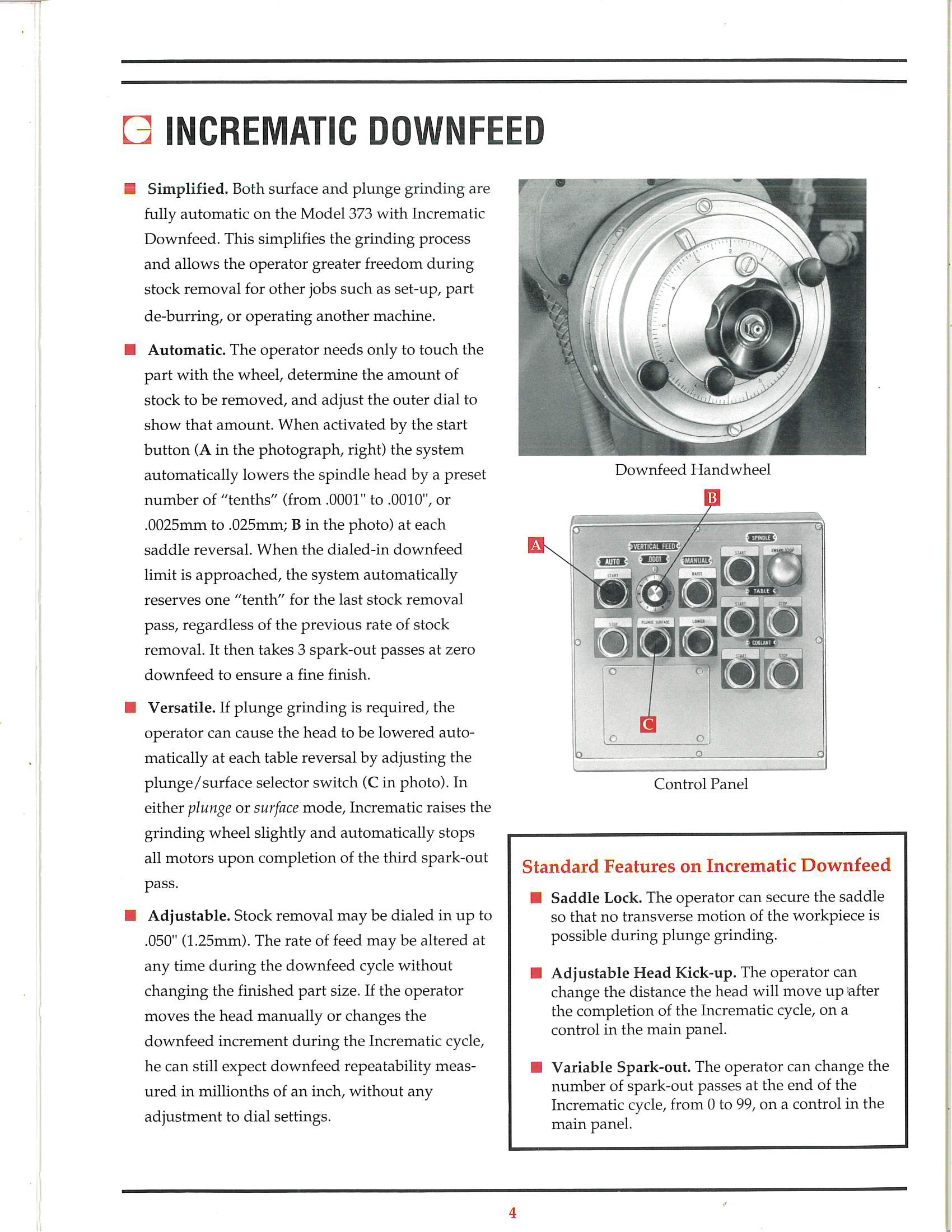

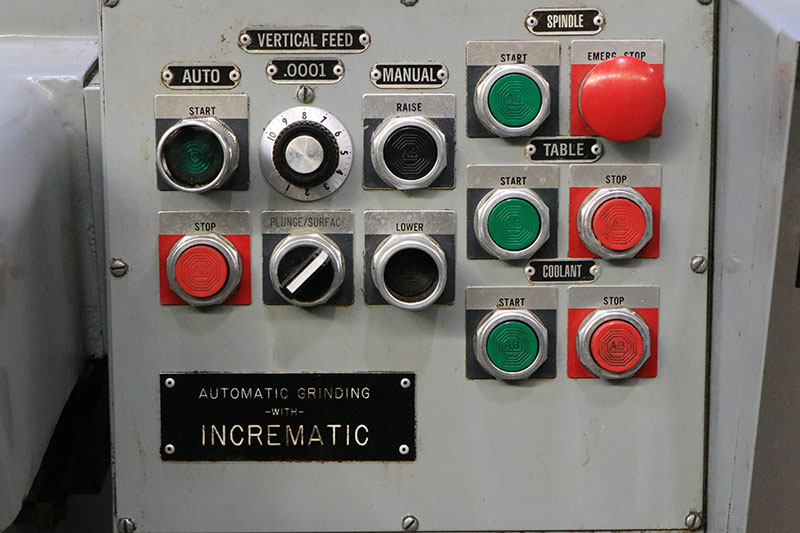

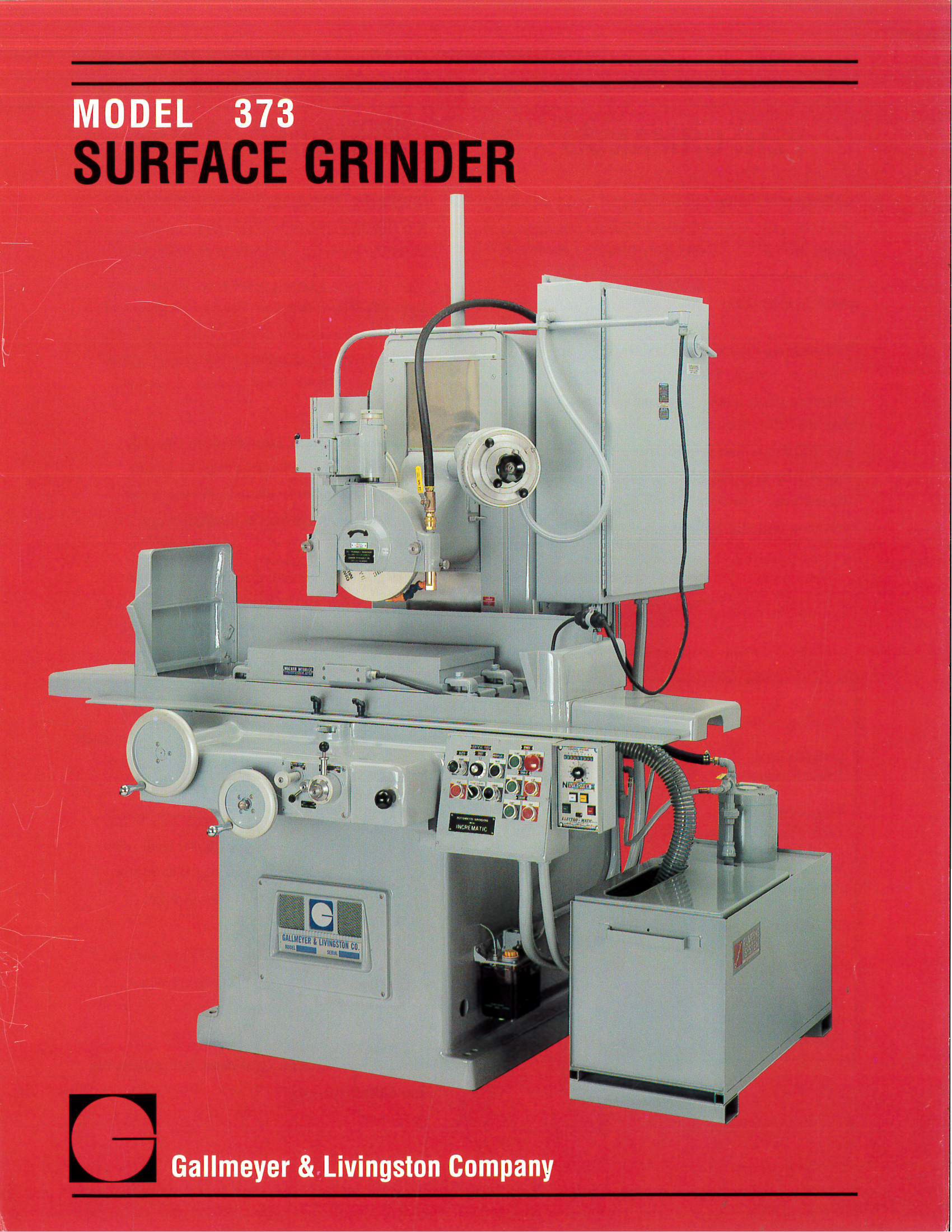

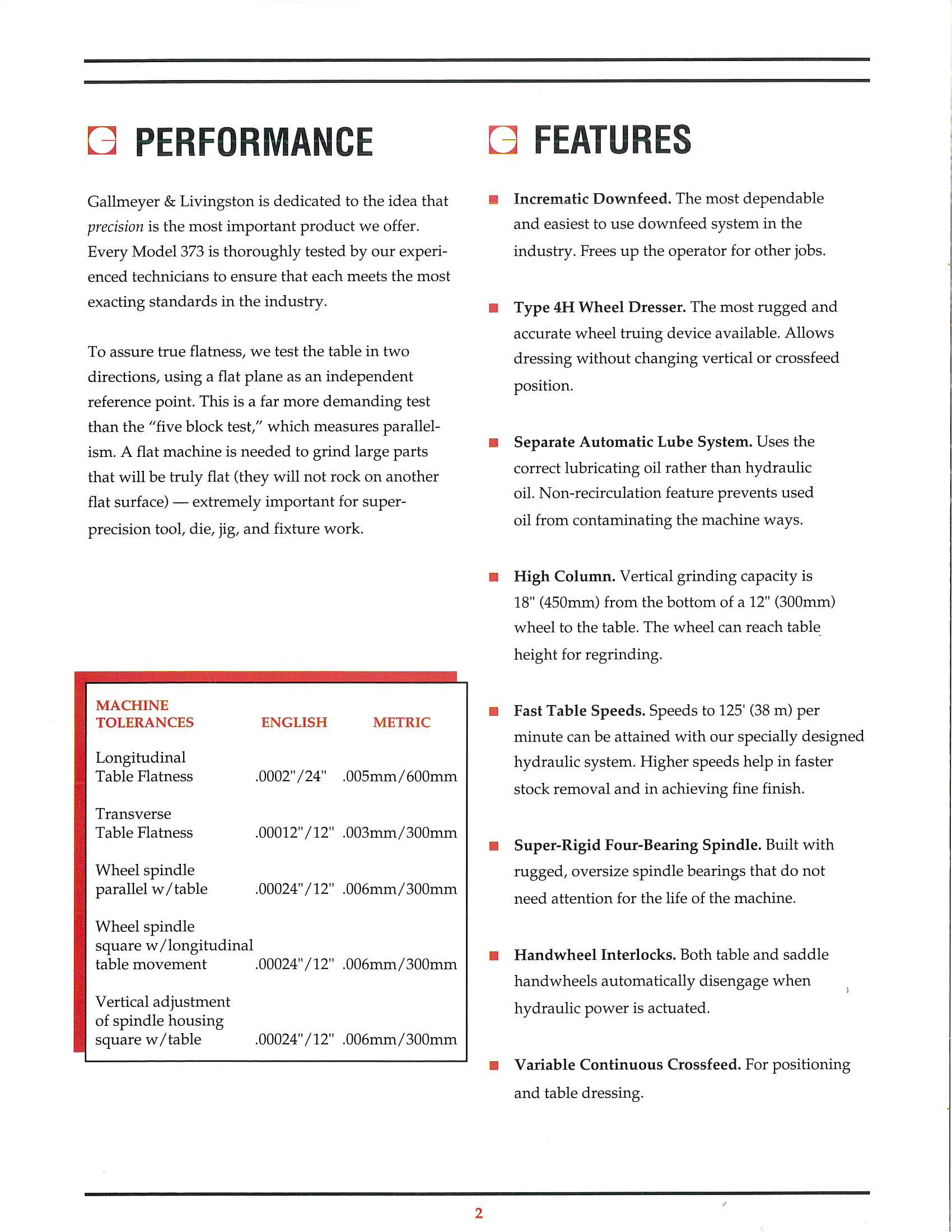

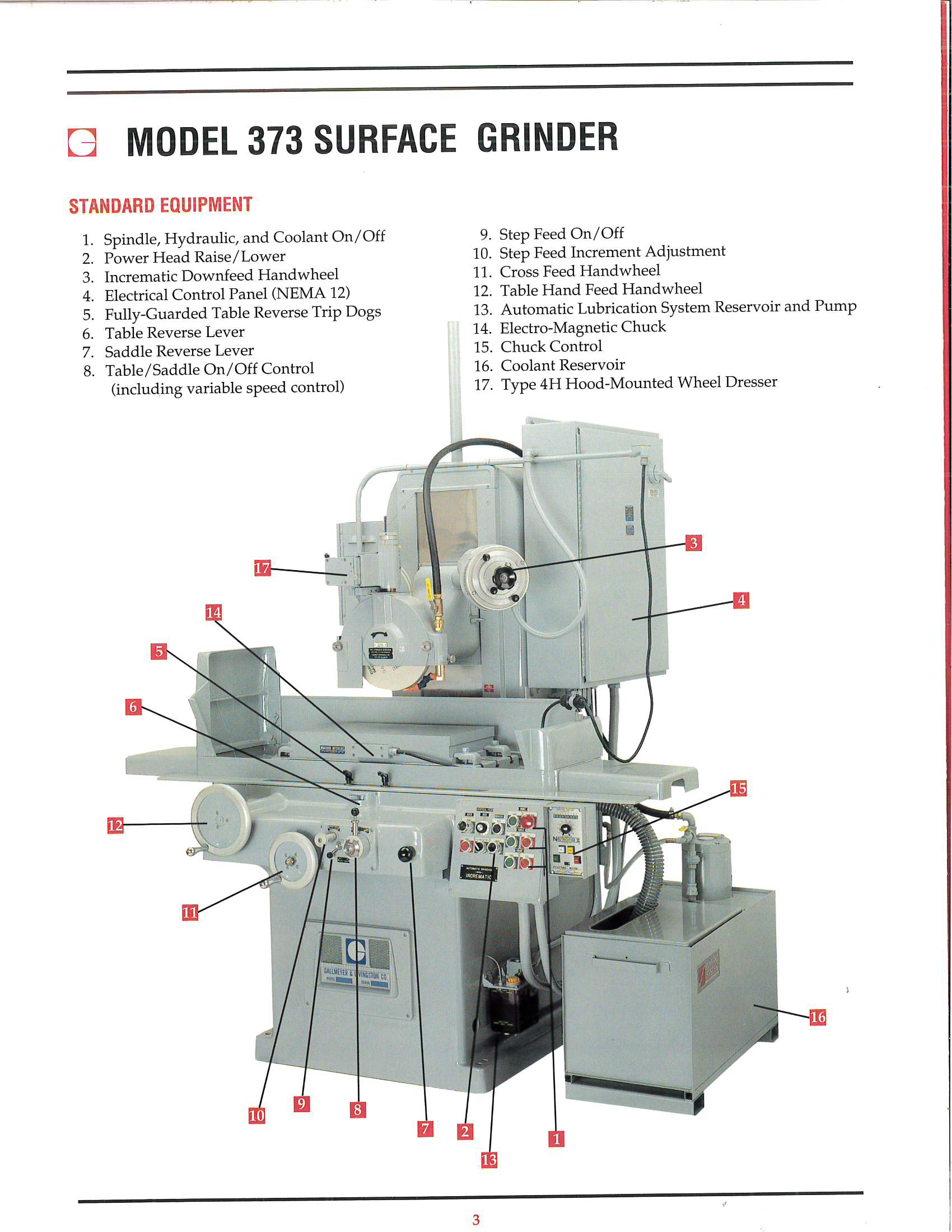

AUTOMATIC GRINDING WITH "INCREMATIC" (SEE SCANNED LITERATURE)

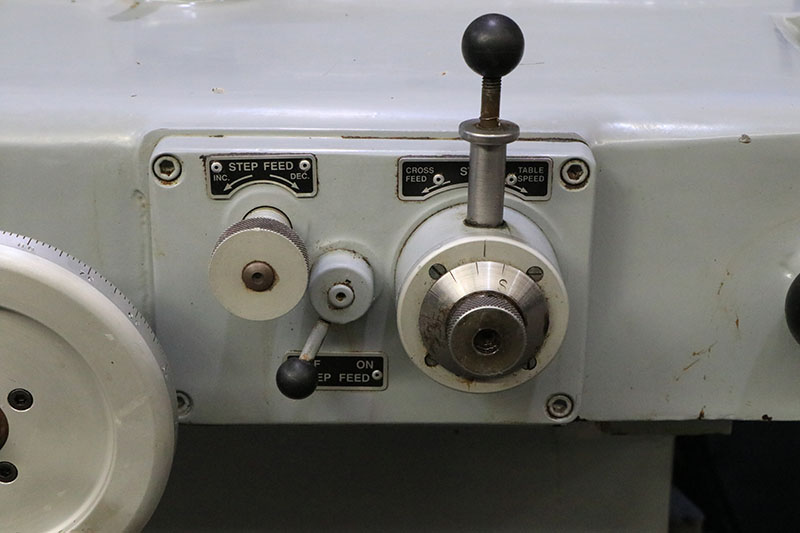

 AUTOMATIC INCREMENTAL DOWNFEED (SURFACE& PLUNGE)
 AUTO WHEEL RETRACTION @ COMPLETION OF GRIND CYCLE
 AUTO TABLE LOAD POSITION

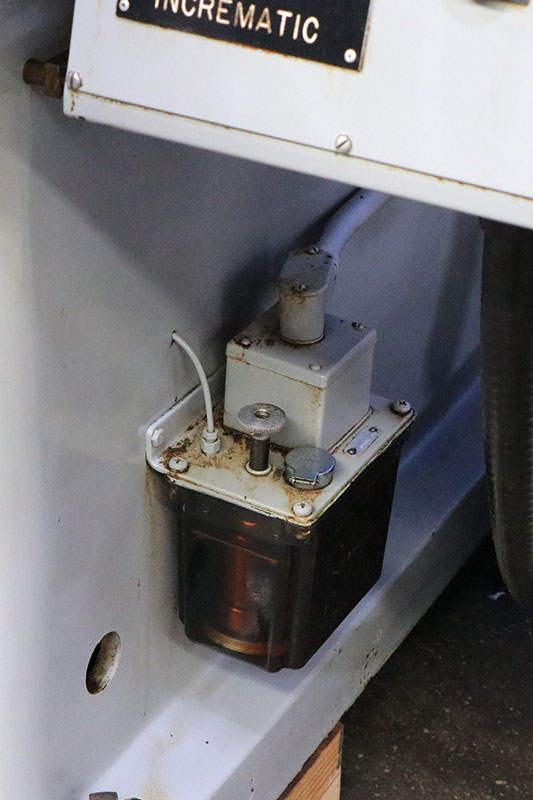

 SPARKOUT TIMER ADJUSTABLE 0 TO 99 PASSES
HYDRAULIC LONGITUDINAL AND CROSS FEEDS
POWER RAPID WHEELHEAD POSITIONING
POWER RAPID CROSS POSITIONING
SADDLE LOCK

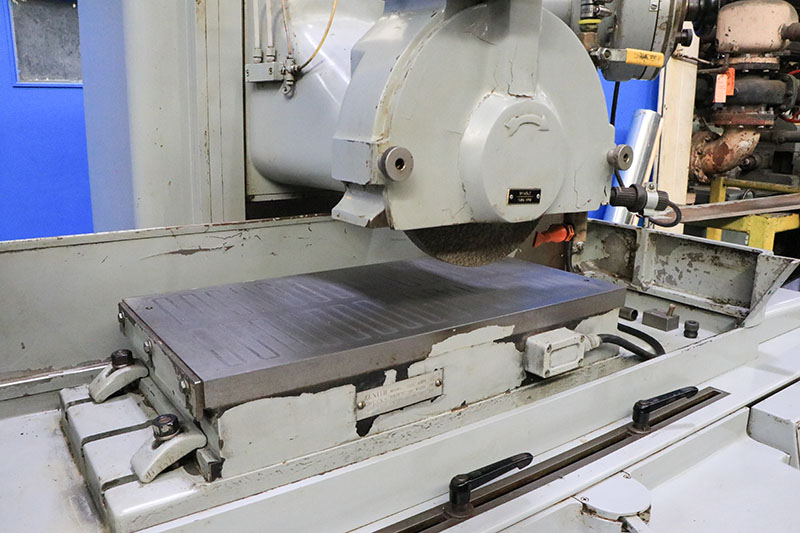

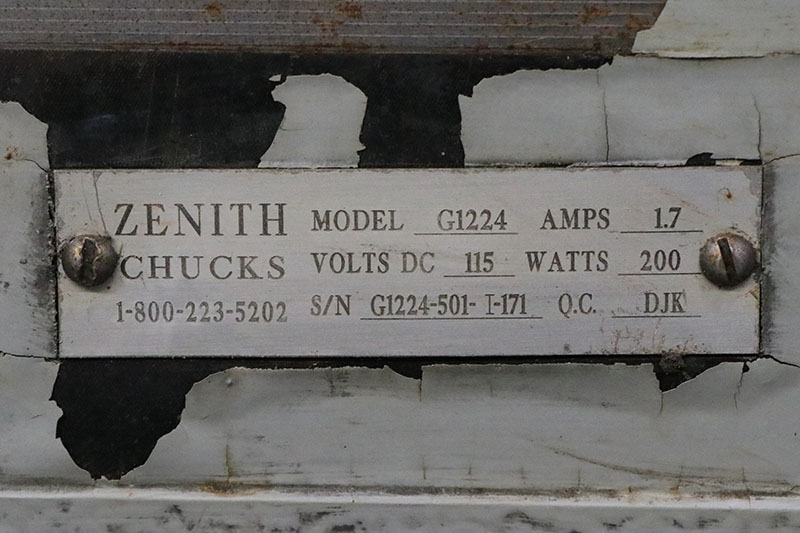

12" X 24" "HEAVY HOLDING POWER" ELECTRO-MAGNETIC CHUCK

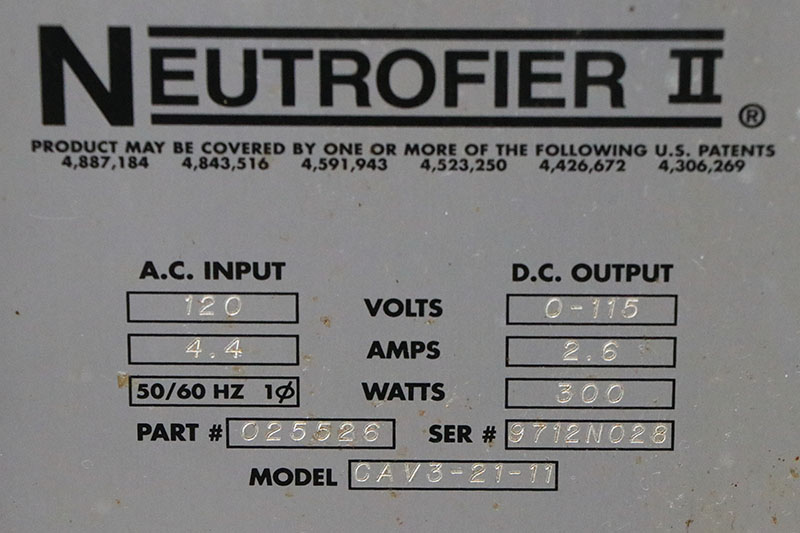

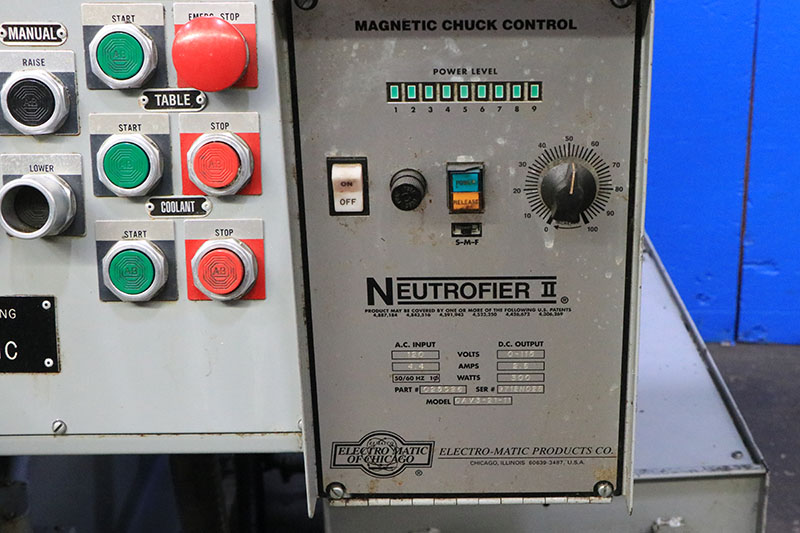

"ELECTRO-MATIC "NEUTROFIER II" VARIABLE HOLD NEUTROFIER CONTROL,
 300 WATT POWER SUPPLY

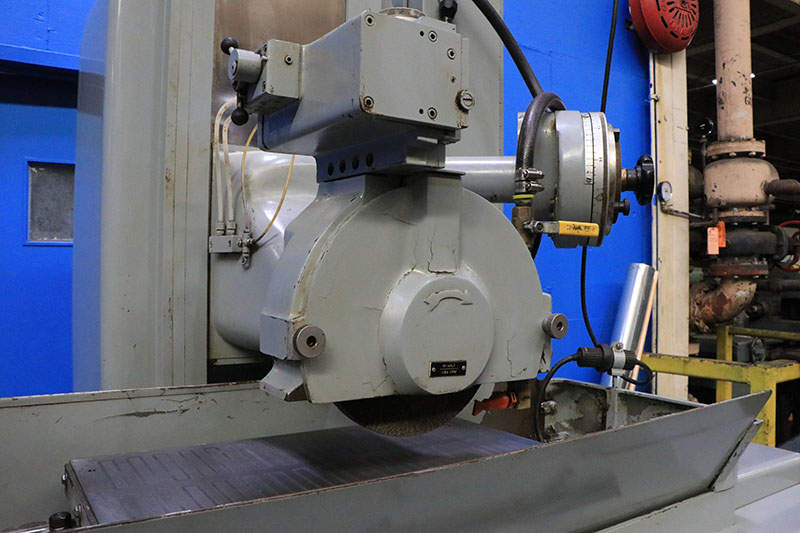

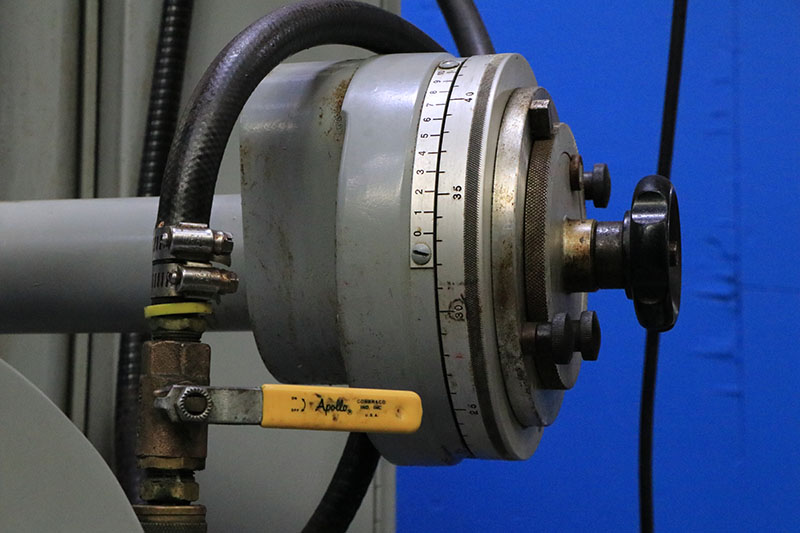

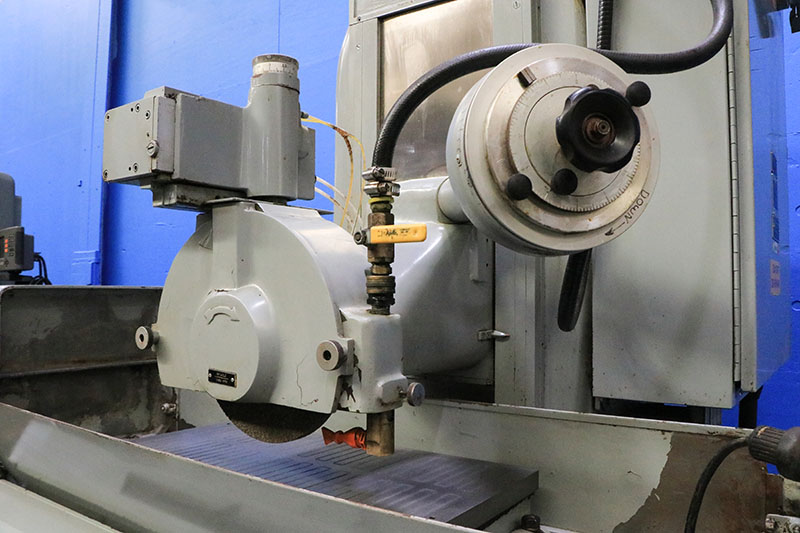

POWER OVER-THE-WHEEL DRESSER

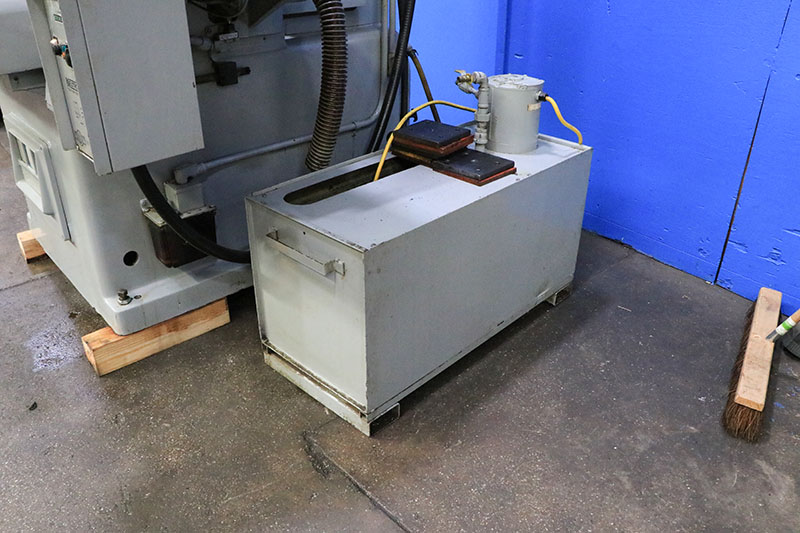

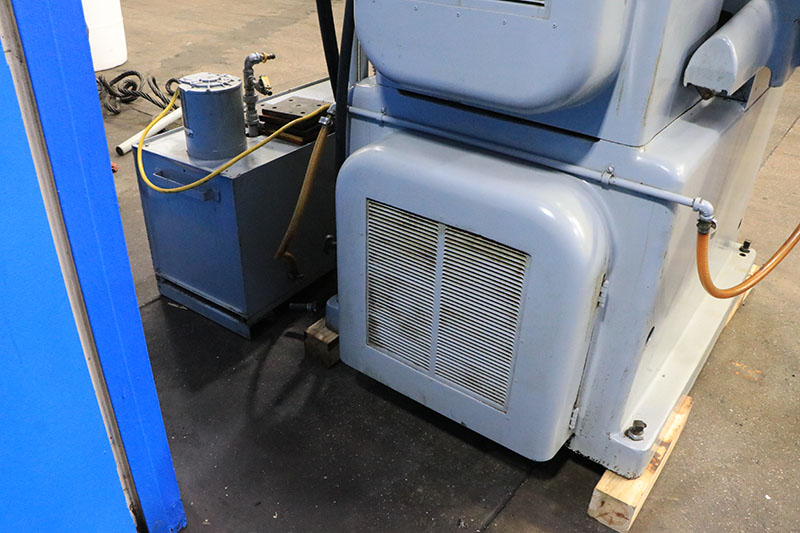

COOLANT SYSTEM W/TANK/PUMP/SPLASH GUARDS
WORK LIGHT

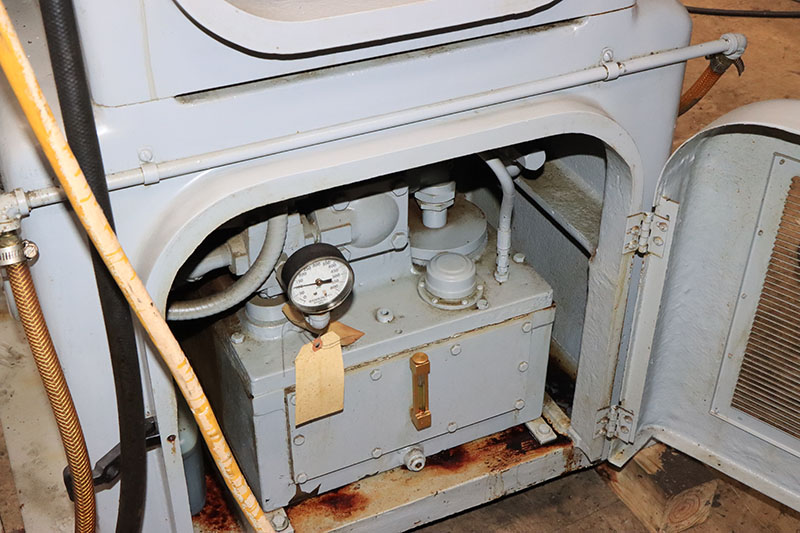

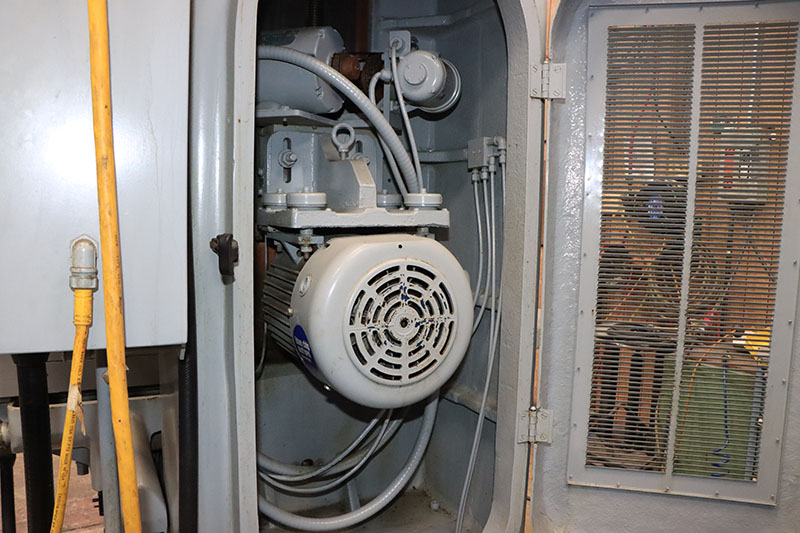

SELF-CONTAINED HYDRAULIC SYSTEM MOTOR
3 HP 3/60/230-460 VOLT SPINDLE DRIVE
MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS


** ABSOLUTELY BEAUTIFUL - SUPERIOR CONDITION & APPEARANCE  **
** - ORIGINAL PAINT - INCREDIBLY LOW USEAGE!!**
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
