Hardinge GT-SP - LIVE TOOL CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Hardinge

Model:: GT-SP - LIVE TOOL

Year:: 1993

Ref #:: 178636

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

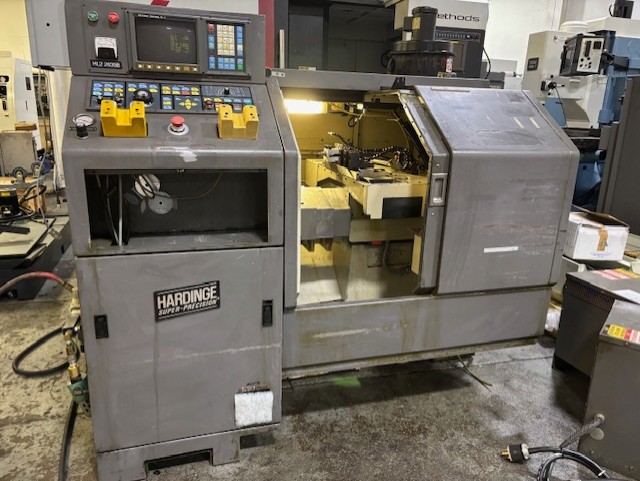

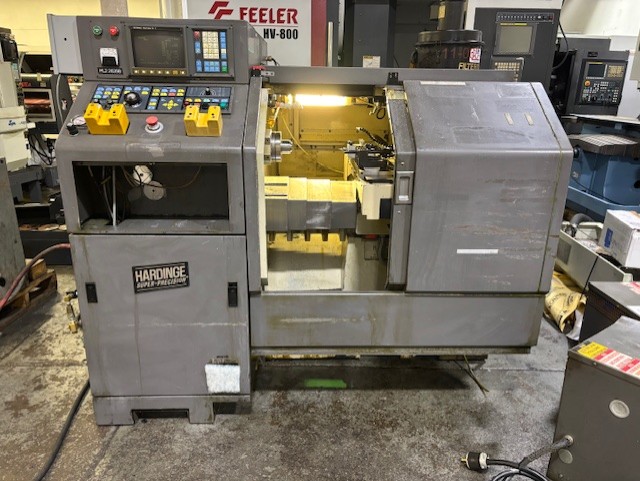

Hardinge Conquest Super Precision GT CNC Gang Type Lathe
New: 1993

VIDEO LINK: https://youtu.be/rdQQp5Of9bw?si=XICmsHWgiaepbU5v

SPECIFICATIONS:
Spindle capacity (5C)............................ 1-1/16"
Swing over way cover.............................. 11.76"
Swing over tool slide top plate................... 2.654"
X-axis travel.................................... 11.968"
Z-axis travel.................................... 11.062"
Spindle face to top plate........................ 11.259"
Spindle nose....................................... A-2-4
Max. spindle speed............................. 6,000 rpm
Max. square tool shank size......................... 0.5"
Max. round tool shank size......................... 0.75"
Spindle motor....................................... 5 Hp
Electrics................. 3/50/60/230V/10.5KW/ FLA 45/41
Dimensions (approx.)................. 120"L x 60"D x 65"H
Weight (approx.)............................... 6,500 lb.

EQUIPPED WITH:

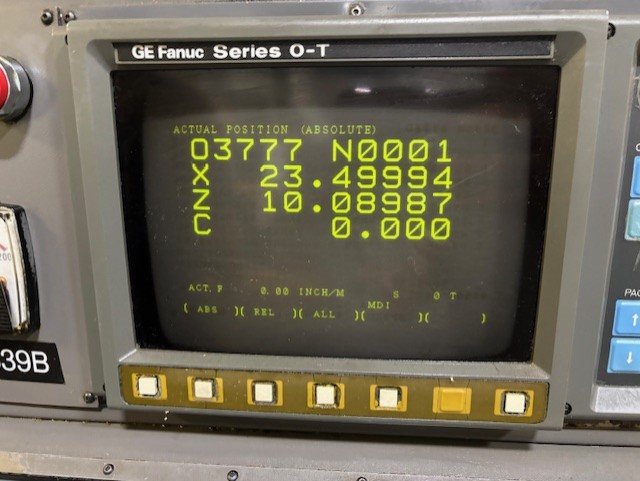

Fanuc 0T-C CNC control

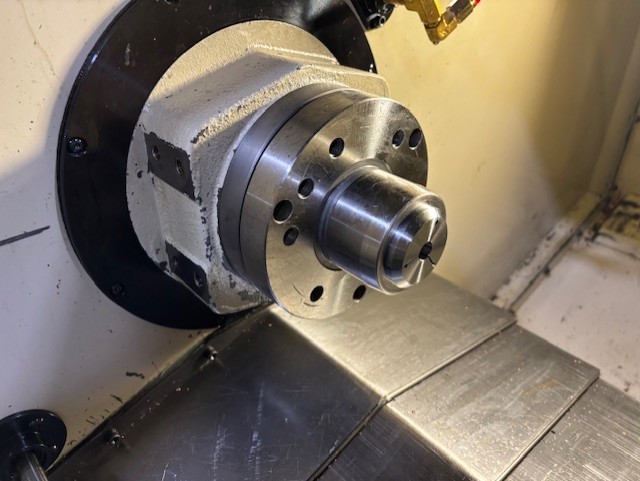

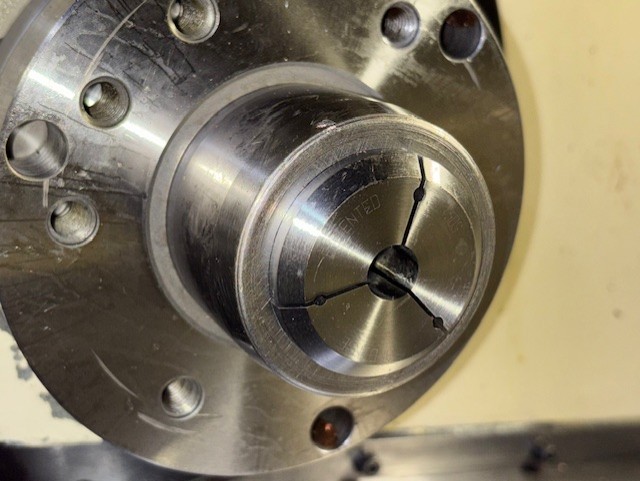

5C collet nose

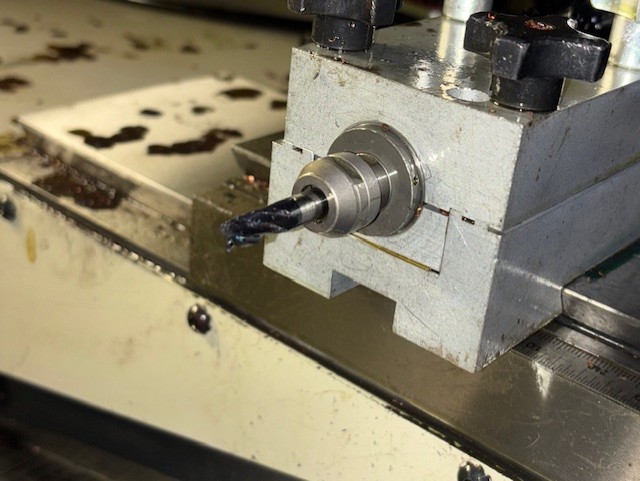

Air Operated Live Tool

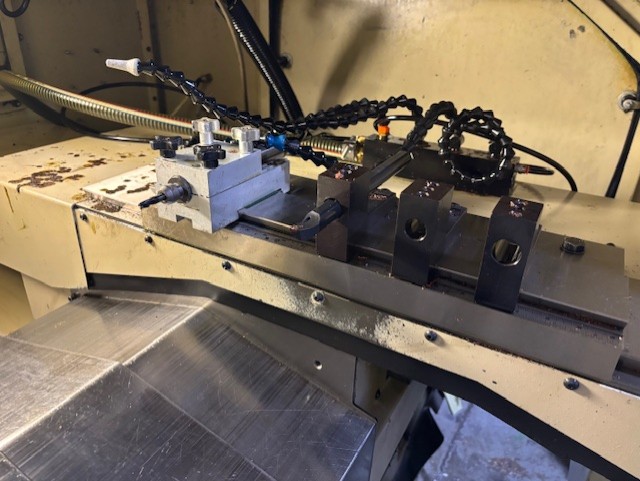

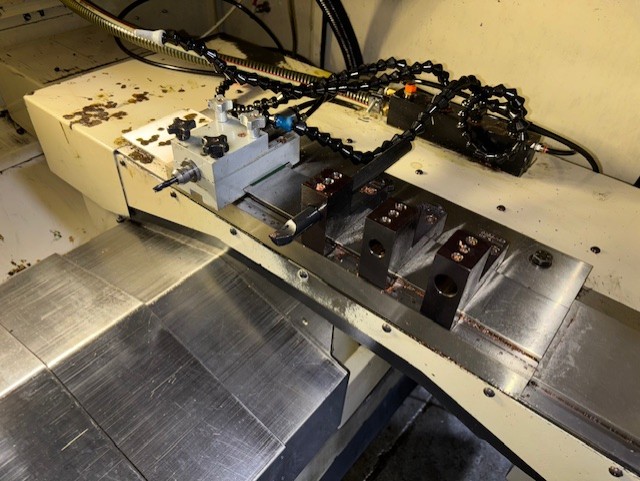

Static Toolholders
