Hurco TM-8i CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Hurco

Model:: TM-8i

Year:: 2016

Ref #:: 178964

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

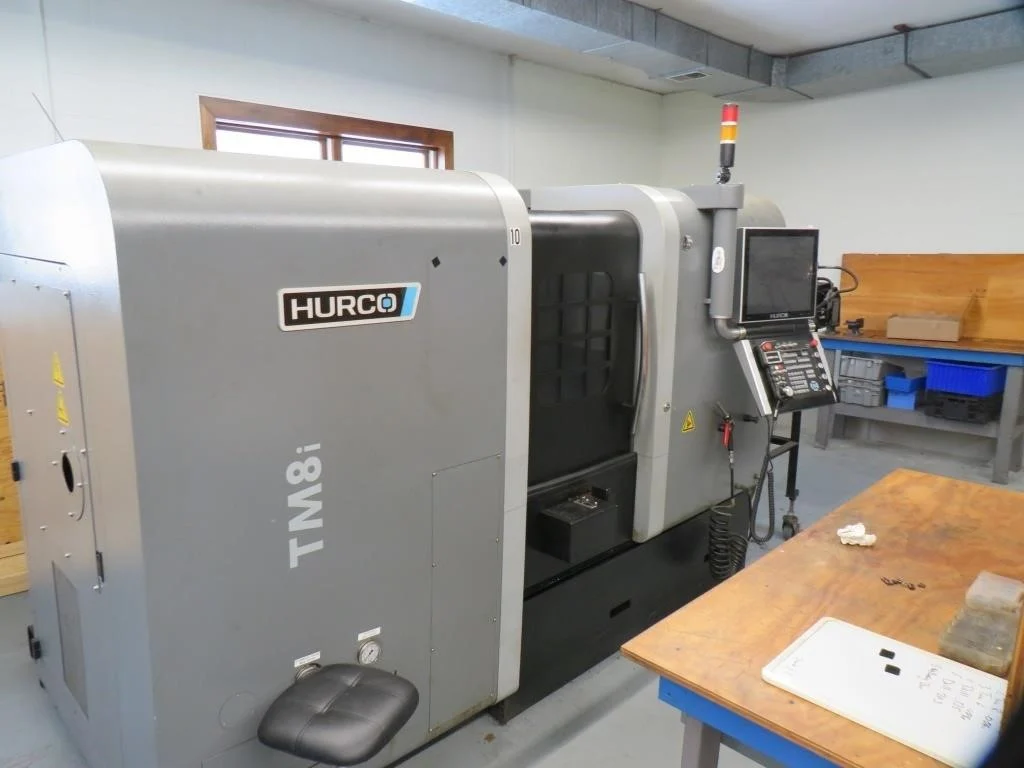

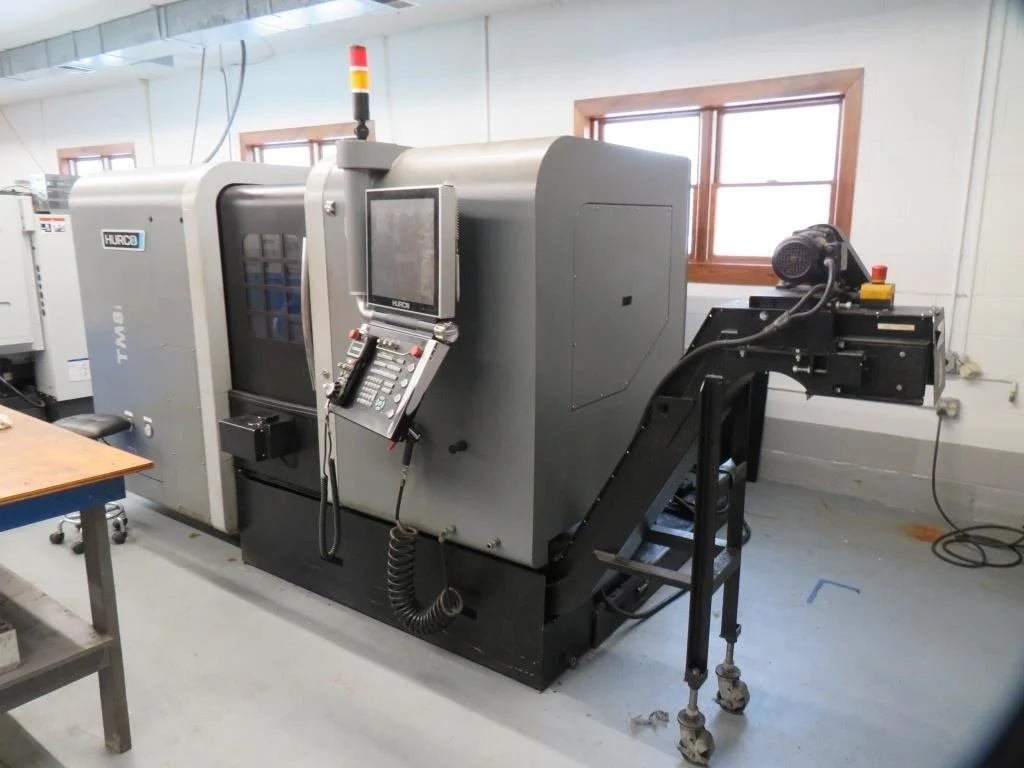

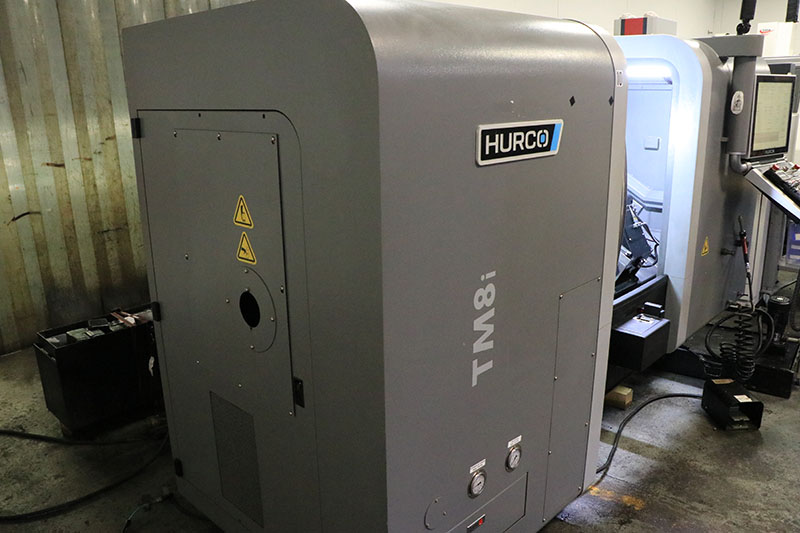

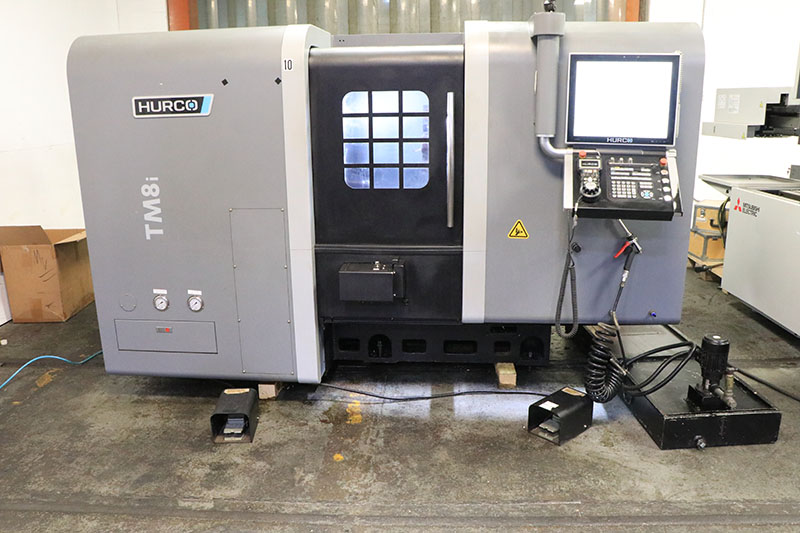

2016 HURCO TM8i CNC Turning Center

Capacity:
Distance Between Centers 23.5"
Swing Over Bed 20.6"
Swing Over Cross Slide 11.8"
Maximum Turning Diameter 14"
Maximum Turning Length 20.6"
Maximum Bar Capacity 2.6"

Travel:
X-Axis 8"
Z-Axis 21.6"

Spindle:
Maximum Spinde Speed 4,000 RPM
Spindle Power 31 HP
Spindle Nose A2-6

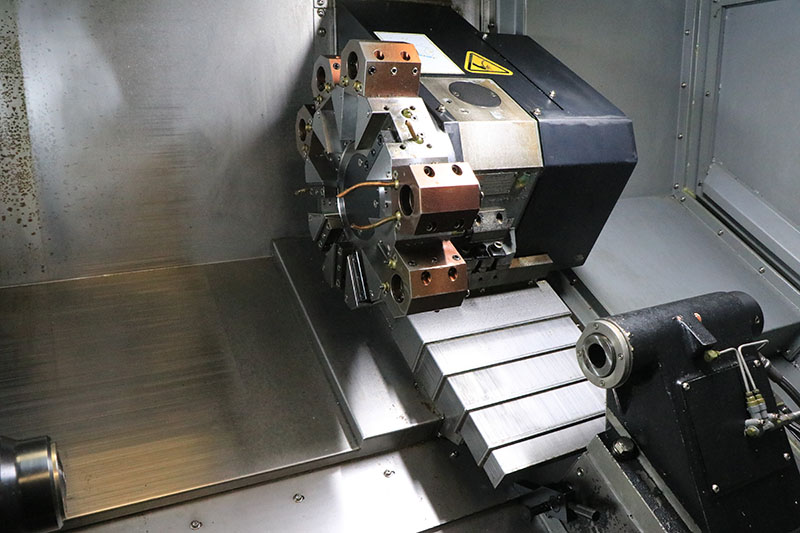

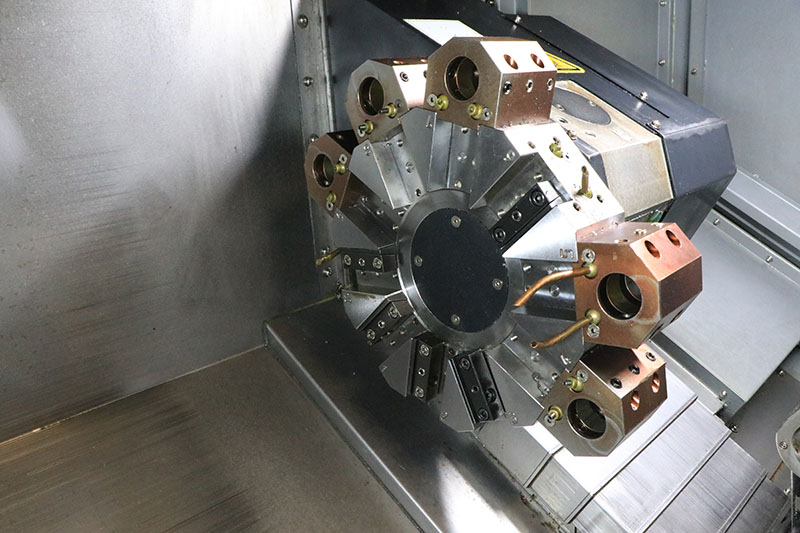

Turret:
Tool Type - Slotted Disk
Tool Capacity - 12 Stations

Approximate Floor Space 169" x 107" x 86" H
Approximate Weight 9,000 Lbs


Equipped With:

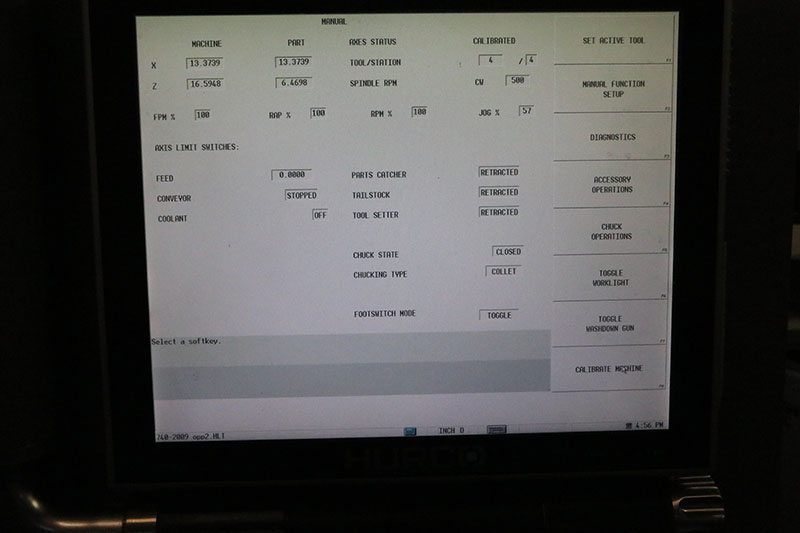

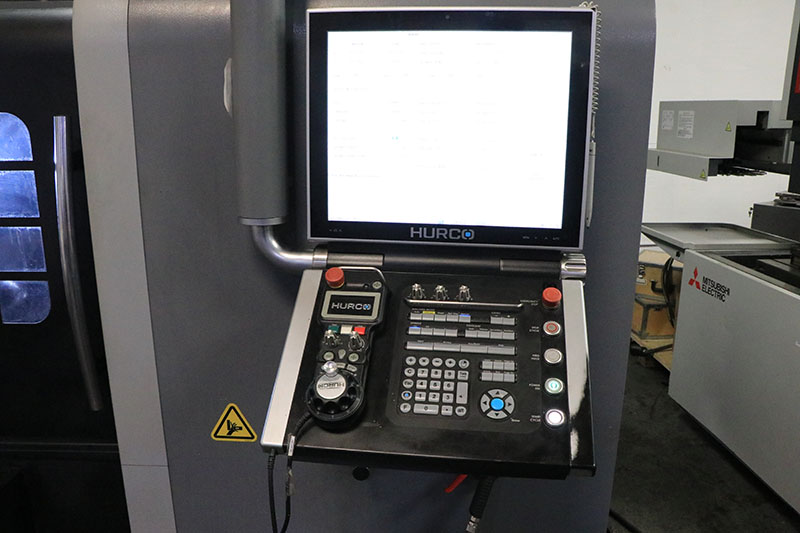

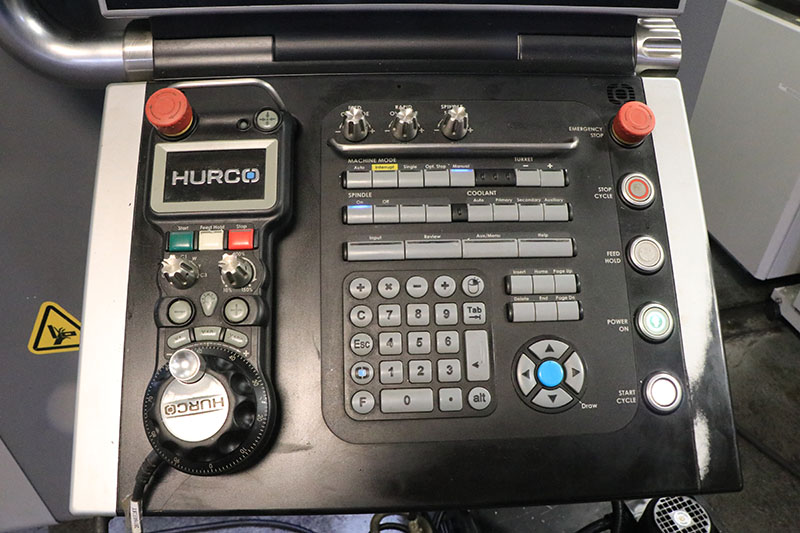

Hurco MAX5 CNC Control with 19" Touch Screen LCD with:
- Conversational Programming
- NC/G Code Programming
- NC/Conversational Merge

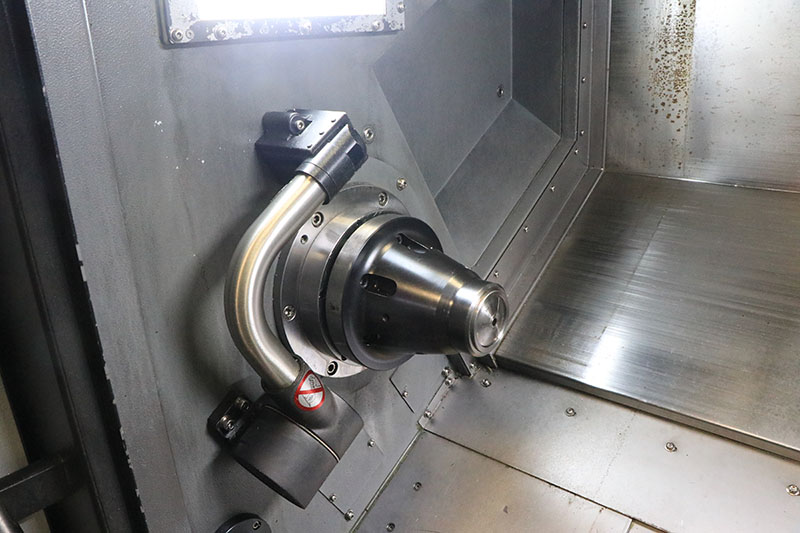

Tool Pre-Setter, Renishaw
Parts Catcher
Tailstock

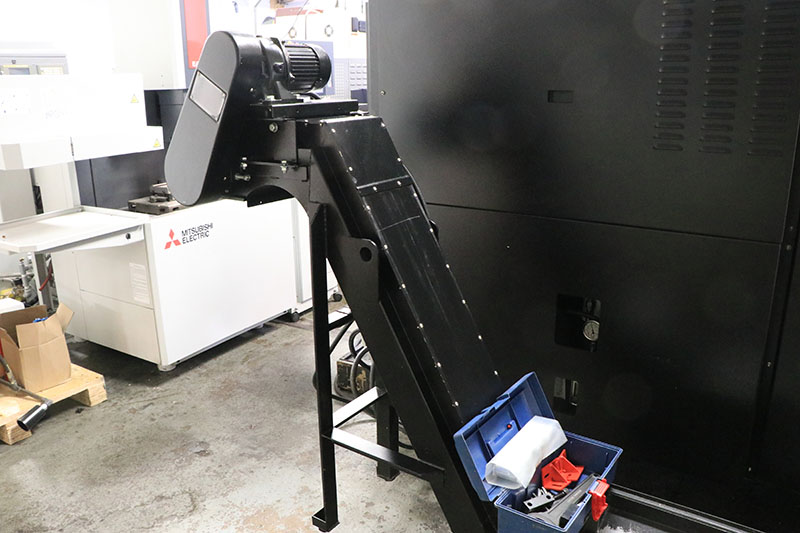

Chip Conveyor

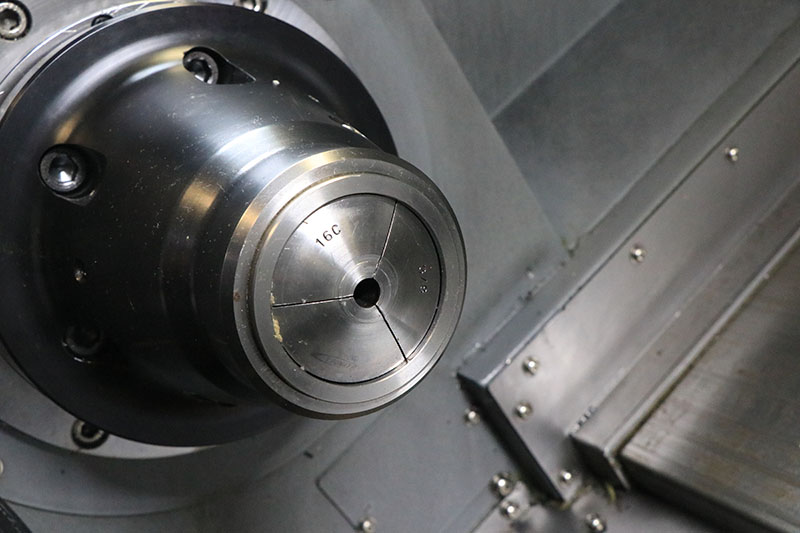

8" 3-Jaw Chuck and Collet

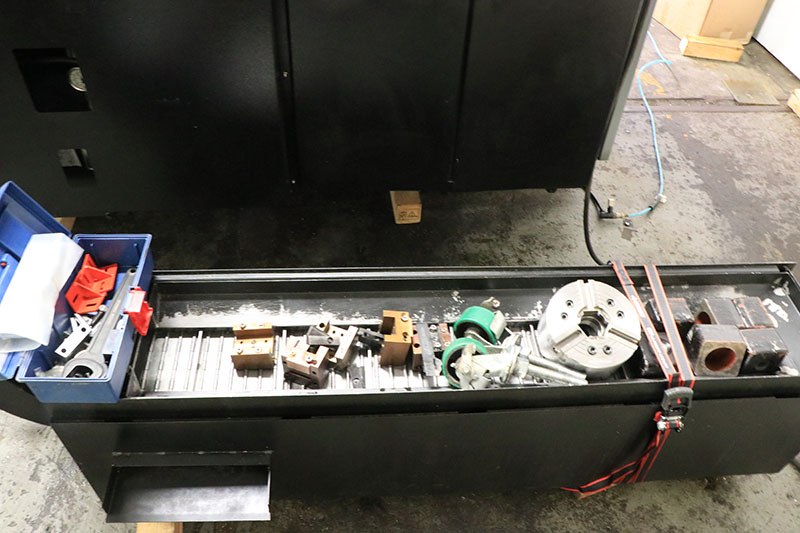

Misc Tool Blocks
