Kent KGS-510AHD, 2013, 3X AUTO, COLUMN TYPE SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Kent

Model:: KGS-510AHD, 2013, 3X AUTO, COLUMN TYPE

Year:: 2013

Ref #:: 178891

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

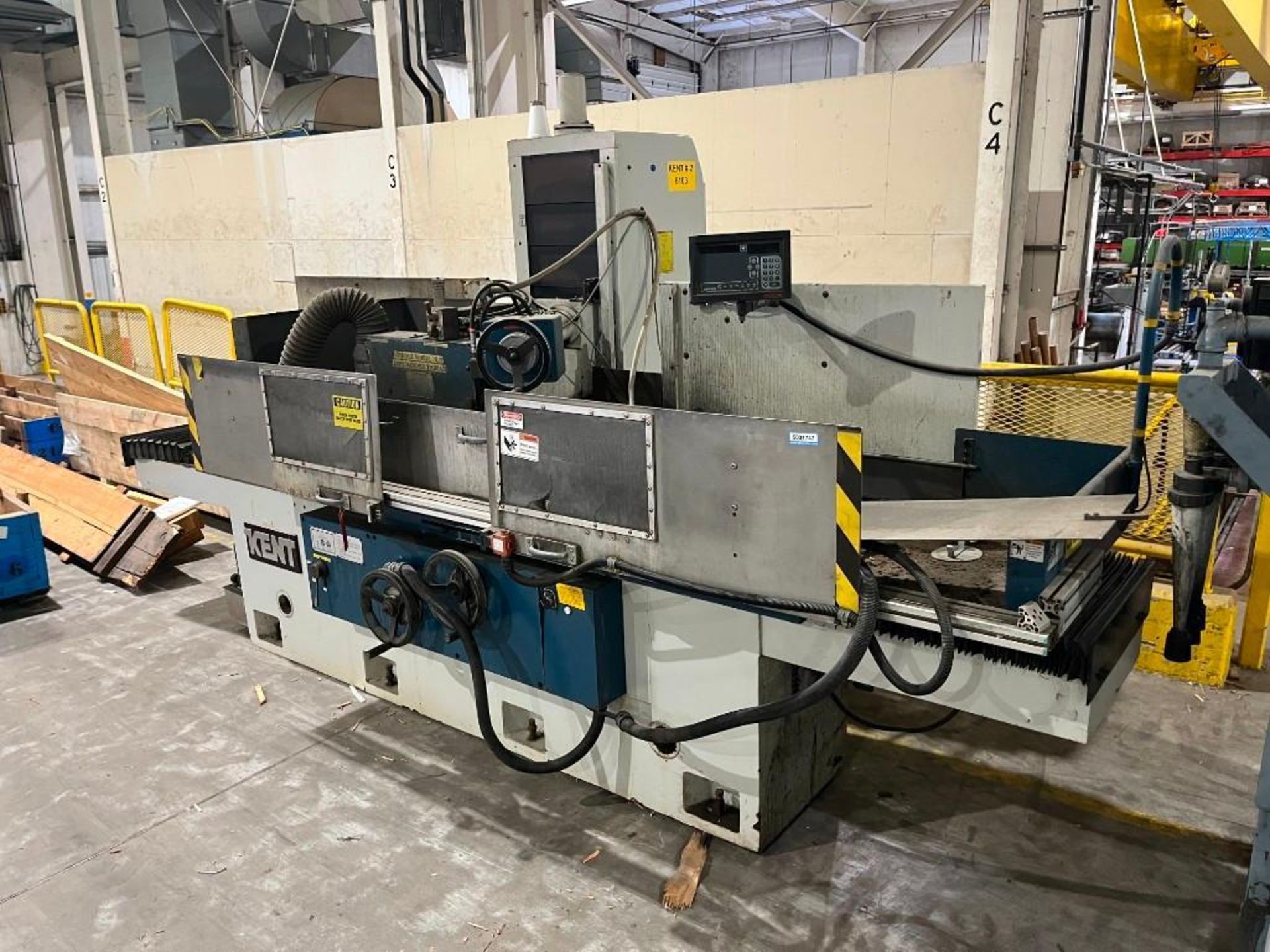

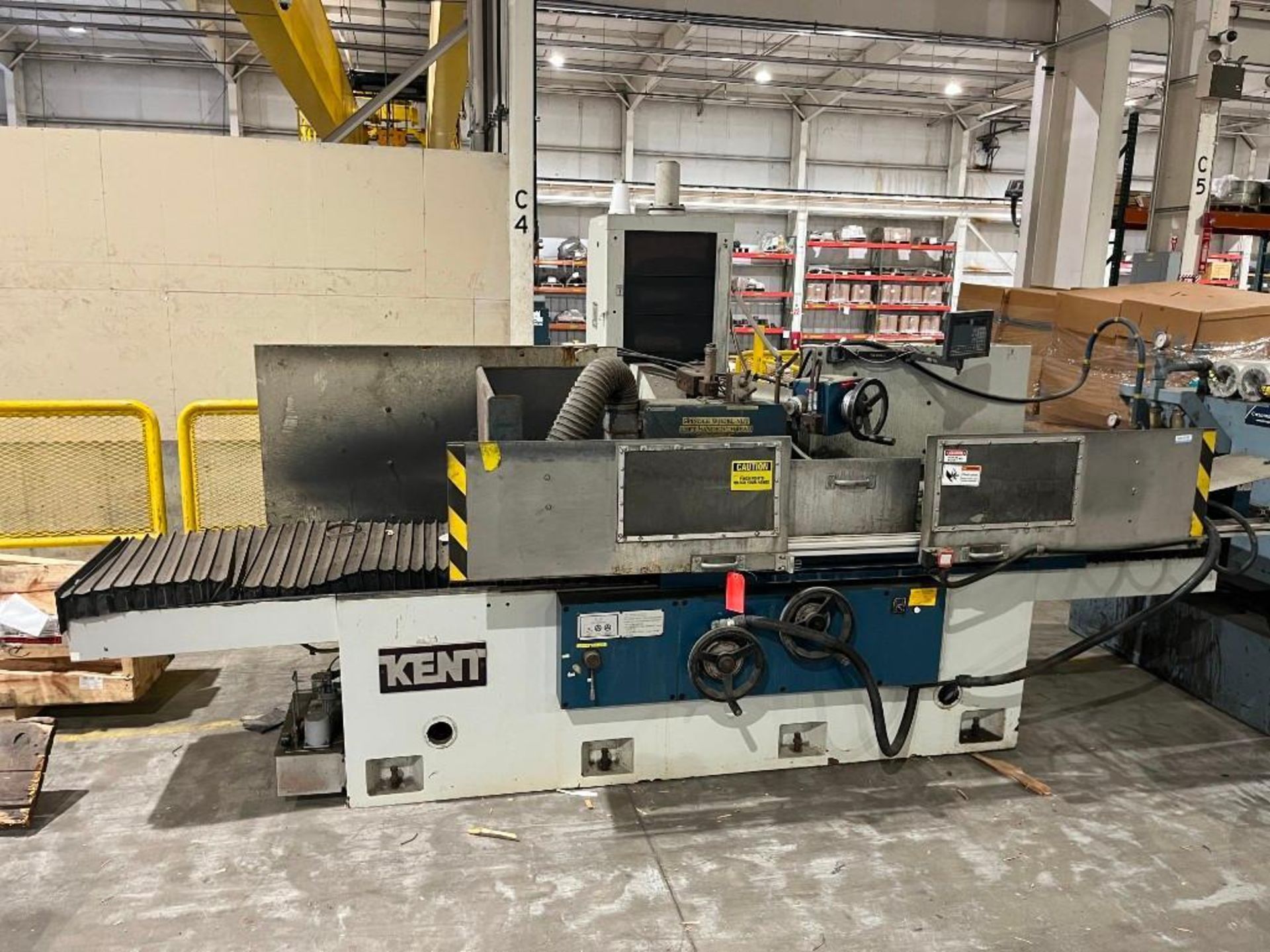

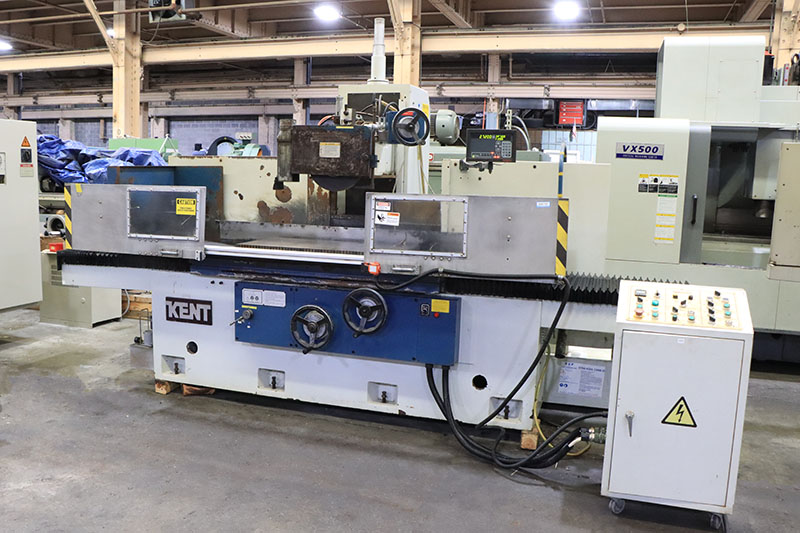

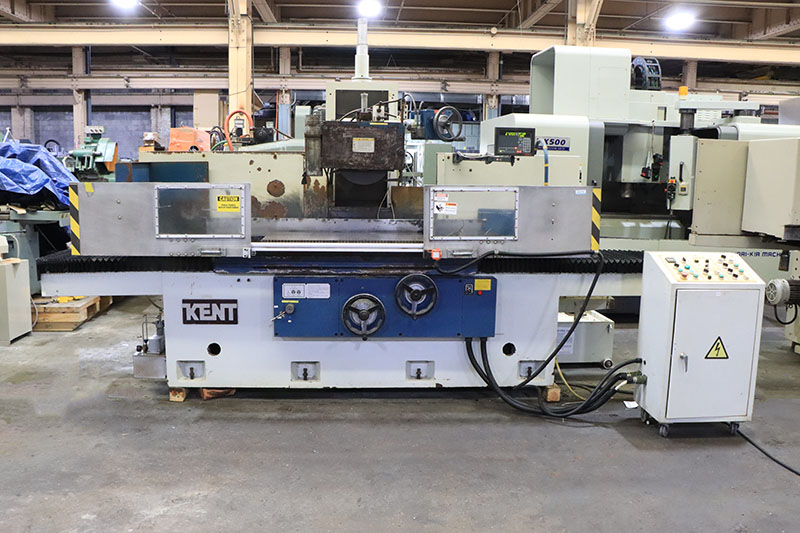

   20" x 40" Kent "Precision" "Column Type"
    3-Axis Automatic Feeds Surface Grinder
        with Electronic Programmable
       Automatic Incremental Downfeed

      ** Column Moves for Crossfeed **

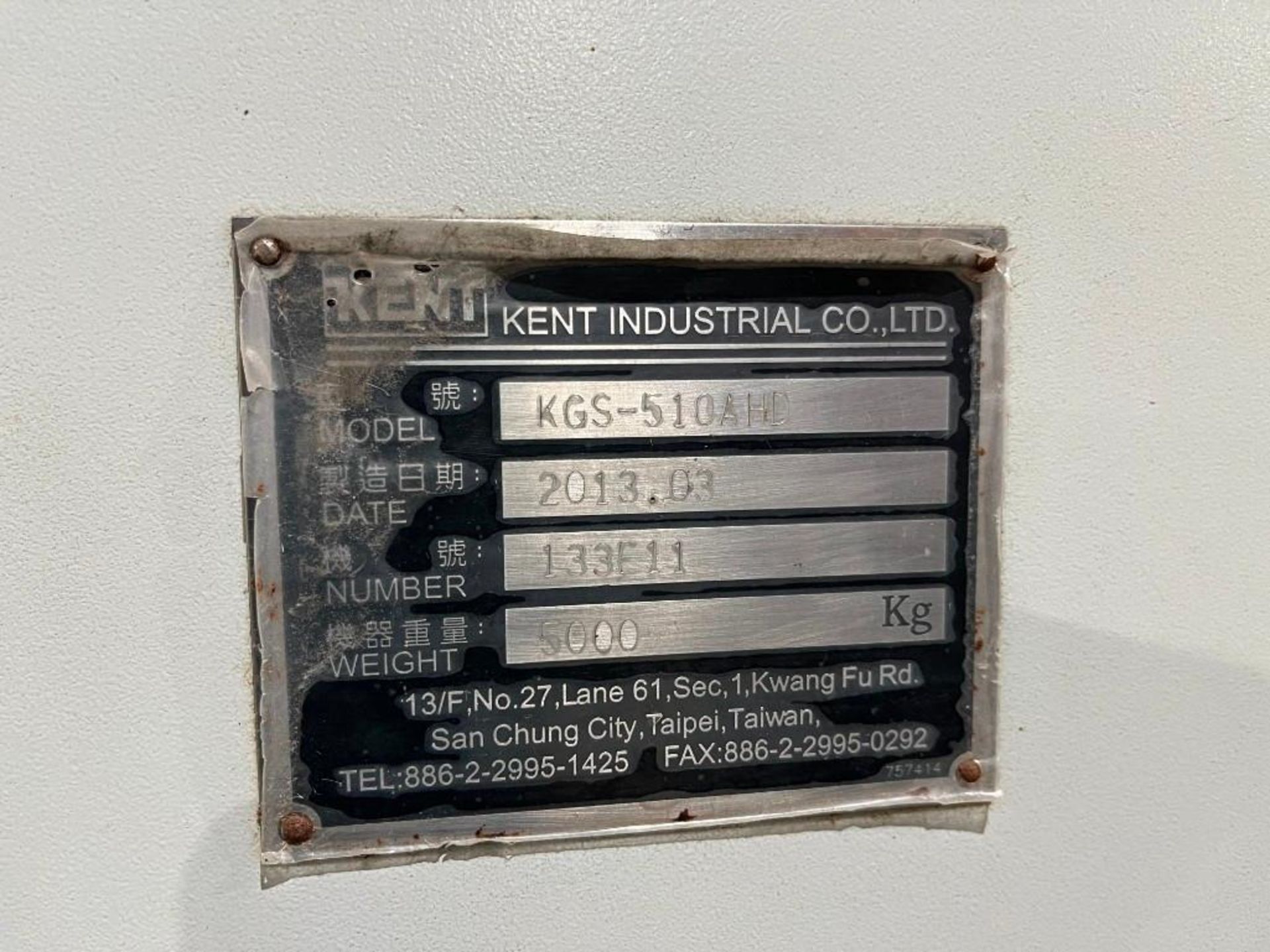

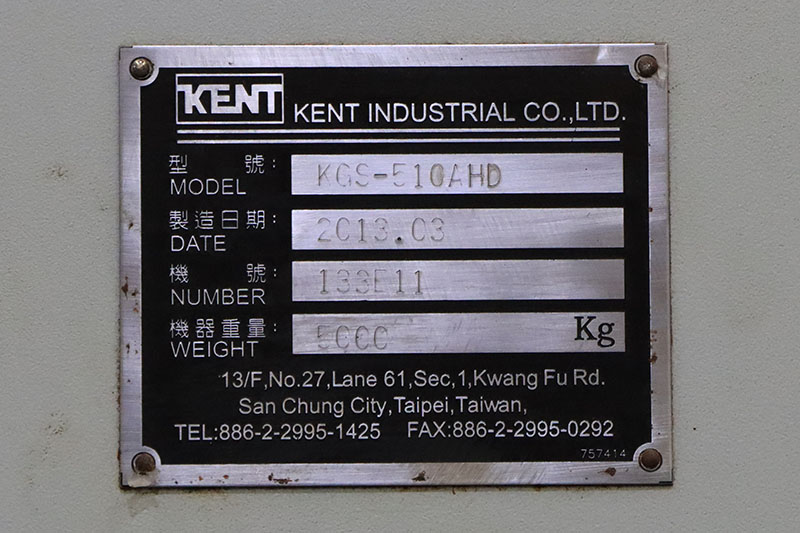

     Model: KGS510-AHD     S/N: 133E11

             New: MARCH, 2013


Nominal Capacity ..................... 20" x 40"
Maximum Distance, Center of
 Spindle to Table: ................... 23"

Maximum Table Travel: ................ 44.9"
Table Speed:....................... 13 - 73 F.P.M.

Cross Feed, Max. Movement: ........... 21-5/8"
Automatic Cross Feed Per Stroke
  of table, variable: ............. 0.02" to 0.5"
Power Cross Feed of Colum............. 60 IPM

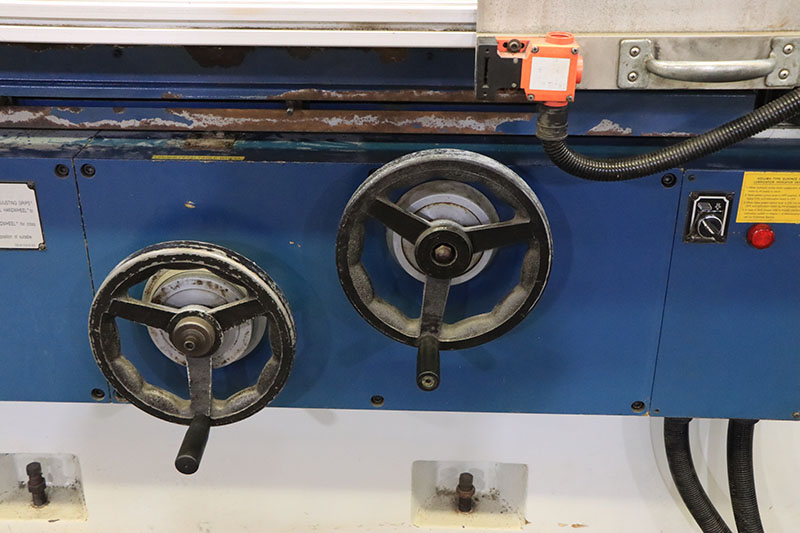

One Rev. of Cross Feed Handwheel=: ... 0.2" of Travel
Crossfeed handwheel grad.: ........... 0.001"

Power Head Elevation: ................ 6 IPM

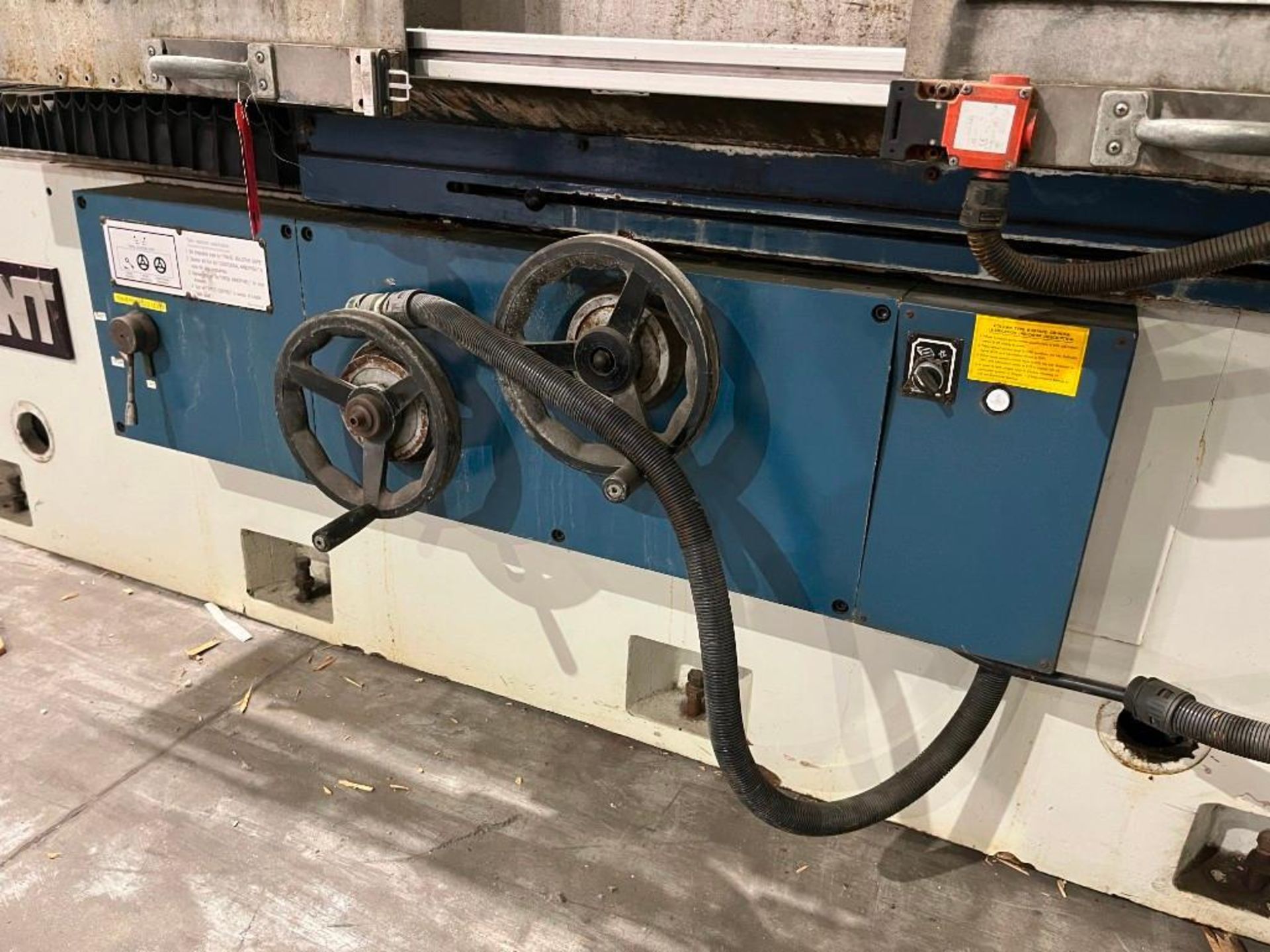

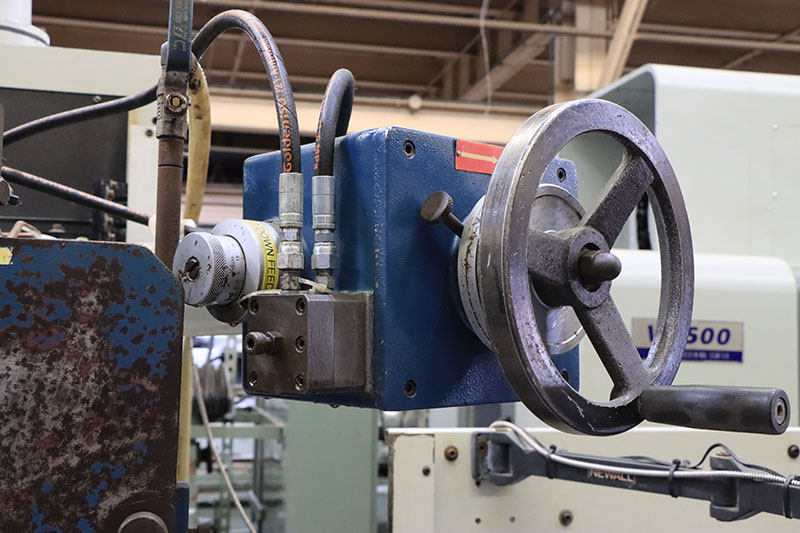

Vertical Feed Handwheel Graduated
  in Increments of: .................. 0.0001"
One Revolution of Vertical Feed
  Handwheel equals: .................. 0.02" of Travel
Automatic Incremental Downfeed,
 Variable in 6 steps: ............. 0.0002" to 0.0016"

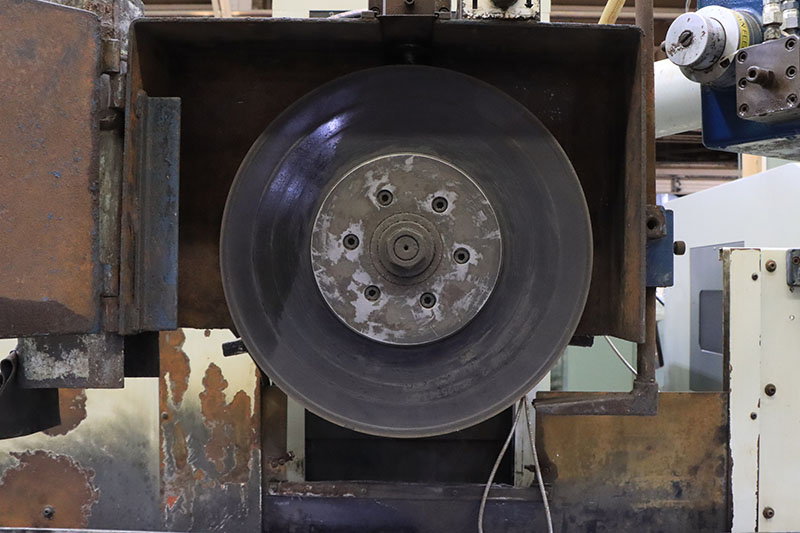

Grinding Wheel: ............... 14" Dia. x 2" W x 5" B
Grinding Wheel Speed: ................ 1,740 RPM
 pprox. Dims. For Shipping: ....... 110" x 72" x 84"H
Approximate Weight: .................. 11,000 LBS.

Equipped With:

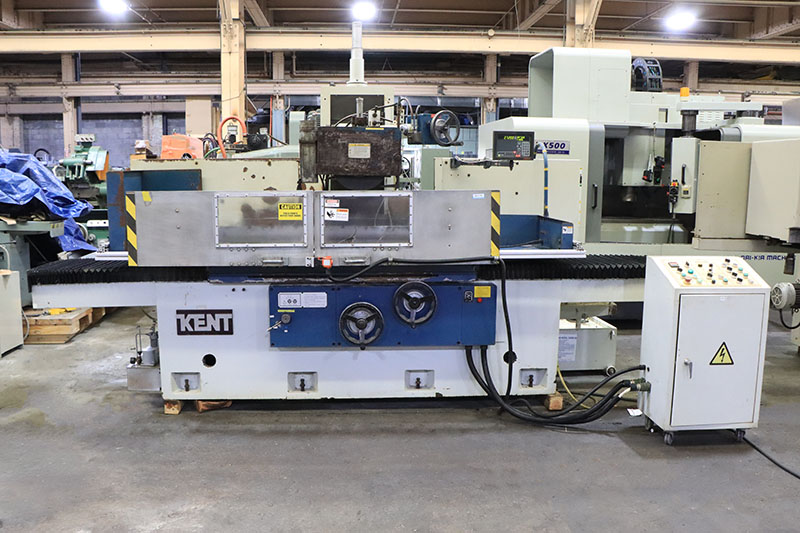

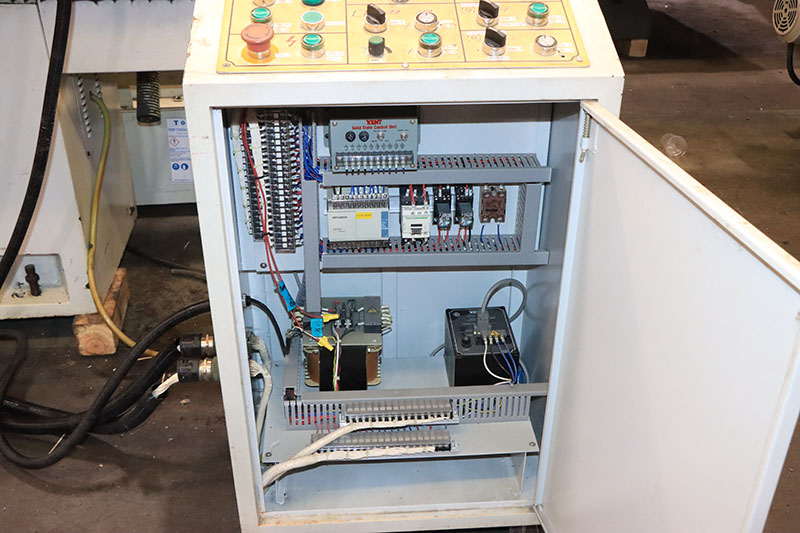

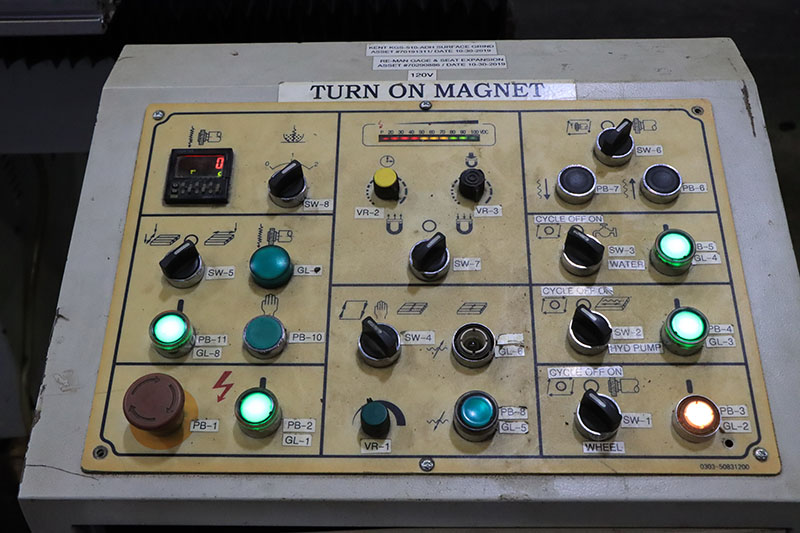

Free-standing electrical control console on casters
Automatic Incremental Downfeed of Grinding Wheelhead
  at each Reversal of Column for Surface Grinding or
  at Each Reversal of the table for plunge or slot
  grinding.
Digital "Omron" Counter Display, on Control Console.

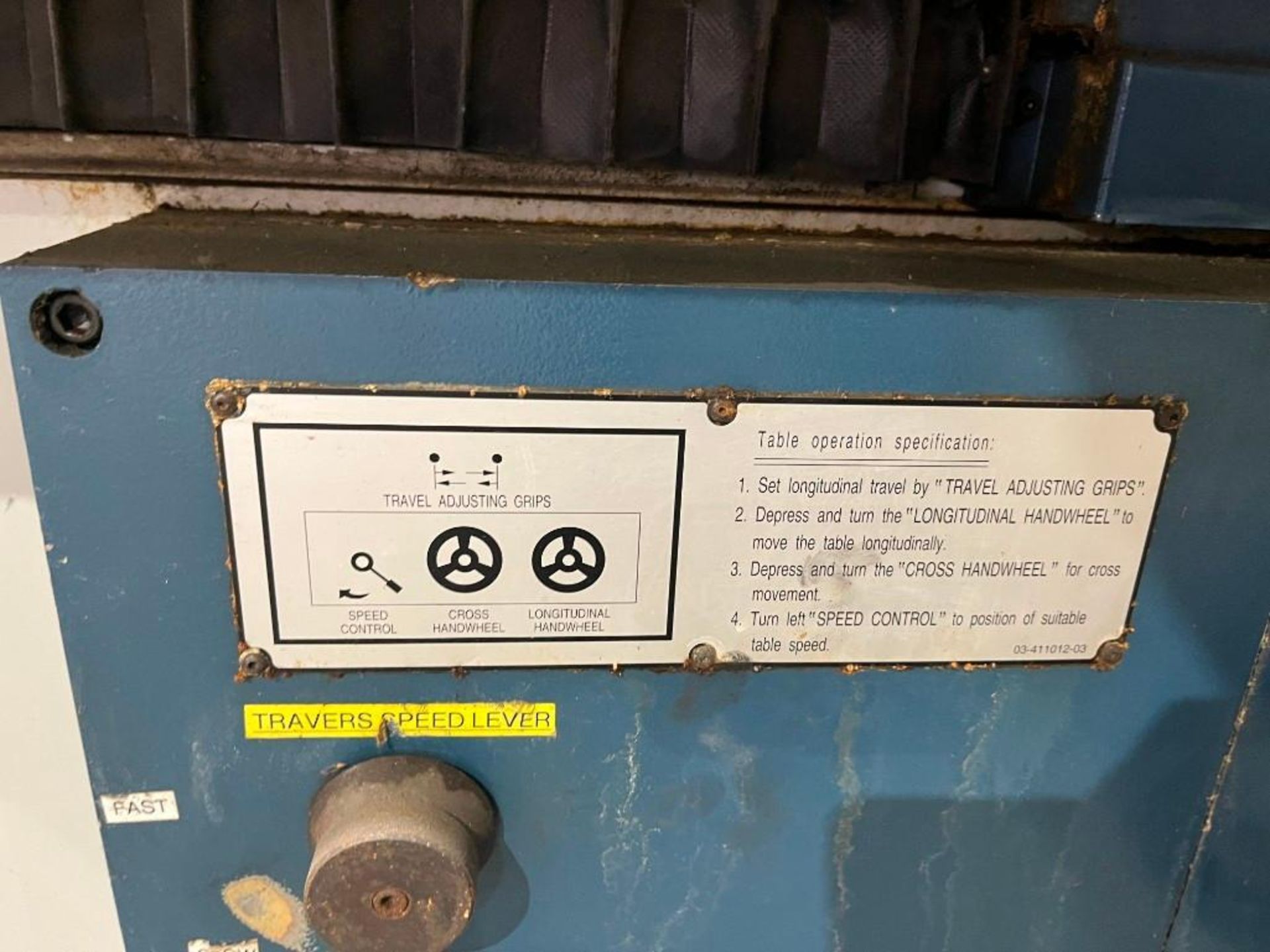

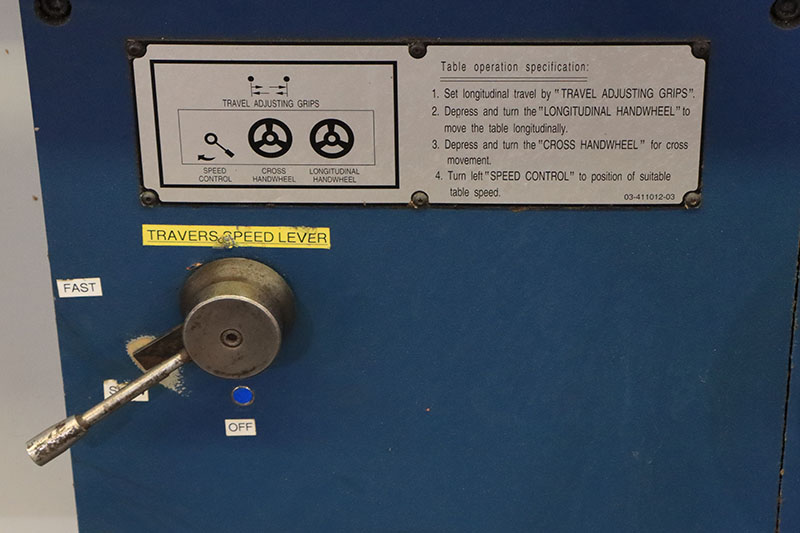

Hydraulically Actuated Longitudinal Feed

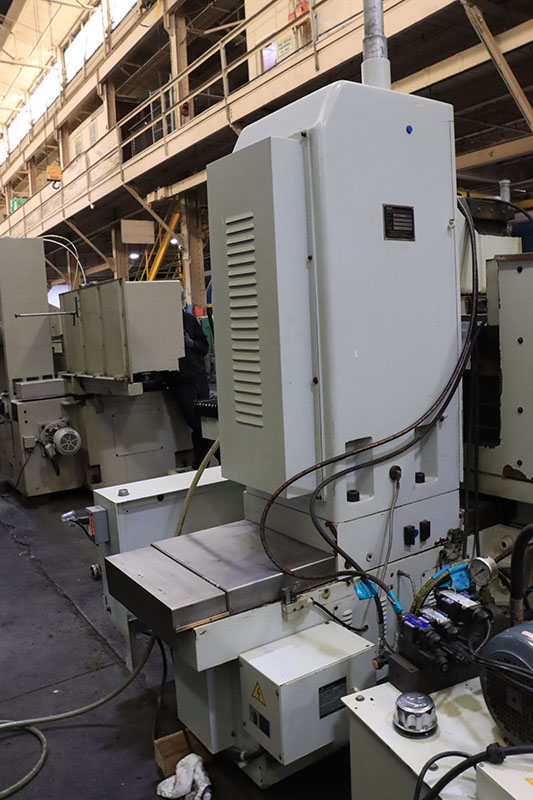

Column-Type Design:  Cross Feed is achieved
  by Electromechanically Actuated Movement of
  Grinding Column
Fully Automatic Cycle includes preset counters for
  number of downfeed (1 to 99 and sparkout (1 to 9)
  times, shut-down of all motors at completion of
  cycle, raising of grinding wheelhead (0.2") from the
  workpiece, and table stop at the right side for
  loading or unloading.

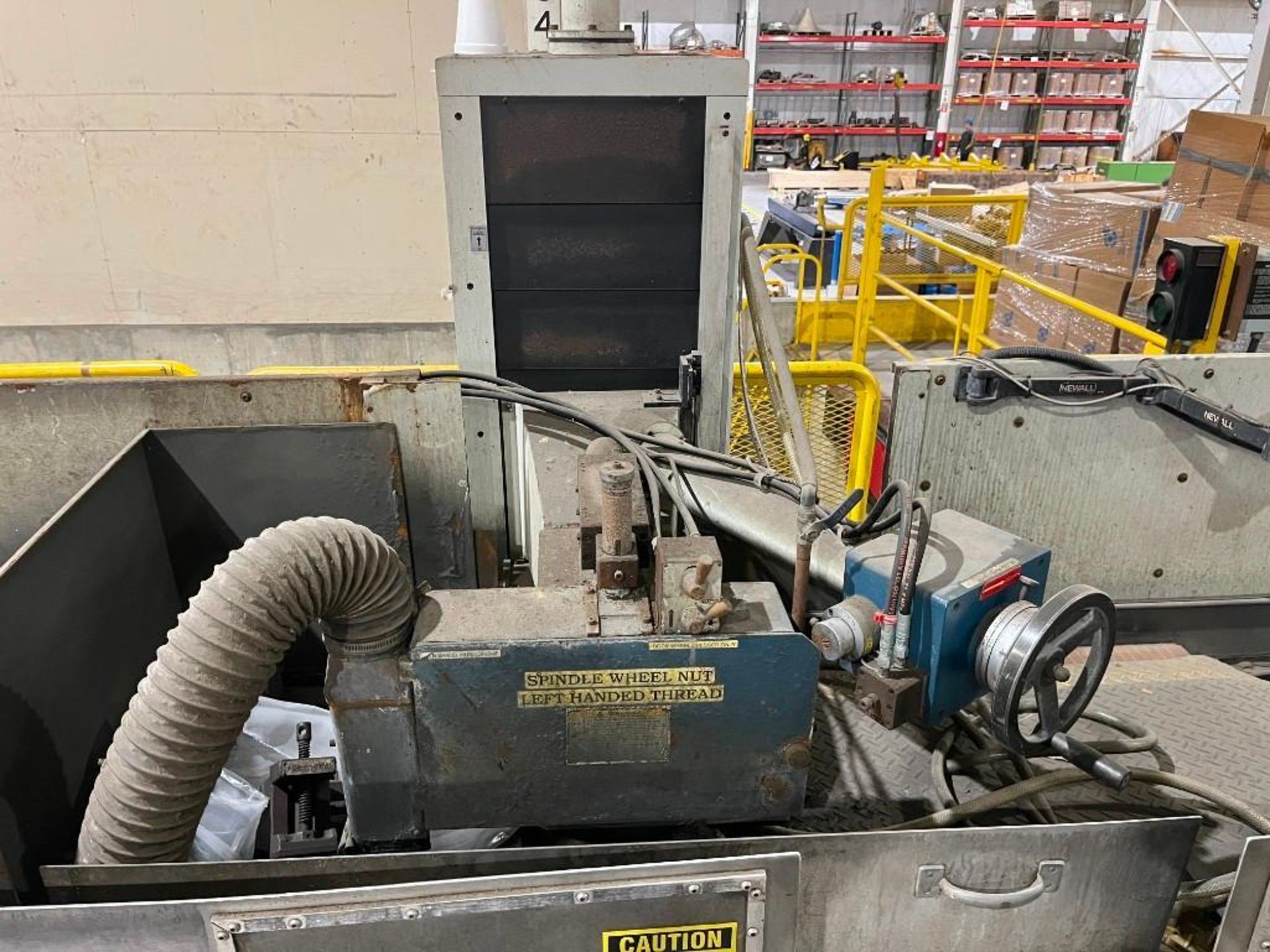

Motorized power rapid traverse to grinding wheelhead
1/4 HP cross feed and power elevation motors

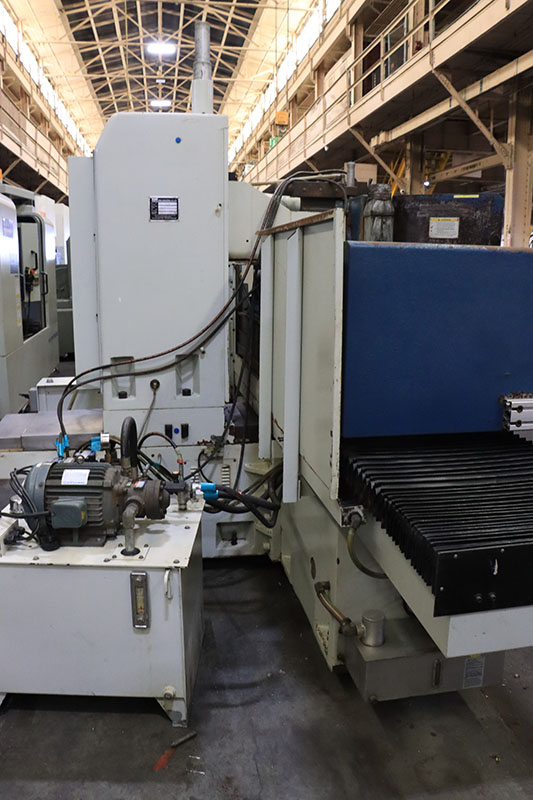

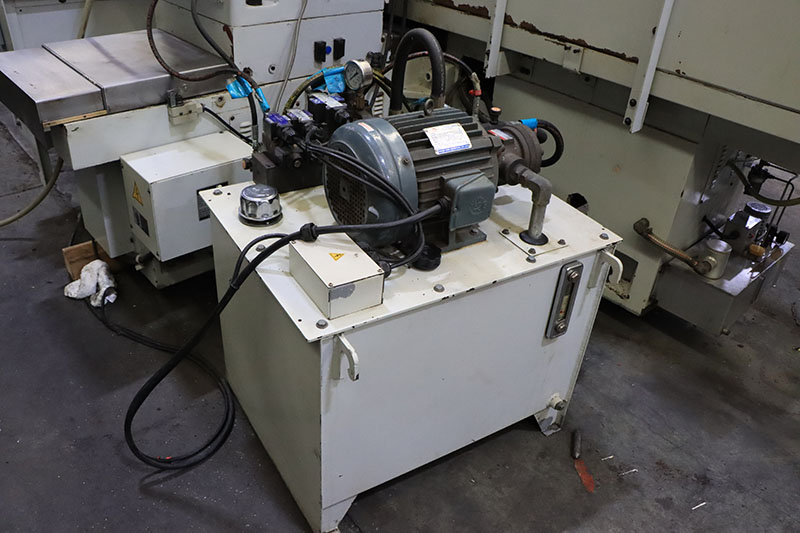

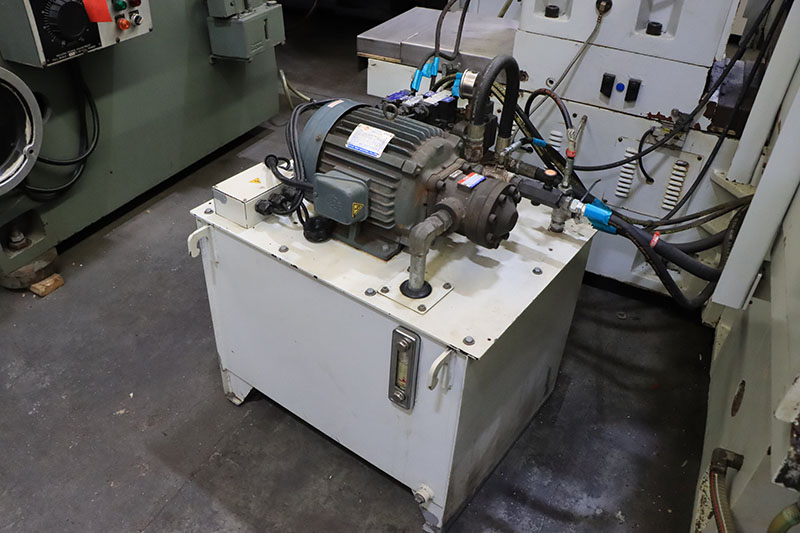

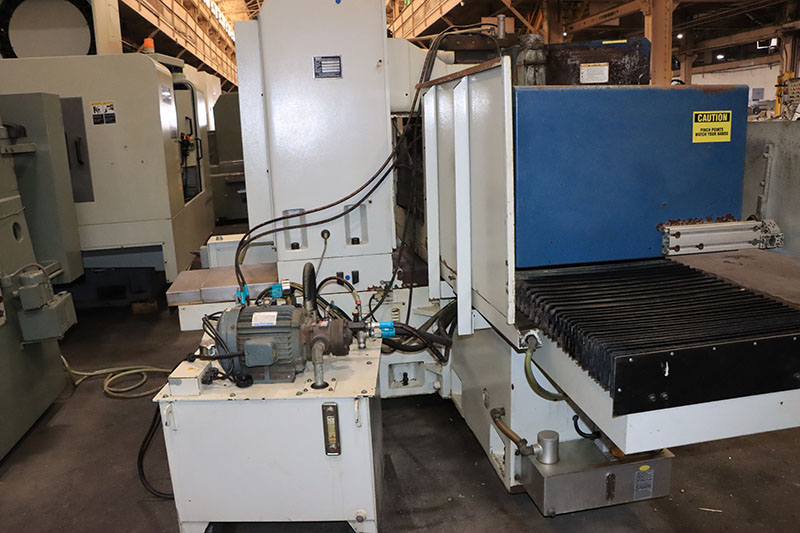

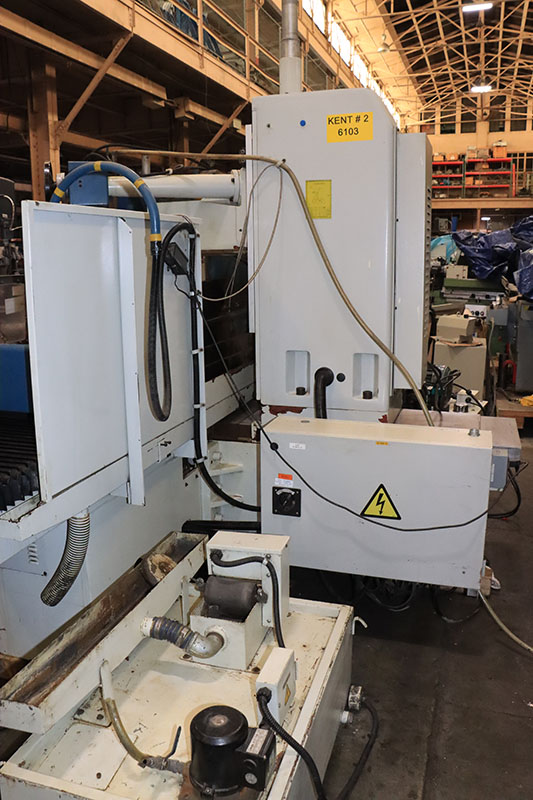

3 HP external hydraulic pump motor and tank
7.5 HP, 3/60/220-440 volt spindle drive motor


Equipped With:

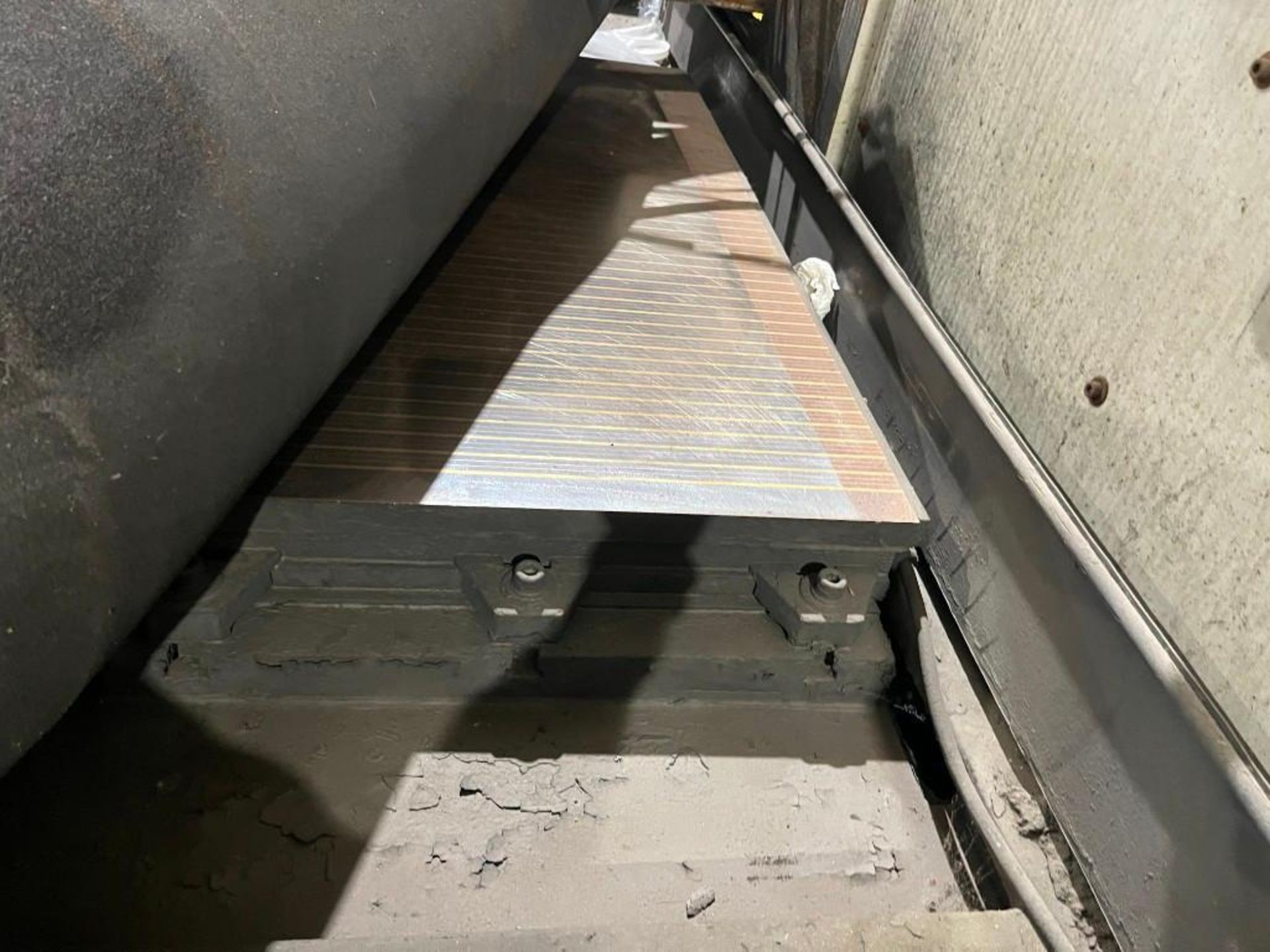

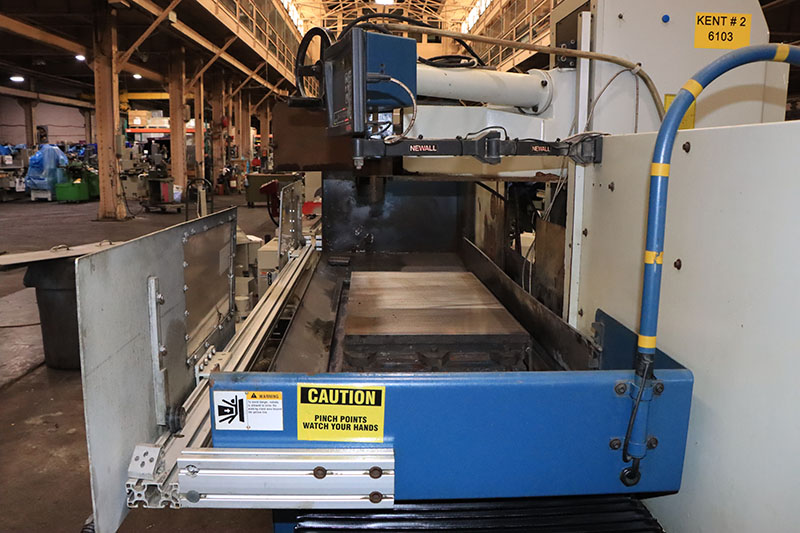

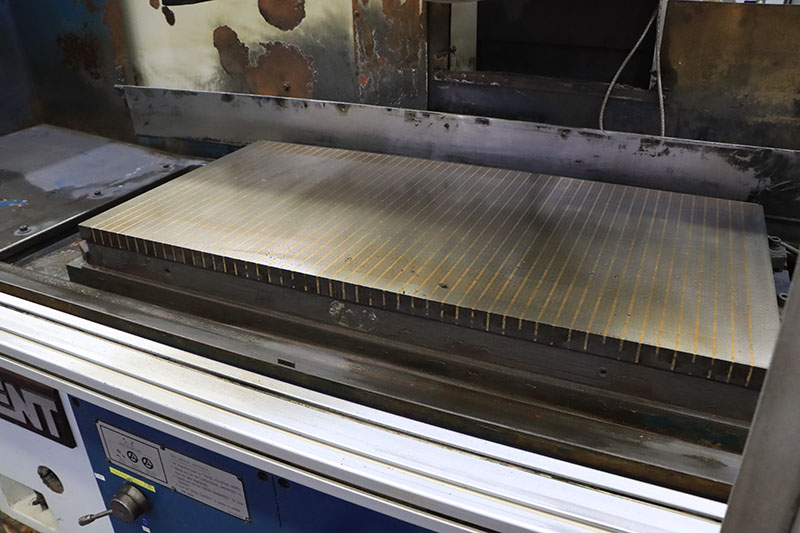

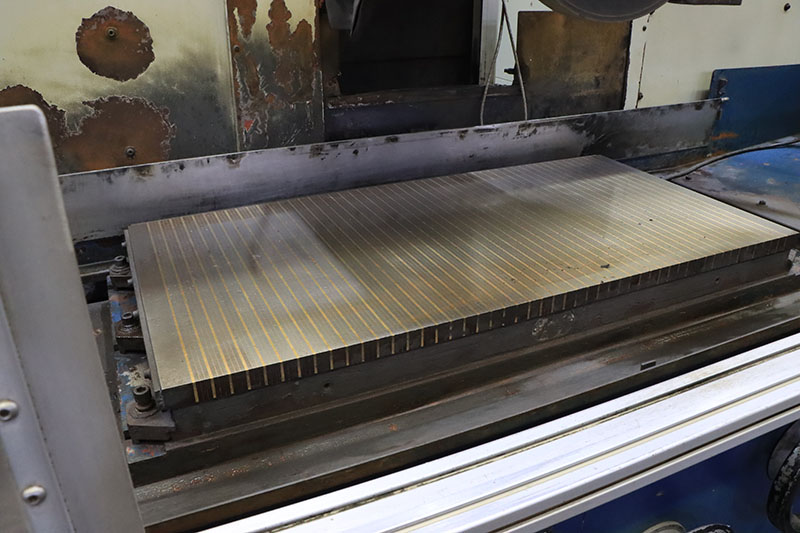

19-5/8" x 39- 5/8"" KANETSU electromagnetic chuck
  with potentiometer for variable magnetic force and
  selector switch for magnetize/demagnetize mode
Power Over-The-Wheel Parallel Dresser

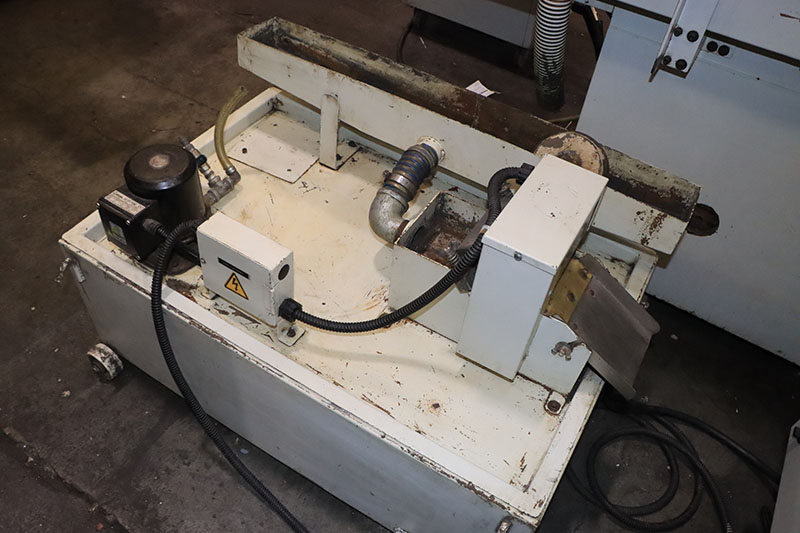

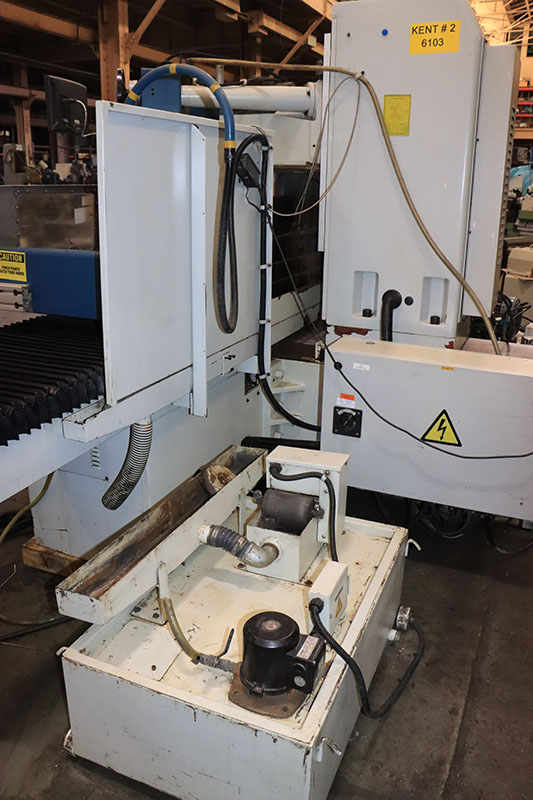

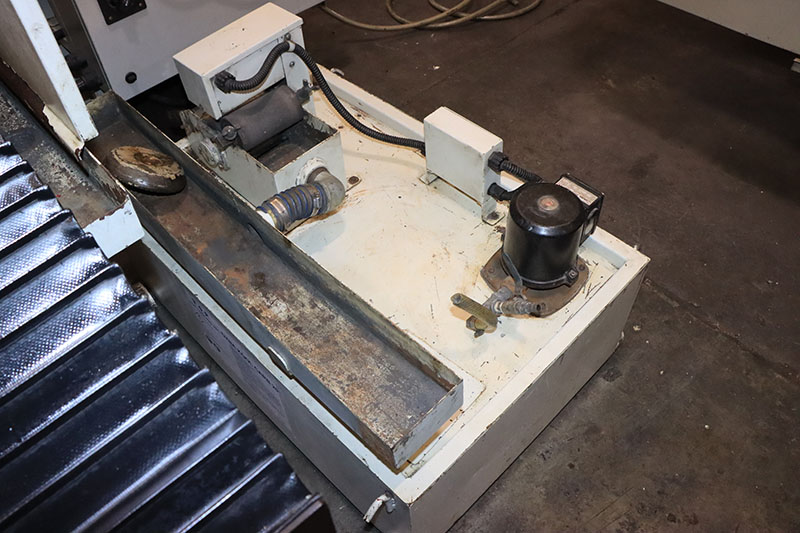

Coolant System w/Magnetic Seperator

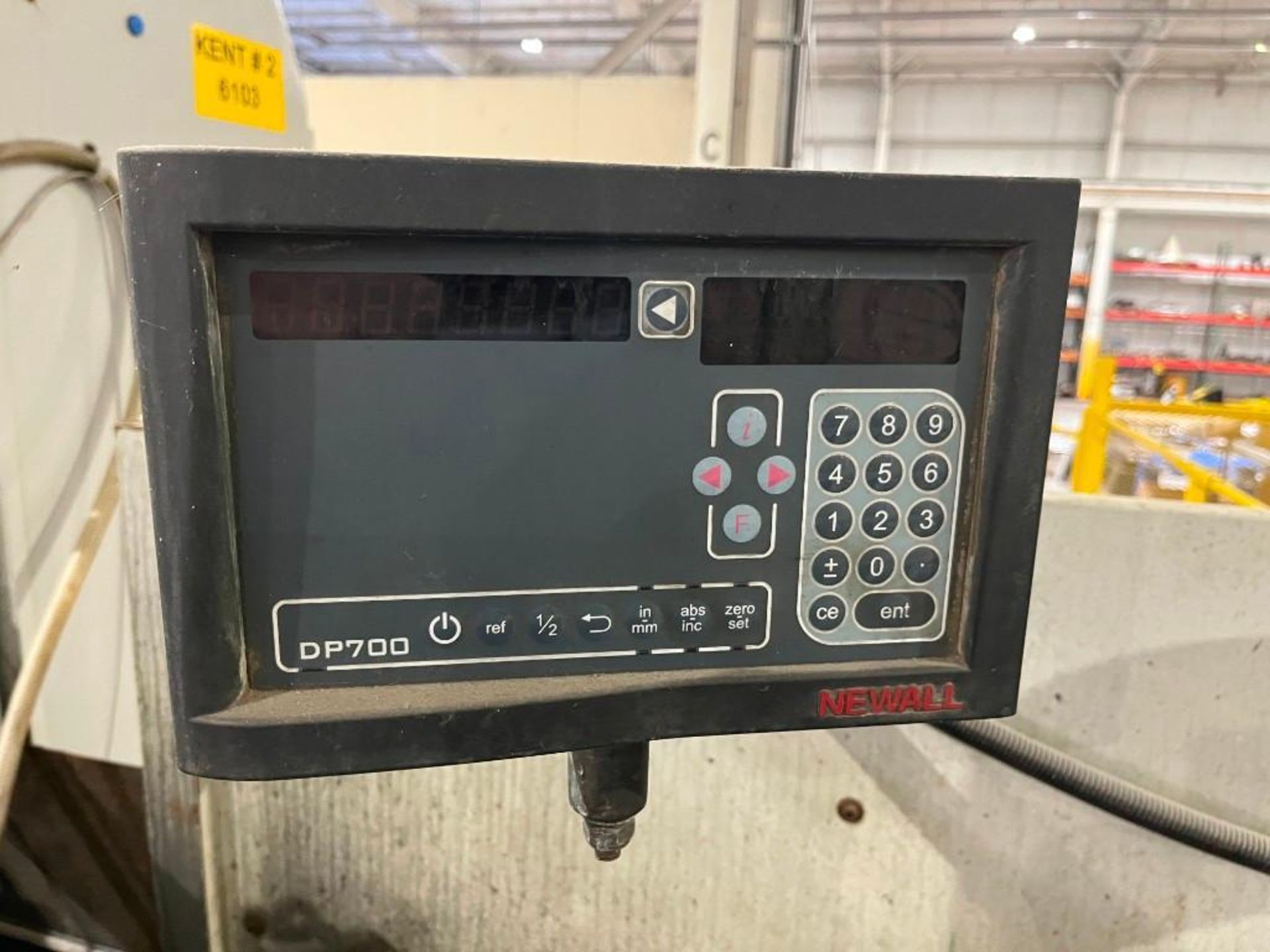

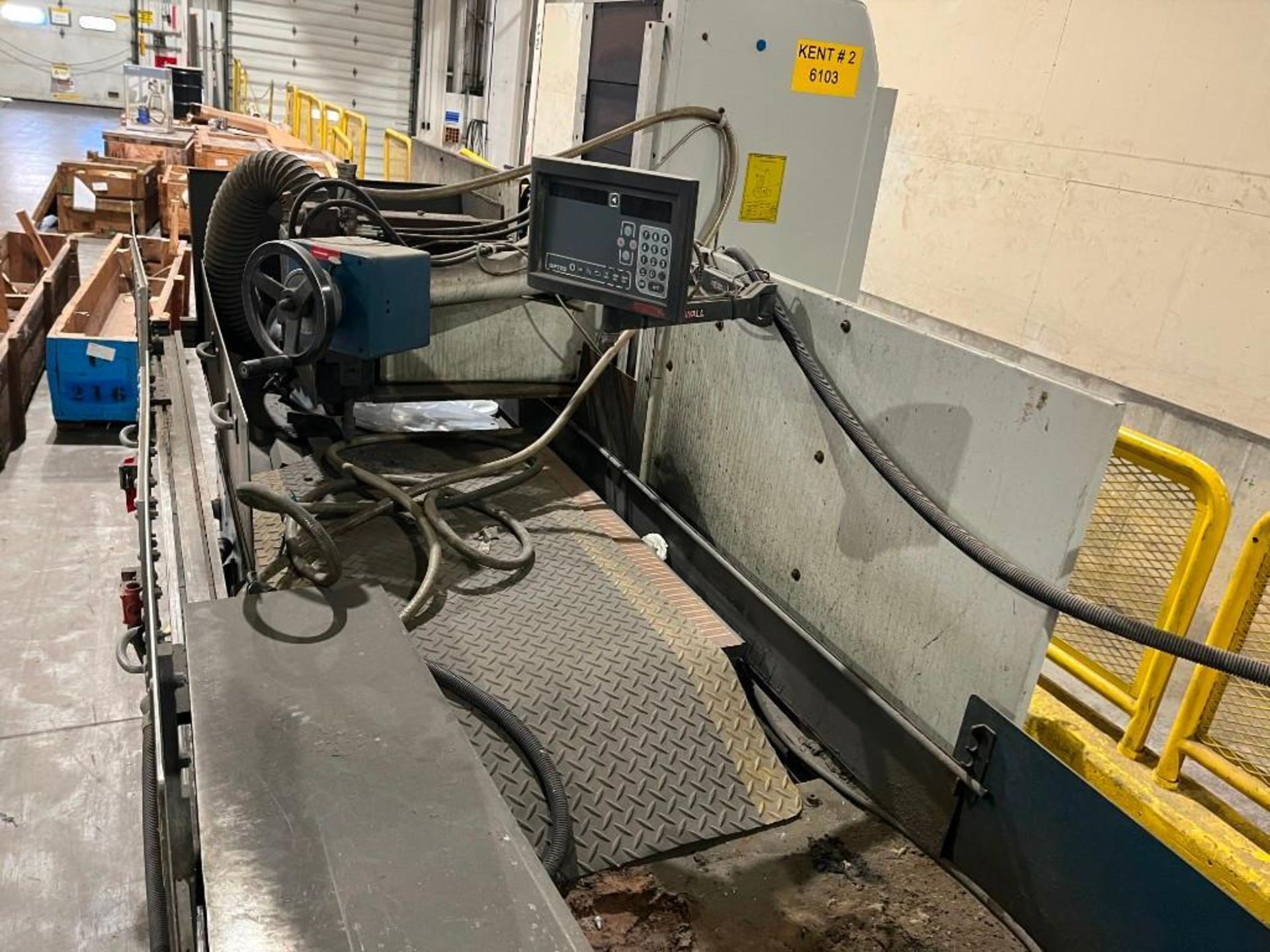

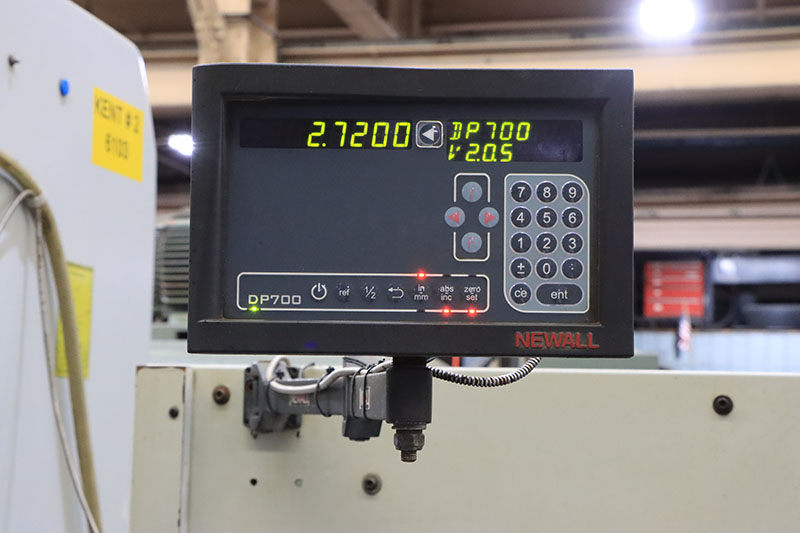

"Newall" Model DP700 Single Axis Digital
  Readout Display, for the Vertical Axis
Coolant Guards in Front, with Safety Switches
Rear Splash Guards

Special Note:

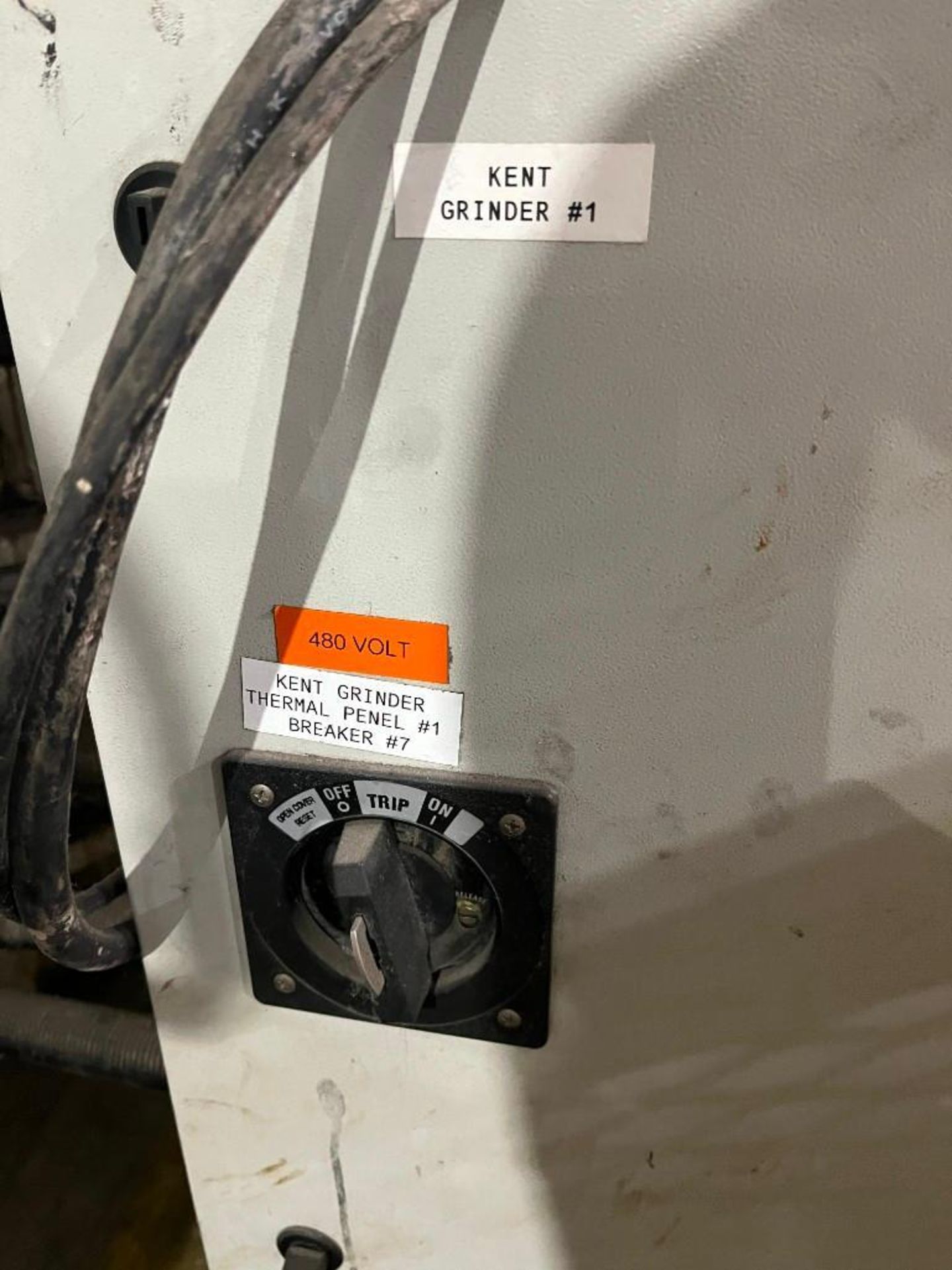

Machine is Presently wired for 3/60/480 Volts

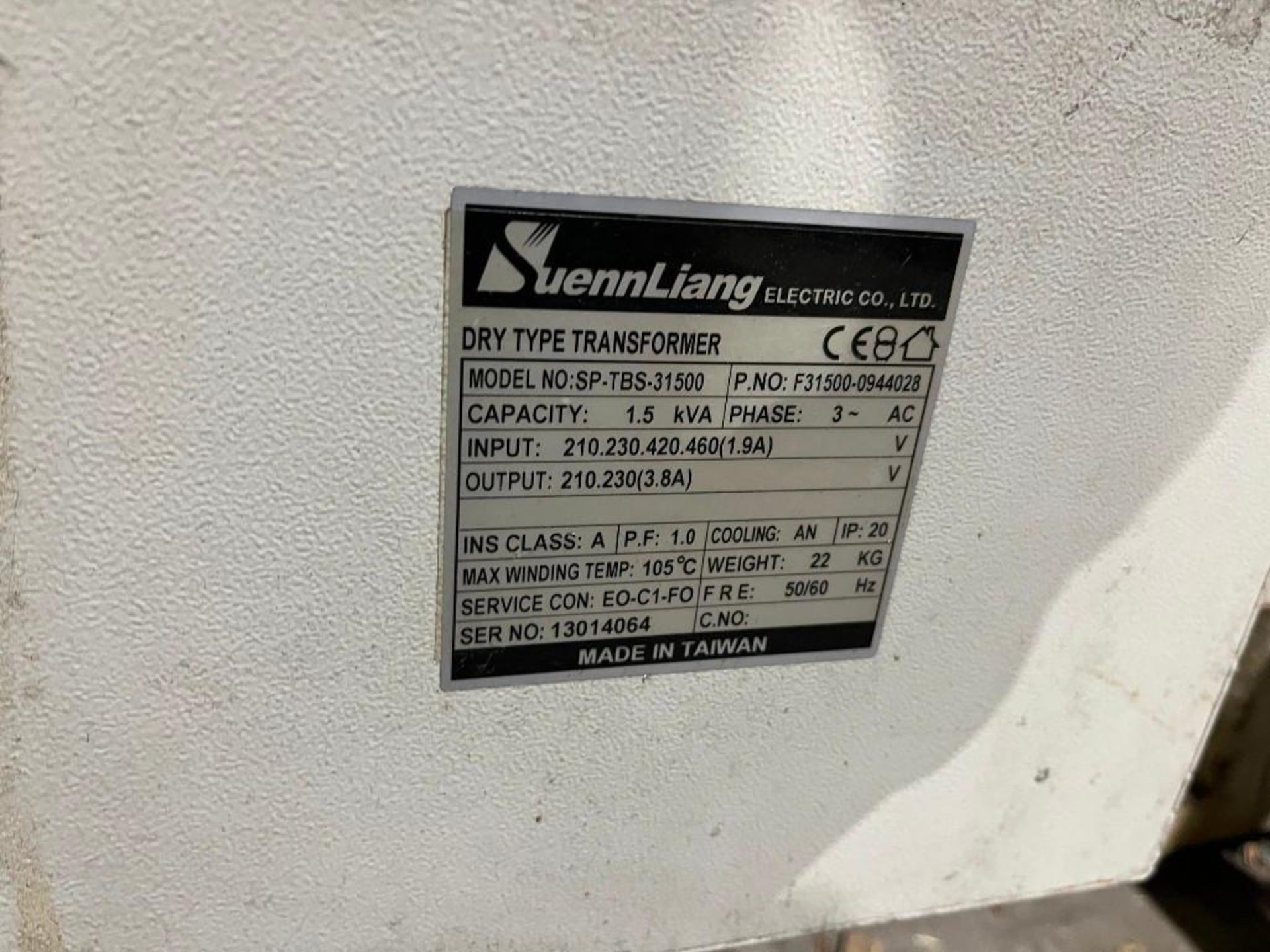

Transformer for other voltages


** Excellent Condition & Appearance (Original Paint) **

** Our Machine Runs Flawlessly - See Video **

** Super Quiet Spindle & Hydraulics!! **

Link to video: https://youtu.be/q3Iar10F4yI?si=XvGXy8TWmN8iMsCn

** Inspect Under Power in our Harrison, NJ Warehouse **
