K.O. Lee B2060H, B2060h, HYD. TABLE, MTRZ'D WKHD, TOOL & CUTTER GRINDERS

Price on Request

Make:: K.O. Lee

Model:: B2060H, B2060h, HYD. TABLE, MTRZ'D WKHD,

Year:: 1980

Ref #:: 164319

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

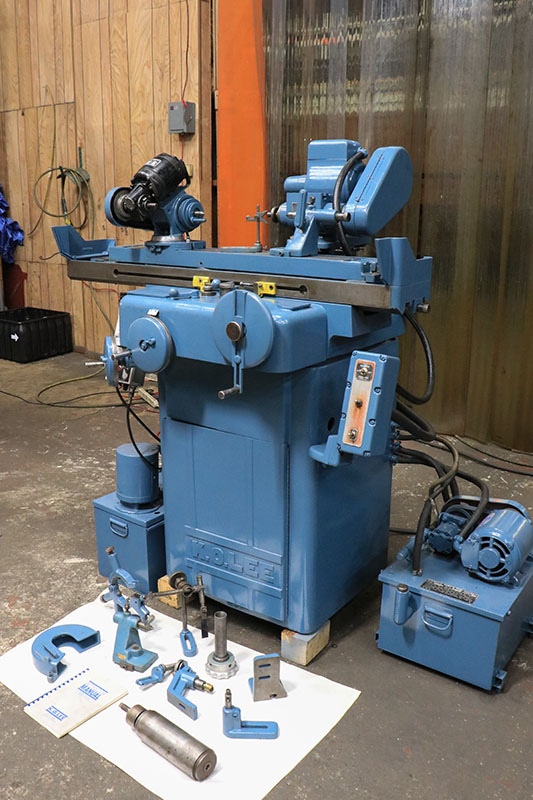

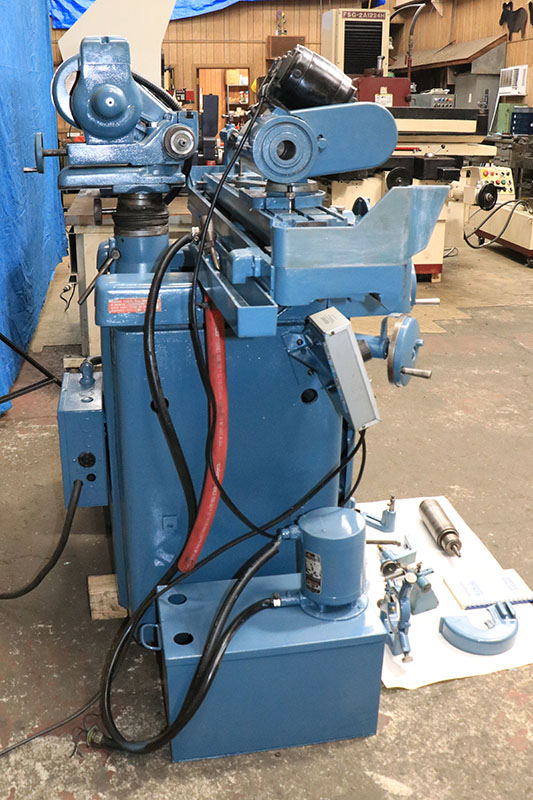

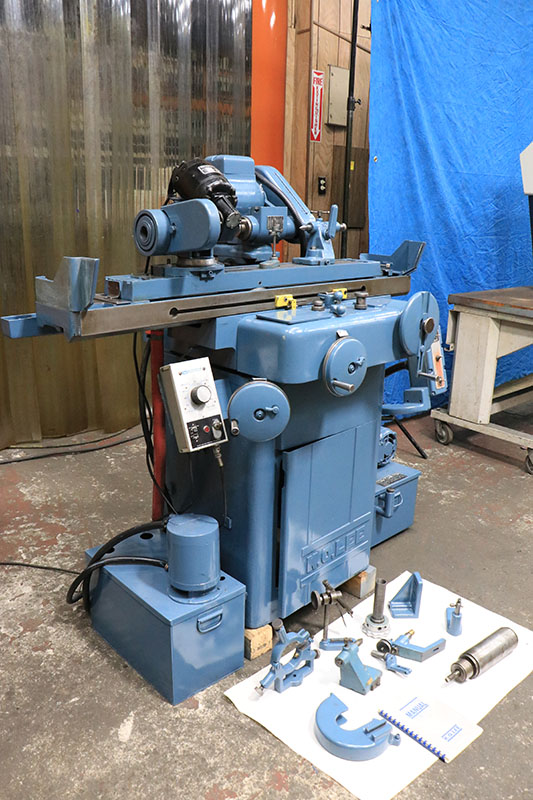

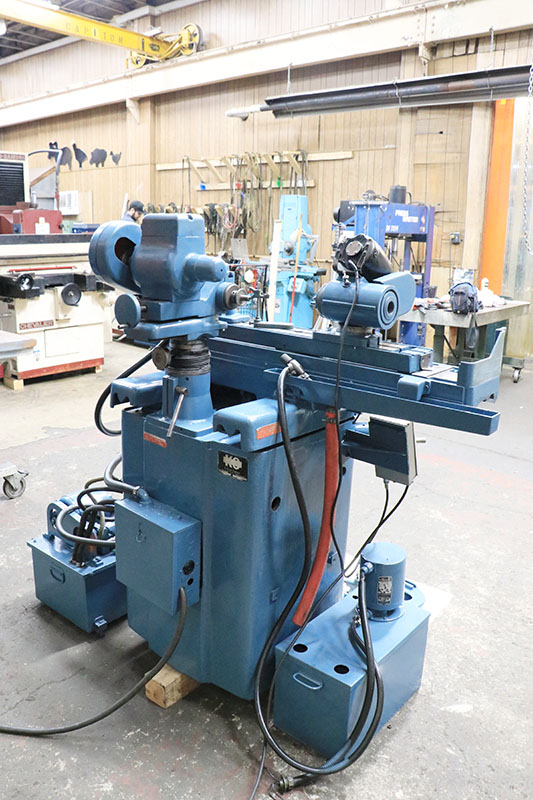

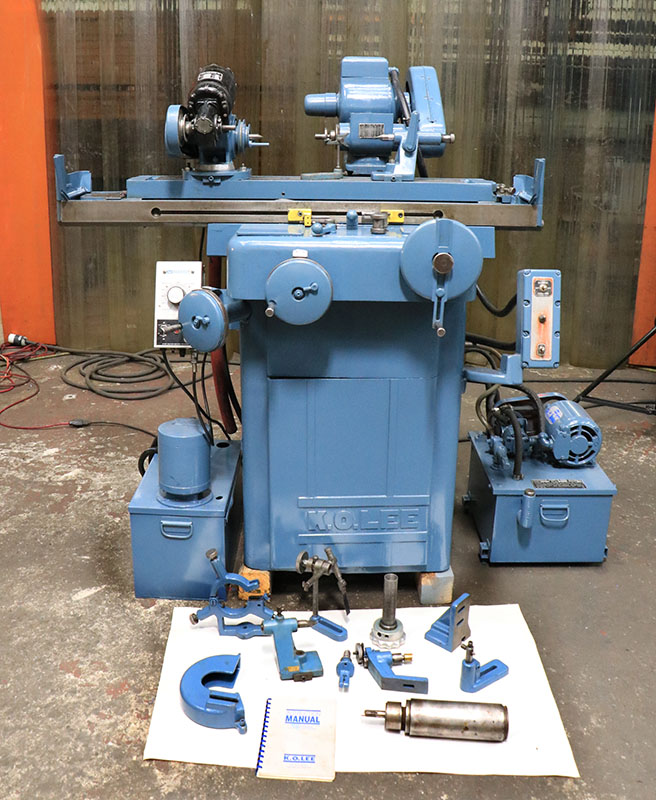

   K.O. LEE TOOL & CUTTER GRINDER W/HYDRAULIC TABLE TRAVERSE

MODEL: BA2060H     S/N: 21137-NB      NEW: 1980

SWING OVER TABLE ..................... 8-1/4"
DISTANCE BETWEEN TAILSTOCKS .......... 32"
TABLE WORKING SURFACE ................ 5-1/4" X 37-1/4"
SUB TABLE ............................ 8" X 48"
TOTAL CROSS FEED MOVEMENT ............ 7-1/4"
FEED PER REV. OF HANDWHEEL  .......... 0.100"
TABLE TRAVERSE ....................... 20"
HYDRAULIC TABLE TRAVERSE RATE ........ 3/4" TO 20' FPM
FAST FEED PER REV. OF HANDWHEEL ...... 3-3/4"
SLOW FEED PER REV. OF HANDWHEEL ...... 3/4"
VERTICAL MOVEMENT OF COLUMN .......... 7"
FEED PER REV. OF HANDWHEEL ........... 0.050"
MIN./MAX. DISTANCE CENTERLINE
 OF WHEEL SHAFTTO TOP OF TABLE ....... 3-3/4" / 10-3/4"
MAX. DISTANCE FROM COLUMN TO
 OUTSIDE OF STRAIGHT WHEEL,
 DOVETAIL SLIDE NOT EXTENDED,
 SPINDLE 90 DEGREES TO TABLE .......... 4-1/2"
 SLIDE EXTENDED ....................... 10-11/16"
TABLE SWIVELS
(3" PER FT., 15 DEG. LEFT& RIGHT) ..... 225 DEG.
WHEELHEAD SWIVELS ..................... 360 DEG.
GRINDING WHEEL SPINDLE SPEED RANGE .. 3,450 TO 20,700 RPM
APPROX. MACHINE WEIGHT ................ 1,000 LBS

EQUIPPED WITH:

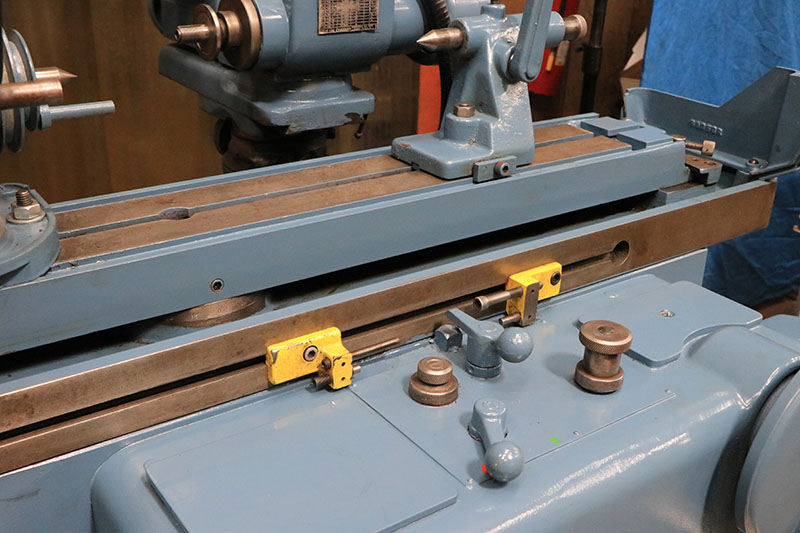

HYDRAULIC TABLE TRAVERSE
20" TABLE TRAVERSE & 32" DISTANCE BETWEEN CENTERS
K.O. LEE #B955 GRINDING WHEELHEAD (1/2 H.P.)
1/4" TO 6" DIAMTER GRINDING WHEELS

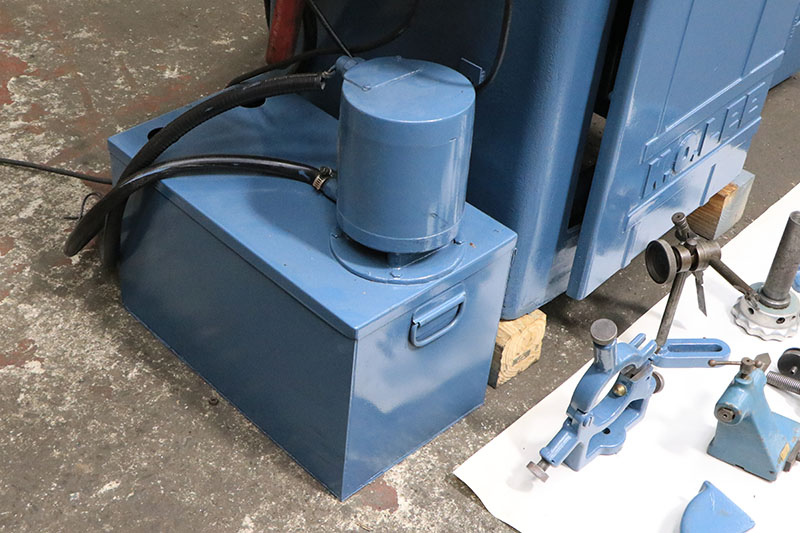

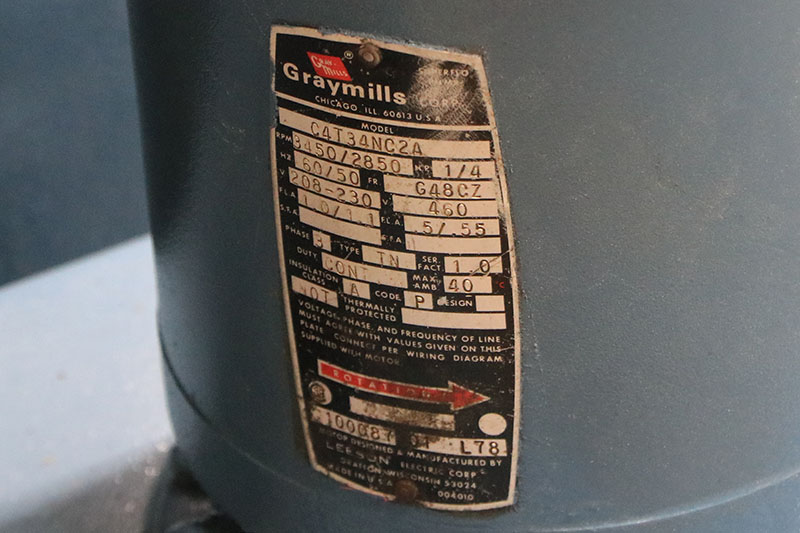

COOLANT SYSTEM

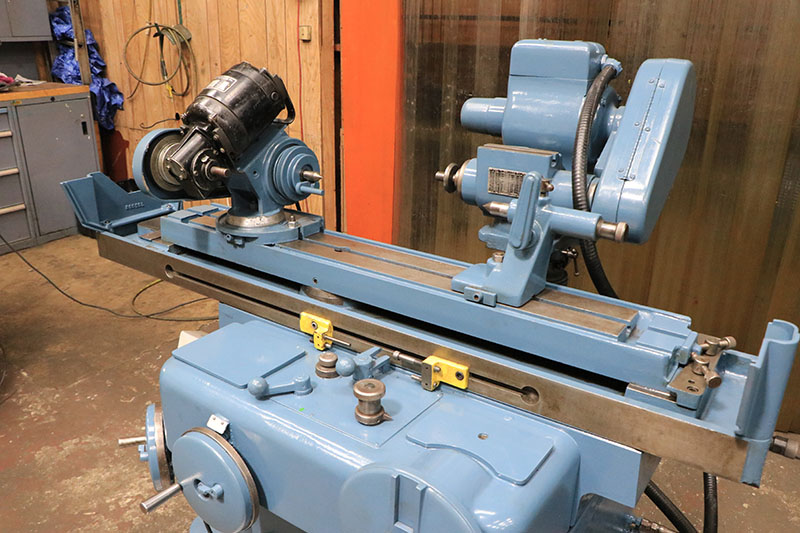

K.O. LEE MODEL B943 MOTORIZED WORKHEAD
5C COLLET DRAW BAR

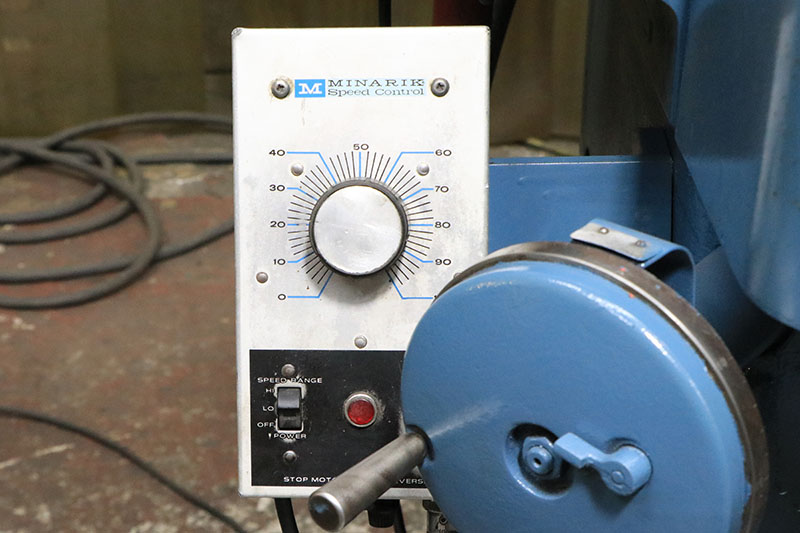

"MINARIK" ELECTRONIC VARIABLE SPEED CONTROL FOR WORKHEAD

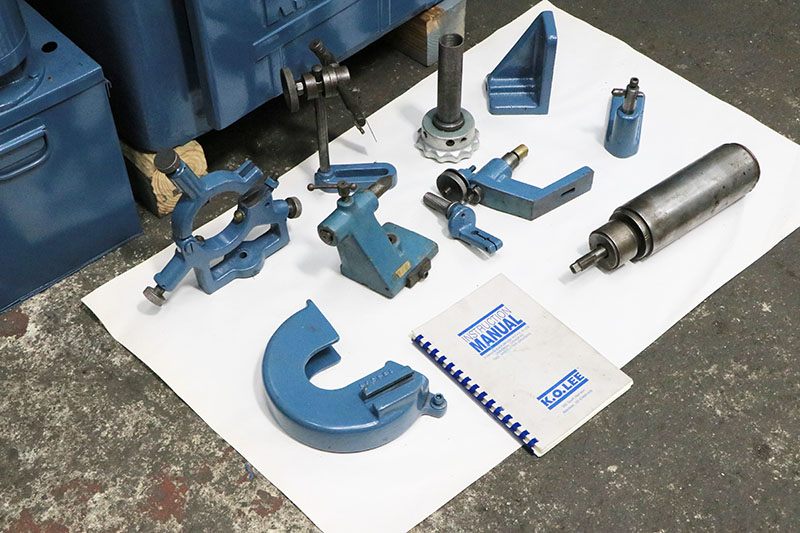

SELF-CENTERING 6-JAW CHUCK
STEADY REST

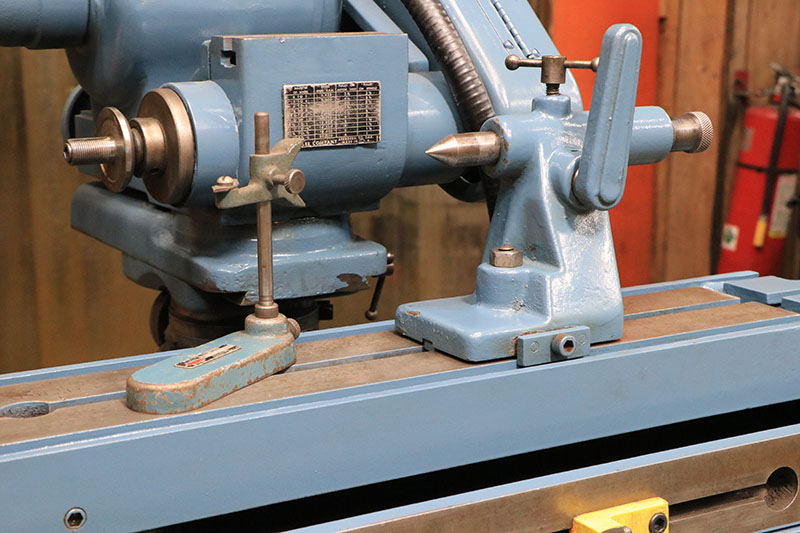

DEAD CENTER
HEAD CENTER WITH DRIVER
MULTIPLE MANDRELS WITH ASSORTMENT OF WHEELS
SPARE BELTS

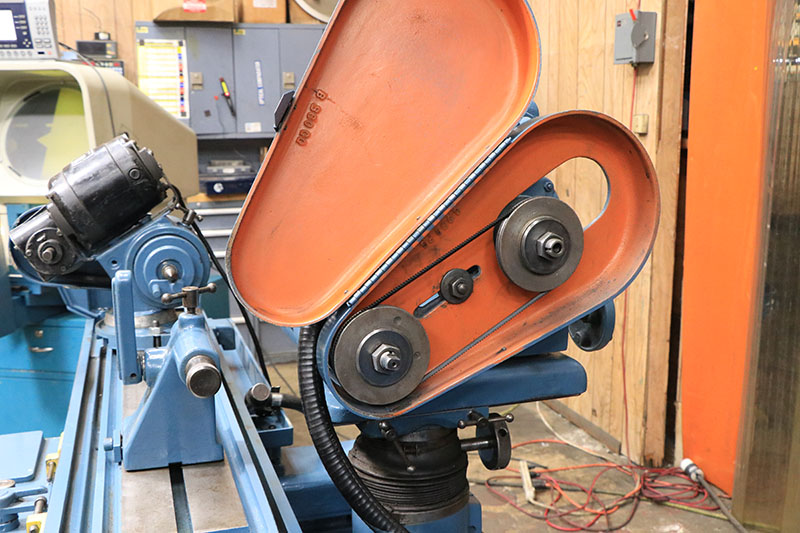

PULLEYS

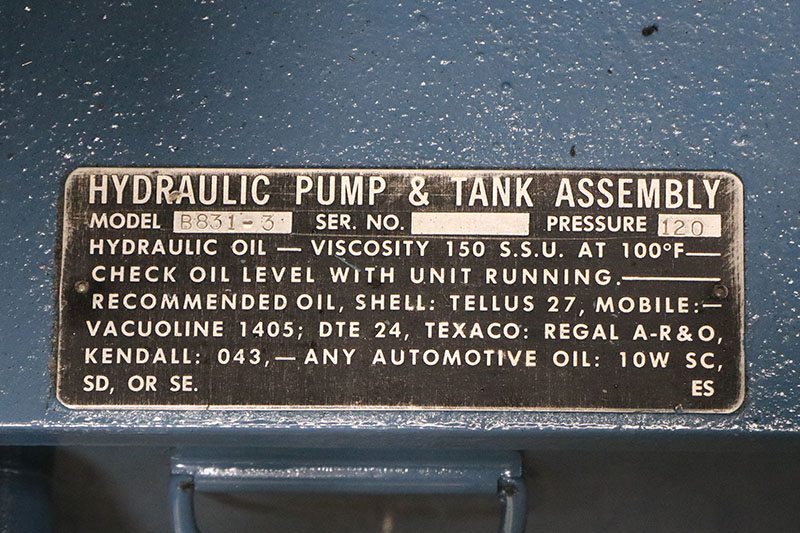

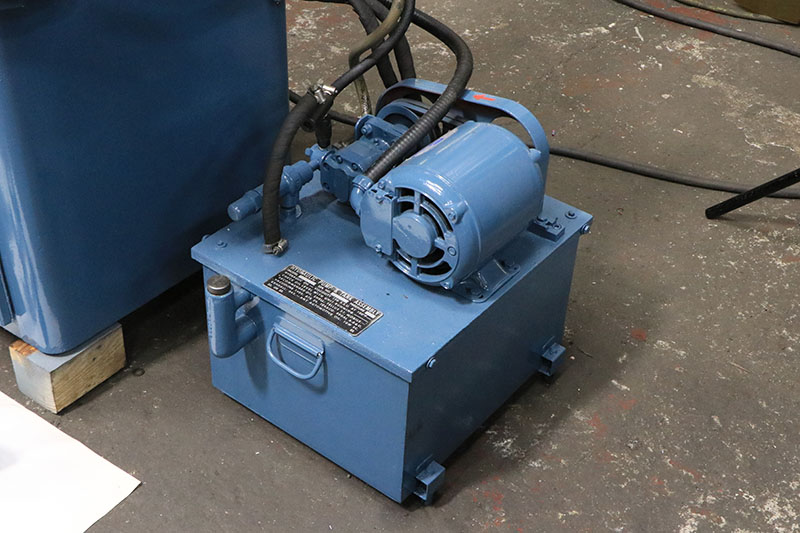

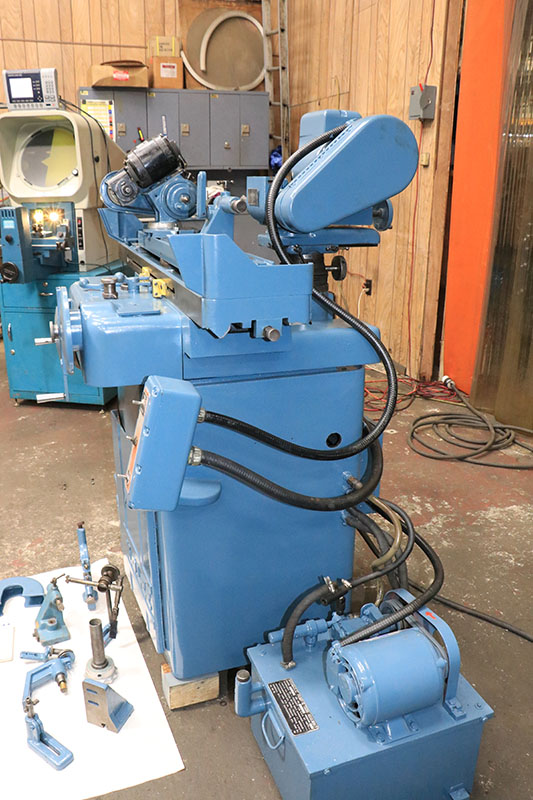

EXTERNAL HYDRAULIC TANK & PUMP
3/60/220-440 VOLT ELECTRICS

LINK TO VIDEO: https://youtu.be/jG0EJLiMzPY

*** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** VERY NICELY EQUIPPED, EXCELLENT MACHINE **
