K.O. Lee B6062H, DAKOTA,1980, HYD. TABLE, MOTORIZED WKHD, TOOL & CUTTER GRINDERS

Price on Request

Make:
K.O. Lee
Model:
B6062H, DAKOTA,1980, HYD. TABLE, MOTORIZED WKHD,
Year:
1980
Ref #:
163496

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

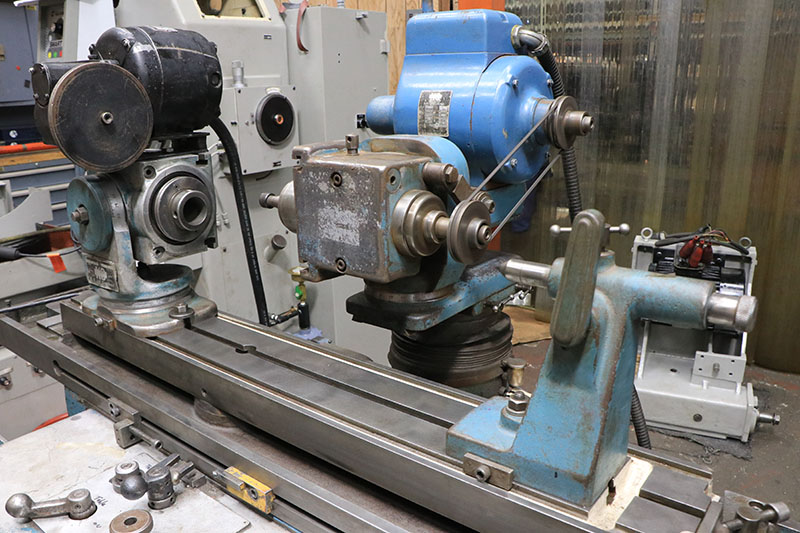

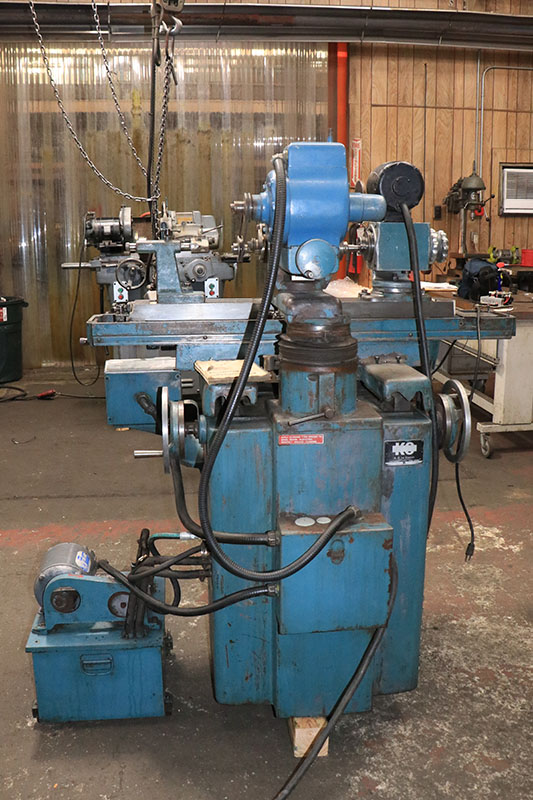

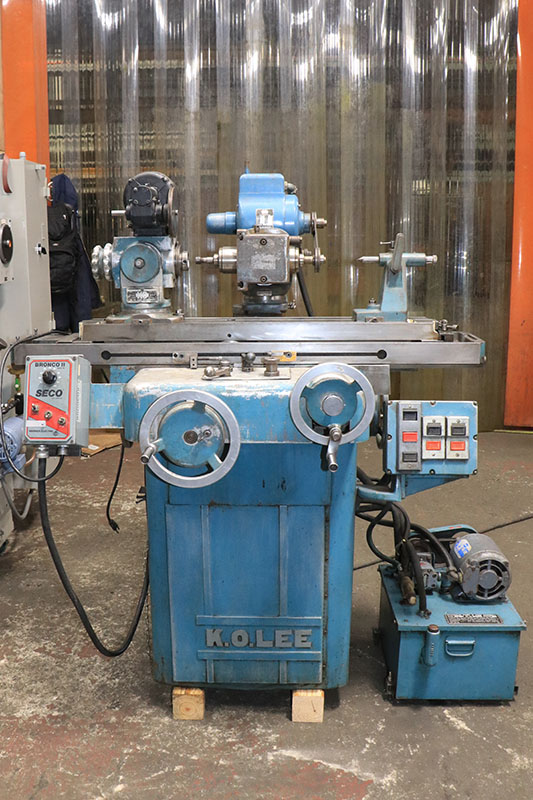

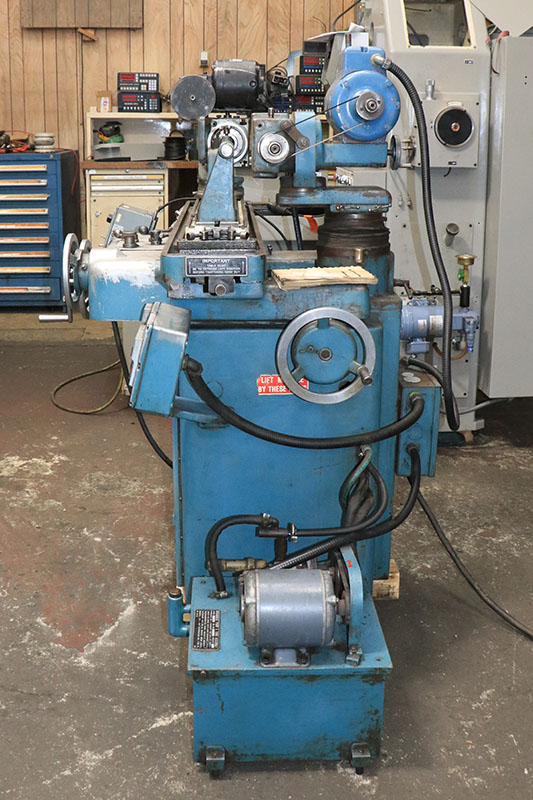

  K.O. LEE "DAKOTA" SERIES - WITH HYDRAULIC TABLE TRAVERSE,
            UNIVERSAL TOOL & CUTTER GRINDER
     WITH K.O. LEE MODEL B10043BS MOTORIZED WORKHEAD

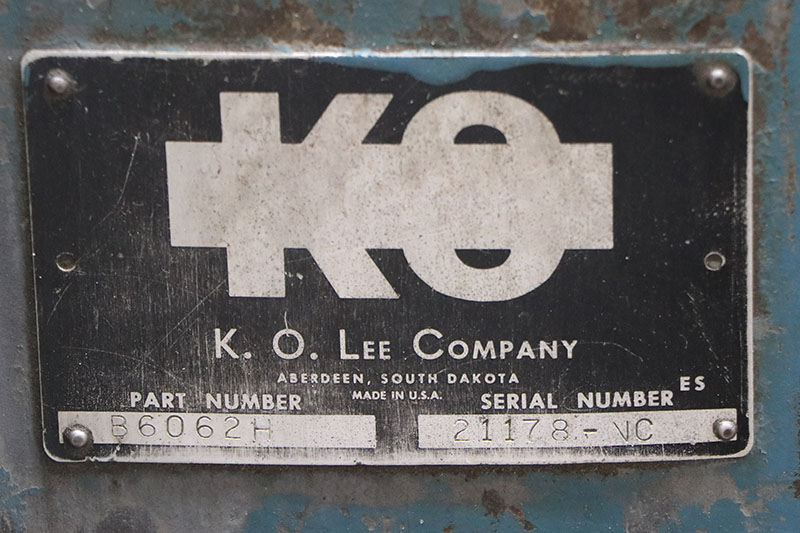

MODEL: B6062H    S/N: 21178-NC    NEW: 1980

  SWING OVER TABLE ................. 12-1/4"
DISTANCE BETWEEN TAILSTOCKS ........ 32"
TABLE WORKING SURFACE .............. 5-1/4" X 37-1/4"
SUB TABLE .......................... 8" X 48"
LONGITUDINAL TABLE TRAVERSE ........ 20"

TABLE FEED PER REV. OF HANDWHEEL:
  FAST ............................. 2-13/16"
  SLOW ............................. 9/16"
CROSS FEED ......................... 8"
FEED PER REV. OF HANDWHEEL
 (.001" GRAD.) ..................... 0.100"
VERTICAL MOVEMENT OF COLUMN ........ 10-1/2"
FEED PER REV. OF HANDWHEEL
  (.001" GRAD.) .................... 0.050"

COLUMN DIAMETER .................... 6"
MIN./MAX. DISTANCE CENTERLINE OF
 WHEEL SHAFT TO TABLE .............. 5-3/8" / 15-1/4"
MAXIMUM DISTANCE FROM COLUMN
  TO OUTSIDE OF STRAIGHT WHEEL;
  DOVETAIL SLIDE NOT EXTENDED,
  SPINDLE 90 DEG. TO TABLE ......... 6-3/8"
MAXIMUM DISTANCE FROM COLUMN
  TO OUTSIDE OF STRAIGHT WHEEL;
  DOVETAIL SLIDE EXTENDED,
  SPINDLE 90 DEGREES TO TABLE ...... 11-1/2"

TABLE SWIVELS
  (CALIBRATION: 3" PER FT.,
  15 DEG. EITHER SIDE OF CENTER) ... 225°
WHEEL HEAD SWIVEL .................. 360°

MAXIMUM I.D. DEPTH,
  HOLE SIZE 9/32" TO 2" ............ 3-1/2"
MAXIMUM CROSS FEED SURFACE
 GRINDING W/8" WHEEL ............... 5"
SPINDLE SPEED RANGE
(HEAVY DUTY WHEELHEAD) ............. 2840 TO 5330 RPM

APPROXIMATE MACHINE WEIGHT ......... 1,300 LBS

MACHINE FEATURES:

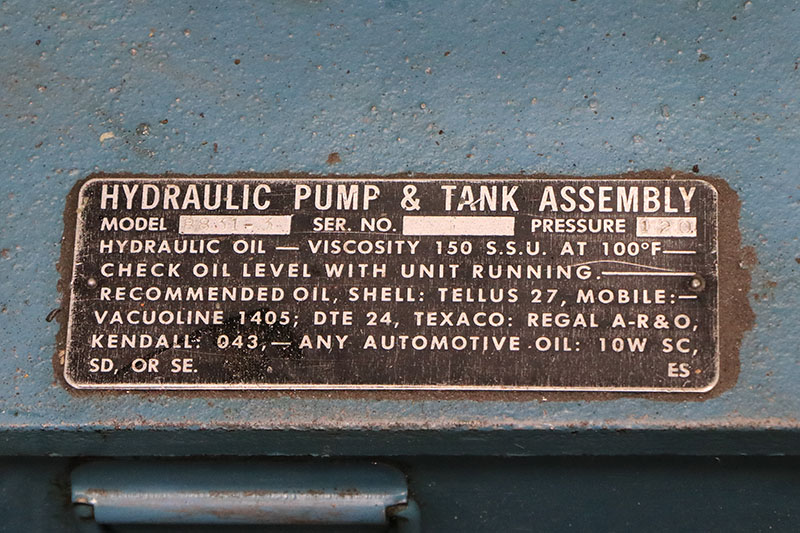

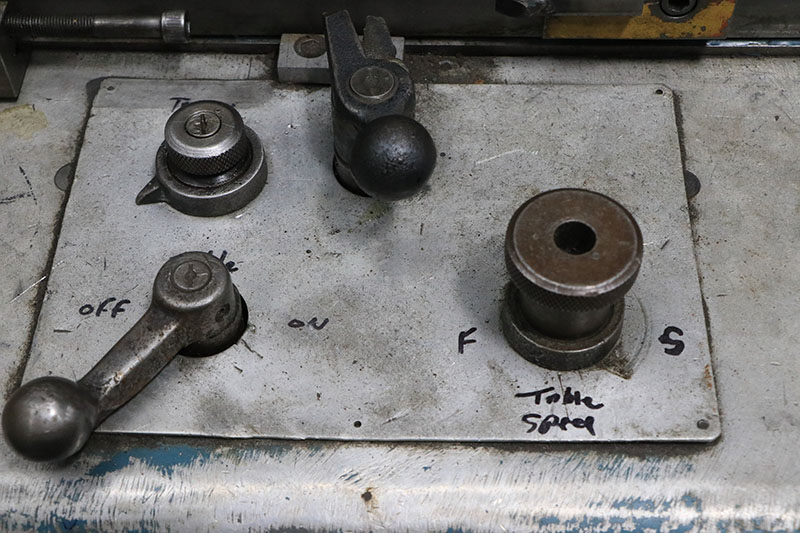

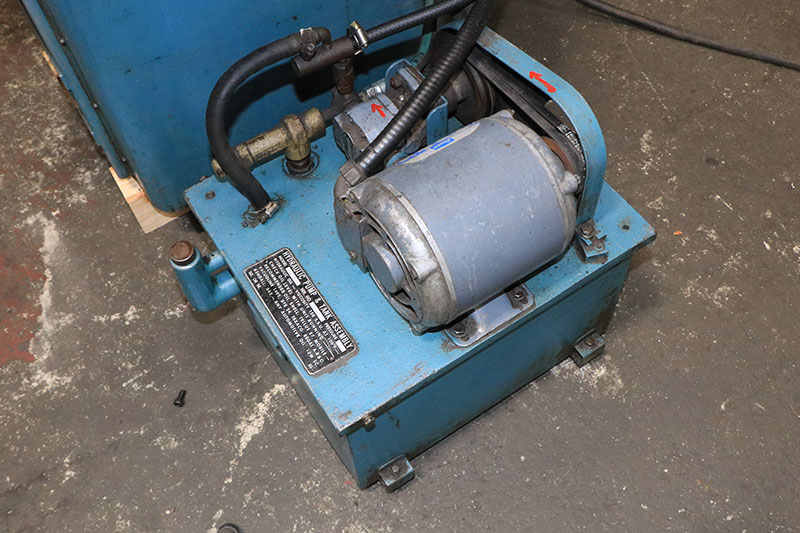

HYDRAULIC TABLE TRAVERSE
LONGITUDINAL HANDWHEEL DISENGES WHEN USING POWER TABLE OPTION
FRONT & REAR HANDWHEELS FOR TABLE TRAVERSE

"DAKOTA" HEAVY DUTY #B6055HD UNIVERSAL GRINDING
WHEELHEAD FEATURES:
- SWIVELLING & TILTING (22° EITHER SIDE OF VERTICAL)

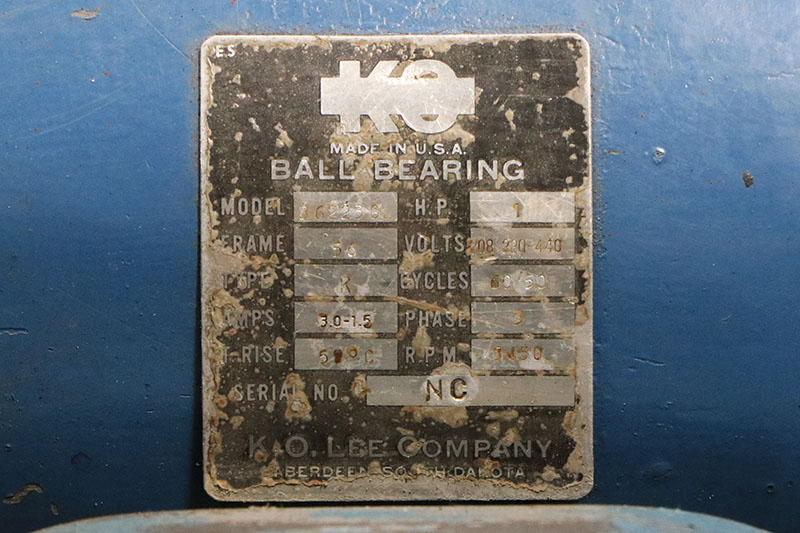

- 1 HP MOTOR WIRED FOR 3/60/208-220-440 VOLTS
- 3-1/2" TO 8" DIAMETER WHEELS

BIJUR LUBRICATOR (ONE-SHOT)
MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS

ACCESSOIRIES, EQUIPPED WITH:

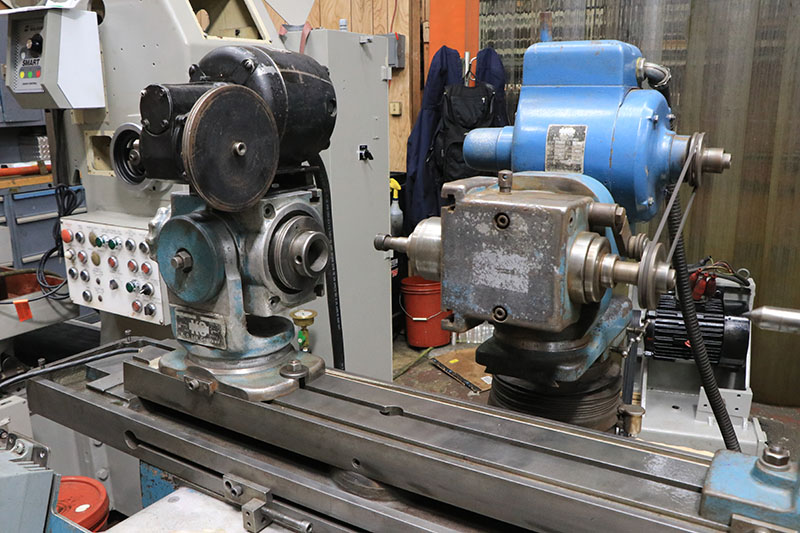

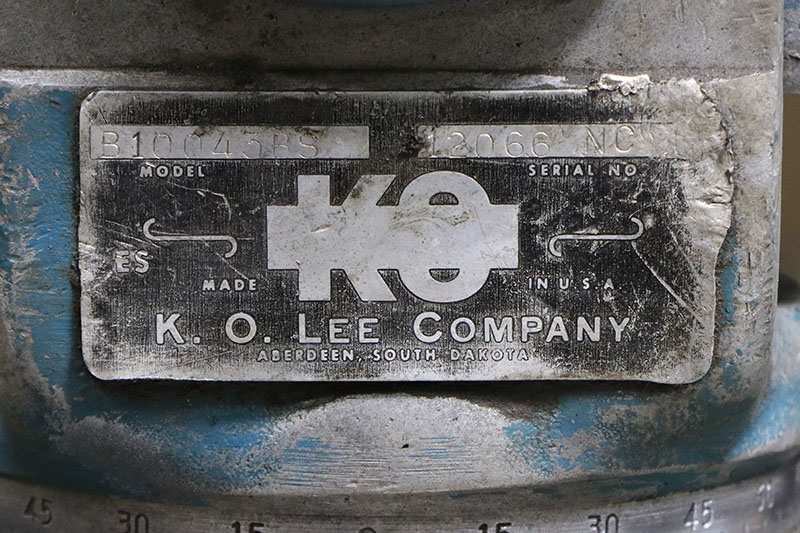

K.O. LEE MODEL B10043BS MOTORIZED WORKHEAD, WITH

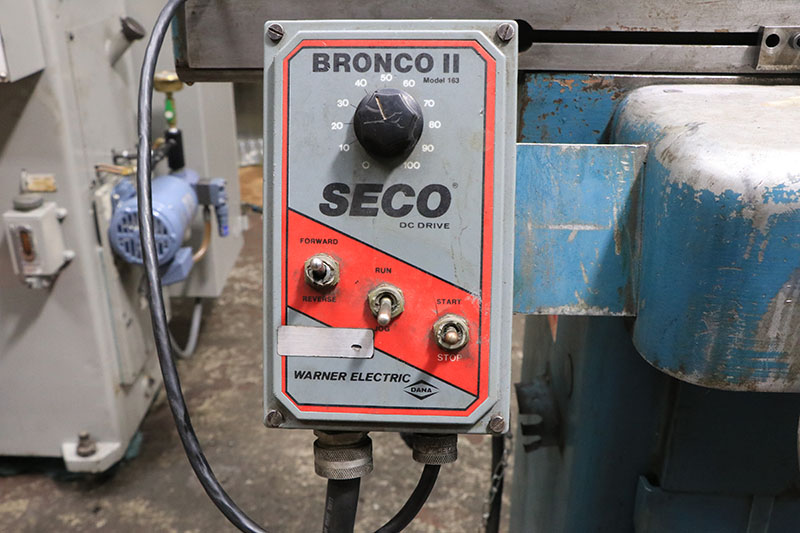

 "WARNER ELECTRIC - SECO" "BRONCO II" ELECTRONIC VARIABLE SPEED CONTROL

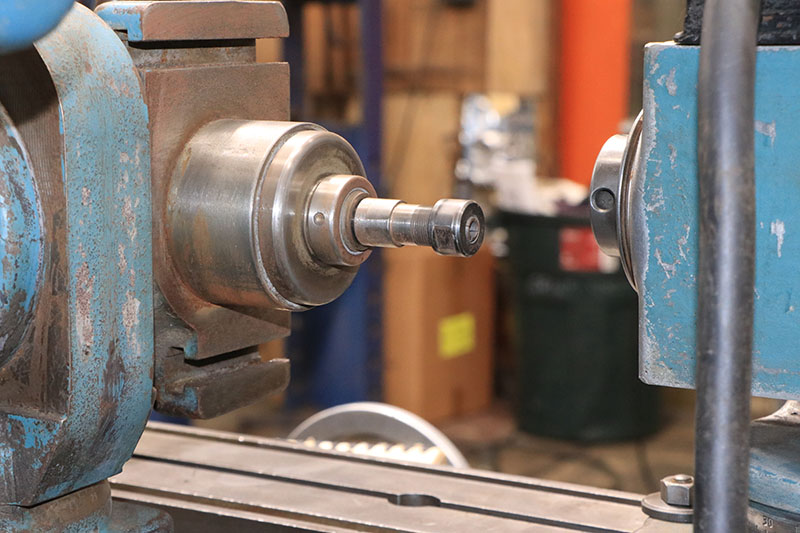

DRAW BAR FOR USING 5C COLLETS, COMPLETE WITH NOSE PIECE
K.O. LEE R,H. TAILSTOCK,

AVAILABLE FOR PURCHASE WITH THIS MACHINE:
K.O. LEE MODEL #BA986 RADIUS GRINDING ATTACHMENT, COMPLETE
  WITH K.O. LEE B942 "NON-MOTORIZED" "SENSITIVE"
  WORKHEAD.  PRICE FOR THIS UNIT IS P.O.R.

  ** EXCELLENT CONDITION& APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
