Mattison DIE BLOCK, S/N: 24468, NEW 1988, 3X AUTO FEEDS SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Mattison

Model:: DIE BLOCK, S/N: 24468, NEW 1988, 3X AUTO FEEDS

Year:: 1988

Ref #:: 164192

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

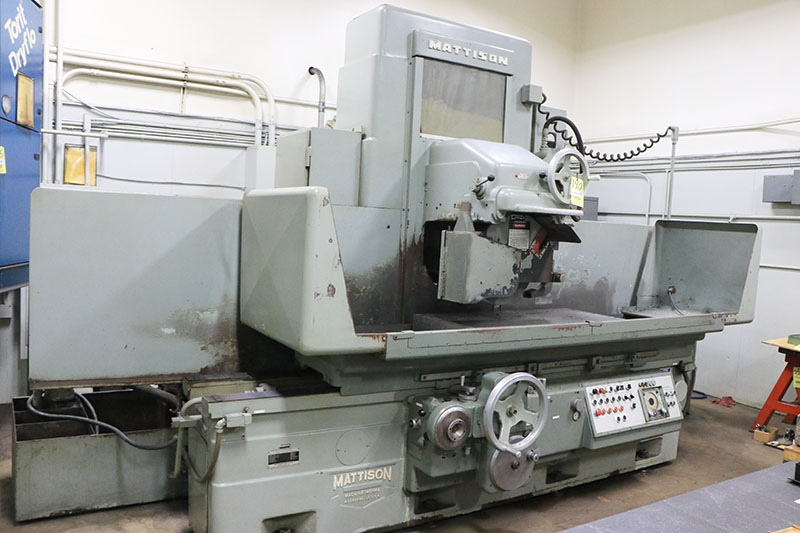

  20" X 48"  MATTISON  'Die Block'  "Double Column"
 Hydraulic Surface Grinder with Automatic Incremental Downfeed

Model:  Die Block    S/N: 24468     New: 1988

Specifications:

Width & length ground:...................... 20" x 48"
Vertical capacity under 20" diameter wheel:. 24"
Longitudinal table travel .................. 60"
Infinitely variable table traverse speeds:.. up to 125 F.P.M.
Auto crossfeed increment:................... 1/32" to 3"
Auto downfeed increment:.................... 0.004" to .0002"

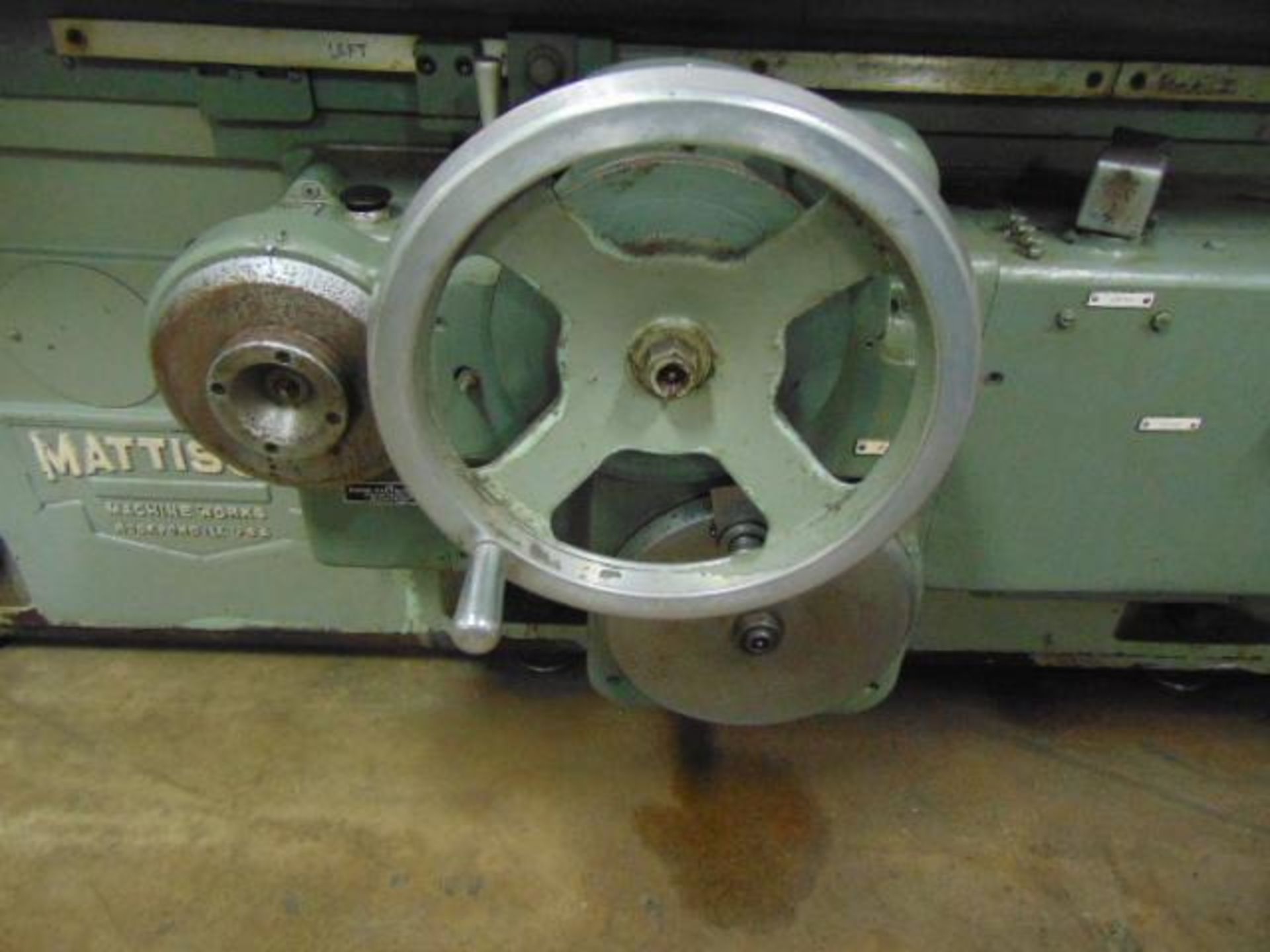

Vertical handwheel graduation:.............. 0.0001"
Grinding wheel diameter x bore x width:..... 20" x 10" x 4"W

Approximate Weight (Machine Only): 25,700 Lbs.
Approximate Dimensions (Machine Only): 150"L-R x 86"F-B x 110"High


Equipped With:
Double box-type column construction
Hydraulically actuated table traverse
Automatic incremental downfeed of the grinding wheelhead

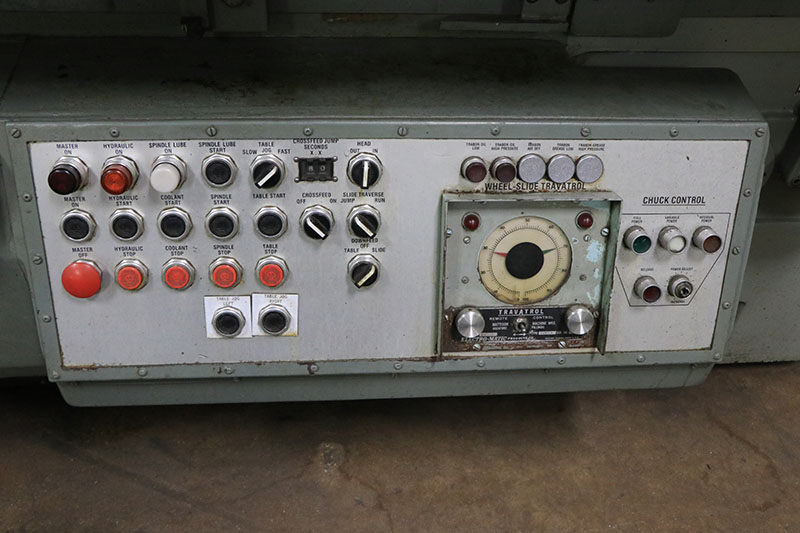

Trav-A-Trol electronic control of the cross-feed movement
Power rapid traverse to the grinding wheelhead
24" Vertical Capacity

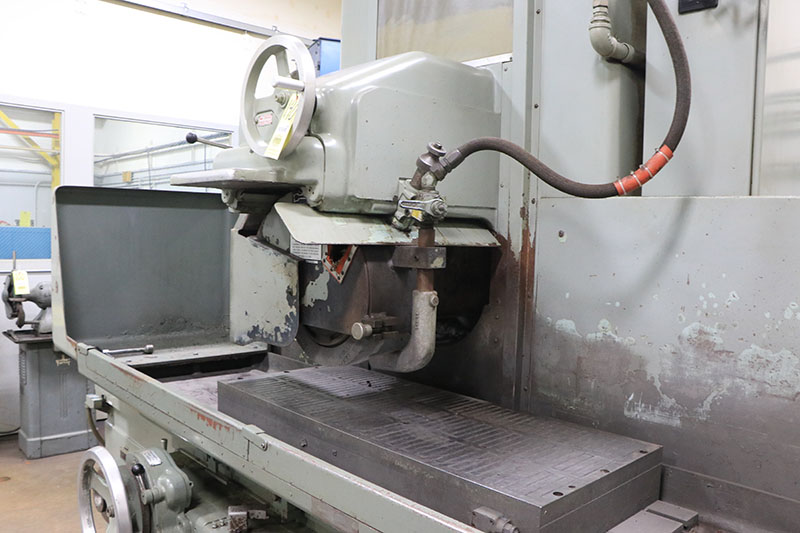

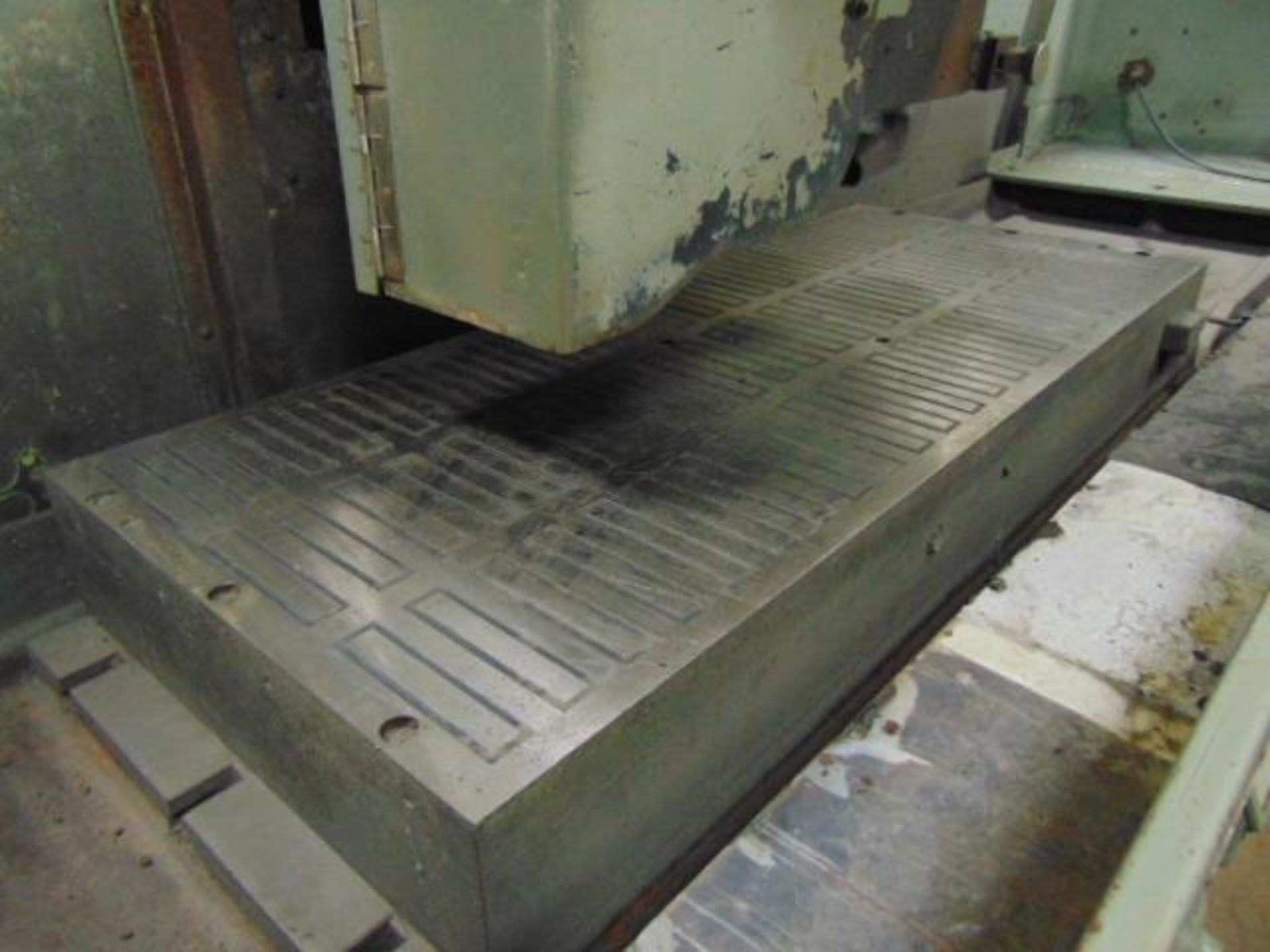

20" x 48"  Electromagnetic chuck
Variable hold Neutrofier control
Built-in wheel dresser

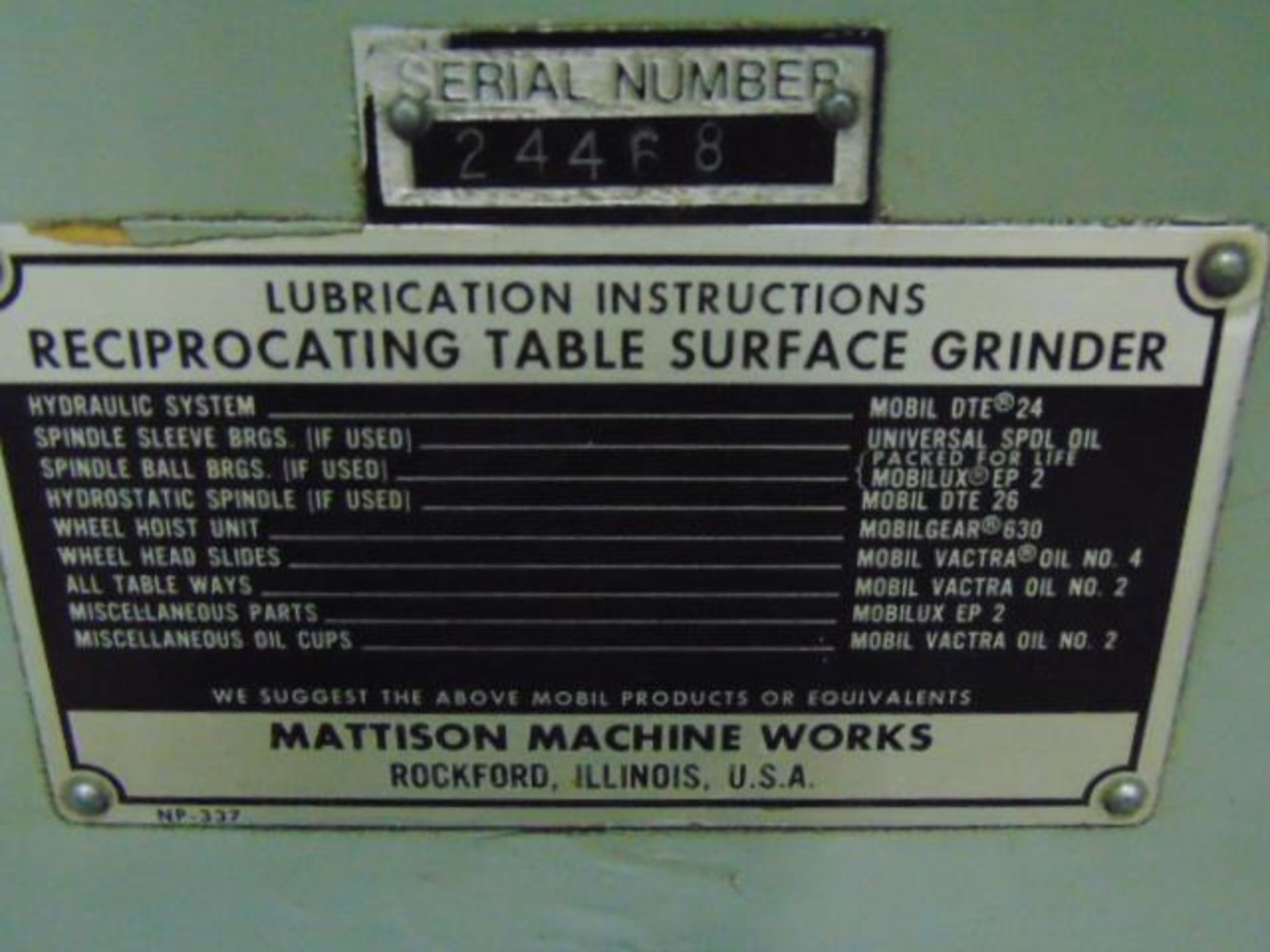

Pressurized lubrication system

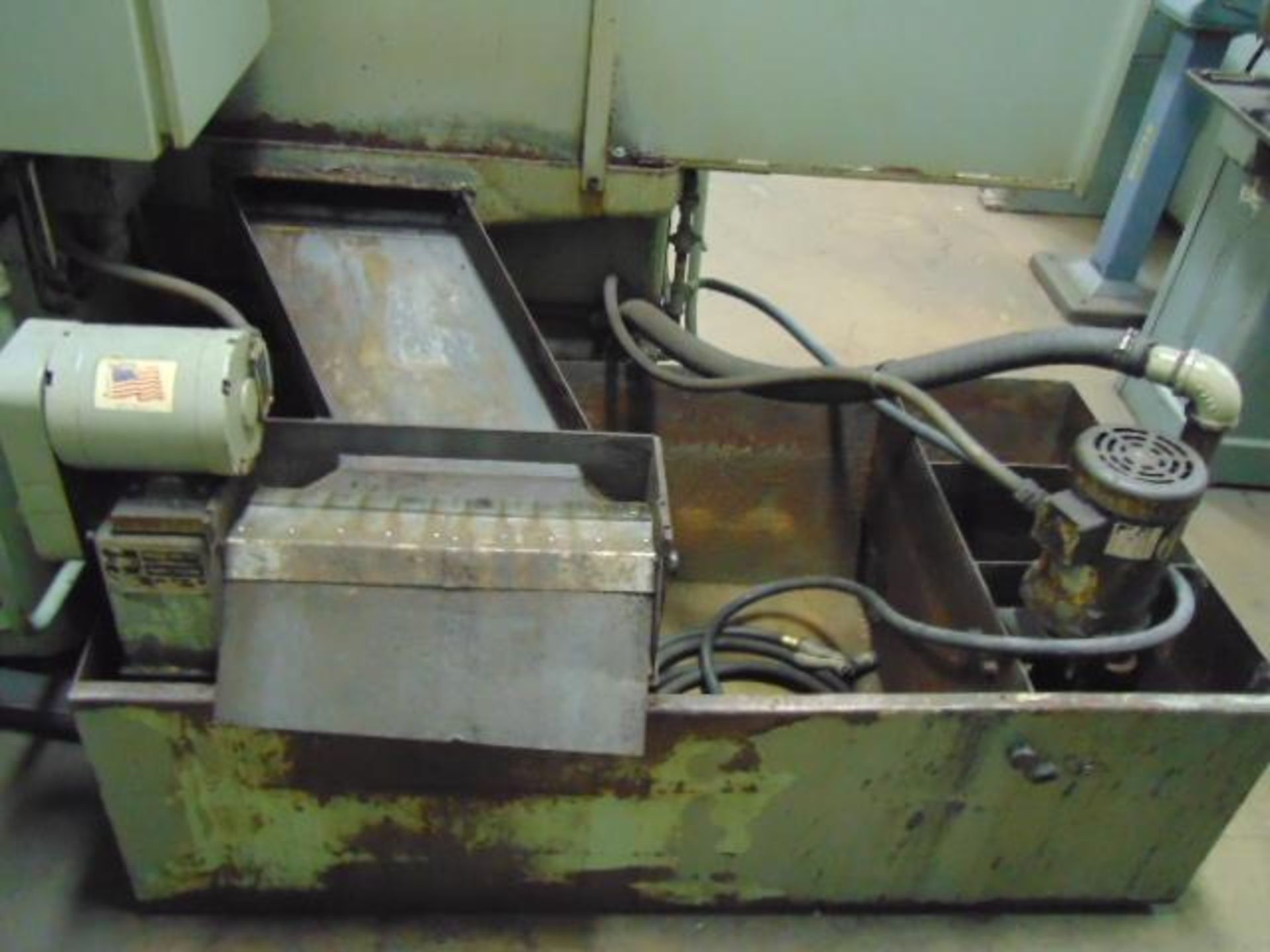

External coolant system, with magnetic separator

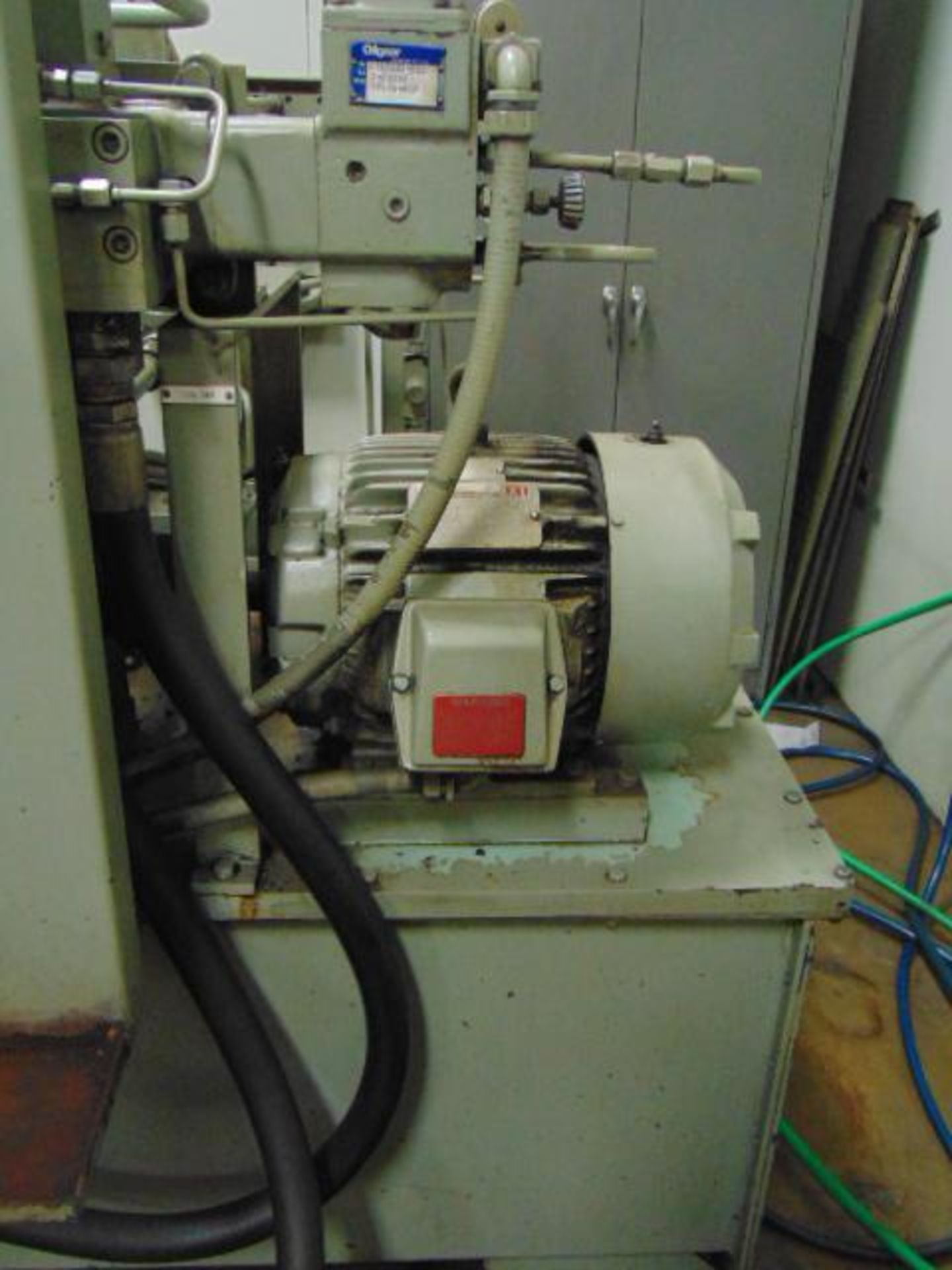

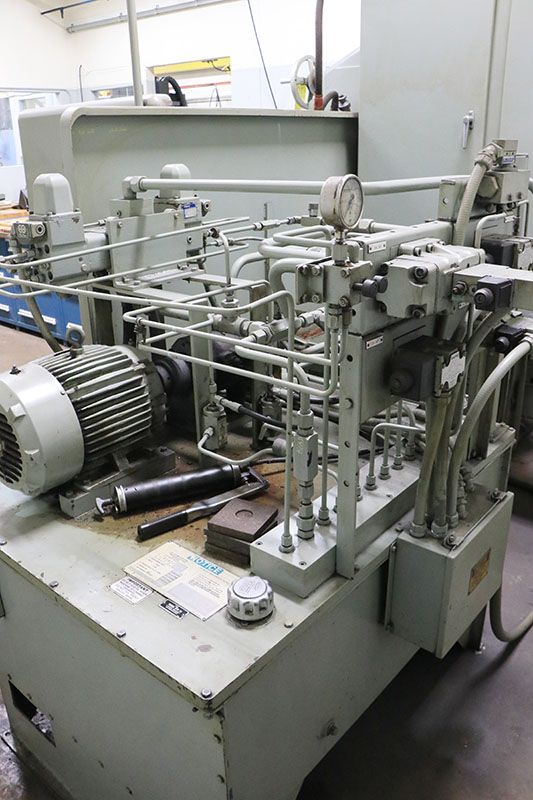

External hydraulic system with 10 H.P. 3/6-/230-460 volt pump motor

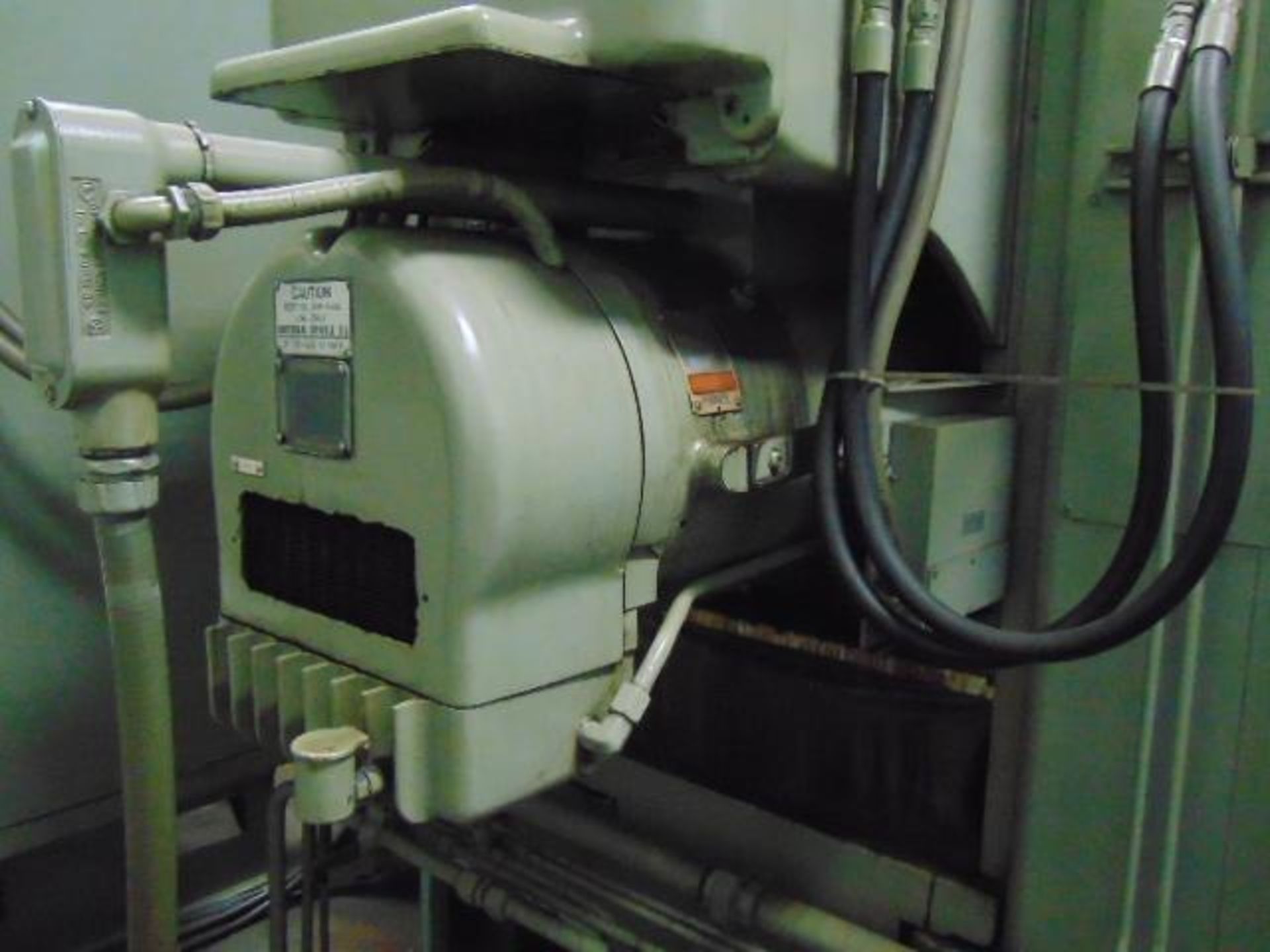

15 H.P. 3/60/230-460 volt direct drive spindle motor

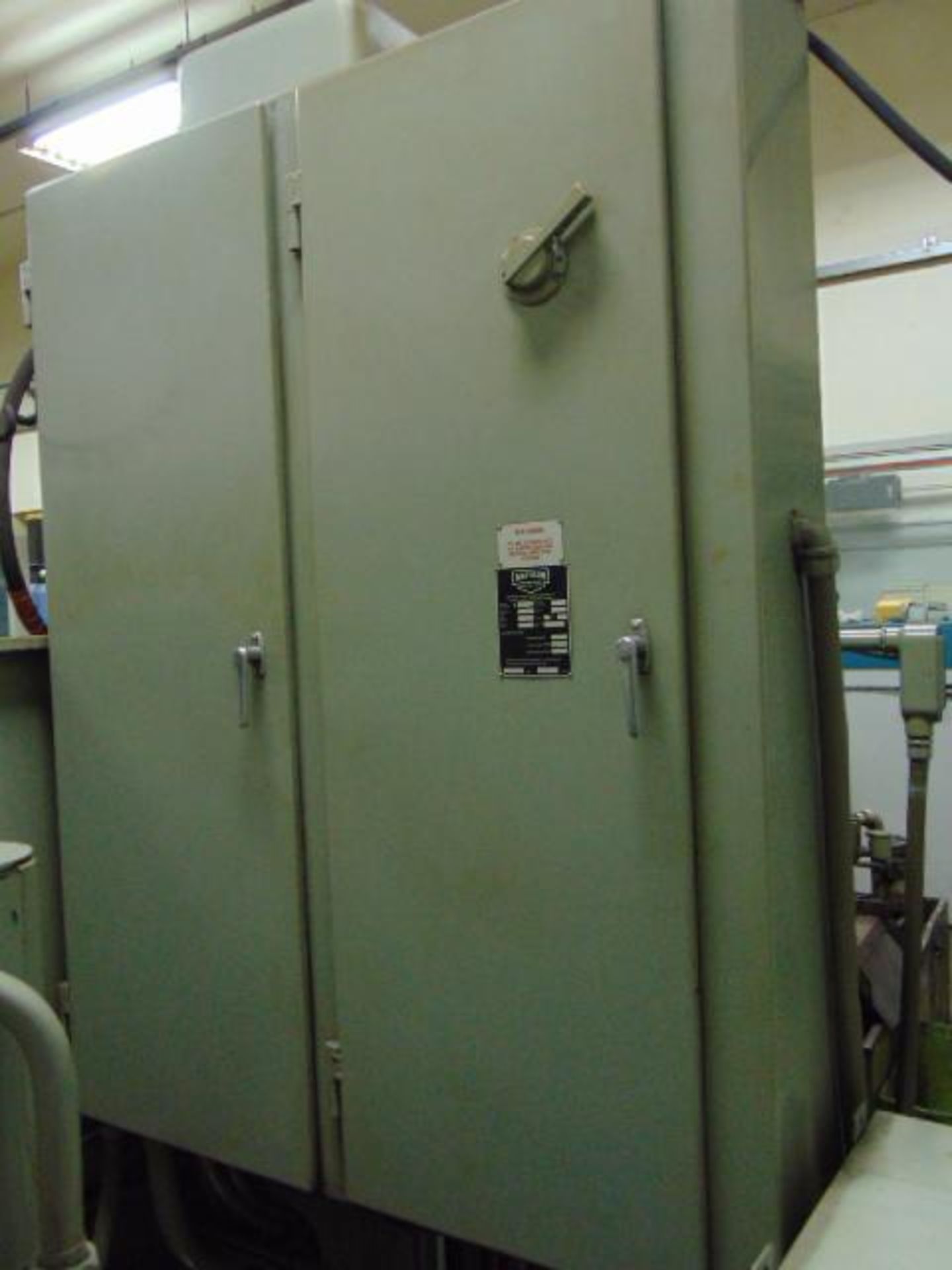

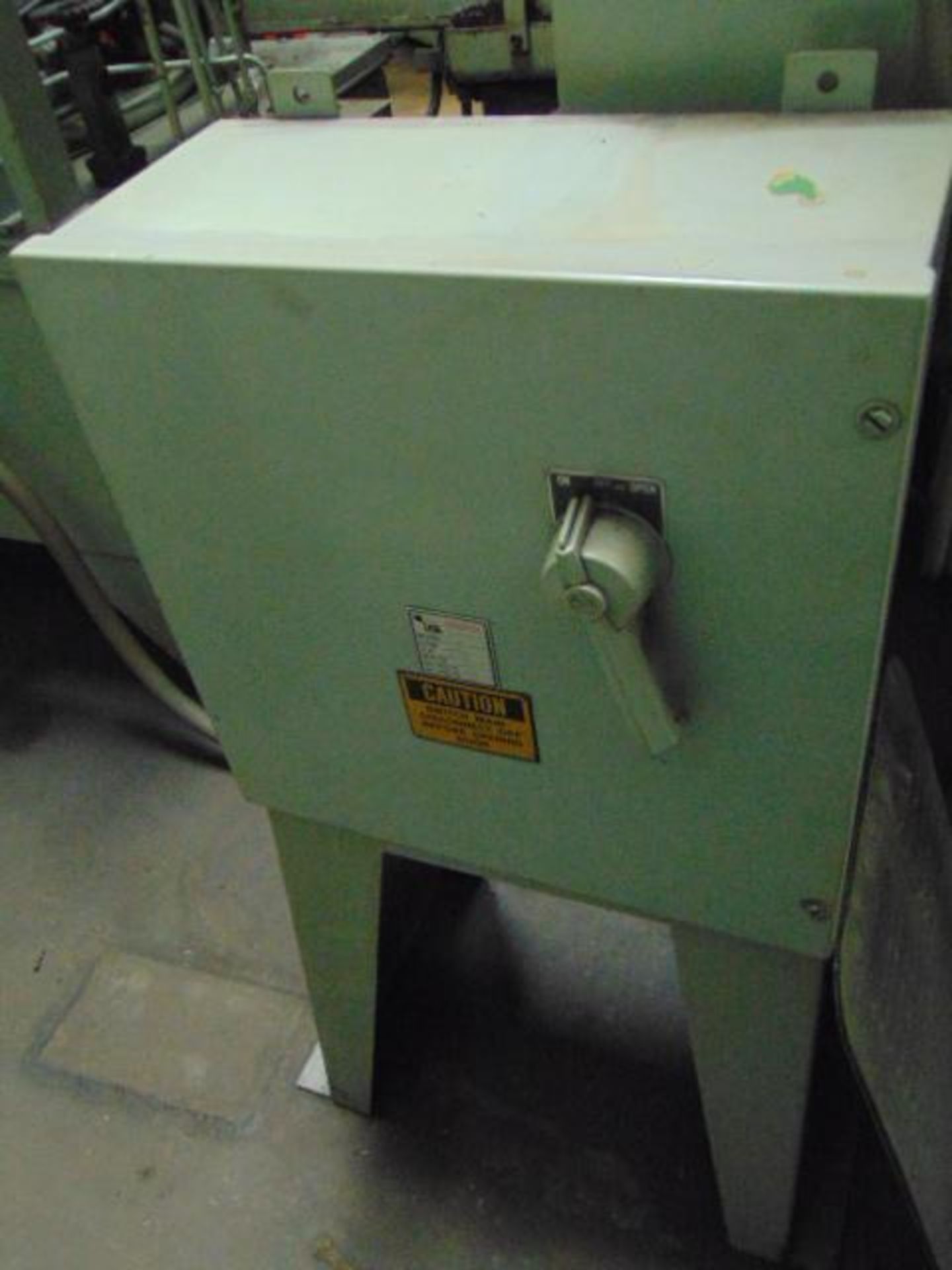

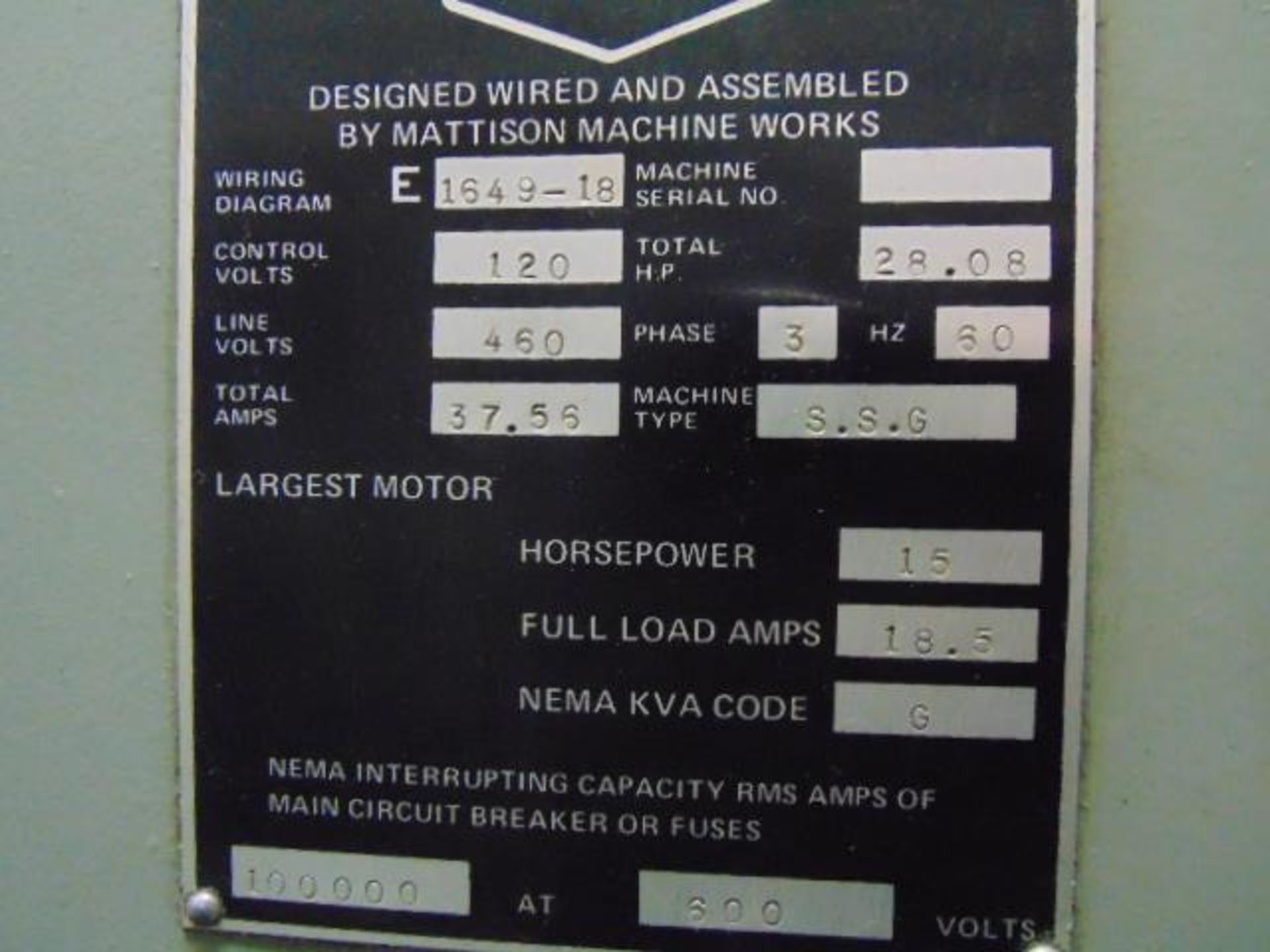

Machine is wired for 460 volt operation, 37.56 Total Amps

Link to video: https://youtu.be/Z8RWMvELft0

** Inspect Under Power in Our Harrison, NJ Warehouse **
** Ways are Superb, Spindle is Dead Quiet,
    Machine functions flawlessly **
** Superior Condition & Appearance  **
