Milltronics ML 22/60 CNC LATHES, FLAT BED (ENGINE LATHE STYLE)

$44,500

Make:
Milltronics
Model:
ML 22/60
Year:
2009
Ref #:
167612

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

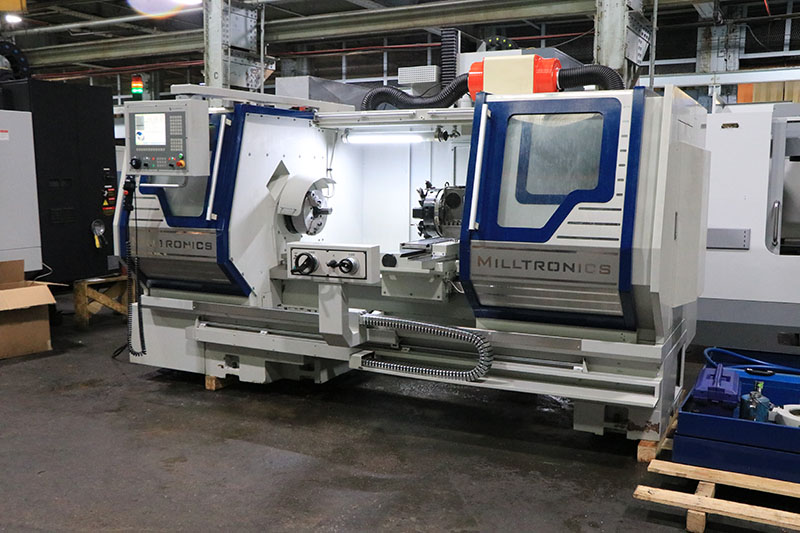

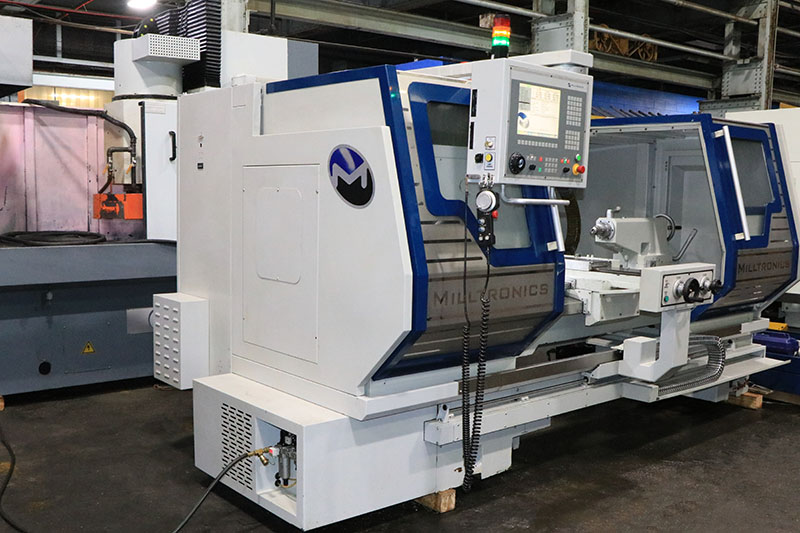

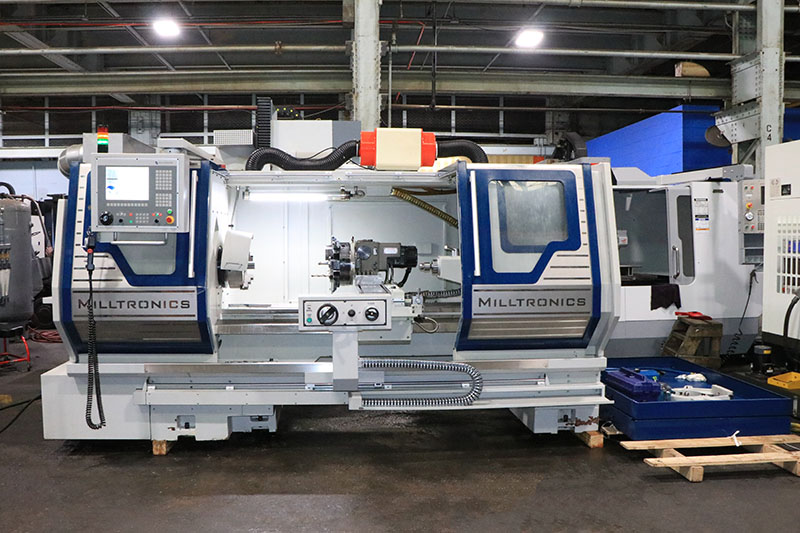

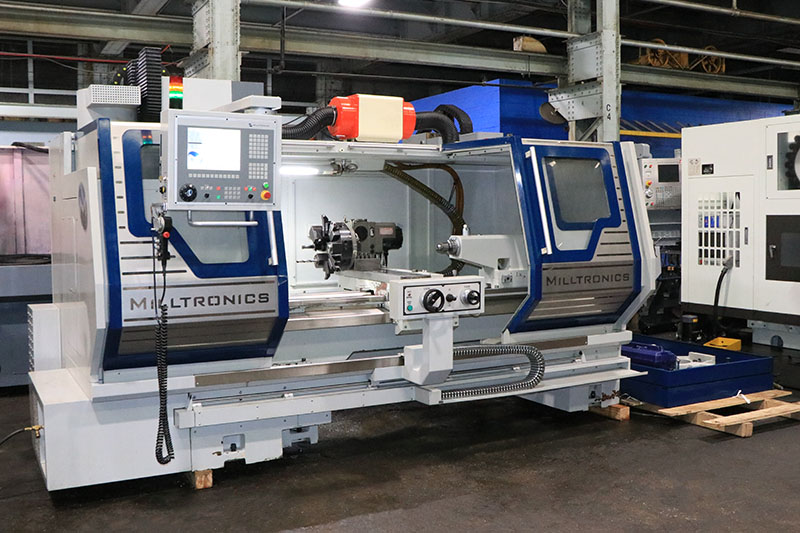

MILLTRONICS CNC FLAT BED TEACH LATHE

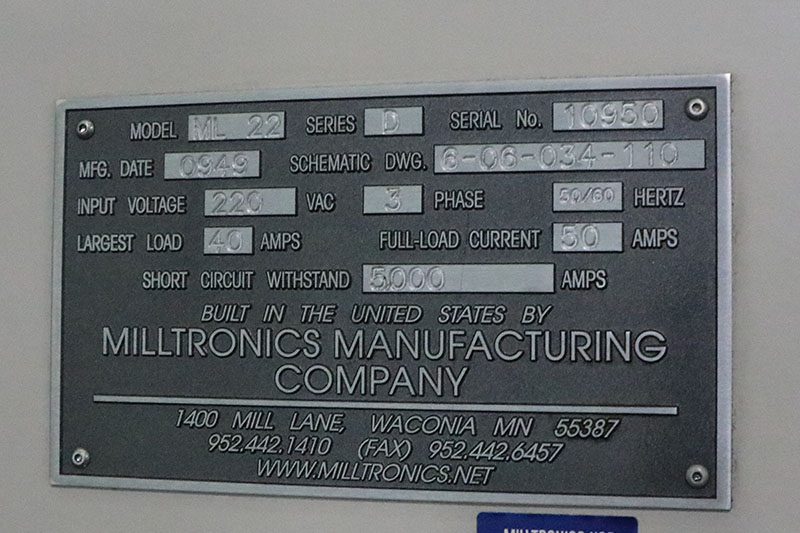

MODEL: ML 22/60, S/N: 10950, NEW: 2009

SPECIFICATIONS:
SWING OVER BED WAYS ................ 23"
SWING IN REMOVABLE GAP ............. 31"
SWING OVER CROSS ................... 12.1"
DISTANCE BETWEEN CENTERS ........... 64.5"
SPINDLE BORE ....................... 3.22"
SPINDLE NOSE ....................... A1-8
SPINDLE SPEEDS TWO RANGES:
    LOW ............................ 40 - 375 RPM
    HIGH ........................... 75 - 2,000 RPM
X-AXIS TRAVEL ...................... 13"
Z-AXIS TRAVEL ...................... 63.5"
RAPID TRAVERS RATE ................. 500 IPM
MAXIMUM FEED RATE .................. 100 IPM

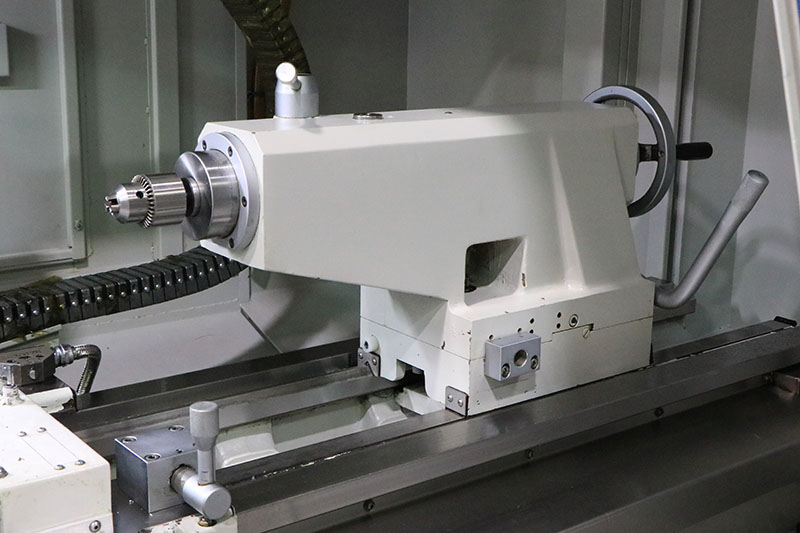

TAILSTOCK QUILL DIAMETER ........... 3.15"
TAILSTOCK QUILL TRAVEL ............. 6"
TAILSTOCK QUILL TAPER .............. #5MT
APPROXIMATE DIMENSIONS ............. 83" X 143"
APPROXIMATE MACHINE WEIGHT ......... 10,000 LBS

EQUIPPED WITH:

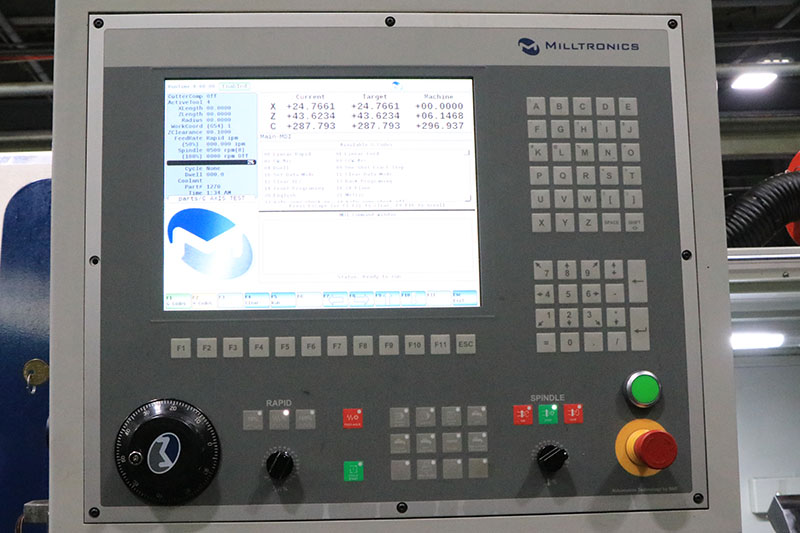

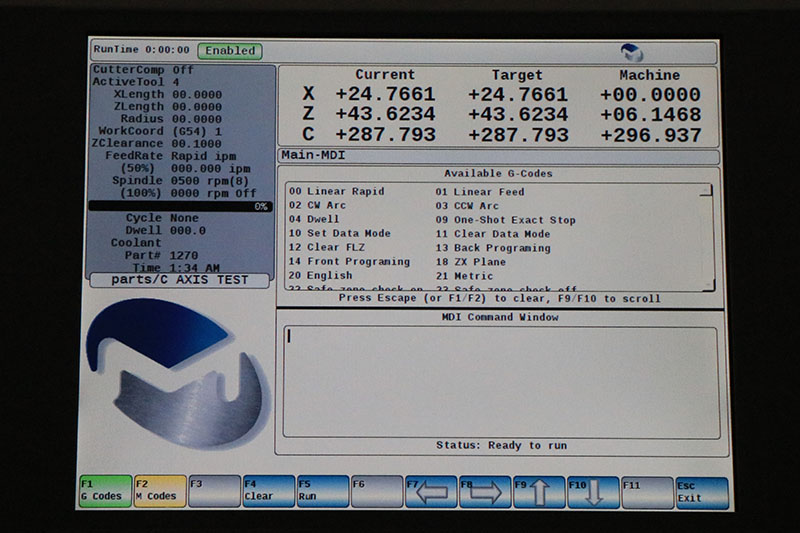

MILLTRONICS CNC CONTROL WITH: MANUAL, TEACH, CONVERSATIONAL OR G/M CODE PROGRAMMING

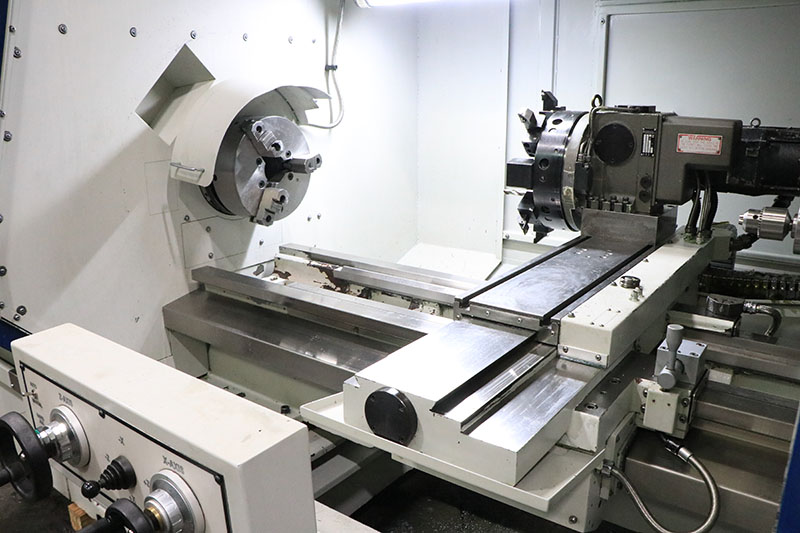

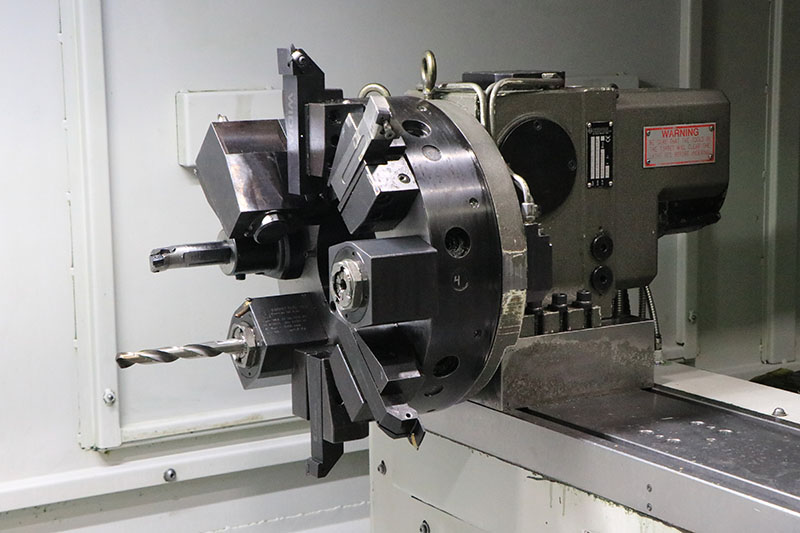

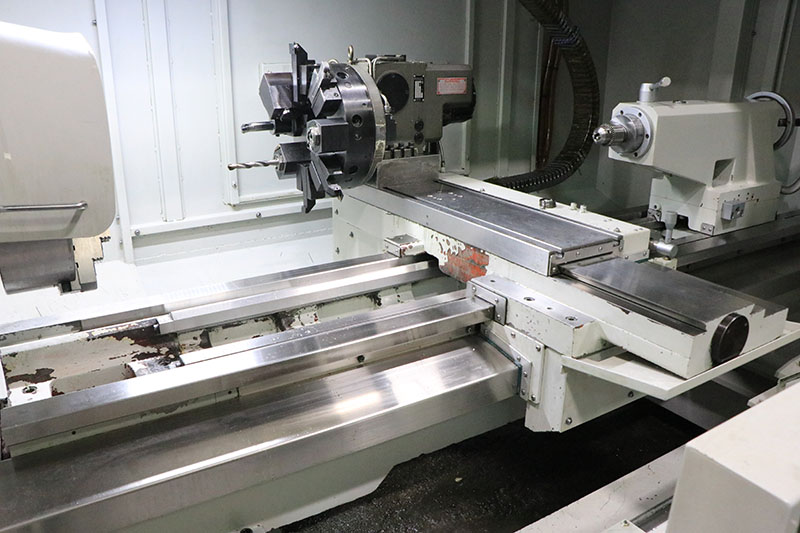

BARUFFALDI TBMA SERVO TURRET
 8 STATION, LIVE TOOLING, VDI 40, 7.5 HP
C-AXIS w/SPINDLE ORIENT
BOX WAYS

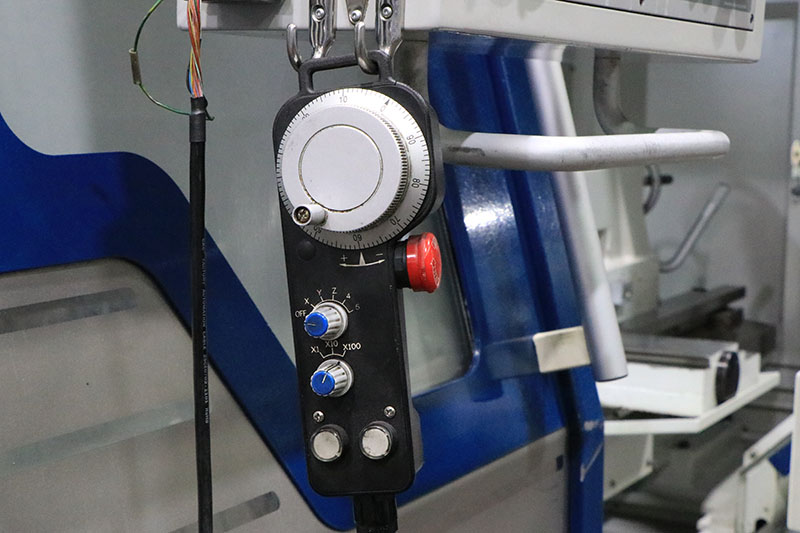

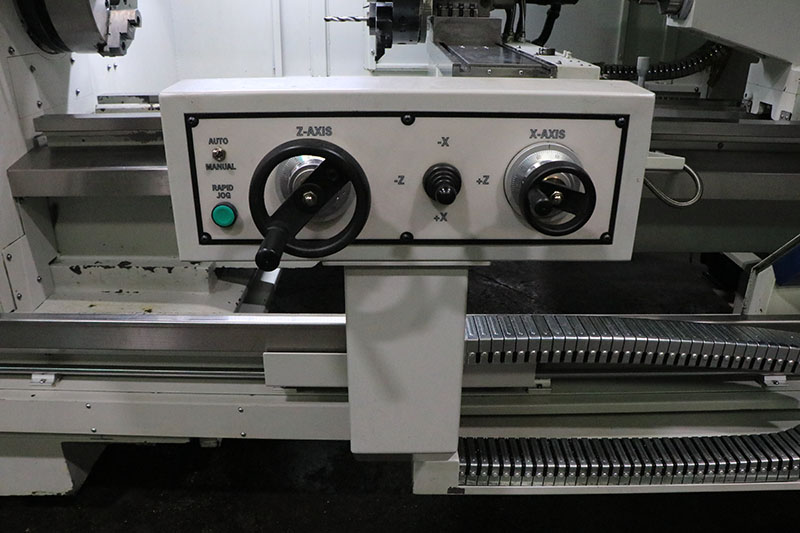

ELECTRONIC HANDWHEELS FOR X & Z AXIS
12" 3-JAW CHUCK

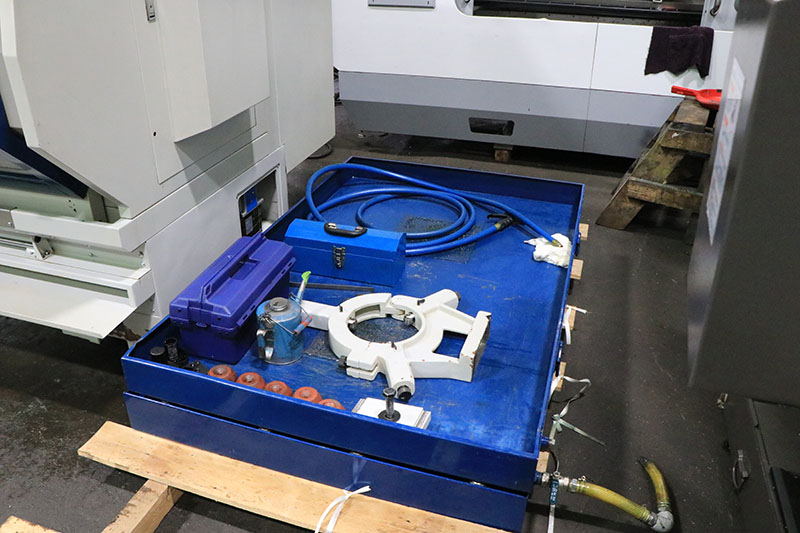

STEADY REST
MIST COLLECTOR

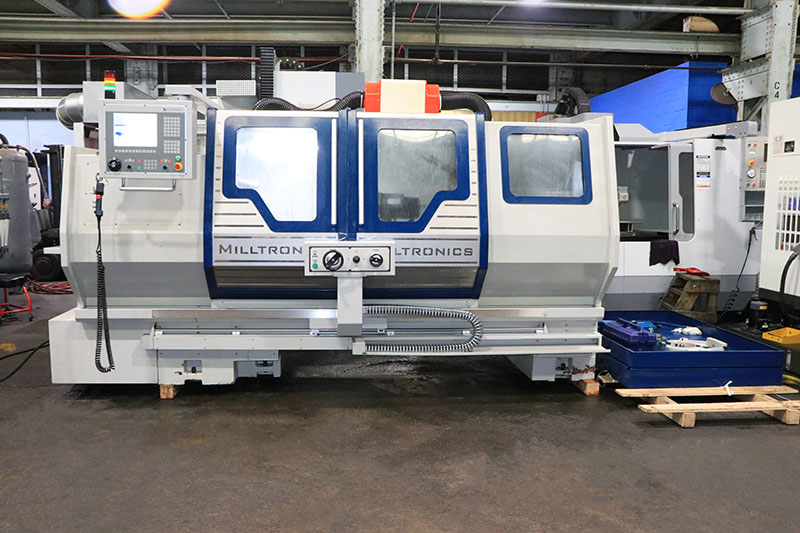

FULL CHIP ENCLOSURE w/SLIDING DOORS
COOLANT SYSTEM
24 HORSEPOWER SPINDLE MOTOR

JUST OUT OF SERVICE
 USED IN MILLTRONICS OWN TOOL ROOM!

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
