MITSUI MSG-250H2AH, 1989, 3X AUTO FEEDS, AUTO IDF SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: MITSUI

Model:: MSG-250H2AH, 1989, 3X AUTO FEEDS, AUTO IDF

Year:: 1989

Ref #:: 178761

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

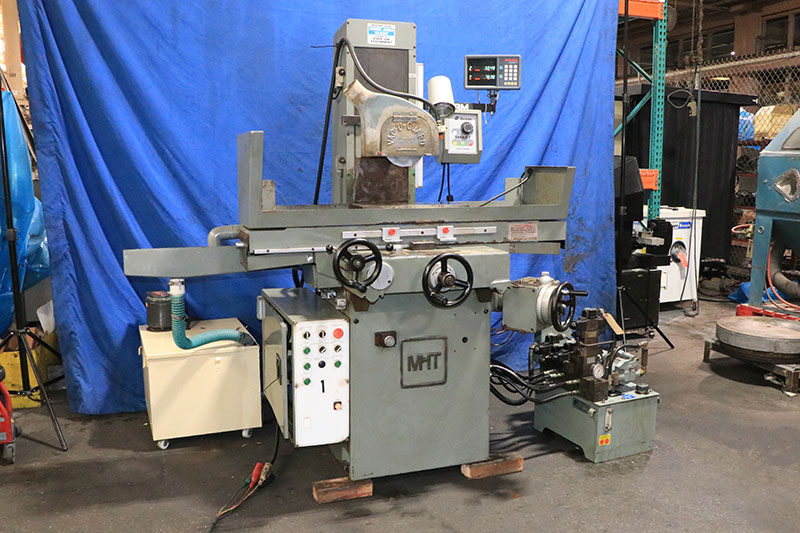

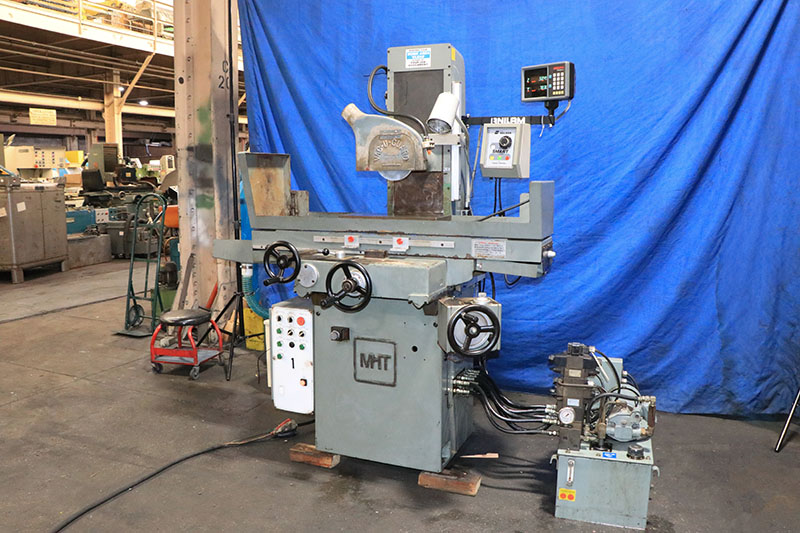

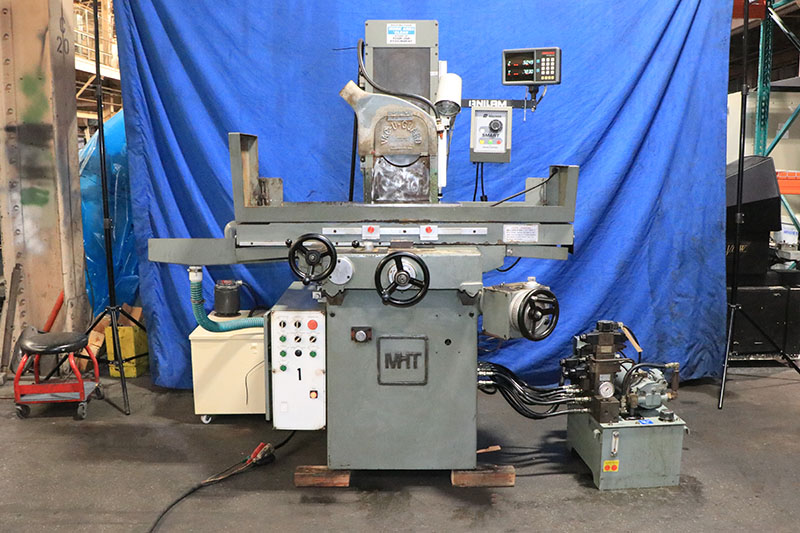

  8" X 18" MITSUI "SUPER-PRECISION - MADE IN JAPAN"
    "HIGH COLUMN" HYDRAULIC SURFACE GRINDER
        WITH AUTO INCREMENTAL DOWNFEED

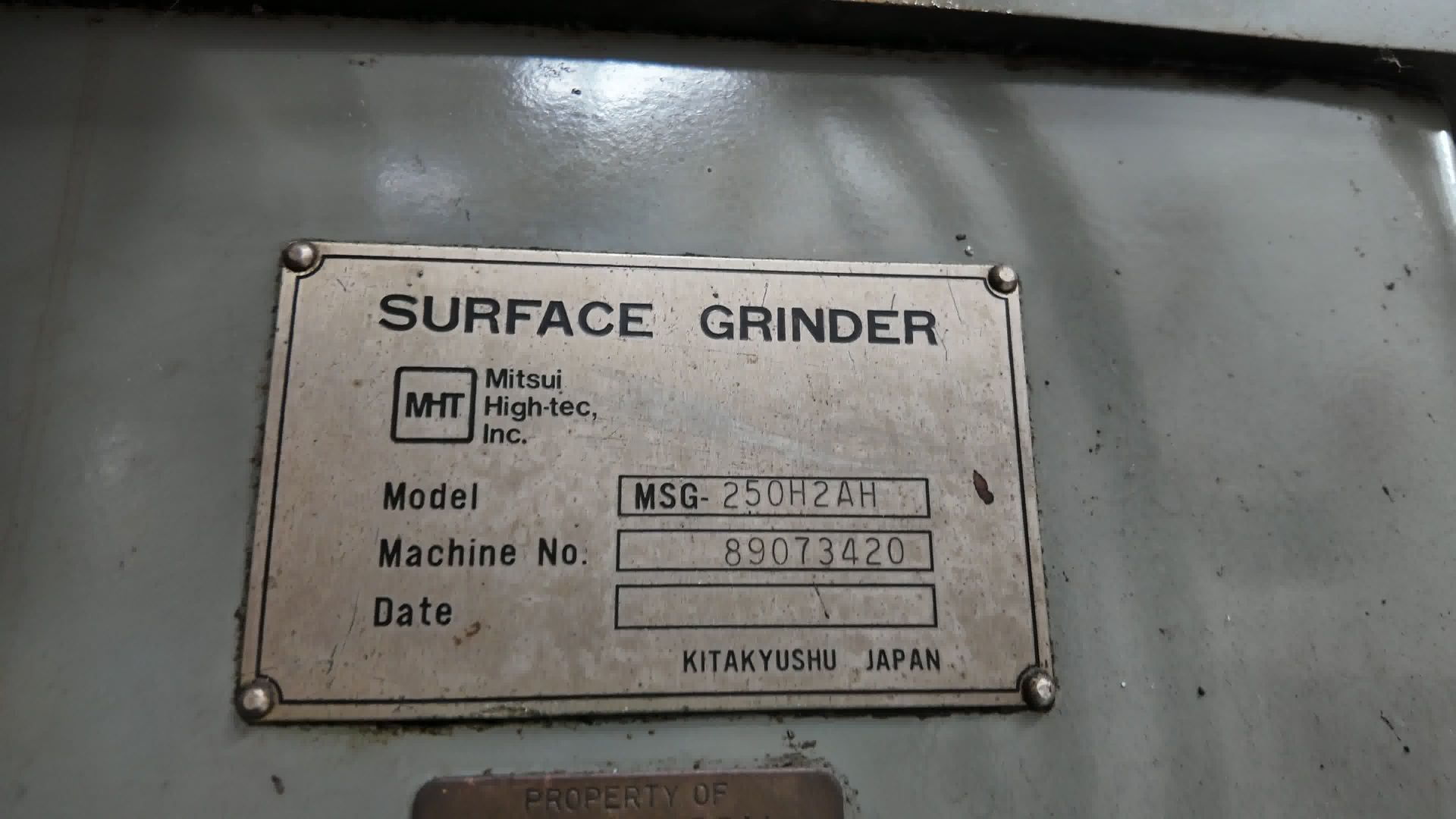

MODEL: MSG250H-2AH       S/N: 89073420       NEW: 1989

WORKING SURFACE OF TABLE ............... 8" X 19"
MAXIMUM SURFACE GROUND ................. 9-1/2" x 20"
MAXIMUM DISTANCE BETWEEN TABLE
SURFACE AND SPINDLE CENTER ............. 22-1/2"

RANGE:
LONGITUDINAL ........................... 20"
CROSS (AUTOMATIC)....................... 9-1/2"
CROSS (MANUAL).......................... 10"
VERTICAL ............................... 16"

INF. VARIABLE LONGITUDINAL FEEDS ....... 5 - 68 FPM
AUTO CROSS FEED TO TABLE PER STROKE .... 0.02" - 0.05" IPM
AUTO VERT. FEED INCREMENTS, TEN STEPS .. 0.0001" - .001"
RAPID CROSS FEED RATE .................. 2 - 17 IPM

ELEVATING HANDWHEEL GRADUATIONS ........ 0.0001"
CROSS FEED HANDWHEEL GRADUATION ........ 0.001"
CROSS FEED VERNIER ..................... 0.0001"

APPROX. MACHINE WEIGHT ................. 3,490 LBS

MACHINE FEATURES:
AUTOMATIC INCREMENTAL DOWNFEED OF GRINDING WHEEL
HYDRAULIC LONGITUDINAL & POWER CROSS FEEDS
ROLLER BEARING TABLE
HARDENED & GROUND WAYS (REMOVEABLE) ON TABLE,
  CARRIAGE/SADDLE & COLUMN
AUTOMATIC ONE SHOT LUBRICATION SYSTEM

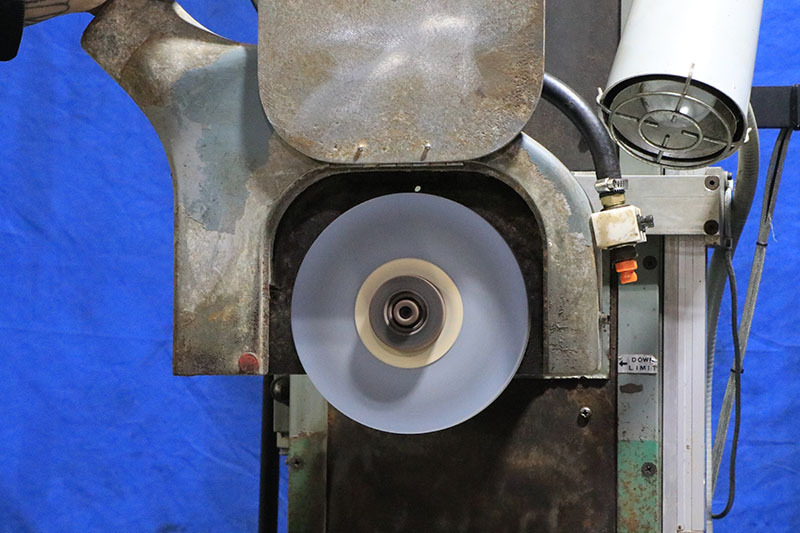

8" x 1/2" x 1- 1/4" GRINDING WHEEL
2 H.P./3/60/460 VOLT SUPER-PRECISION SPINDLE DRIVE

EQUIPPED WITH:

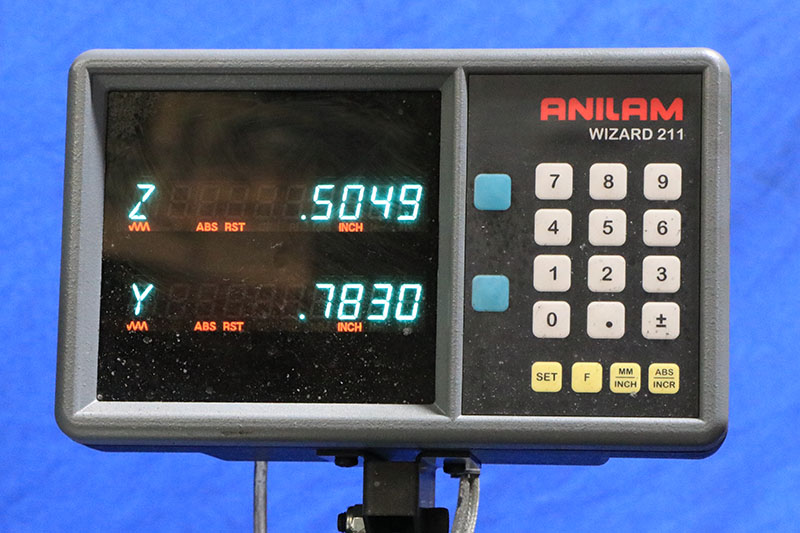

"ANILAM" 2-AXIS DIGITAL READOUT

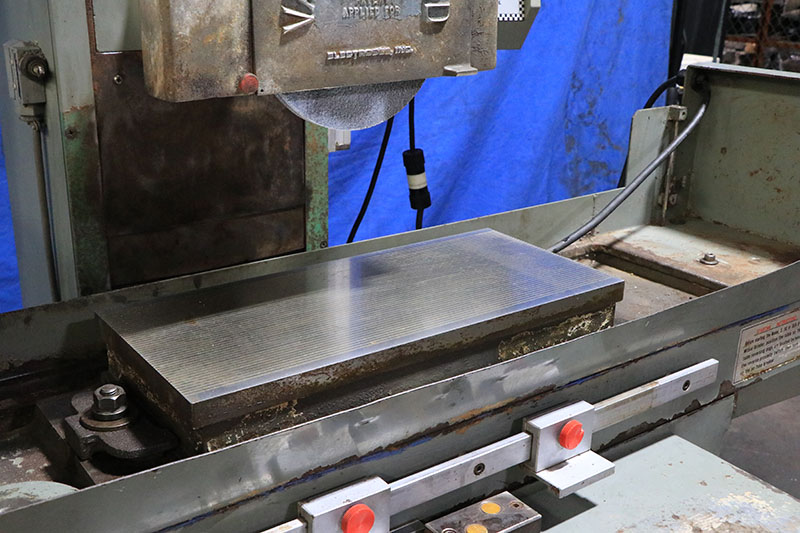

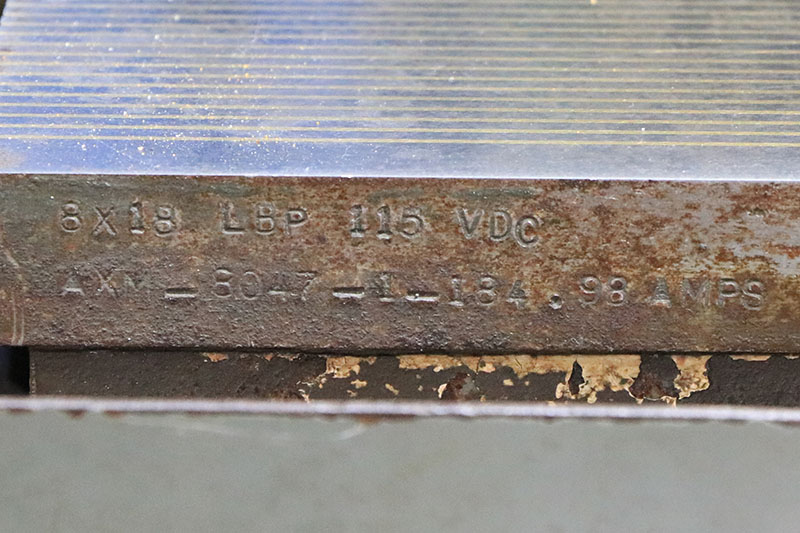

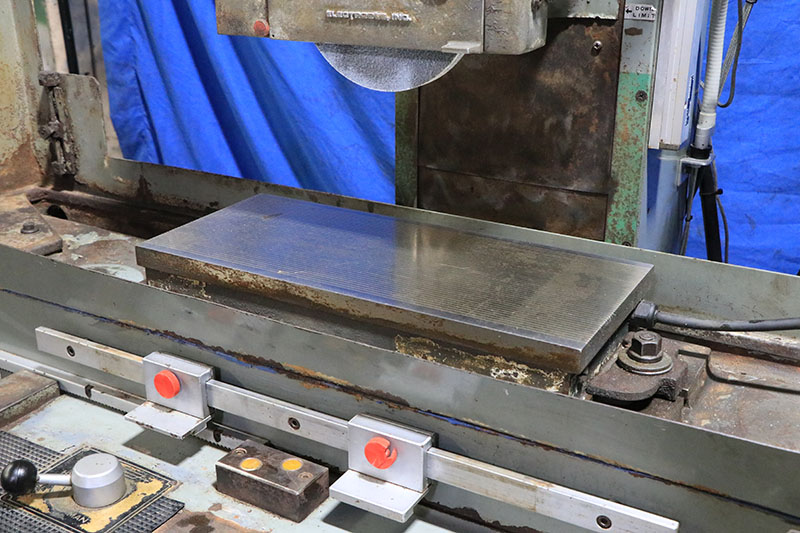

8" x 18" O.S. WALKER FINE-DIVISION "LBP" ELECTRO MAGNETIC CHUCK

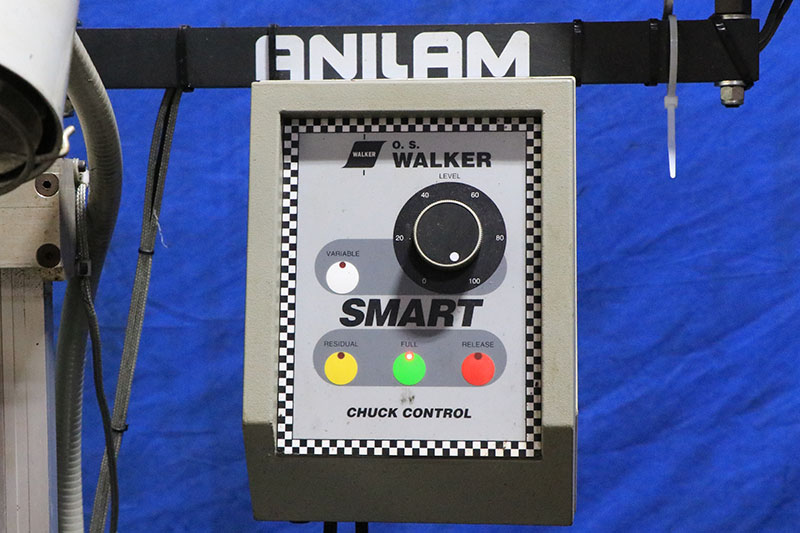

O.S. WALKER "SMART" SERIES VARIABLE HOLD NEUTROFIER

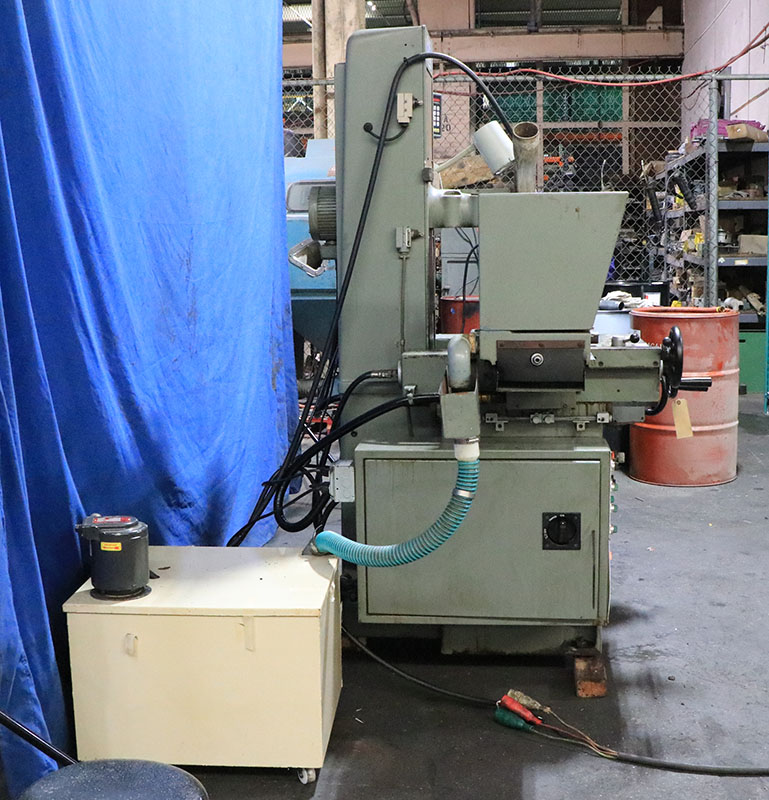

COOLANT SYSTEM WITH GUARDING, HOSES, TANK & PUMP
"VAC-U-GUARD" WHEEL COVER, WITH DUST INLET
WORK LIGHT

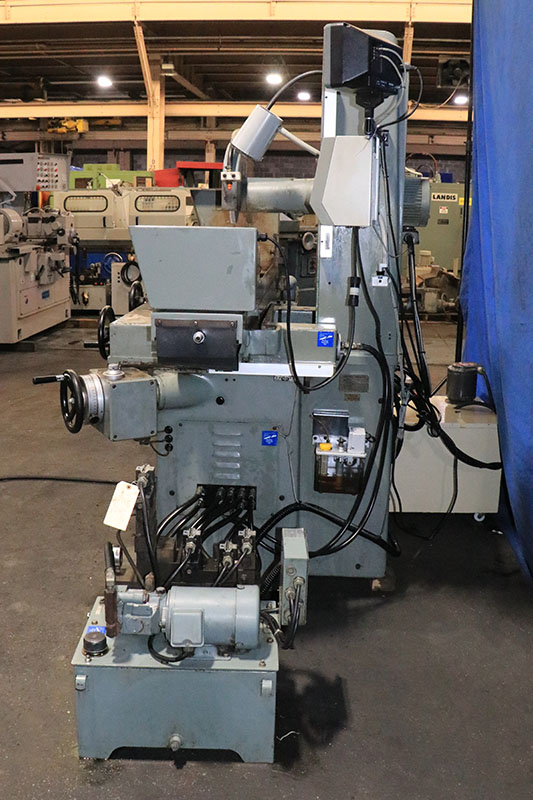

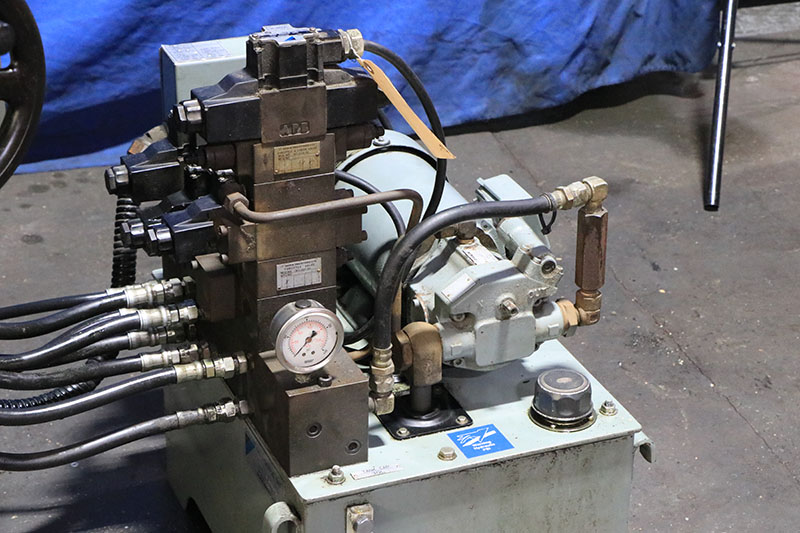

EXTERNAL HYDRAULIC SYSTEM, TANK, PUMP, VALVING, ETC.
MACHINE IS WIRED FOR 3/60/460 VOLT ELECTRICS

LINK TO VIDEO: https://youtu.be/XAPzeIkC_Bk?si=kjVGK1zN6YPkrDLw

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) **
