Myford MG12-HA,, 1974, HYD., SWING DOWN I.D. PLAIN CYLINDRICAL GRINDERS

Price on Request

Make:: Myford

Model:: MG12-HA,, 1974, HYD., SWING DOWN I.D.

Year:: 1974

Ref #:: 162098

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

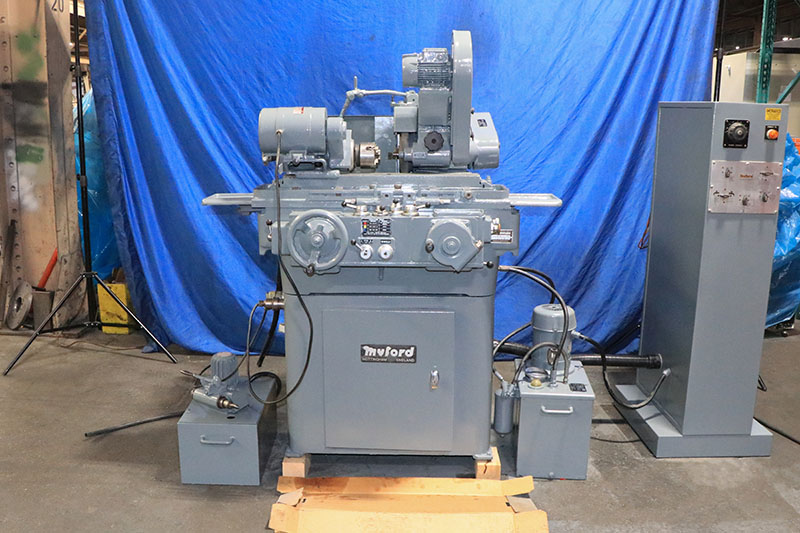

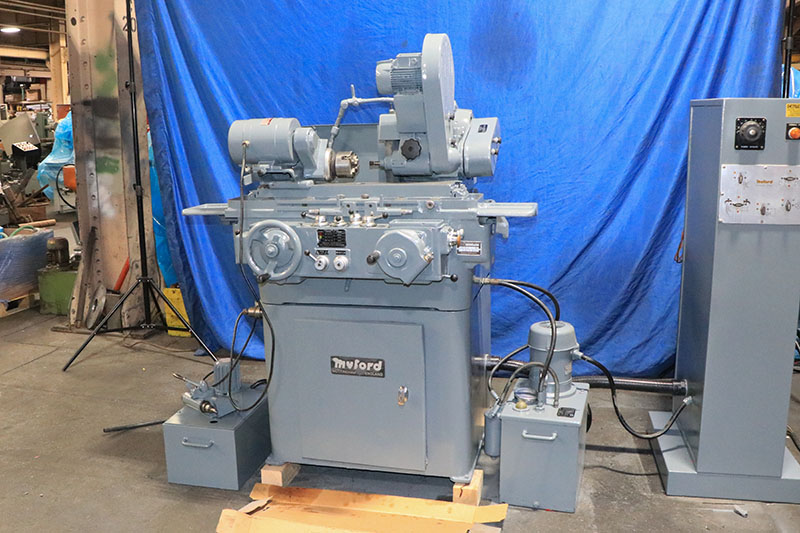

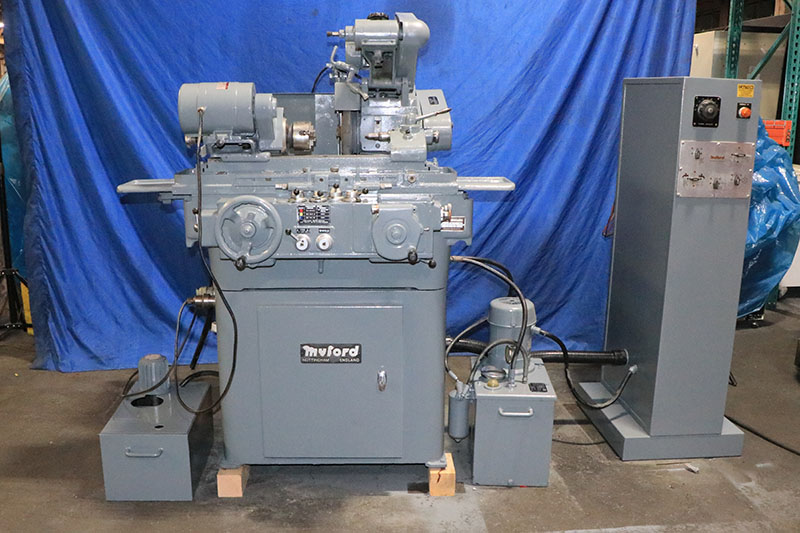

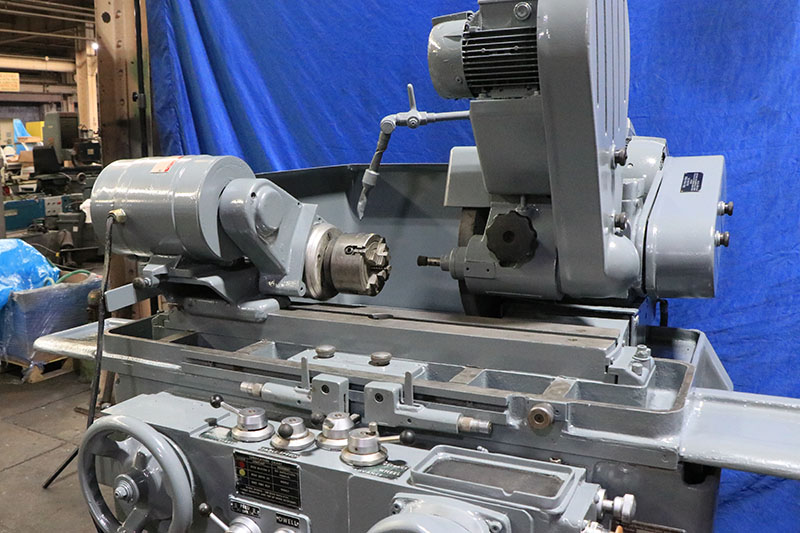

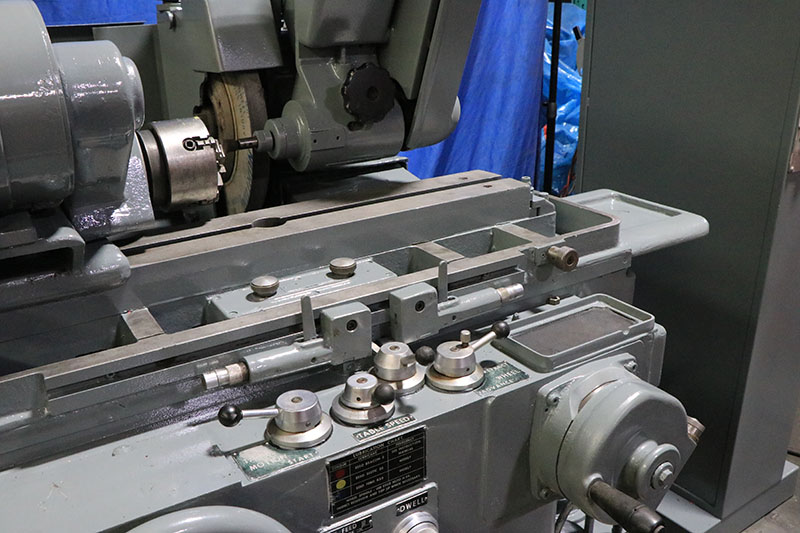

                 5" x 12" MYFORD
        "PRECISION" "MADE IN ENGLAND"
        HYDRAULIC CYLINDRICAL GRINDER
 **  WITH MYFORD SWING DOWN I.D. ATTACHMENT **


MODEL:  MG12-HA
S/N:  HA-117382
NEW: 1974

SPECIFICATIONS:
Grinding Diameter - Maximum 3"
Swing Over Table 5"
Table Travel - Maximum 13-3/4"
Distance between Centers 12"
Table Swivels Either Way 10 Degrees
Table Travel per Revolution of Handwheel 0.44"
Hydraulic Table Traverse 0 - 120" IPM

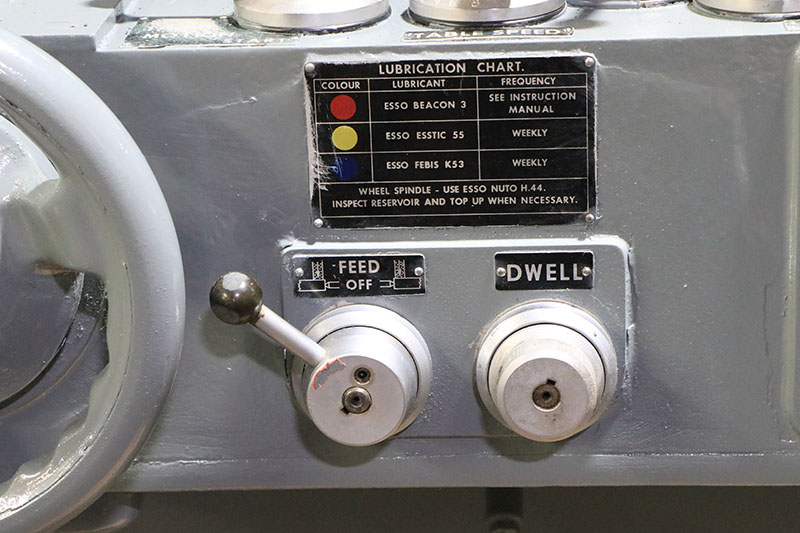

Dwell (Carriage) 0 - 8 Seconds


Wheelhead:
Total Travel by Feedscrew 3-7/8"
Hydraulic Rapid Retraction 1-1/8"
Infeed per Revolution of Handwheel 0.025"
Wheelhead Graduation (Infeed) 0.0001"
Fine Feed to Dead Stop 0.000025"
Plunge Infeed Rate per Minute 0.0025" - .125"
Automatic Infeed Rate 0.0001" - .001"
Grinding Wheel (Recessed) 12" x 1-1/2" x 5"
Wheel Spindle Speeds (2) 1,830 and 1,988 RPM
Wheelhead Motor 2 HP

Workhead:
Workspeeds - (Steplessly Variable) 100-900 RPM
Capacity thru Standard Draw Tube 3/4"
Collet Capacity - Maximum 3/4"
Workhead Motor 1/4 HP

Approximate Machine Weight 2,000 Lbs.

STANDARD MACHINE FEATURES FOR THE "HA"
MODEL:
Hydraulic Table Traverse
Variable Dwell at Each End of Table Movement
Hydraulic Rapid Retraction to Wheelslide
Wheelhead Retraction Coupled to Workhead Start/Stop
Automatic (mechanical) In-Feed to Wheel Slide
Myford Workhead, Dual "Live" & "Dead" Workhead Spindle

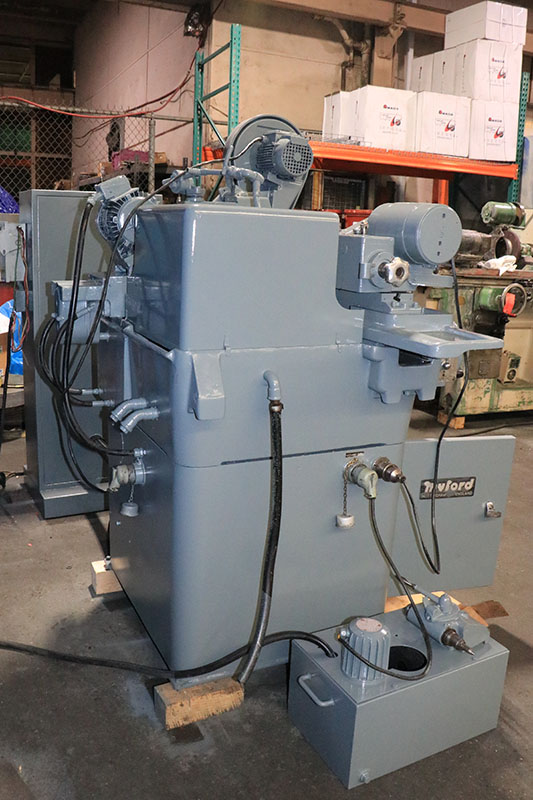

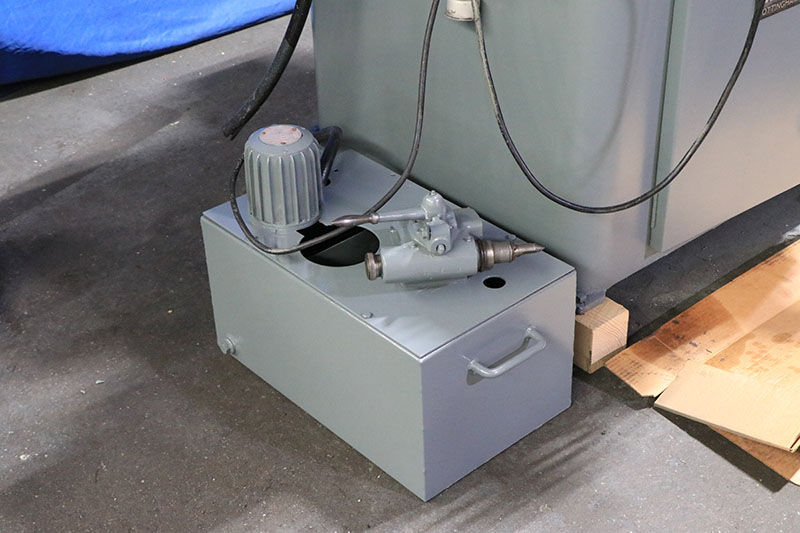

External Hydraulic Pump & Tank

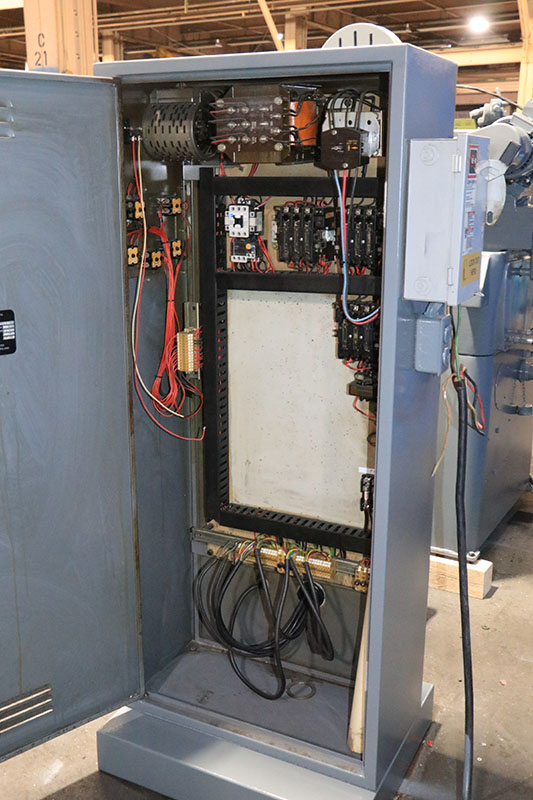

3/60/220-440 Volt Electrics

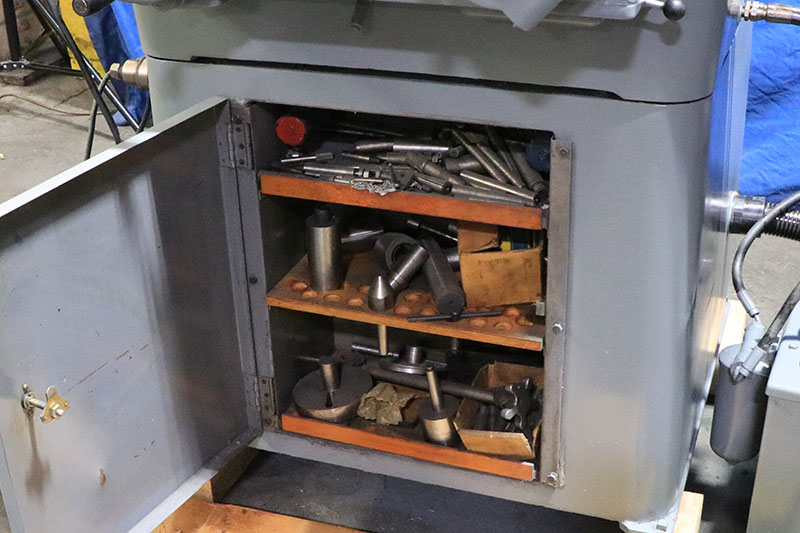

EQUIPPED WITH:

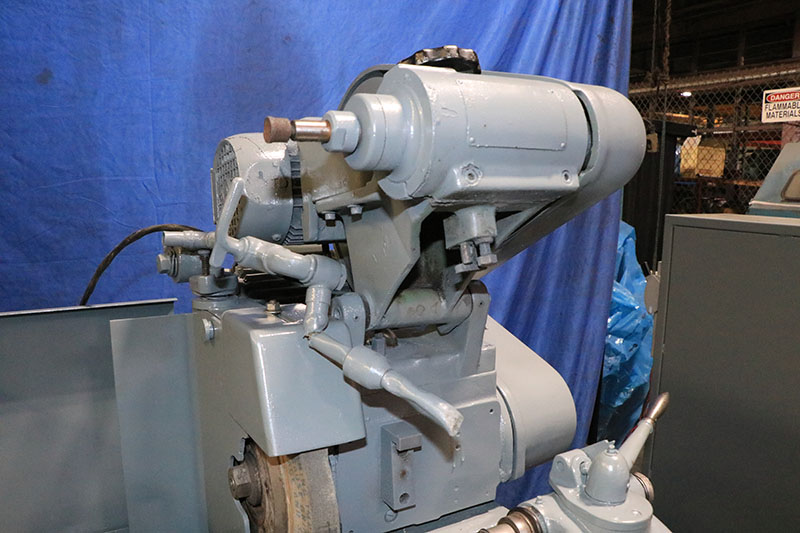

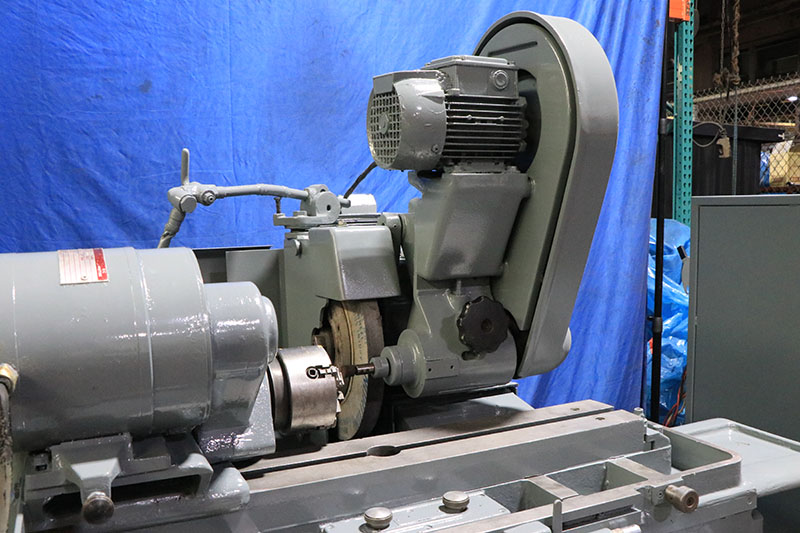

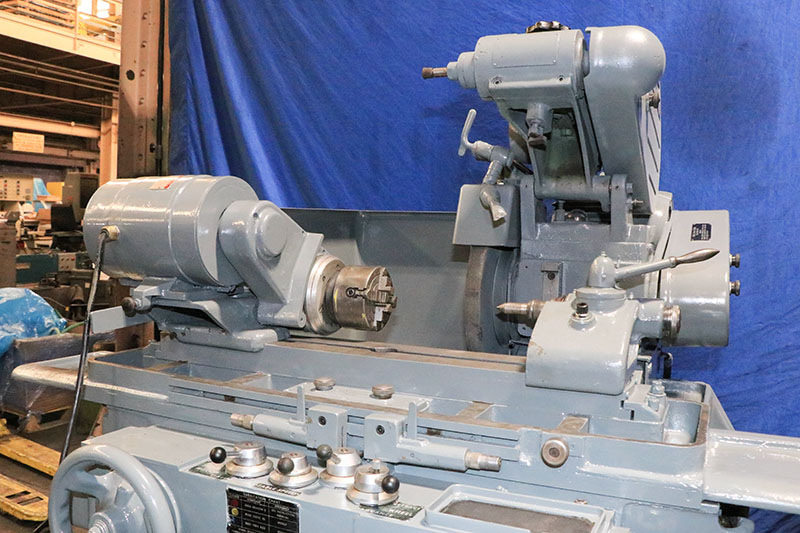

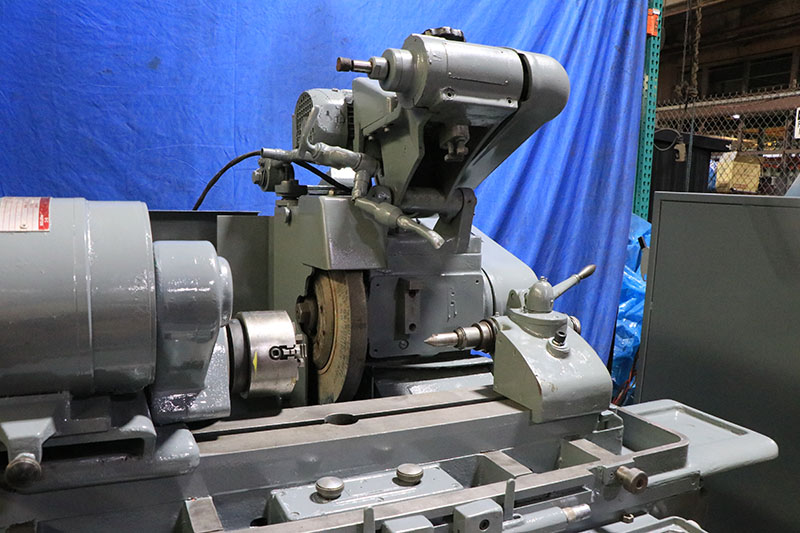

Myford Swing Down I.D. Grinding Attachment
(1) Myford I.D. Grinding Spindle
(2) Draw Bars

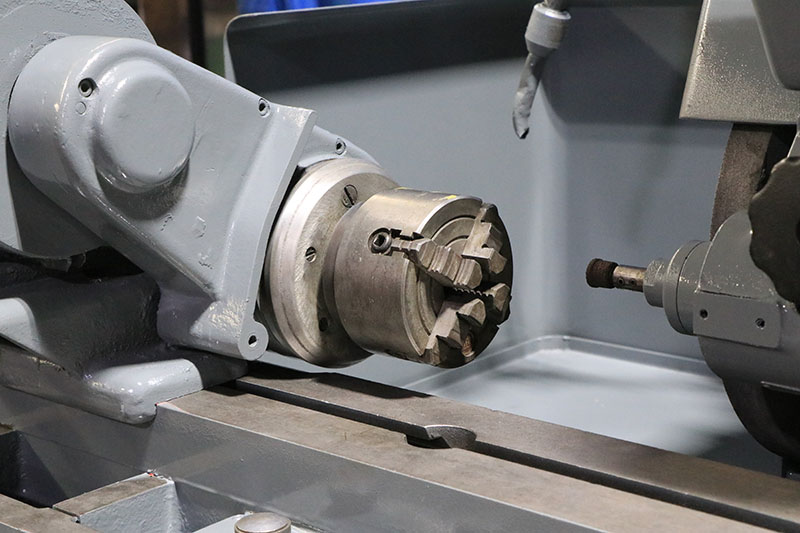

4-Jaw Chuck
Face Plate
Assortment of Collets
Sevral Centers
Coolant System

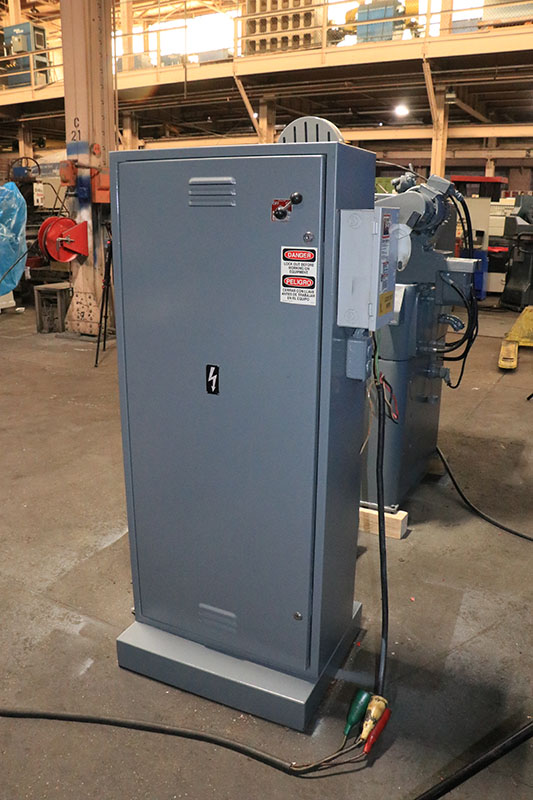

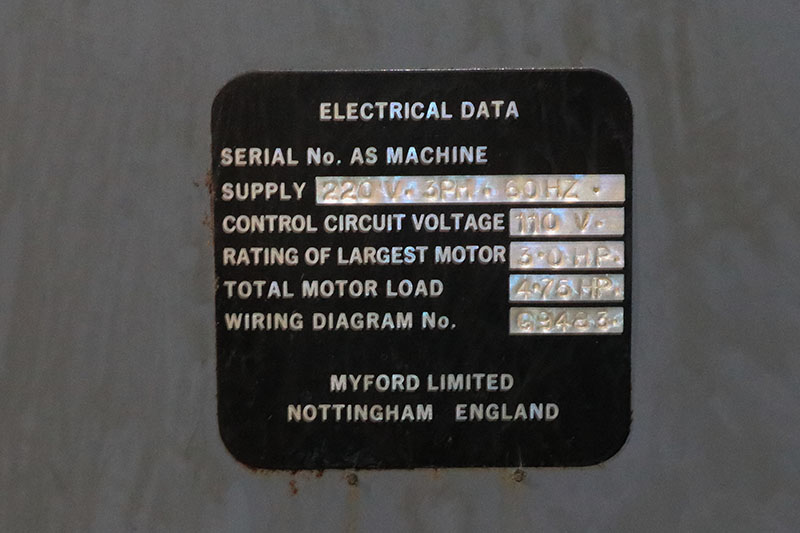

Machine is Presently Wired for 3/60/220 Volts

 LINK TO VIDEO: https://youtu.be/LlKgqpkaEMU?si=5NkWLKunNuEE4dKK


** Inspect Under Power in our Harrison, NJ Warehouse **
** Serviced, Taken Apart, Repainted, Cycled & is NOW
   Ready for Delivery **
