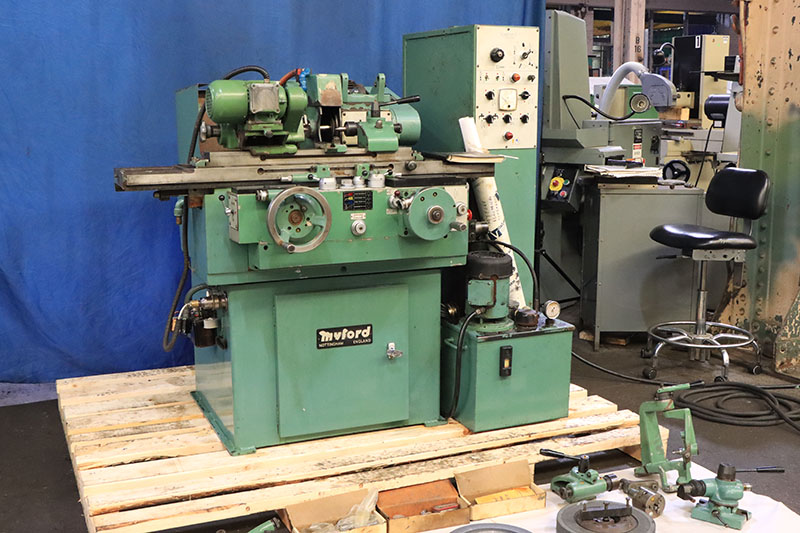

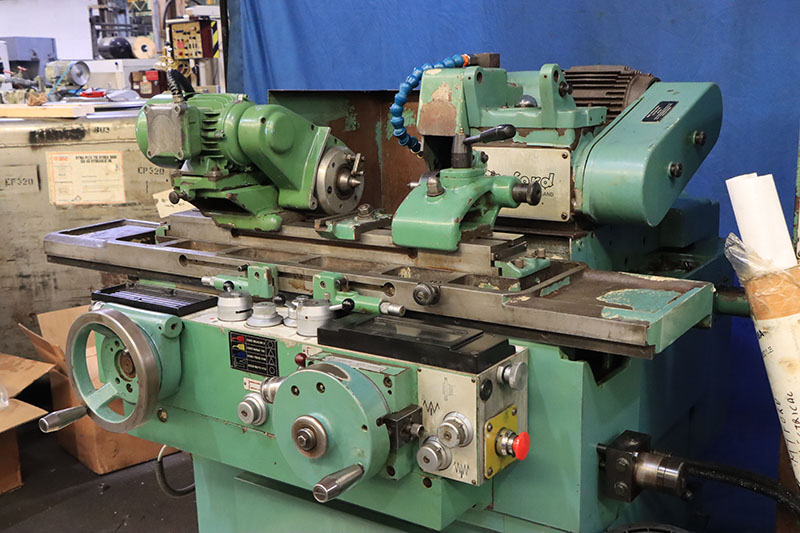

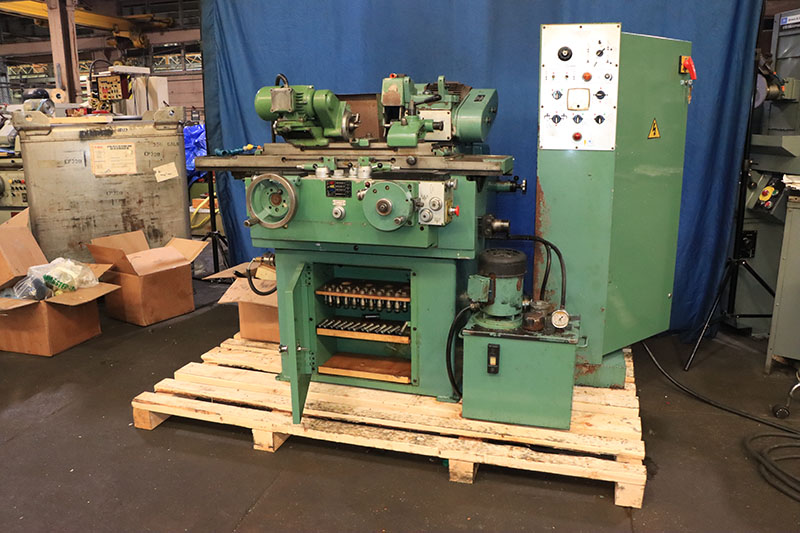

Myford MG12-HPM, 1997, FULL AUTO CYCLE, DUAL RATE PLUNGE PLAIN CYLINDRICAL GRINDERS

Price on Request

Make:: Myford

Model:: MG12-HPM, 1997, FULL AUTO CYCLE, DUAL RATE PLUNGE

Year:: 1997

Ref #:: 179332

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

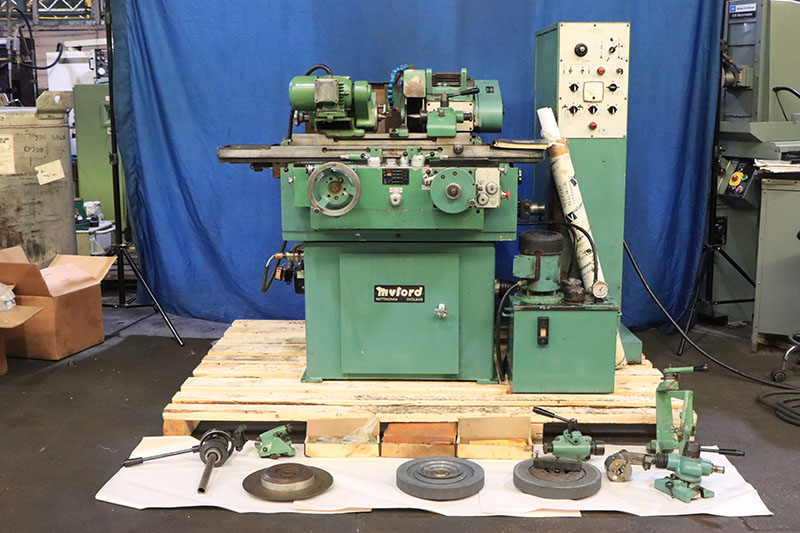

      5" X 12" MYFORD "HIGH-PRECISION"
          "MADE IN ENGLAND **
      HYDRAULIC CYLINDRICAL GRINDER

** SWING DOWN I.D. ATTACHMENT AVAILABLE **

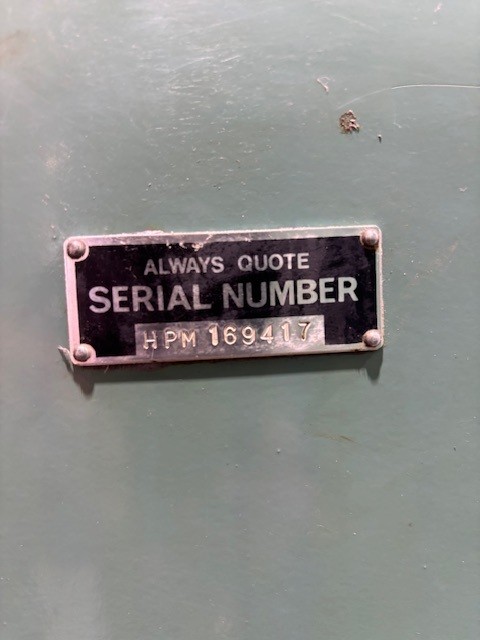

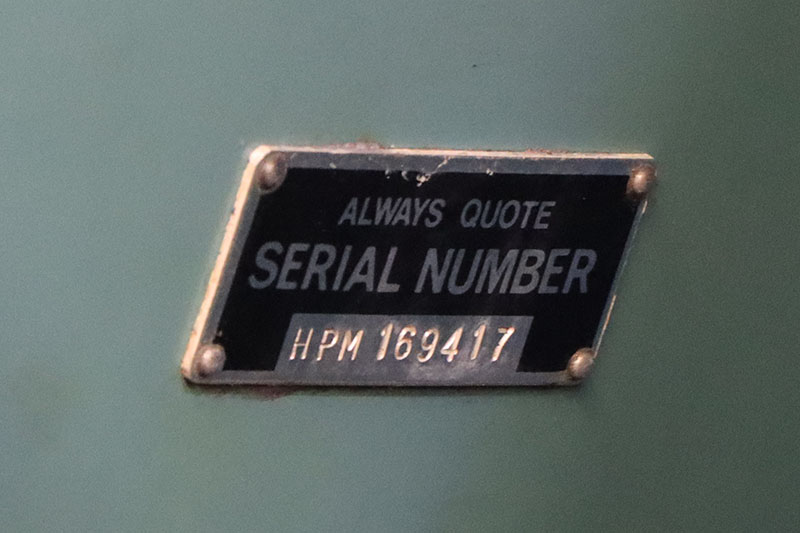

MODEL: MG12-HPM     S/N: HPM-169147     NEW: 1997

MAXIMUM GRINDING DIAMETER .............. 3"
SWING OVER TABLE ....................... 5"
CAPACITY BETWEEN CENTERS ............... 12"
MAXIMUM TABLE TRAVEL ................... 13-3/4"
TABLE SWIVELS EITHER WAY ............... 10°
TABLE TRAVEL PER REV. OF HANDWHEEL ..... 0.44"
HYDRAULIC TABLE TRAVERSE ............. 0 TO 120" IPM
DWELL (CARRIAGE) ..................... 0 TO 8 SECONDS

WHEELHEAD (ALL GRADUATIONS,
 ON WORK DIAMETER):
TOTAL TRAVEL BY FEED SCREW ............. 3-7/8"
HYDRAULIC RAPID RETRACTION ............. 1-1/8"

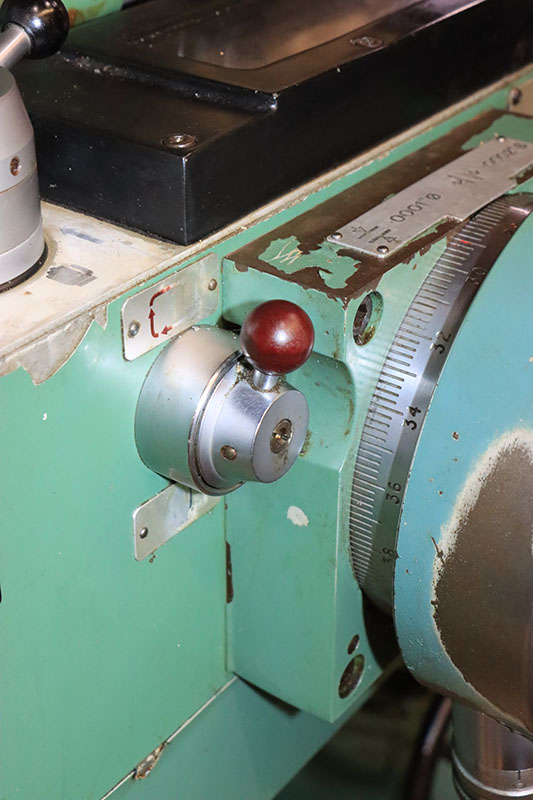

INFEED PER REV. OF HANDWHEEL ........... 0.04"

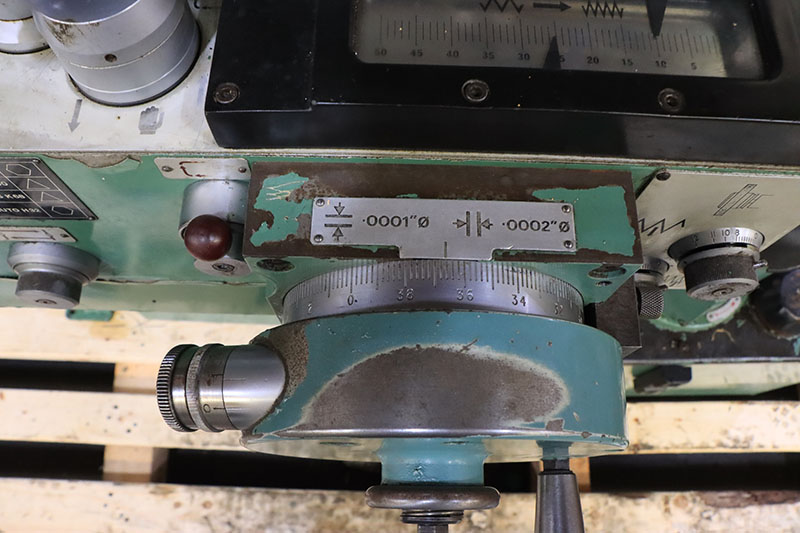

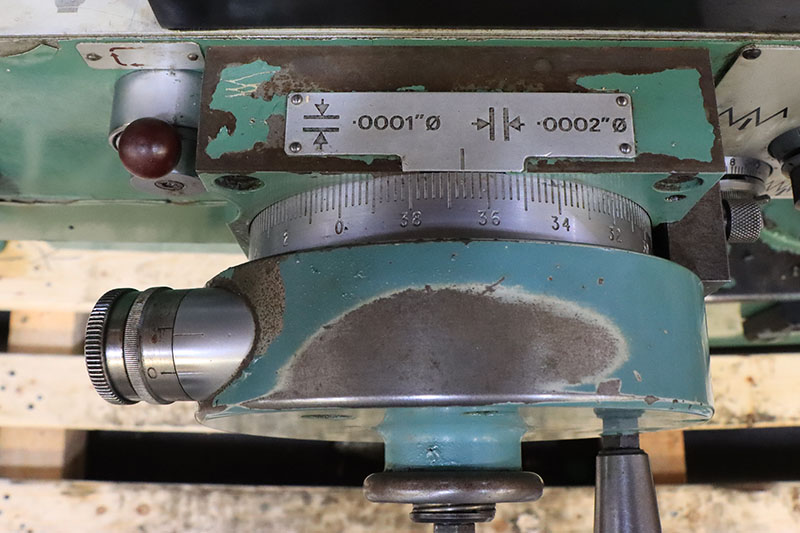

WHEEL FEED GRADUATION .................. 0.0002"
FINE FEED TO DEAD STOP ................. 0.00005"
TOTAL PLUNGE INFEED .................... 0.100"
PLUNGE FEED RATE, MAXIMUM .............. 0.125" IPM
PLUNGE FEED RATE, MINIMUM .............. 0.0025" IPM
INTERMITTENT INFEED, COARSE, MAXIMUM ... 0.002"
INTERMITTENT INFEED, FINE, MINIMUM ..... 0.00005"
SPARKOUT ............................. 0 TO 50 SECONDS
WHEEL SPEEDS (2) ..................... 1830 & 1988 RPM
GRINDING WHEEL ...................... 12" x 1-1/2" x 5"
MINIMUM WHEEL DIAMETER, FOR ZERO
 WORK DIAMETER ......................... 10"

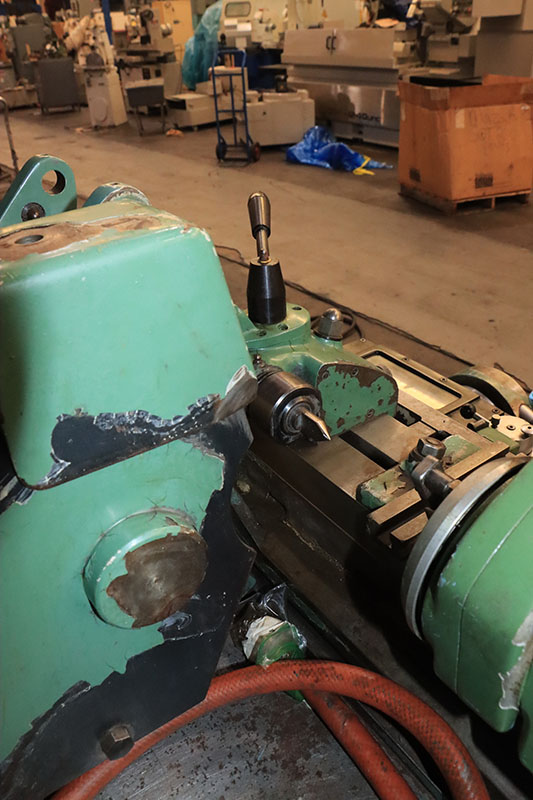

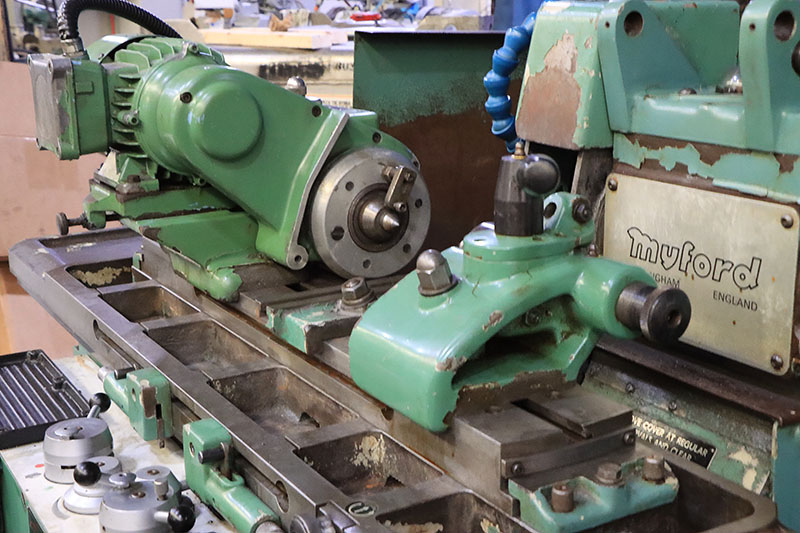

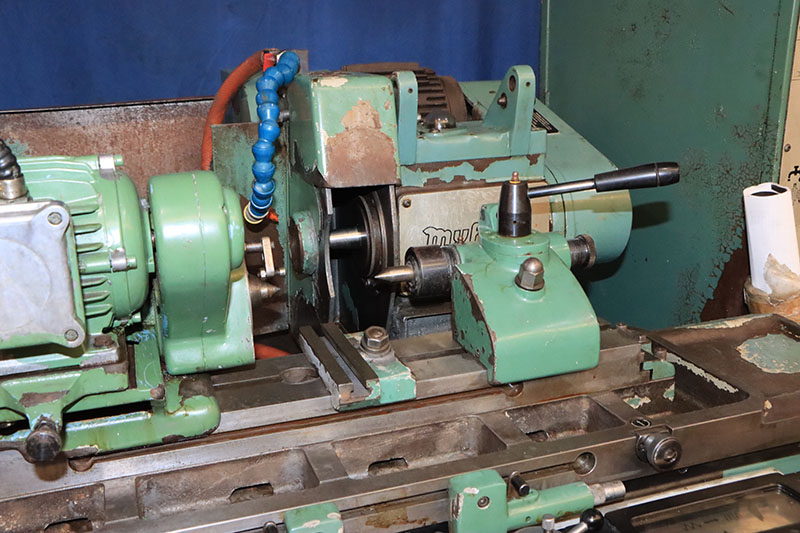

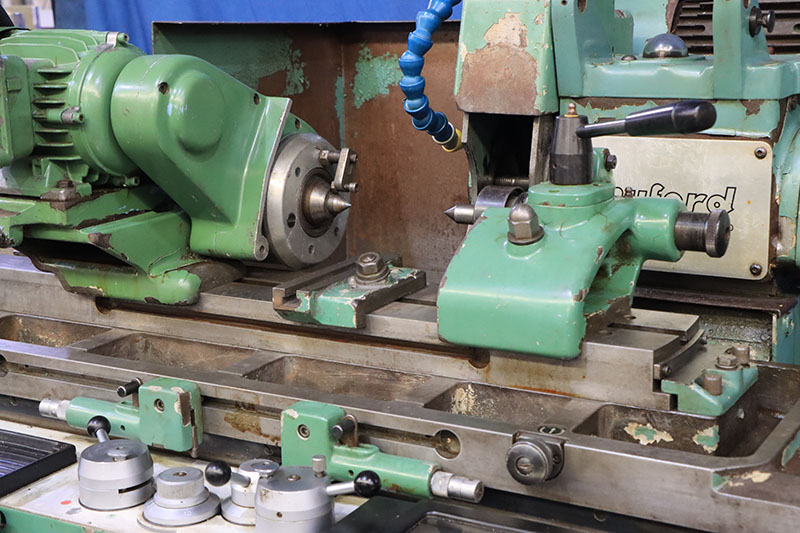

WORKHEAD:
SPINDLE SPEEDS, INFINITELY VARIABLE .... 50 TO 900 RPM
CAPACITY THRU STANDARD DRAW TUBE ....... 3/4"

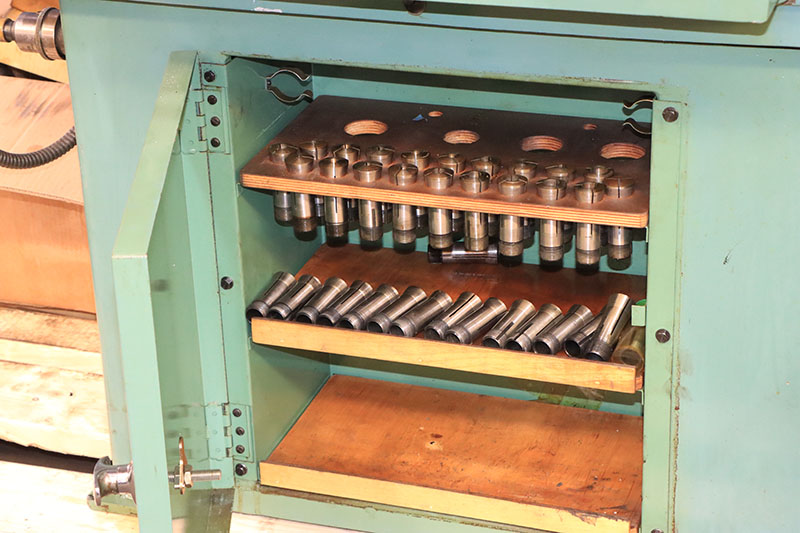

MAXIMUM COLLET CAPACITY ................ 3/4"
APPROXIMATE WEIGHT ..................... 2,226 LBS

MACHINE FEATURES:

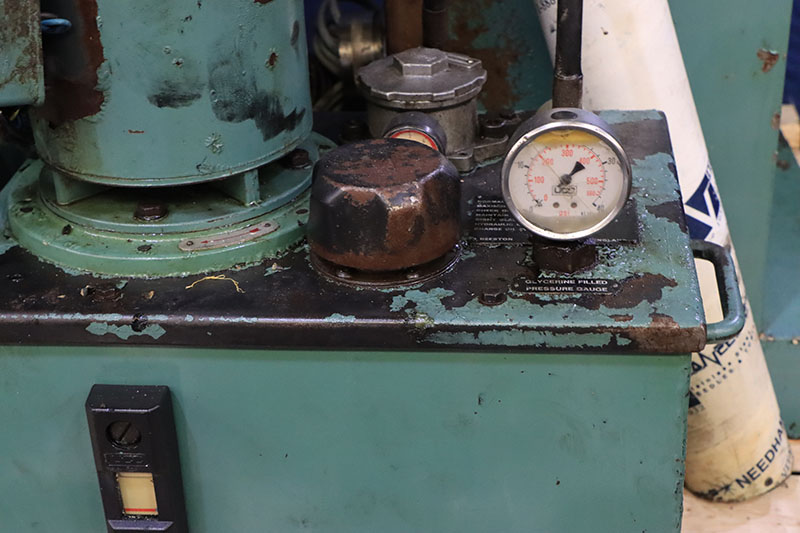

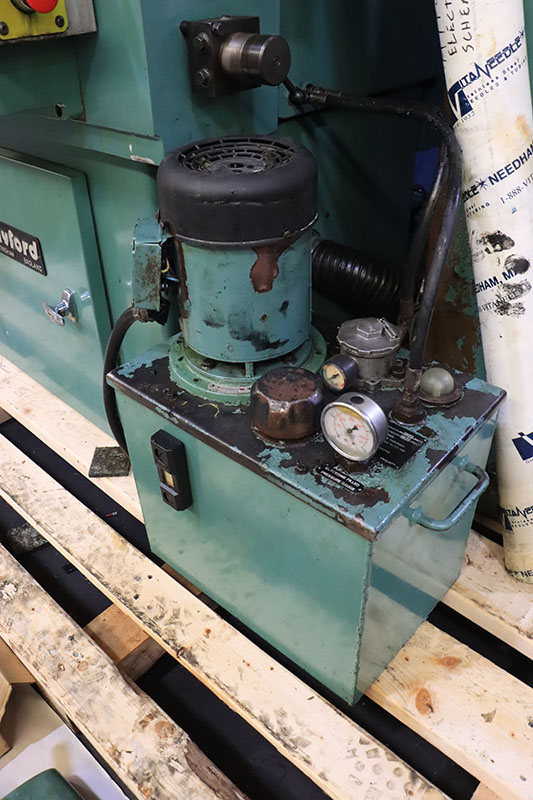

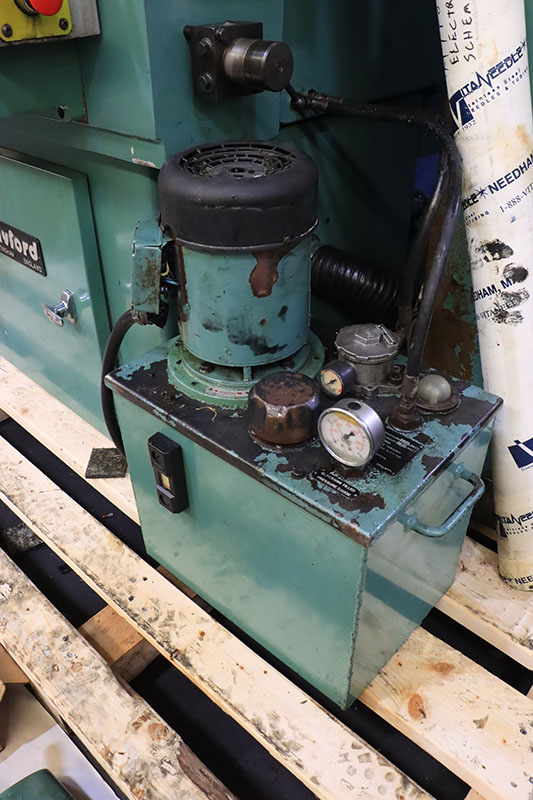

HYDRAULIC TABLE TRAVERSE
AUTOMATIC INFEED
PLUNGE INFEED
VARIABLE DWELL @ EACH END OF TABLE MOVEMENT
AUTOMATIC HYDRAULIC RAPID ADVANCE AND RETRACTION
  OF GRINDING WHEELHEAD
SPARKOUT TIMER (1 TO 50 SECONDS)

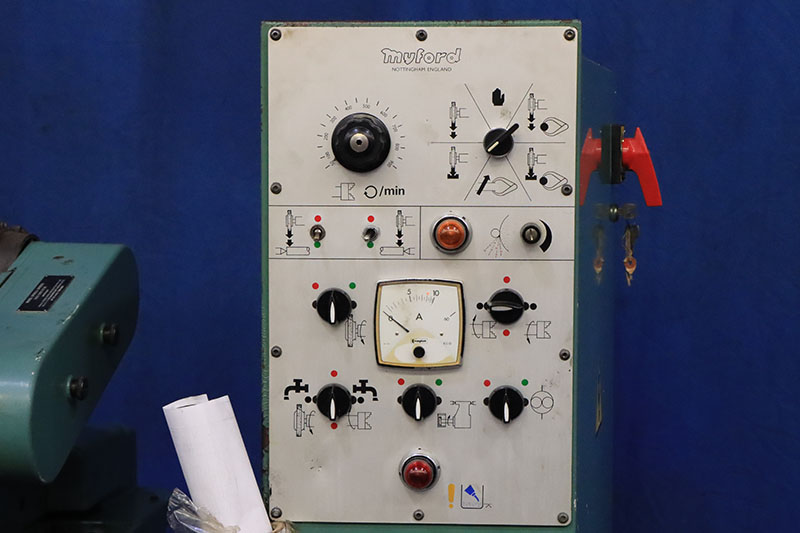

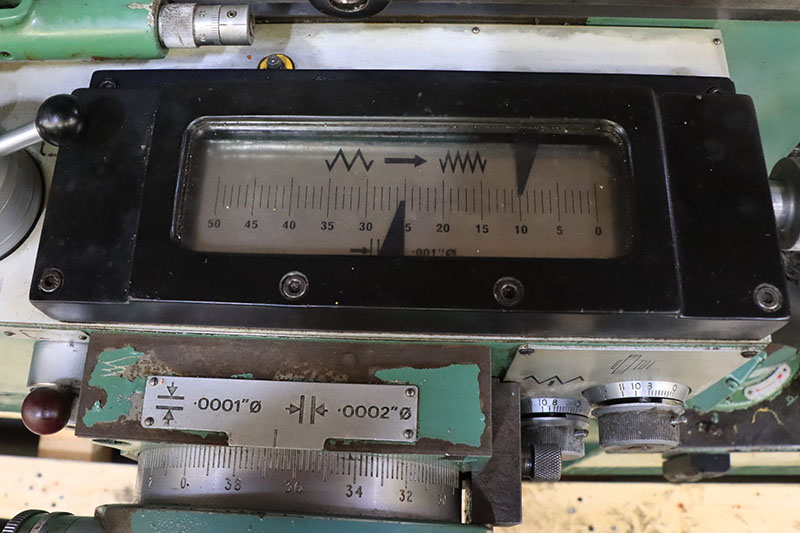

VISUAL INDICATION OF FEED - A LARGE SCALE MOUNTED ON
  THE TOP OF THE FRONT CONTROL CONSOLE PERMITS
  MONITORING OF THE FEED CYCLE.

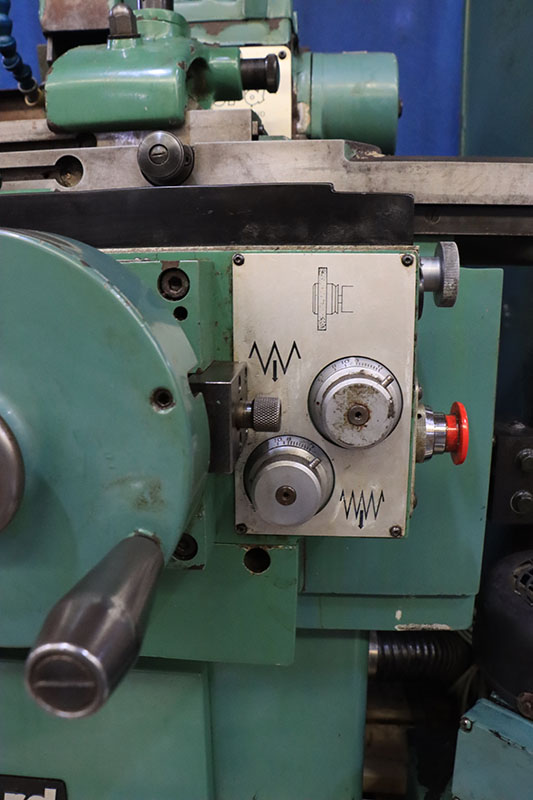

DEPTH OF FEED ADJUSTMENT CONTROL (GRADUATED .0001")

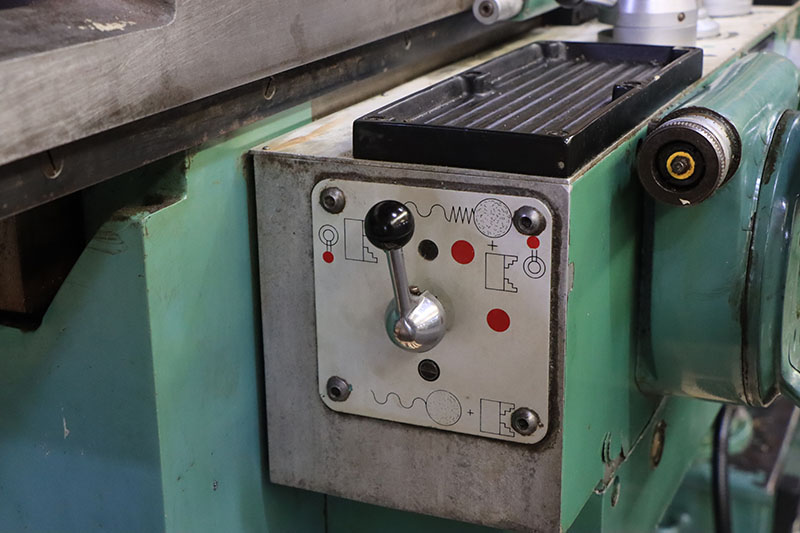

AUTOMATIC CYCLE/MANUAL OPERATION SELECTOR

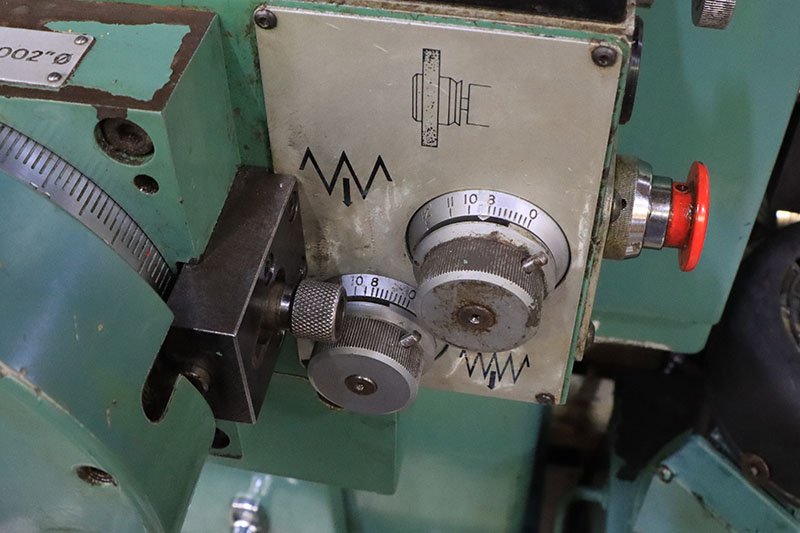

COARSE/FINE FEED CHANGEOVER
INFINITELY VARIABLE WORKHEAD SPINDLE SPEEDS

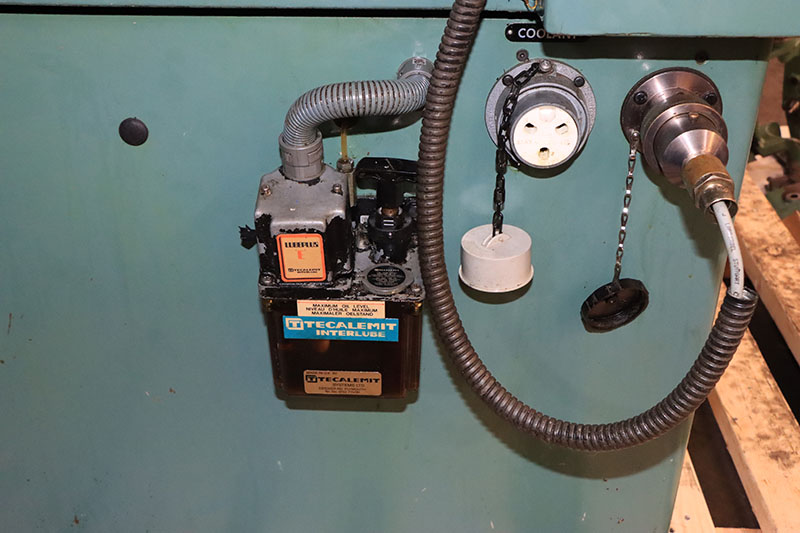

AUTOMATIC LUBRICATION FOR WHEELHEAD AND CARRIAGE WAYS

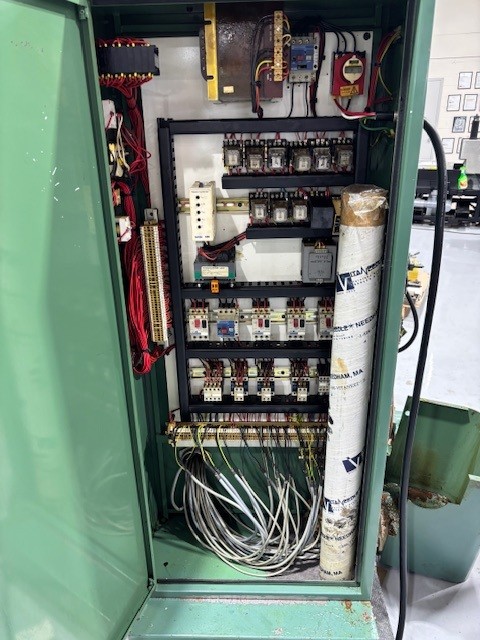

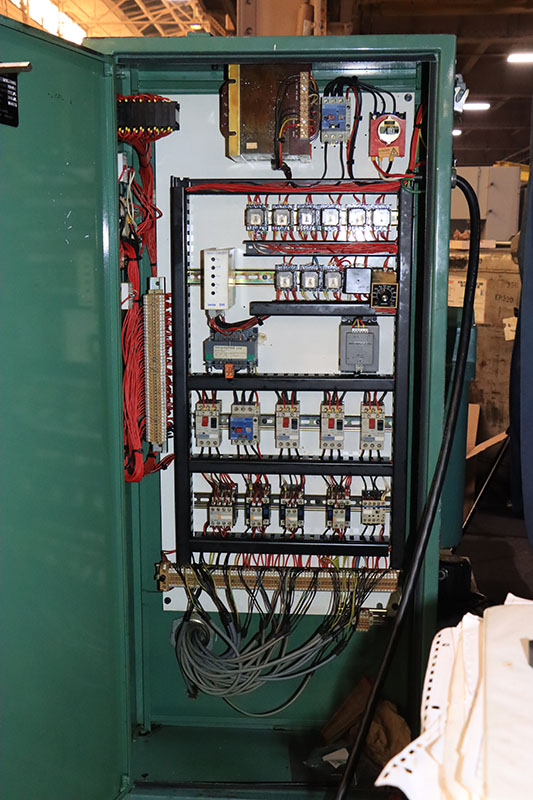

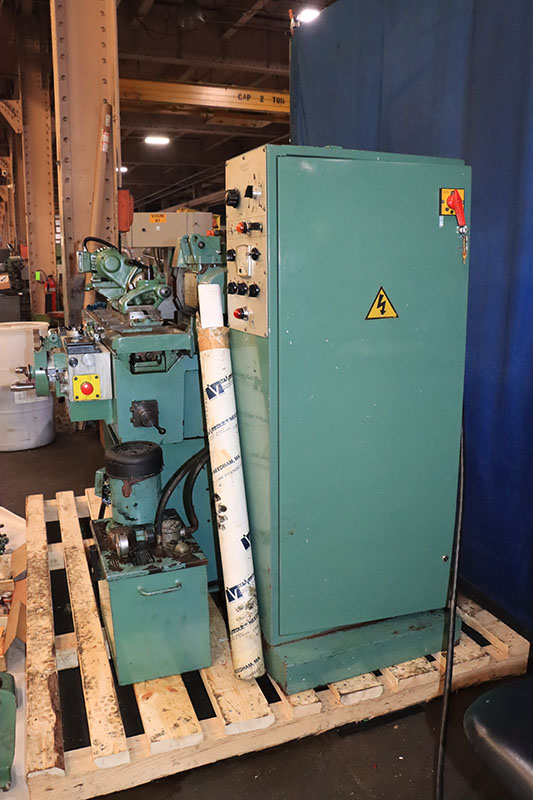

SEPERATE ELECTRICAL CONSOLE CONTROL

EQUIPPED WITH:

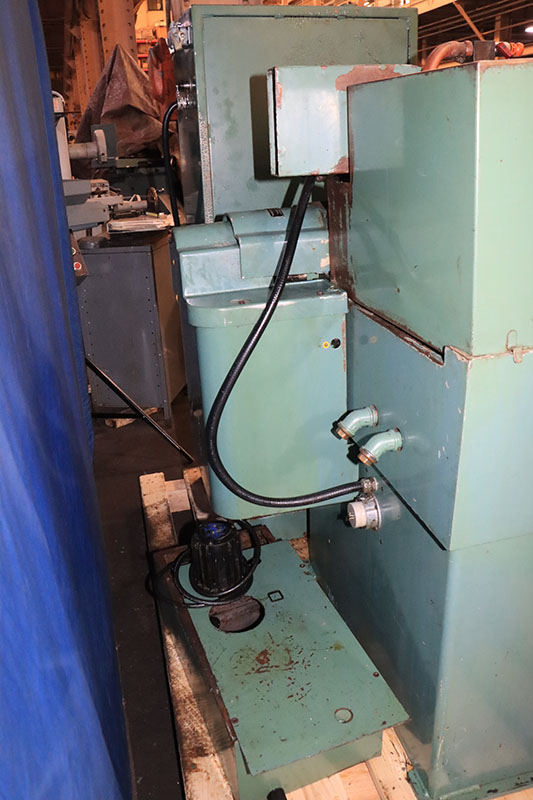

COOLANT SYSTEM

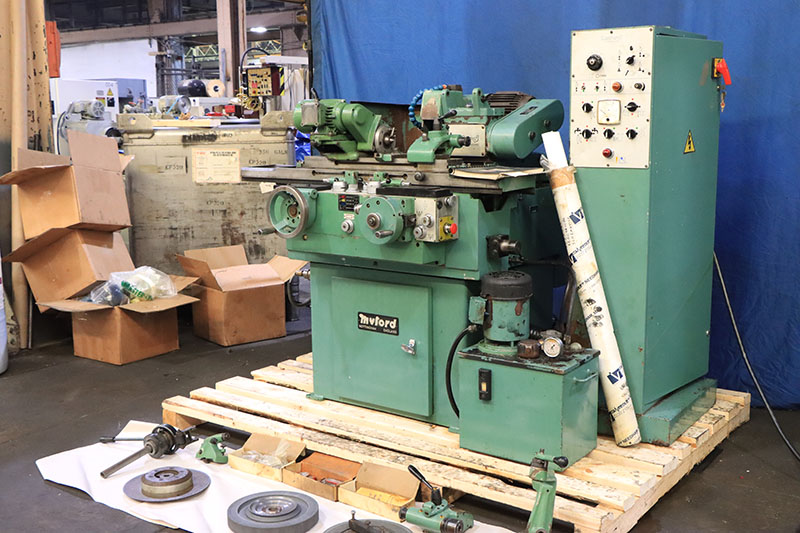

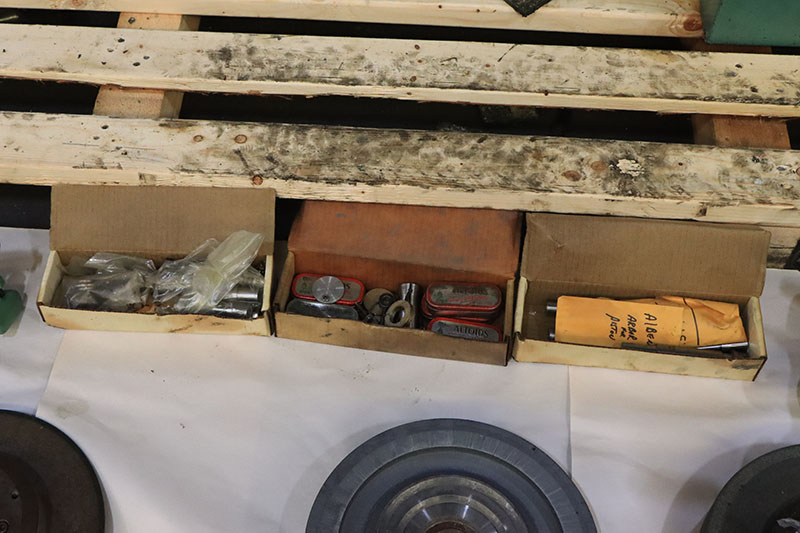

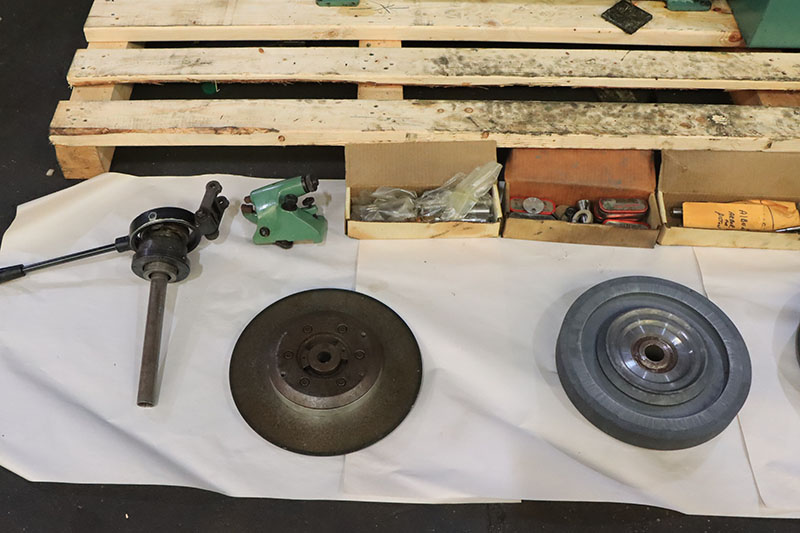

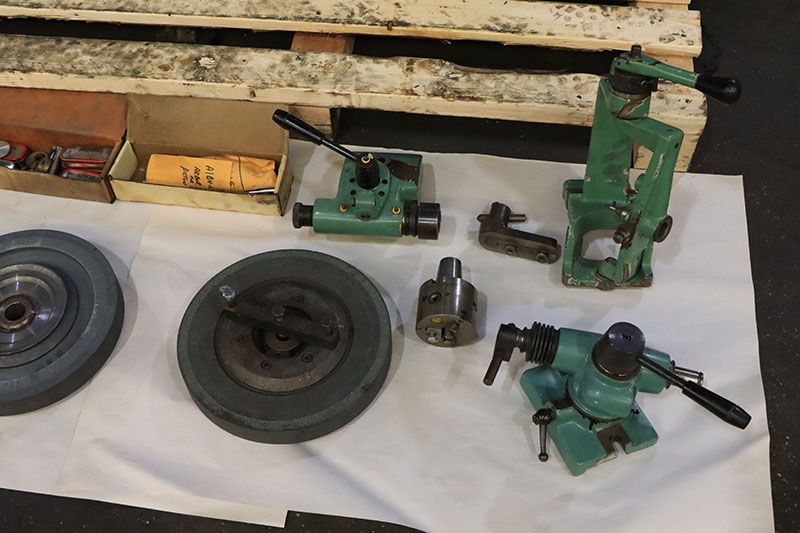

ACCESSORIES

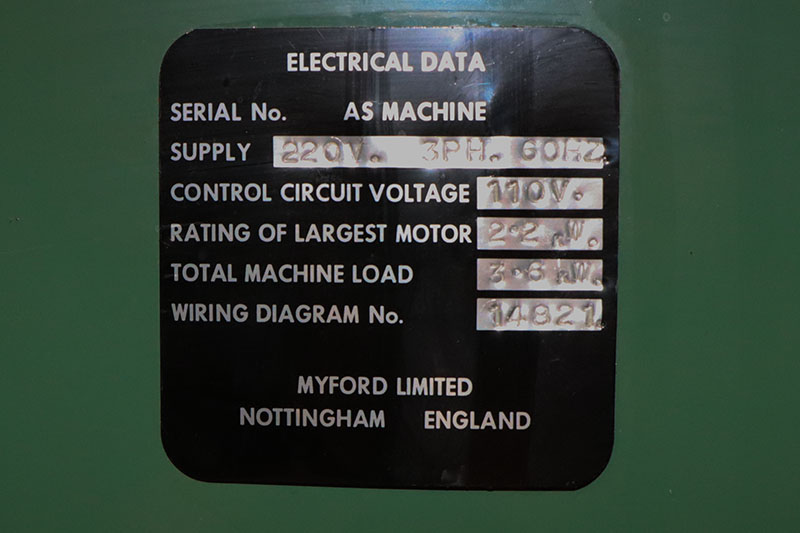

MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS

** ORIGINAL PAINT - EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, WAREHOUSE **
