Parker-Majestic No. 1, NEW 1990,POWER TABLE FEED, PLAIN CYLINDRICAL GRINDERS

Price on Request

Make:: Parker-Majestic

Model:: No. 1, NEW 1990,POWER TABLE FEED,

Year:: 1990

Ref #:: 158489

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

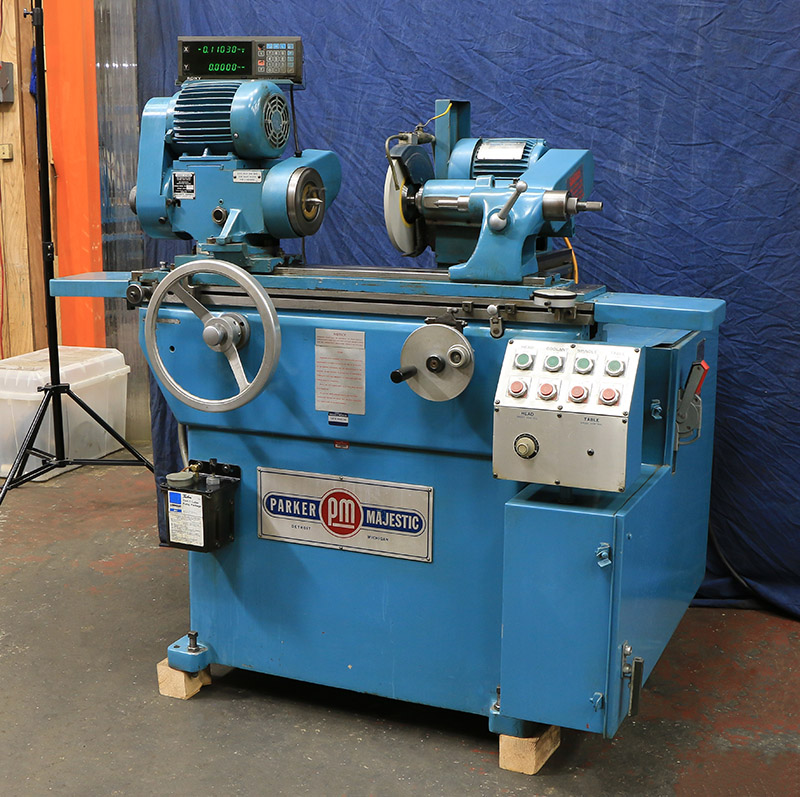

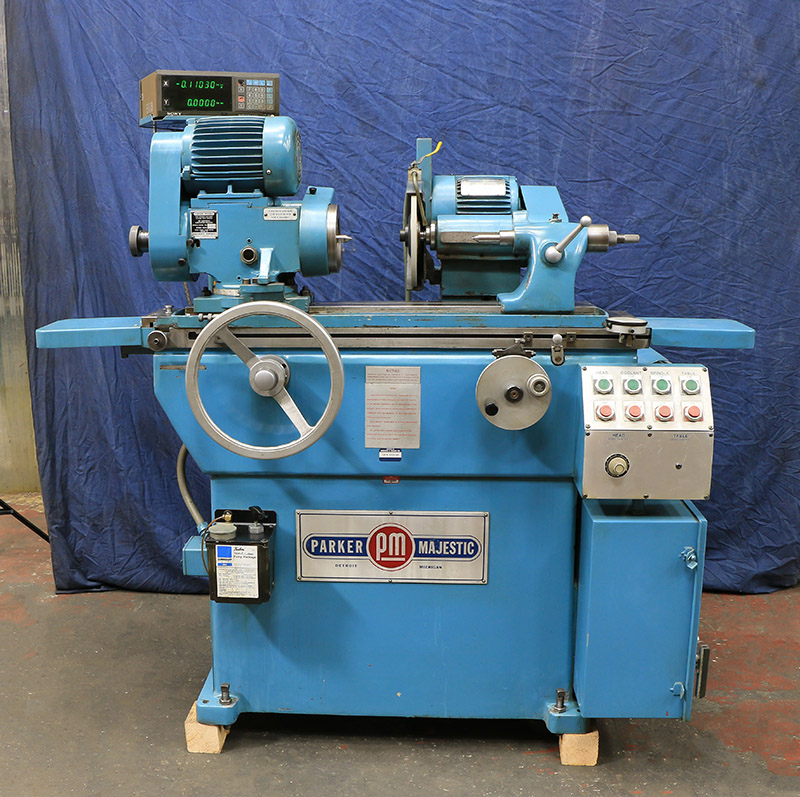

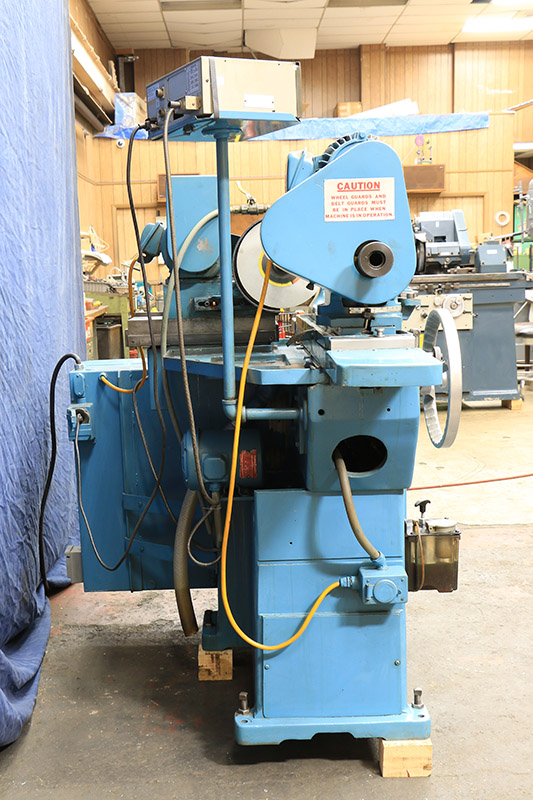

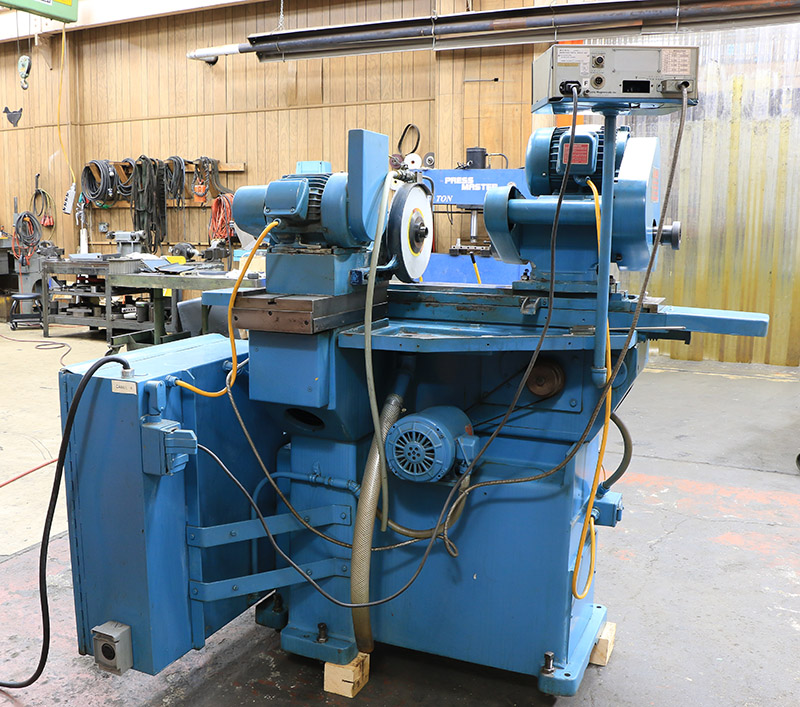

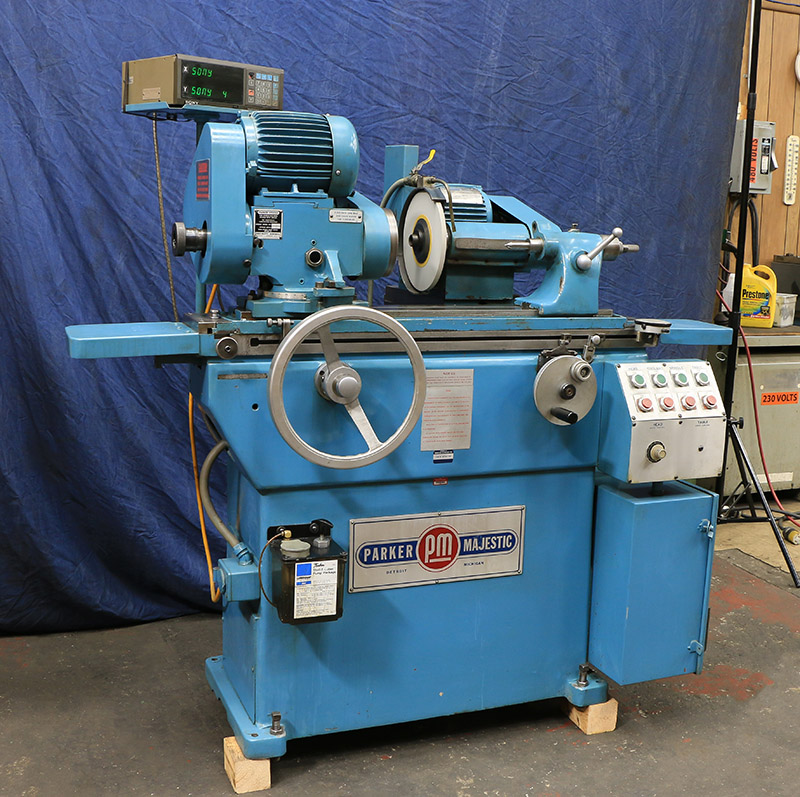

 12" X 16" PARKER-MAJESTIC "MADE IN USA"
 "SUPER-PRECISION" CYLINDRICAL GRINDER
 WITH POWER TABLE FEED

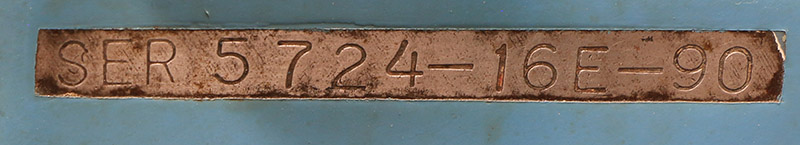

MODEL: No. 1     S/N: 5724-16E-90      NEW: 1990

SWING OVER TABLE ........................... 12"
DISTANCE BETWEEN CENTERS ................... 16"
TABLE WORKING SURFACE ...................... 5" X 38"
POWER TABLE FEED ........................... 6, 12, 18 & 24 IPM
TABLE SWIVEL ............................... 7 DEGREES
TABLE TRAVEL ............................... 24"
CROSS FEED TRAVEL .......................... 3- 1/2"
CROSS FEED ADJUSTMENT ...................... 4"
CROSS FEED HANDWHEEL GRAD. ................. 0.0005"
CROSS FEED PRECISION DIAL GRAD ............. 0.000050"
GRINDING WHEEL SIZE ........................ 10" DIAMETER
GRINDING WHEEL BORE SIZE ................... 1- 1/4"
WHEELHEAD MOTOR ............................ 1- 1/2 H.P.

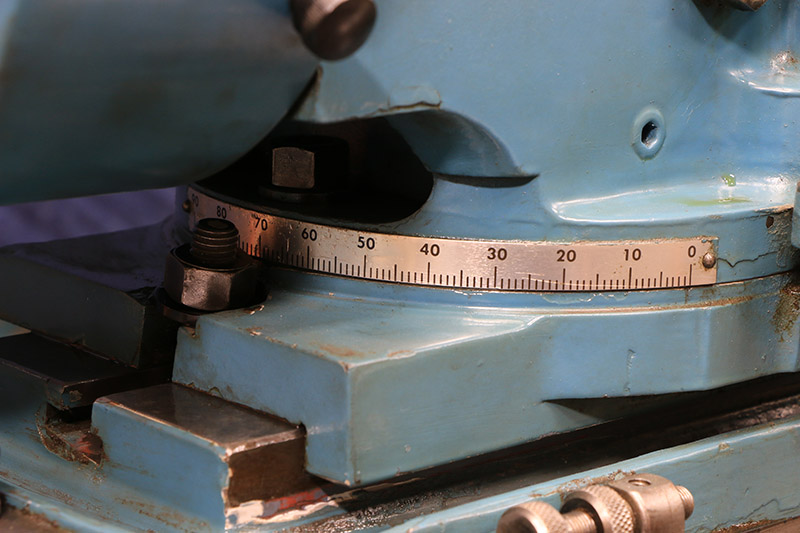

HEADSTOCK SWIVEL ........................... 0 TO 90 DEG.
INF. VARIABLE HEADSTOCK SPINDLE SPEEDS ..... 20 TO 225 RPM
HOLE THRU SPINDLE .......................... 1- 1/4"
HEADSTOCK CENTER TAPER ..................... #6 JARNO
TAILSTOCK CENTER TAPER ..................... #6 JARNO
SPINDLE MOTOR .............................. 1- 1/2 H.P.

APPROX. MACHINE WEIGHT ..................... 2,400 LBS.

EQUIPPED WITH:
POWER TABLE FEED

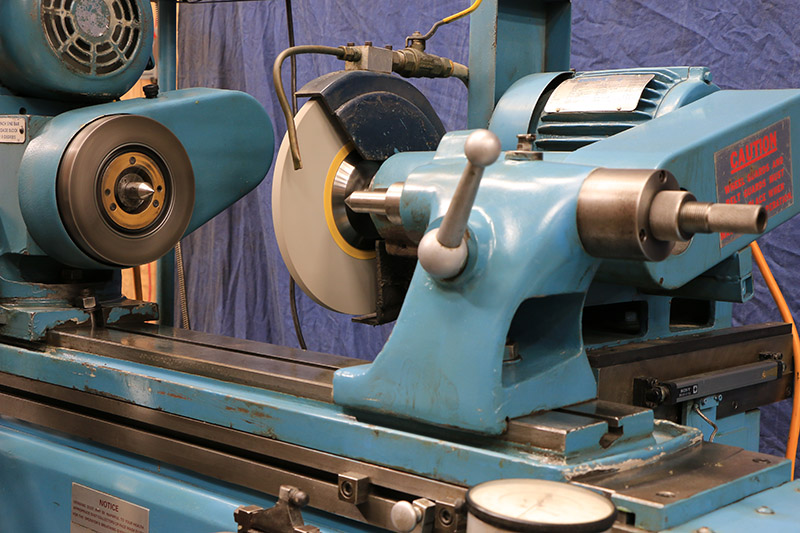

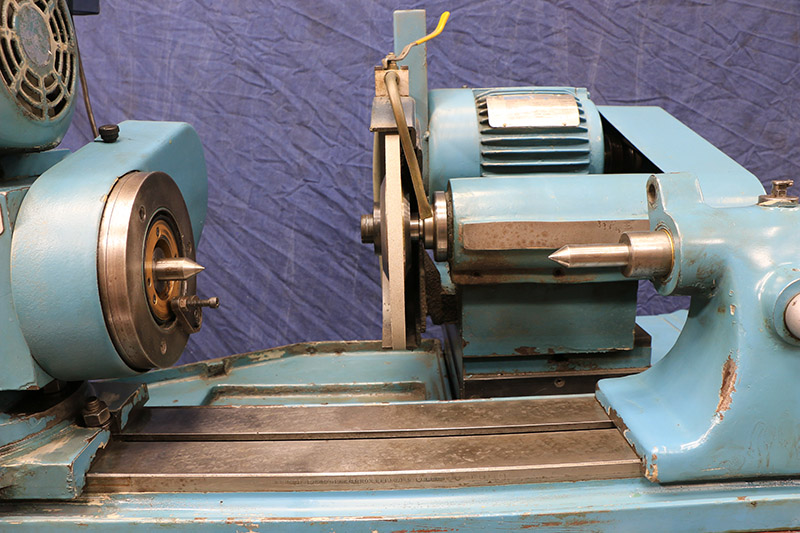

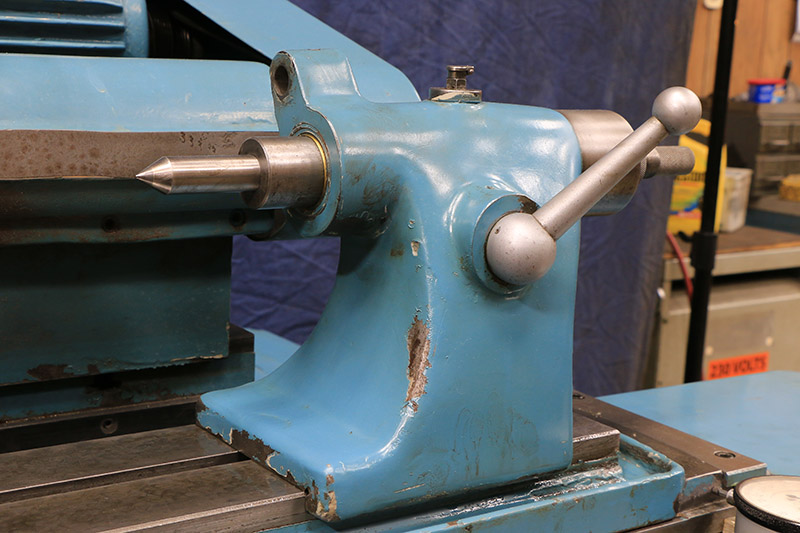

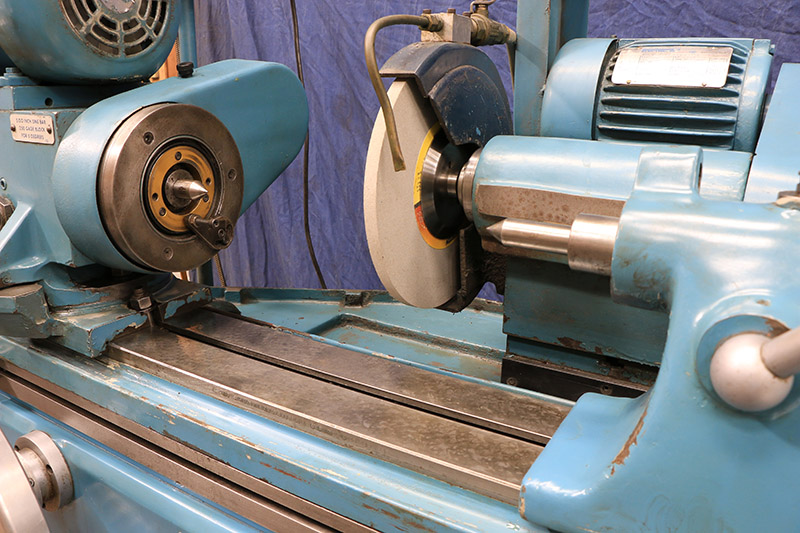

TAILSTOCK CENTER & WORKHEAD CENTER
PARKER-MAJESTIC LIVE/DEAD WORKHEAD
"SINE BAR" OPTION FOR THE WORKHEAD
WORKHEAD ACCEPTS 5C COLLETS
WORKHEAD SPINDLE SPEEDS ARE INFINITELY VARIABLE
.00005" CROSS FEED DIAL GRADUATIONS

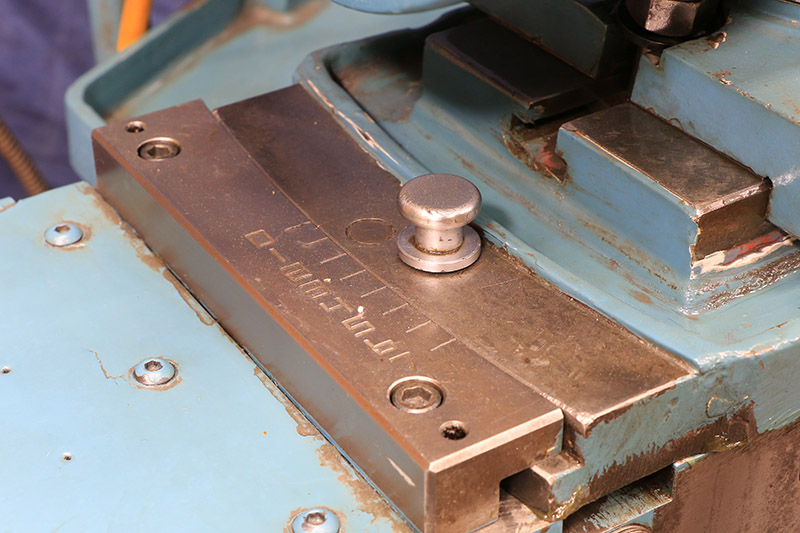

DIAL INDICATOR FOR TABLE SWIVEL ADJUSTMENT
COOLANT SYSTEM

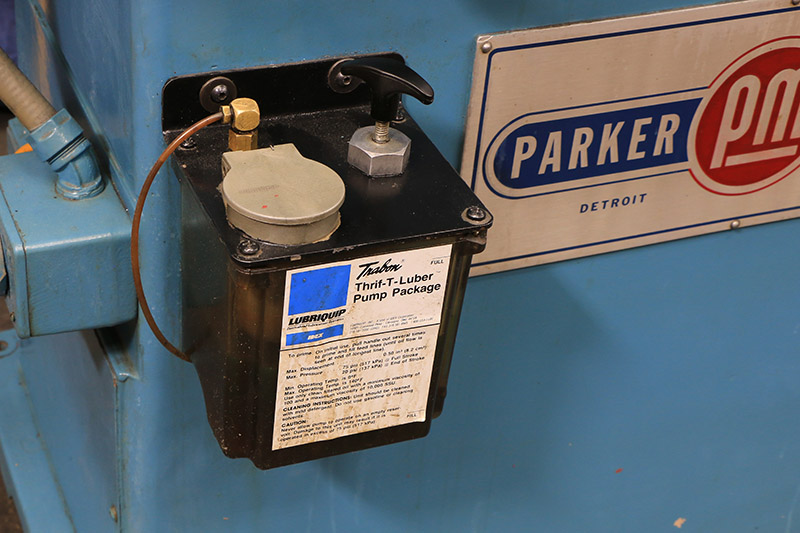

ONE-SHOT LUBRICATOR

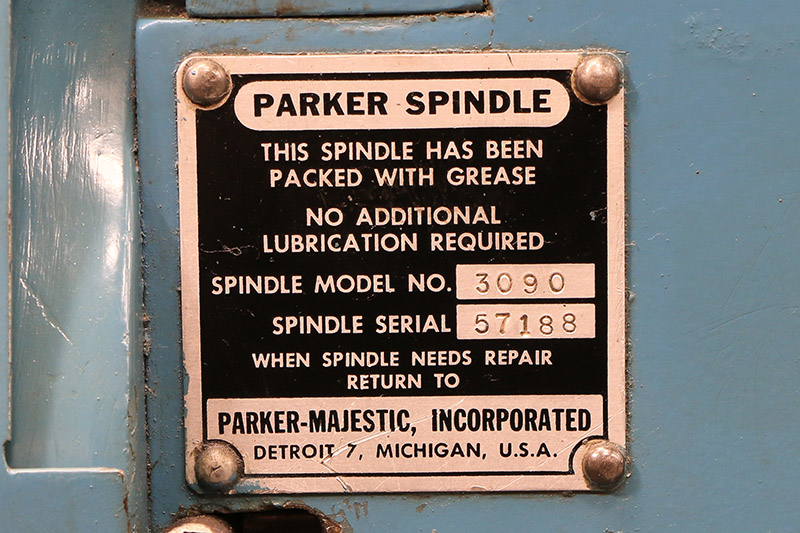

PARKER-MAJESTIC SUPER-PRECISION SPINDLE FOR WHEELHEAD
1.5 H.P. WHEELHEAD MOTOR, MADE BY PARKER-MAJESTIC

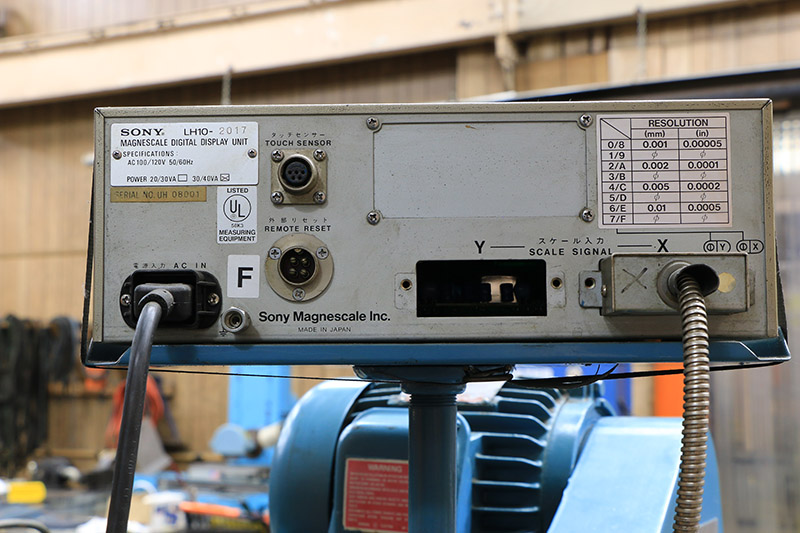

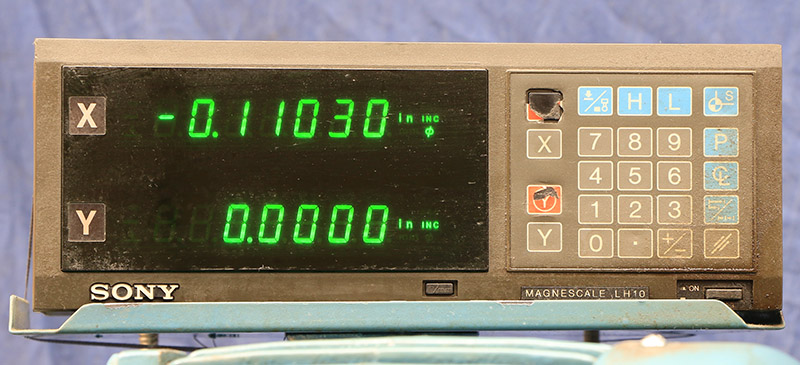

"SONY" 2-AXIS DRO BOX, WITH A SCALE FOR THE "X" AXIS ONLY,
 UNIT PRESENTLY SET UP FOR .0001" RESOLUTION.

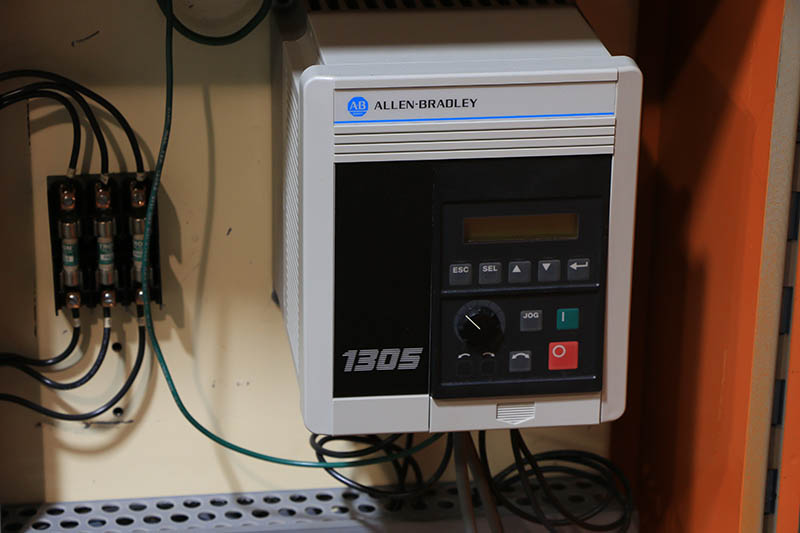

MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS, 8.5 AMPS SERVICE

LINK TO VIDEO: https://youtu.be/WdYvodgfzD8?si=5VL5MRLwSkiZ9Xoy

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE **
** ORIGINAL PAINT, FLAKING ON TABLE TOP ORIGINAL & STRONG! **
