Overbeck ZETTO 20, ENTIRELY ORIGINAL BEAUTY FROM GERMANY! PLAIN CYLINDRICAL GRINDERS

Price on Request

Make:: Overbeck

Model:: ZETTO 20, ENTIRELY ORIGINAL BEAUTY FROM GERMANY!

Year:: 1968

Ref #:: 179313

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

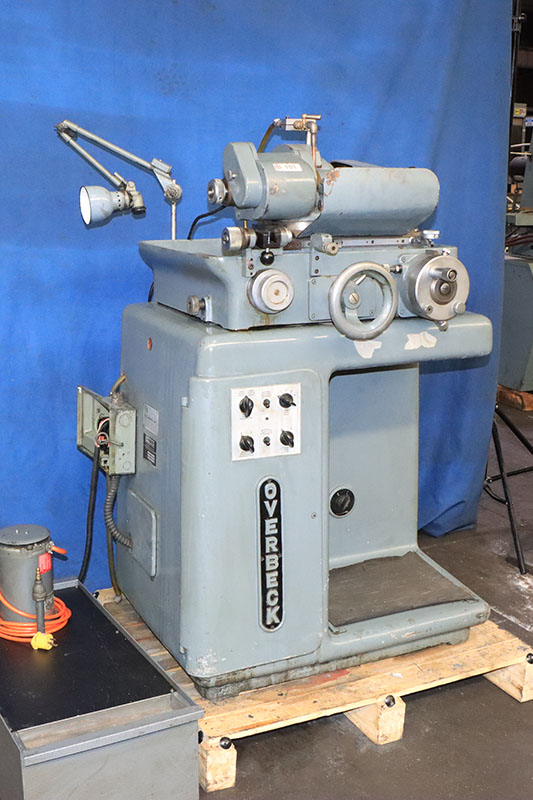

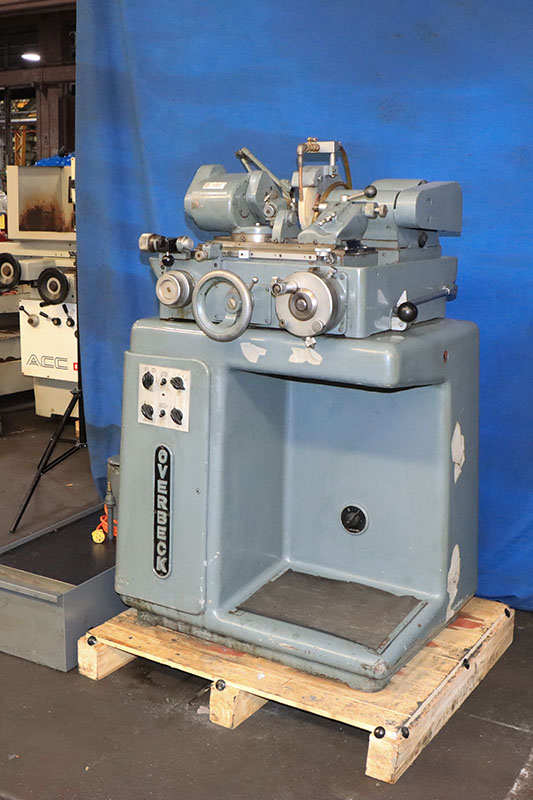

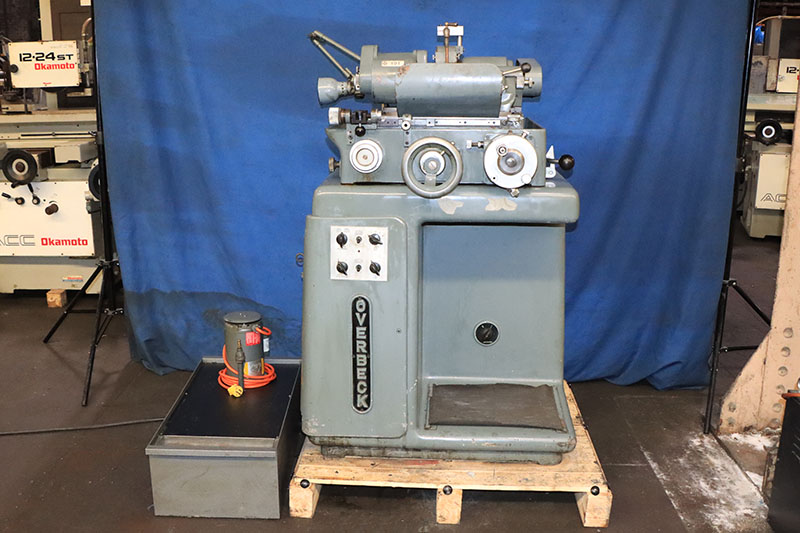

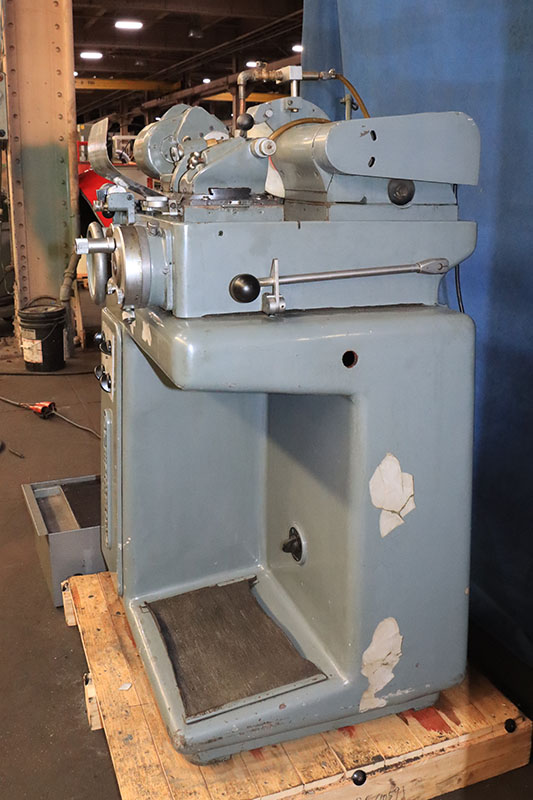

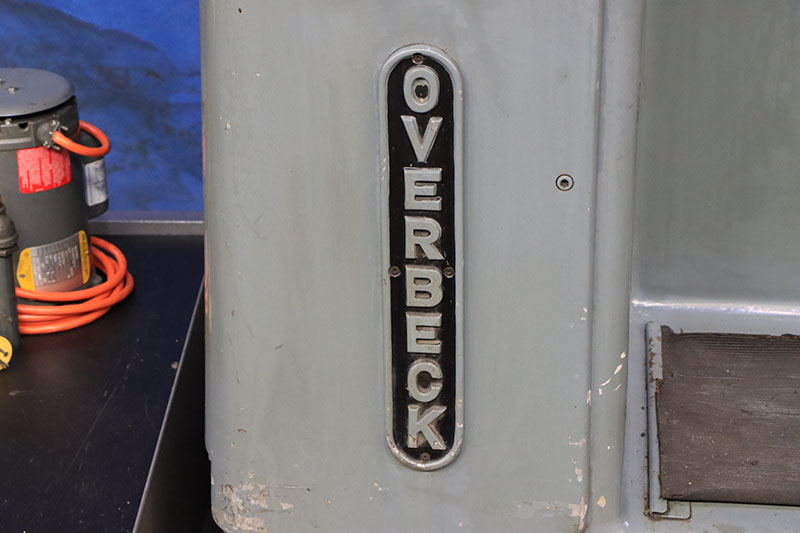

OVERBECK "ZETTO 20"  HIGH PRECISION
(MADE IN WEST GERMANY)
PLAIN CYLINDRICAL GRINDER

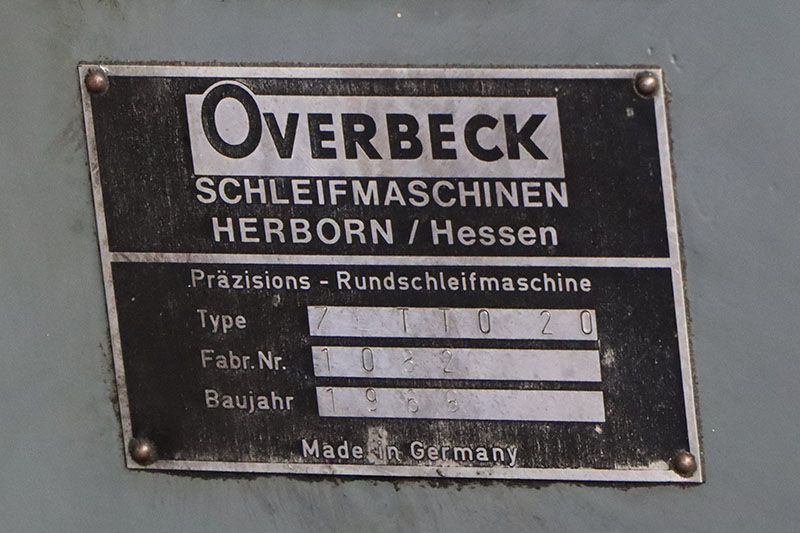

S/N: 1082        NEW: 1968

IDEAL FOR "SMALL PARTS"

CAPACITY:
8" MAX. DISTANCE BETWEEN CENTERS
4.75" MAX. GRINDING LENGTH
3.5" MAX. SWING
8" DIA. GRINDING WHEEL, WITH 1" TO 2" WIDE WIDTHS
4- 5/16" POWER TABLE STROKE
TABLE MOVES ON PRECISION NEEDLE BEARINGS

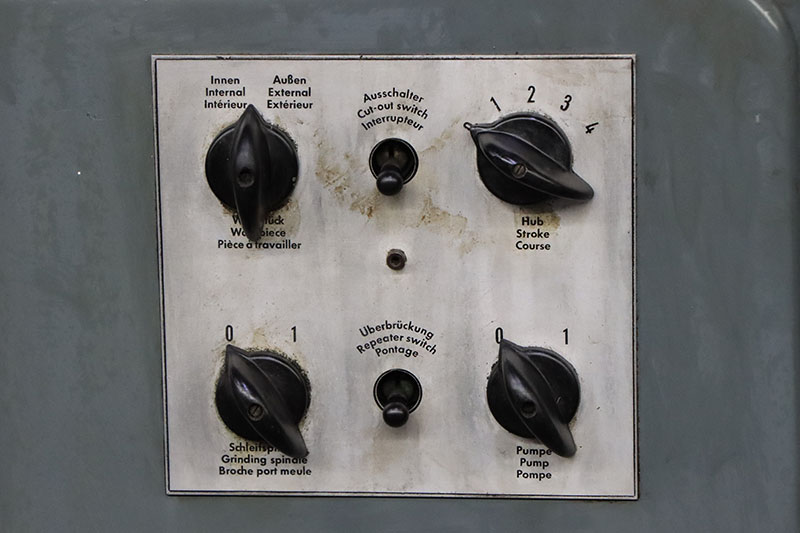

POWER TABLE FEED, MECHANICAL (NO HYDRAULICS), WITH
  SELECTOR SWITCH, WITH (4) TABLE SPEEDS OFFERED.

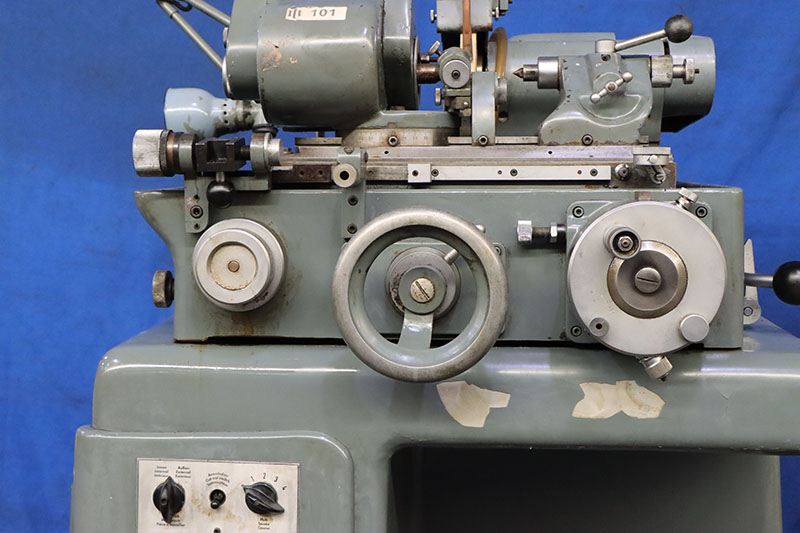

HANDWHEEL FOR MANUAL TABLE TRAVERSE
TABLE STOPS IN CENTER, WITH FINE ADJUSTMENT MECHANISM
  ON THE LEFT SIDE OF THE TABLE

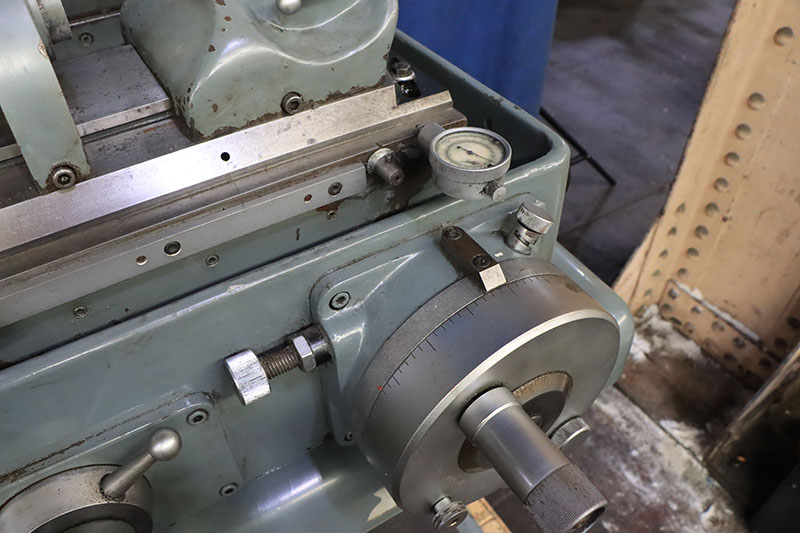

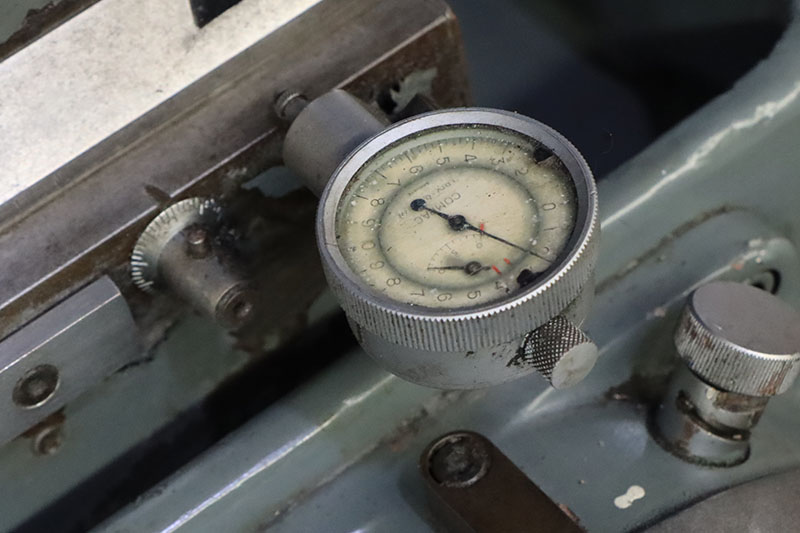

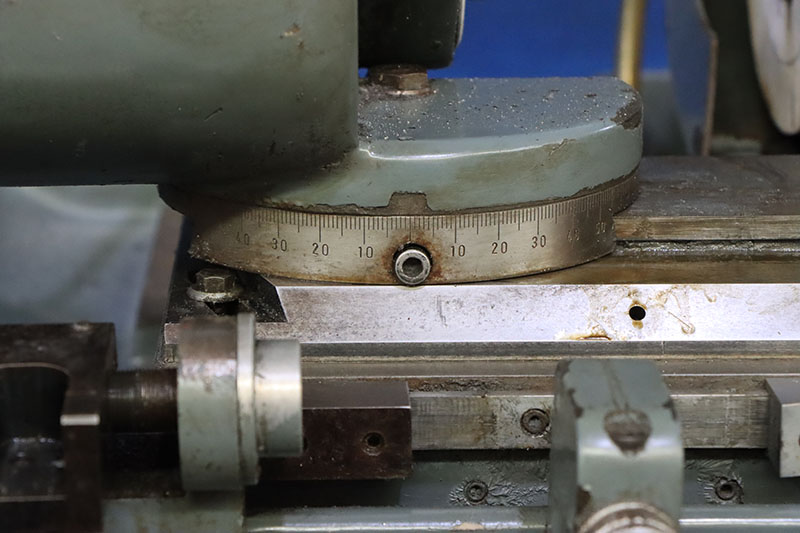

TABLE SWIVELS +/-6°, WITH DIAL INDICATOR
MANUAL INFFED OF THE GRINDING WHEEL

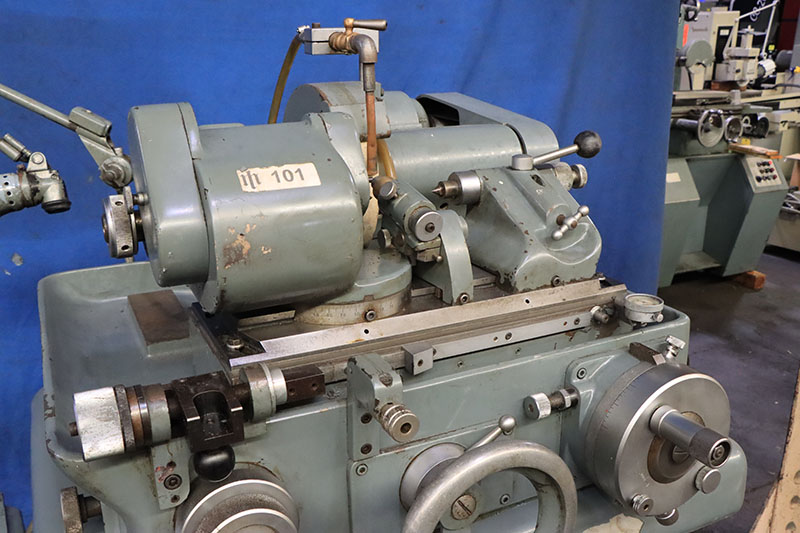

WHEELHEAD HAS A LEVER, PROVIDING RAPID WHEEL STROKE.
  MOVEMENT OF THE GRINDING WHEEL IS SMOOTH & LIGHT.
  WHEELHEAD IS ON VEE & FLAT WAYS, WITH ROLLER
  BEARINGS, MAKING THE ACTION SMOOTH & BUTTERY.

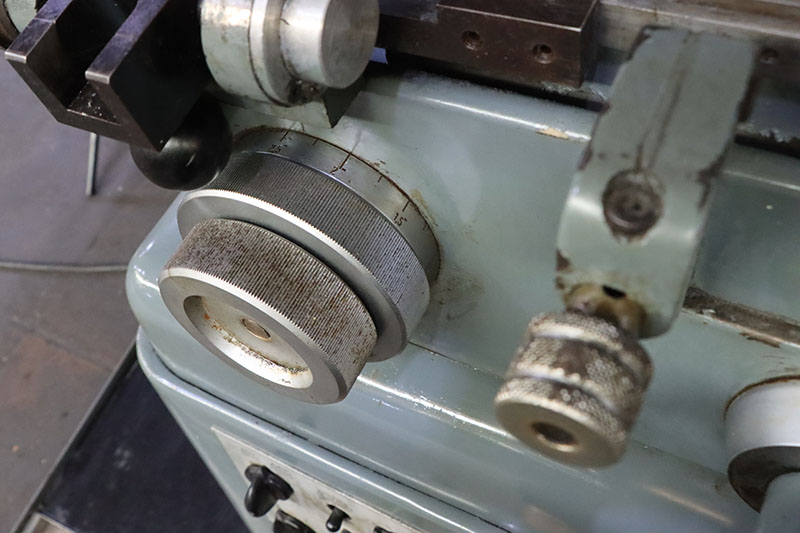

INFEED HANDWHEEL, I DIVS. = .0004".
FINE ADJUSTMENT SCALE IS CALIBRATED TO .0001" DIVS.

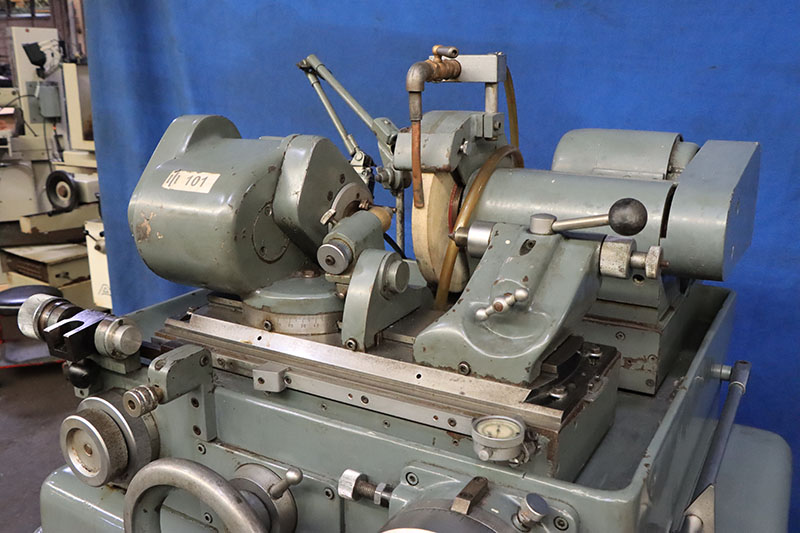

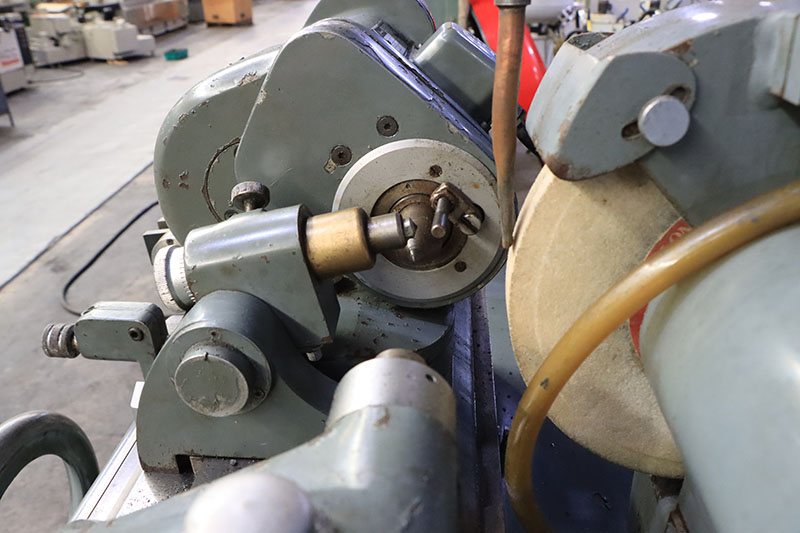

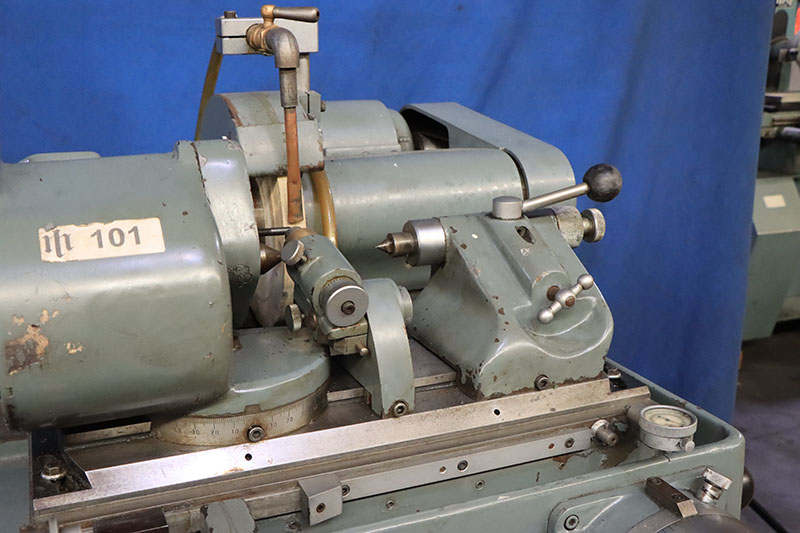

TAPER IN WORKHEAD, #3MT SPINDLE
CENTER IN WORKHEAD IS A "DEAD' TYPE
WORKHEAD CAN ALSO BE USED WITH "LIVE" SPINDLE
WORKHEAD SWIVELS 0 TO 90° TO ONE SIDE
(4) SPEEDS BY STEPPED PULLEY (250/500/750/1000 RPM)
CAST IRON CONSTRUCTION (BEAUTIFULLY MADE)
SWING BACK DIAMOND DRESSER, WITH MICROMETER FINE FEED

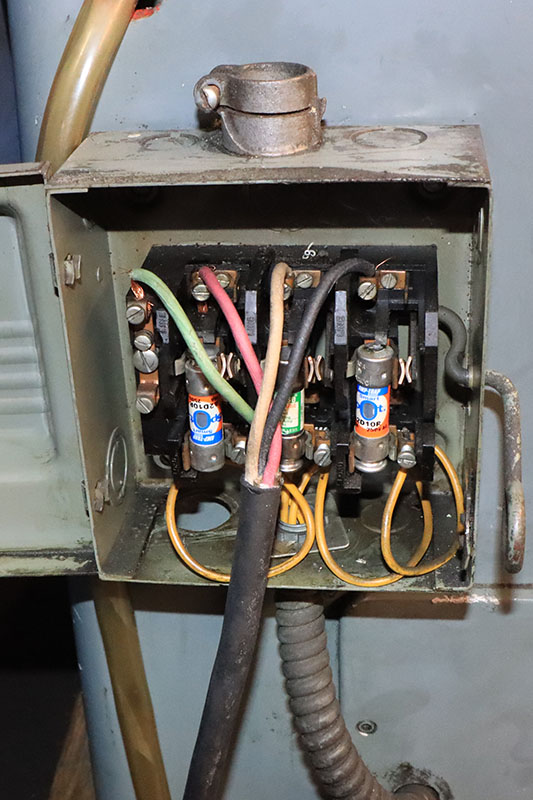

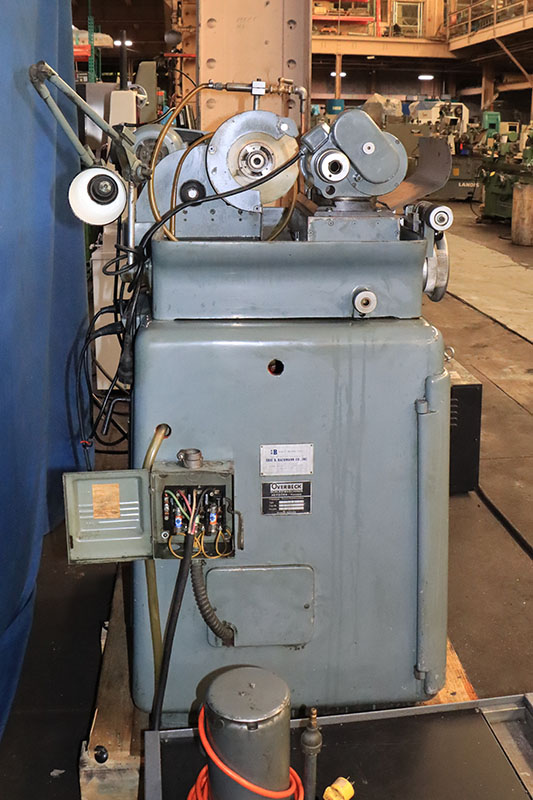

MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS

APPROX. DIMS.:  34"L-R x 27"F-B x 47"H
APPROX. WEIGHT:  1,540 LBS.

** ORIGINAL PAINT - ORIGINAL APPEARANCE **
** LIKE FINDING A 1968 PORSCHE IN MINT CONDITION **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
