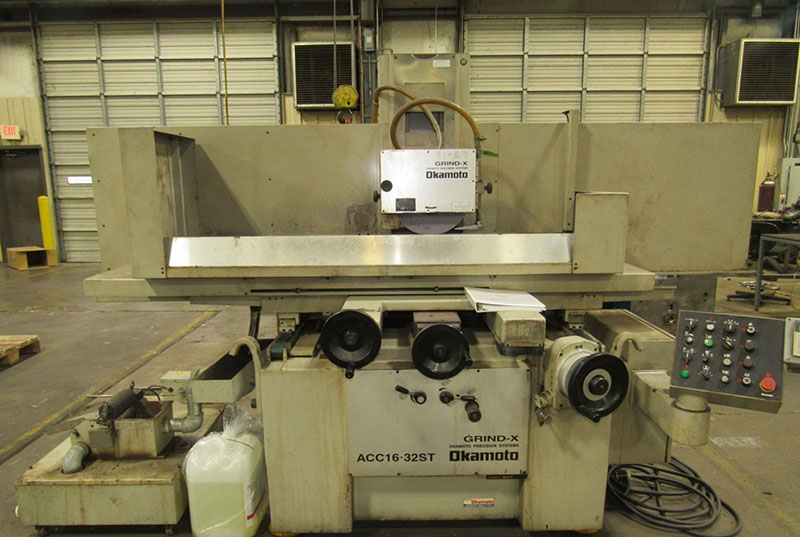

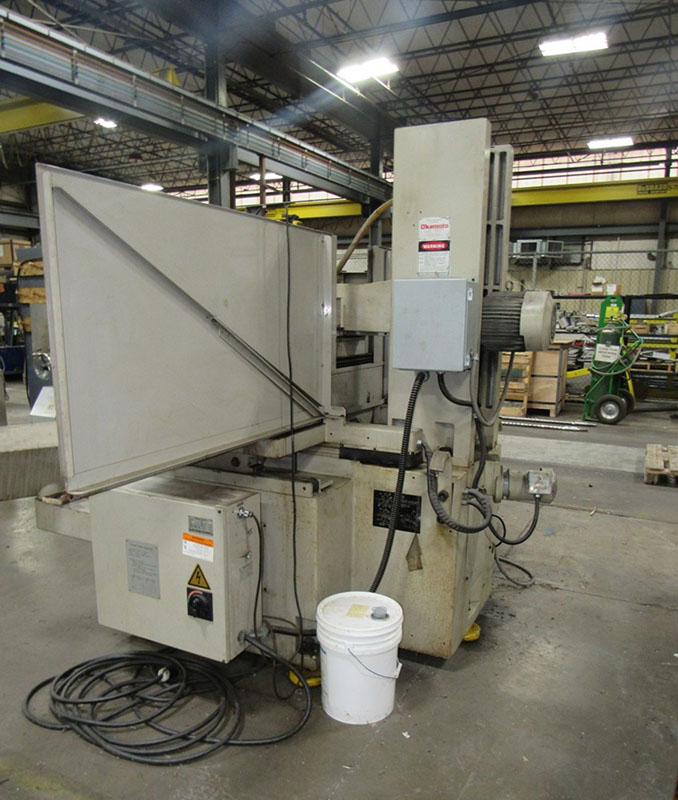

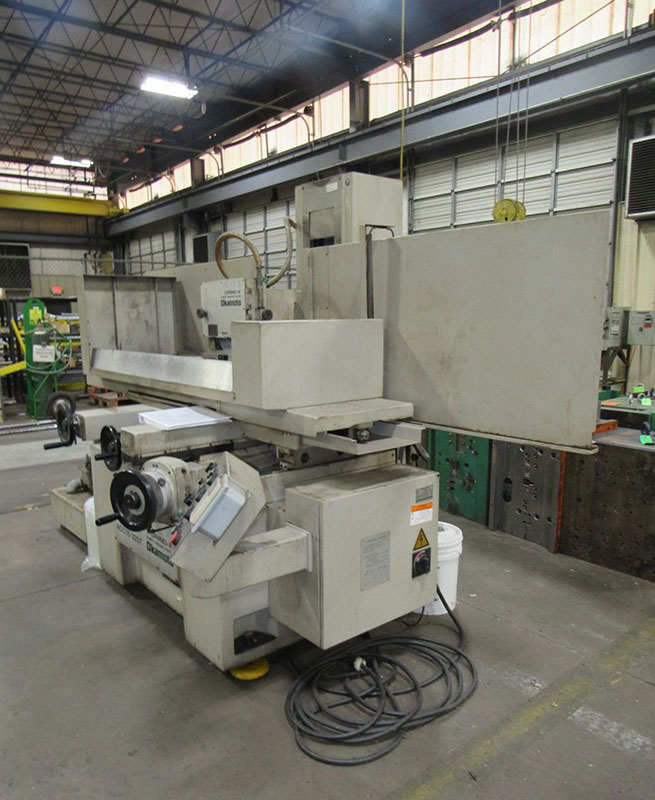

Okamoto ACC-1632ST, 2012, AUTO IDF, 3X AUTO FEEDS, SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Okamoto

Model:: ACC-1632ST, 2012, AUTO IDF, 3X AUTO FEEDS,

Year:: 2012

Ref #:: 177958

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

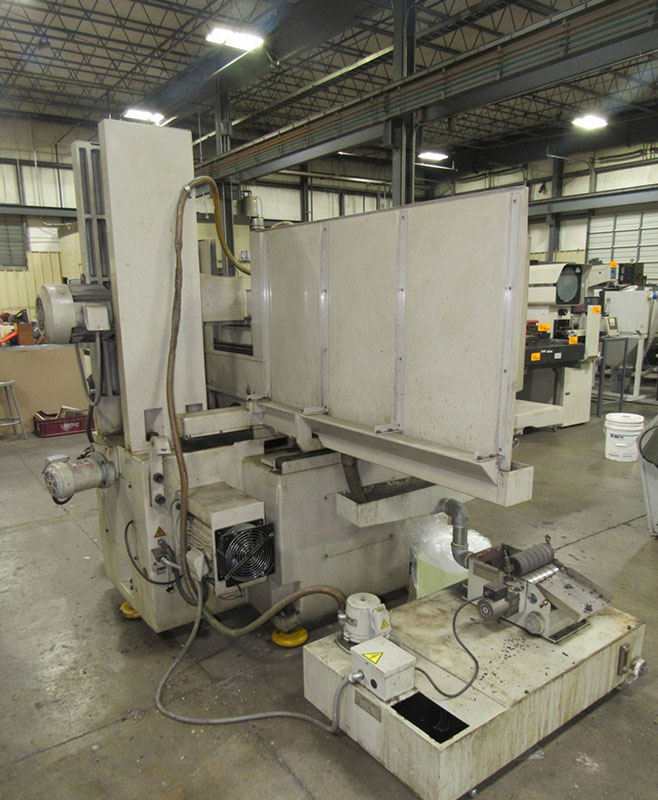

     16" X 32" OKAMOTO HIGH-PRECISION
        HYDRAULIC SURFACE GRINDER
        W/AUTO INCREMENTAL DOWNFEED

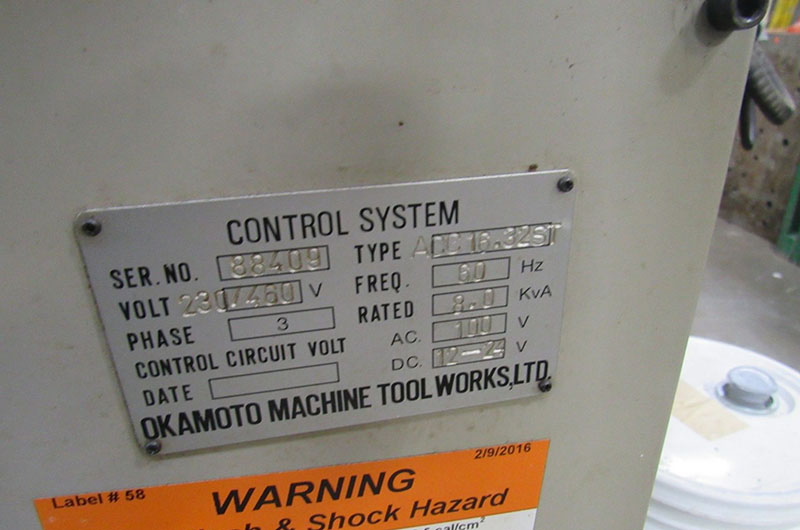

 MODEL: ACC-1632-ST    S/N: 88409     NEW: 2012

MAXIMUM GRINDING LENGTH ............... 32"
MAXIMUM GRINDING WIDTH ................ 16"
MAXIMUM HEIGHT UNDER 12" WHEEL ........ 21.5"
MAXIMUM LONGITUDINAL MOVEMENT ......... 37.5"
MAXIMUM CROSS MOVEMENT ................ 17.5"

FEEDS:
LONGITUDINAL HYDRAULIC FEED ..... 10' TO 82' FPM
LONGITUDINAL FEED PER HANDWHEEL REV. .. 1.85"

CROSS FEED, HYDRAULIC INTERMITTENT .... 0.02" -.8"
HYDRAULIC CONTINUOUS .................. 4" - 40" IPM
HAND FEED/REVOLUTION .................. 0.250"
HANDWHEEL GRADUATION .................. 0.001"

VERTICAL MOVEMENT OF WHEELHEAD:
AUTO FEED/TABLE STROKE .......... 0.0001" - 0.0015"
AUTO FEED/SADDLE REVERSAL ....... 0.0001" - 0.0015"
HAND FEED/REVOLUTION .................. 0.05"
GRADUATION OF HANDWHEEL ............... 0.0001"
RAPID FEEDRATE ........................ 16" IPM

GRINDING WHEEL:
GRINDING WHEEL .................. 12" x 1- 1/2" x 5"
SPINDLE SPEED ......................... 1,800 RPM

RESEVOIR CAPACITY ..................... 48 GALS.

SPINDLE MOTOR ......................... 5 HP
HYDRAULIC PUMP MOTOR .................. 3 HP
VERTICAL RAPID FEED MOTOR ............. 0.5 HP

APPROX. FLOOR SPACE REQUIRED
 FOR OPERATING ............. 130"R-L x 88"F-B x 80"H
APPROX. MACHINE WEIGHT ......... 7,600 LBS.

  EQUIPPED WITH:
EASY TO USE, CENTRALIZED OPERATOR CONTROLS,
 SOLID STATE WITH OPTIMAL RELIABILITY
AUTO INCREMENTAL DOWNFEED, SURFACE & PLUNGE MODES
MANUAL FINE FEED PUSH BUTTON PROVIDES MANUAL FINE
 FEED IN INCREMENTS THE SAME AS SELECTED IN
 AUTOMATIC OPERATION.
AUTOMATIC SPARKOUT OF WHEEL UP TO 5 PASSES
AUTOMATIC TABLE PARK
GRAVITY FEED AUTOMATIC LUBRICATION SYSTEM
POWER ELEVATION

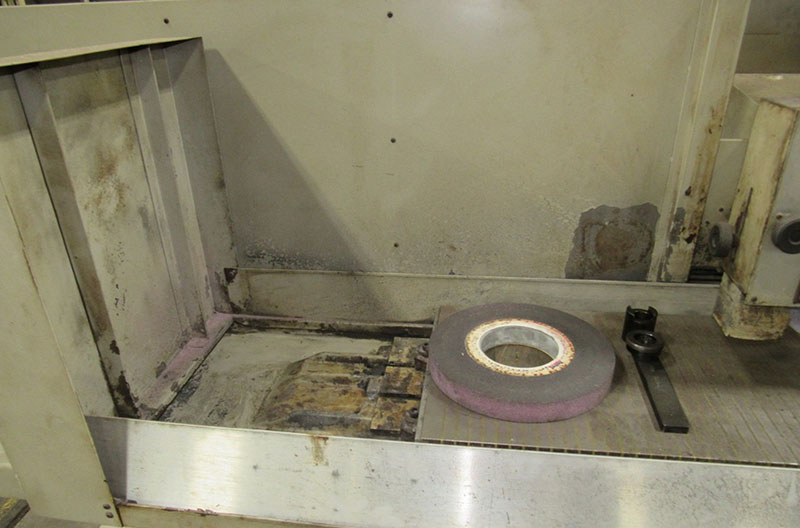

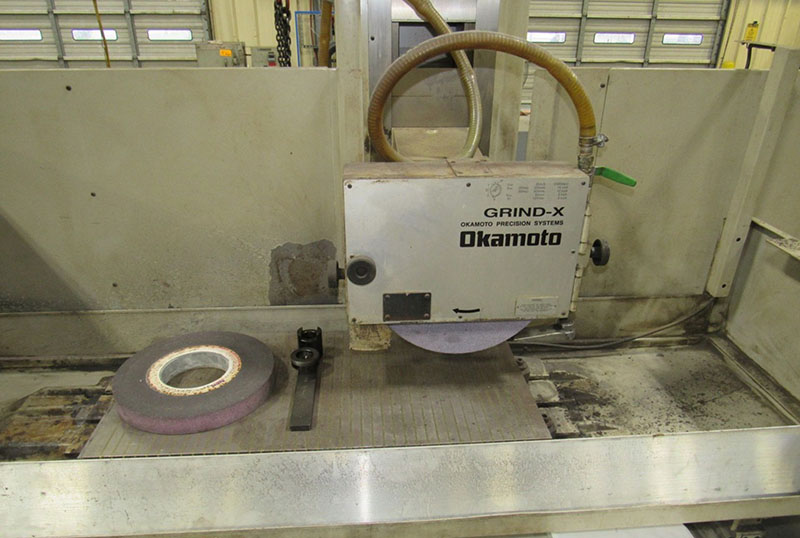

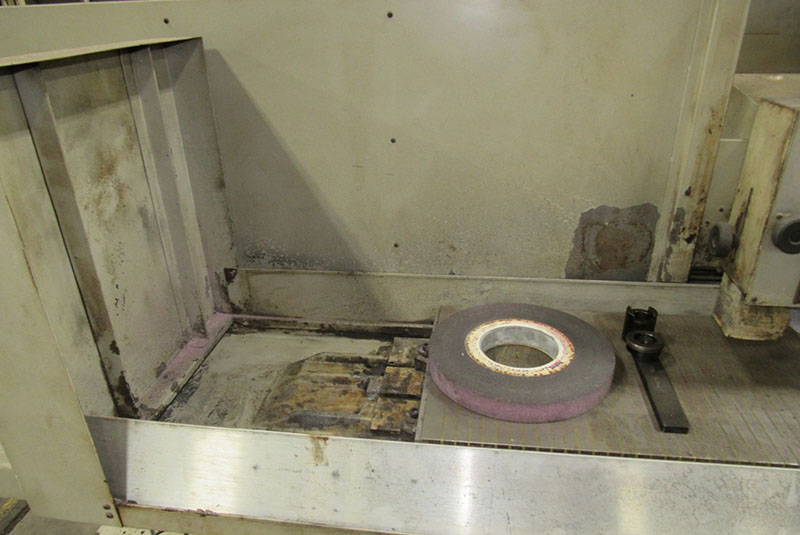

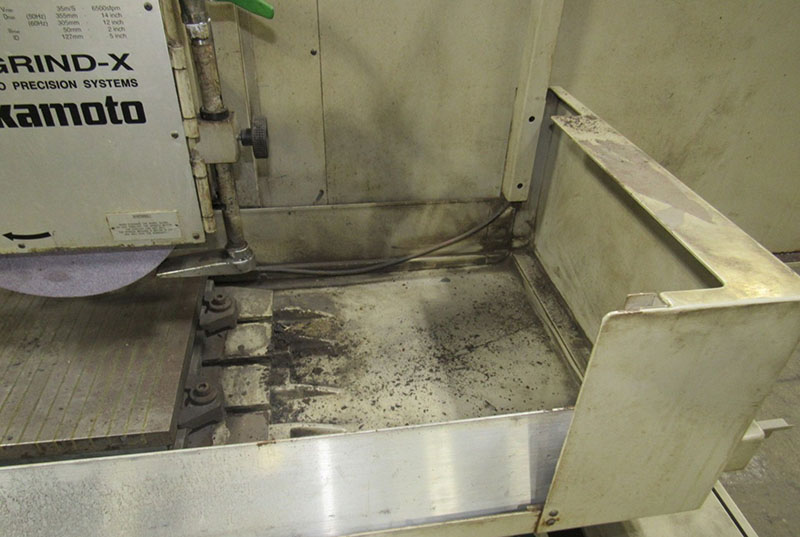

16" X 32" "KANETSU" CROSS-POLE ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER ON THE CONSOLE CONTROL

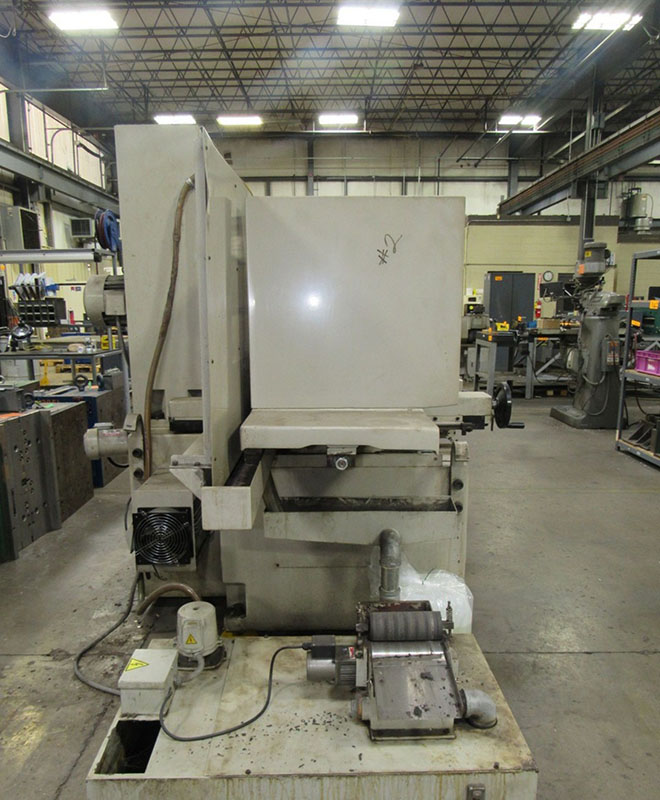

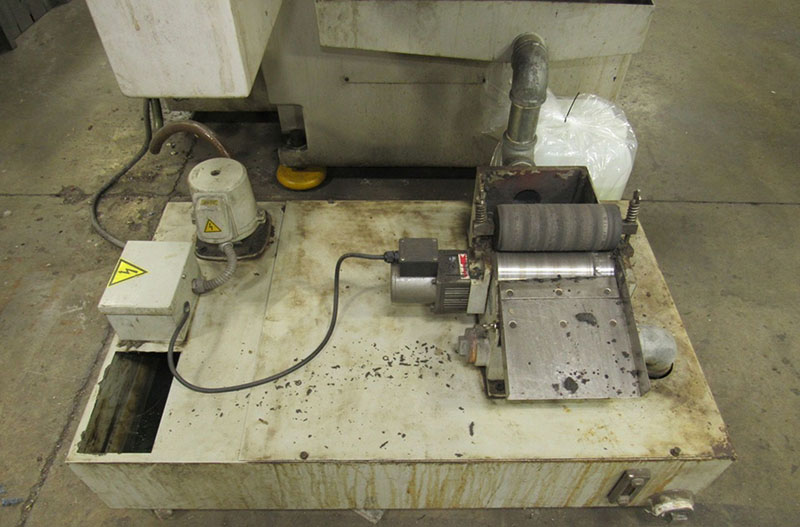

COOLANT SYSTEM
"VFD" FOR SPINDLE, PROVIDES INFINITELY VARIABLE
 SPINDLE SPEEDS
5 H.P. SPINDLE MOTOR/3/60/230-460 VOLTS
MACHINE IS PRESENTLY WIRED 440 VOLTS

LINK TO VIDEO: https://youtu.be/PmabMPt4Mts?si=R4RhHGboI8VYkVUC

** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
