Okamoto ACC 24-60ST, 2000, 3X AUTO FEEDS, PROG. AUTO IDF, SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Okamoto

Model:: ACC 24-60ST, 2000, 3X AUTO FEEDS, PROG. AUTO IDF,

Year:: 2000

Ref #:: 178787

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

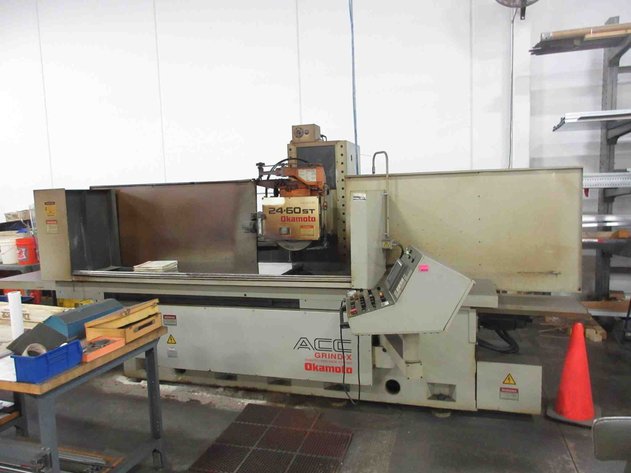

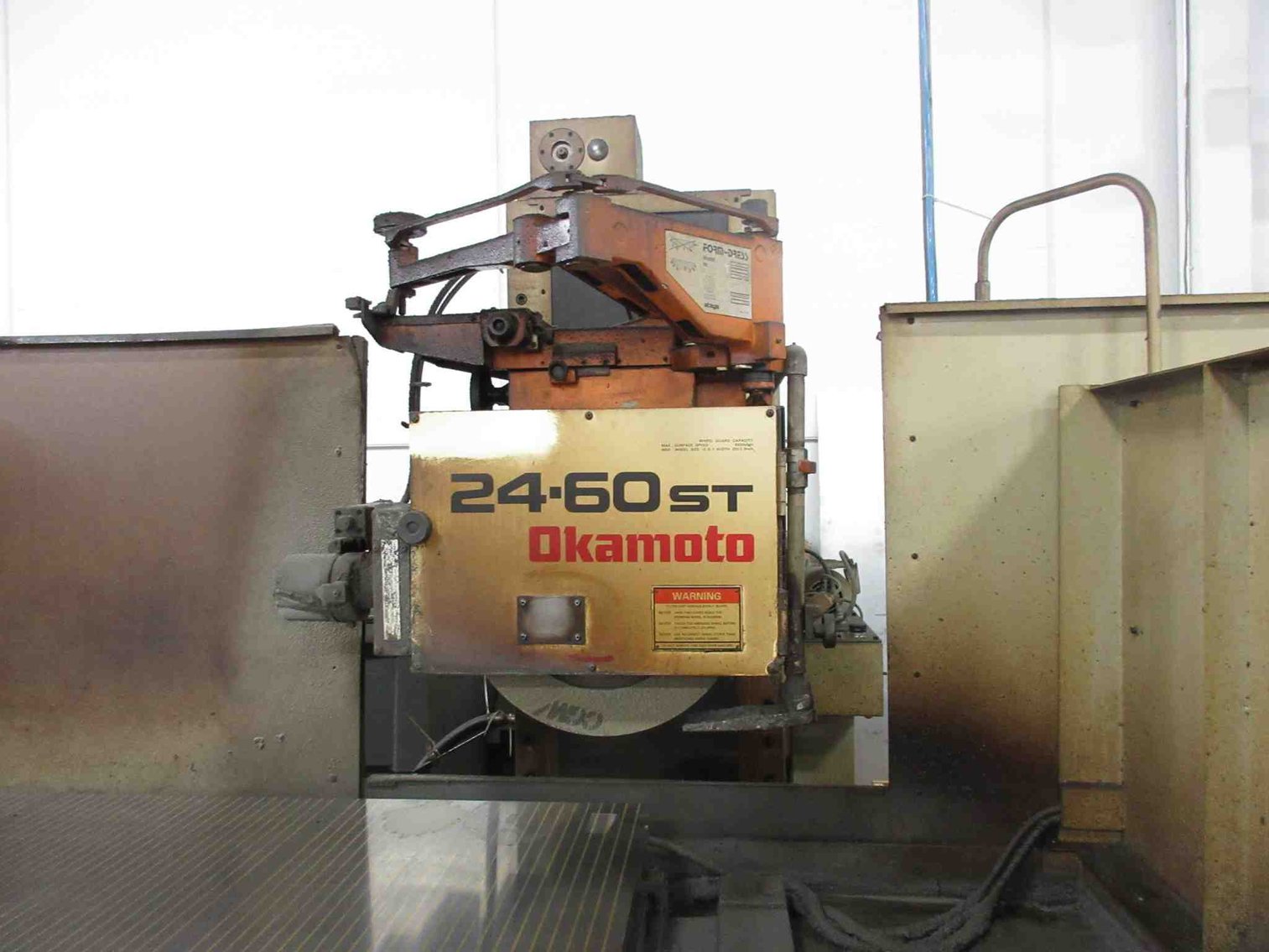

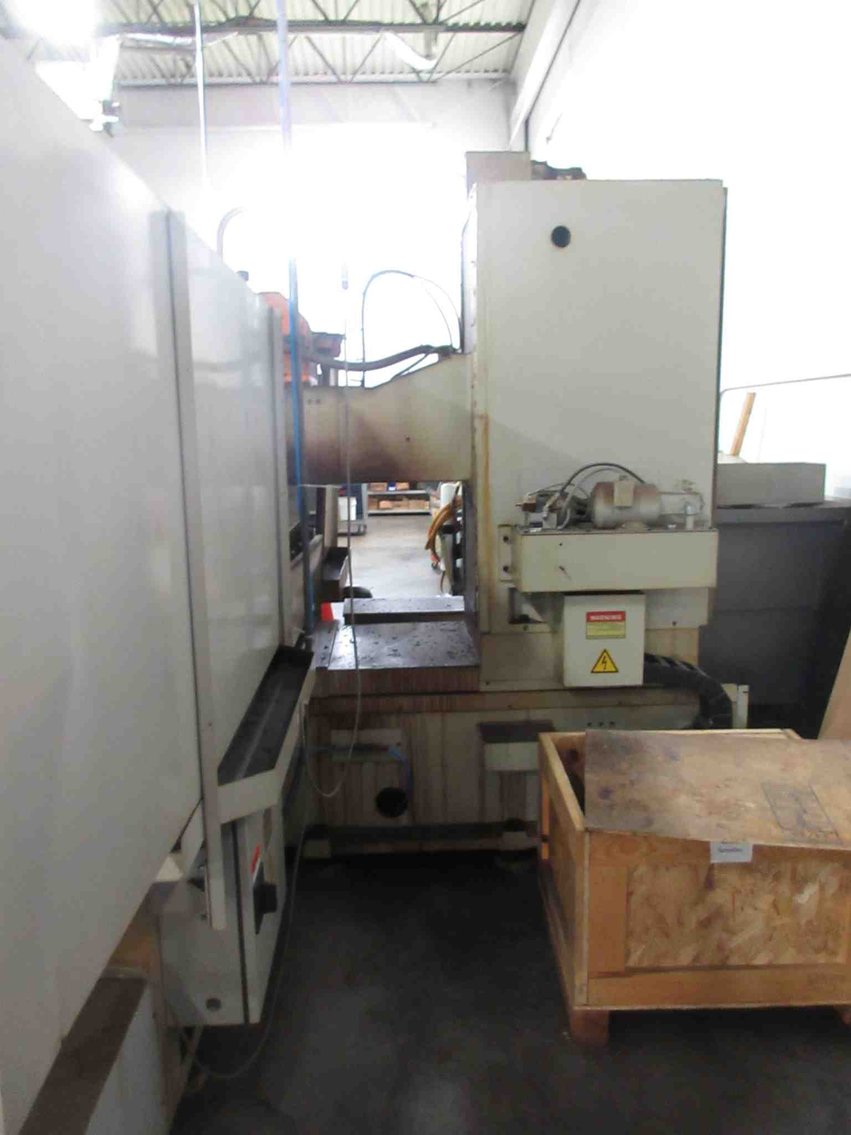

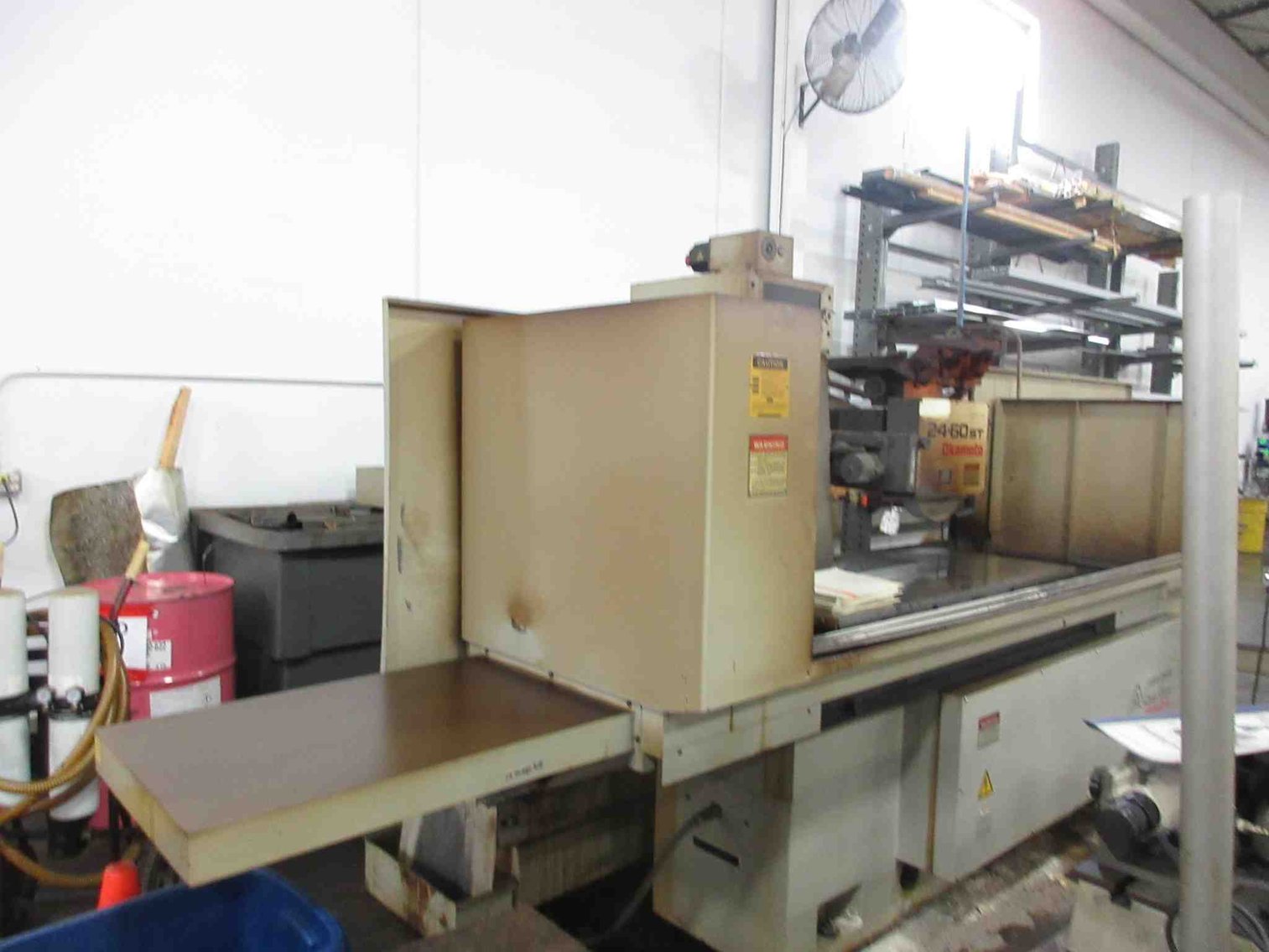

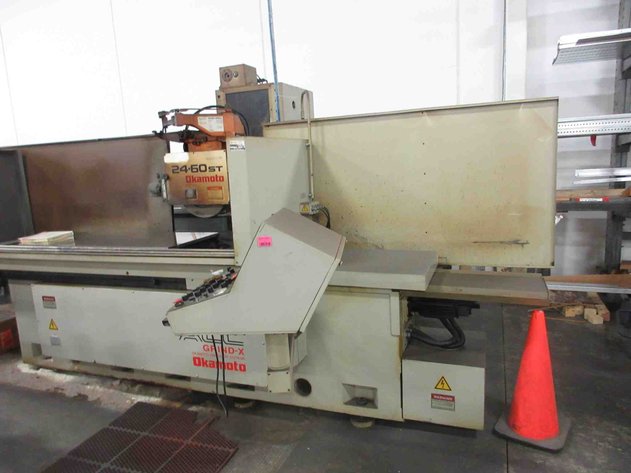

    24" x 60" OKAMOTO (MADE IN JAPAN)
      COLUMN TYPE SURFACE GRINDER
   WITHFANUC 21-G PROGRAMMABLE CONTROL

     ** ALL THREE AXES ARE DRIVEN BY
       SERVO MOTORS & BALLSCREWS **

MODEL: ACC-2460ST    S/N: 40017     NEW: 2000

SPECIFICATIONS:
MAX GRINDING SURFACE ............ 24" x 61"
MAX CAPACITY UNDER 20" WHEEL .... 23.6"
STANDARD CHUCK SIZE ............. 24" x 60" x 4.3"
MAX TABLE LOAD .................. 3.300 LBS

LONGITUDINAL FEED:
MAX TRAVEL ...................... 65"
FEED RATE ....................... 6.6 - 82FT/MIN.

CROSSFEED:
MAX TRAVEL ...................... 26"
AUTO FEED TRAVEL ................ 26"
RAPID FEED RATE ................. 16.5 FT/MIN.

MANUAL FEED:
HAND FEED/REV(X1/X5/X20) ...... 0.01"/0.05"/0.2"
HAND WHEEL GRAD(X1/X5/X20) ... 0.0001/0.0005"/0.002"

AUTO FEED:
ROUGH INFEED .................... 0 - 0.0025"
FINE INFEED ..................... 0 - 0.0005"
FINE GRINDING ALLOWANCE ......... 0 - 0.002"
AIR-CUT FEED RATE(ROUGH/FINE) ... 0 - 999,99999
NUMBER OF SPARK OUTS ............ 0 - 5

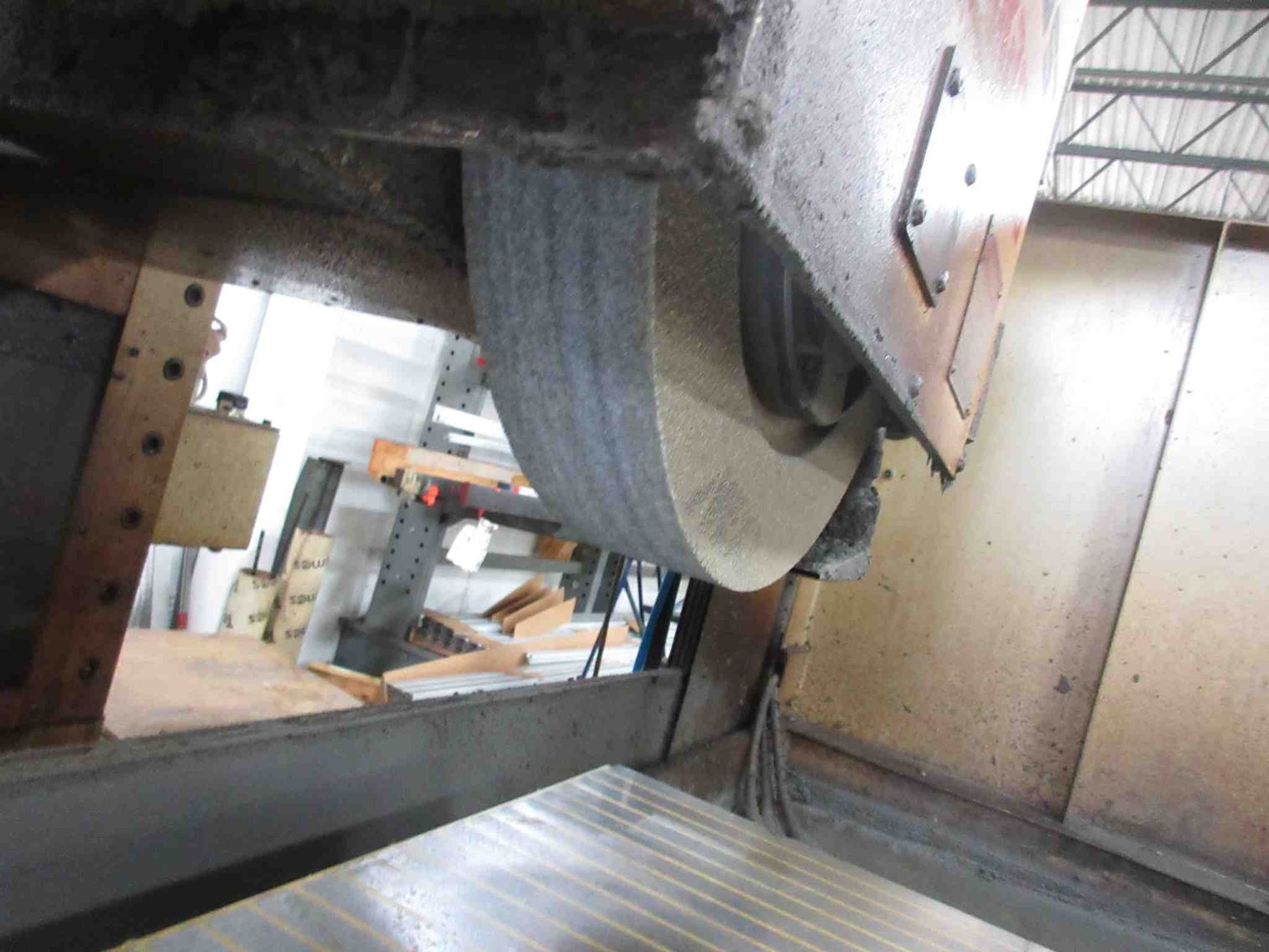

GRINDING WHEEL INFO:

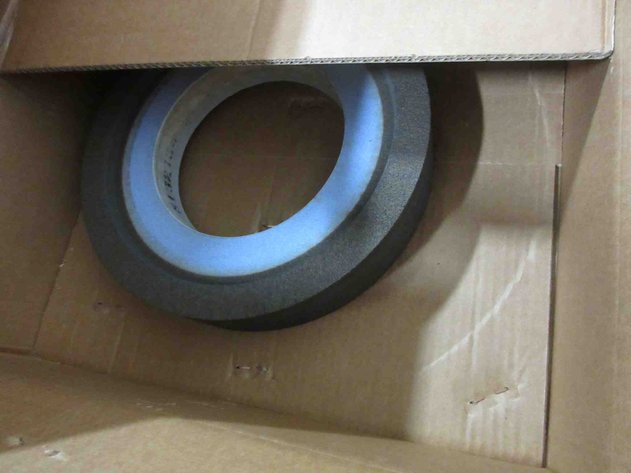

GRINDING WHEEL (D x W x B) ...... 20" x 3" x 8"
SPINDLE SPEED ................... 1,100 RPM

MOTORS:
WHEEL SPINDLE ................... 20 HP
HYD OIL PUMP FOR DRESSER ........ 0.5/2HP
VERT FEED(AC SERVO MOTOR) ....... 1.2 HP
CROSSFEED(AC SERVO MOTOR) ....... 1.2HP

DIMENSIONS & WEIGHT:
FLOOR SPACE (W x D x H) ...... 214" x 107" x 99"
APPROXIMATE WEIGHT .............. 23,100 LBS.

EQUIPPED WITH:

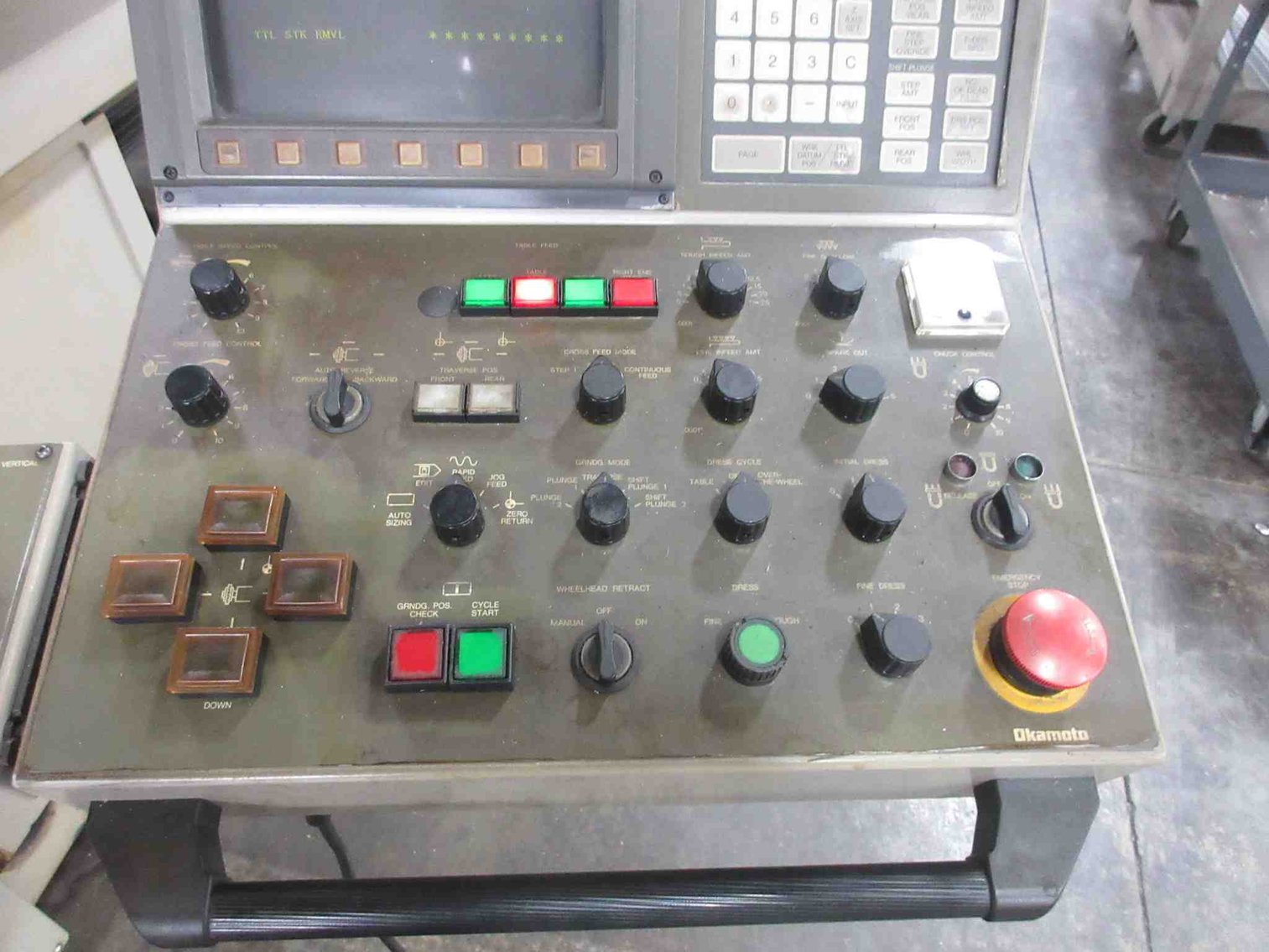

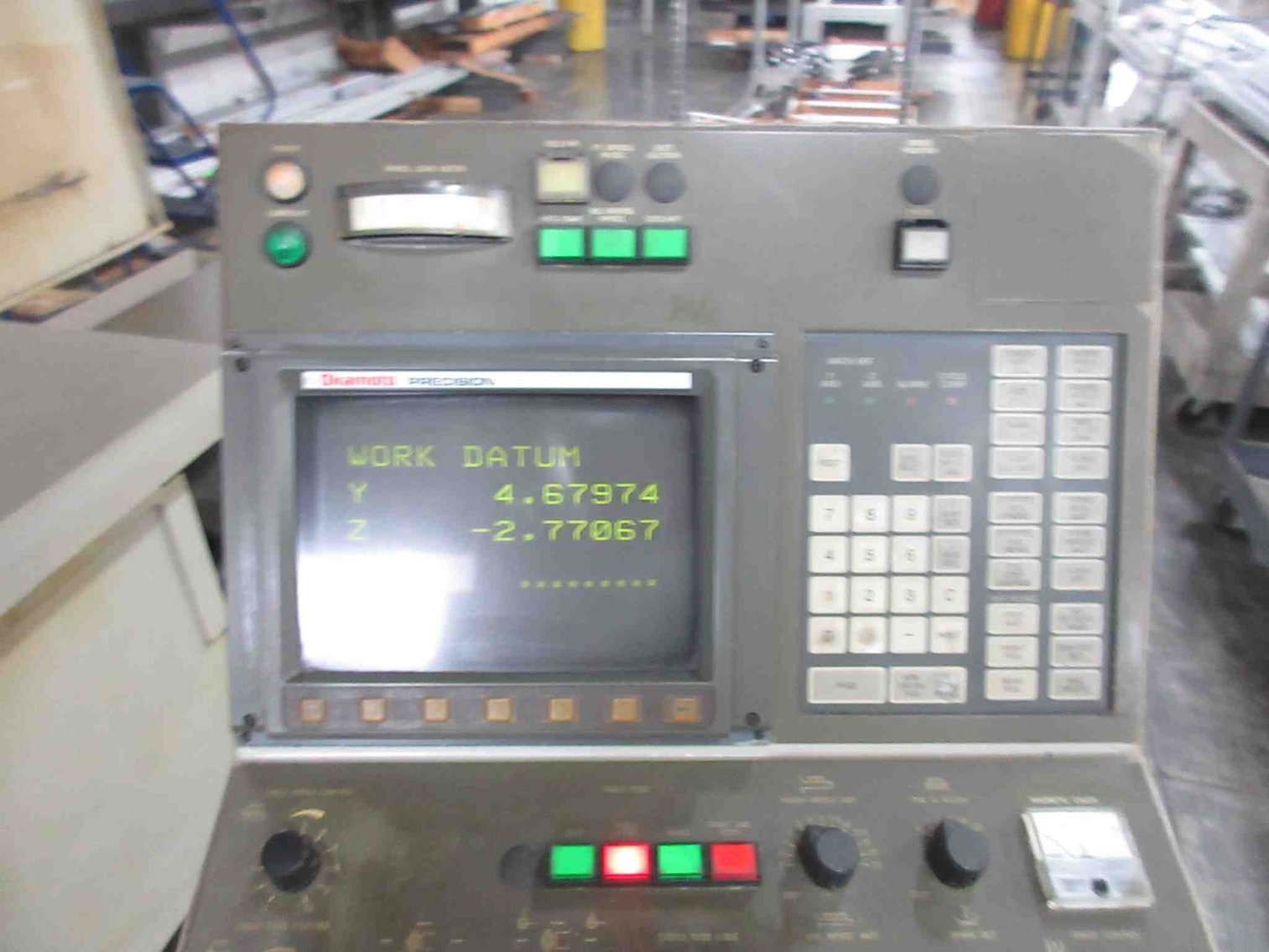

FANUC 21-G MDI CONTROL
ALL THREE AXES ARE DRIVEN BY SERVO NOTORS & BALLSCREWS
RAPID APPROACH & RETRACT TO START POSITION

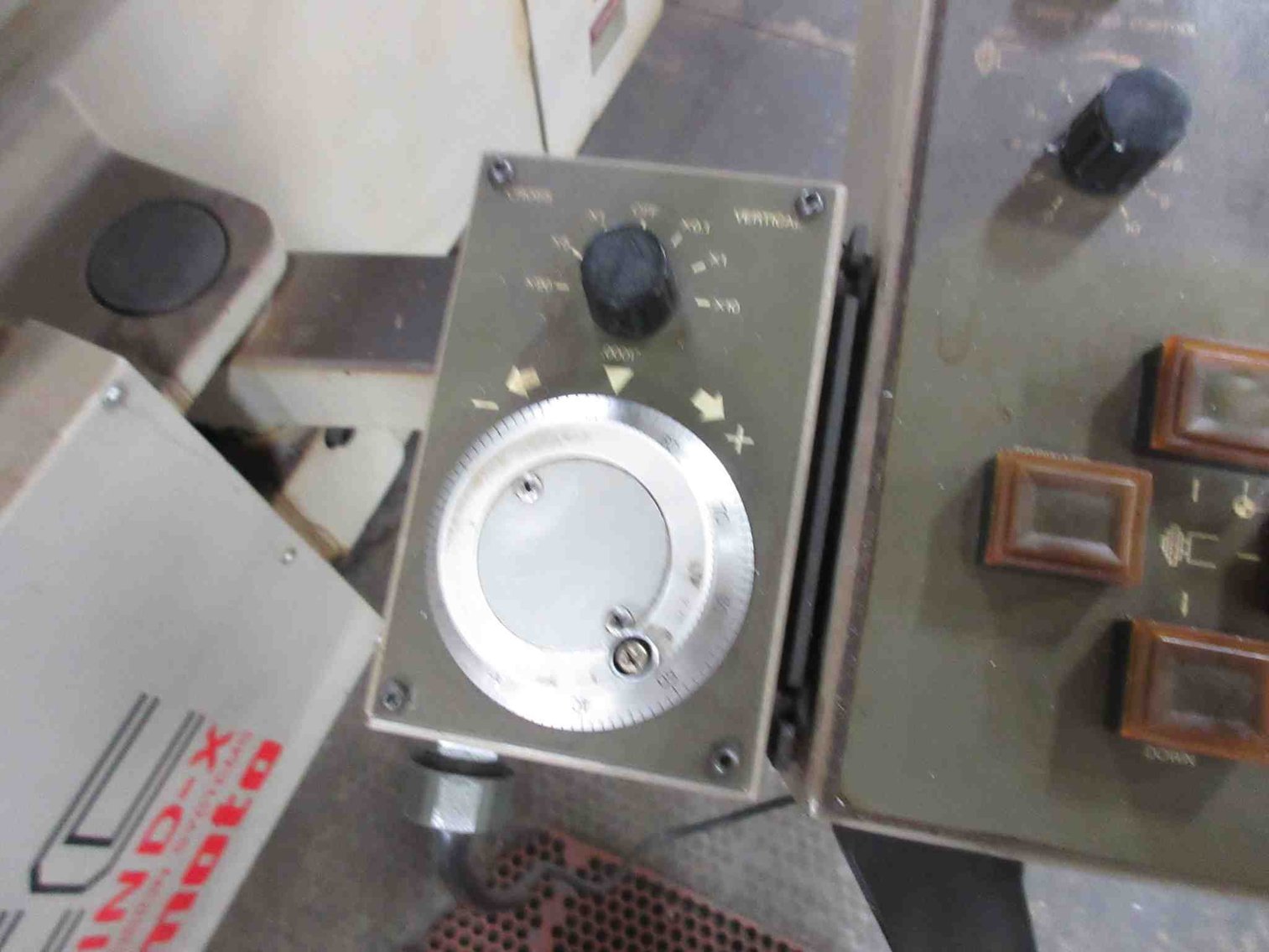

VERTICAL & CROSS MANUAL PULSE GENERATOR
RAPID FEED UP& DOWN
 ROUGH& FINE GRINDING CYCLES
 TRAVERSE,PLUNGE,SHIFT PLUNGE GRINDING CYCLES
 BALL SCREWS ON ALL THREE AXES
23- 5/8" (500mm) x 59- 3/16" (800mm) ELECTRO MAGNETIC
  CHUCK & CHUCK CONTROLLER

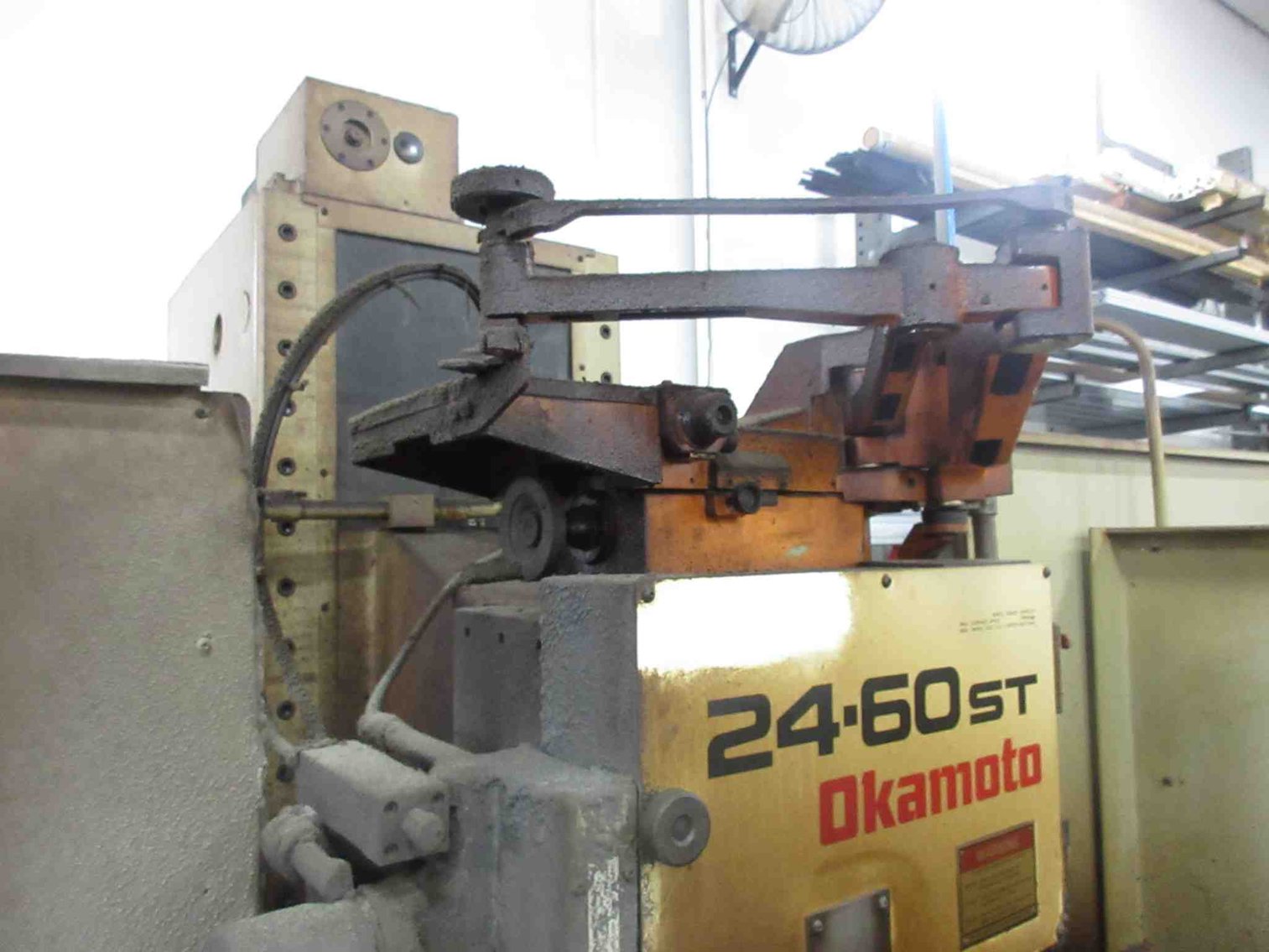

OVER-THE-WHEEL FORM DRESSER, MANUAL TYPE
LARGE COOLANT SYSTEM WITH PAPER FILTRATION

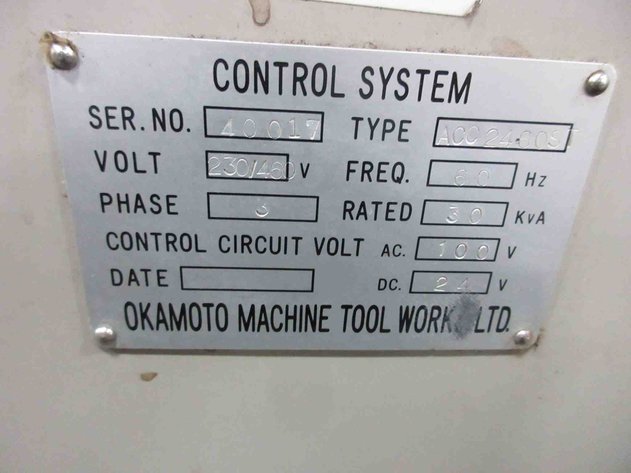

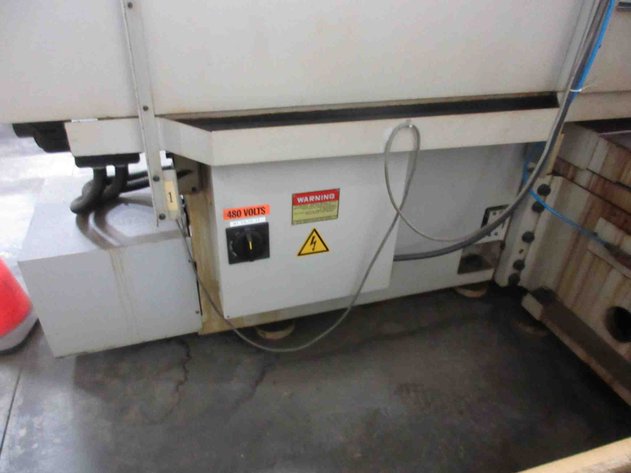

MACHINE IS PRESENTLY WIRED FOR 3/60/480 VOLTS

** EXCELLENT CONDITION & APPEARANCE  **
     ** - ORIGINAL PAINT **

** LOCATED IN WISCONSIN, SPECIAL "LOWER"
  "PRE-REMOVAL" PRICE, IF TAKEN BEFORE
  WE MOVE IT TO OUR HARRISON, NJ WAREHOUSE **
