Okamoto ACC-63DX, 2015, PROG. AUTO IDF, 3X AUTO FEEDS SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Okamoto

Model:: ACC-63DX, 2015, PROG. AUTO IDF, 3X AUTO FEEDS

Year:: 2015

Ref #:: 178447

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

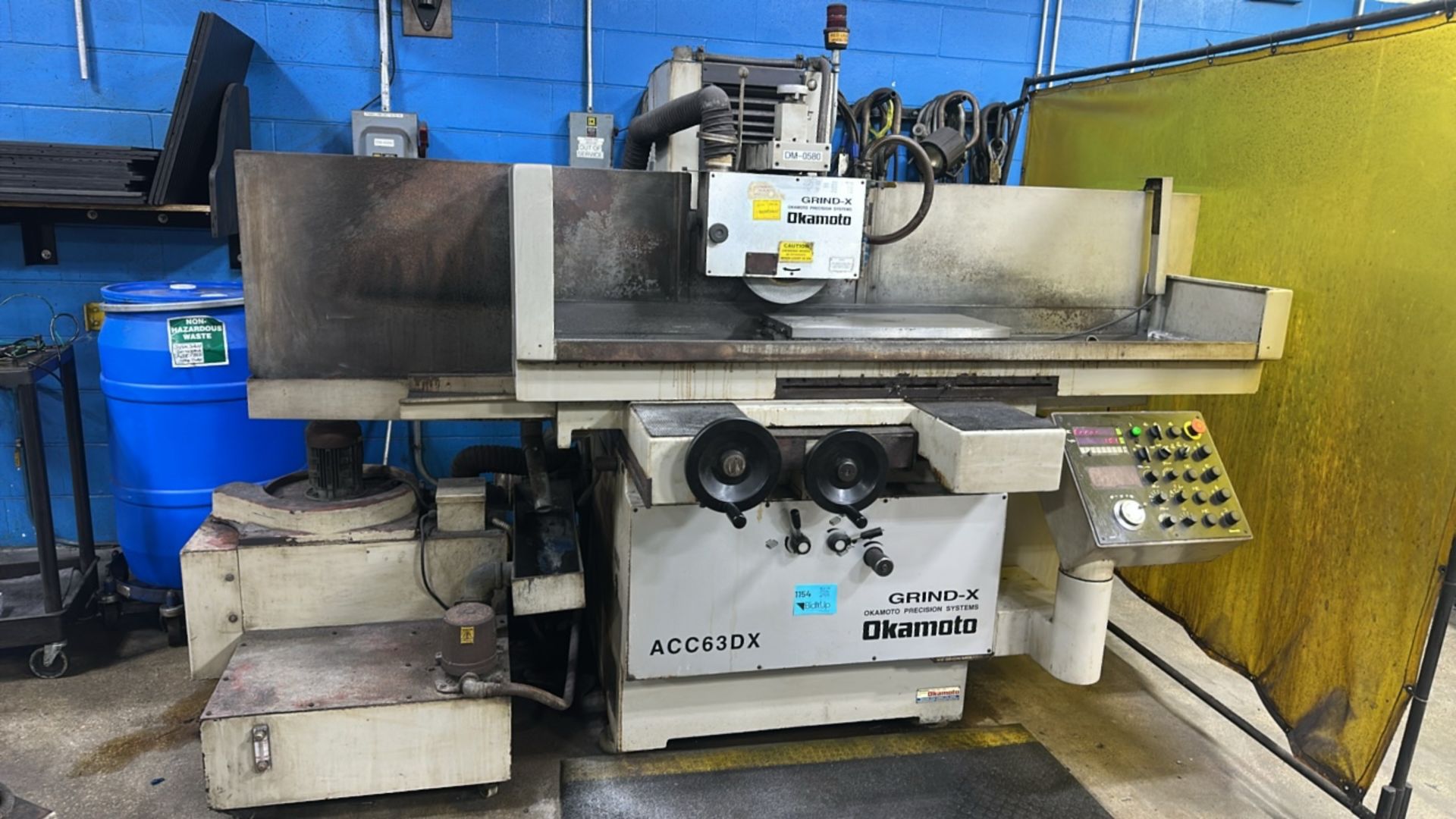

         12" X 24" OKAMOTO "HIGH-PRECISION"
     3-AXIS AUTOMATIC FEEDS SURFACE GRINDER
* "DX" SERIES PROGRAMMABLE AUTO INCREMENTAL DOWNFEED *

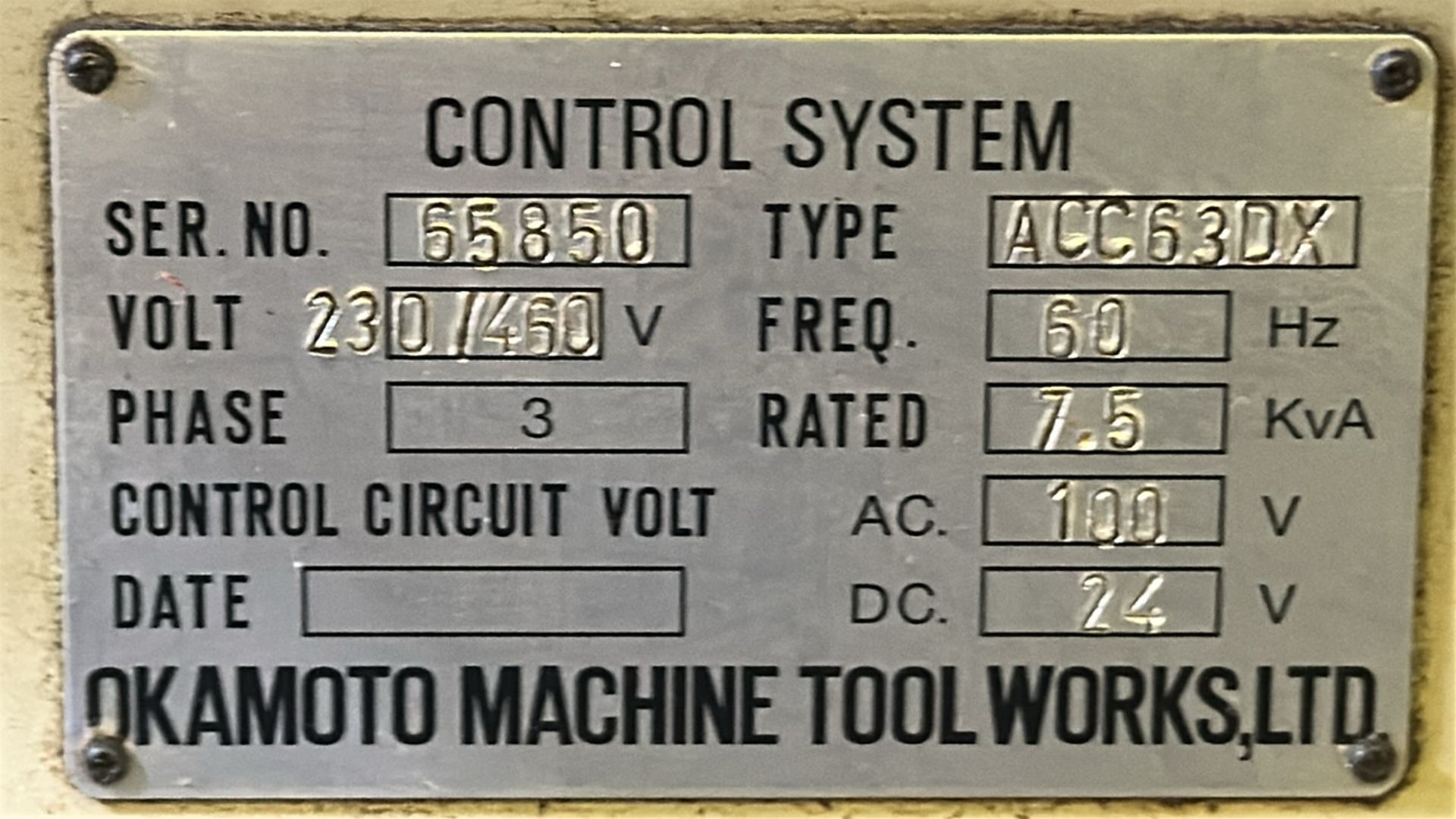

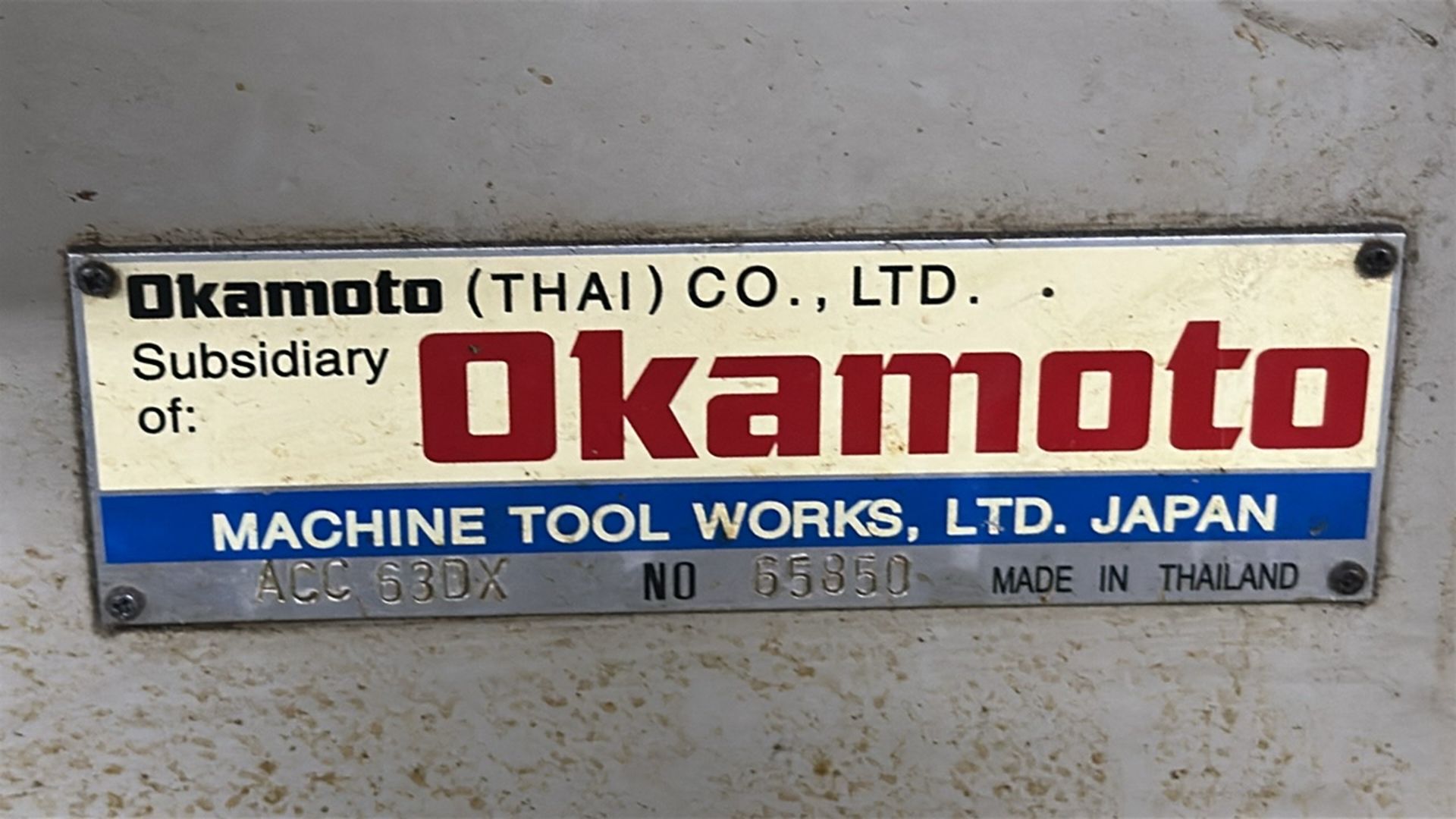

MODEL:  ACC-63DXDX      S/N: 65850      MFG: 2015

NOMINAL GRINDING CAPACITY .............. 12" x 24"
MAXIMUM HEIGHT UNDER 12" WHEEL ......... 13.7"
TABLE SPEED, INFINITELY VARIABLE ....... UP TO 82' FPM
MAX. LONGITUDINAL TABLE MOVEMENT,
  MANUAL ............................... 30"
AUTO CROSS FEED INCREMENT .............. 0.002" TO .80"
AUTO CONINOUS CROSSFEED ................ 4' TO 40' FPM

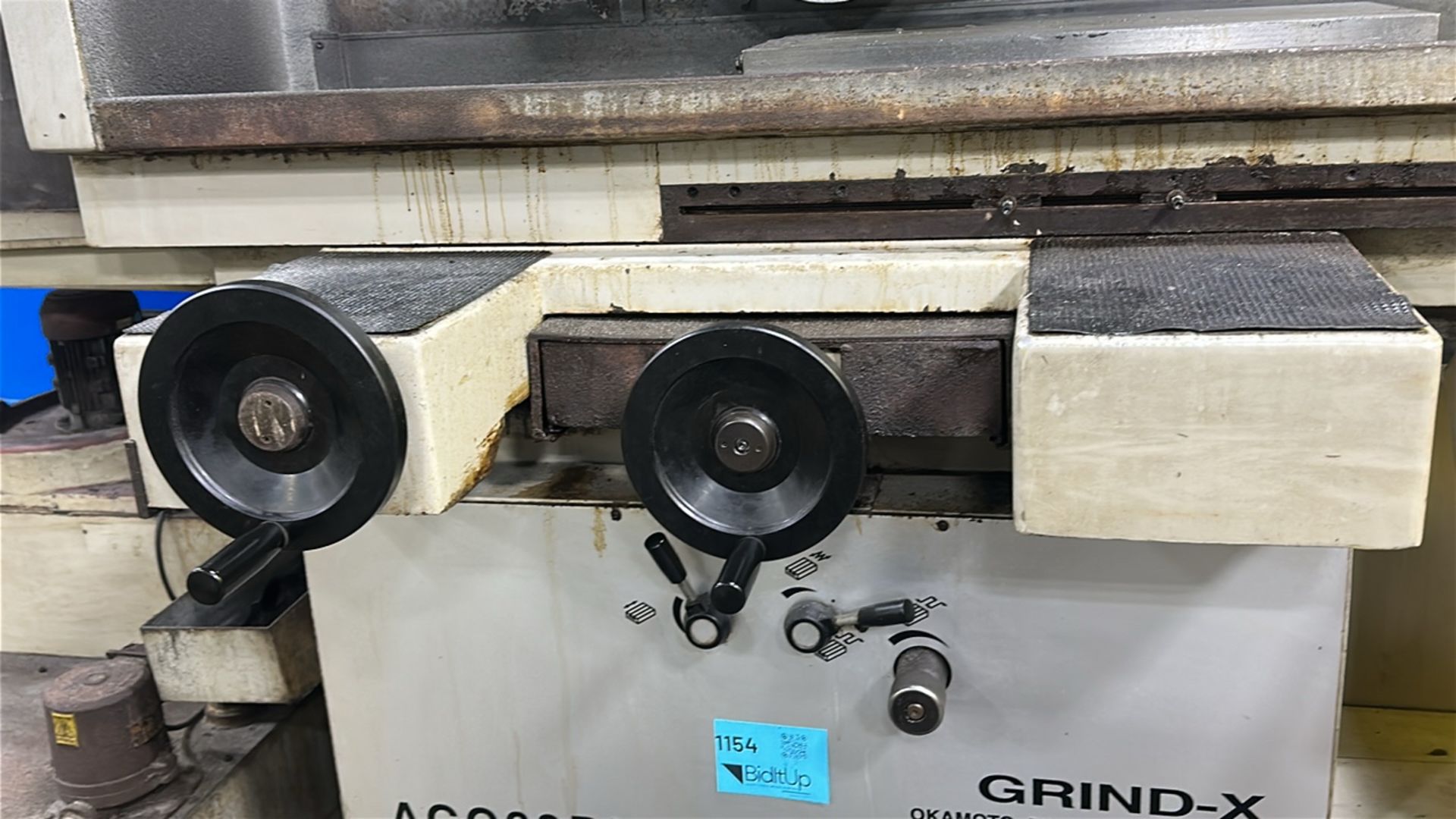

CROSSFEED, MANUAL,
  HAND FEED PER REV. ................... 0.25"
  GRAD. OF HANDWHEEL ................... 0.001"
OPTIONAL CROSS FEED KNOB,
  GRADUATED TO ......................... 0.0001"
MAX. CROSSFEED, MANUAL ................. 14"
AUTO INCREMENTAL DOWNFEED INCREMENTS ... 0.00005" TO 0.0015"
POWER RAPID WHEEL POSITIONING RATE ..... 16" IPM
SPINDLE MOTOR .......................... 5 H.P.
WHEEL SIZE ............................. 12" x 1.5" x 5"
APPPROX. DIMS. FOR OPERATION ......... 107" x 76"D x 70"H
APPROX. MACHINE WEIGHT ................. 5,500 LBS.

MACHINE FEATURES:
"DX" PROGRAMMABLE ELECTRONIC AUTO INCREMENTAL DOWNFEED:
-SERVO DRIVEN DOWNFEED
-AUTO INCREMENTAL DOWNFEED FOR BOTH
   SURFACE & PLUNGE OPERATIONS
-DUAL RATE AUTO DOWNFEED WITH COARSE
   & FINE SELECTIONS
-DIGITAL DISPLAY FOR BOTH CROSS & VERTICAL AXES
-SPARKOUT PASSES (0 TO 5) W/AUTO TABLE PARK
    AT COMPLETION OF GRIND CYCLE
-ELECTRONIC HANDWHEEL FOR MANUAL VERTICAL MOVEMENT
    WITH EACH GRAD. EQUIVALENT TO 0.00001",
    0.0001" OR 0.001"
-POWER RAPID WHEEL POSITIONING
-AUTO TABLE PARK @ CYCLE COMPLETION

-HYDRAULIC TABLE TRAVERSE
-AUTOMATIC CROSSFEED
-SELF-CONTAINED HYDRAULIC SYSTEM
-5 H.P. SPINDLE MOTOR/3/60/230-460 VOLTS


EQUIPPED WITH:
HANDWHEELS ARE IN METRIC DENOMINATIONS

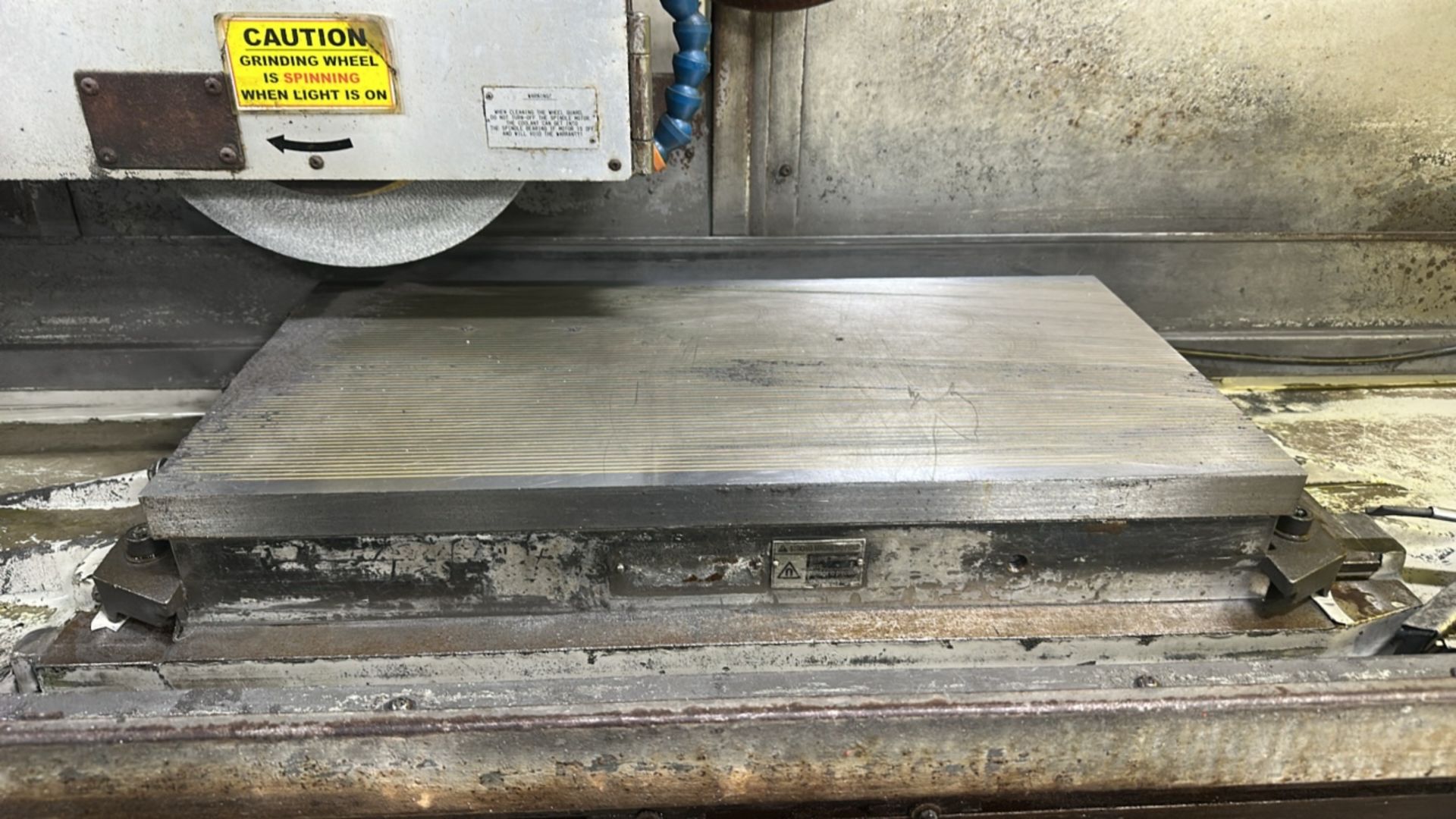

12" X 24" "KANETC" "LBP" FINE-DIVISION
  ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL & DEMAGNETIZER

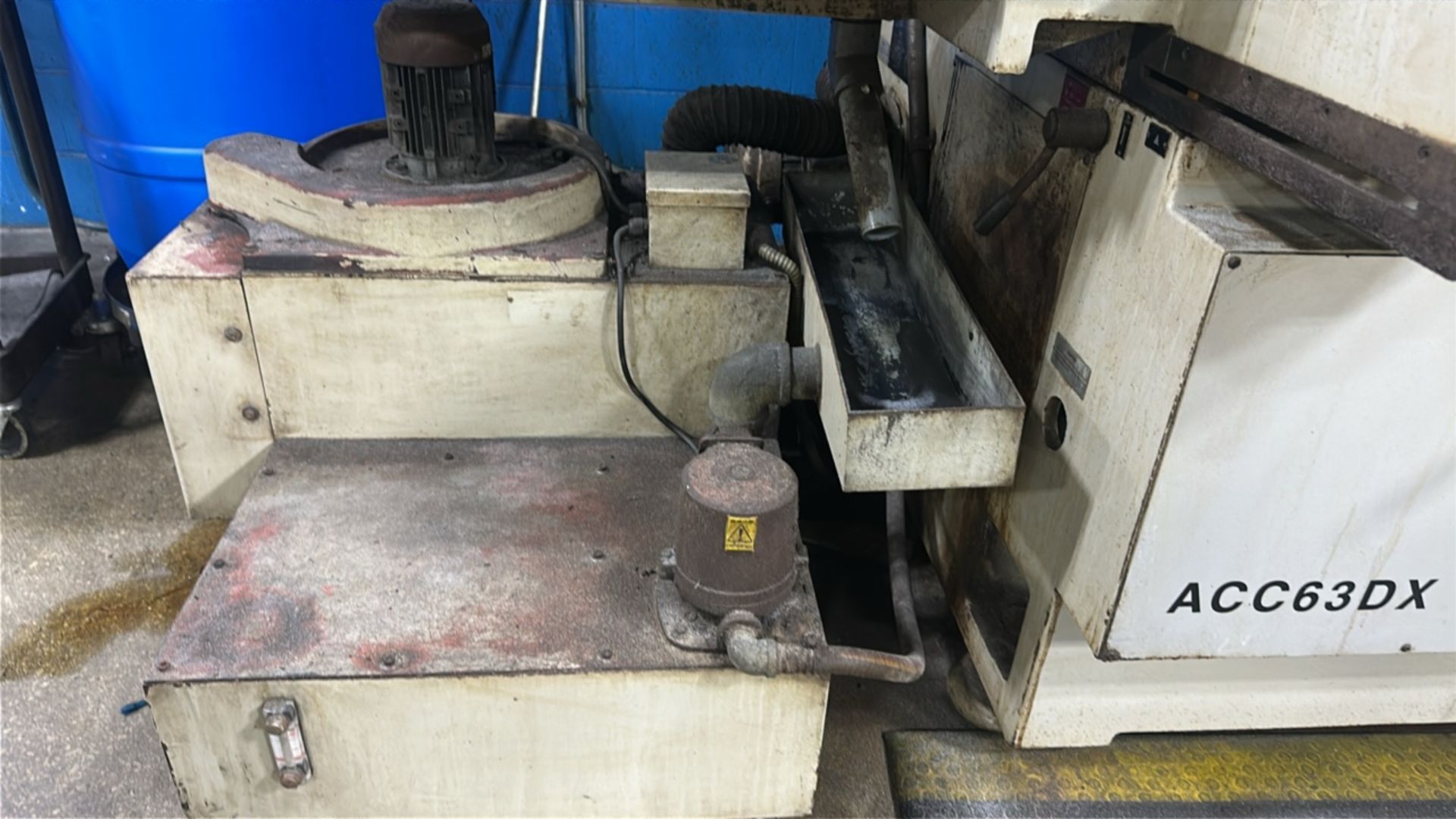

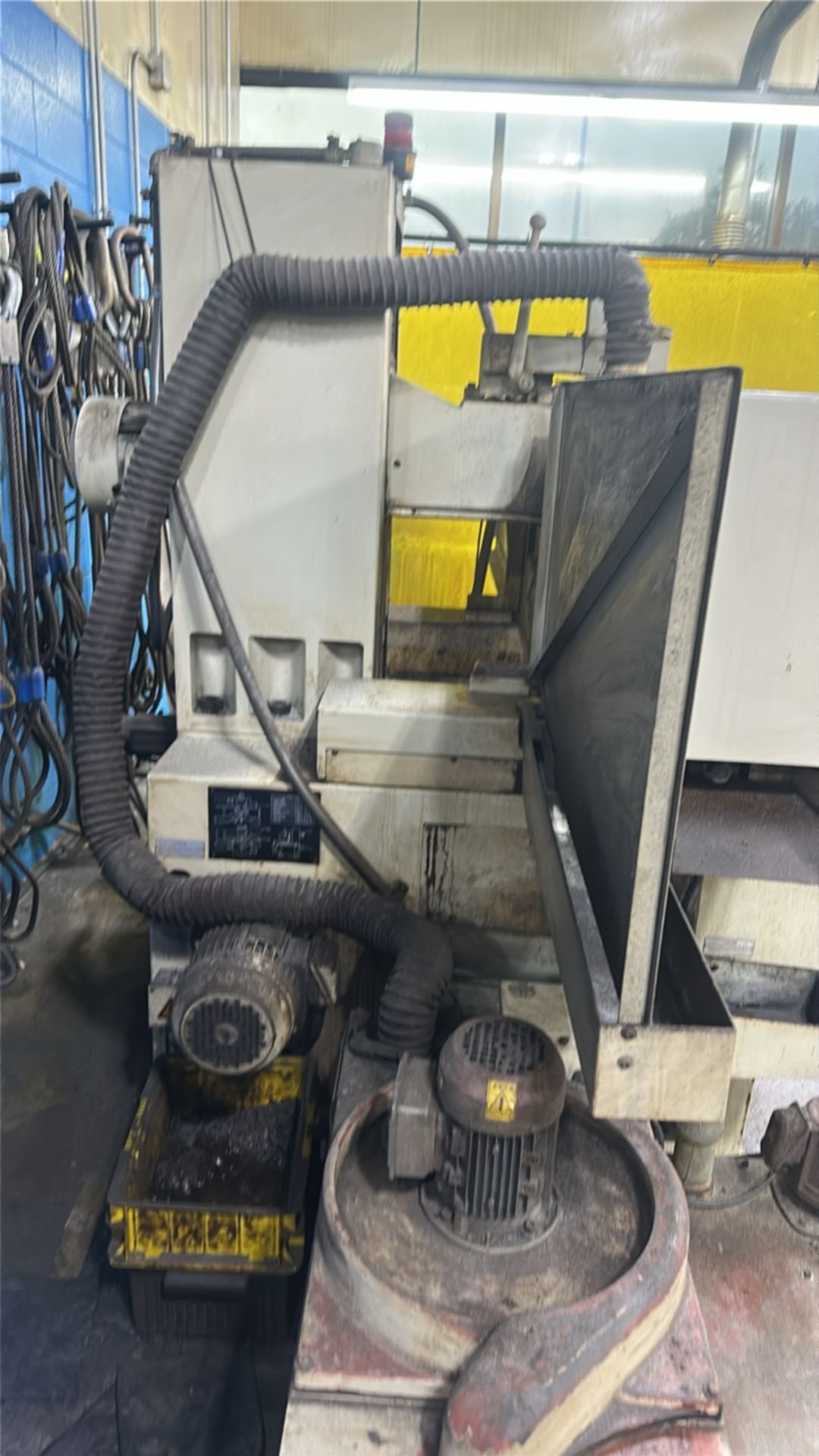

COMBINATION COOLANT SYSTEM & DUST COLLECTOR

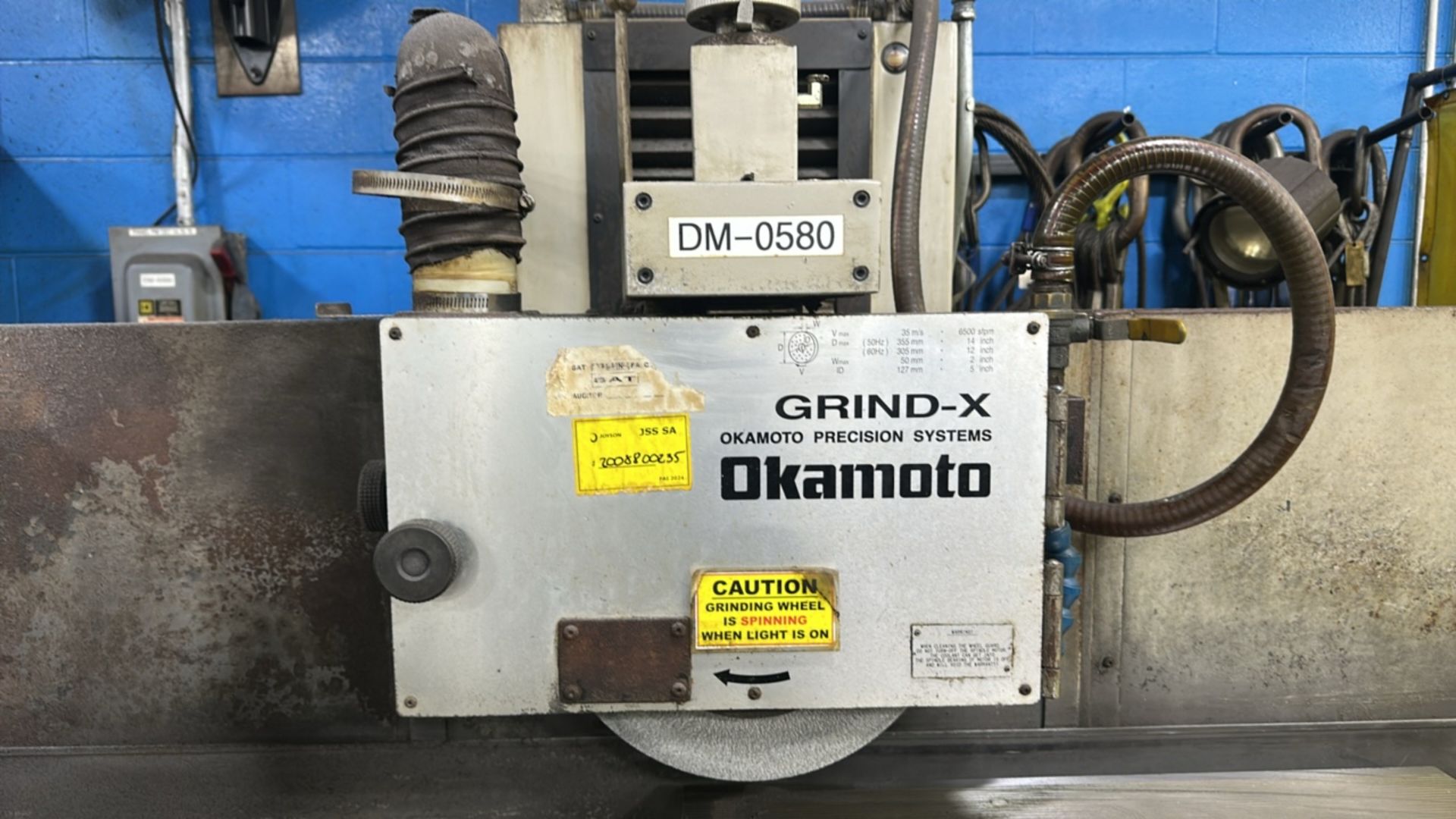

OVER-THE-WHEEL DRESSER
MACHINE IS WIRED PRESENTLY FOR 3/60/460 VOLTS


** 2015 MACHINE!  VERY LATE MODEL - RUNS VERY WELL **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
