Okamoto ACC-8-20DX, 2011, PROG. AUTO IDF, 3X AUTO FEEDS SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Okamoto

Model:: ACC-8-20DX, 2011, PROG. AUTO IDF, 3X AUTO FEEDS

Year:: 2011

Ref #:: 179005

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

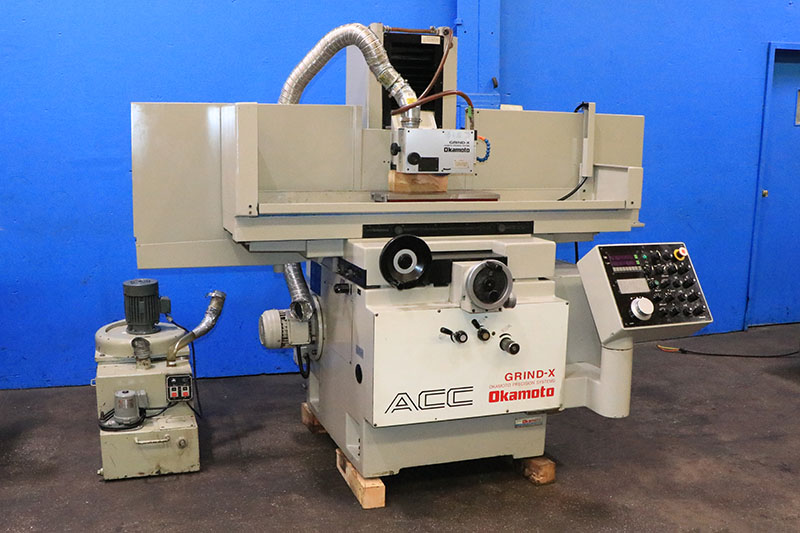

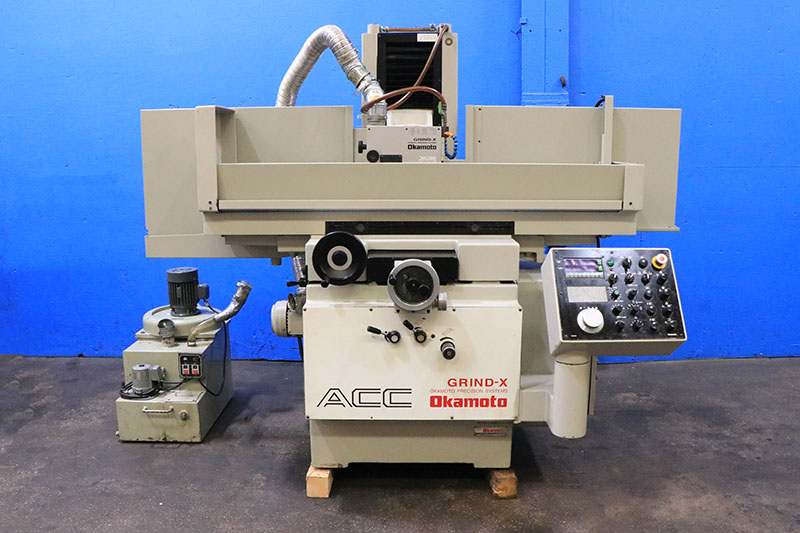

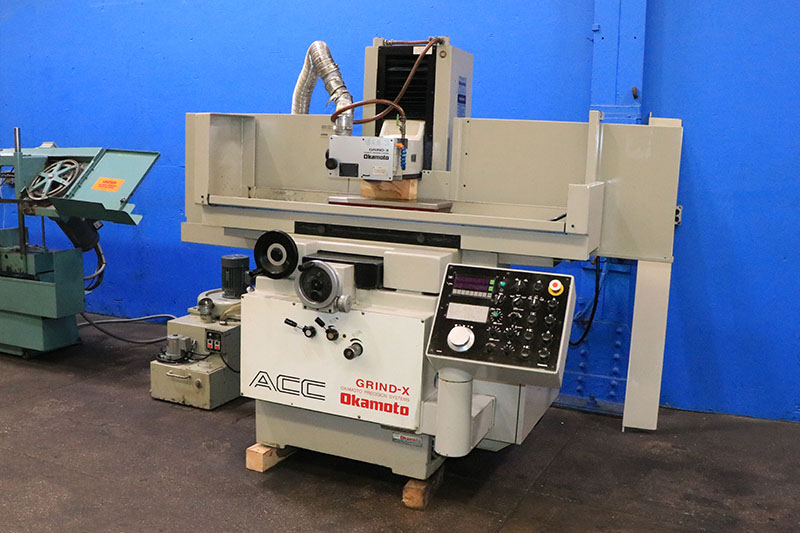

    8" X 20" OKAMOTO "HIGH-PRECISION"
   SURFACE GRINDER, 3-AXIS AUTO FEEDS,
WITH PROGRAMMABLE AUTO INCREMENTAL DOWNFEED

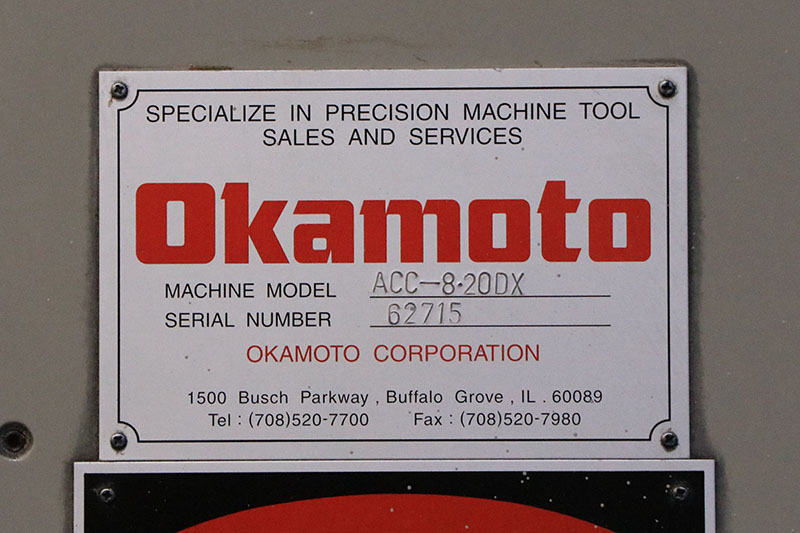

MODEL: ACC-820DX     S/N: 62715     NEW: 2011

SPECIFICATIONS:
NOMINAL GRINDING CAPACITY ........... 8" x 20"
MAXIMUM HEIGHT UNDER 8" WHEEL ....... 15.6"
TABLE SPEED, INFINITELY VARIABLE .... UP TO 82' FPM
MAX. LONGITUDINAL TABLE MOVEMENT,
  MANUAL ............................ 24"
AUTO CROSS FEED INCREMENT ........... 0.002" TO 0.40"
AUTO CONINOUS CROSSFEED ............. 4' TO 40' FPM

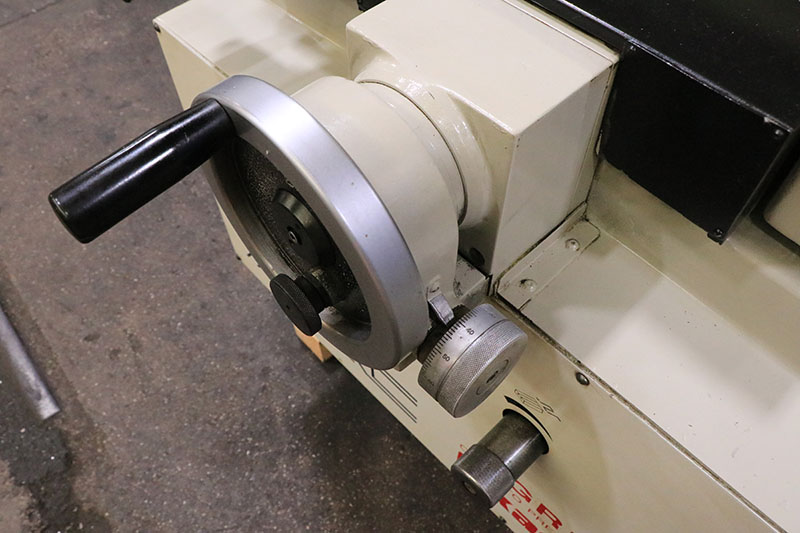

CROSSFEED, MANUAL,
  HAND FEED PER REV. ................ 0.25"
  GRAD. OF HANDWHEEL ................ 0.0004"
  OPTIONAL FINE FEED ................ 0.0001" GRAD.
MAX. CROSSFEED, MANUAL .............. 9"
AUTO INCREMENTAL,
  DOWNFEED INCREMENTS ............... 0.00005" TO .0015"
POWER RAPID WHEEL POSITIONING RATE .. 16" IPM
SPINDLE MOTOR ....................... 2 H.P.
WHEEL SIZE ...................... 8"DIA. x 1"W x 1.25"B

APPROX. MACHINE WEIGHT .............. 3,810 LBS.

MACHINE FEATURES:
PROGRAMMABLE ELECTRONIC AUTO INCREMENTAL DOWNFEED:
-SERVO DRIVEN DOWNFEED
-AUTO INCREMENTAL DOWNFEED FOR BOTH SURFACE
  & PLUNGE OPERATIONS
-DUAL RATE AUTO DOWNFEED W/COARSE & FINE SELECTIONS
-DIGITAL DISPLAY FOR BOTH THE CROSS & VERTICAL
  AXES ON CONTROL CONSOLE
-SPARKOUT PASSES (0 TO 5) W/AUTO TABLE PARK AT
  COMPLETION OF GRIND CYCLE
-ELECTRONIC HANDWHEEL FOR MANUAL VERTICAL MOVEMENT
  W/EACH GRAD. EQUIVALENT TO .00001", .0001" OR .001"
-POWER RAPID WHEEL POSITIONING

HYDRAULIC TABLE TRAVERSE & AUTOMATIC CROSSFEED

EQUIPPED WITH:

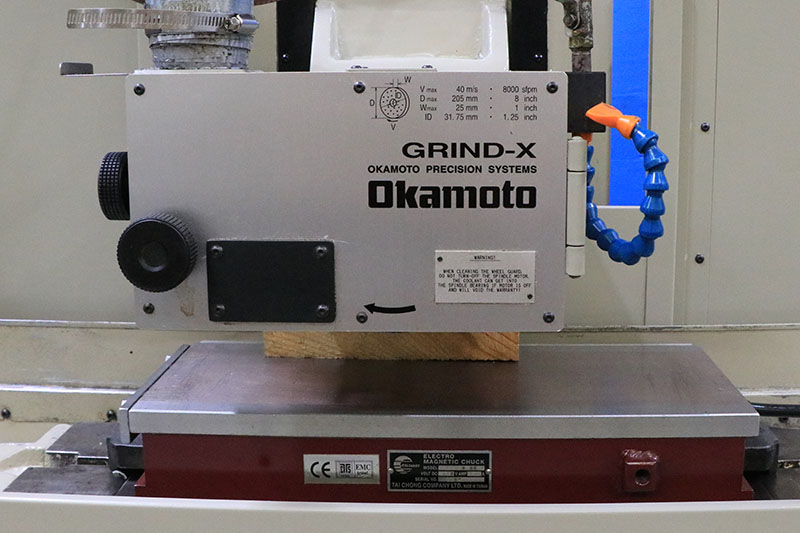

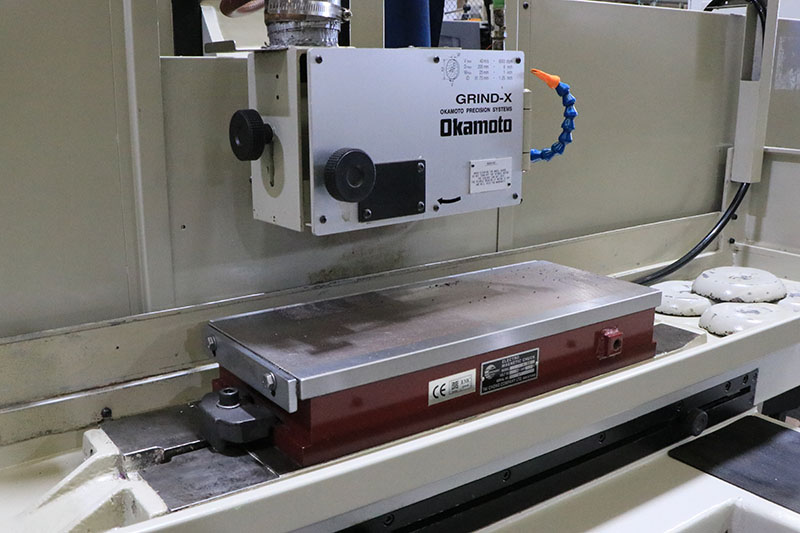

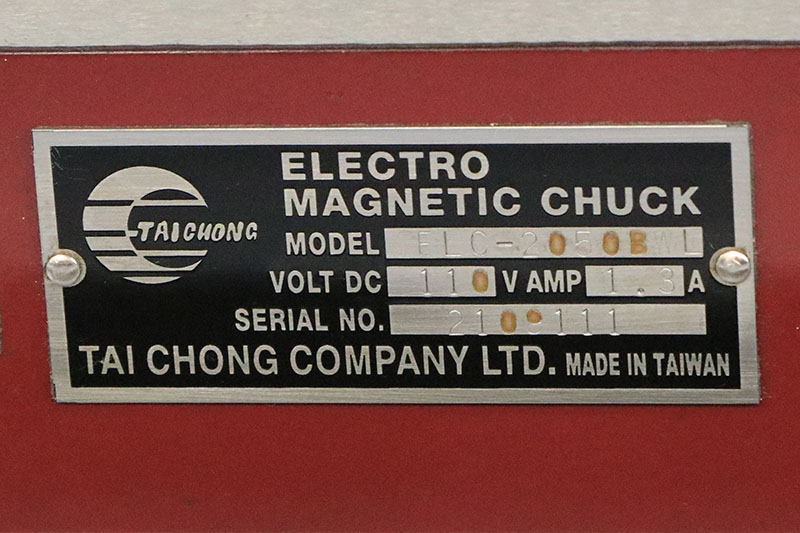

8" x 20" FINE-DIVISION "LBP" ELECTRO-MAGNETIC CHUCK,
  INSTALLED NEW IN 2022, PURCHASED FROM ACER GRINDERS
VARIABLE HOLD NEUTROFIER ON MACHINE CONSOLE CONTROL

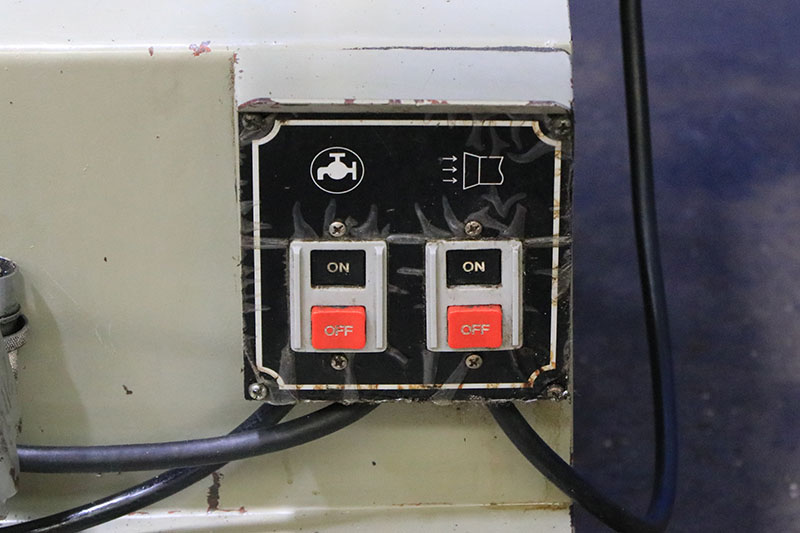

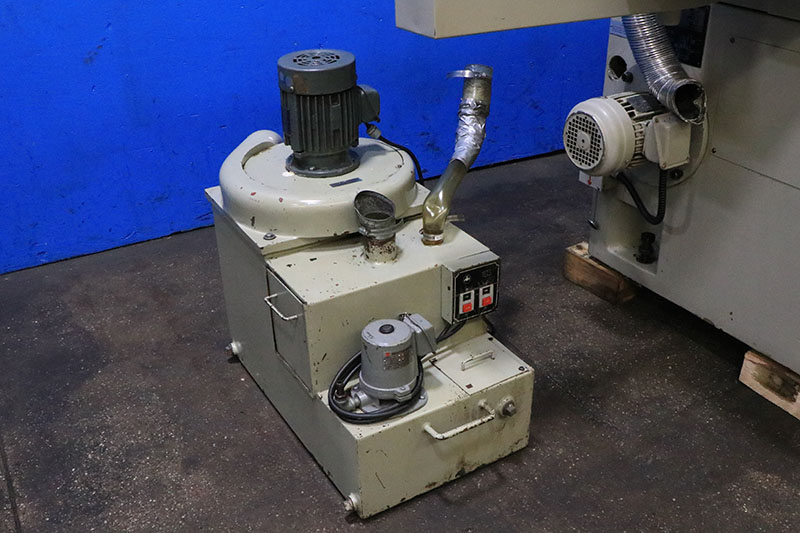

COMBO COOLANT SYSTEM & DUST COLLECTOR
OPTIONAL FINE FEED KNOB FOR CROSS FEED, 0.0001" GRAD.

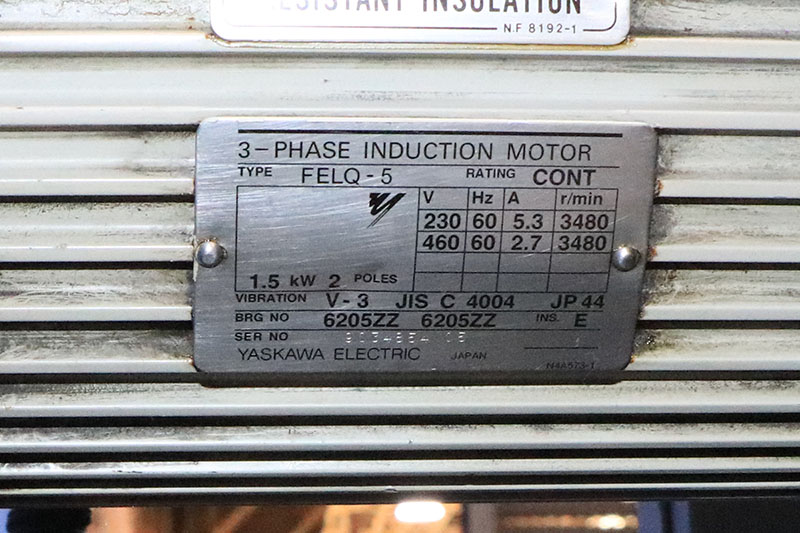

2 H.P./230-460 VOLT SPINDLE MOTOR

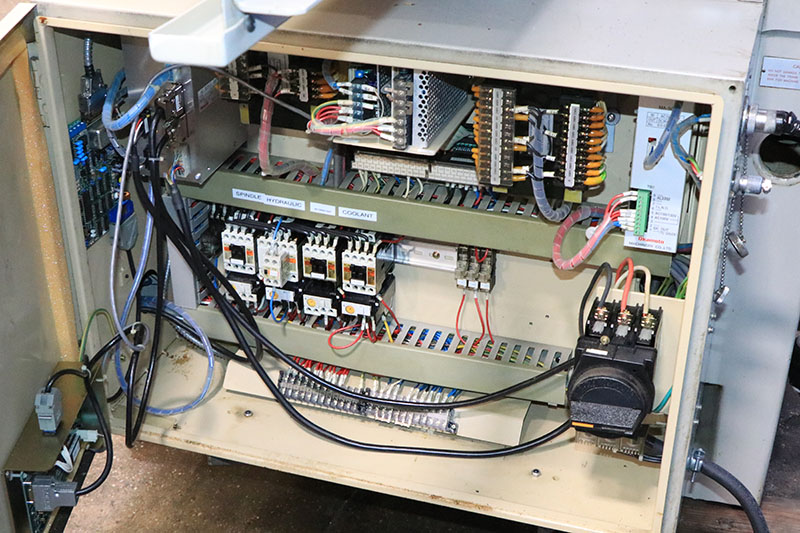

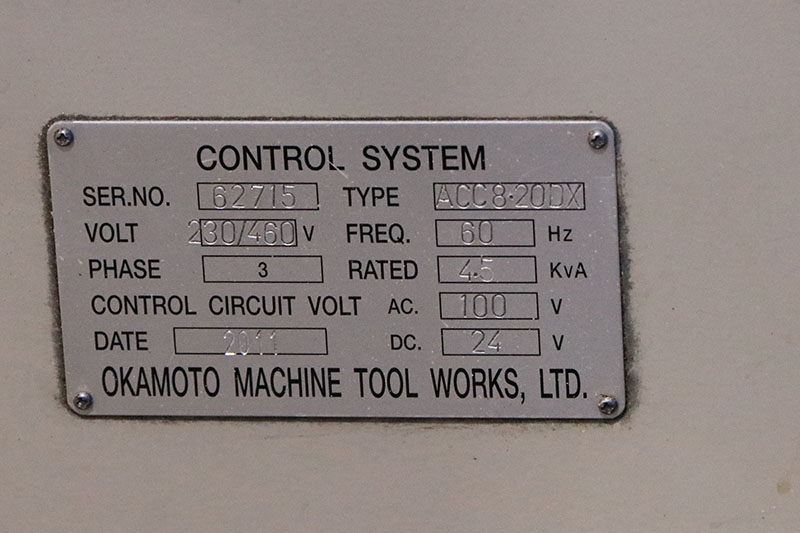

MOTORS ON THE MACHINE ARE 3/60/230-460 VOLTS
MACHINE IS PRESENTLY WIRED FOR 3/60/480 VOLTS

 LINK TO VIDEO: https://youtu.be/RPqR6zmA_to?si=2kbhe2-omkTMj9SG

** EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
