Pressmaster HFP-350 Standard HYDRAULIC H-FRAME PRESSES

$94,950

Make:: Pressmaster

Model:: HFP-350 Standard

Year:: NEW

Ref #:: 179250

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

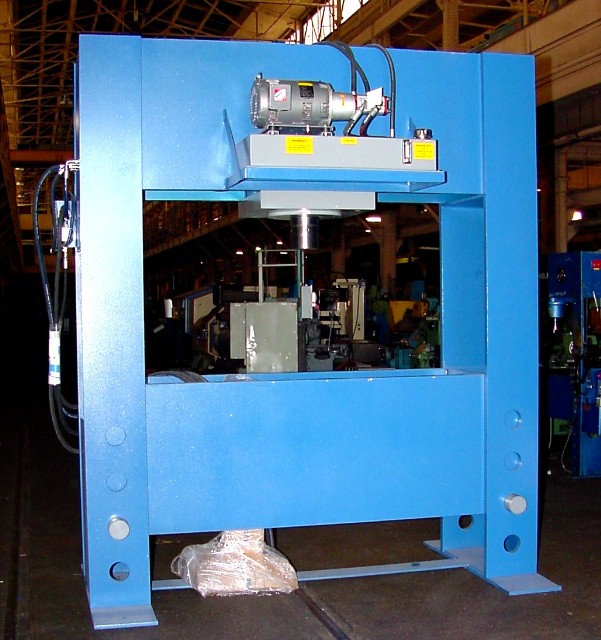

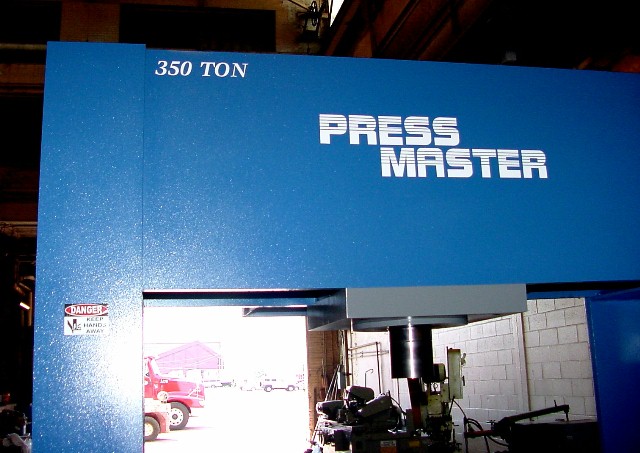

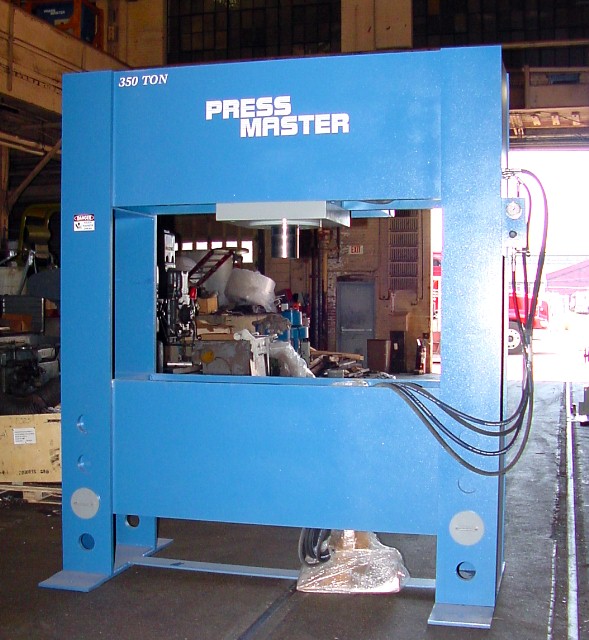

350 TON PRESSMASTER HYD. H-FRAME PRESS
MODEL HFP-350          NEW / MADE TO ORDER

RATED CAPACITY, TONNAGE ...................... 350
STROKE ....................................... 20"
BORE ......................................... 14"
RAM SPEED (Inches/Minute) ADVANCE ............ 18
RAM SPEED (Inches/Minute) RETURN ............. 22
RAM SPEED (Inches/Minute) PRESSING ........... 4
DAYLIGHT ..................................... 29"
DISTANCE BETWEEN POSTS (RIGHT TO LEFT)........ 60"
DISTANCE BETWEEN POSTS (FRONT TO BACK)........ 21"

OVERALL HEIGHT ........................... 94"
OVERALL WIDTH ............................ 84"
OVERALL DEPTH ............................ 46"
WEIGHT ................................ 14,100 LBS.

NOT A CHEAP IMPORT -
MANUFACTURED IN CANADA WITH QUALITY US & CANADIAN COMPONENTS

MOVEABLE WORKHEAD.
- VARIABLE RAM SPEED - FINGER TIP CONTROLLED THE MORE THE HAND LEVER IS
 ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED. THIS ALLOWS THE
 OPERATOR TO CONTROL THE PROPER SPEED FOR THE TASK.

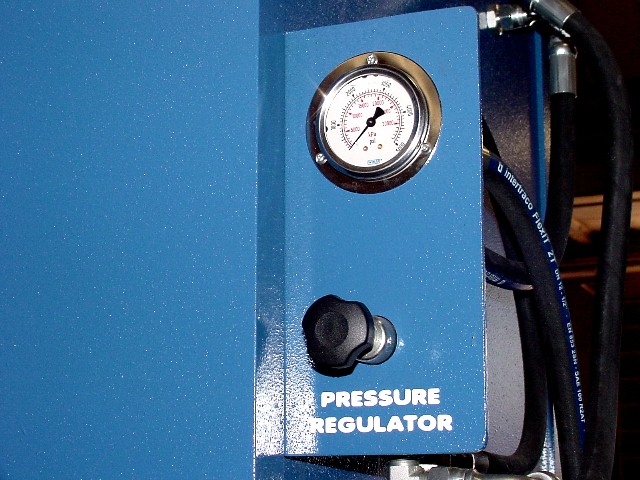

- PRESSURE REGULATOR - TO LIMIT RAM PRESSURE
- ELECTRIC/HYDRAULIC OPERATION FOR SMOOTH CONSISTENT PRESSING ACTION.
- OPEN SIDES TO FACILITATE WORK ON LONG PIECES
- FLAT RAM NOSE TO ALLOW USER TO ADAPT THE PRESS TO A SPECIFIC JOB.
- QUALITY LOW SPEED BALDOR 15 HP - 3 PHASE MOTOR
- LOW SPEED PUMP FOR QUIET DEPENDABLE OPERATION.
- SELF LOCKING TABLE DESIGN ELIMINATES LATERAL MOVEMENT.
- HIGH CAPACITY 20 GALLON OIL RESERVOIR.
- LOW PRESSURE SYSTEM - MAINTAINS LOWER OIL TEMPERATURES, RESULTING IN
 HIGHER EFFICIENCY AND SAFER OPERATION.
- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY AND
 AVAILABLE THROUGHOUT NORTH AMERICA.
- FULL ONE YEAR WARRANTY ON ALL PARTS.
- STANDARD VOLTAGES AVAILABLE - PLEASE SPECIFY WHEN ORDERING.

AVAILABLE OPTIONS:
- SET OF V-BLOCKS ............................ $2,200
- STOP / START & EMERGENCY STOP .............. $1,000
- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000
- SIDE SAFETY GUARD ..............(PER SIDE).. $  750
- FOOT PEDAL ................................. $4,500
- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $6,500
- PRESS PLATE ................................ $5,700
- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND
LEXAN GUARDING ............................... $9,500
- HANDHELD REMOTE CONTROL .................... $9,500
- MOVEABLE WORKHEAD (LEFT TO RIGHT) .......... $5,000
