Southwest Ind. TRAK 1440 CNC LATHES, FLAT BED (ENGINE LATHE STYLE)

$10,500

Make:
Southwest Ind.
Model:
TRAK 1440
Year:
201
Ref #:
165473

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

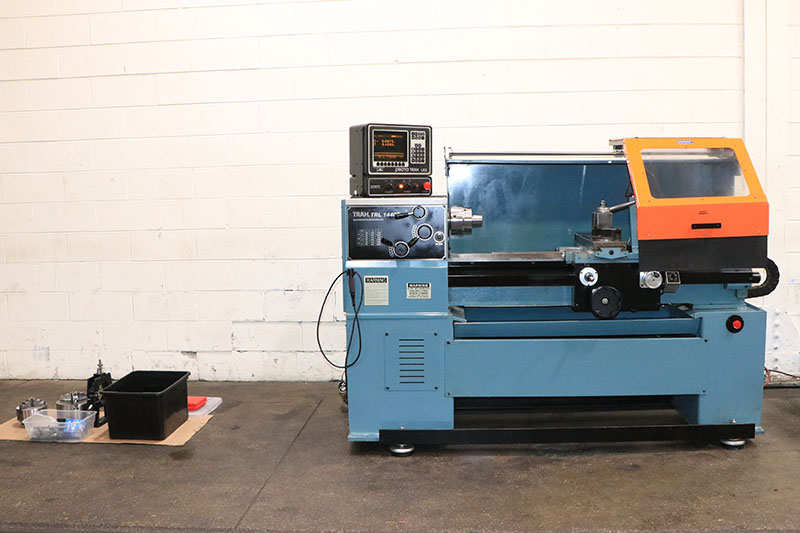

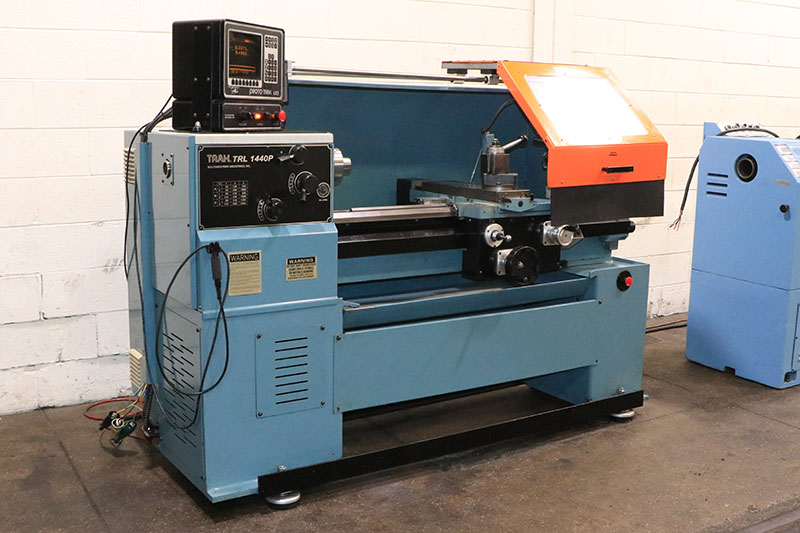

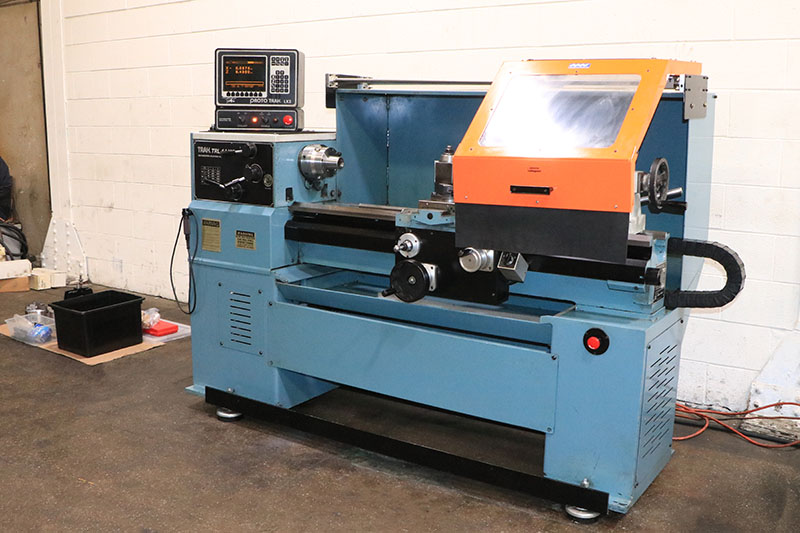

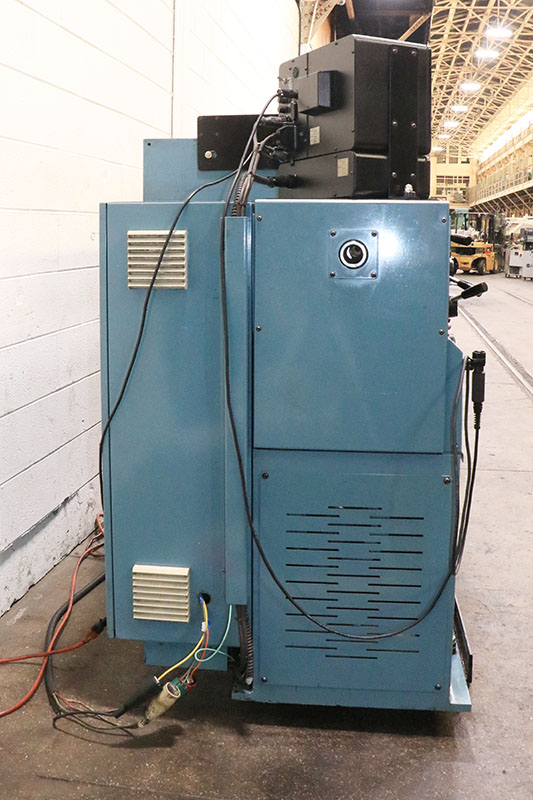

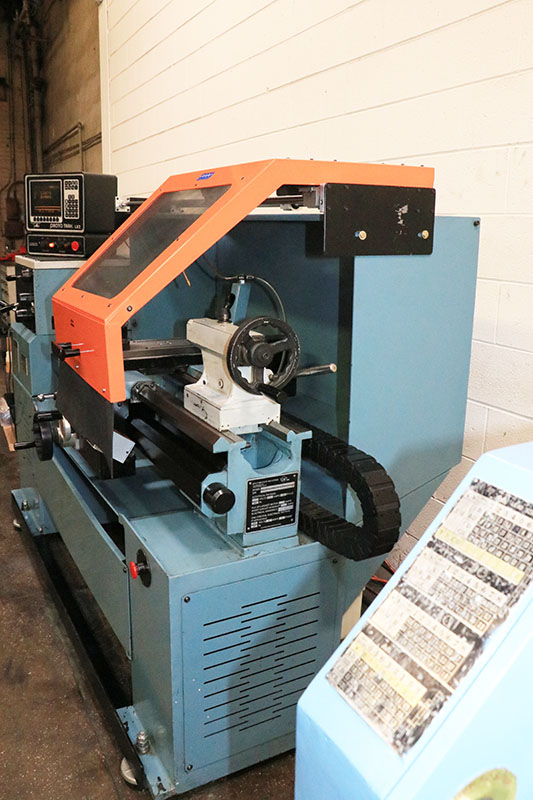

14" x 40" TRAK CNC & MANUAL TOOLROOM LATHE

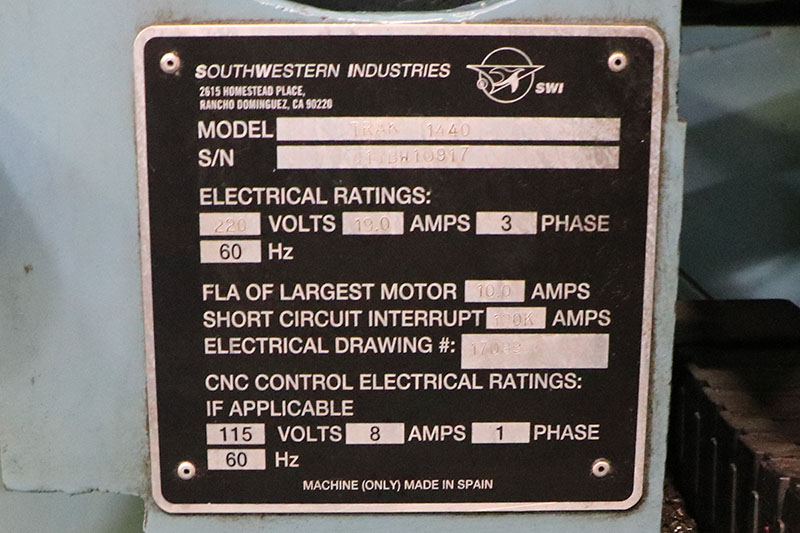

MODEL: TRL-1440,  S/N: 011BW10917,  YEAR: 2001

SPECIFICATIONS:
SWING OVER BED WAYS.................... 14"
SWING OVER SADDLE WINGS................ 13-3/16"
SWING OVER CROSS SLIDE................. 7-13/16"
DISTANCE BETWEEN CENTERS............... 40"
CROSS SLIDE TRAVEL..................... 8"
SPINDLE NOSE CAMLOCK................... D1-5"
SPINDLE THROUGH HOLE................... 1-5/8"

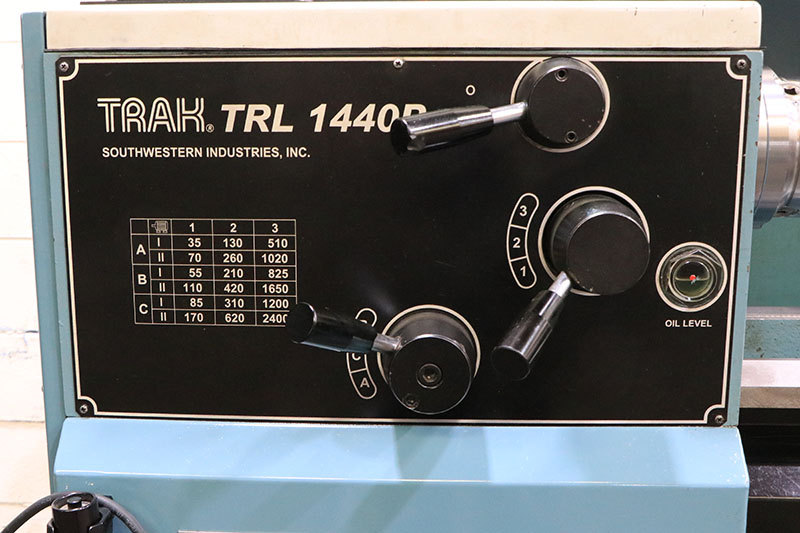

SPINDLE SPEEDS RANGES(18).............. 35 - 2400 RPM
BED WIDTH.............................. 10"

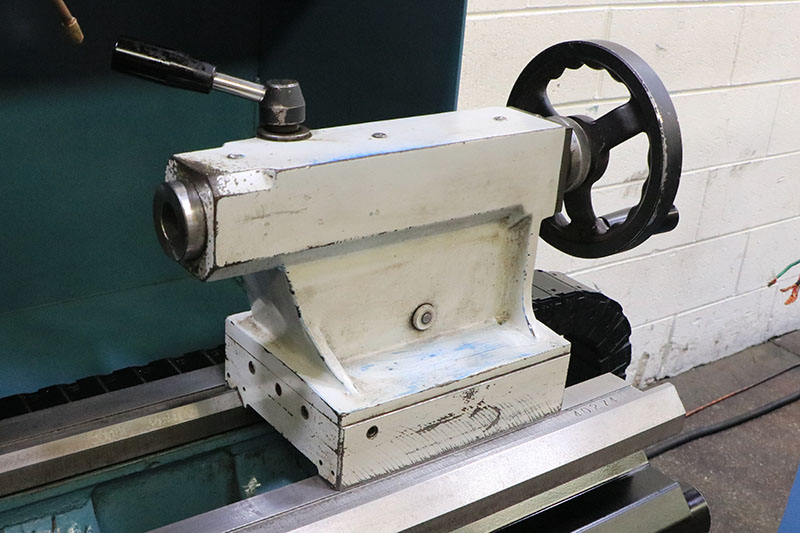

TAILSTOCK SPINDLE TRAVEL............... 5-1/2"
TAILSTOCK SPINDLE DIAMETER............. 1-7/8"
TAILSTOCK SPINDLE TAPER................ #3MT
APPROXIMATE DIMENSIONS................. 78"L x 33"W x 56"H
APPROXIMATE WEIGHT..................... 2,000 LBS.


EQUIPPED WITH:
 - PROTO-TRAK  MODEL: LX2 CONTROL
 - RS-232 PORT & FLOPPY DISK
 - CONVERSATIONAL & GRAPHICS, CANNED CYCLES, GEOMETRY BASED PROGRAMMING,
  - CIRCULAR & LINEAR INTERPOLAATION, THREADING & MUCH MORE.
  - TURNS PARTS MANUALLY OR AUTOMATICALLY
  - PRECISION GROUND BALLSCREWS IN THE SADDLE & CROSS SLIDE

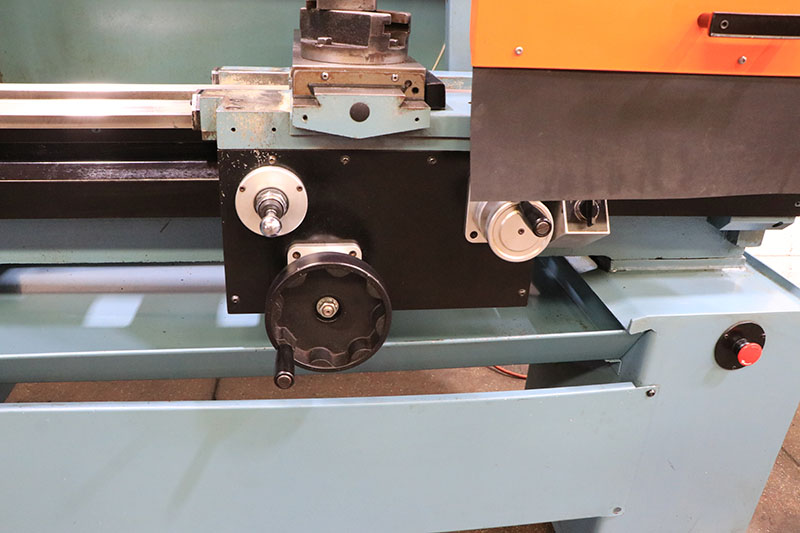

  - ELECTRONIC HANDWHEELS & JOYSTICK

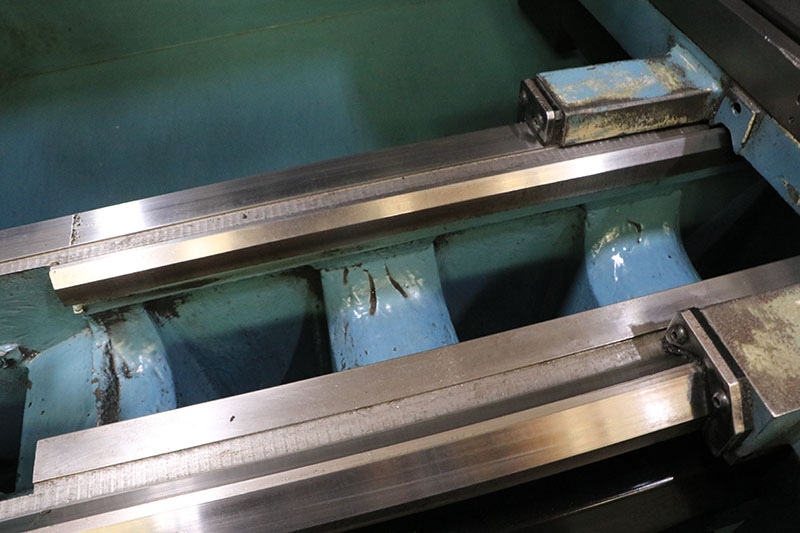

  - HARDENED & GROUND BED

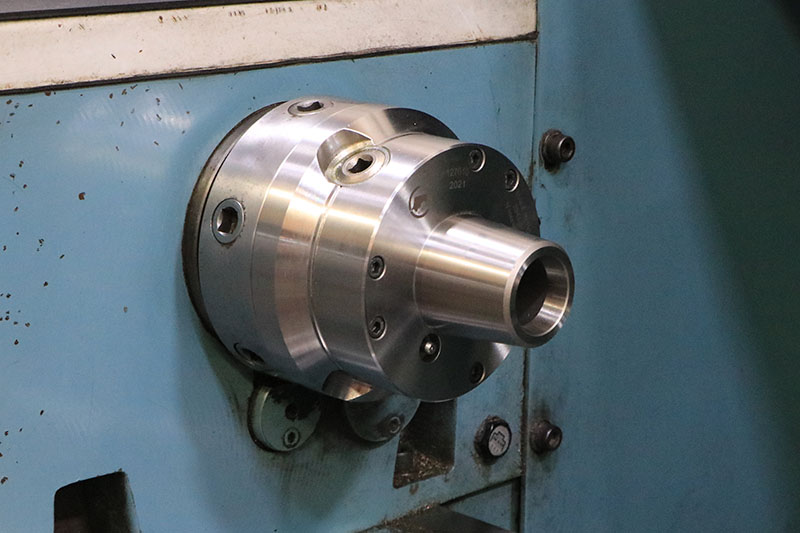

  - 5C-COLLET CLOSER

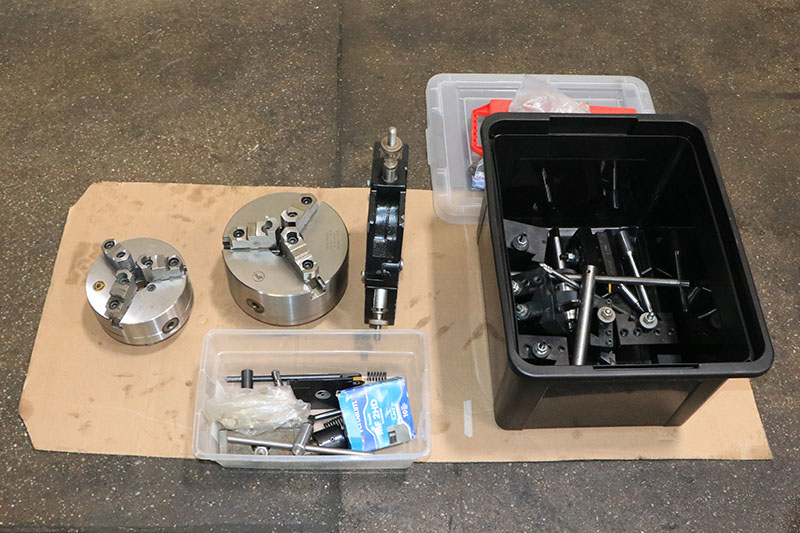

  - 6-1/4" 3-JAW BISON CHUCK
  - 8" 4-JAW BISON CHUCK
  - STEADY REST

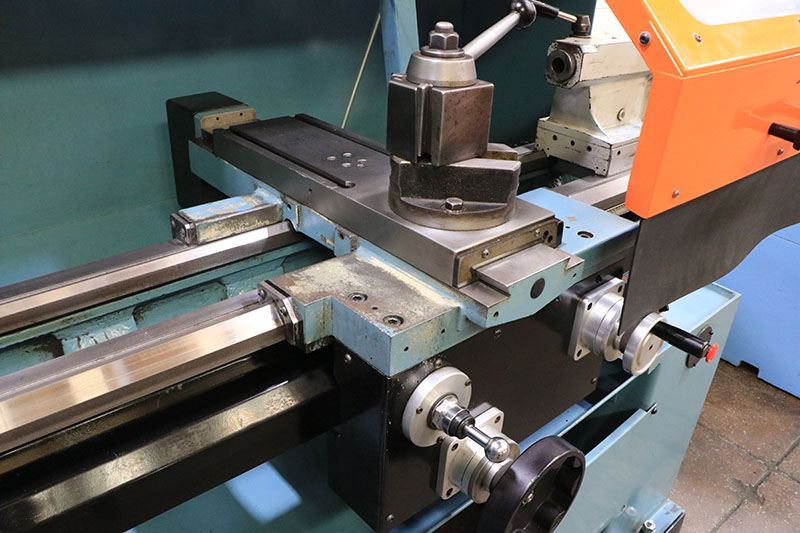

  - DORIAN QUICK CHANGE TOOLPOST & HOLDERS
  - LIVE CENTER FOR TAILSTOCK
  - DRILL CHUCK FOR TAILSTOCK
  - 2.5/4.5 HP SPINDLE DRIVE
  - COOLANT SYSTEM REMOVABLE CHIP PAN
  - SPLASH GUARD

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE


DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
