Southwest Ind. Trak Model 1540V CNC LATHES, FLAT BED (ENGINE LATHE STYLE)

$19,500

Make:
Southwest Ind.
Model:
Trak Model 1540V
Year:
2004
Ref #:
164290

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

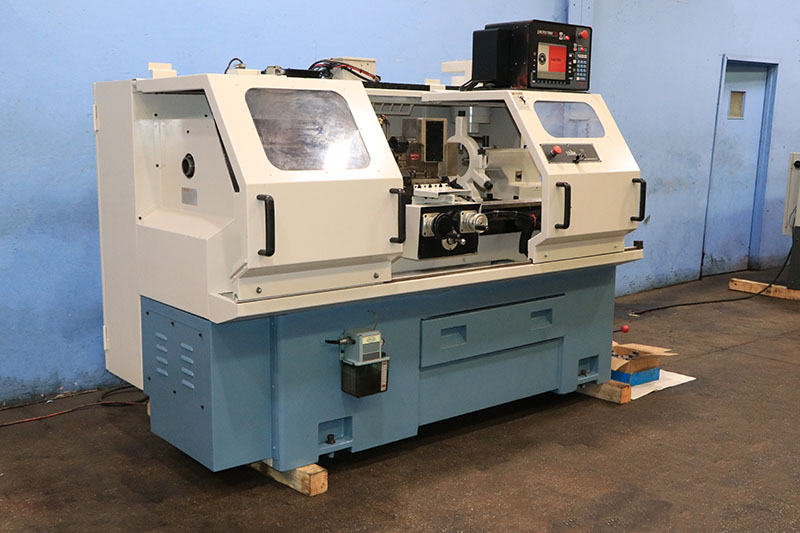

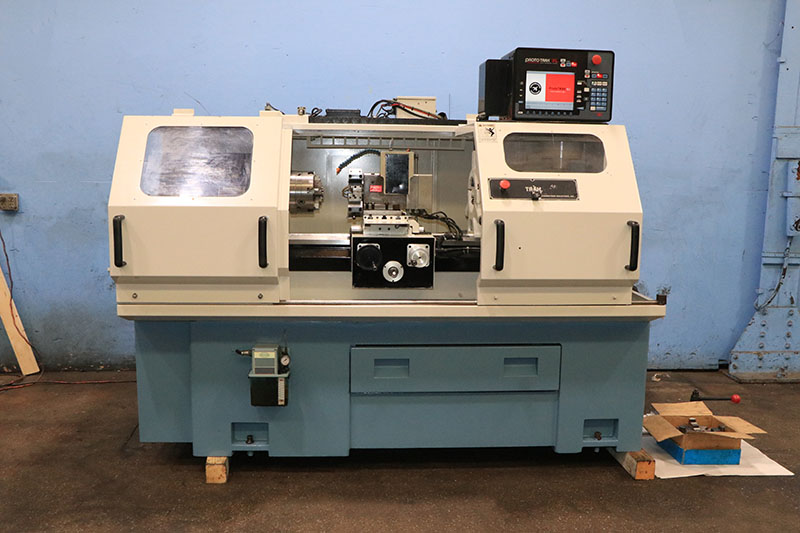

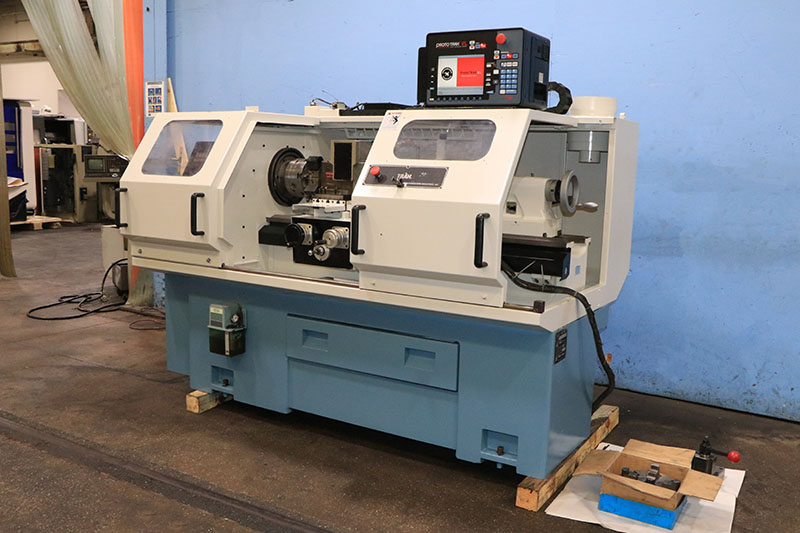

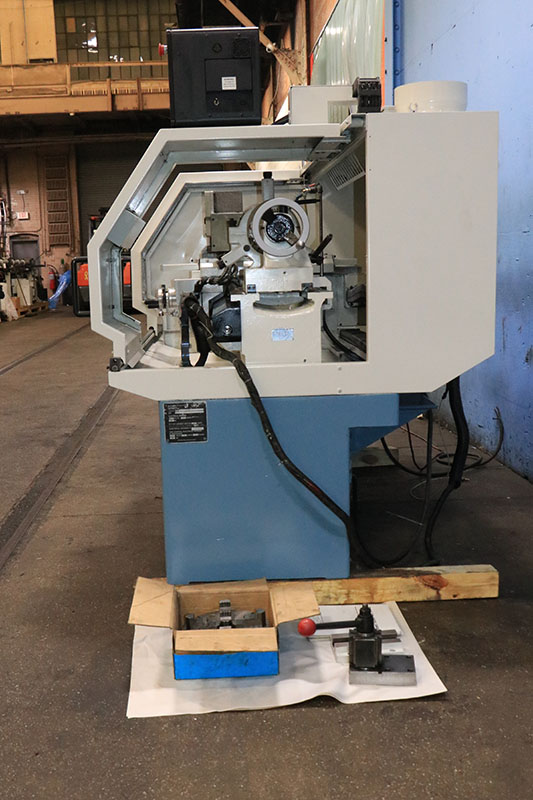

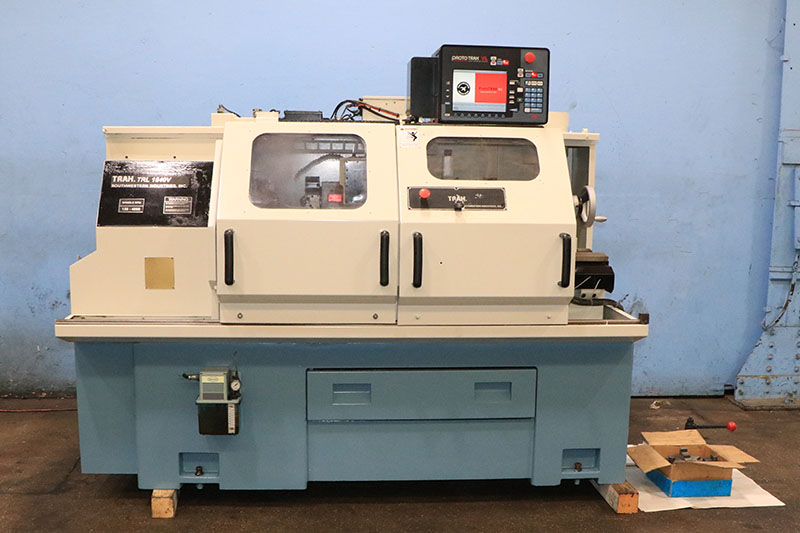

15" X 40" TRAK 2-AXIS CNC/MANUAL FLAT BED LATHE

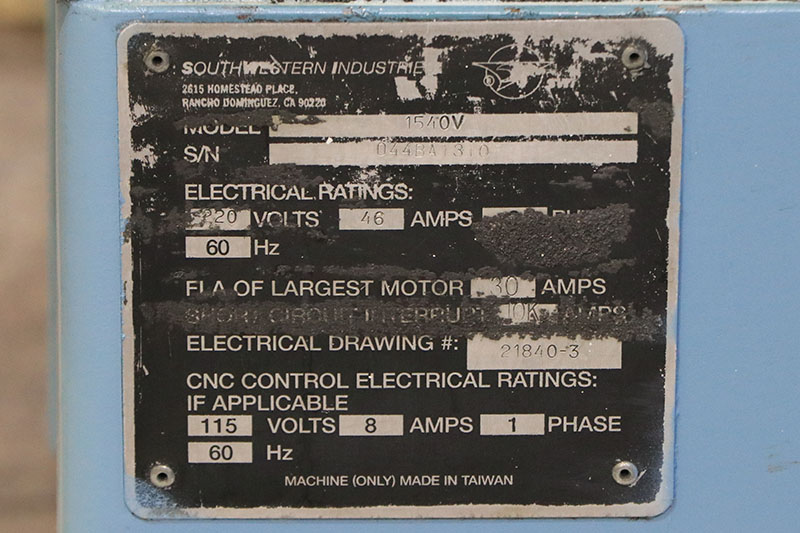

MODEL: TRL 1540 V,  S/N: 044BA1310,  NEW: 2004

SPECIFICATIONS:
HEIGHT OF CENTERS .......................... 8"
SWING OVER BED ............................. 15"
SWING OVER CROSS SLIDE ..................... 6.625"
SWING OVER SADDLE WINGS .................... 15"
MAX DISTANCE BETWEEN CENTERS ............... 40"
WIDTHOF BED ................................ 12.6"
CROSS SLIDE TRAVEL (X) ..................... 11.5"
LONGITUDINAL TRAVEL (Z) .................... 40"
SPINDLE TAPER, CAMLOCK, SIZE ............... A2-5
SPINDLE SPEEDS INFINITELY VARIABLE ......... 150 - 4000 RPM
SPINDLE BORE ............................... 2.125"
TAPER IN HEADSTOCK SPINDLE ................. #6 MT
TAPER IN HEADSTOCK SPINDLE REDUCTION SLEEVE. #4 MT

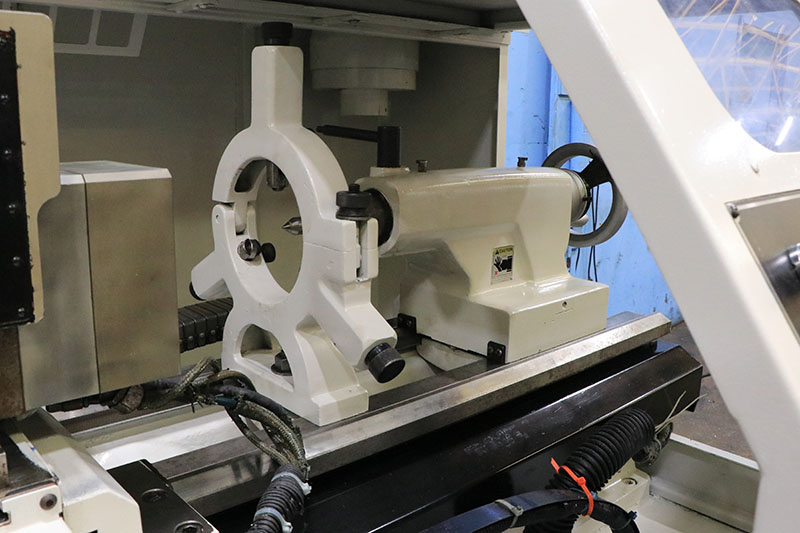

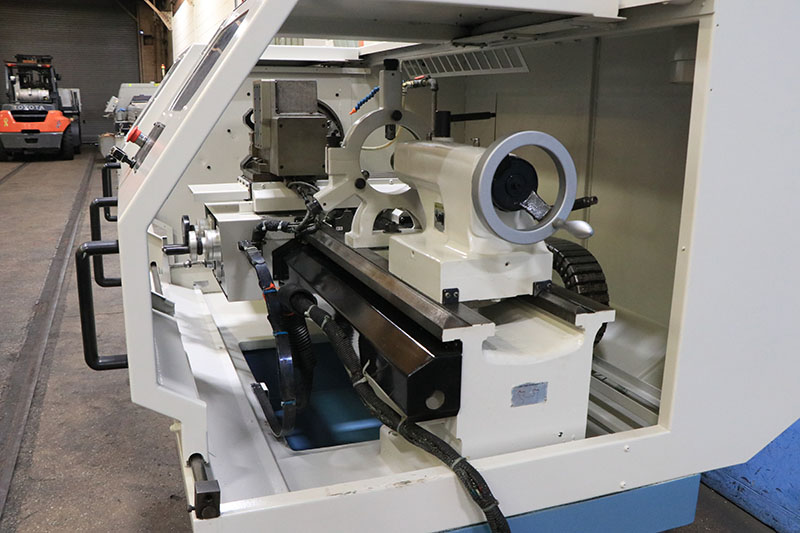

TAILSTOCK QUILL TRAVEL ..................... 5"
TAILSTOCK QUILL DIAMETER ................... 2.36"
TAILSTOCK QUILL TAPER HOLE ................. #4 MT
APPROX WEIGHT .............................. 4,100 LBS
APPROX DIMENSIONS .......................... 89" X 53" X 70"

EQUIPPED WITH:

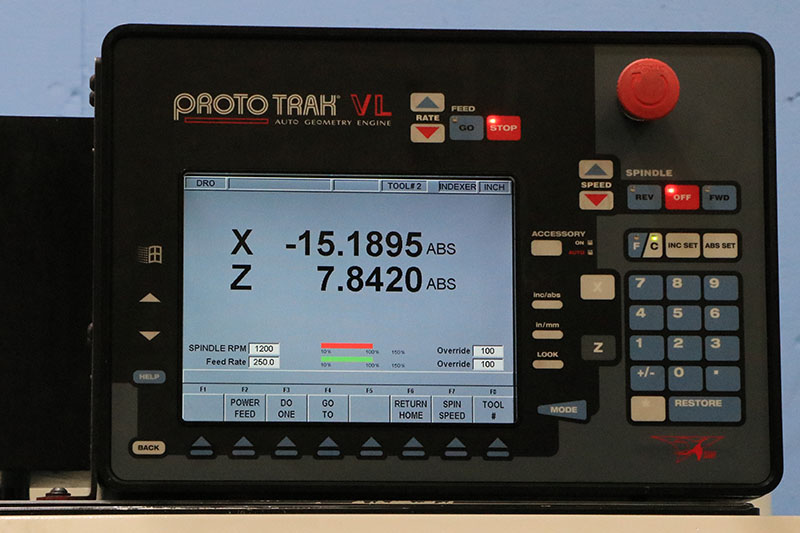

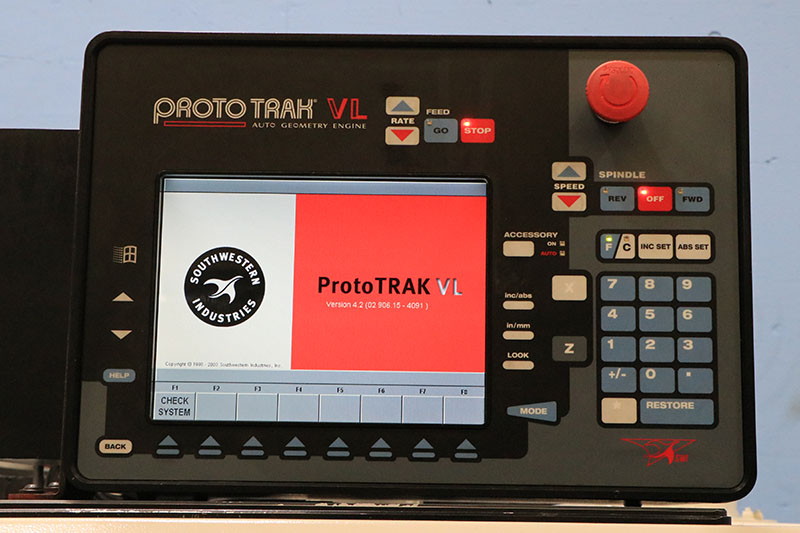

- PROTOTRAK VL CNC CONTROL WITH 10.4" COLOR ACTIVE-MATRIX
LCD, 32 MB OF RAM, RS232, NETWORK (RJ45),TEAC FLOPPY DRIVE,
INTEL PENTIUM PROCESSOR WITH BUILT-IN VIDEO ETHERNET CARDS.
- TWO-AXIS CNC, TWO-AXIS DRO
- 2-AXIS DIGITAL READOUT DURING MANUAL OPERATION
- CONSTANT SURFACE SPEED & PROGRAMMABLE SPINDLE SPEEDS
- AC SERVO MOTORS & GROUND BALLSCREWS
- YASKAWA AC SPINDLE DRIVE
- ELECTRONIC HANDWHEELS FOR X&Z MANUAL TRAVERSE
- JOGSTICK FOR CONVENIENT JOG AT RAPID TRAVELS
- UNLIMITED NUMBER OF THREAD PITCHES & UP TO 10 LEADS
- HARDENED & GROUND BED WAYS

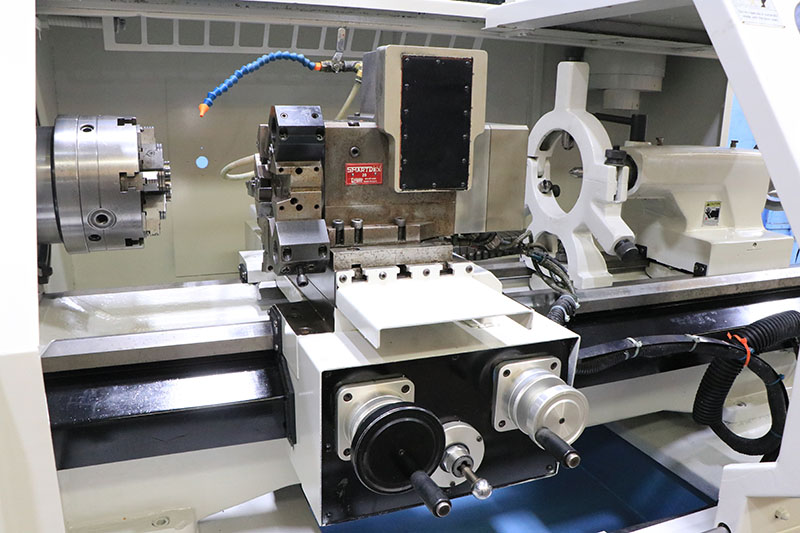

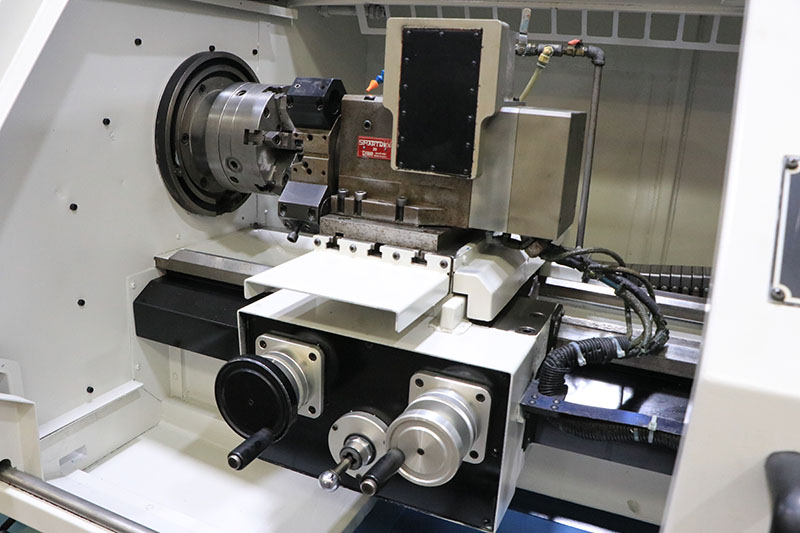

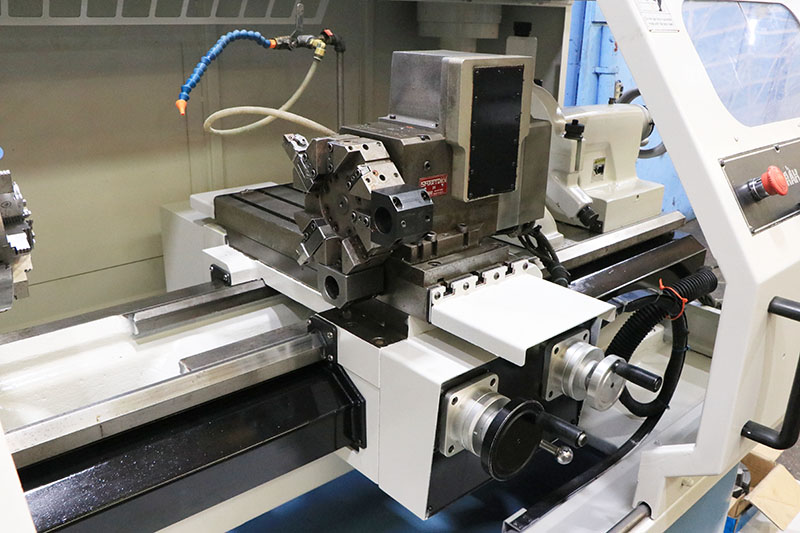

- DORIAN 8-POSITION SMART-DEX CNC PROGRAMMABLE TURRET

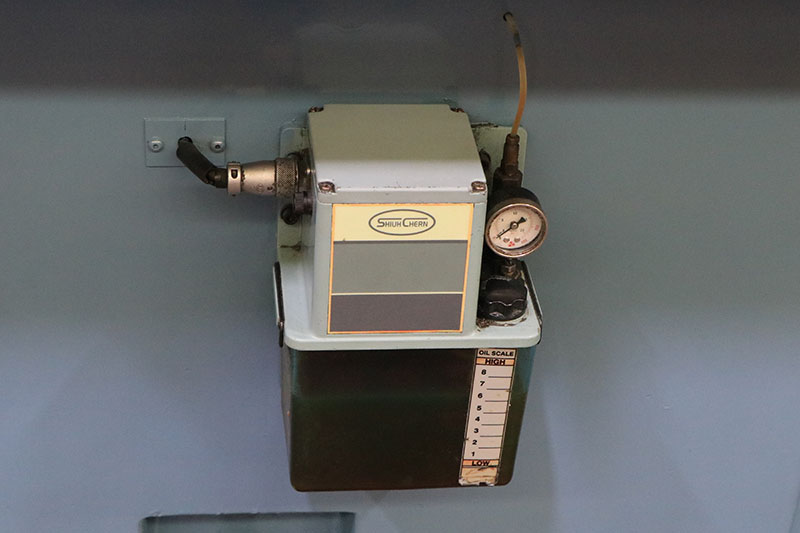

- AUTOMATIC CENTRAL LUBRICATION SYSTEM FOR THE SLIDE WAYS & BALLSCREWS

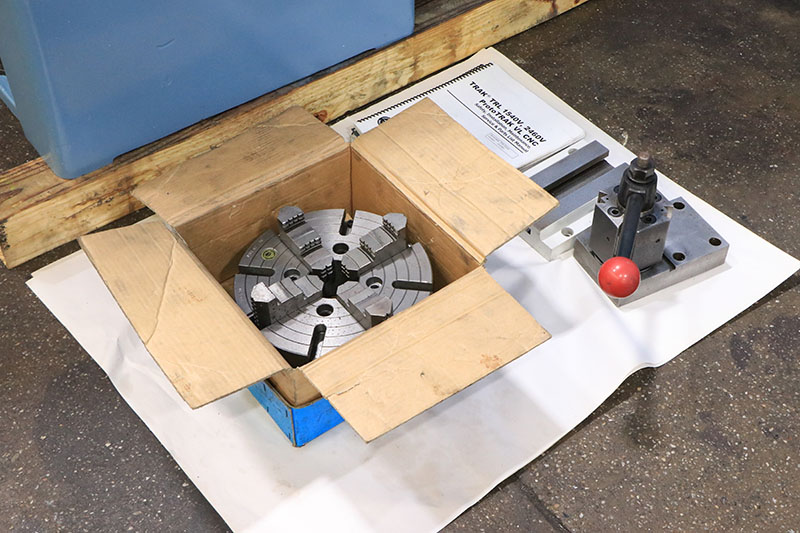

- 8" DIAMETER 6-JAW BISON SET-TRU CHUCK
- 10" DIAMETER 4-JAW BISON CHUCK
- COOLANT PUMP w/ REAR SPLASH GUARD
- 10 HP 3/60/230 VOLT SPINDLE DRIVE MOTOR & ELEC CONTROLS
- MANUALS

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
