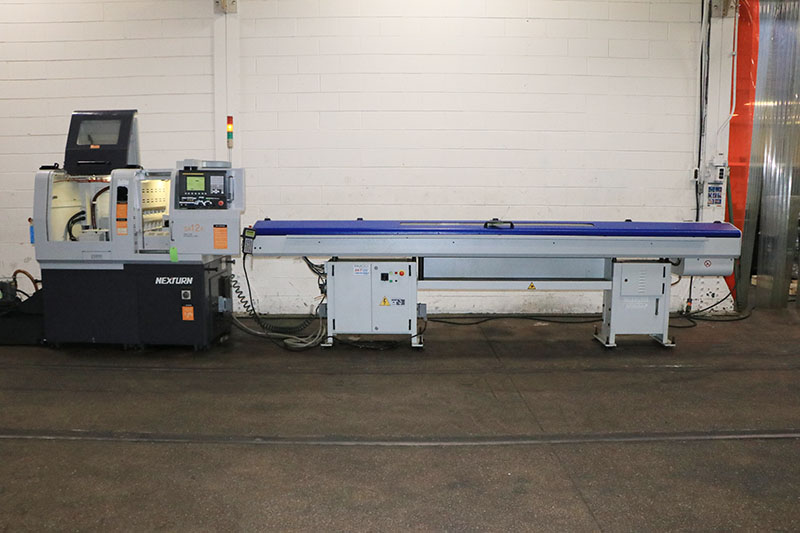

Star ST-38 12 Axis CNC SWISS TYPE MULTI-AXIS LATHES

Price on Request

Make:
Star
Model:
ST-38 12 Axis
Year:
2012
Ref #:
161345

Or call us for a quote at (973) 497-7500 or send us an email at automatics@machineryvalues.com


STAR SWISS TYPE MULTI-AXIS CNC LATHE
NEW: 2012

SPECIFICATIONS:
Max Machining Diameter:  38mm (1-1/2")
Max Headstock Stroke:  350mm (13-25/32")
Front Working Turret Toolpost--Front side Turret: 10 Stations
                             --Back side Turret:  10 Stations
Nurmber of Turning Tools:  Max 2 tools/station
Tool Shank:  16mm/20mm
Sleeve Holder:  Number of Tools:  Max 3 Tools/Station
                Max Drilling Capability:  23mm
                Max Tapping Capability:  M12xP1.75
                Max Depth of Hole Capability:  120mm
Power Driven Att.:  Number of Tools:  Max 2 tools/station
                    Max Drilling Capability:  10mm
                    Max Tapping Capability:  M8xP1.25
Main Spindle Indexing Angle:  C-Axis Control
Main Spindle Speed:  Max 7.000min
Main Spindle Motor:  Built-in Motor Drive 7.5kw(continuous)/11kw(25%ED)
Power-driven att. spindle speed:  Max 5.700min
Power-Driven att. drive motor:  AC Servo drive 2.7kw(continuous)4.0kw(5min/30%ED)
Coolant Tank Capability:  245
Dimensions (WxDxH):  3,477x1,859x1,865mm
Center Height:  1,134mm(including leveling pads)
Weight:  6,250kg
Power Consumption:  10.5KVA
A-Weighted Sound Pressure:  Max 71 dB(A)

Backworking Attachment:
Max. Chucking Diameter: 38mm (1-1/2")
Max. Part Pick-up Length: 150mm (5-7/8")
Max. Parts Projection Length: 75mm (2-15/16")
Backworking Turret Tool Post: 10 Station
Number of Turning Tools: Max. 2tools/station
Tool Shank: 16mm/20mm
Sleeve Holder:
 Number of Tools: Max. 3 tools/station
 Max. Drilling Capability: 23mm (29/32")
 Max. Tapping Capability: M12xP1.75
Power Driven Attachment:
 Number of Tools: Max. 2 Tools/Station
 Max. Drilling Capability: 10mm (25/64")
 Max. Tapping Capability: M8xP1.25
 Spindle Speed: Max. 5,700 RPM
 Drive Motor: 2.7/4.0 kW
Subspindle Indexing Angle: C-Axis Control
Subspindle Speed: Max. 7,000 RPM
Subspindle Motor: 5.5/7.5kW

Equipped With:
Fanuc 30iA CNC Control
FMB Turbo 3-38 Magazine Bar feed
LNS Chip Conveyor
Oil based
Fire suppression (no tank)
3 turret - all live stations

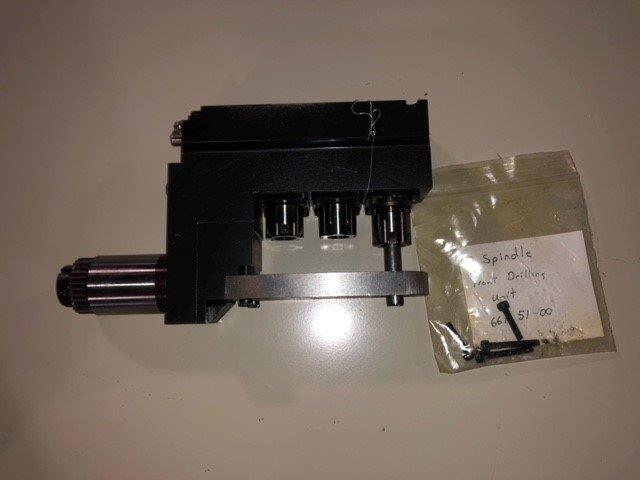

(9) Total Live Tool Holders
(6) Total Static Tool Holders
