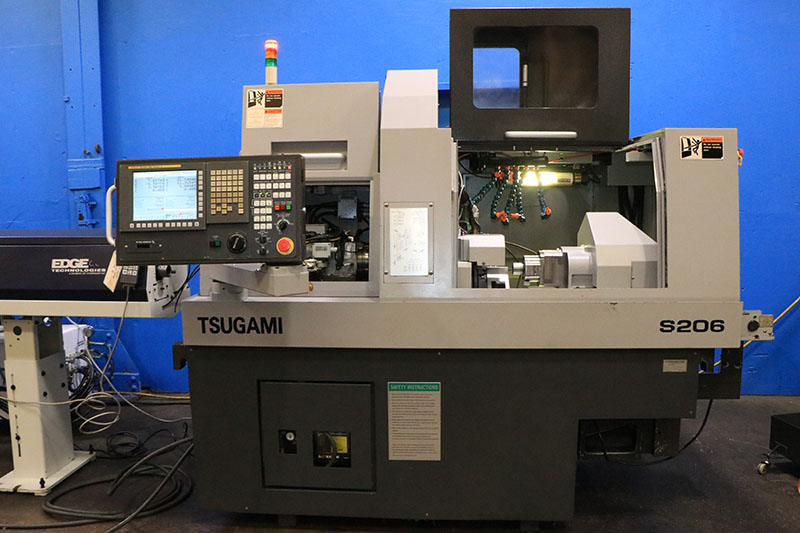

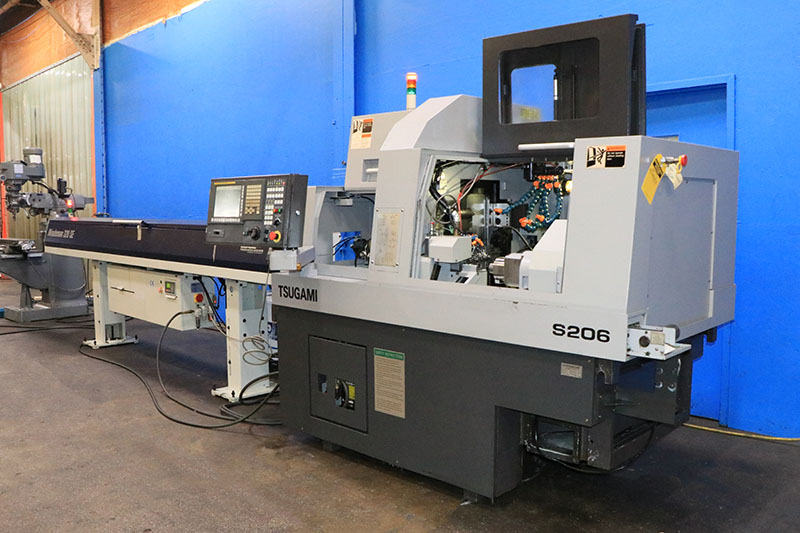

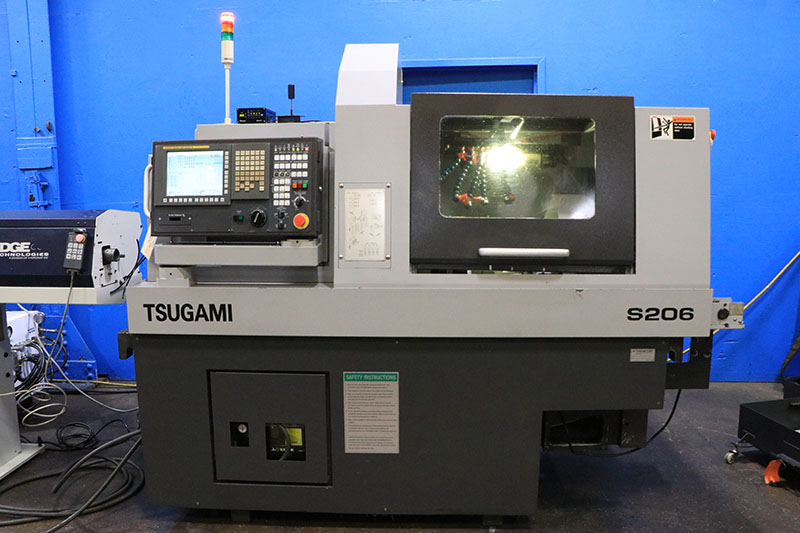

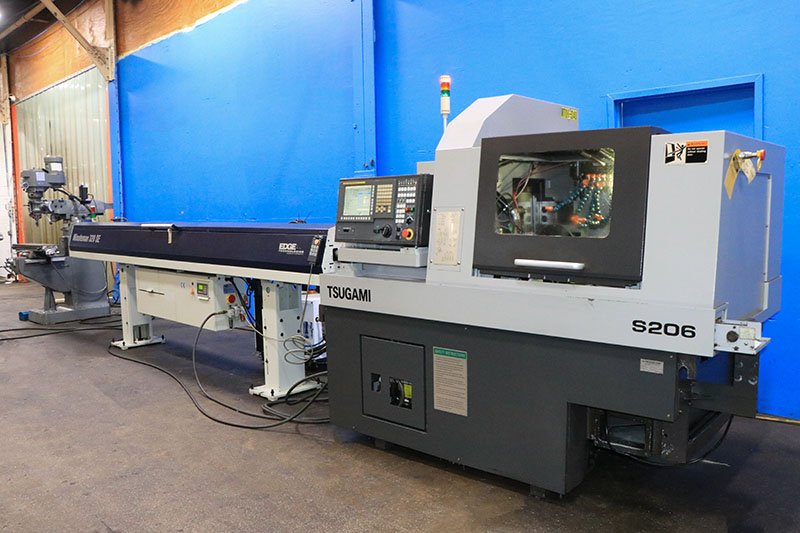

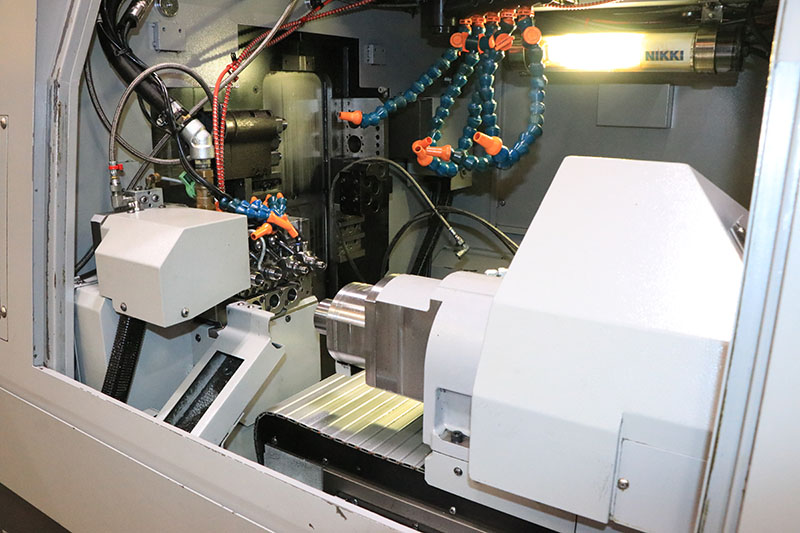

Tsugami S206 CNC SWISS TYPE MULTI-AXIS LATHES

Price on Request

Make:: Tsugami

Model:: S206

Year:: 2011

Ref #:: 178239

Or call us for a quote at (973) 497-7500 or send us an email at automatics@machineryvalues.com

TSUGAMI S206 SWISS TYPE CNC LATHE
NEW: 2011

General Specifications from Brochure:

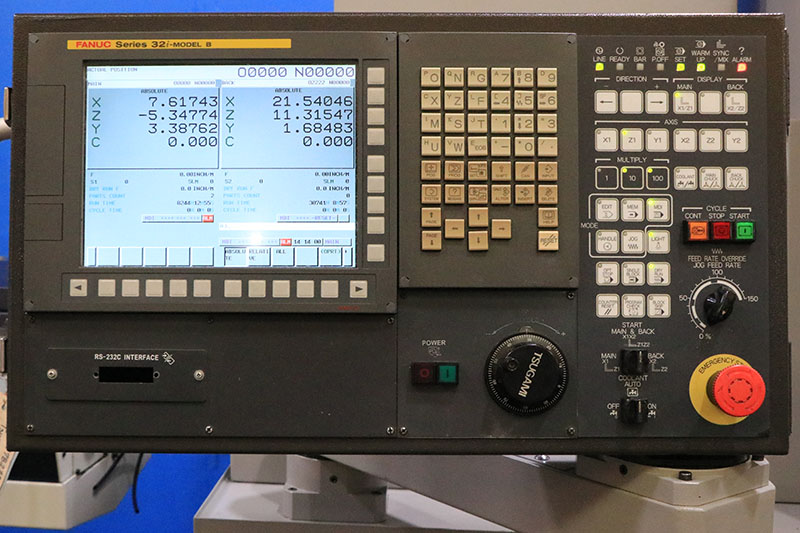

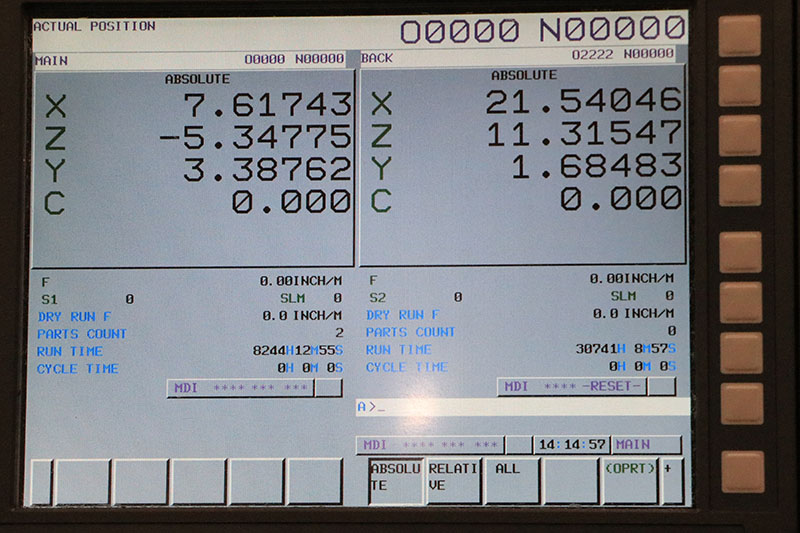

Control: Fanuc 31iTB
No. of Controllable Axes: 8
(X1, Z1, Y1, X2, Y2, Z2, C1, C2)
Max Bar Diameter: 20mm (3/4")
Max Machining Length: 210mm (Direct Drive Rotary GB)
250 (Static Guide Bushing)
80mm (Carrier Type Rotary GB)
45mm Bushingless
Max Drilling Diameter: 10mm
Max Tapping Diameter: M8
Deep Hole Drilling Diameter: 8mm
Max Back Spindle Chucking diameter: 20mm
Max Back Spindle Drilling Diameter: 8mm
Max Back Spindle Tapping Diameter: M6
Max Tool Spindle Drilling Diameter: 6mm (front tool post/back tool post)
8mm (rear tool post)
Max Tool Spindle Slotting Diam: 30mm (T1)
Main Spindle Speed: 200 - 12000 rpm
Back Spindle Speed: 200 - 12000 rpm
Rotary Guide Bushing: 200 - 8000 (carrier type)
200 - 12000 (direct drive type)
Tool Spindle Speed: 200 - 8000 rpm
Tool Storage Capacity (std/max): 24 pcs / 35 pcs
Tool Size: 12 x 12 x 100 mm
Rapid Traverse rate: 32 m/min
(X1, Y1: 24 m/min)
(Y2: 15 m/min)
Main Spindle: 2.2 / 3.7 kW
Back Spindle: 1.5 / 2.2 kW
Tool Spindle: 0.75 / 1.1 kW (Front tool post)
1.0 kw (rear tool post)
X1-X2-Z1-Z2-Y2 Axes 0.5 kw
Y1 axis: 0.75 kW
Lubricating Pump: 3 W
Power Source Requirements: 14.3 kVA

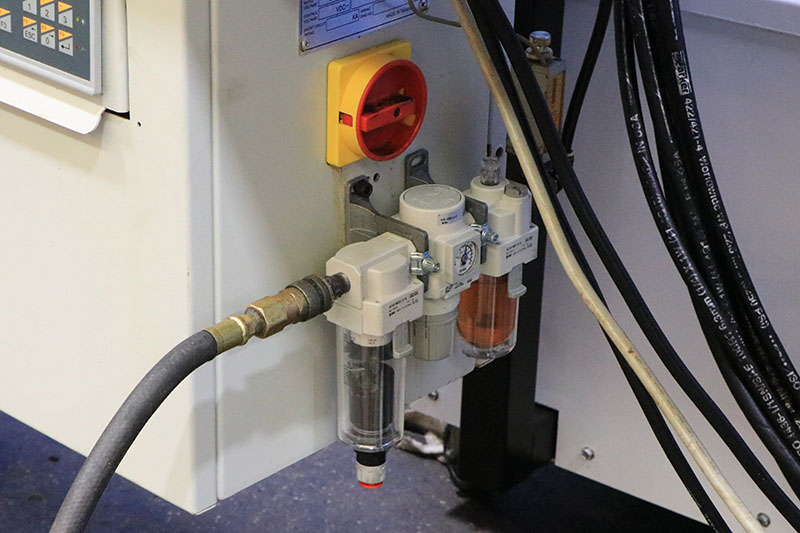

Compressed Air Requirement: 0.4 MPa or above
Air Discharge rate: 40 NL/min
Machine Weight (approx): 3200 kg (7055 lbs)
Machine Dimensions (approx): 2110 x 1200 x 1885 mm (83" x 47" x 74")

EQUIPPED WITH:

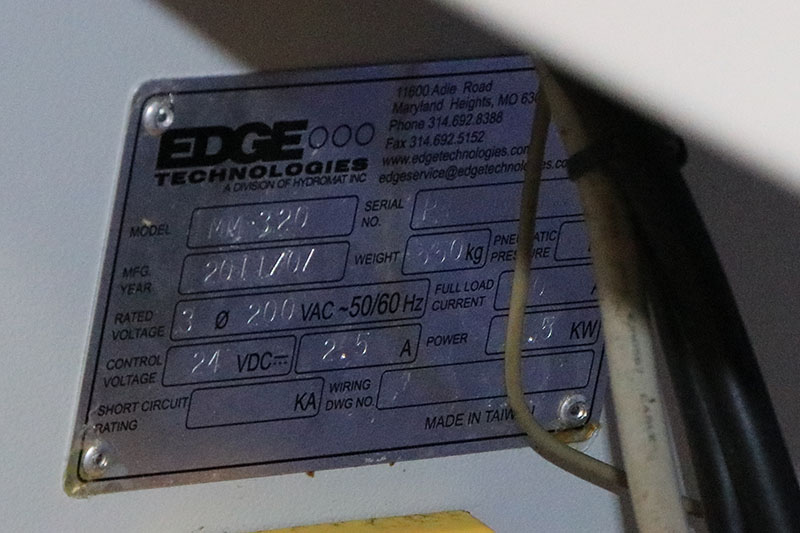

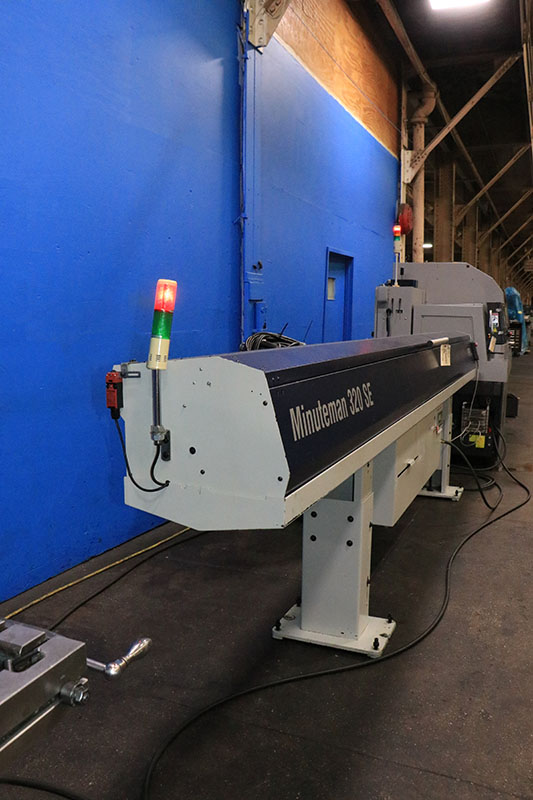

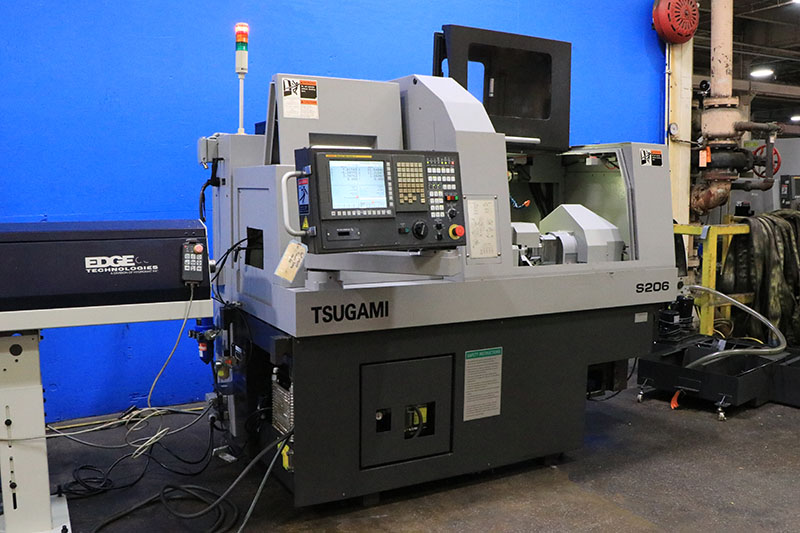

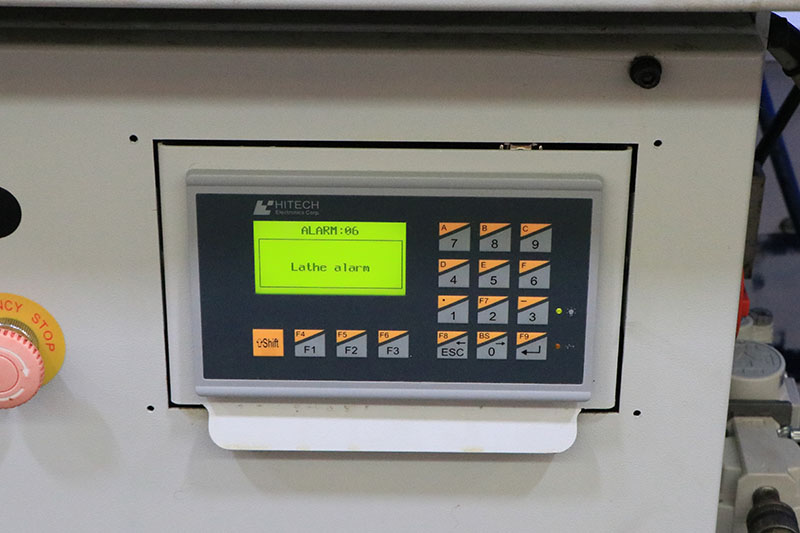

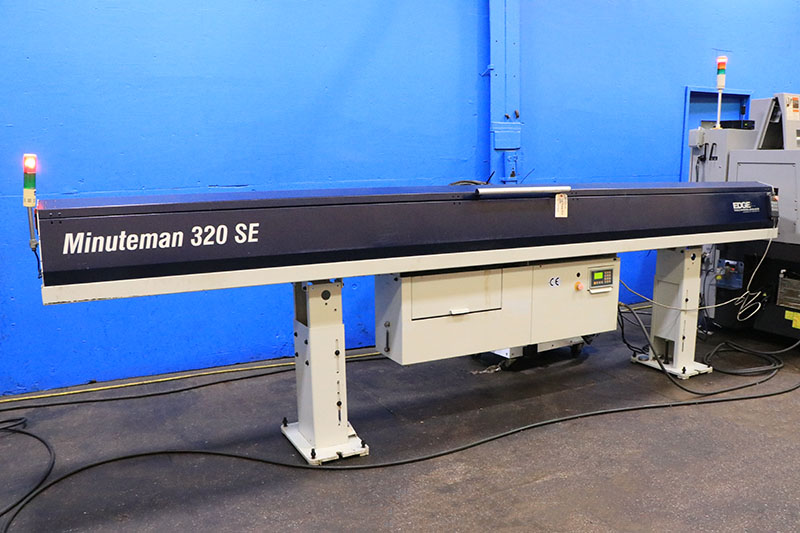

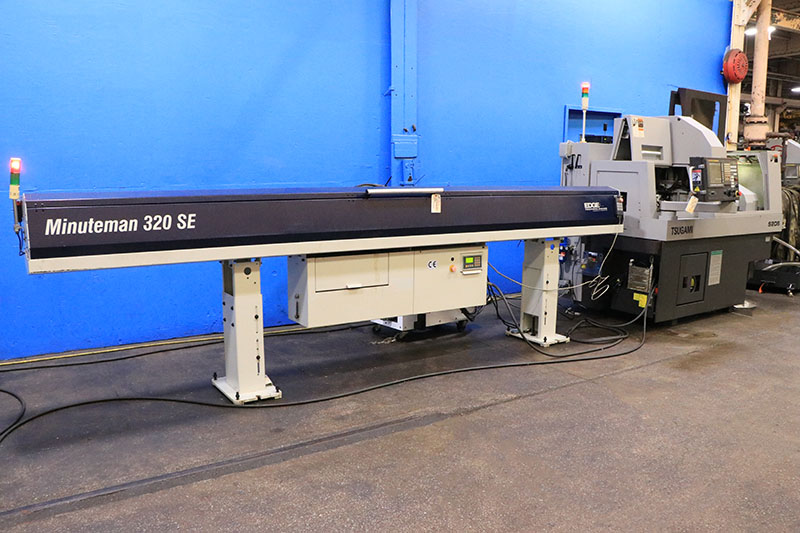

Edge Technologies Barfeed

Mist Buster Mist Collection Unit

Fire Suppression

High Pressure Unit
