Victor TM-40, NEW 2000, HELICAL GRINDING ATTACH., TOOL & CUTTER GRINDERS

Price on Request

Make:
Victor
Model:
TM-40, NEW 2000, HELICAL GRINDING ATTACH.,
Year:
2000
Ref #:
163796

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com


  "VICTOR/TOP WORK" "MADE IN TAIWAN"

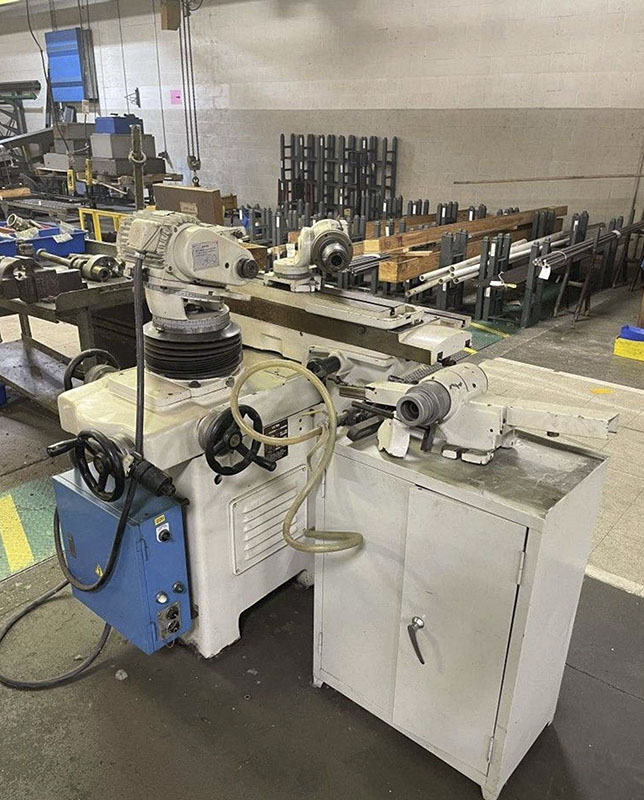

   UNIVERSAL TOOL & CUTTER GRINDER
   WITH MANY ACCESSORIES

MODEL: TM-40     S/N: 2940     NEW: 2000

  CAPACITY:
SWING OVER TABLE DIAMETER ....................... 10"
LENGTH, BETWEEN RIGHT & LEFT-HAND TAILSTOCKS .... 27"
LENGTH, BETWEEN TAILSTOCK & WORKHEAD ............ 14"


  RANGE:
TABLE SIZE ........................... 5- 5/16" X 37- 1/2"
LONGITUDINAL TABLE TRAVEL ....................... 16"
CROSS MOVEMENT OF TABLE ......................... 10"
TABLE SWIVEL .................................... 180°
TABLE TAPER ..................................... +/- 15°
TABLE GRADUATIONS IN CENTER, IN DEGREES ......... 60°
VERTICAL MOVEMENT OF GRINDING WHEEL SPINDLE ..... 10"
MAX. DIST. CENTERLINE OF SPINDLE TO TABLE ....... 12"
SPINDLE TILTS ABOVE AND BELOW CENTER ............ 15°
SWIVEL MOVEMENT OF GRINDING WHEEL SPINDLE ........60°
SPINDLE SPEEDS (3) ................. 2,600, 3,700 & 6,200 RPM

  APPROXIMATE MACHINE WEIGHT .................. 1,980 LBS.
REQUIRED FLOOR SPACE ................ 61"L-R x 68.5"D x 60"H

  MACHINE FEATURES:
TILTING WHEELHEAD (15 DEG. ABOVE & BELOW)

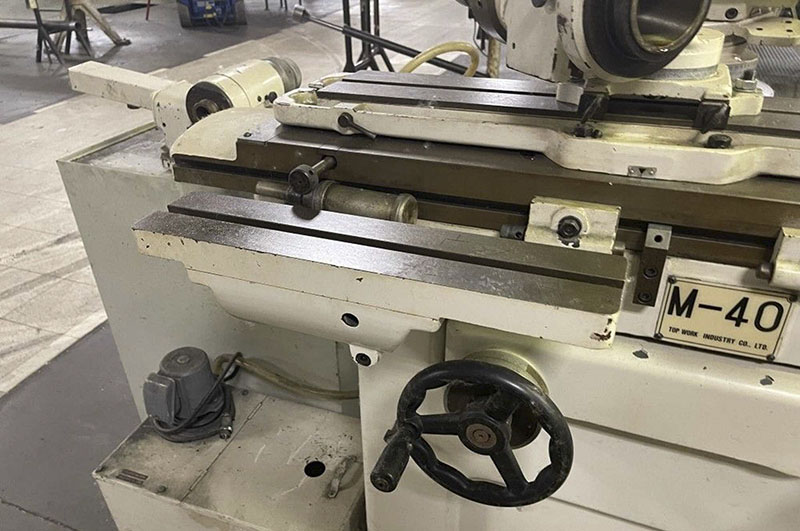

DUPLICATE CONTROLS @ THE FRONT & REAR OF THE TABLE
BALL BEARING ANTI-FRICTION TABLE ROLLING IN
 REPLACEABLE HARDENED STEEL V-WAYS
360 DEG. ECCENTRIC WHEELHEAD & SWIVEL TABLE WHICH
 CAN INCREASE SPECIFIED CROSS RANGE BY 70%
CAST IRON CONSTRUCTION
ONE-SHOT LUBRICATION SYSTEM
2-SPEED SPINDLE, INSTANTLY REVERSIBLE
1.5 HP 3/60/220-440 VOLT SPINDLE MOTOR
MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS


ACCESSORIES WITH THIS MACHINE INCLUDE:

- CABINET WITH GRINDING WHEELS, SOME WITH WHEEL HUBS,
   AND SEVERAL SPINDLE EXTENSIONS

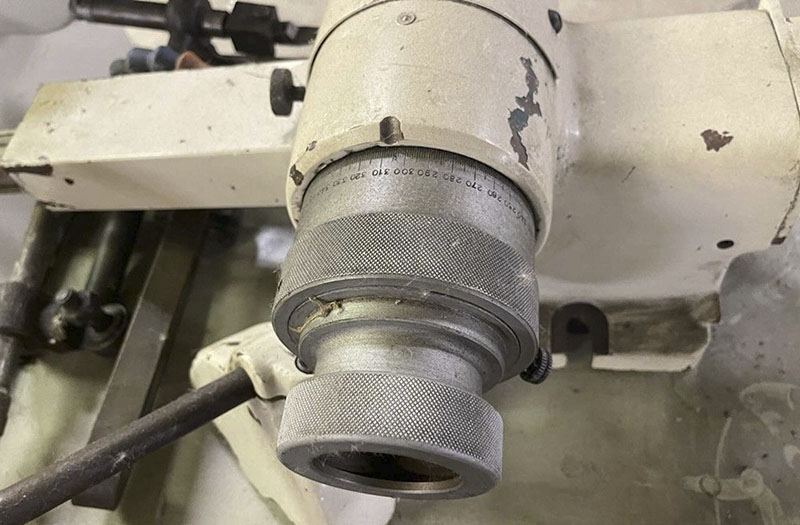

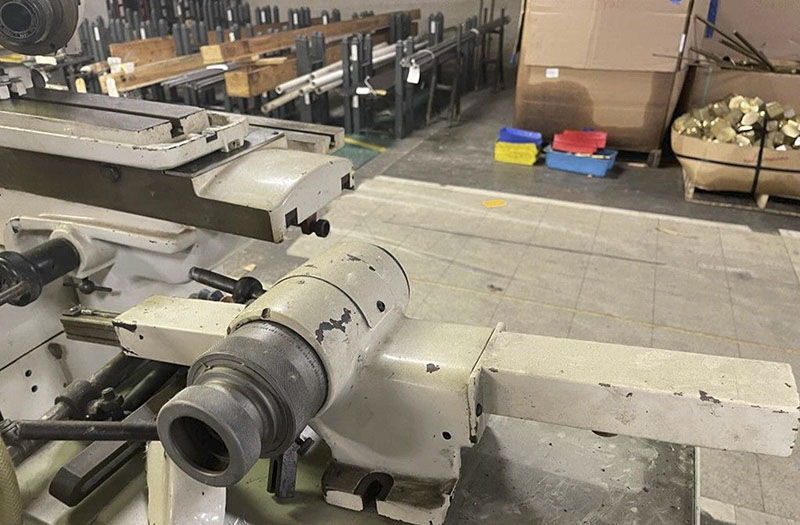

- NON-MOTORIZED WORKHEAD, No. 50 TAPER ON ONE SIDE OF WORKHEAD,
  No. 5MT TAPER THE OTHER SIDE.  WORKHEAD HAS A "JMC32 CHUCK"",

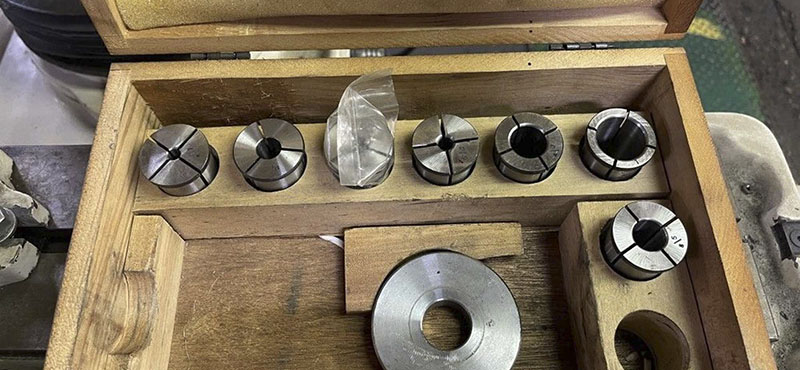

  WHICH ACCEPTS COLLETS.  THERE IS A BOX OF COLLETS INCLUDED,
  SIZES ARE 1/4", 5/16", 3/8", 1/2", 5/8", 3/4" & 1".

-(2) TAILSTOCKS, L.H. & R.H.

- DRILL POINT ATTACHMENT
 - 6-JAW CHUCK
 - CLAMPING RANGE FROM 0.118" TO 2.362"
 - SUITABLE FOR RE-GRINDING DRILL POINT, STEP DRILL,
   CENTER DRILL, CHAMFER MILL, RELIEF ANGLE OF
   3 OR 4 FLUTES TAPS.

- HELICAL GRINDING ATTACHMENT
 .... "This attachment is suitable for grinding the relief
        and rake angle of spiral cutters."

Taper hole: M.T. No. 4
Lead: 0 to infinity (steepless)
Spindle turns twice at max.
Index: 24 (standard)
Grinding dia.: max. 5"
Grinding length: max. 12- 1/2" (in case that helical angle is 0°)
Module (Hob): max. 8
Helix (Hob): max. ±8°


ITEMS THAT BE GROUND ON THIS MACHINE:
END MILLS
SHELL END MILLS
FACE MILL
KEYWAY OR SLOTTING CUTTER
SIDE MILL CUTTER
STAGGERED TOOTH CUTTER
ANGULAR CUTTER
LONG END MILL
METAL SLITTING SAW
LARGE METAL SAW, UP TO 48" DIAMETER
HELICAL TOOTH CUTTER
TAP
REAMER, CHAMFER


** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** SUPERIOR CONDITION (ORIGINAL PAINT) & APPEARANCE **
