Cincinnati #2 OM, STD. USA MADE MACHINE, REFURBISHED IN 2022 CENTERLESS GRINDERS

Price on Request

Make:: Cincinnati

Model:: #2 OM, STD. USA MADE MACHINE, REFURBISHED IN 2022

Year:

Ref #:: 163914

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

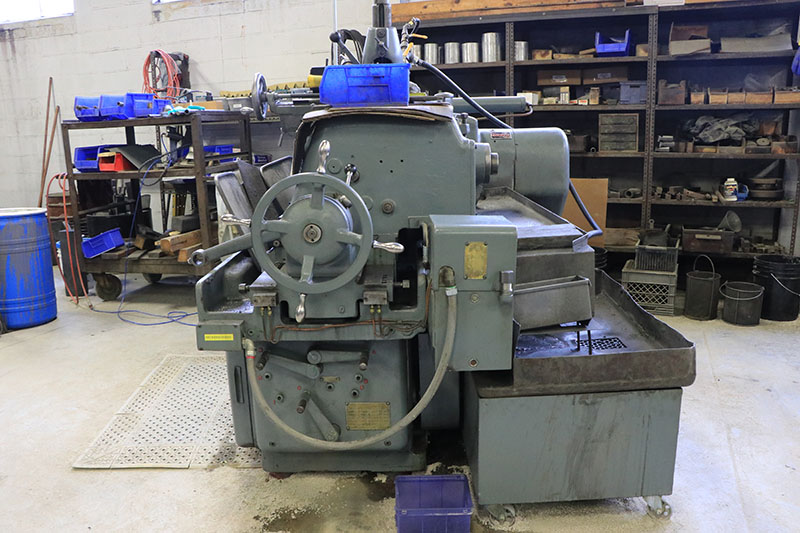

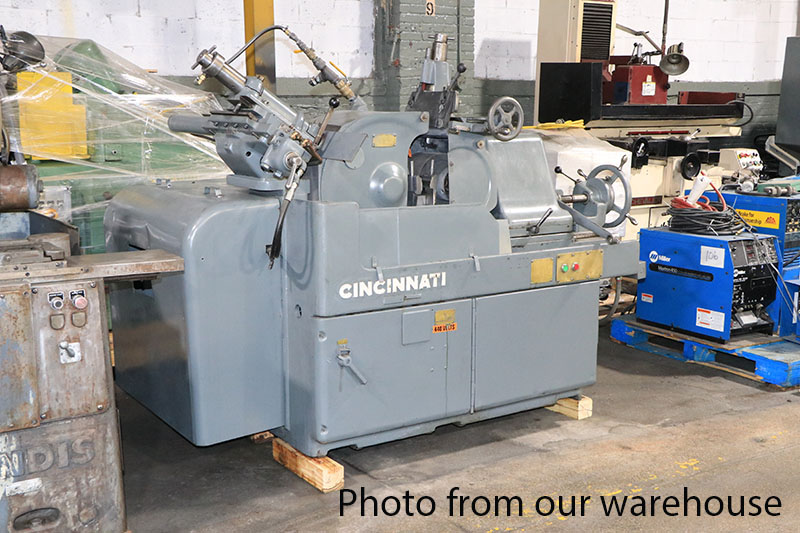

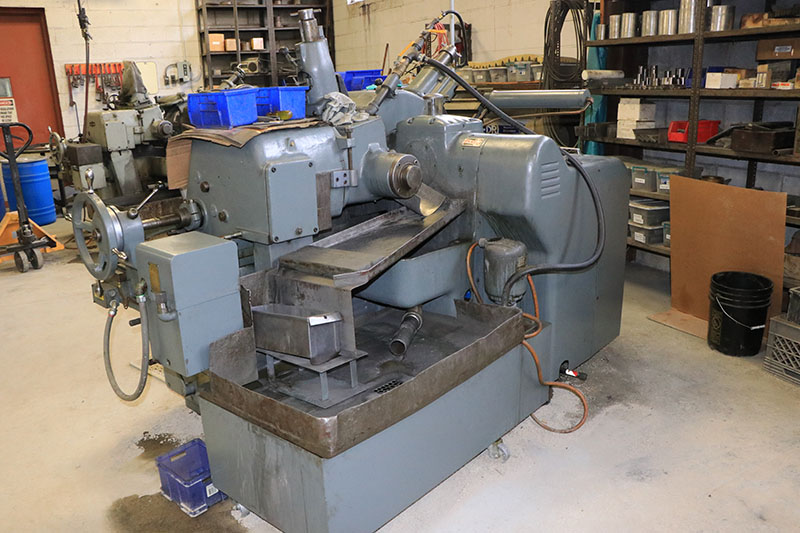

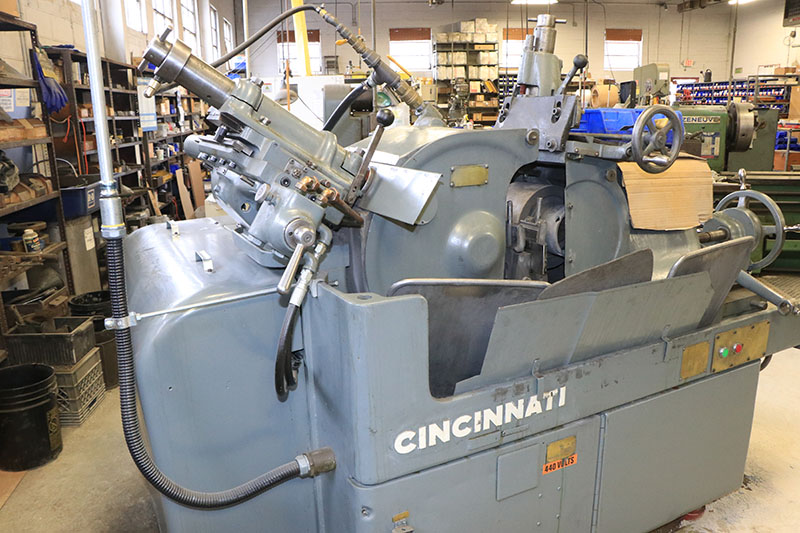

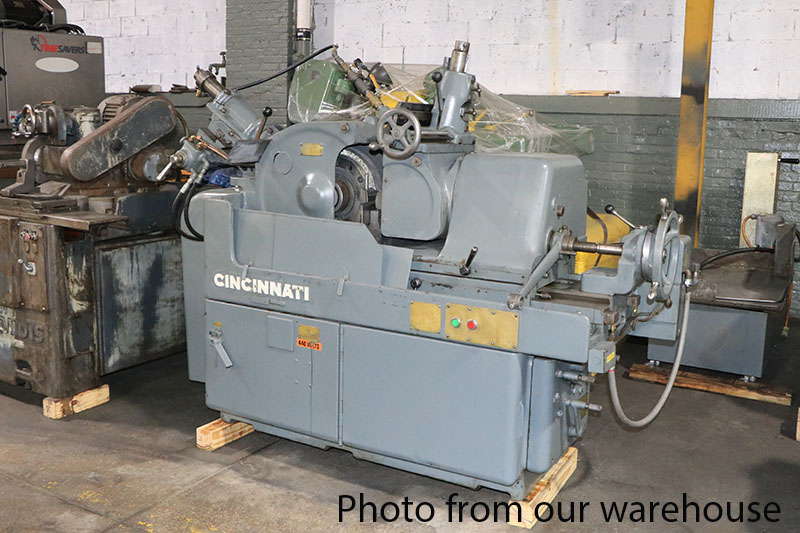

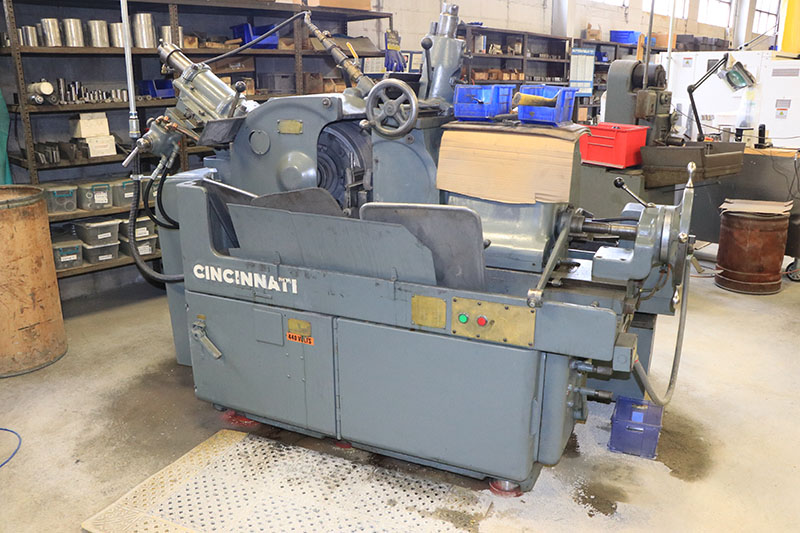

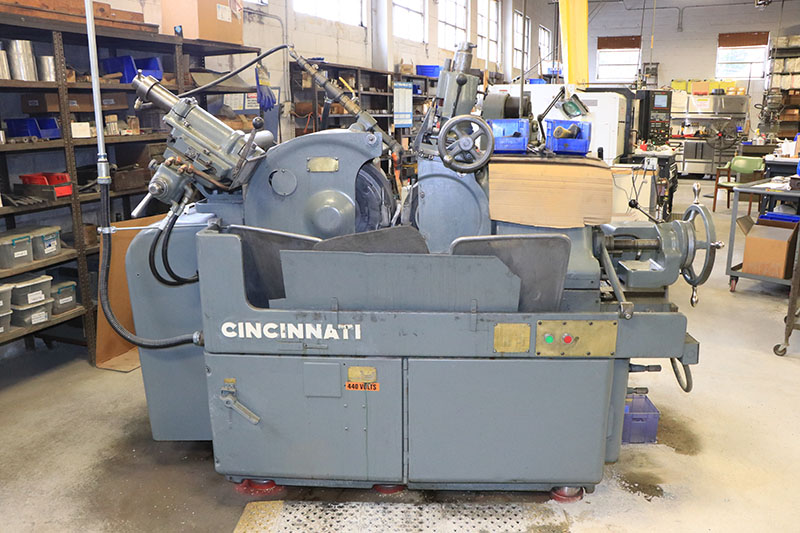

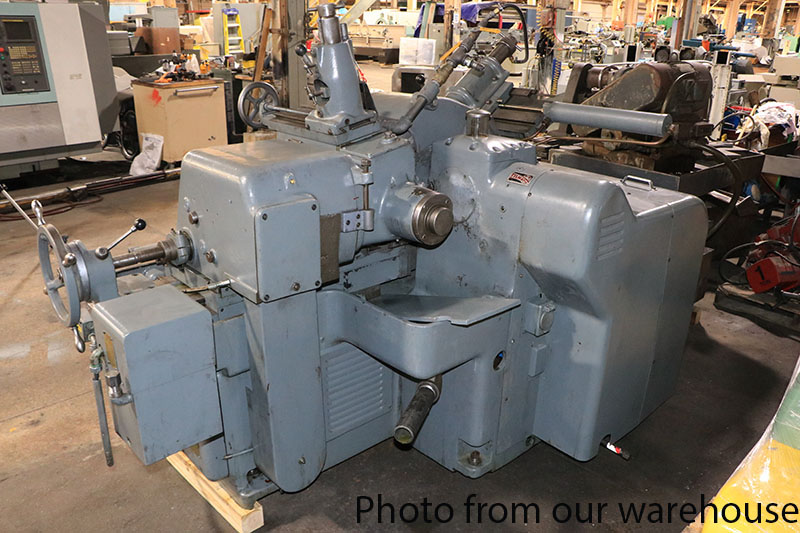

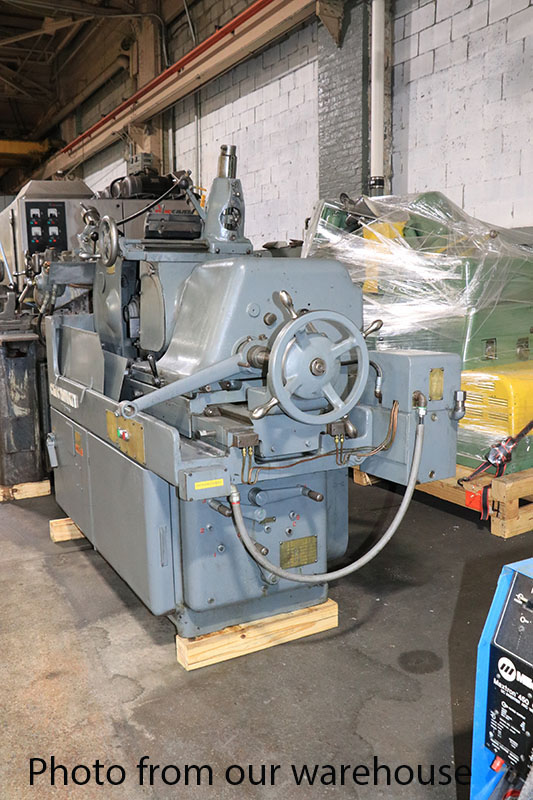

 CINCINNATI No. 2 "OM" CENTERLESS GRINDER

(THIS MACHINE WAS MADE IN THE USA!)


S/N: 2M2H1Y-106


DIAMETER CAPACITY, NORMAL .......... 1/16" TO 3"
GRINDING WHEEL DIAMETER, MINIMUM ... 16"
GRINDING WHEEL DIAMETER, MAXIMUM ... 20"
GRINDING WHEEL HOLE DIAMETER ....... 12"
GRINDING WHEEL MOTOR ............... 15 H.P.
REGULATING WHEEL DIAMETER, MIN. .... 9.5"
REGULATING WHEEL DIAMETER, MAX. .... 12"
REGULATING WHEEL WIDTH, MAXIMUM .... 8"
REGULATING WHEEL HOLE DIAMETER ..... 5"
REGULATING WHEEL SPEEDS, RANGE ..... 12 TO 300 RPM
REGULATING WHEEL MOTOR ............. 1- 1/2 H.P.

APPROX. MACHINE WEIGHT ............. 8,000 LBS.
FLOOR SPACE ........................ 53" x 86"

EQUIPPED WITH:

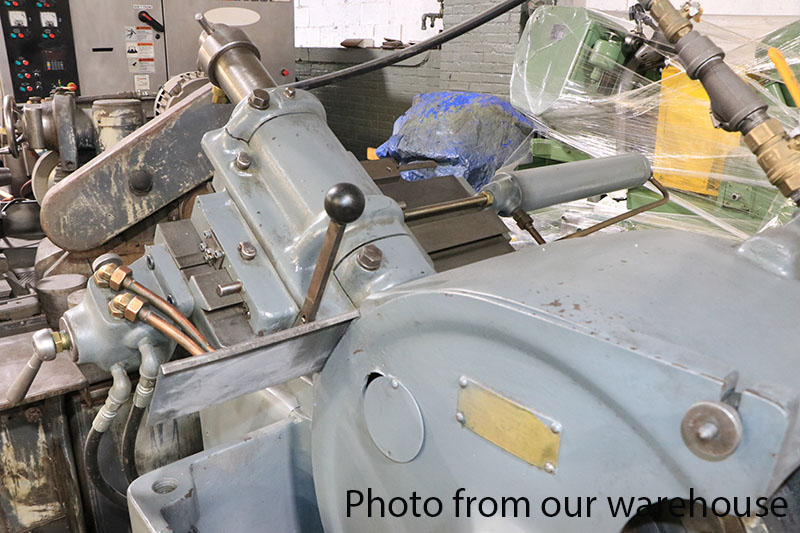

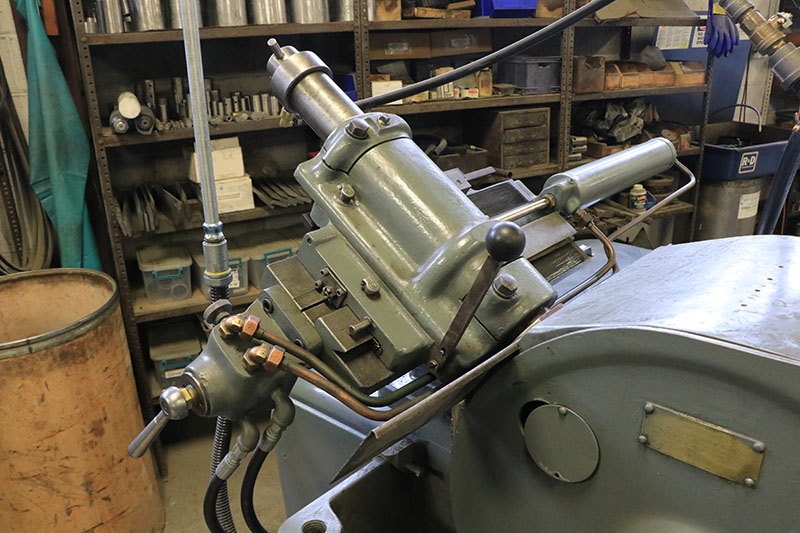

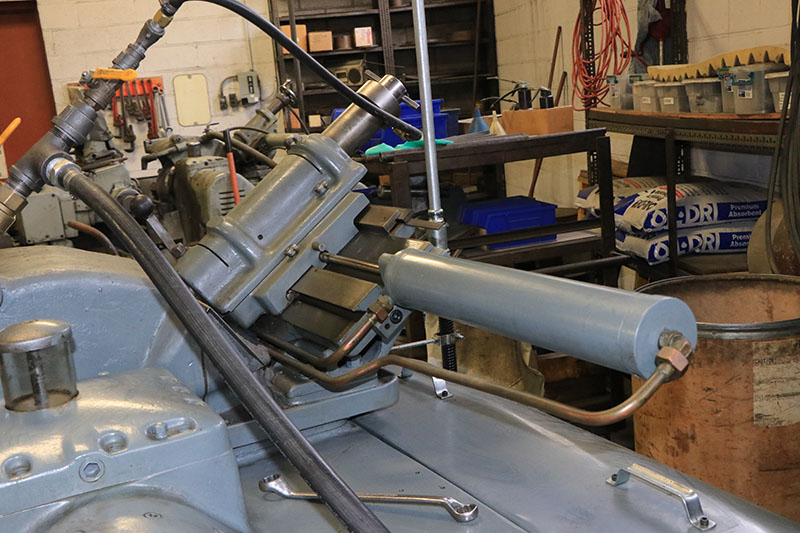

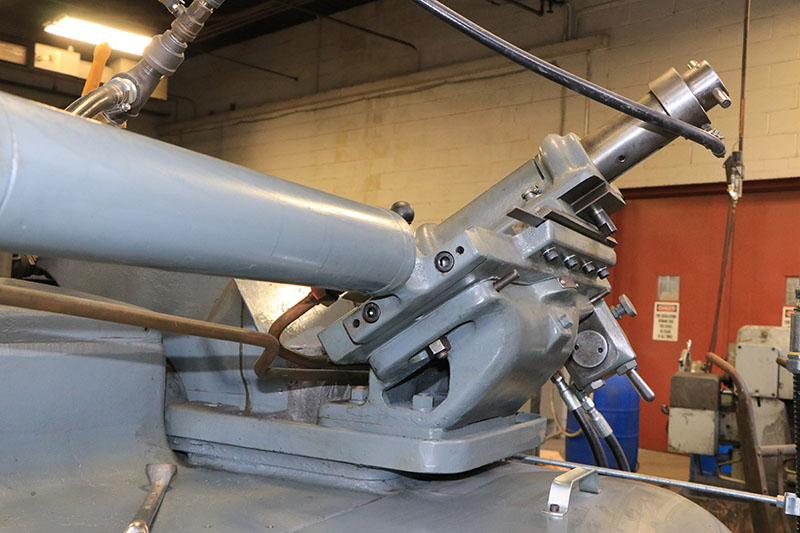

HYDRAULIC DRESSER FOR GRINDING WHEEL
MANUAL DRESSER FOR REGULATING WHEEL

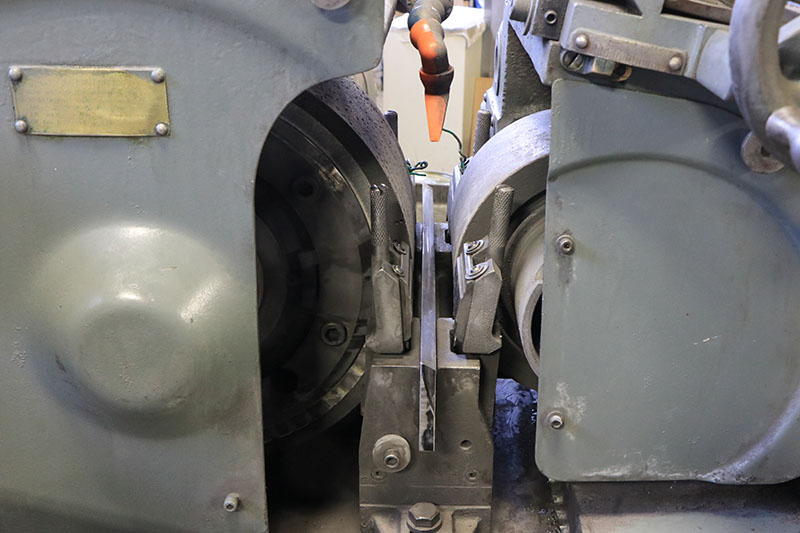

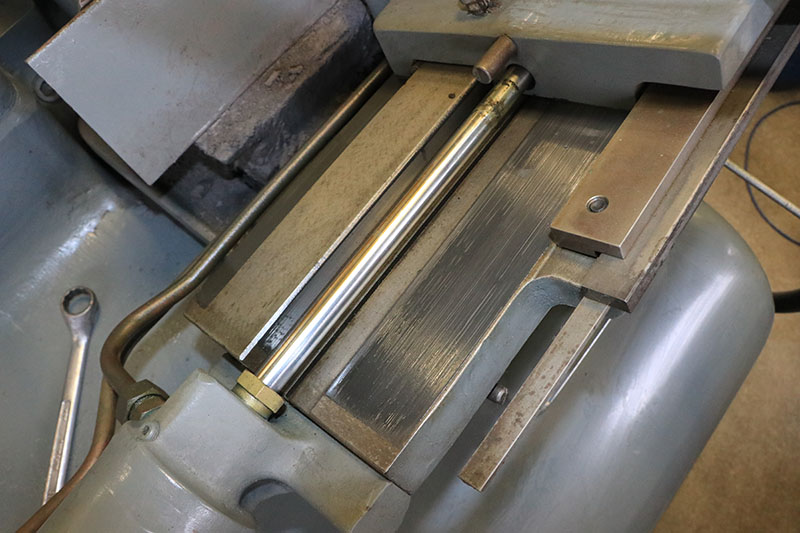

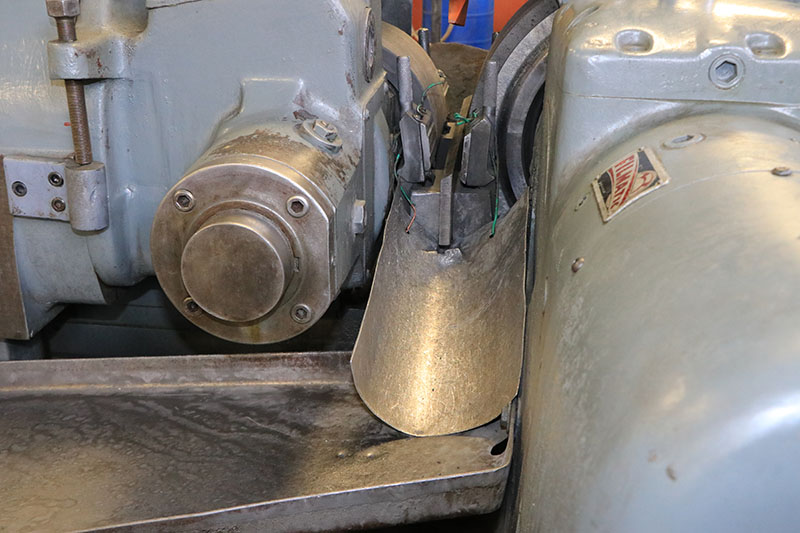

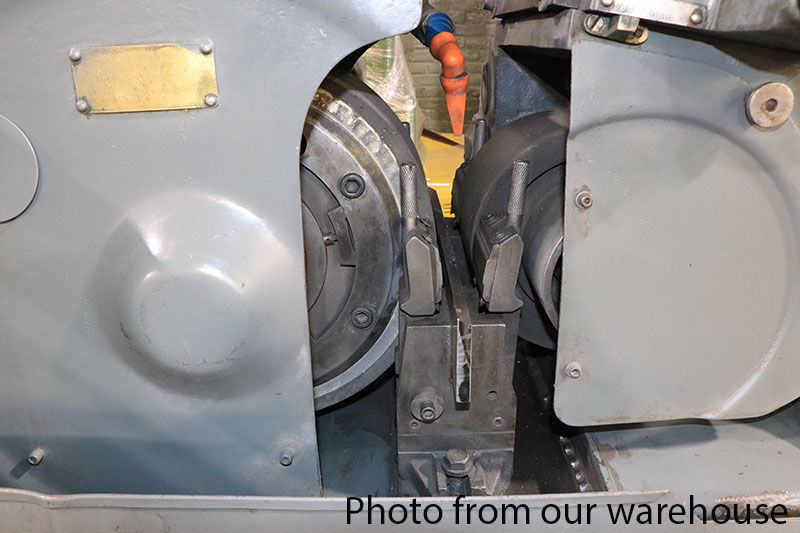

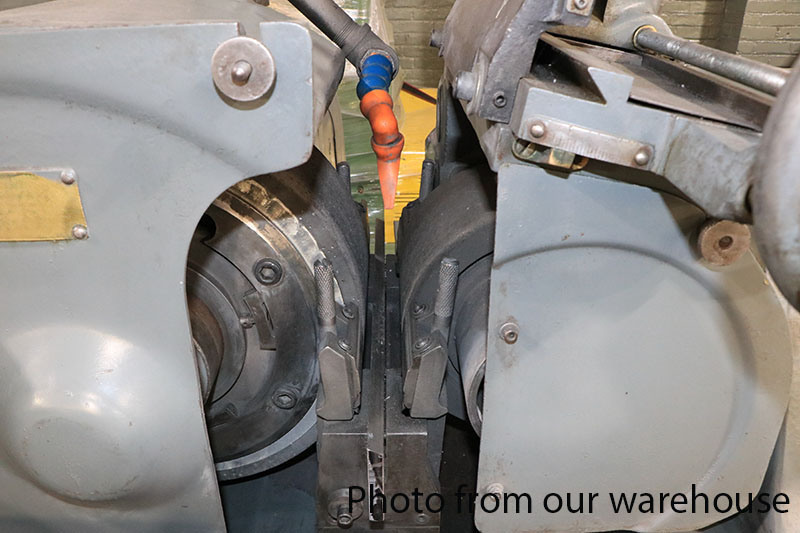

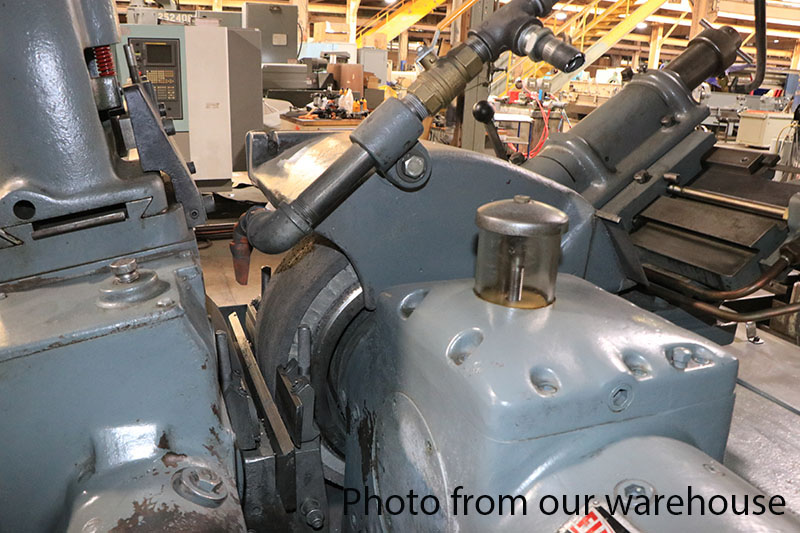

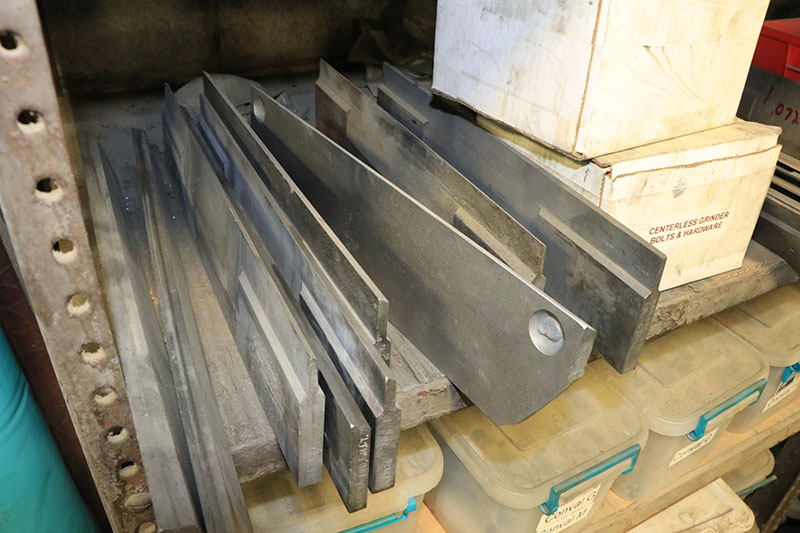

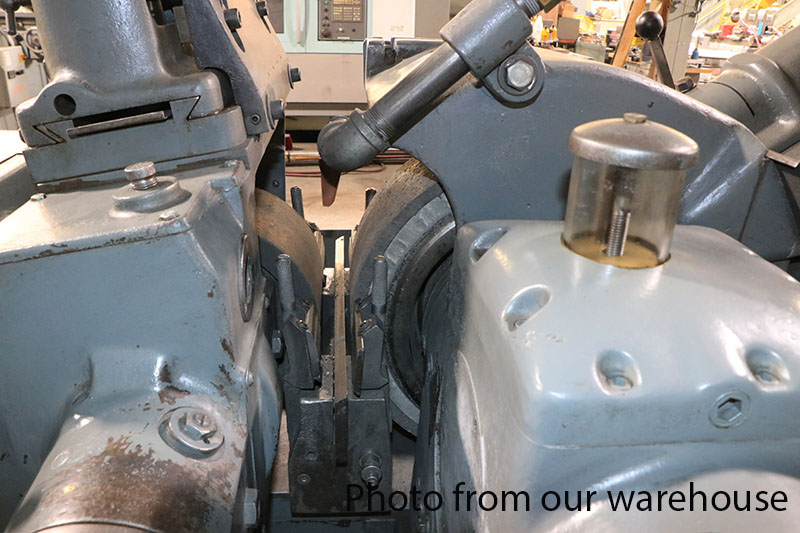

THRUFEED WORK REST WITH BLADES, FOR 6" WIDE WHEELS
MACHINE PRESENTLY HAS 6" WIDE WHEELS ON IT
EXTERNAL COOLANT SYSTEM, TANK & PUMP
VARIABLE SPEED DRIVE FOR THE REGULATING WHEEL
SWIVEL-TYPE REGULATING WHEEL UNIT - TAPER ADJUSTMENT
FILAMTIC GRINDING WHEEL SPINDLE BEARINGS
15 H.P./3/60/220-440 VOLT MOTOR FOR THE GRINDING WHEEL

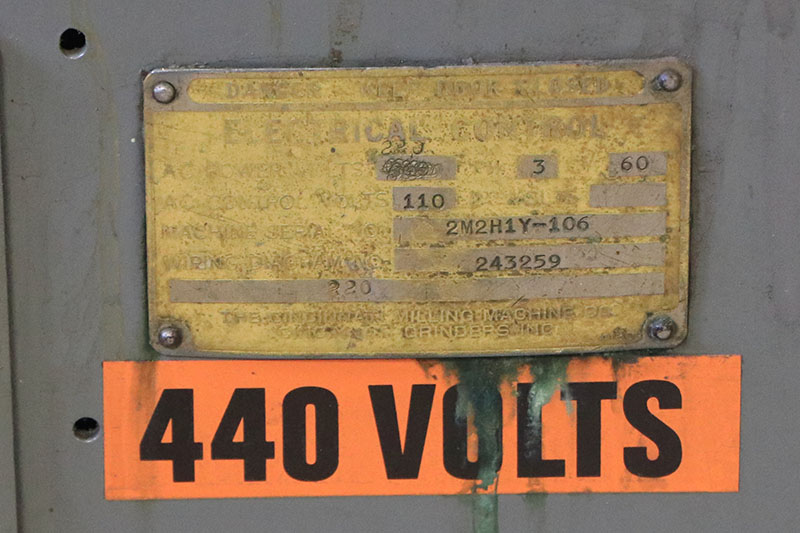

MACHINE IS WIRED FOR 440 VOLTS


** REFURBISHED/THOROUGHLY SERVICED & REPAINTED **
** SEE VIDEO OF MACHINE GRINDING A PART **
** HOLDS PERFECT SIZE OVER LENGTH OF PART, WONDERFUL FINISH **
** F.O.B. OUR HARRISON, NJ WAREHOUSE **

LINK TO VIDEO: https://youtu.be/hY3rAbKUOU4
