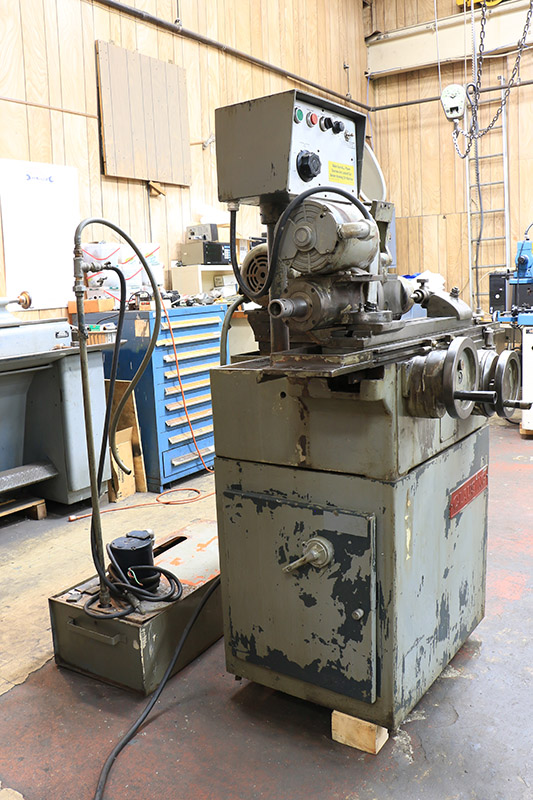

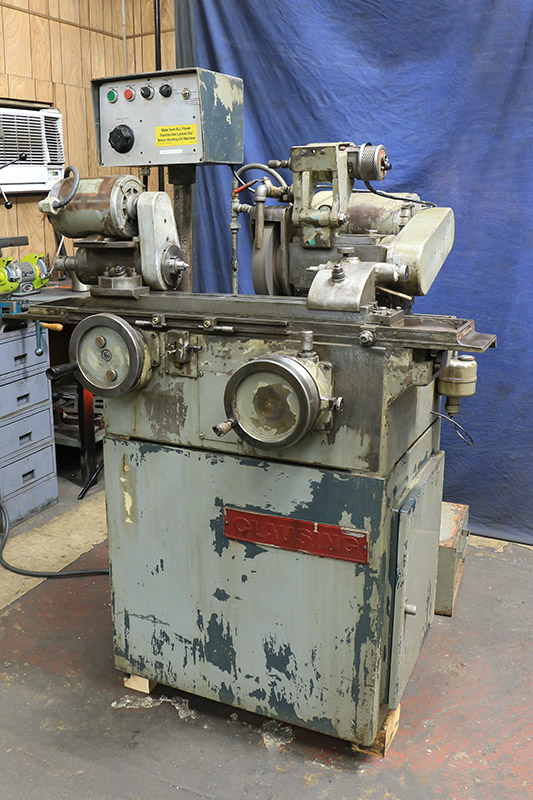

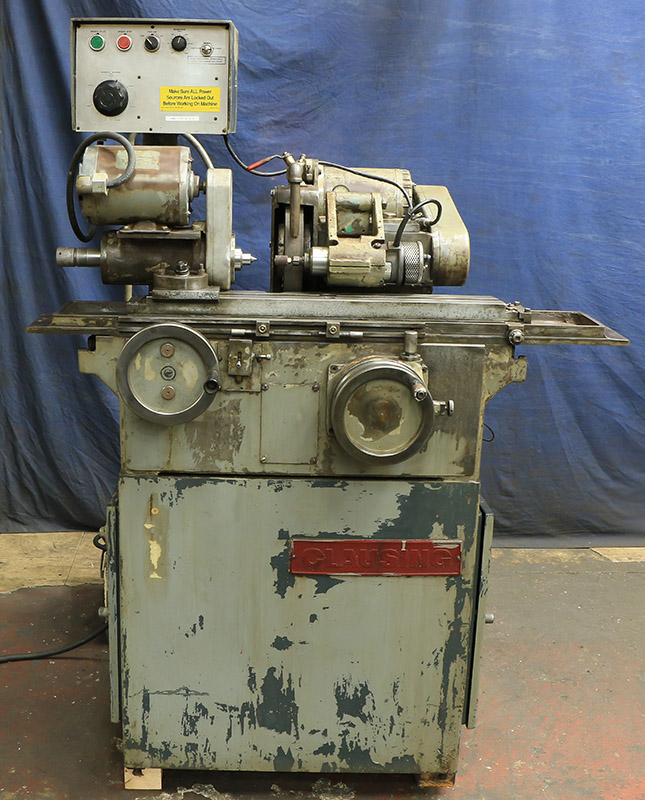

Clausing-Covel CLAUSING 4200, SWING DOWN I.D. GRINDING ATTCH., PLAIN CYLINDRICAL GRINDERS

Price on Request

Make:
Clausing-Covel
Model:
CLAUSING 4200, SWING DOWN I.D. GRINDING ATTCH.,
Year:
1975
Ref #:
159788

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

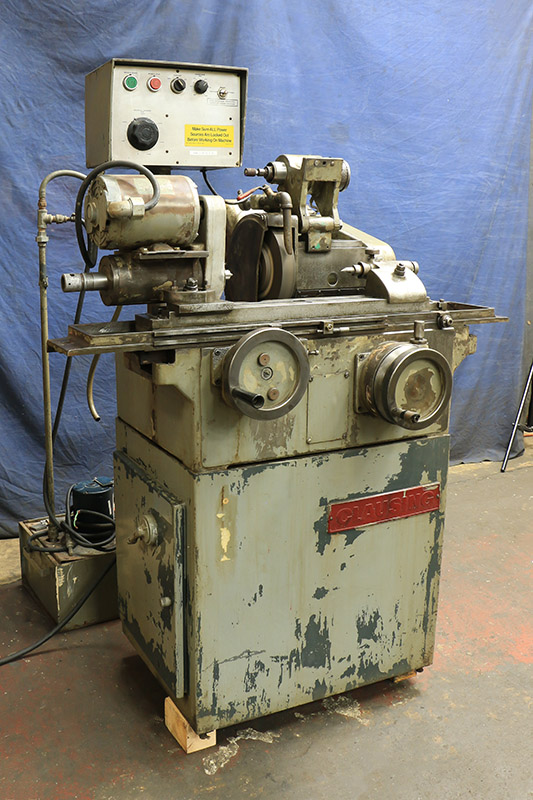

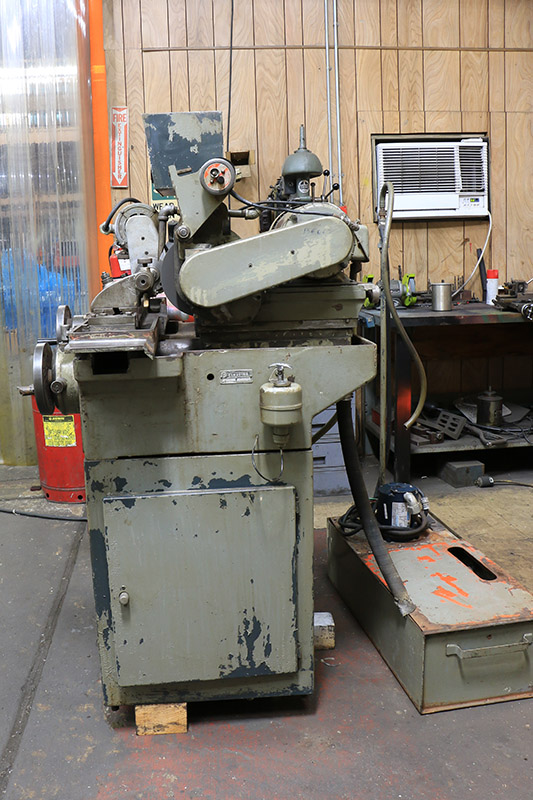

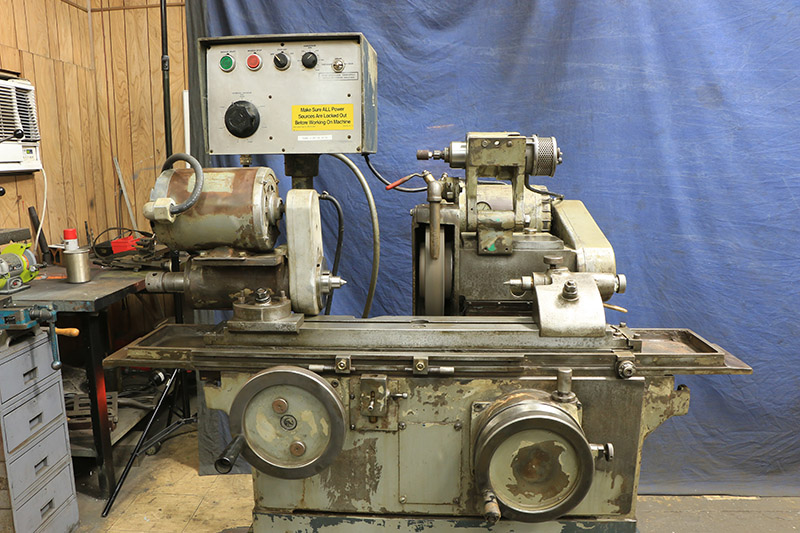

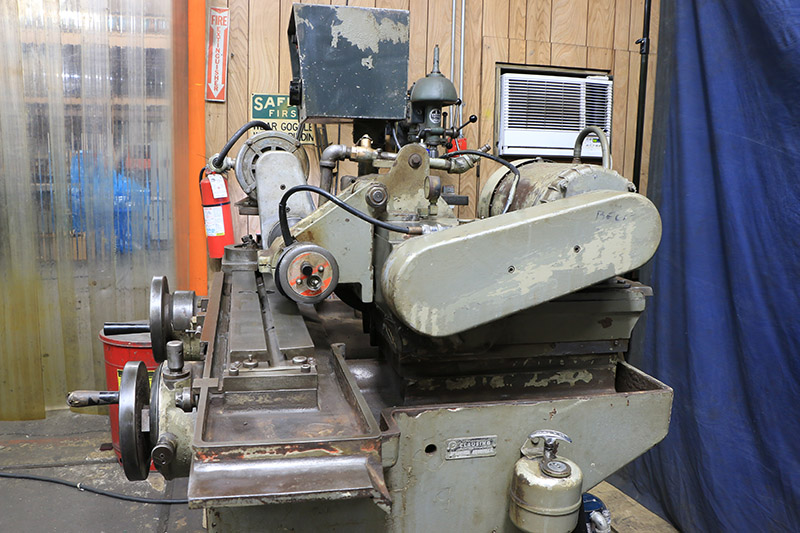

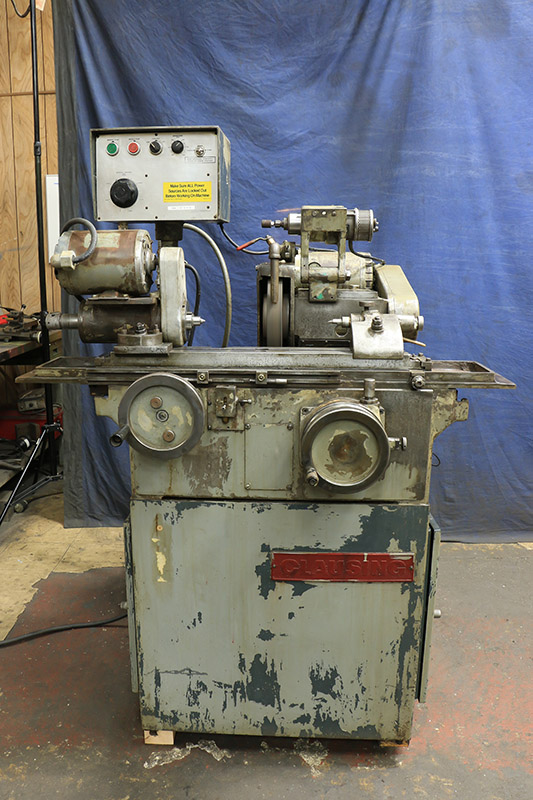

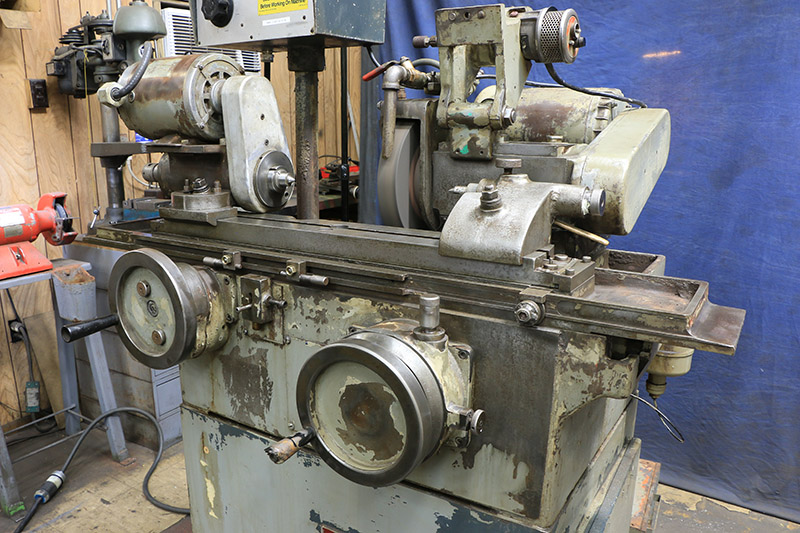

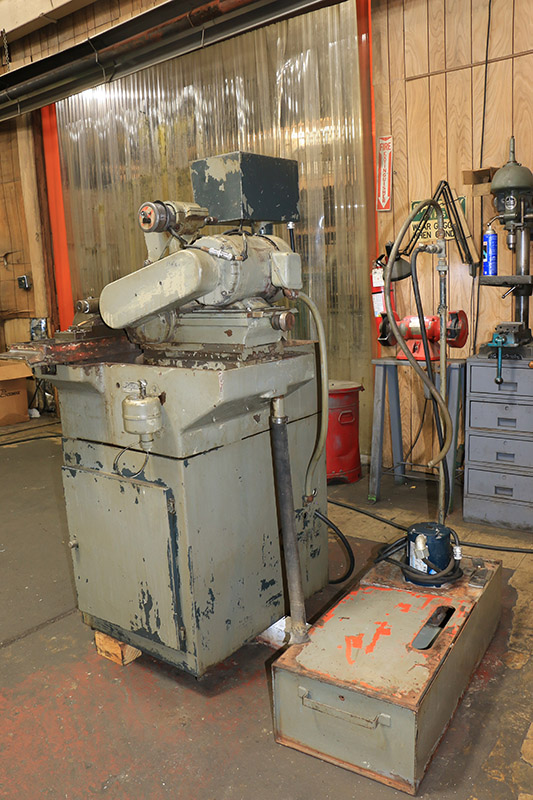

  5" X 12" CLAUSING-COVEL I.D./O.D. PRECISION PLAIN
           HAND FEED PLAIN CYLINDRICAL

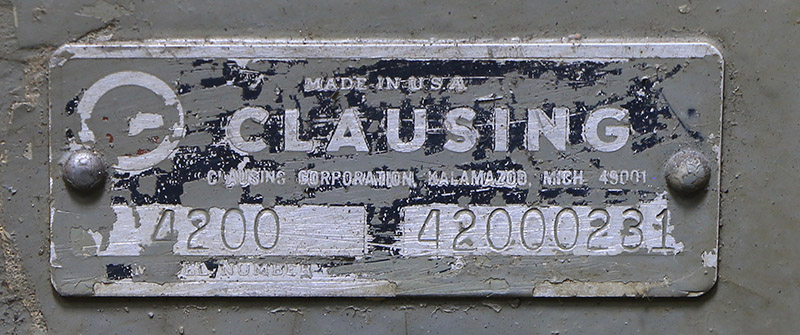

MODEL: 4200           S/N: 42000231        NEW: 1975

SWING OVER TABLE ............................ 5"
MAXIMUM TABLE TRAVEL ........................ 14"
CAPACITY BETWEEN CENTERS .................... 12"
TABLE SWIVELS EITHER WAY .................... 7- 1/2 DEGREES
TABLE TRAVEL PER REVOLUTION OF HANDWHEEL .... 0.5& 2"

WHEELHEAD:
FINE FEED ADJUSTER (NUMBERED DIVISIONS) ..... 0.0001"
WHEEL SPEEDS (2) ............................ 2200& 2600 RPM
GRINDING WHEEL (RECESSED) ................... 10" X 1" X 3"
WHEELHEAD MOTOR ............................. 3 H.P.

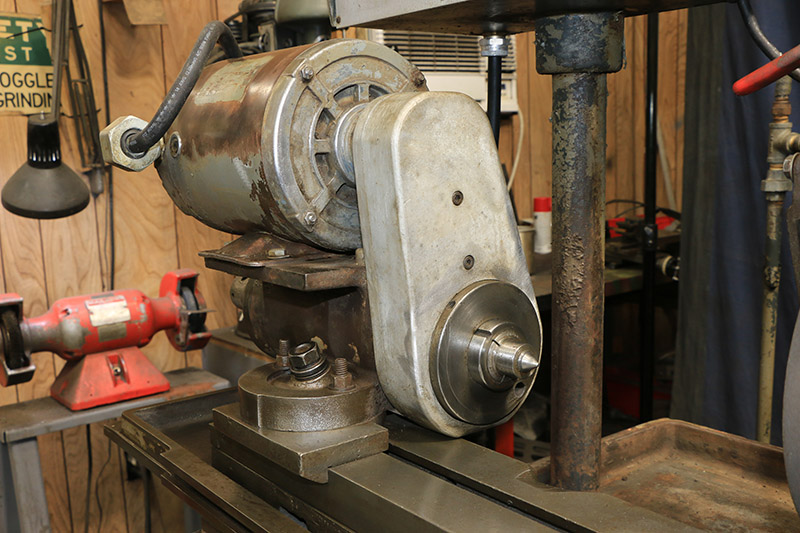

WORKHEAD:

WORKSPEEDS, STEPLESSLY VARIABLE ............. UP TO 1000 RPM
CAPACITY THROUGH STANDARD DRAW TUBE ......... 1-1/8"
COLLET TYPE ................................. 5C

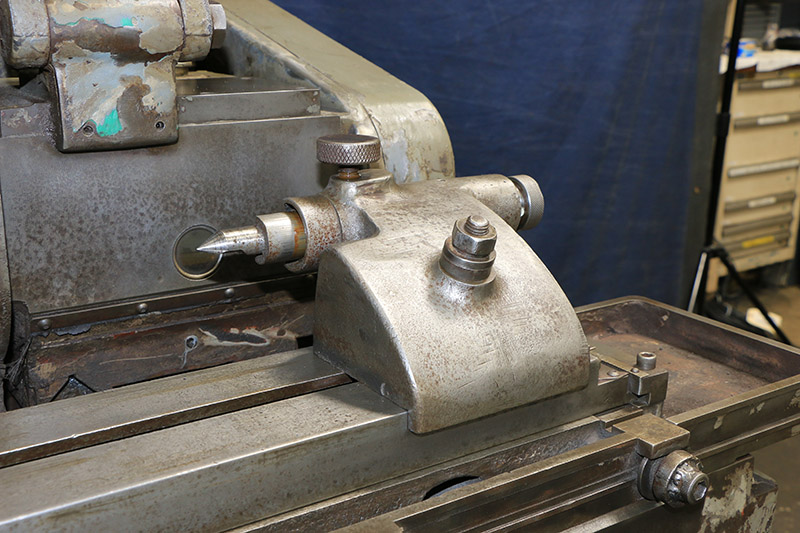

WORKHEAD& TAILSTOCK SPINDLE CENTER .......... #2 MT
WORKHEAD MOTOR .............................. 3/4 H.P.

APPROXIMATE MACHINE WEIGHT .................. 1,775 LBS

EQUIPPED WITH:
HAND FEEDS

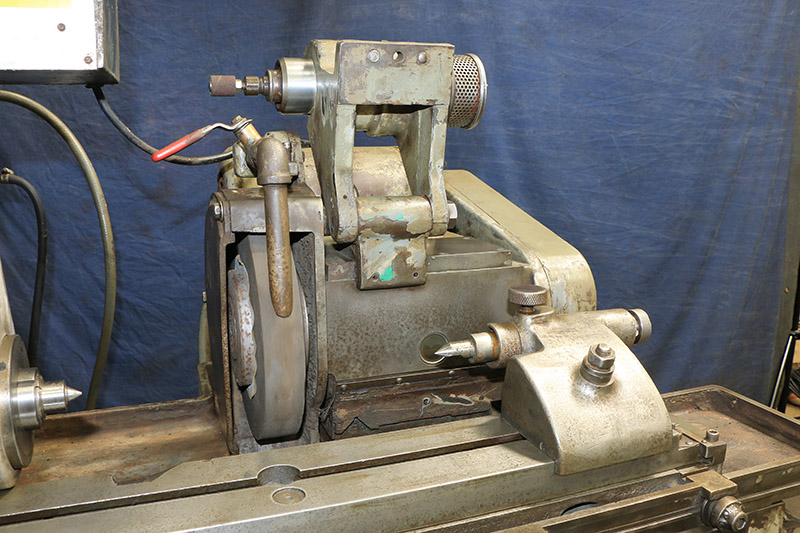

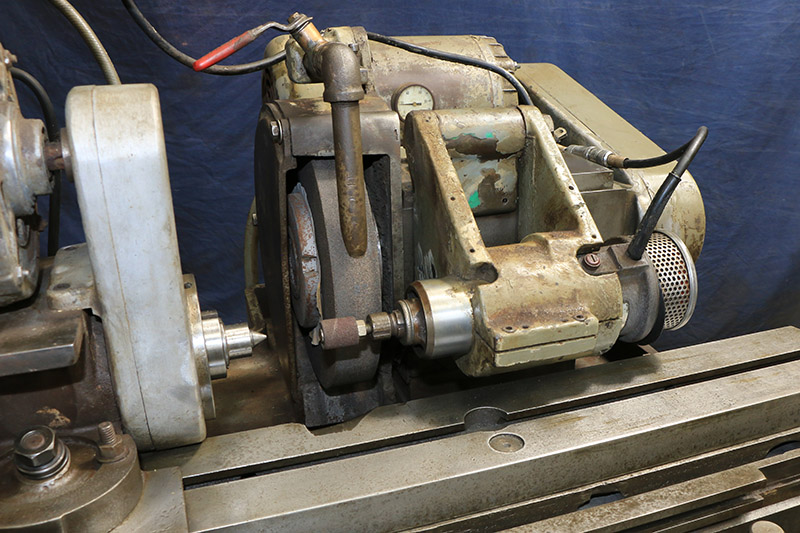

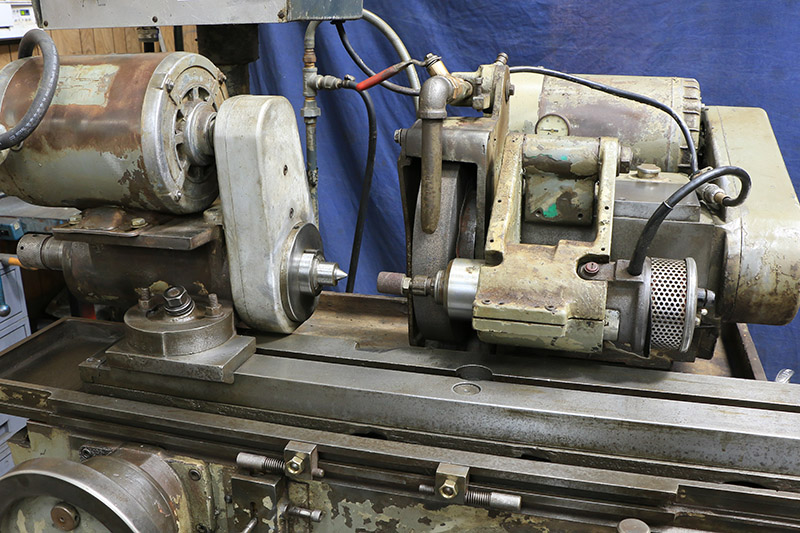

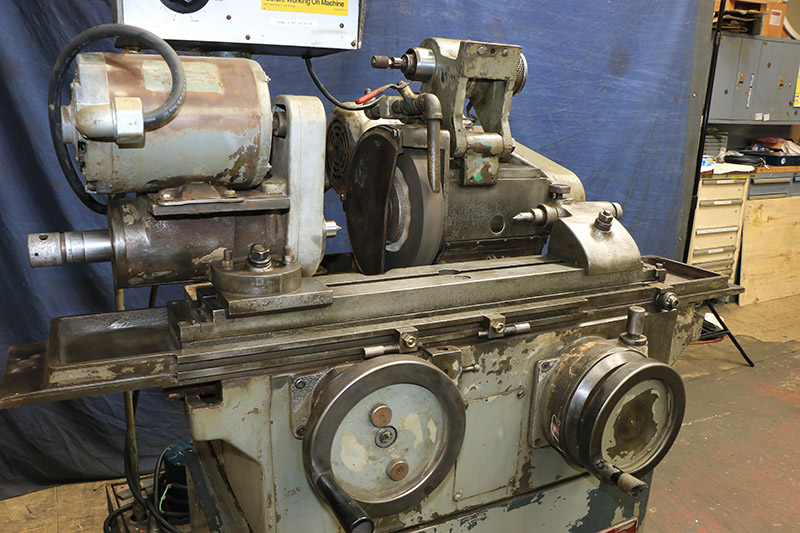

SWING DOWN INTERNAL GRINDING ATTACHMENT WITH "PRECISE" I.D. SPINDLE
I.D. SPINDLE IS COMPLETE WITH QUILL & WHEEL

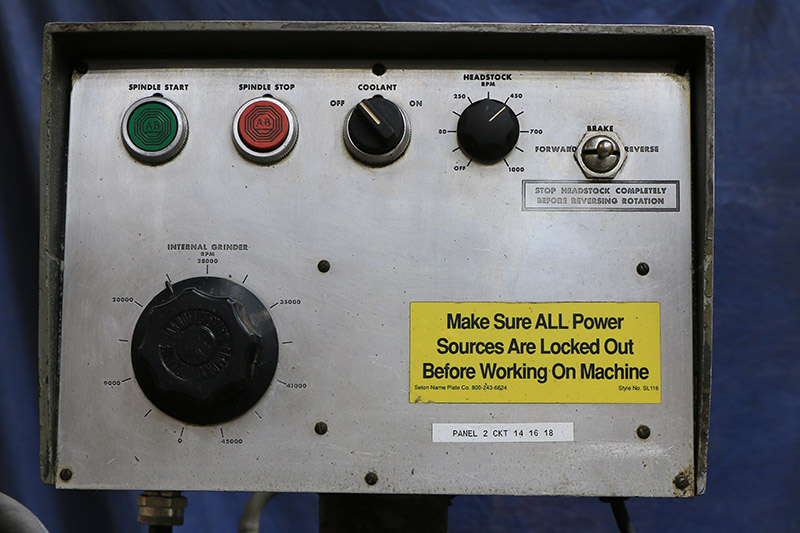

INFINITELY VARIABLE SPEED CONTROL FOR THE I.D. SPINDLE BY TURNING A KNOB
10" GRINDING WHEEL

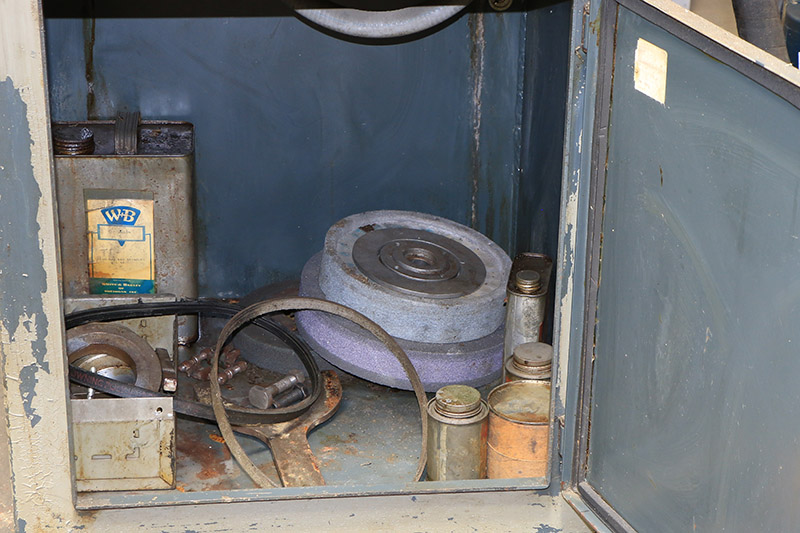

EXTRA GRINDING WHEELS AND AN EXTRA WHEEL HUB
WORKHEAD SWIVELS
DUAL LIVE/DEAD WORKHEAD SPINDLE
WORKHEAD SPINDLE SPEEDS ARE INFINITELY VARIABLE
5C COLLET DRAW BAR
CENTER IN WORKHEAD

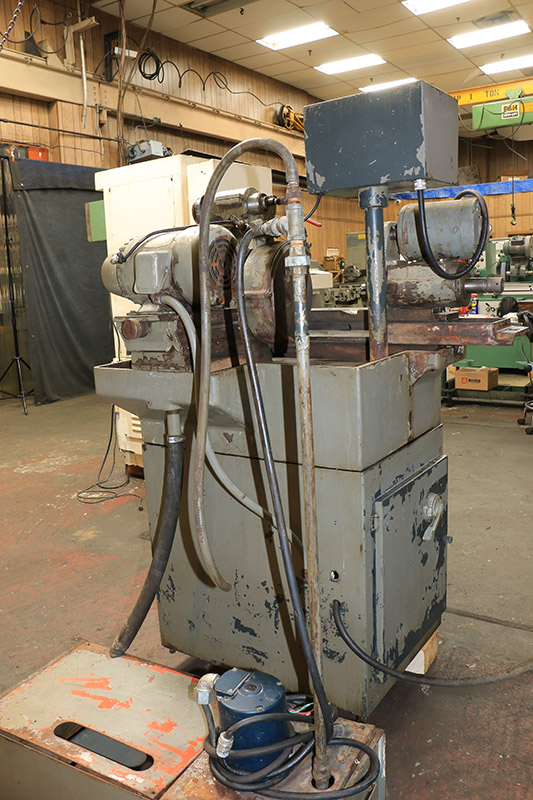

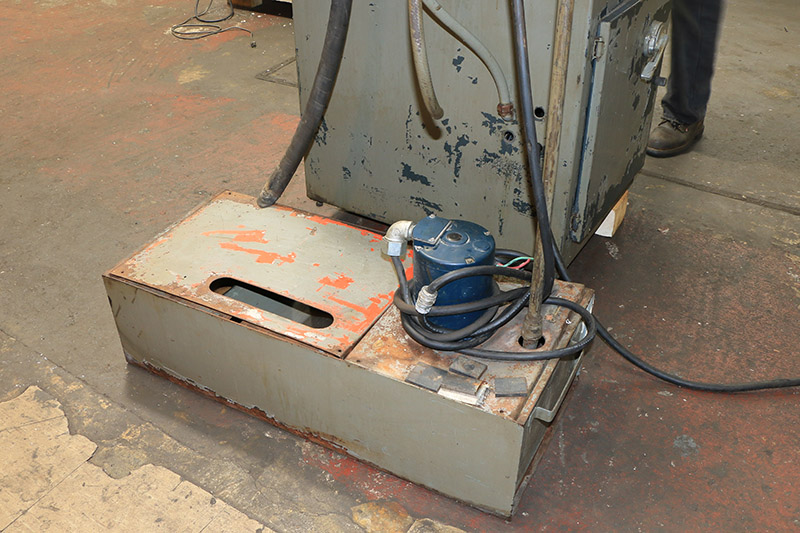

COOLANT SYSTEM
3/60/220-440 VOLT MOTORS
WIRED PRESENTLY FOR 220 VOLTS

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** VERY GOOD RUNNING CONDITION & APPEARANCE - SEE VIDEO **
