Clausing CSG-1224ASDIII, 2018, PROG. AUTO IDF, 3X AUTO FEED SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Clausing

Model:: CSG-1224ASDIII, 2018, PROG. AUTO IDF, 3X AUTO FEED

Year:: 2018

Ref #:: 178232

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

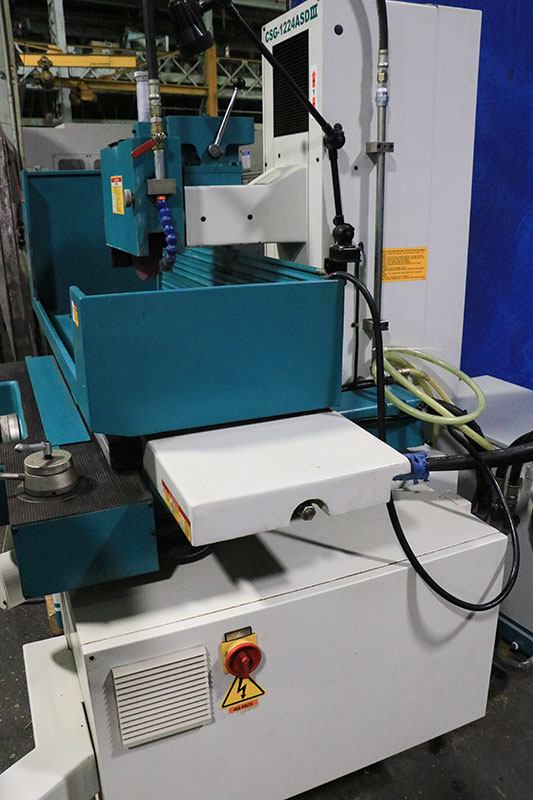

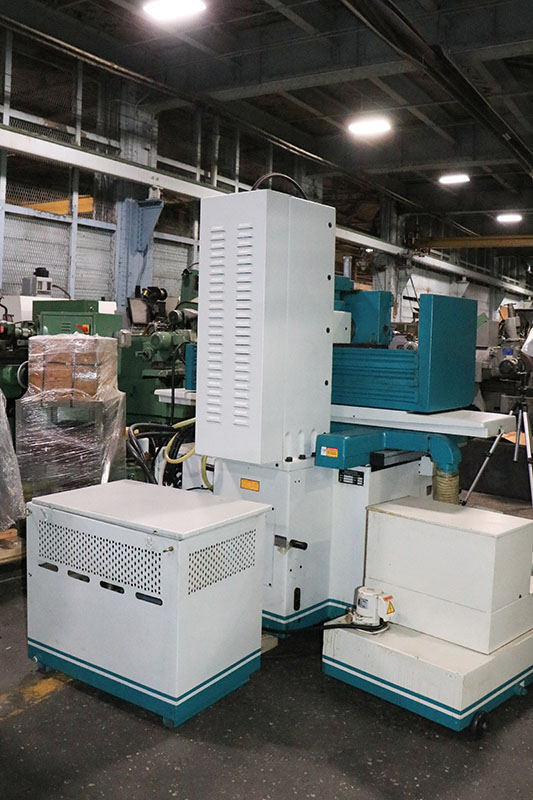

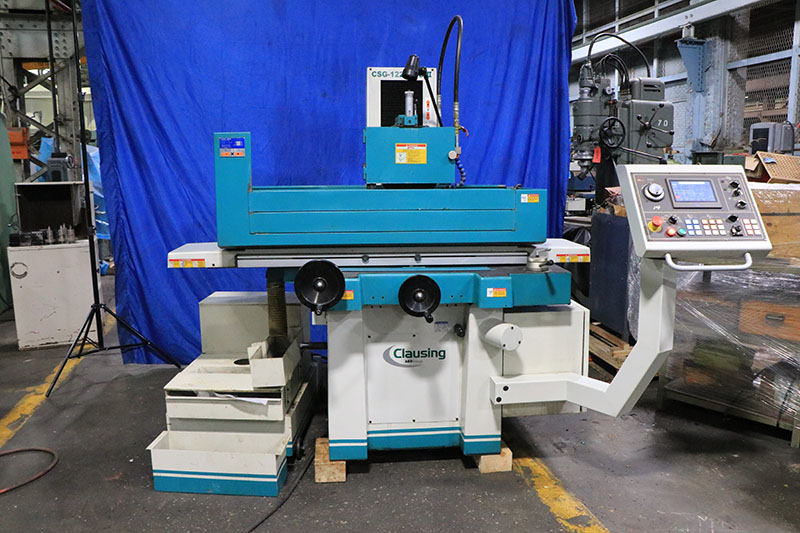

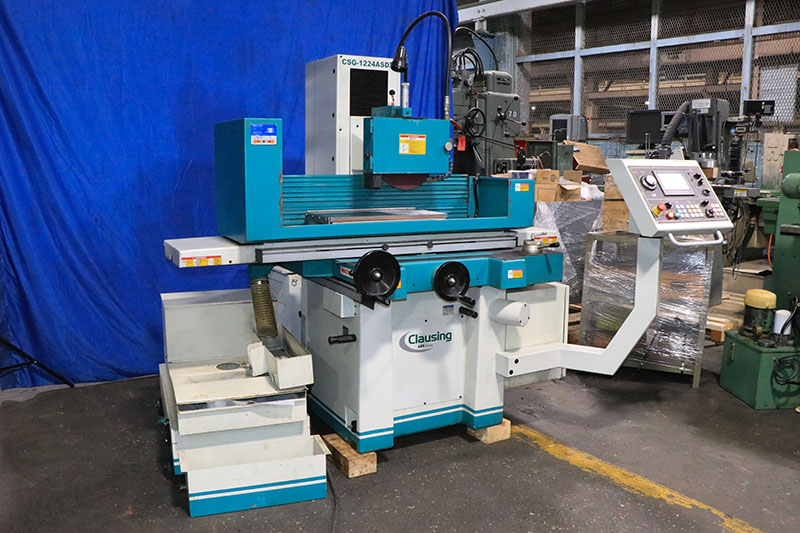

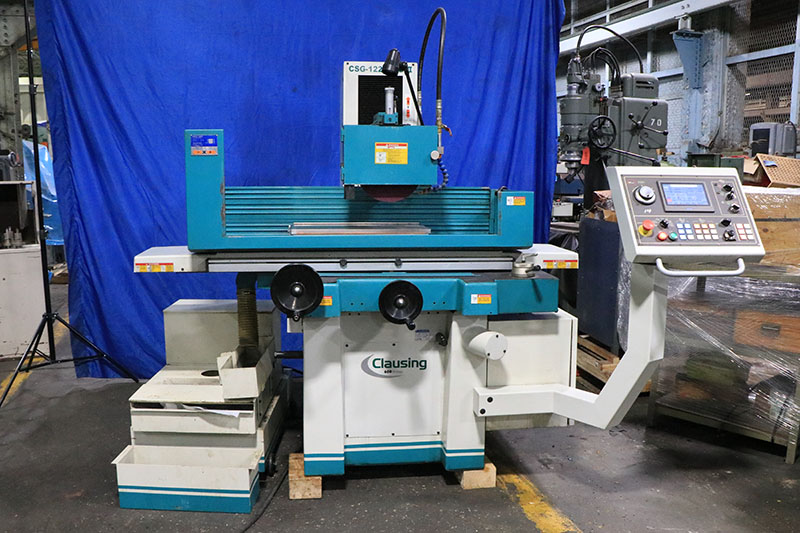

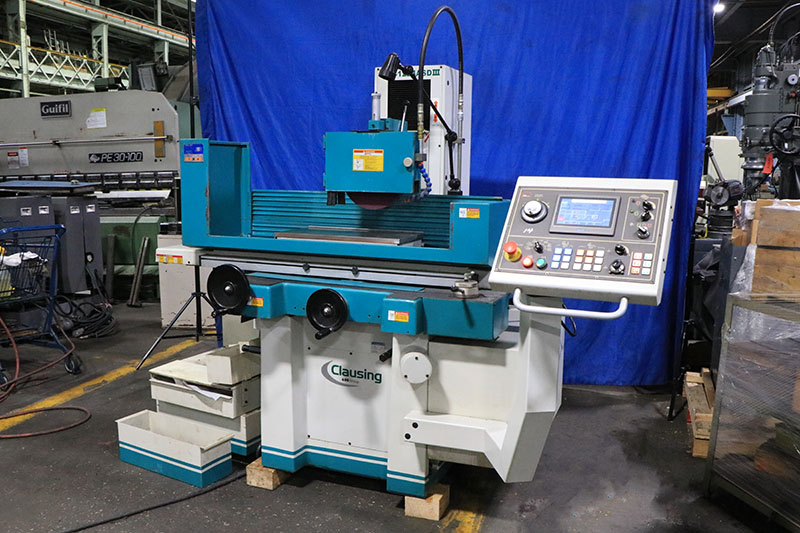

     12" x 24" CLAUSING "EQUIPTOP"
          "MADE IN TAIWAN"
   3-AXIS AUTOMATIC SURFACE GRINDER

"Delta PLC with 7.2" color screen,
equipped with conversational programming

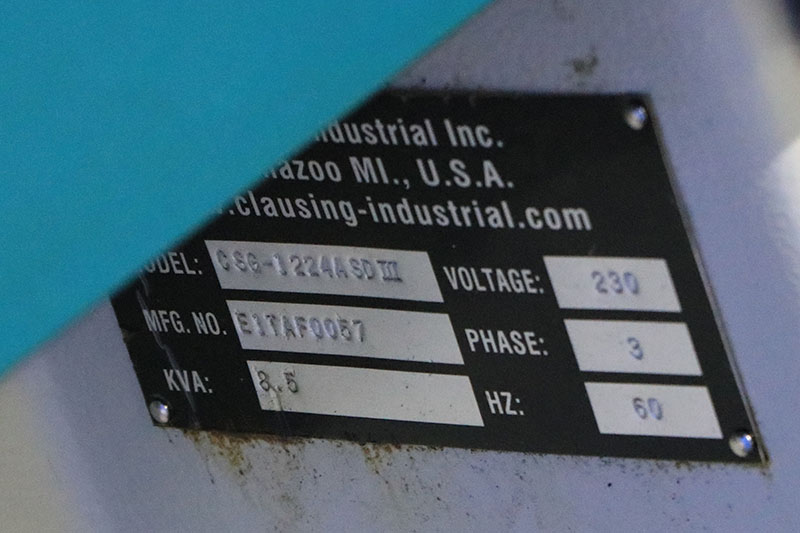

MODEL: CSG-1224ASDII     S/N: E1TAFOO57     NEW: 2018

TABLE SIZE ....................... 12" x 24"
MAX. DISTANCE FROM TABLE TO
 SPINDLE CENTERLINE .............. 23"

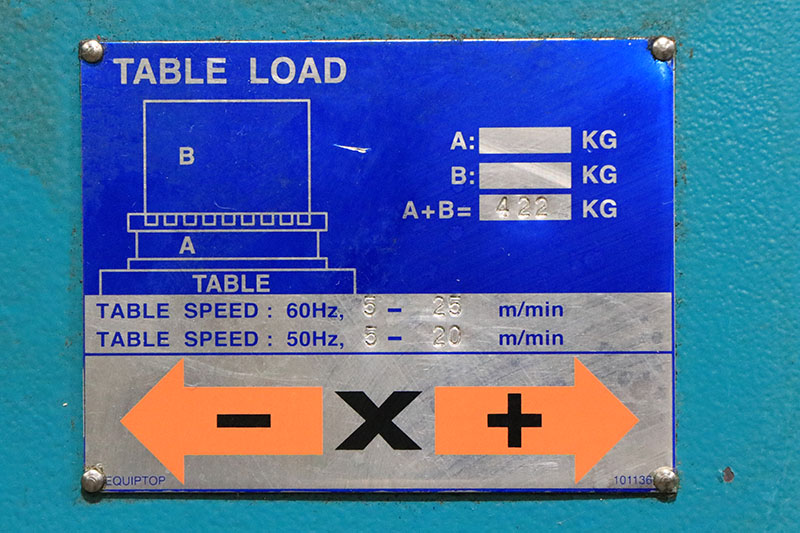

TABLE SPEED, INFIN. VARIABLE ..... 39.4" TO 984" IPM
MAX. TABLE TRAVEL, HYD. .......... 25.56"
MAX. TABLE TRAVEL, MANUAL ........ 28.75"
AUTO CROSSFEED INCREMENT ......... 0.04" TO 0.75"
AUTO CONSTANT FEEDING SPEED ...... 2.5" - 13" IPM
MAX AUTO CROSSFEDD TRAVEL ........ 12.2"
MAX. CROSSFEED, MANUAL ........... 13.4"

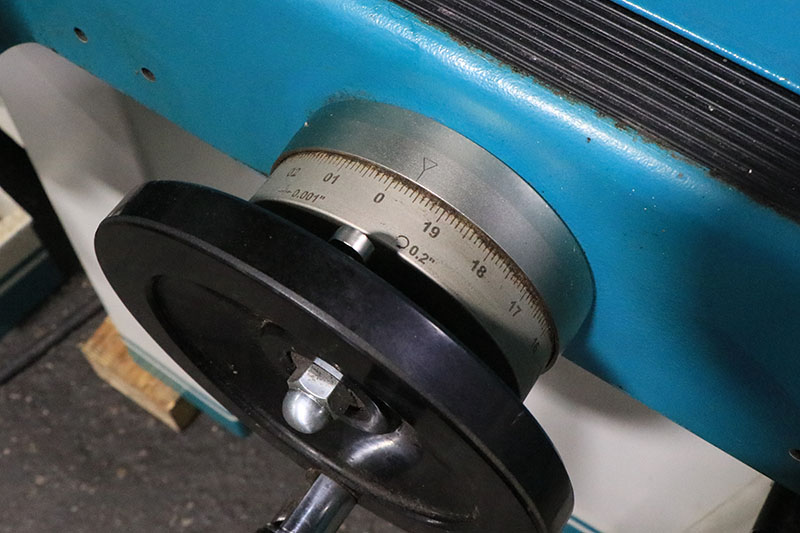

CROSSFEED HANDWHEEL, ONE REV. = .. 0.2"
CROSSFEED HANDWHEEL, GRAD. ....... 0.001"
AUTO INCREMENTAL DOWNFEED ........ 0.00005" TO .0025"
STEP FEED (JOG) .................. 0.00005"
RAPID TRAVERSE RATE .............. 6" IPM
MINIMUM DISPLAY VALUE (REV.) ..... 0.0001"
MINIMUM DISPLAY VALUE (GRAD.) .... 0.0001"
GRINDING SPINDLE DRIVE SPEED ..... 1,750 RPM
STD. GRINING WHEEL ............... 12" x 1.25"W x 3"B


WEIGHT APPROX .................... 5,038 LBS.
APPROX. DIMS. .................. 90"L-R x 61"F-B x 71"H
APPROX. FLOOR SPACE FOR OPS .... 106.3" x 63"D X 73"H

 MACHINE FEATURES:

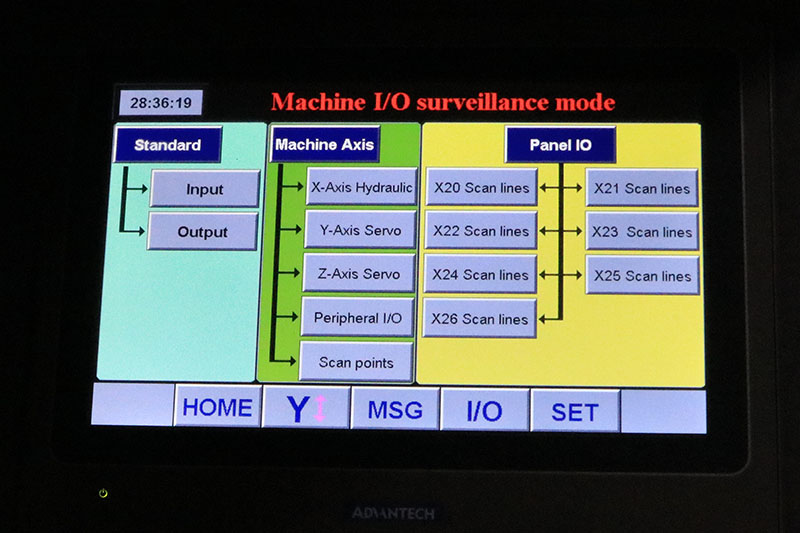

- "Delta PLC with 7.2" color screen, equipped
    with conversational program language:

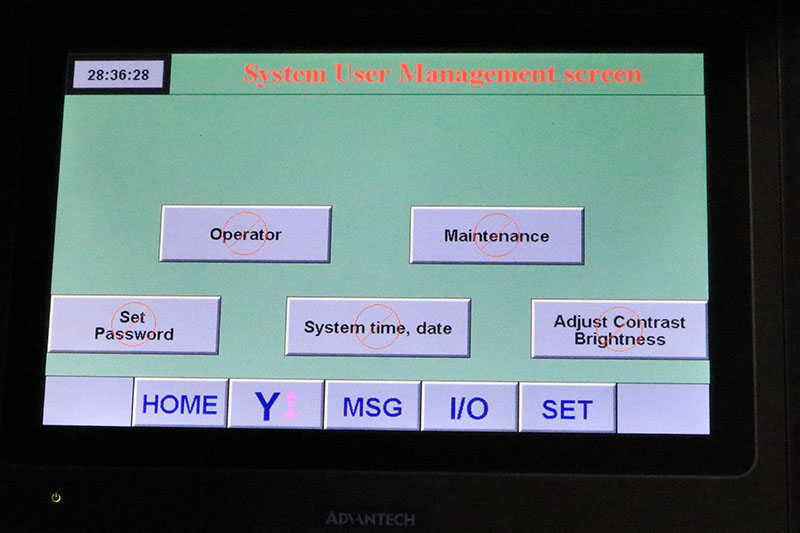

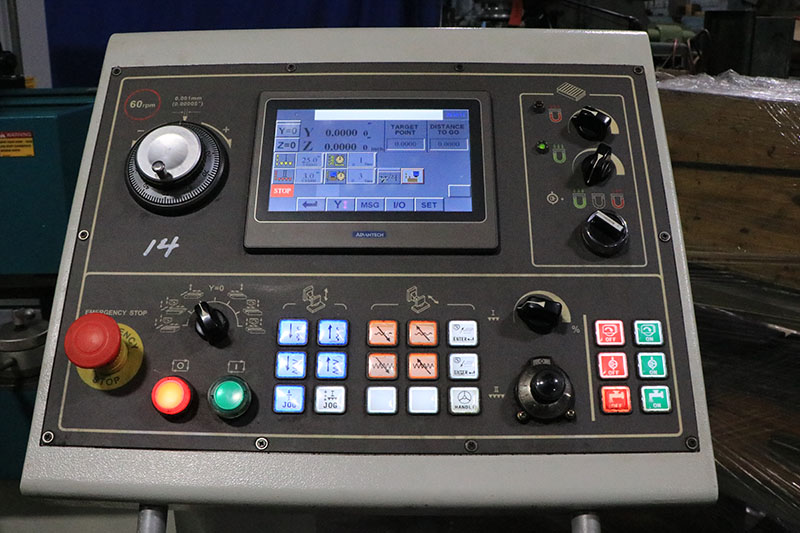

- "Simple and clear digital display & touch
     control panel for easy learning
     and operation."

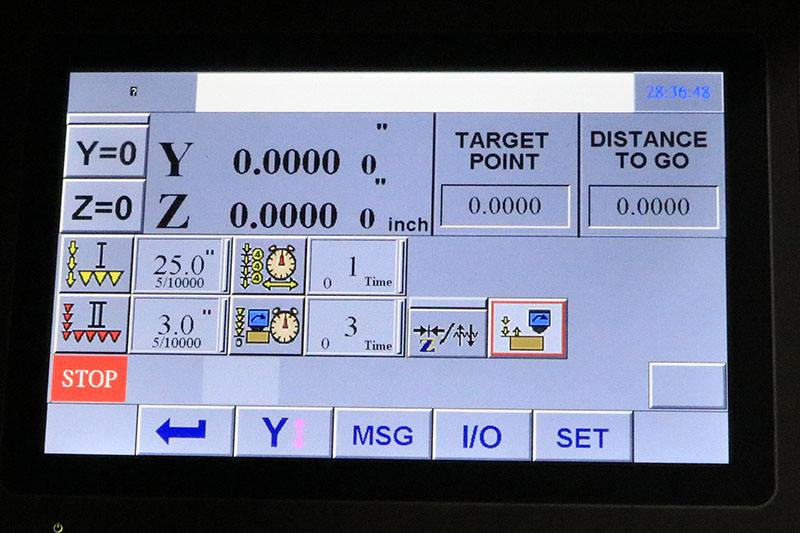

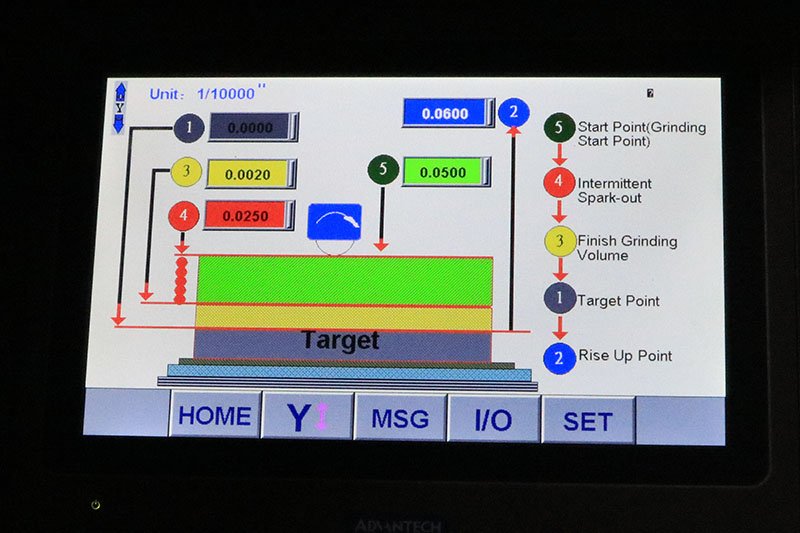

- "Vertical positioning is displayed on the
    screen  showing present spindle and setting
    the start point, rough grinding volume,
    finish grinding volume,  downfeed volume
    for finish grinding, target point,
    rise up point, intermittent spark-out."
-  "Vertical feed powered by dual motors,
    AC motor for rapid up/down and stepping motor
    for micro downfeed positioning, slow auto
    downfeed and slow up/down."


- AUTO INCREMENTAL DOWNFEED RATE:  0.00005" TO 0.0025"


  ROBUST CAST IRON CONSTRUCTION
  WIDE BASE FOR INCREASED GRINDING STABILITY & ACCURACY
  3-AXIS AUTOMATIC OPERATION
  HYDRAULIC TABLE FEED WITH PRE-SET SPEED FEATURE
  ELECTRONIC CROSSFEED, STEP & CONTINUOUS FEED CHOICES
  BALLSCREW FOR CROSS MOVEMENT, POWERED BY DC SERVO MOTOR
  TURCITE-B ON TABLE & SADDLE WAYS FOR INCREASED WAY
    LIFE & LOW FRICTION


 EQUIPPED WITH:
- 5 H.P. GRINDING SPINDLE MOTOR

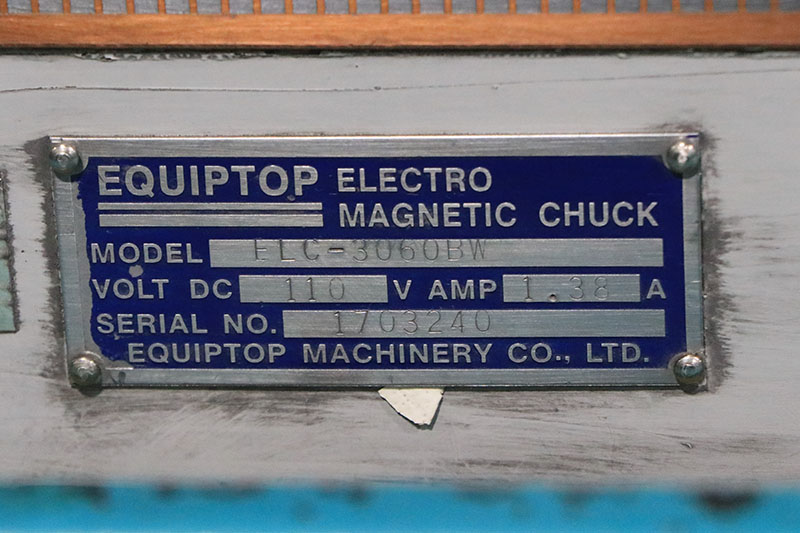

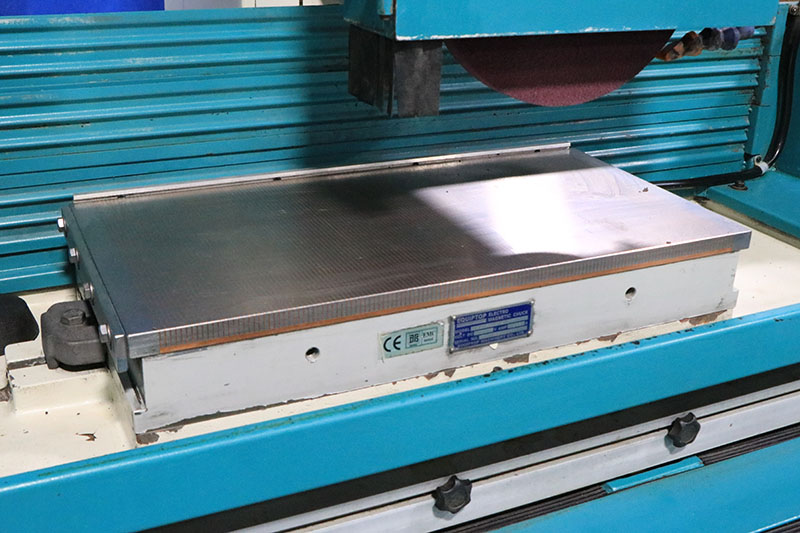

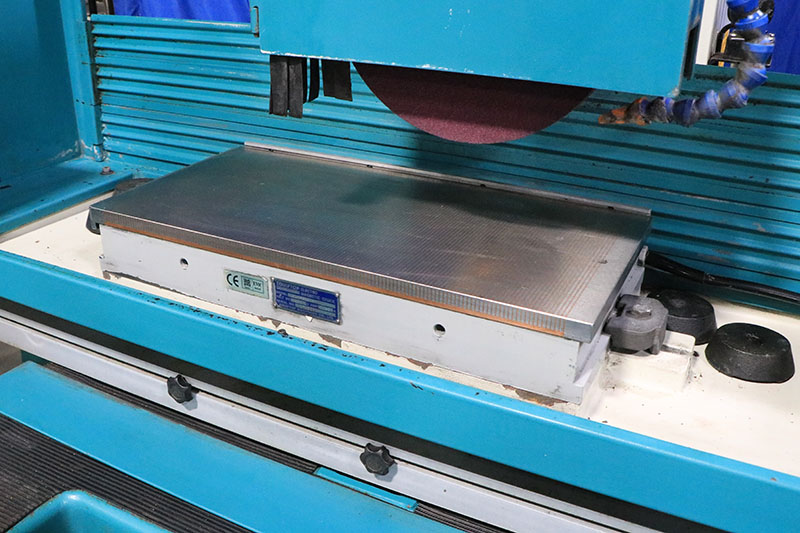

- 12" x 24" FINE-DIVISION CROSS POLE
    ELECTRO-MAGNETIC CHUCK
- VARIABLE HOLD NEUTROFIER CHUCK CONTROL

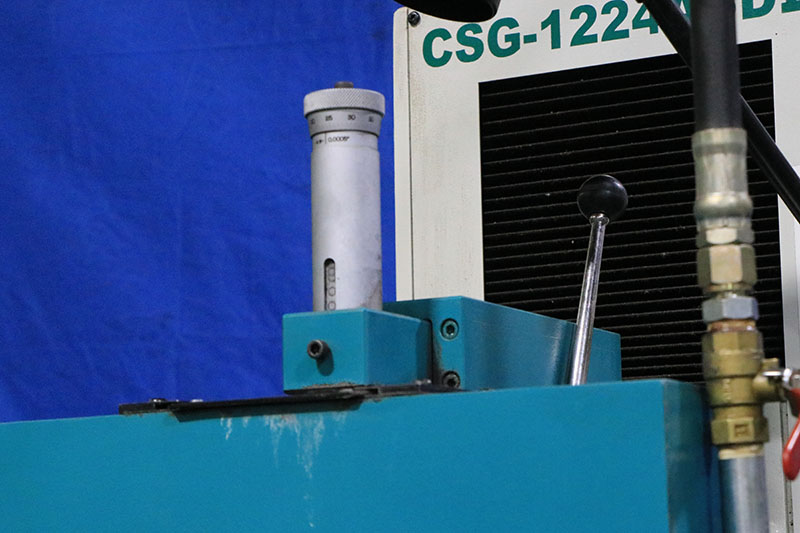

- MANUAL OVER THE WHEEL DRESSER WITH MICROMETER ADJUSTMENT

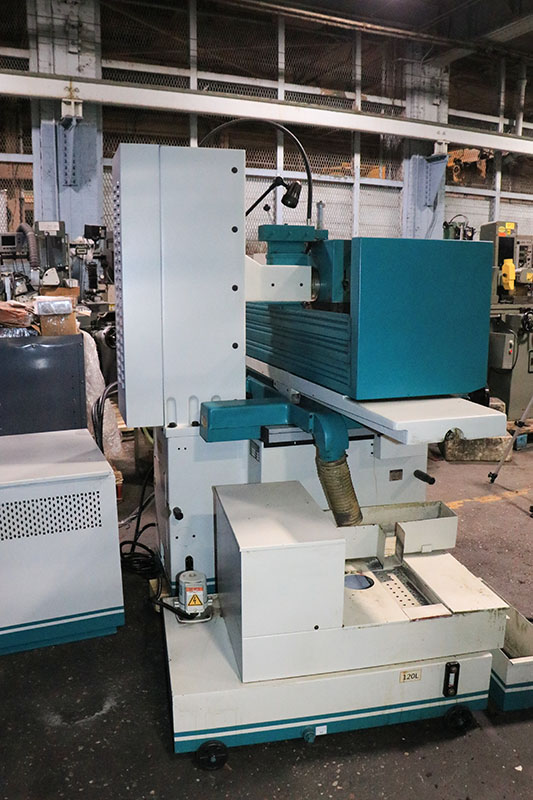

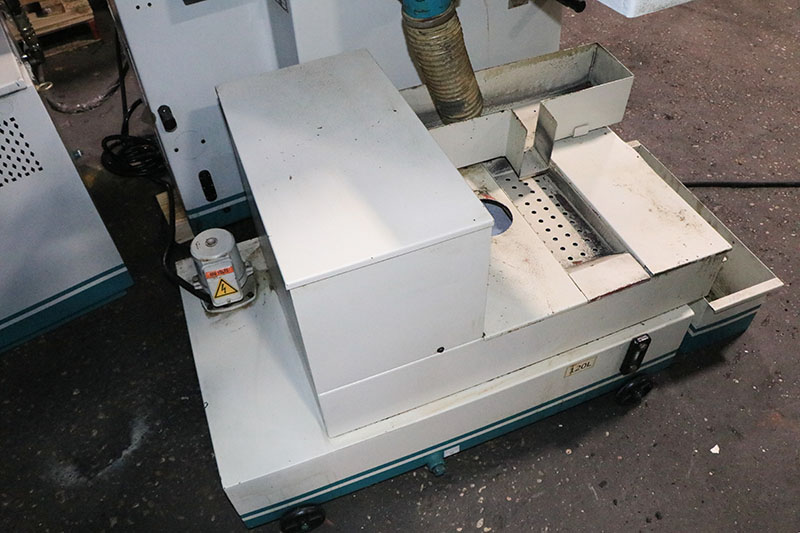

- COOLANT SYSTEM WITH PAPER FILTRATION
- MACHINE IS PRESENTLY WIRED FOR 3/60/230 VOLTS

 LINK TO VIDEO: https://youtu.be/Ev_hLKIw3CA?si=U0bnz7sJRANjBOa7

** SUPERIOR CONDITION & APPEARANCE - ORIGINAL PAINT **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
