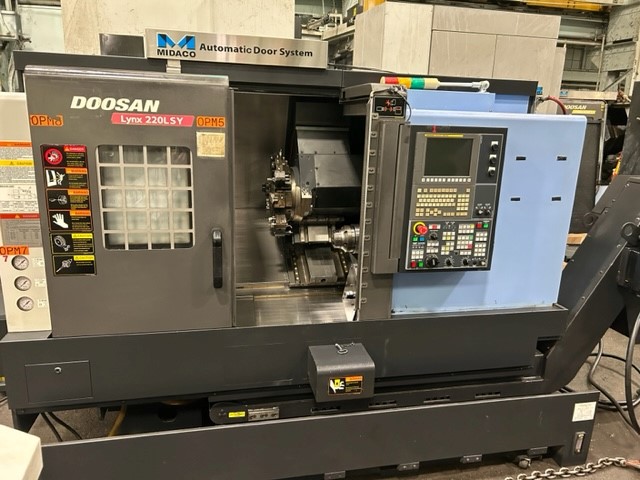

Doosan LYNX 220LSY CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:
Doosan
Model:
LYNX 220LSY
Year:
2013
Ref #:
164038

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com


DOOSAN LYNX 220 LYSA MULTI AXIS CNC TURNING CENTER
NEW: 2013

SPECIFICATIONS:
SWING OVER BED ................. 23.6"
SWING OVER SADDLE .............. 15.7"
MAX. TURNING DIAMETER .......... 11.8"
MAX. TURNING LENGTH ............ 20.1"
CHUCK SIZE ..................... 6"
BAR WORKING DIAMETER ........... 2"
X-AXIS TRAVEL .................. 8.1"
Y-AXIS TRAVEL .................. 4.1" +/-2.1"
Z-AXIS TRAVEL .................. 22.0"
RAPID TRAVERSE RATE X/Y/Z ...... 1181/394/1417 IPM
MAX. SPINDLE SPEED, MAIN ....... 6000 RPM
MAIN SPINDLE MOTOR ............. 20/15 HP
SPINDLE NOSE ................... A2-5
MIN. SPINDLE INDEXING ANGLE .... 0.001 DEG.

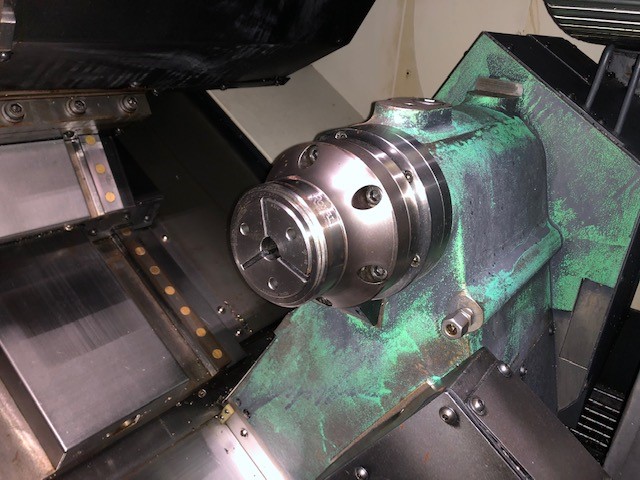

MAX. SPINDLE SPEED, SUB ........ 6000 RPM
SUB SPINDLE MOTOR .............. 7.5/5 HP
SPINDLE NOSE ................... FLAT
SPINDLE THROUGH HOLE DIA. ...... 1.7"
MIN. SPINDLE INDEXING ANGLE .... 0.001
NO. OF TOOL STATIONS ........... 12 (24 POSITION INDEX)
OD TOOL SIZE ................... 0.8"
MAX. BORING BAR SIZE ........... 1.3"
MAX. ROTARY TOOL SPEED ......... 6000 RPM
ROTARY TOOL MOTOR .............. 5 HP
APPROX. MACHINE WEIGHT ......... 9250 LBS

EQUIPPED WITH:

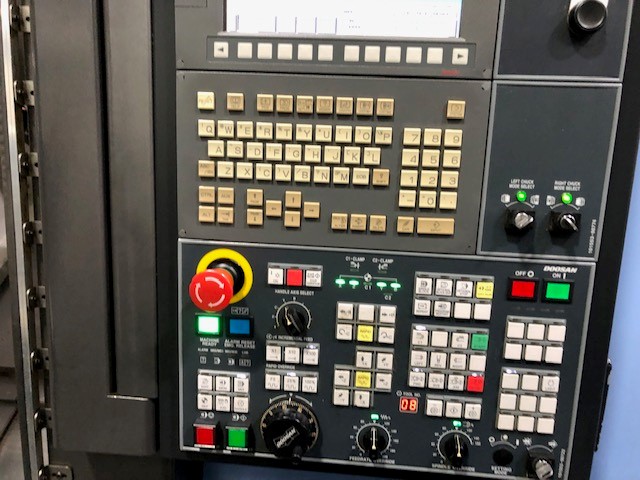

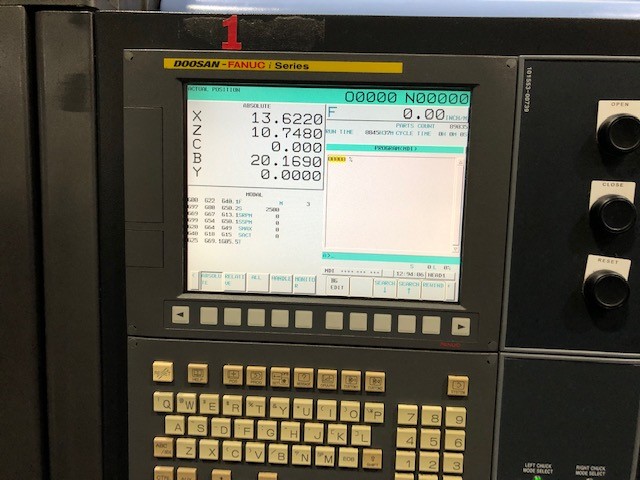

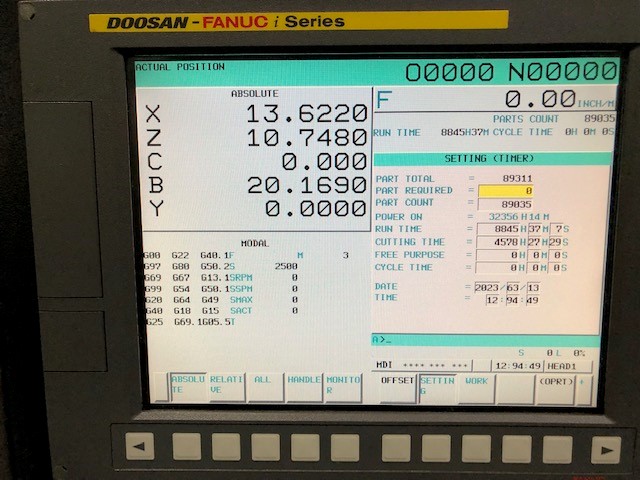

 - DOOSAN FANUC i SERIES CONTROL
 - Y-AXIS, FULL C-AXIS ON MAIN AND SUBSPINDLES
 - TOOLSETTER
 - ROYAL QUICK GRIP COLLET CHUCKS FOR MAIN & SUB
 - 24 TOOL CAPABLE BMT TURRET
 - PARTS CATCHER, PARTS CONVEYOR
 - LNS CHIP CONVEYOR

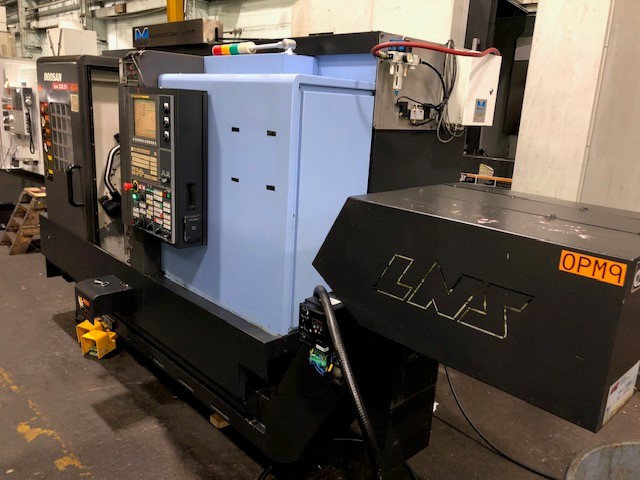

 - LNS ALPHA 552 MAGAZINE BARFFED
 - ALL AVAILABLE STATIC TOOL HOLDERS
 - ALL AVAILABLE MANUALS

** Machine does not have Parts Catcher or Parts Conveyor **
