Fanuc ROBOCUT 1-iE, 2010, AWT, FANUC 31i-WA CNC WIRE EDM MACHINES

Price on Request

Make:: Fanuc

Model:: ROBOCUT 1-iE, 2010, AWT, FANUC 31i-WA CNC

Year:: 2010

Ref #:: 179527

Or call us for a quote at (973) 497-7500 or send us an email at edms@machineryvalues.com

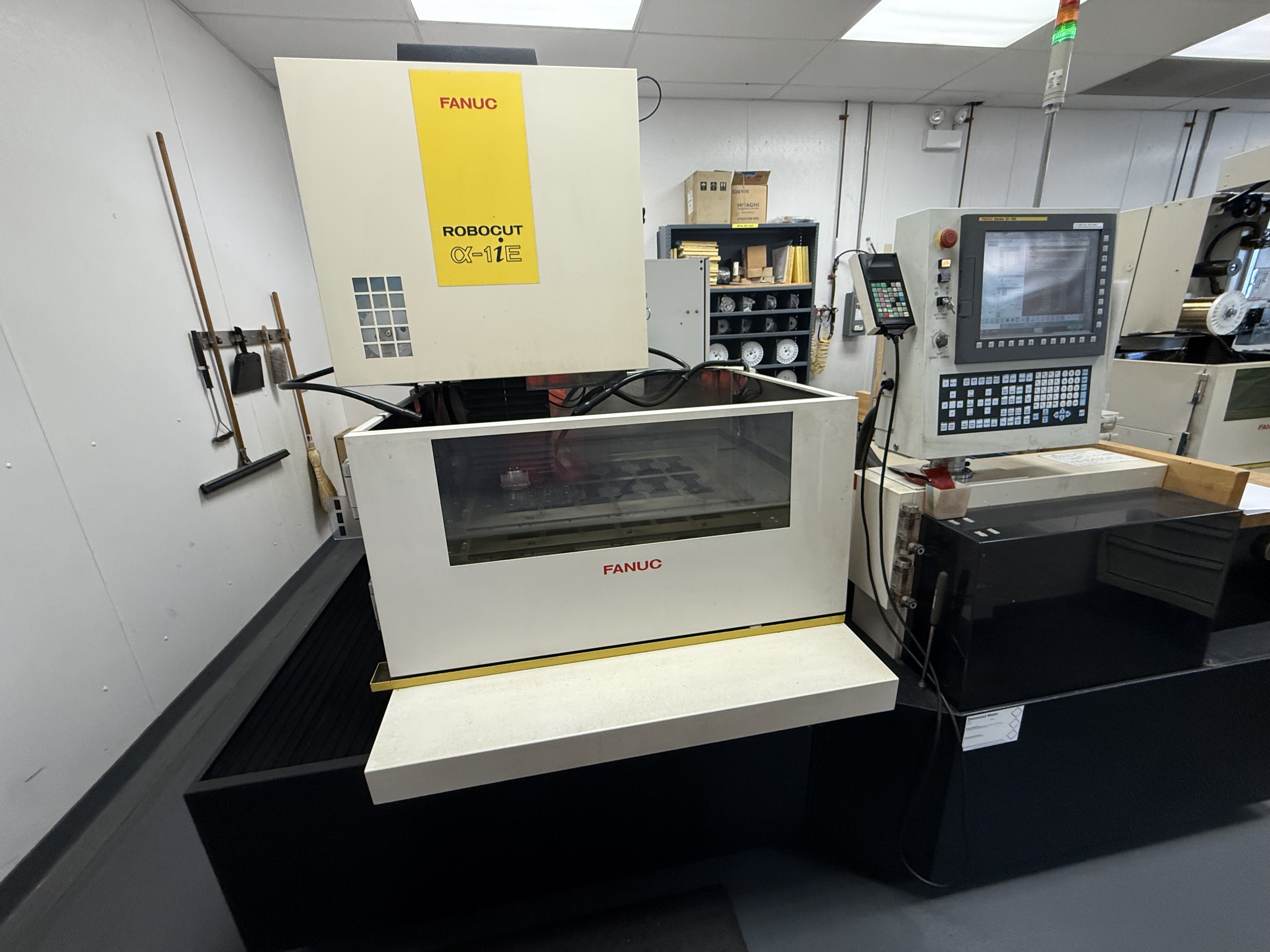

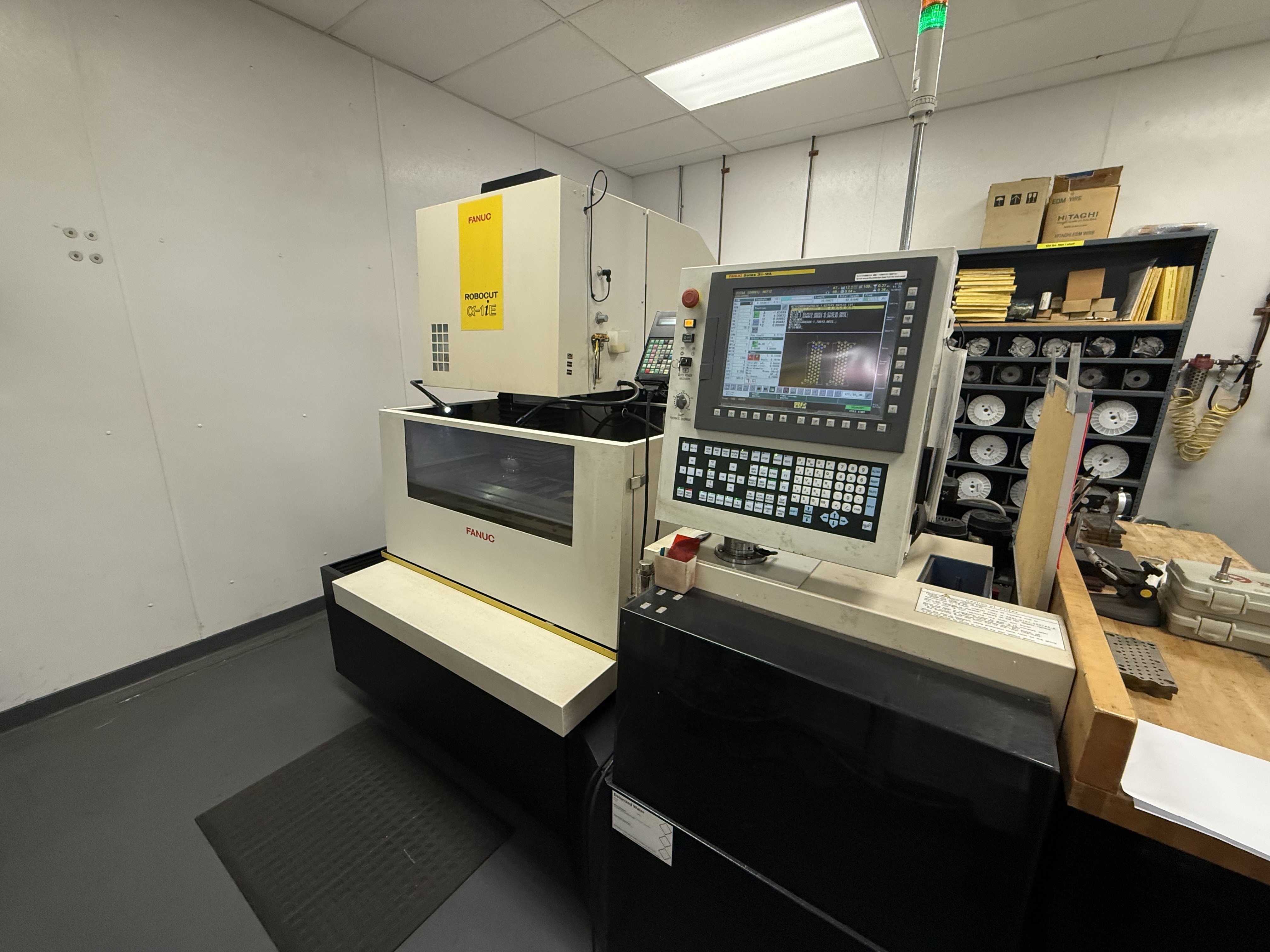

FANUC ROBOCUT ALPHA 1iE CNC WIRE EDM
   **** MADE IN JAPAN ****

         NEW: 2010

Travels:
23.6"X
15.7"Y
11.8"Z
U/V Travel: +/- 3.937"
Taper Angle:  +/- 16° @ 12"

44" x 32.3" x 12.1" Internal Tank Size
44" x 32" x 12" Maximum Workpiece Dims.
Work Table Size:  35.4" x 23.6"
Max. Workpiece Weight:  3,350 Lbs.

Factory Rated Cutting Speed:  31 sq/in/hr
Wire Diameter Sizes Available:  0.004" - 0.012"
Max. Workpiece AWF Height:  12.0"

Approx. Floor Space"  131" x 131" x 85"H
Approx. Machine Weight:  6,700 Lbs.



MACHINE FEATURES:

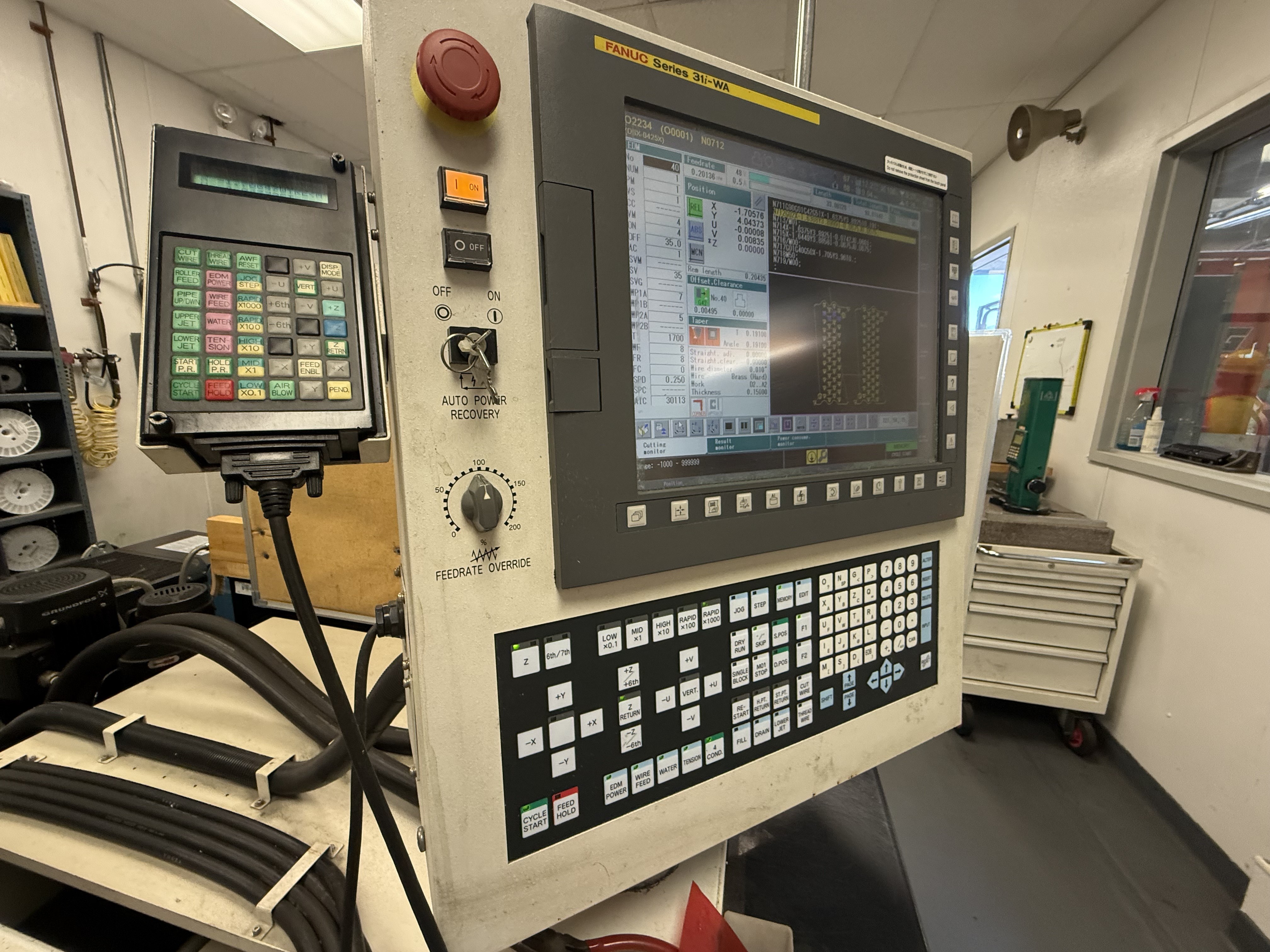

FANUC SERIES 31i-WA CNC CONTROL
 5-AXIS PROGRAMMABLE
 0.00004" RESOLUTION
 15” LCD SCREEN
 OPERATION GUIDANCE FUNCTION
 USB I/O
SUBMERGED MACHINING
ADVANCED “AWF2” AUTOMATIC WIRE THREADING
 ENABLING SAFE UNMANNED OPERATION
HIGH-PERFORMANCE CNC COUPLED WITH DIGITAL SERVO TECHNOLOGY
X-Y GLASS SCALE FEEDBACK
PROGRAMMABLE POWER Z
ADVANCED PENDANT
HIGH-RIGIDITY CASTING & A THERMAL INSULATION STRUCTURE
IGHLY ECONOMIC EFFICIENCY
LONGER CONSUMABLES LIFE
LOW RUNNING COST
POWER CONSUMPTION MONITOR
SMALL INSTALLATION SPACE
HIGH PRECISION, TWIN SERVO WIRE TENSION CONTROL,
INVERTER-CONTROLLED WATER TEMPERATURE MANAGEMENT
UPGRADED A1 PULSE CONTROL
 UPGRADED FINISH CUTTING GENERATOR
WATER CHILLER

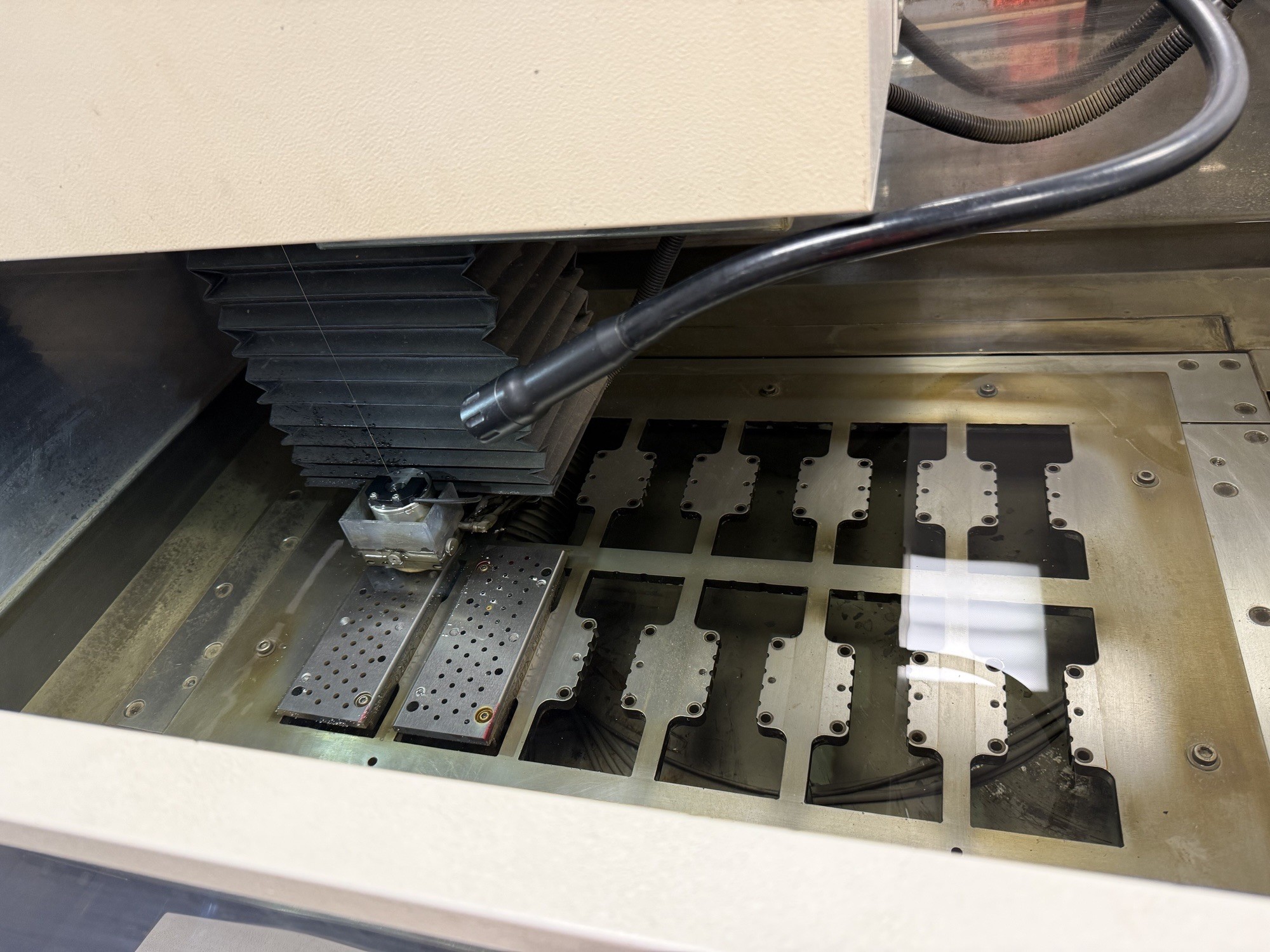

STAINLESS STEEL WORK TANK


** INSPECT IN NEW ENGLAND SHOP **
** PRICE INCLUDES PROFESSIONAL DE-INSTALL BY FANUC/METHODS **
** SUPERIOR CONDITION & APPEARANCE **
