Makino U3, 2022, Hyper-i-CNC, Glass Scales X-Y, AWT WIRE EDM MACHINES

Price on Request

Make:: Makino

Model:: U3, 2022, Hyper-i-CNC, Glass Scales X-Y, AWT

Year:: 2022

Ref #:: 179560

Or call us for a quote at (973) 497-7500 or send us an email at edms@machineryvalues.com

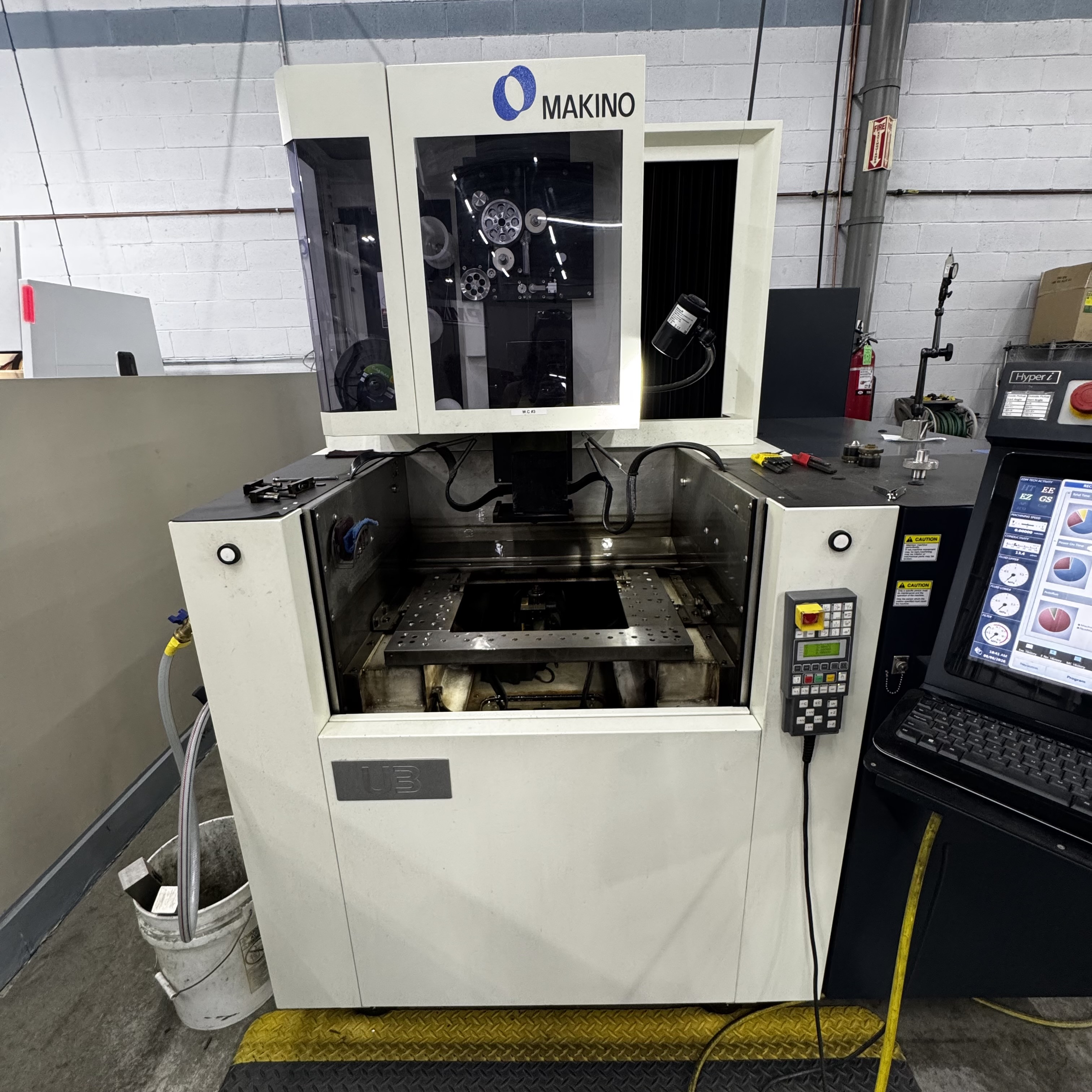

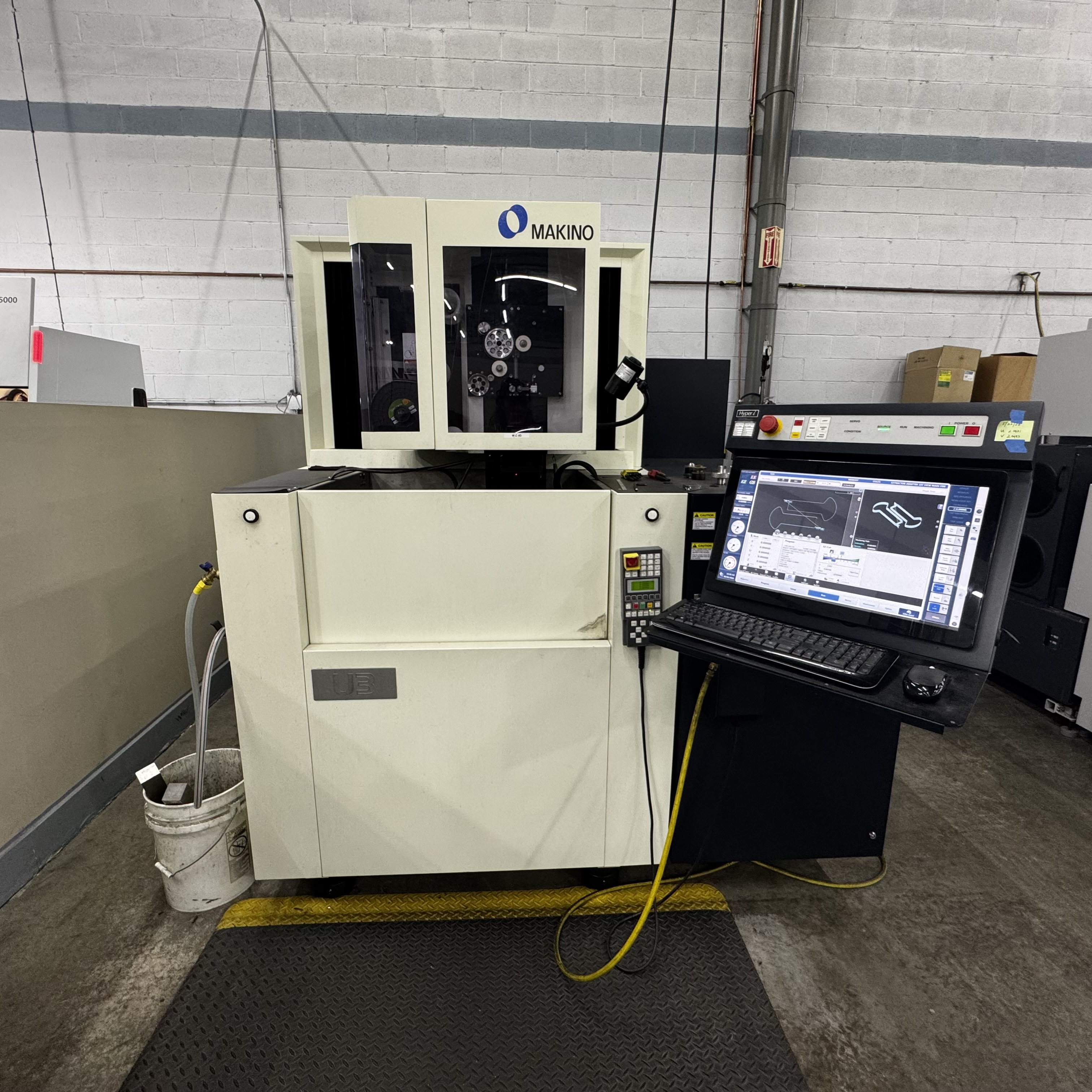

  MAKINO "U3" CNC WIRE EDM
WITH "HYPER-i-CNC" CONTROL

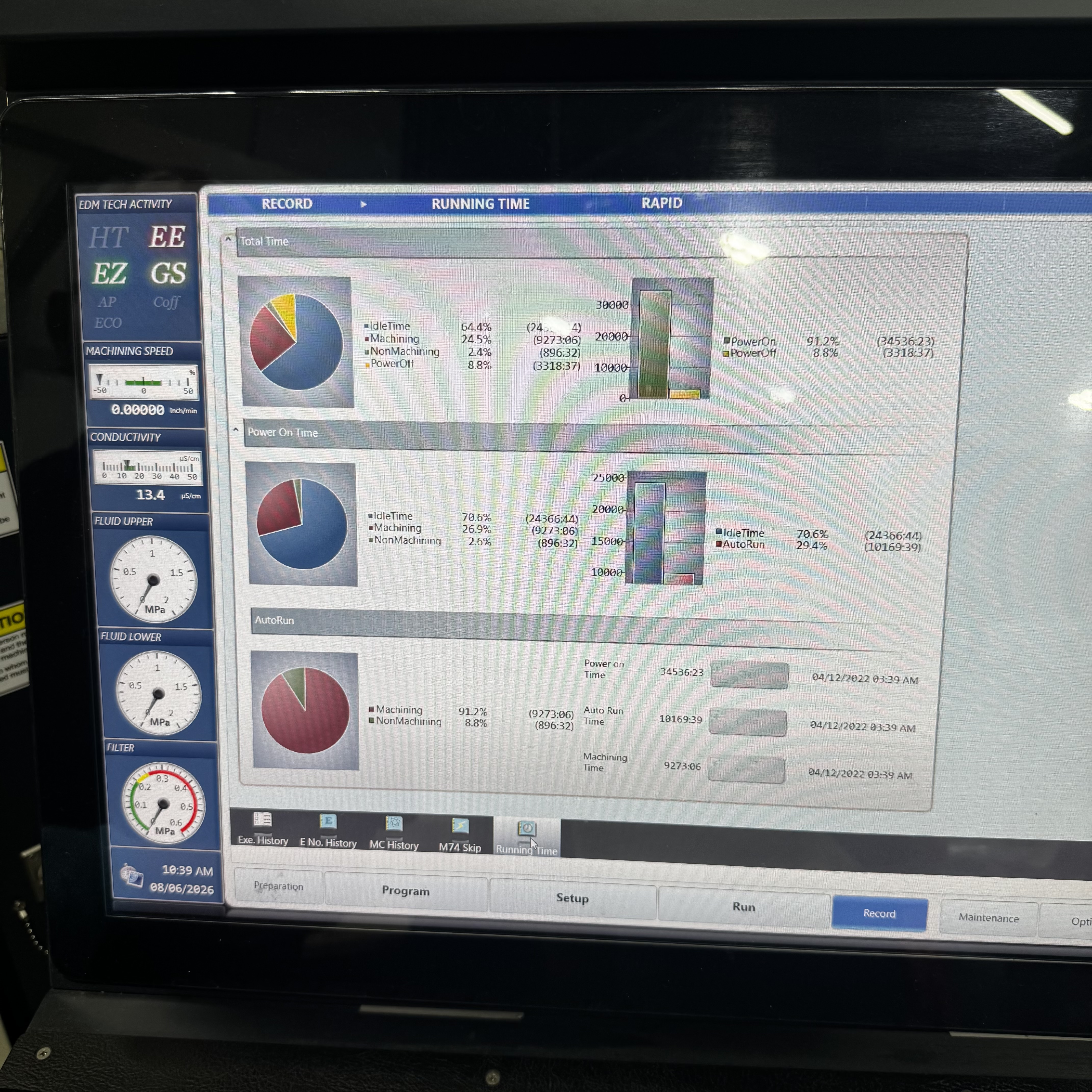

9,273 HOURS MACHINING TIME

SPECIFICATIONS:

X-AXIS TRAVEL................ 14.6"
Y-AXIS TRAVEL................ 10.6"
Z-AXIS TRAVEL................ 8.7"
GLASS SCALE FEEDBACK ........ X & Y
U/V AXIS TRAVEL ............. 2" x 2"
MAX TAPER ANGLE @ 3.94" ..... +/- 15°
TANK SIZE.................... 31.1" X 24.1"
TABLE SIZE................... 24.8" X 17.7" (3-SIDED)
MAX WORKPIECE SIZE........... 30.3" X 23.2" X 8.7"
MAX WORKPIECE WEIGHT......... 1,323 LBS
WIRE DIAMETER................ 0.004" - 0.012"

APPROX. DIMS. ............... 91" x 77" x 83"
APPROX. WEIGHT .............. 7,054 LBS.

EQUIPPED WITH:
HYPER-i-CNC CNC CONTROL
LARGE 24" HD TOUCH SCREEN DISPLAY
LOW WIRE CONSUMPTION TECHNOLOGY
AUTOMATIC WIRE THREADING UNIT (AWT)
MICRON SCALE FEEDBACK (X/Y)

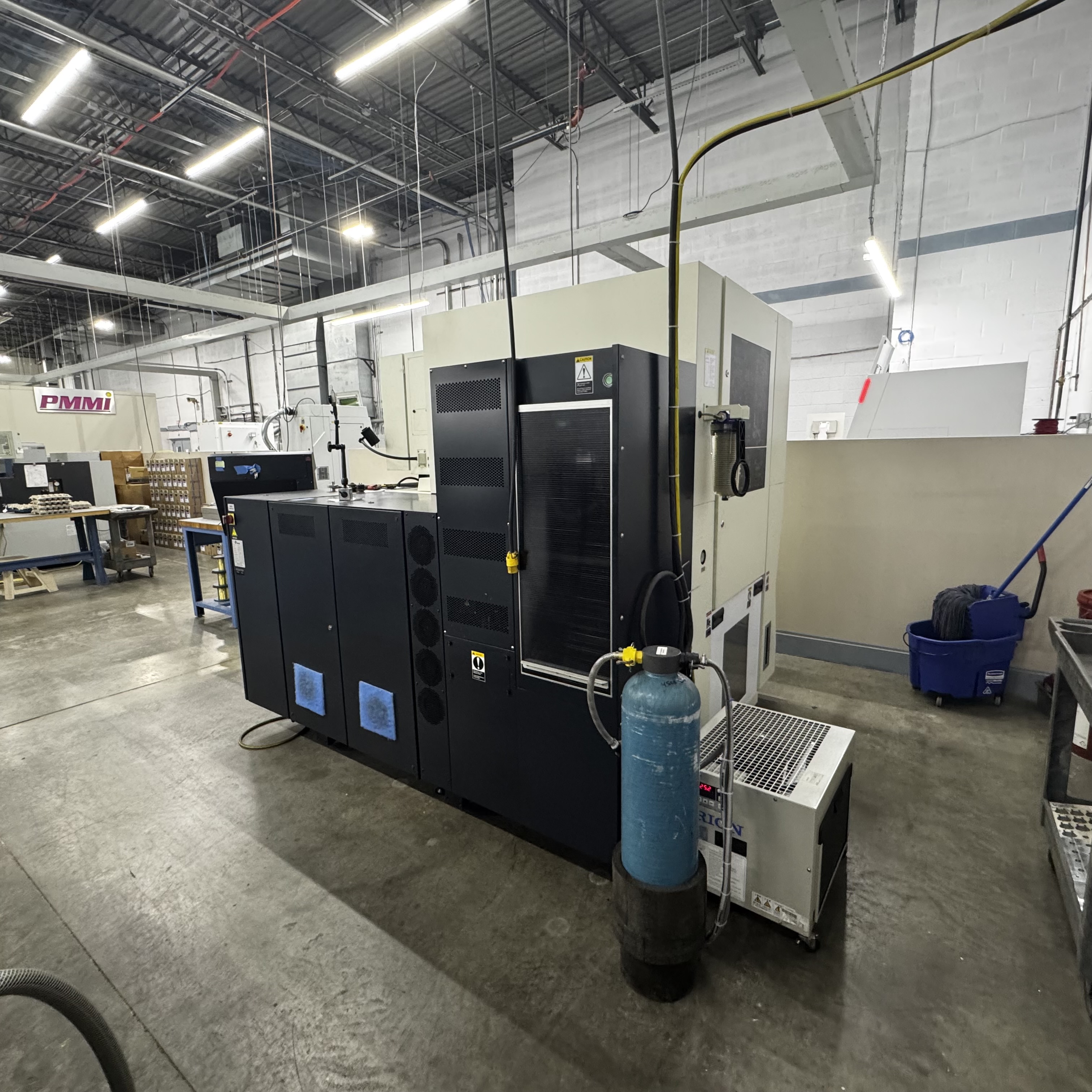

CHILLER

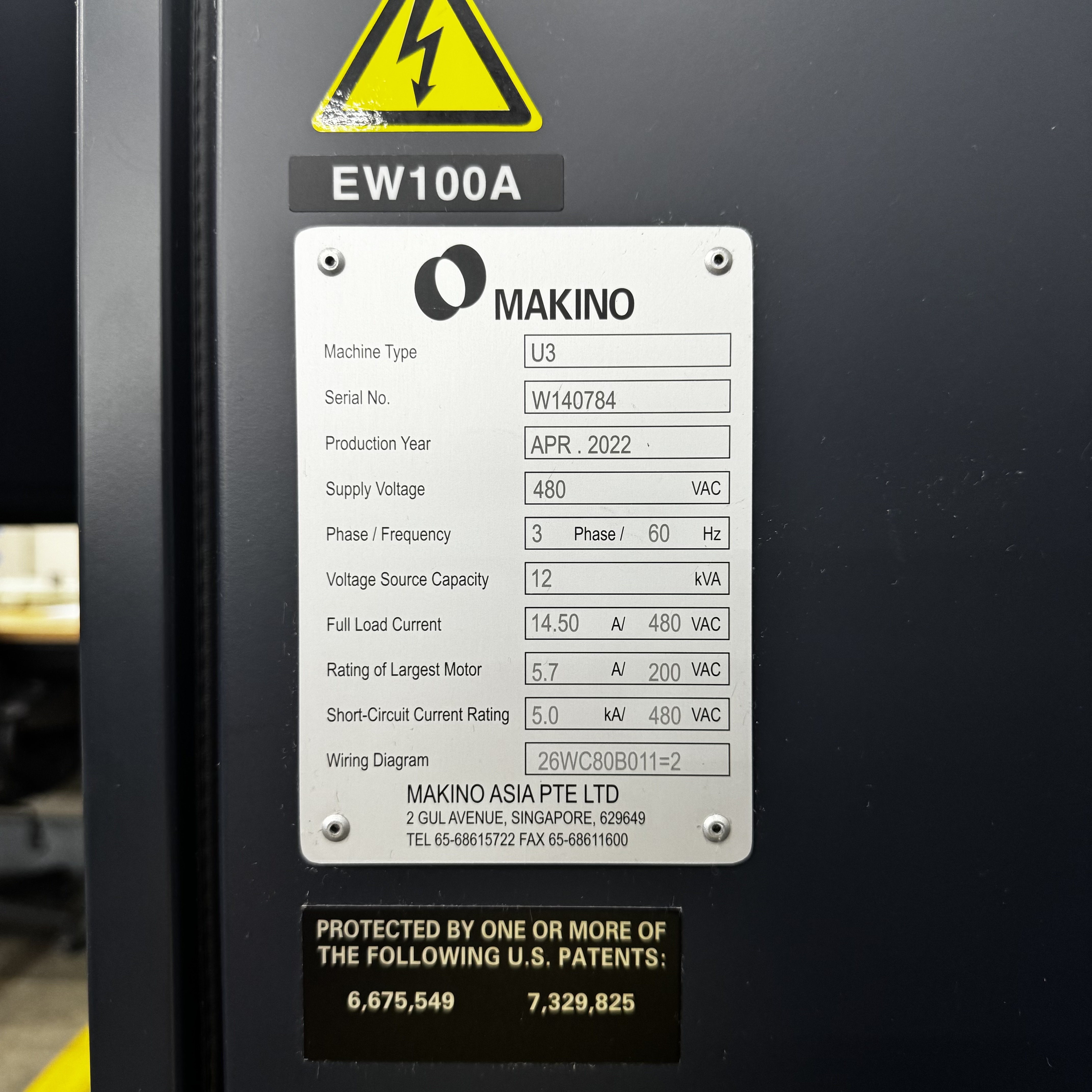

MACHINE IS WIRED FOR 3/60/480 VOLTS, 14.5 FLA, 12 KVA

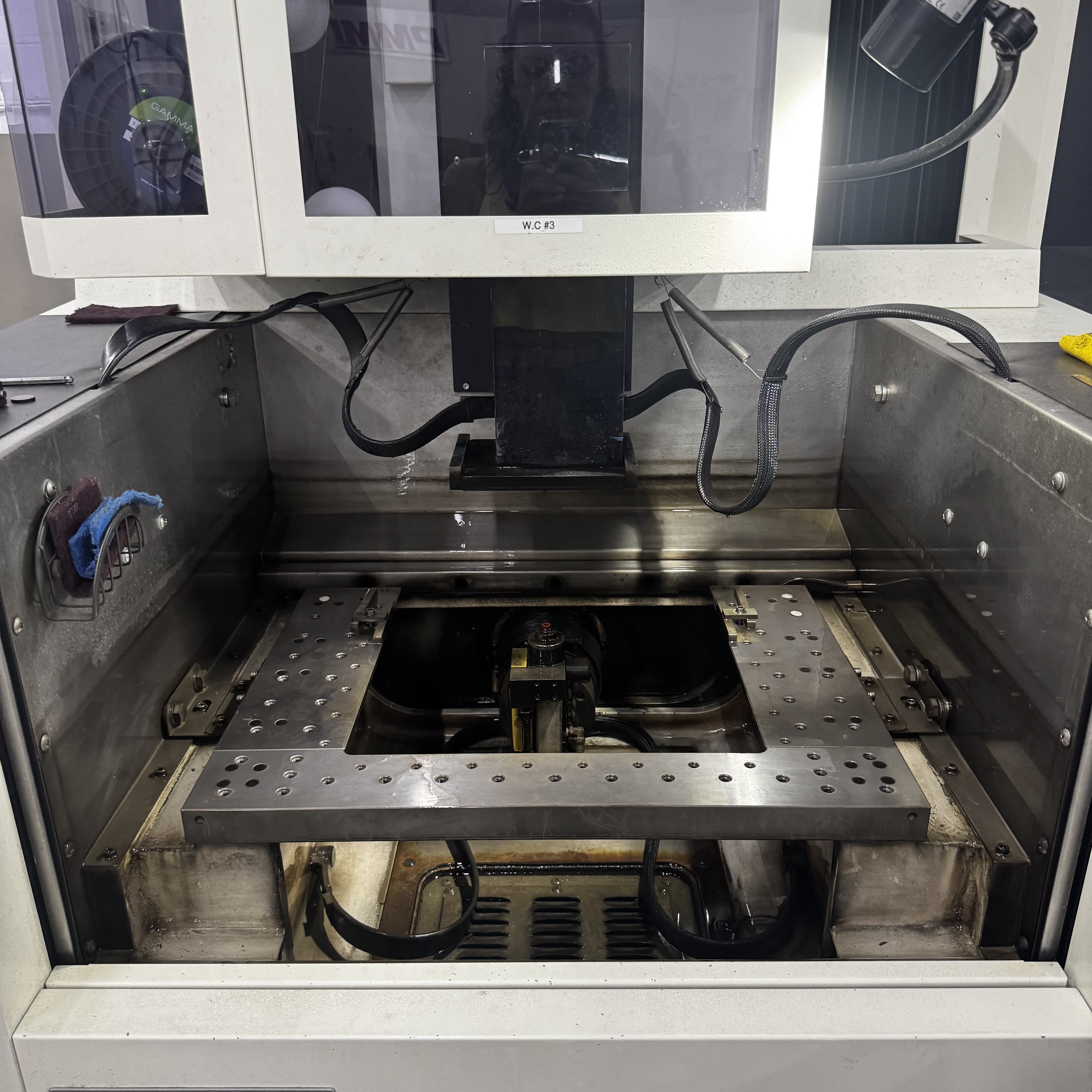

Stationary Table Design: Maintains consistent high precision
 regardless of workpiece weight or size.

PICO Precision Guides: Tool-less guide and energizer indexing
 systems that reduce setup human error and maintenance time.

Glass Scale Feedback: Direct optical feedback on X and Y axes
 for precise sub-micron positioning resolution.

Thermal Stability: Compact footprint with a cast-base integrated
 dielectric fluid tank design that minimizes thermal distortion



** TO BE PROPERLY "DE-INSTALLED" BY OUR TECHNICIAN **
** READY TO DELIVER SOON, F.O.B. OUR CUSTOMER'S SHOP IN NJ **
** PRICE INCLUDES THE "DE-INSTALL, LOADING & DELIVERY TO
    LOCAL CUSTOMERS **
