Sodick VZ300L, 2015, AWT, LINEAR DRIVES (NO BALLSCREWS) WIRE EDM MACHINES

Price on Request

Make:: Sodick

Model:: VZ300L, 2015, AWT, LINEAR DRIVES (NO BALLSCREWS)

Year:: 2015

Ref #:: 179518

Or call us for a quote at (973) 497-7500 or send us an email at edms@machineryvalues.com

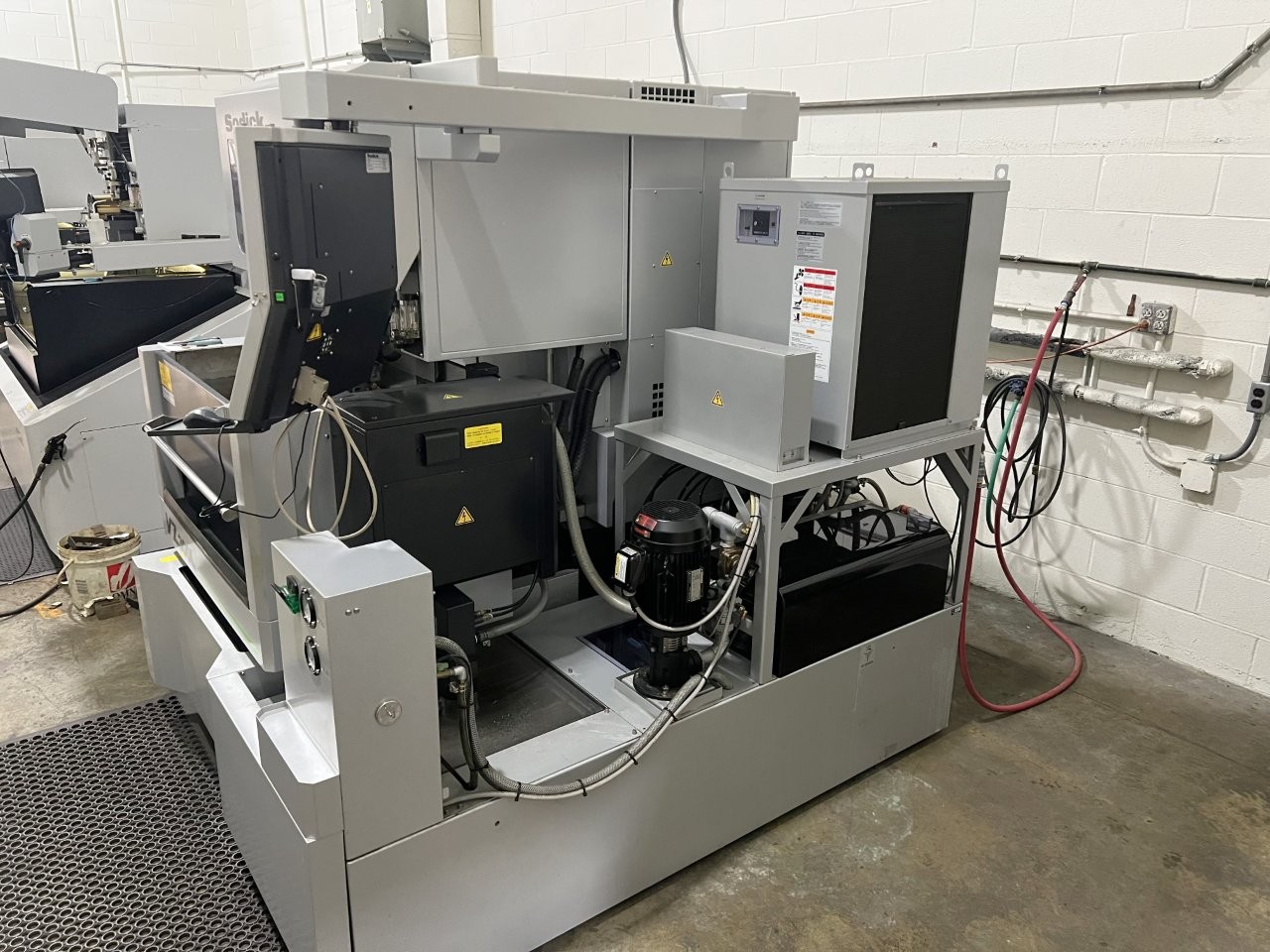

SODICK VZ300L LINEAR DRIVE CNC WIRE EDM

NEW: 2015

SPECIFICATIONS:
TANK SIZE:............ 31.88" X 25.59"
MAX PART WEIGHT:...... 1200 LBS
X-AXIS TRAVEL:........ 13.77
Y-AXIS TRAVEL:........ 9.84"
Z-AXIS TRAVEL:........ 8.66"
U&V AXIS TRAVEL:...... 3.14
MAX TAPER ANGLE:...... +/- 15 DEG
WIRE DIAMETER:........ .0059 - .011"
DIMENSIONS:........... 27.95" X 81.49" X 70.86"
WEIGHT:................ 5,280 LBS

EQUIPPED WITH:
LINEAR MOTORS (X/Y/Z AXES)
ABSOLUTE LINEAR SCALE (X/Y/Z AXES)
CERAMIC COMPONENTS
LINEAR MOTOR COOLING UNIT
LN2W GENERATOR
SODICK FINE CORNER CONTROL
FTII (FINE PICK-UP FUNCTION)
SUPER JECT AWT (AUTOMATIC WIRE THREADER)
LAN INTERFACE
USB PORT

MACHINE IS IN PLANT UNDER POWER, AVAILABLE FOR IMMEDIATE PURCHASE

NEW PRICE FOR ABOVE EQUIPPED MACHINE IF PURCHASED NEW...$210,000.00
