Fanuc ROBOCUT ALPHA 1C, 1997, 5 AXIS, XYUVZ, WIRE EDM MACHINES

Price on Request

Make:: Fanuc

Model:: ROBOCUT ALPHA 1C, 1997, 5 AXIS, XYUVZ,

Year:: 1997

Ref #:: 179355

Or call us for a quote at (973) 497-7500 or send us an email at edms@machineryvalues.com

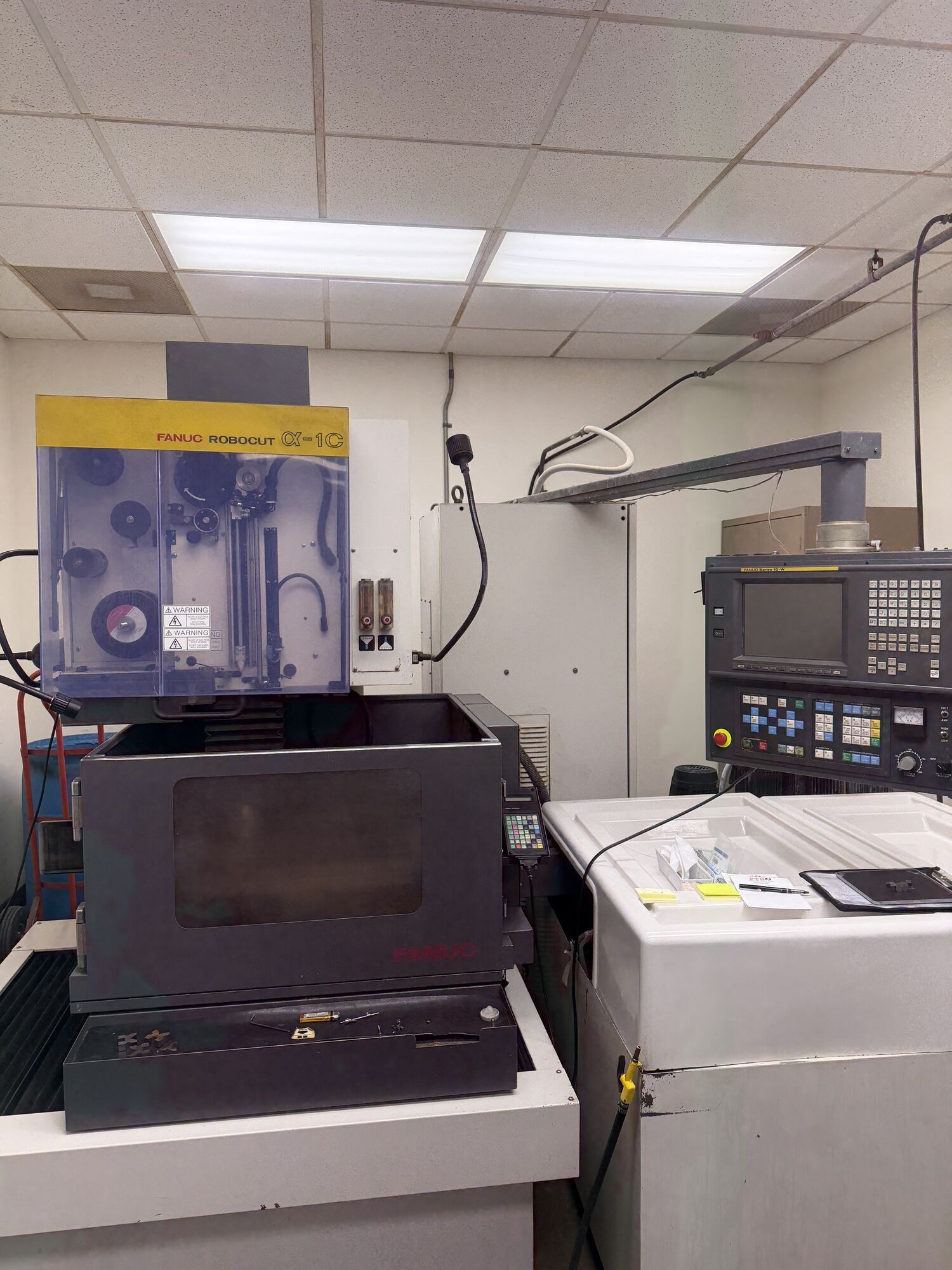

        FANUC ROBOCUT ALPHA-1C-S CNC
      "MADE IN JAPAN" 5-AXIS WIRE EDM

Submersible Machining, Auto Wire Threading

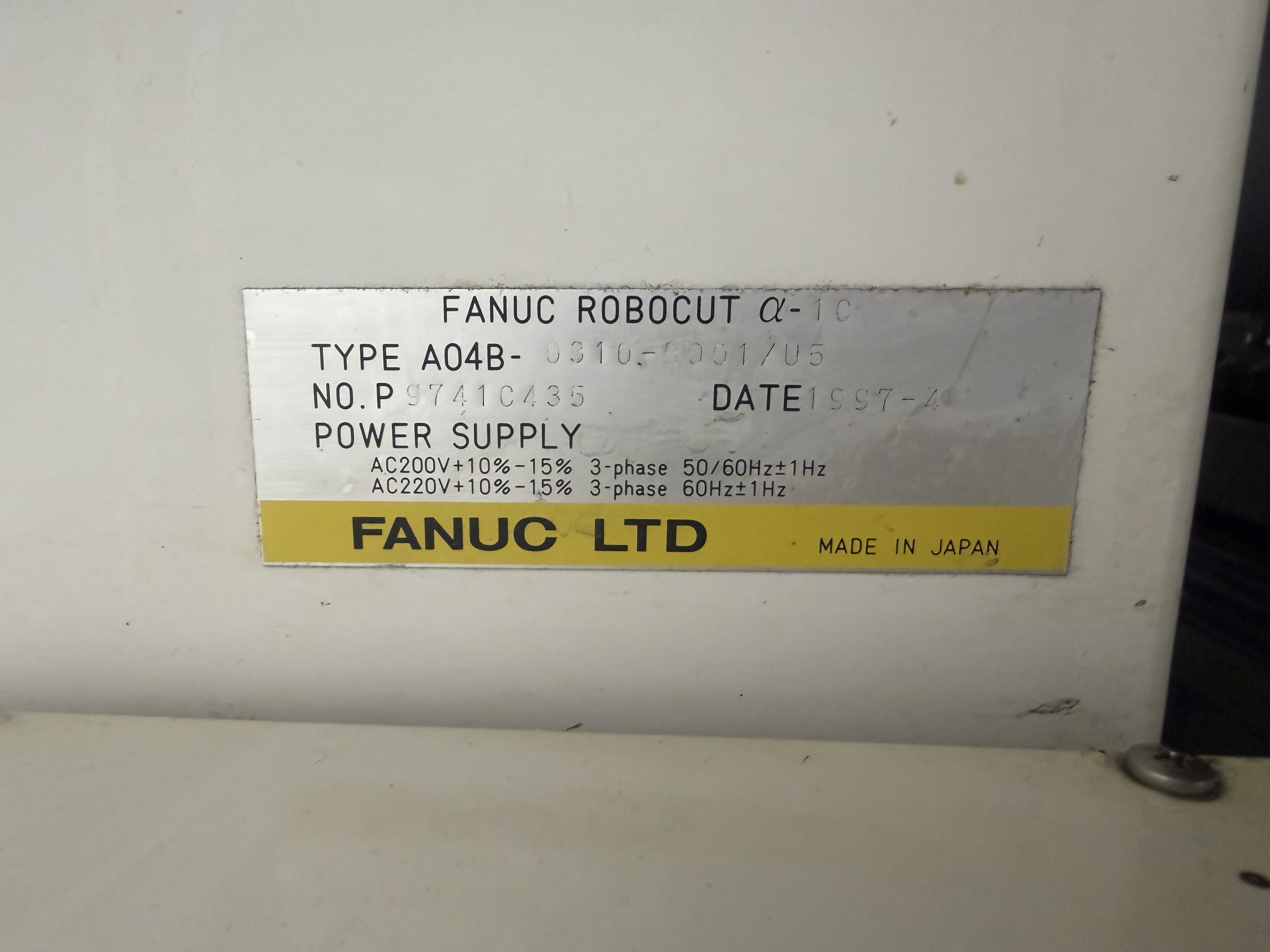

MODEL: A04B-0310-B001/U5
S/N: P9741C435
NEW: 1997

Max. Workpiece Dimensions,
 X, Y & Z: ........... 31.10" x 28.74" x 10.8268"
Max. Workpiece Weight: ..... 1,000 Lbs.
X - Axis Travel: ........... 20.47"
Y - Axis Travel: ........... 14.56"
Z - Axis Travel: ........... 11.81"
U & V Axis Strokes: ........ +/- 60 x +/- 60
U, V - Axes Travel: ........ +/- 2.364"
Taper Angle: ............... +/- 15° @ 7.98"
                             +/- 30° @ 3.26"
                             +/- 45° @ 1.93"
Controlled Axes: ........... X, Y, U, V, Z
Least Input Increment: ..... 0.000004"
Least Command Increment: ... 0.000004"
Interpolation: ............. Linear & Circular
Max. Programmable
 Dimension: ................ 999.99999"
Position Command: ... Relative, Absolute & Machine V
Display Unit: .............. 9.5" Color LCD
Postion Display: ........... 5-Axes
Feedrate Rapid Traverse: ... 35.4 IPM
Feedrate Cutting: .......... 0.0004 - 1 IPM
Wire Dia. Compensation: .... 0 - +/- 9.99999"
Wire Feedrate: ............. 0 - 590 IPM
Wire Tension: .............. 200 - 2500 grams
Max. Wire Spool Weight: .... 13.5 Lbs.
Wire Diameter: ............. 0.004" - 0.012"
Wire Guide
- Upper & Lower Guide: ... Round Diamond Die Guide
Required Floor Space: .... 120" x 122" x 87.5"
Machine Weight, Approx.: ... 9,500 Lbs.

Equipped With:

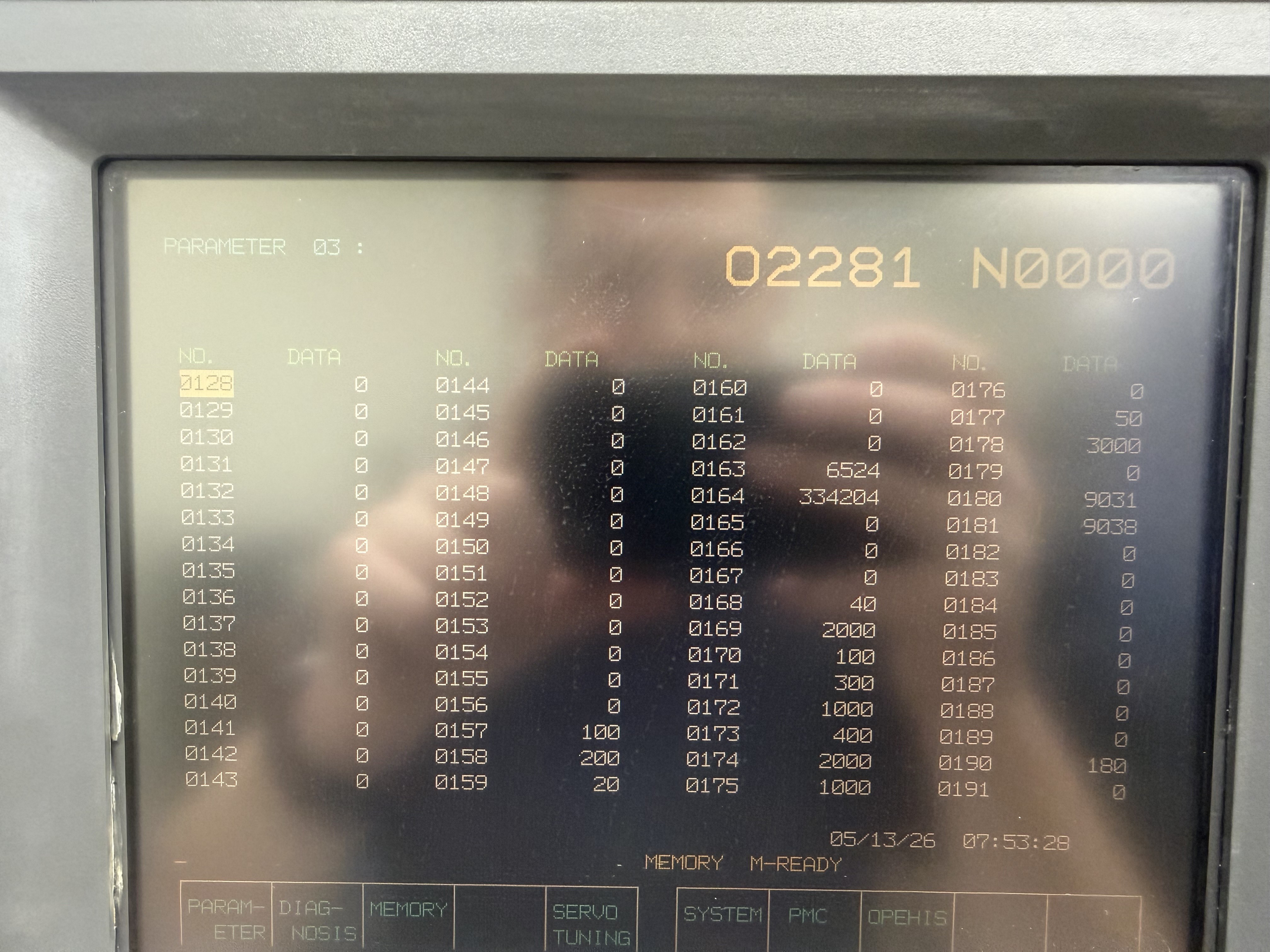

Fanuc 16WC CNC Control
Wire Reclamation Bin
Full Set of Manuals
"Ebbco" Filtration System
"Remcor" Chiller Unit

** Excellent Condition **
** As Taken from Service **

Special Note:
** Professionally "De-Installed"
   by Methods Machine Tool,
   the Distributor of FANUC EDM's **
