Fanuc ROBOCUT ALPHA 1iD, 2008, AWT WIRE EDM MACHINES

Price on Request

Make:: Fanuc

Model:: ROBOCUT ALPHA 1iD, 2008, AWT

Year:: 2008

Ref #:: 179528

Or call us for a quote at (973) 497-7500 or send us an email at edms@machineryvalues.com

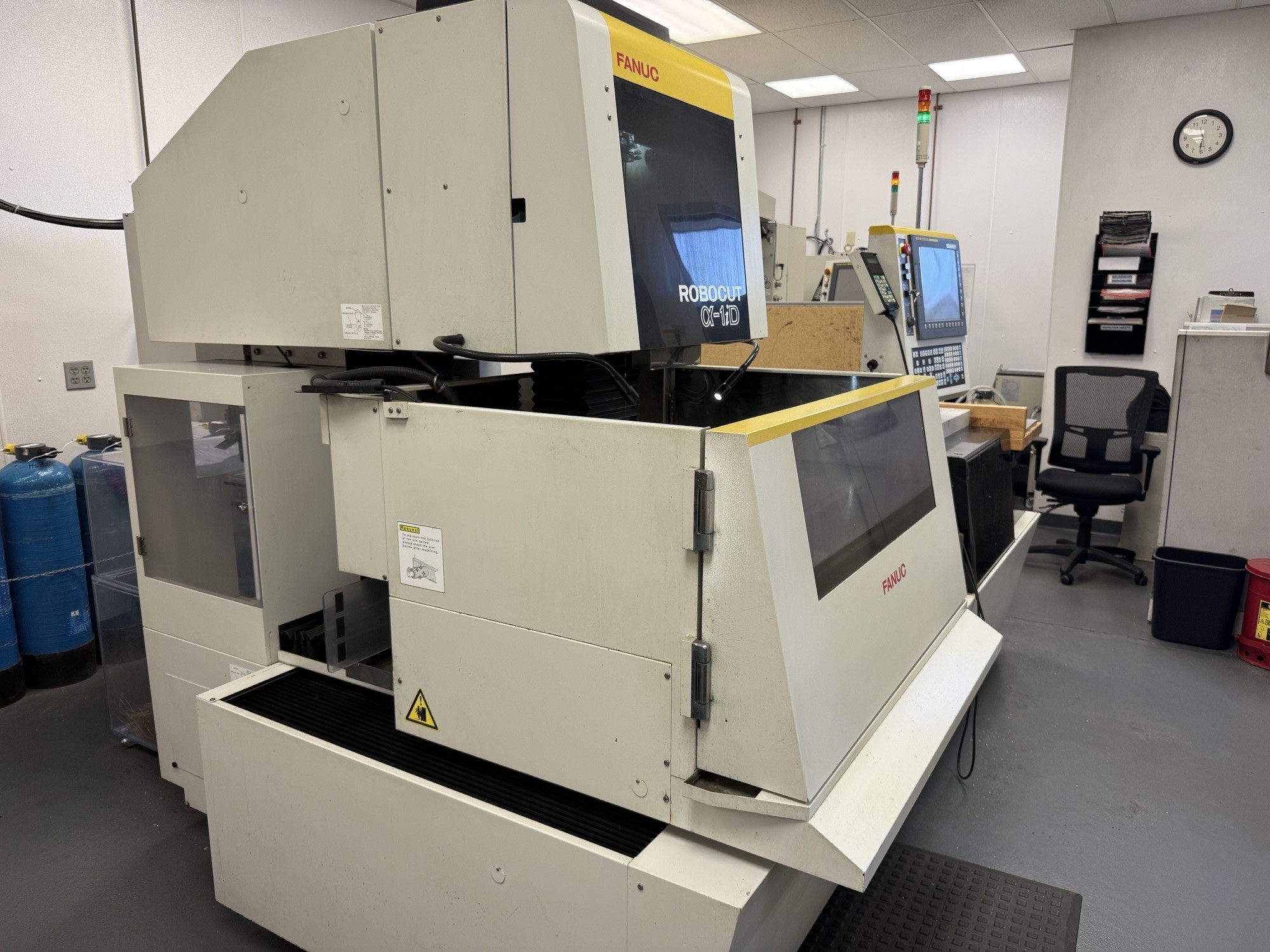

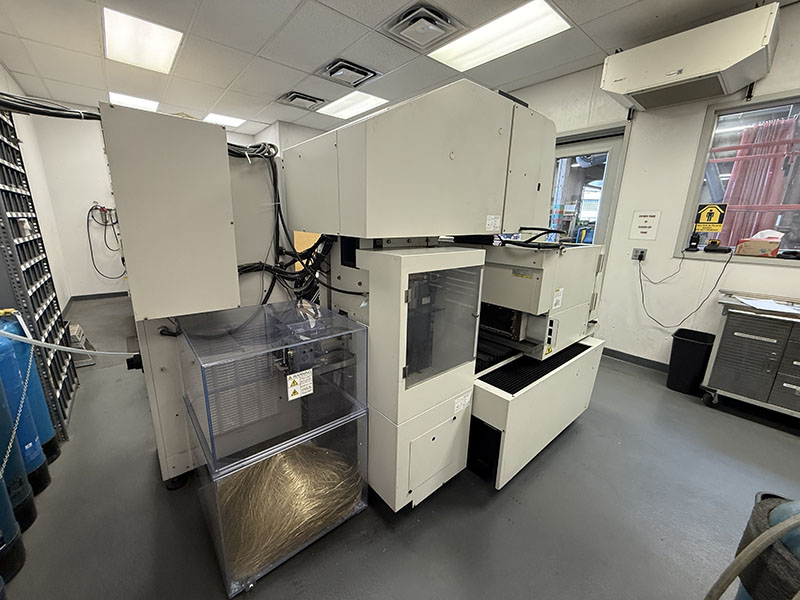

  Fanuc Robocut Alpha 1iD-12
   High-Rigidy CNC Wire EDM

    *** Made in Japan ***

         New: 2008

In Plant, Under Power

Specifications:
Maximum Workpiece Size ............... 41.3" x 32.3" x 12.1"
Maximum Workpiece Weight ............. 3,550 LBS
Table Travels X/Y .................... 23.6" / 15.7"
U & V Axis Travels ................... +- 3.937"
Taper Angle .......................... +/- 16° @ 12"
Z-Axis Travel ........................ 12.2"
Max. Cutting Speed Inches Per Hour ... 31.0" Square per Hour
Table Feedrate ....................... 1' ~ 50" IPM
Auto Wire Feedrate ................... Standard
Wire Diameter ........................ 0.004" - .012"
Maximum Wire Spool Weight ............ 35 LBS
Wire Feedrate ........................ 0 ~ 590 IPM
Wire Tension ......................... 200 ~ 2500 Grams
Positioning Accuracy ................. +- .0001
Dielectric Tank Capacity ............. 301 Gallons


Main Unit Dimensions (in inches):
Length: 66.00"  Width: 90.00"  Height: 93.00"

Components:
Die Electric System w Filter System:
Length: 53.00"  Width: 75.00"  Height: 69.00"

Chiller:
Length: 16.00"  Width: 19.00"  Height: 40.00"

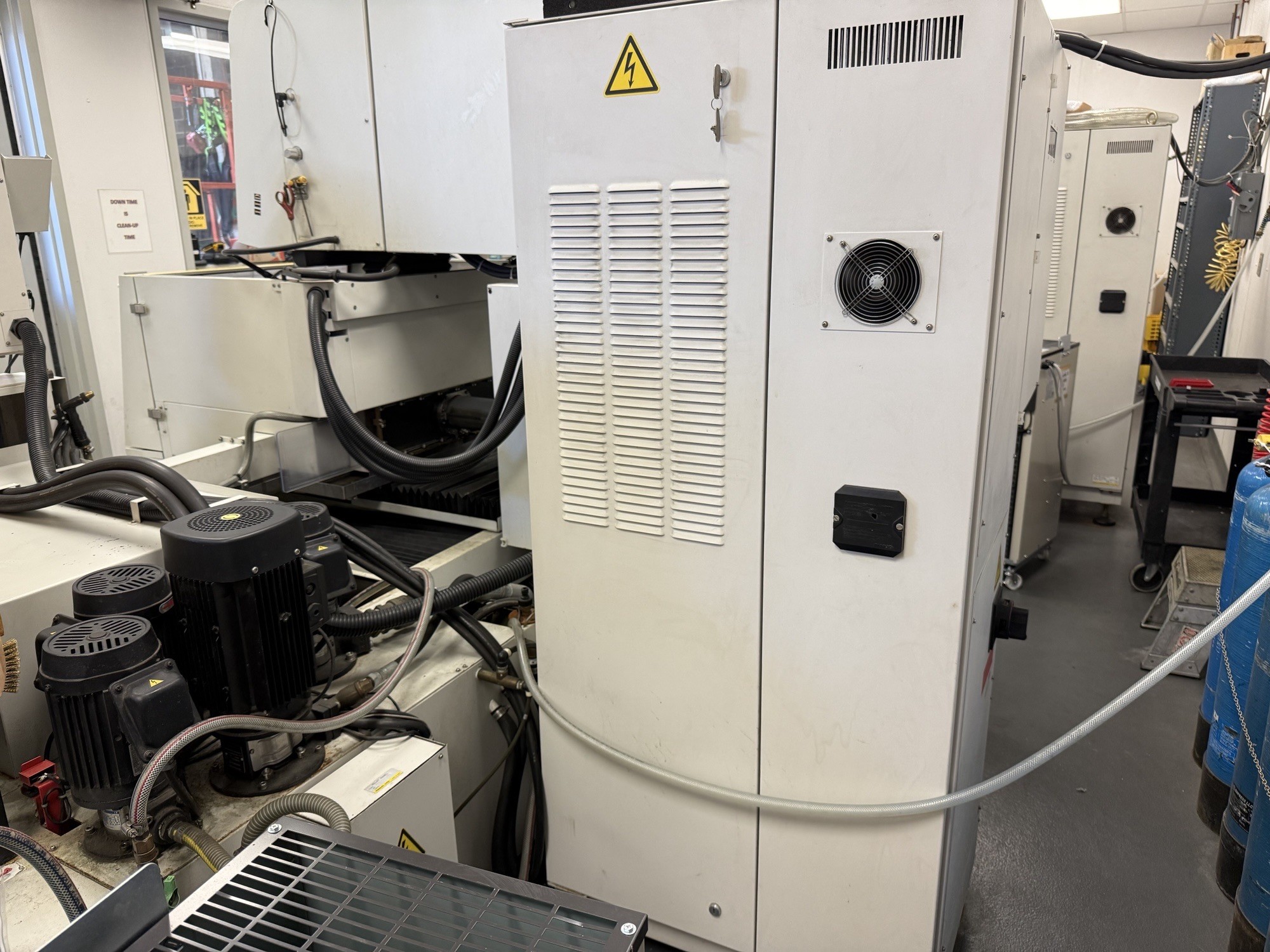

Control Cabinet:
Length: 39.00"  Width: 32.00"  Height: 73.00"

Machine Weight .......... 6,700 Lbs.


EQUIPPED WITH:
- Fanuc 310iS-WA 15" Touch Screen Control
  AI Pulse Control, Hi-Speed, High Precision,
  Nano Interpolation, Eliminates The Accumulation
  Of Axis Movement Errors
- Air Jet AWF
- Linear Glass Scales X & Y
- Maximum Programming Memory 4 MB
- Digital Power Supply
- Inverter Controlled Water Temperature
- New Thermally Insulated High Rigidity Casting
- Twin Servo Wire Tension Control
- Servo Water Level Control

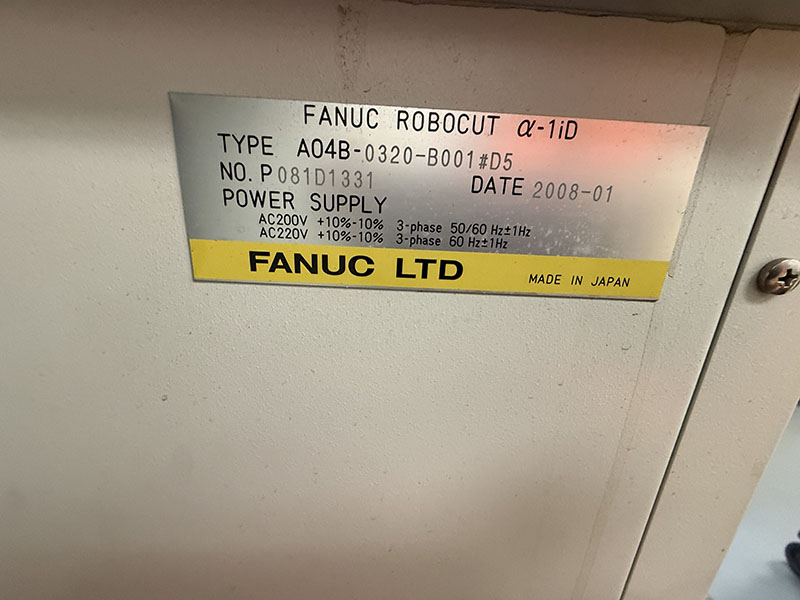

- 200-220 Volts/3/60, 13 KVA

*** Inspect under Power in a Northeast Shop ***
*** Superb Condition & Appearance ***



"The Fanuc Robocut a-1iD CNC Wire EDM is a
 high-precision machine designed for complex
 and delicate machining tasks. Key features include
 its advanced FANUC CNC control system, which
 provides superior accuracy and ease of use.
 The machine is equipped with a robust and rigid
 mechanical structure, ensuring stability and precision
 during cutting operations. The a-1iD model also
 features a high-performance wire feed system
 that maintains consistent tension, reducing wire
 breakage and improving cutting quality.



Additionally, the Robocut a-1iD boasts an efficient
 automatic threading system that minimizes downtime
 by quickly rethreading the wire in case of breaks.
 The machine supports various wire diameters,
 allowing for versatility in different machining
 applications. Its intelligent corner control and precise
 servo motor technology ensure smooth and accurate
 cuts, even in intricate geometries. The machine is
 also designed for energy efficiency and reduced
 maintenance, making it a cost-effective solution
 for precision wire EDM applications."
