Hurco TM-10Mi CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Hurco

Model:: TM-10Mi

Year:: 2025

Ref #:: 179743

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

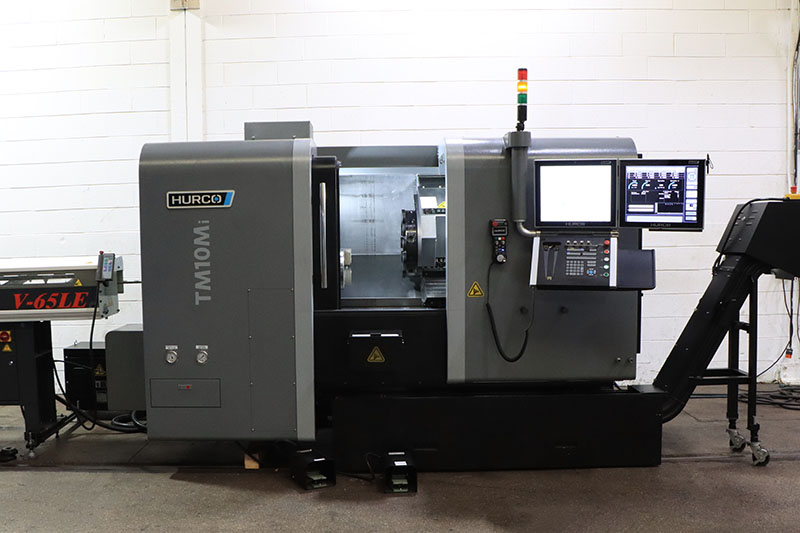

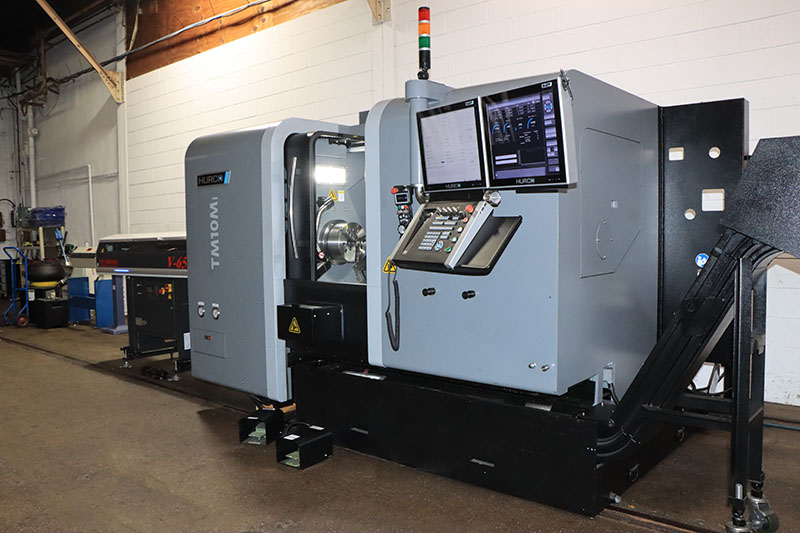

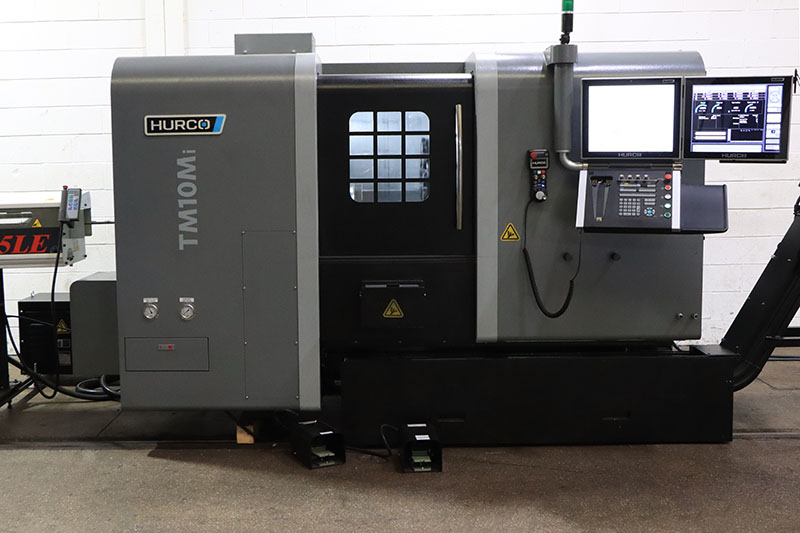

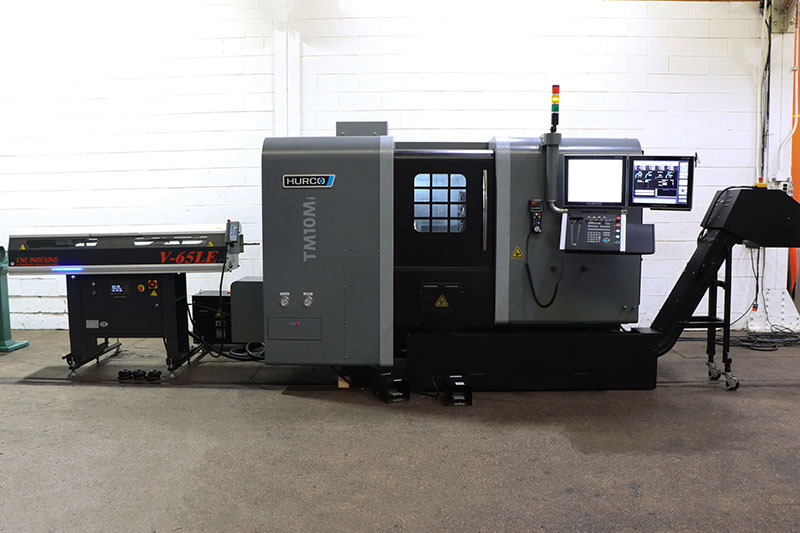

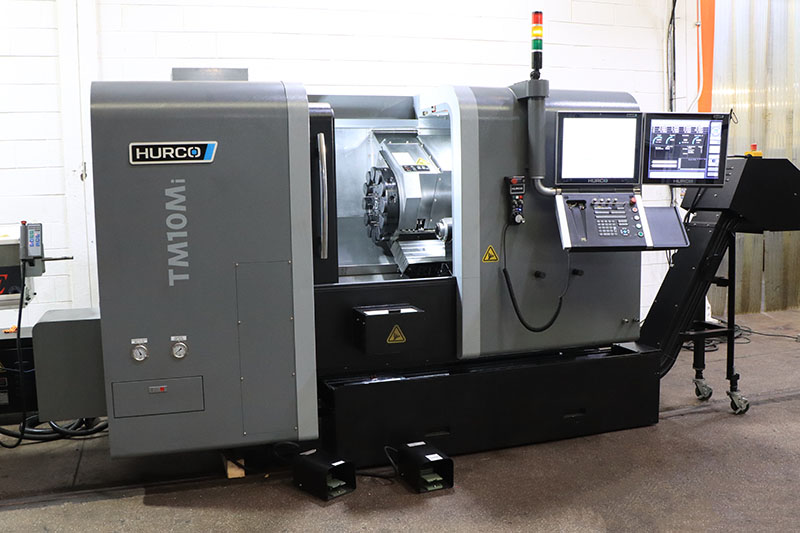

HURCO TM-10MI CNC TURNING CENTER w/LIVE MILLING
NEW: 2025


SPECIFICATIONS:
X-Axis Travel 9.84”
Z-Axis Travel 31.10”
Distance Between Centers 29.29”
Swing Over Bed Ø22.9”
Swing Over Cross Slide Ø15.8”
Maximum Turning Diameter Ø11.6”
Maximum Turning Length 29.1”
Spindle TM10Mi
Spindle Nose A2-8

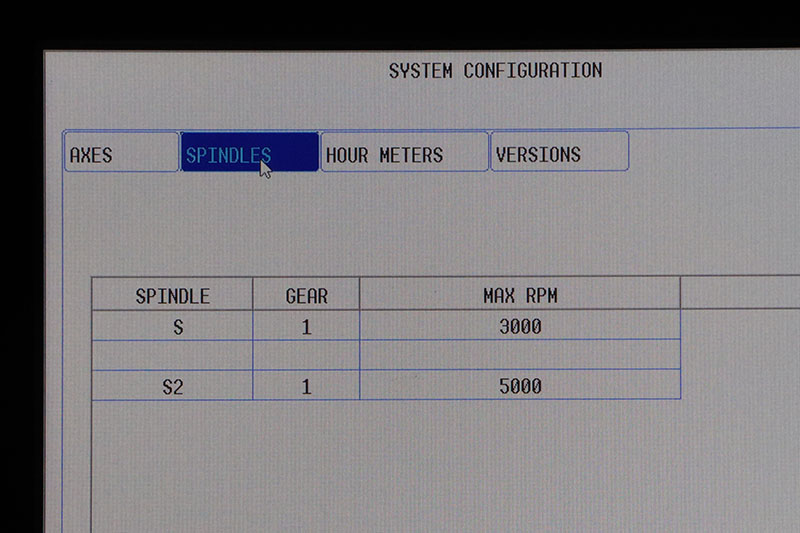

Spindle Speed 3,000 RPM
Spindle Motor Horsepower (1 min. Peak / 30 min.) 53.64 HP / 40.63 HP
Spindle Motor Torque (1 min. Peak / 30 min.) 383.99 lb-ft / 259.36 lb-ft @ 800 RPM
Spindle Chuck Ø10.24”
Spindle Bore Diameter Ø3.74”
Draw Tube Diameter Ø3.18”
Motion TM10Mi
Rapid Traverse Rate X / Z 1,181 ipm / 1,181 ipm
Max Programmable Feedrate 1,181 ipm
Least Command Increment 0.0001”
Accuracy TM10Mi
Positioning Accuracy (ISO 230-2:2014) 0.0004”
Repeatability (ISO 230-2:2014) 0.0002”

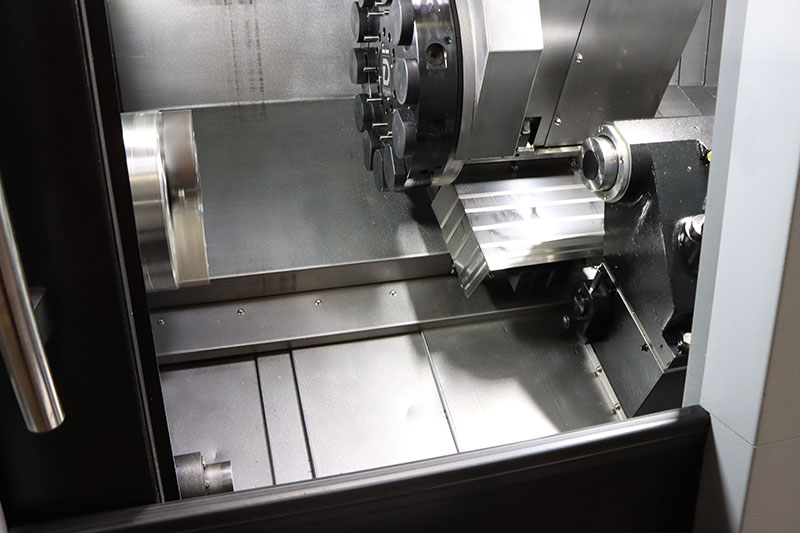

Tool Turret TM10Mi
Turret Type VDI Disc, Live Tool, Servo Driven
Tool Holder Type VDI 40 – DIN 1809
Number of Stations 12
Maximum Boring Bar Diameter Ø1.5”
Tool Shank Width 1.0” X 1.0”
Rotation Bi-Directional
Tool to Tool Index Time (Adjacent / Furthest) 0.31 seconds / 0.76 seconds
Capacities TM10Mi
Main Coolant Tank 47 gallons
Flood Coolant Pump Rating (60 Hz) 19.8 gallons / minute
Hydraulic Tank 9.1 gallons
Machine Dimensions TM10Mi
Operating Dimensions (Doors Open & Optional Conveyor) (Width x Depth x Height) 191.06” x 132.09” x 87.89”
Machine Weight 11,023 lbs
Shipping Weight 12,000 lbs
Shipping Dimensions W x D x H (on skid) 159.45” x 90.55”x 88.43”
Optional Chip Conveyor Shipping Dimensions (Conveyor Weight) 133” x 28” x 76” (905 lbs)
Utility Requirements TM10Mi

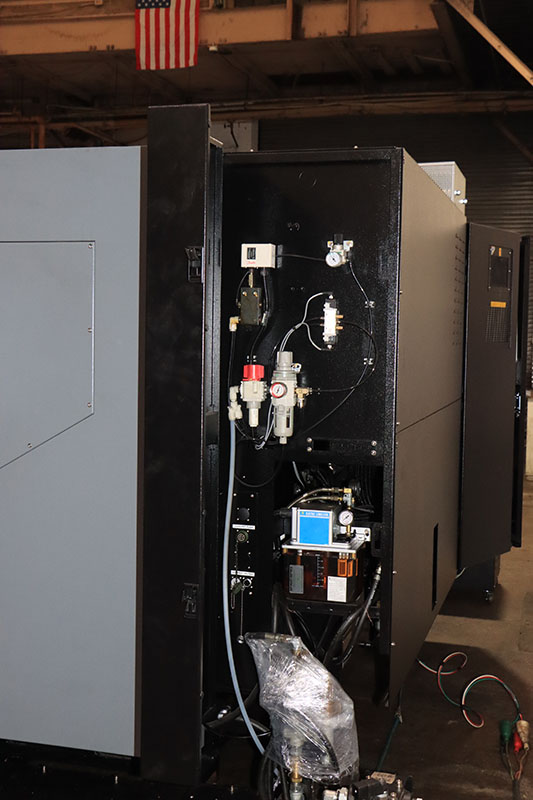

Air Requirements, Base Machine 13.0 CFM @ 80 – 100 psi
Voltage 480 VAC / 60 Hz / 3-phase
KVA Rating (Base Machine, Full Load) 49.10 KVA
Main Circuit Breaker Amps, Full Load, Base Machine @ 480V Incoming - estimated 59.05 amps

Equipped With:

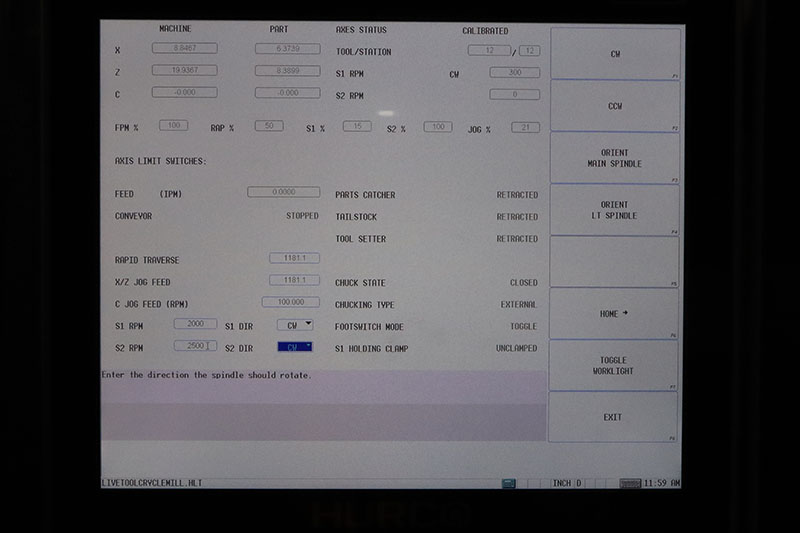

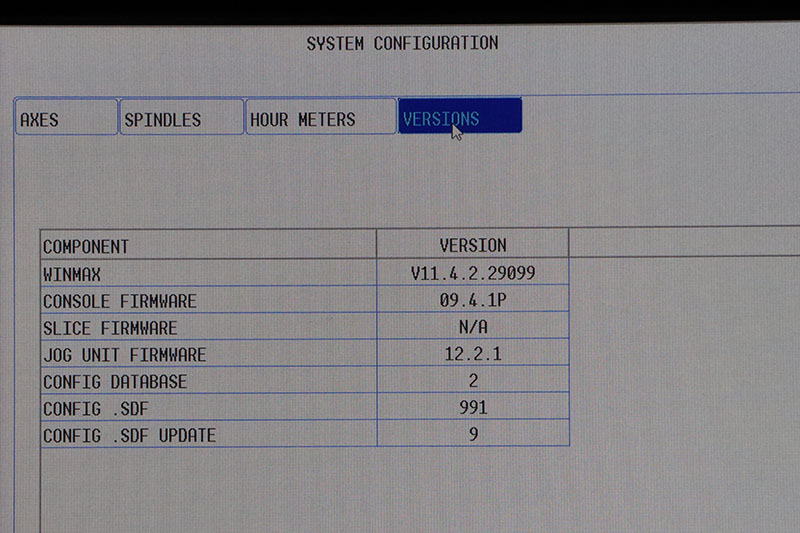

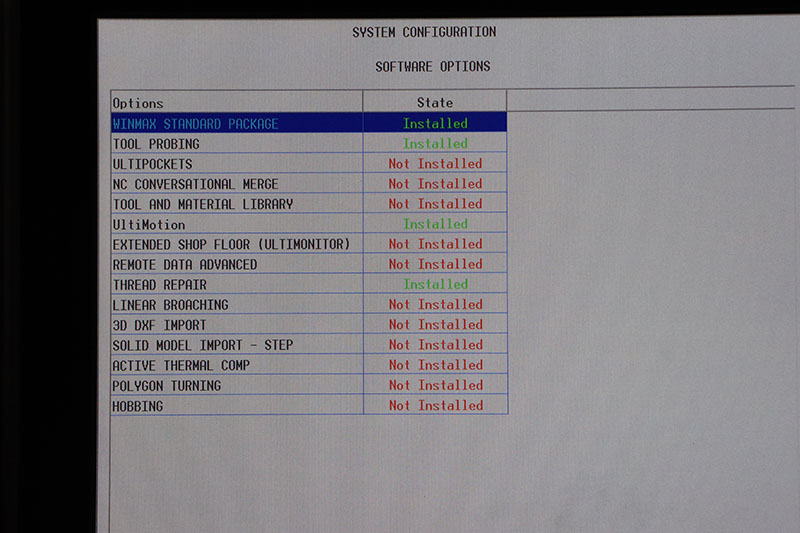

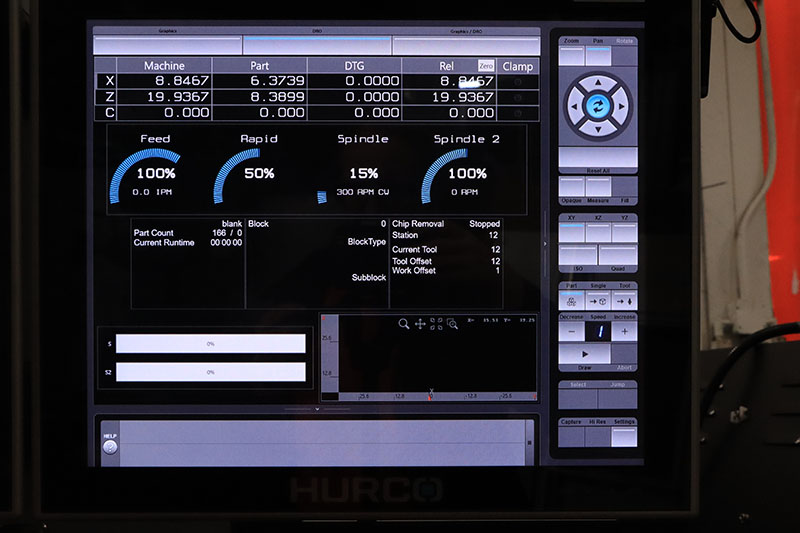

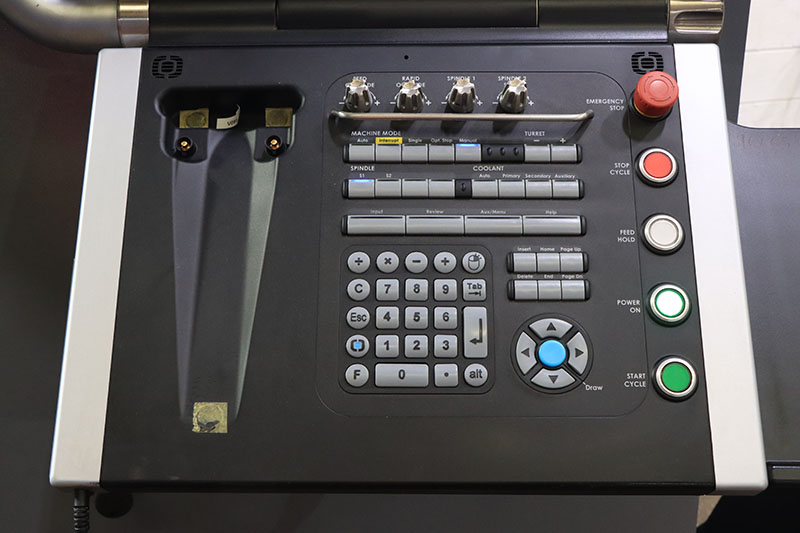

 - WinMax Control
 - Toolsetter

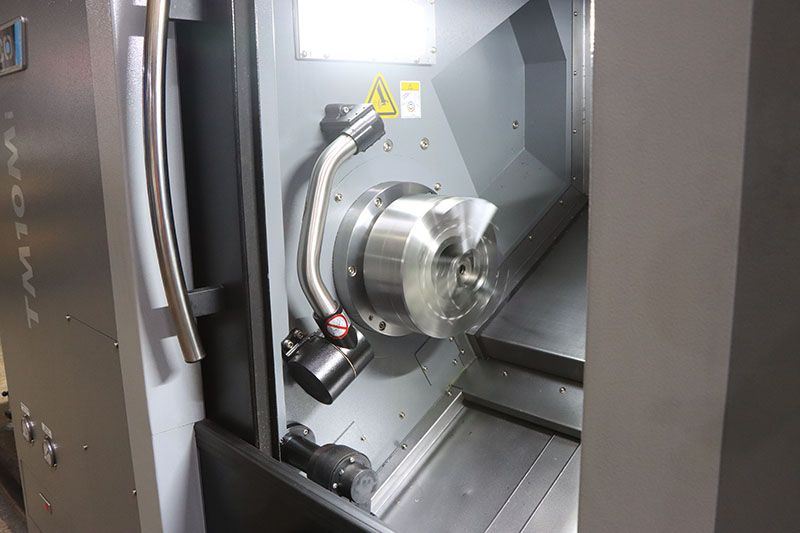

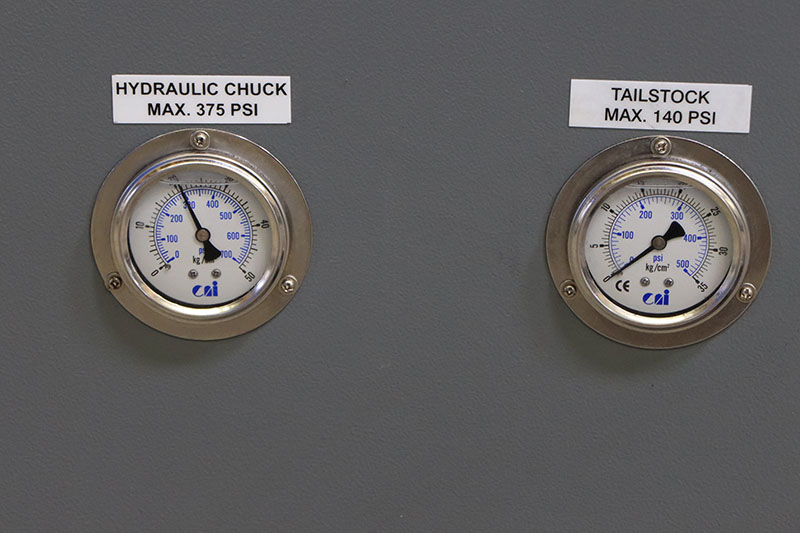

 - 10" 3-Jaw Hyd. Chuck
 - Parts Catcher

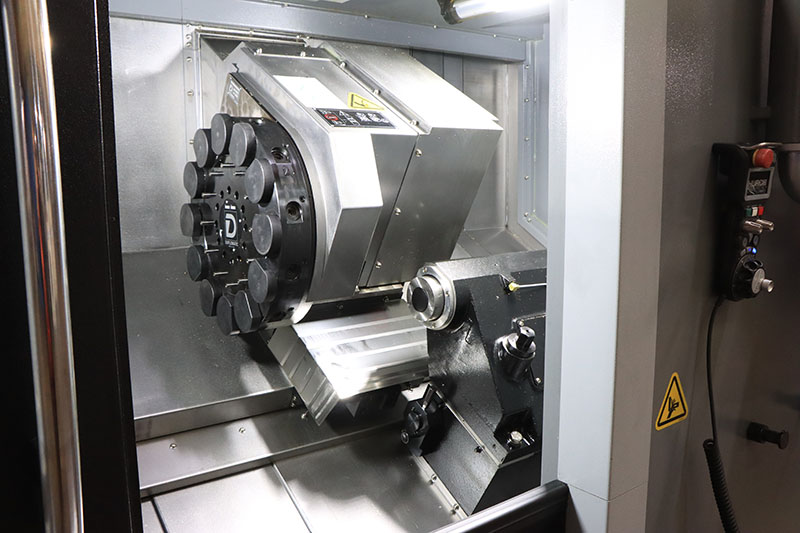

 - 12 Position Turret
 - Live Tool, Full C-Axis
 - Tailstock

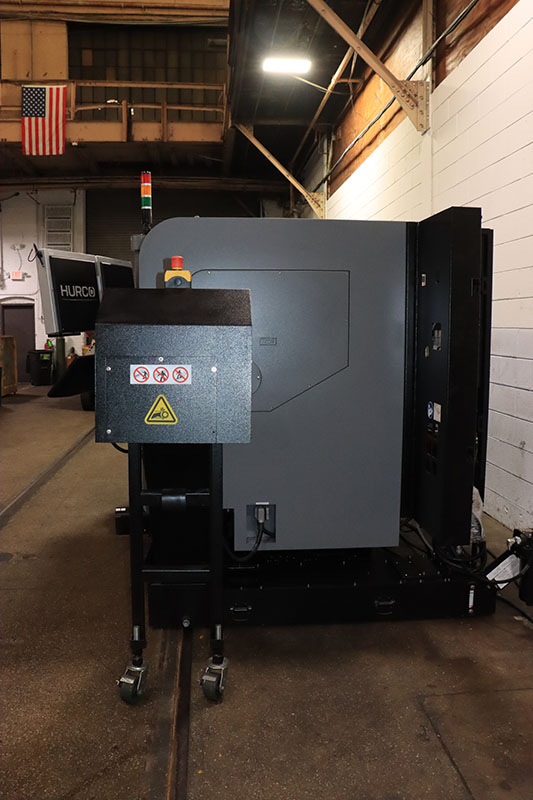

 - Chip Conveyor

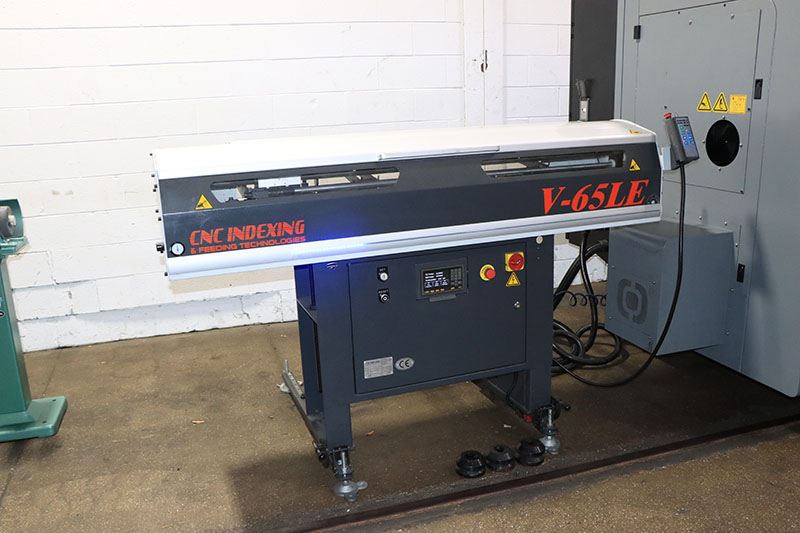

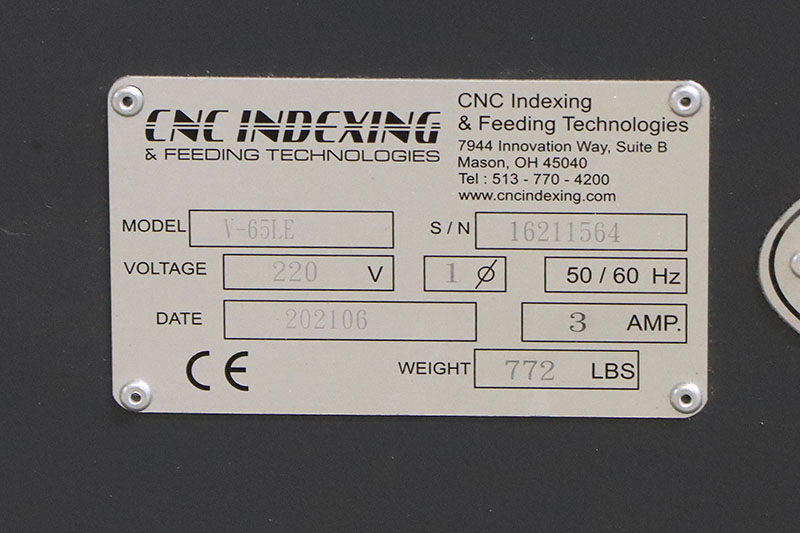

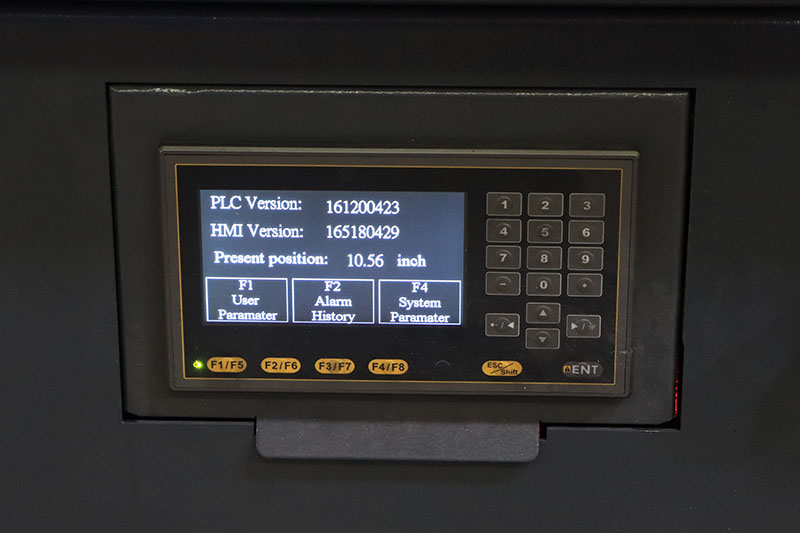

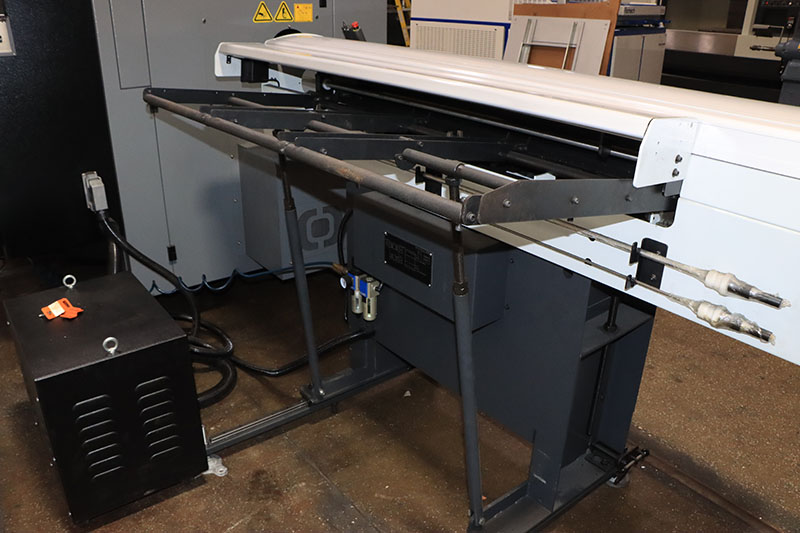

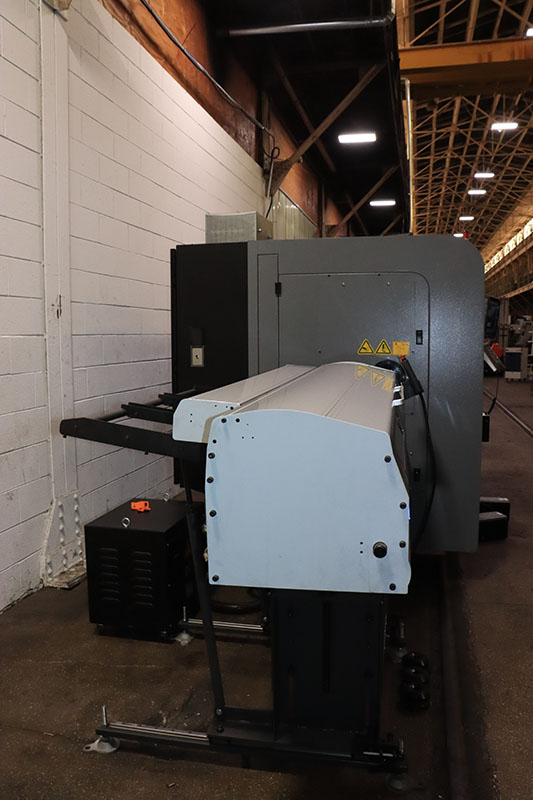

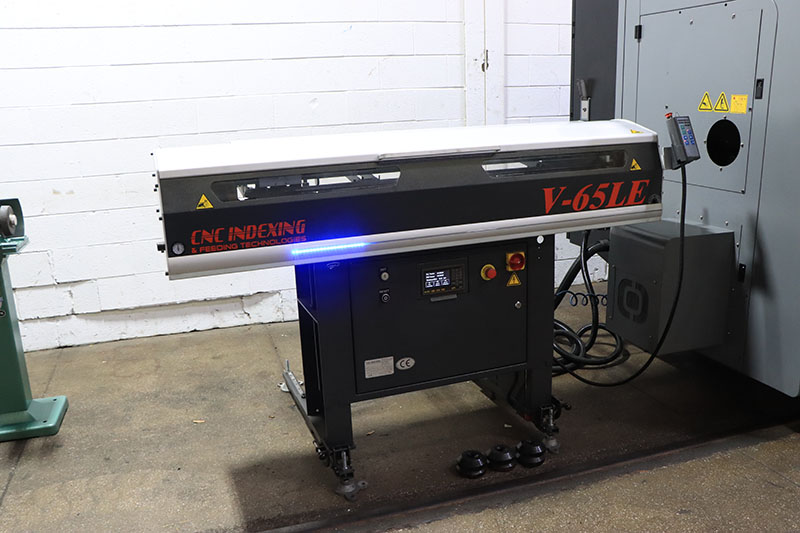

 - Tracer V-65LE Pneumatic Short Magazine Barfeed
