LeBlond-Makino C-40 TOOL & CUTTER GRINDERS

Price on Request

Make:
LeBlond-Makino
Model:
C-40
Year:
1982
Ref #:
169098

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

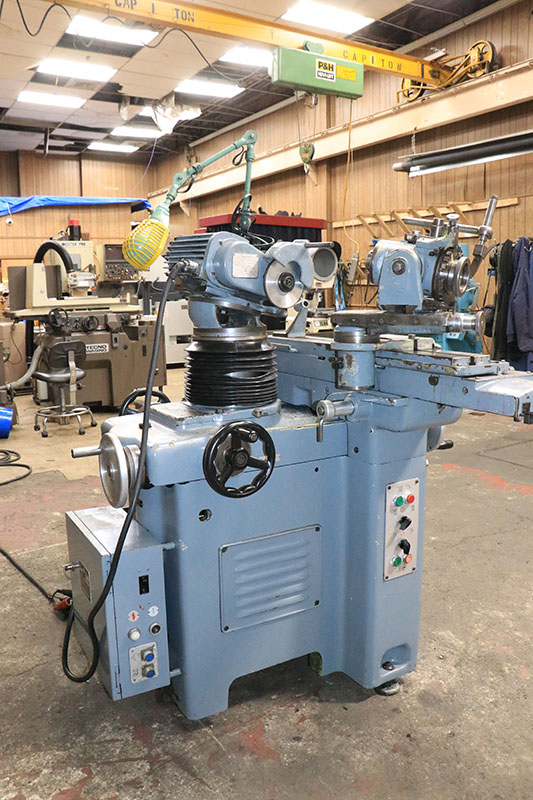

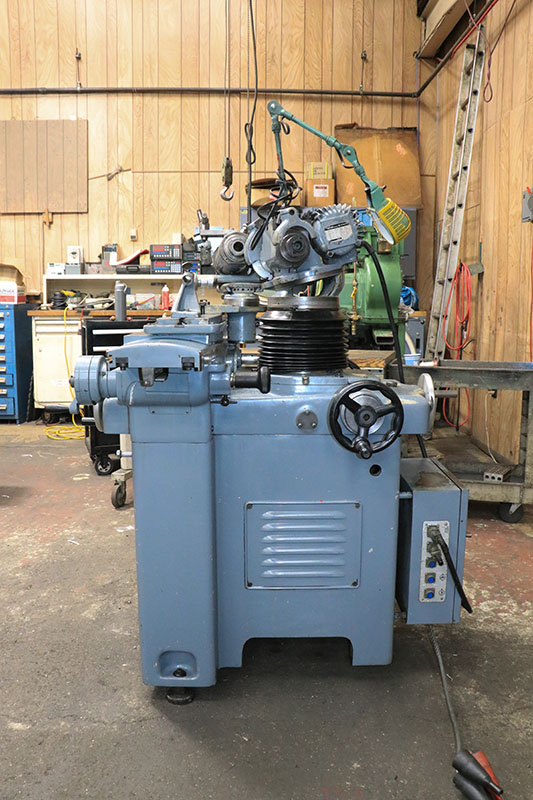

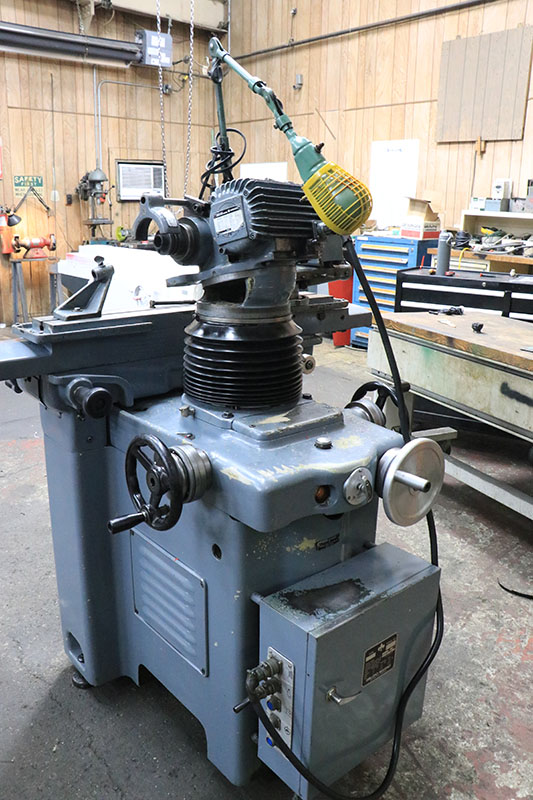

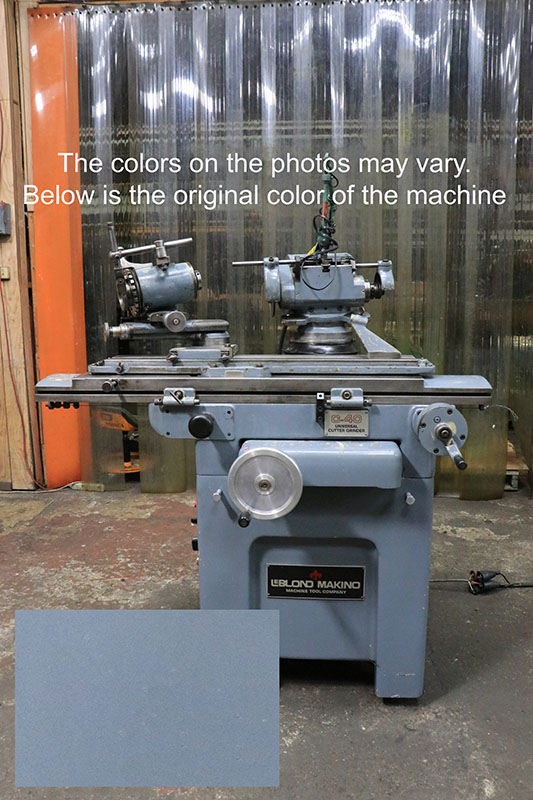

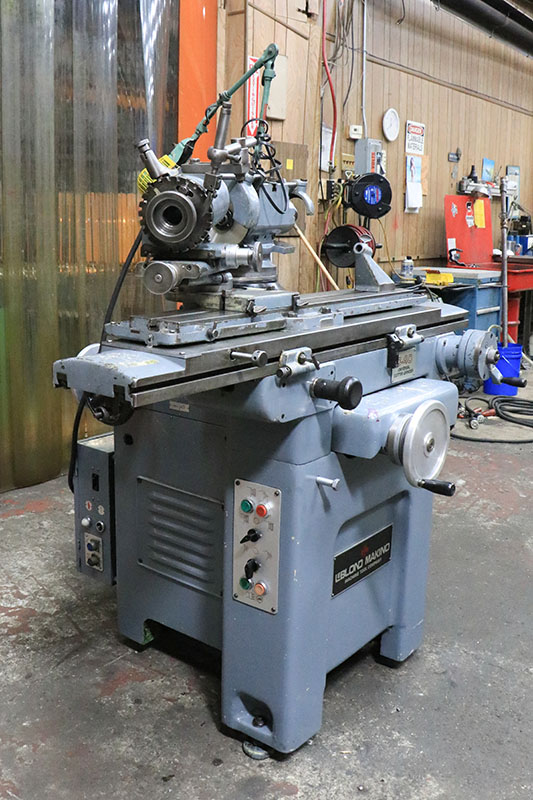

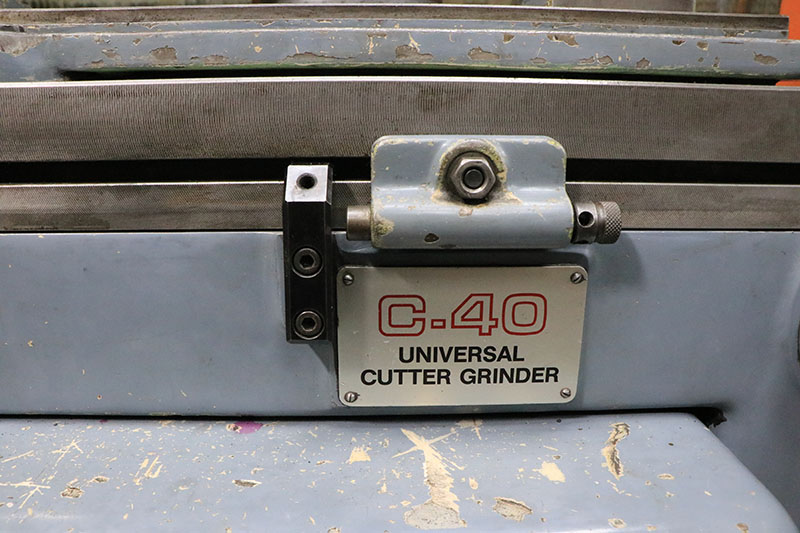

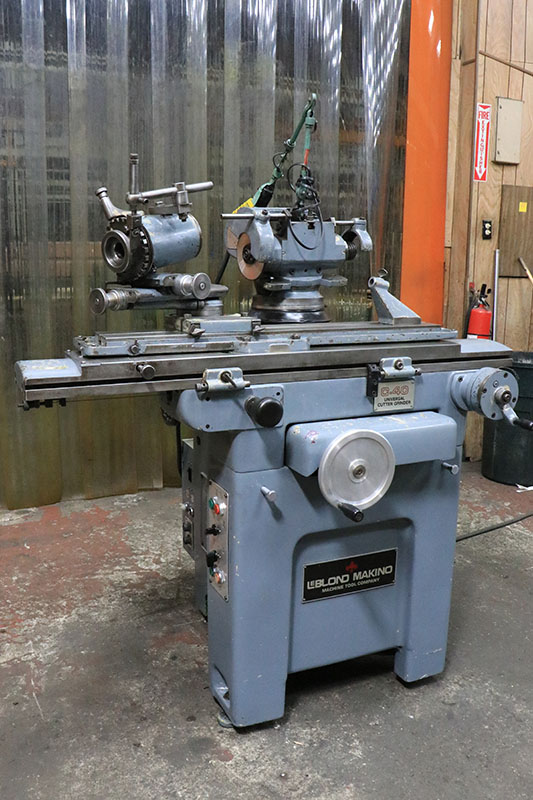

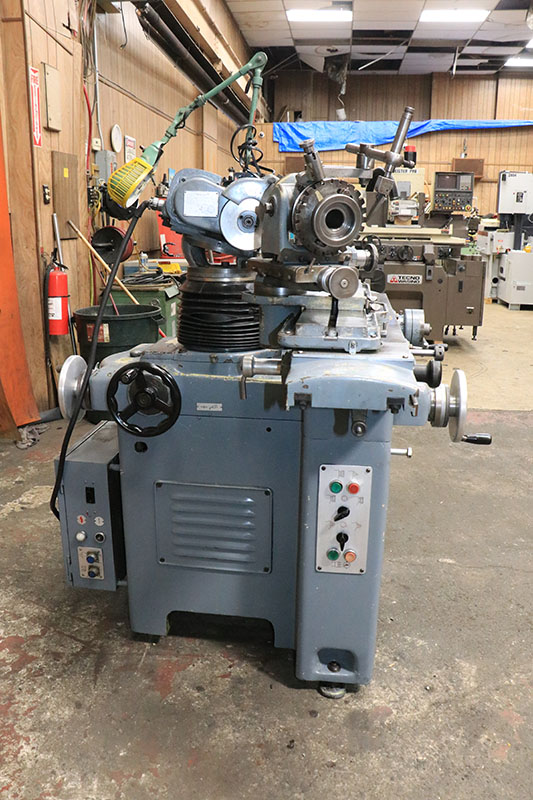

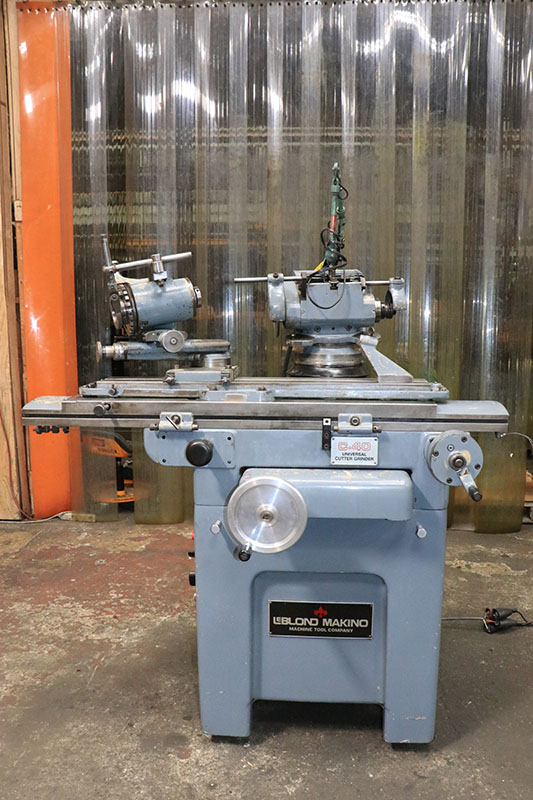

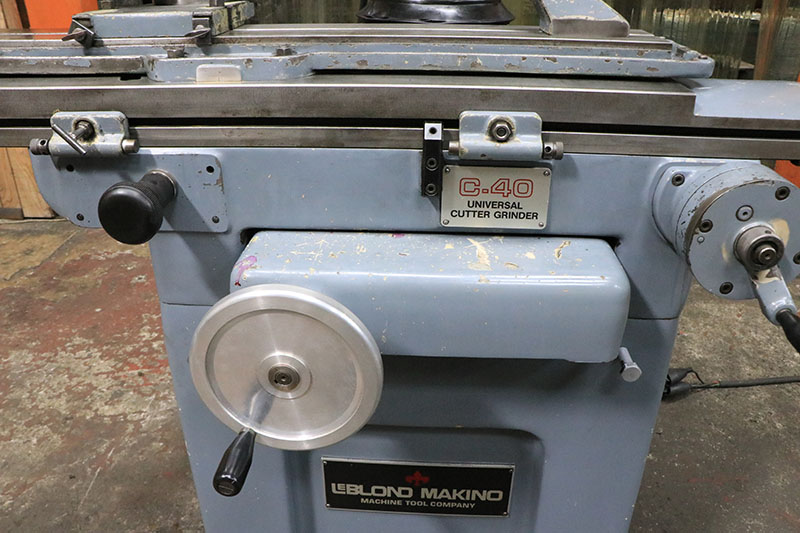

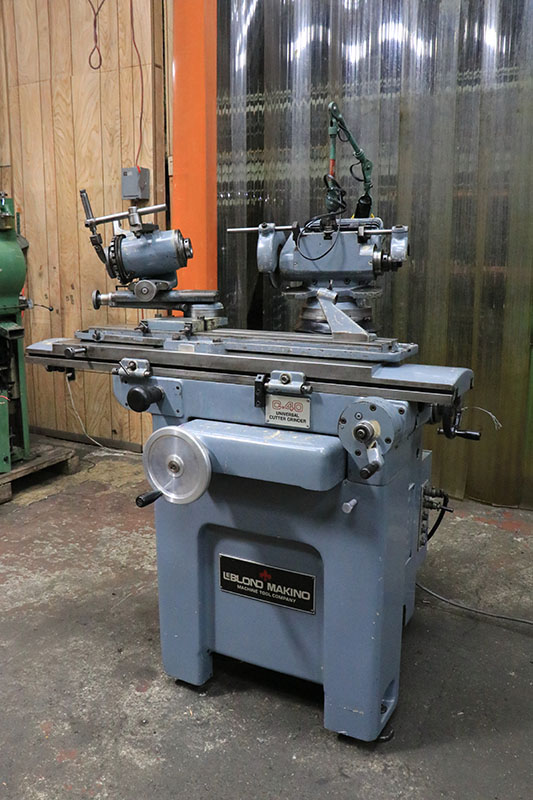

  LEBLOND-MAKINO MODEL C-40
"SUPER-PRECISION" & "VERSATILE"
UNIVERSAL TOOL & CUTTER GRINDER
 (MADE IN JAPAN) ,
 EQUIPPED WITH A RADIUS ATTACHMENT

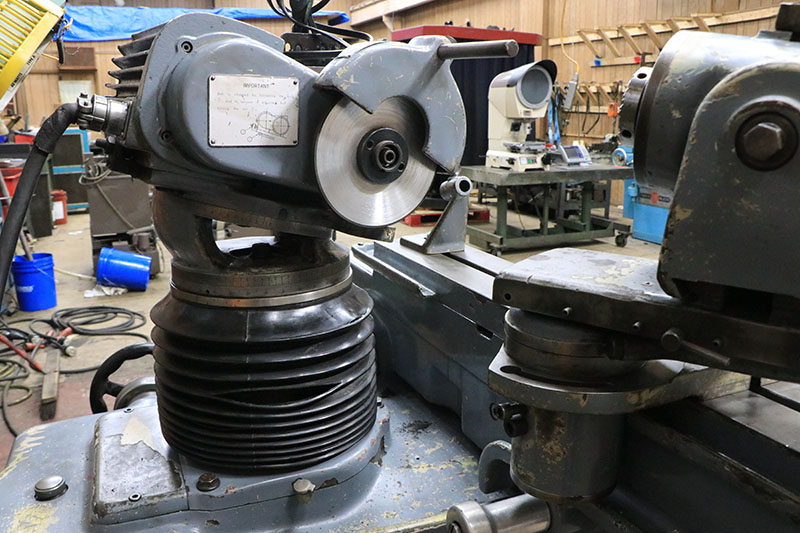

  *** TILTING WHEELHEAD ***

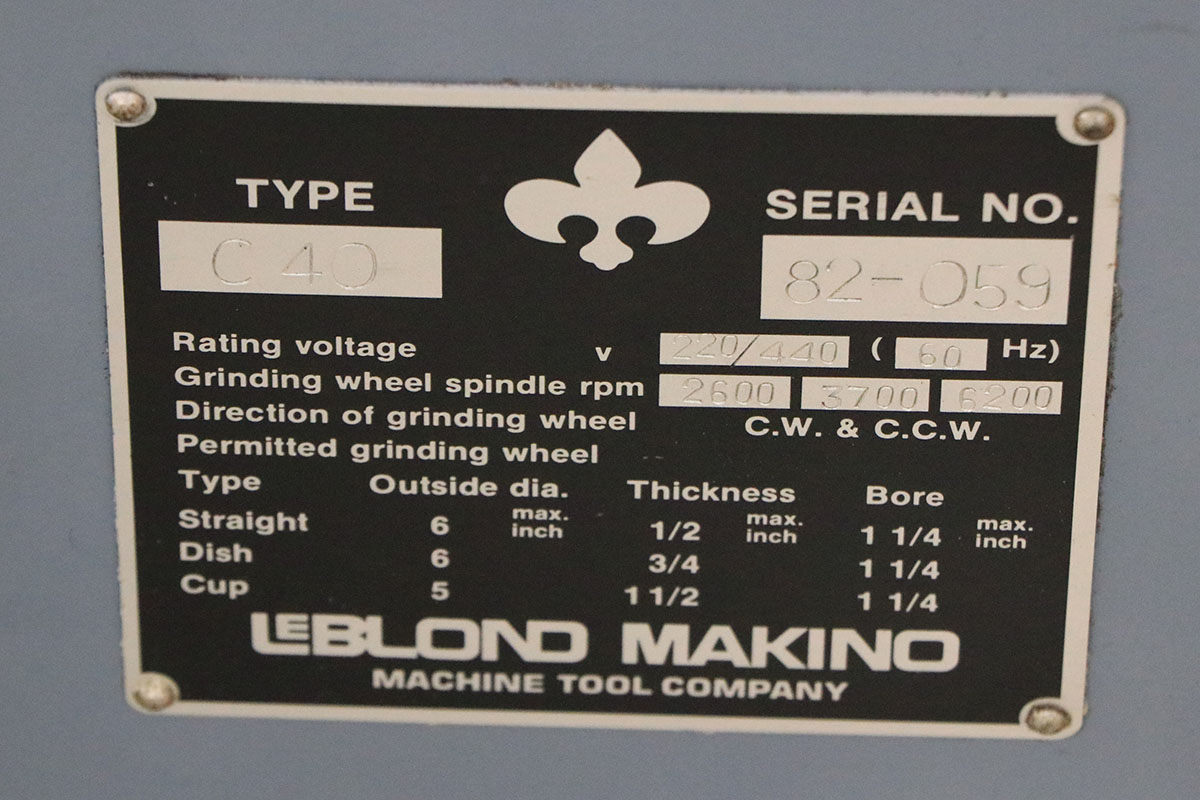

MODEL: C-40         S/N: 82-059      NEW: 1982


CAPACITY:
SWING OVER TABLE .......................... 10"
DISTANCE BETWEEN CENTERS .................. 27- 1/2"
DISTANCE BETWEEN TAILSTOCK & WORKHEAD ..... 22- 3/4"

RANGE OF MOVEMENT:
TABLE WORKING SURFACE ..................... 5-5/16" X 37"
LONGITUDINAL TRAVEL ....................... 16"
SWIVELING ANGLE ........................... 180°
TABLE GRADUATION ON END, FOR TAPER OF ..... +\- 10°
GRADUATION FOR TABLE SWIVEL MOVEMENT ...... +\- 60°
CROSS MOVEMENT OF WHEELHEAD ............... 10"
VERTICAL MOVEMENT OF WHEELHEAD ............ 10"
WHEELHEAD SWIVELS ......................... 360°
WHEELHEAD TILTS ........................... +\- 15°

DISTANCE BETWEEN WHEEL SPINDLE CENTER
 TO TOP OF TABLE SURFACE ......... 2" MIN./12" MAX.
DISTANCE BETWEEN WHEEL SPINDLE CENTER
 TO T-SLOT CENTER ................ 6- 1/2" MIN./16- 1/2" MAX.
 .
GRINDING WHEEL SPINDLE SPEEDS .... (3) 2600, 3700 & 6200 RPM
GRINDING WHEEL SPINDLE MOTOR ............... 1 H.P.

APPROX. FLOOR SPACE ....................... 61" x 68-1/2"
APPROX. MACHINE WEIGHT .................... 2,000 LBS


EQUIPPPED WITH:

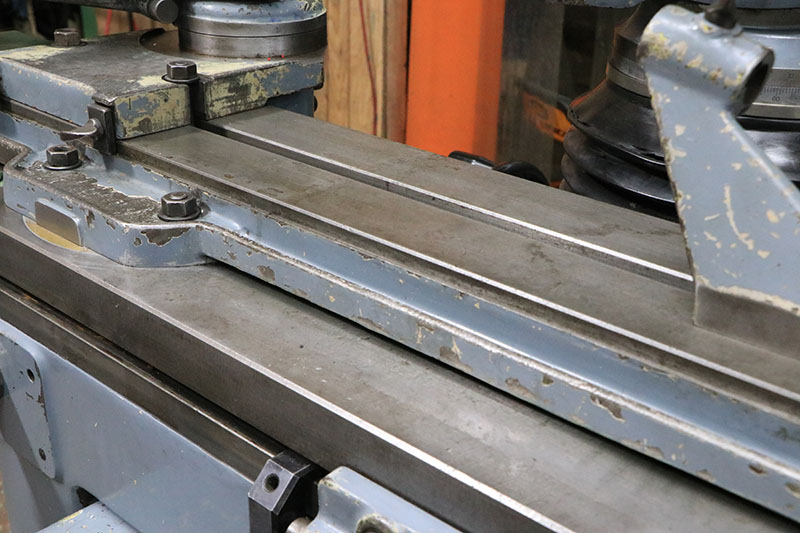

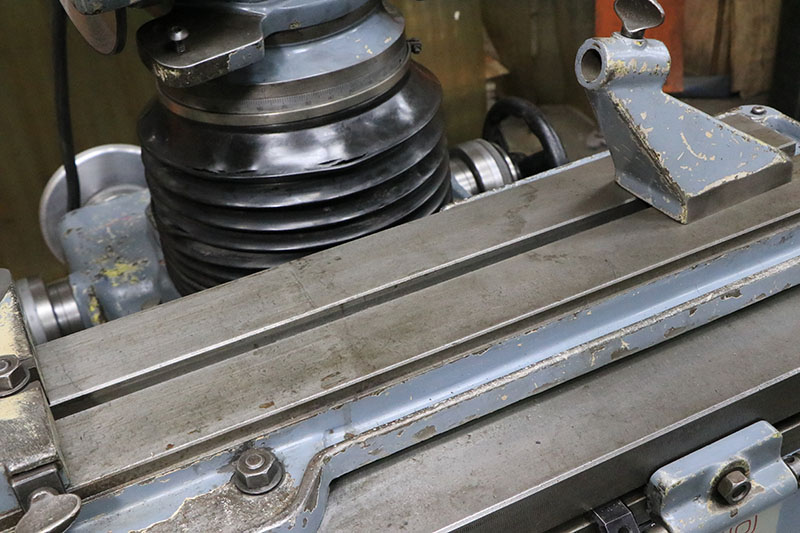

ROLLER BEARING TABLE - ANTI-FRICTION SLIDEWAY WITH
 HARDENED WAYS, CABLE DRIVE
FRONT & REAR DUPLICATE HANDWHEELS

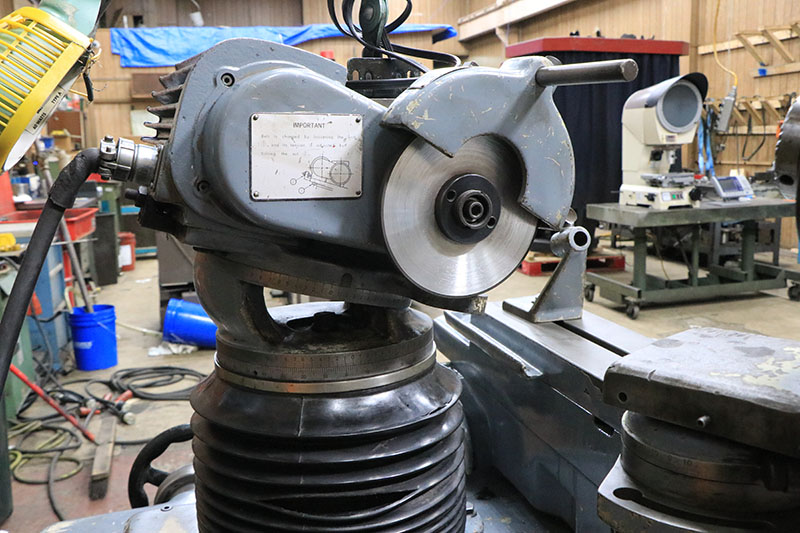

TILTING (+/- 15 DEGREES) & SWIVELLING (360° GRINDING WHEELHEAD)
SWIVEL TABLE THAT CAN SWIVEL 120 DEGREES.  TABLE HAS FINE
 TAPER ADJUSTMENT OF +/- 10 DEGREES.
SPRING CUSHIONED TABLE DOGS - ABSORBS THE SHOCK WHEN TH
 E TABLE IS RETURNED, PERMITS A SMOOTHER CONTROL OF THE TABLE.
CENTRALIZED LUBRICATION SYSTEM

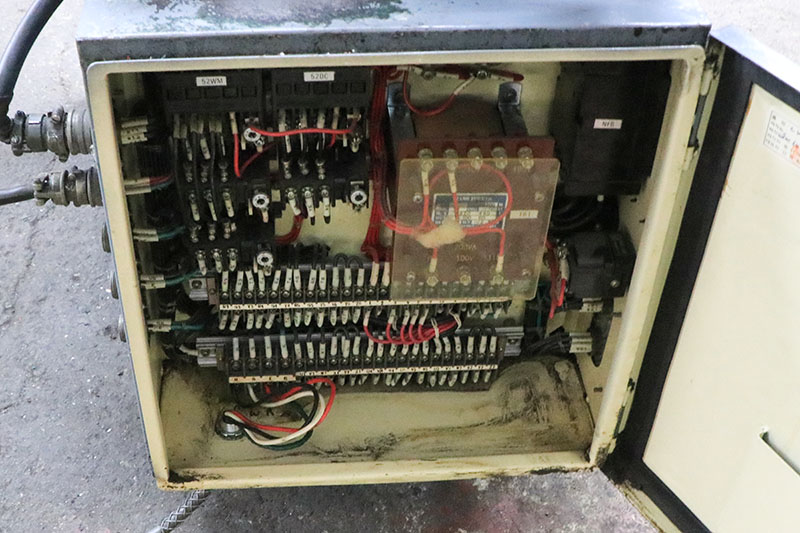

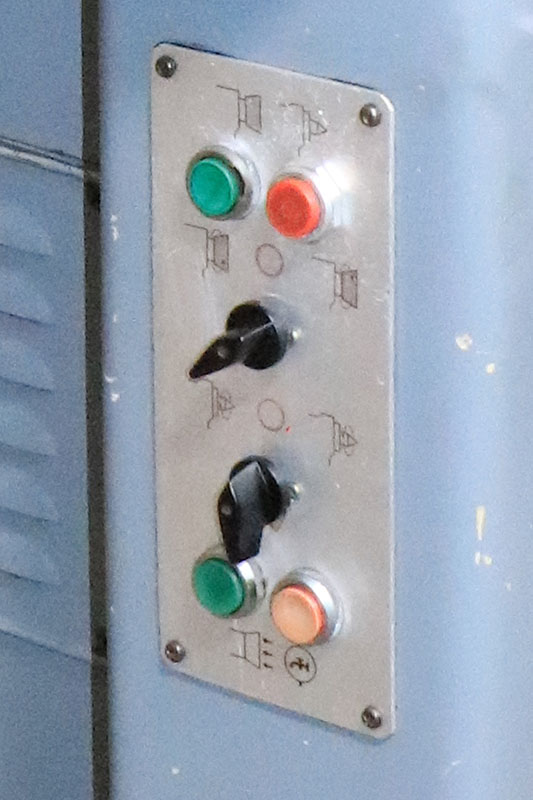

ELECTRICAL CONTROLS & OPERATIONAL PANEL
3/60/220-440 VOLT ELECTRICS

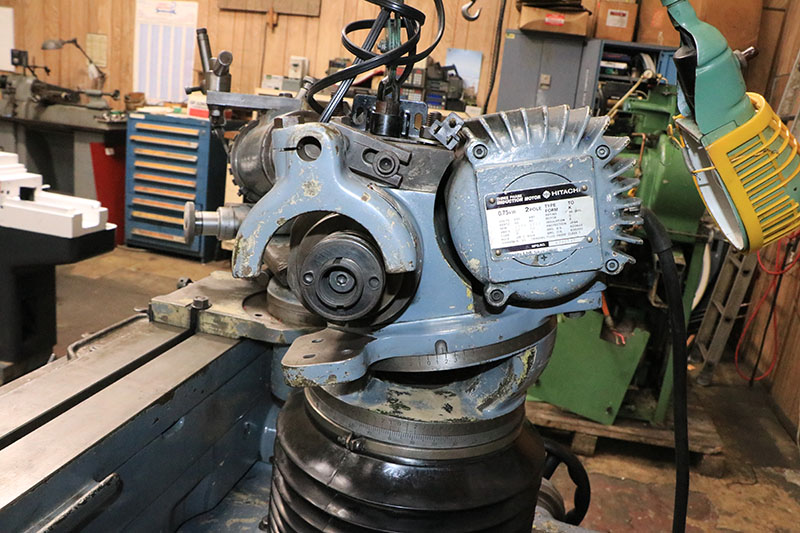

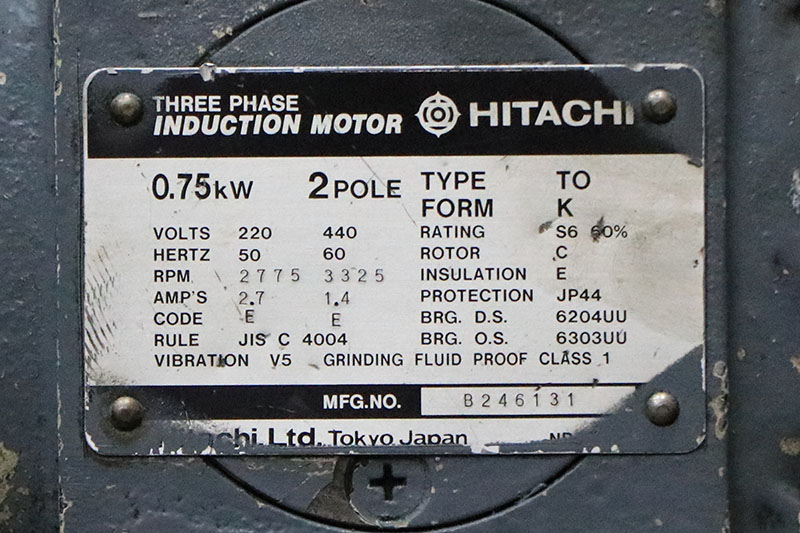

HITACHI SPINDLE MOTOR

ACCESSORIES:

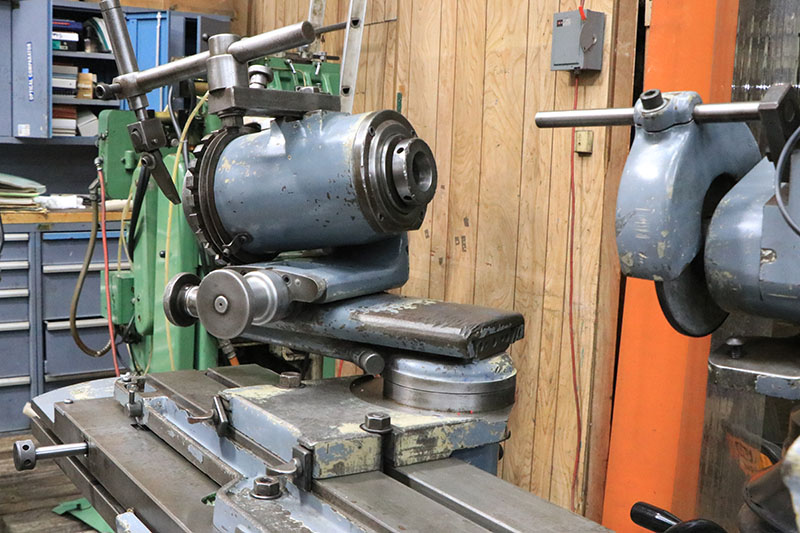

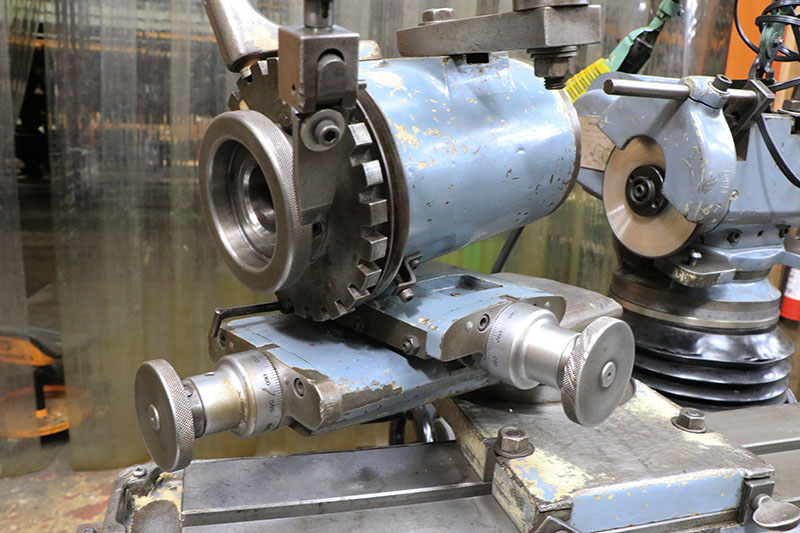

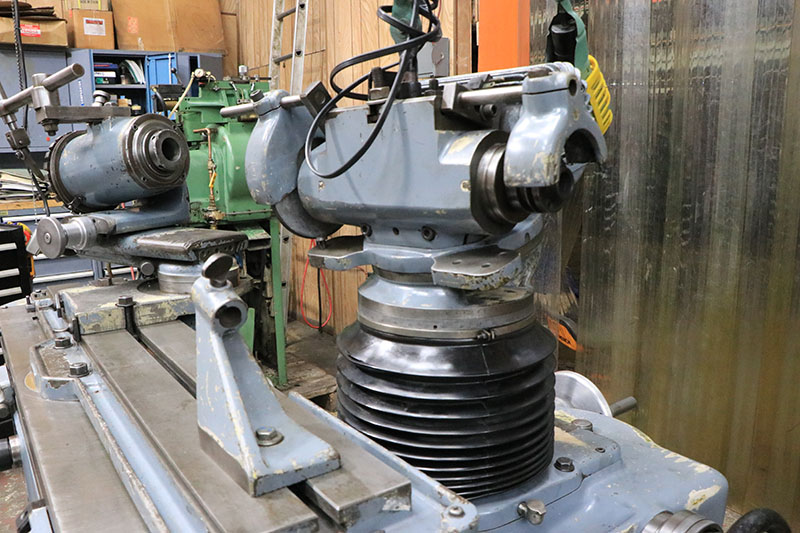

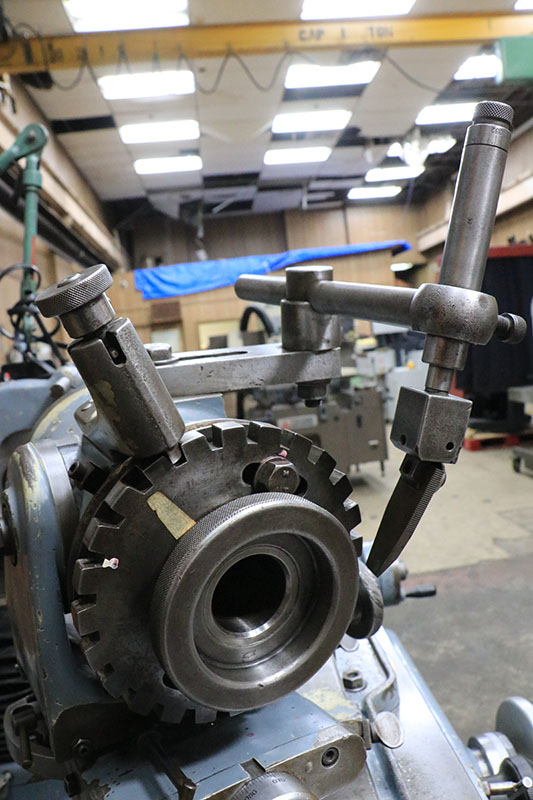

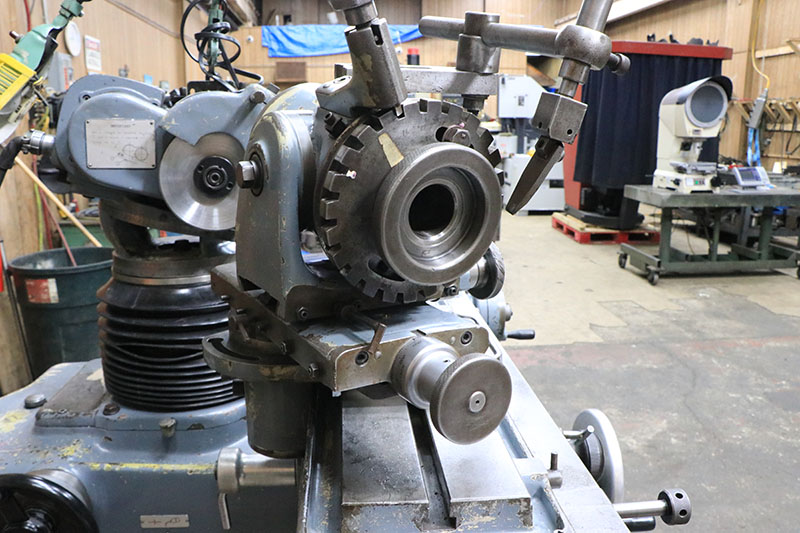

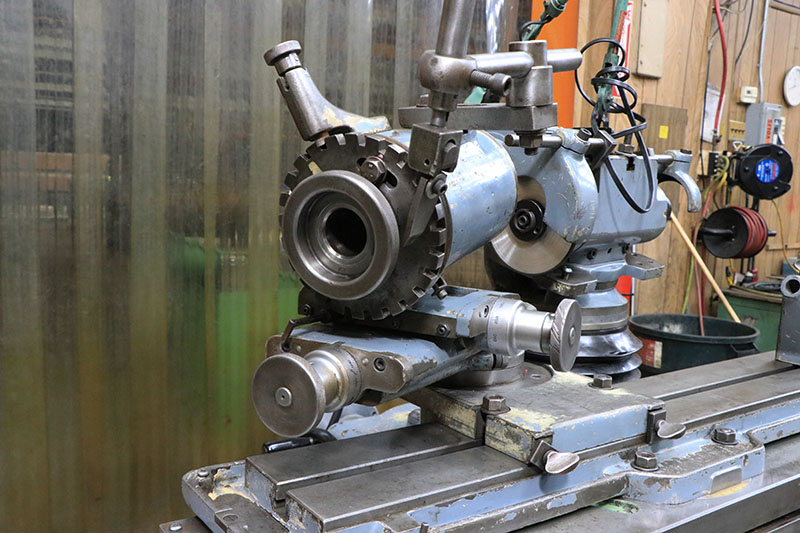

MAKINO NON-MOTORIZED WORKHEAD, No. 50 TAPER & No. 5MT TAPERS,
 ON A RADIUS GRINDING ATTACHEMENT, COMPUND X-Y SLIDES WITH
 HANDWHEELS, SWIVEL ADJUSTMENT BELOW THE COMPOUND.

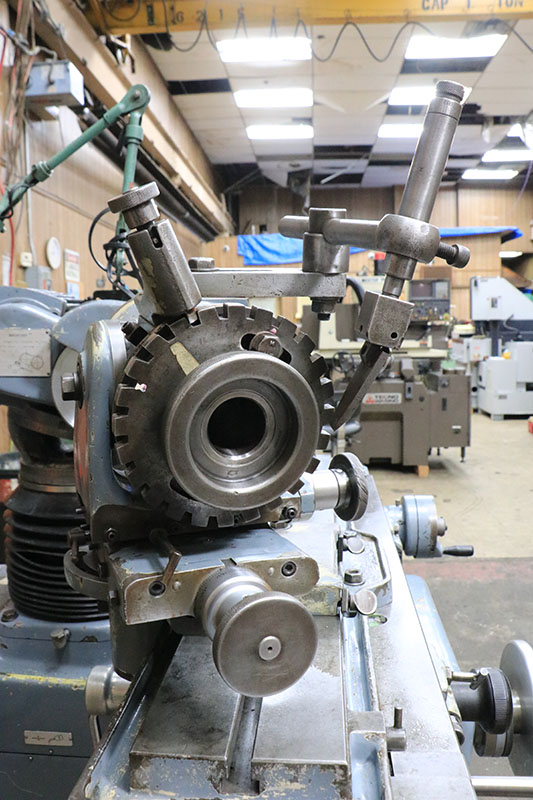

 INCLUDED ARE THE INDEX PLATE, THE FINGER ASSEMBLY,
 AS SHOWN IN THE PHOTOS.


** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** VERY CLEAN - EXCELLENT CONDITION & APPEARANCE **
