Mori Seiki NZ-2000T3Y3 CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:
Mori Seiki
Model:
NZ-2000T3Y3
Year:
2008
Ref #:
163669

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

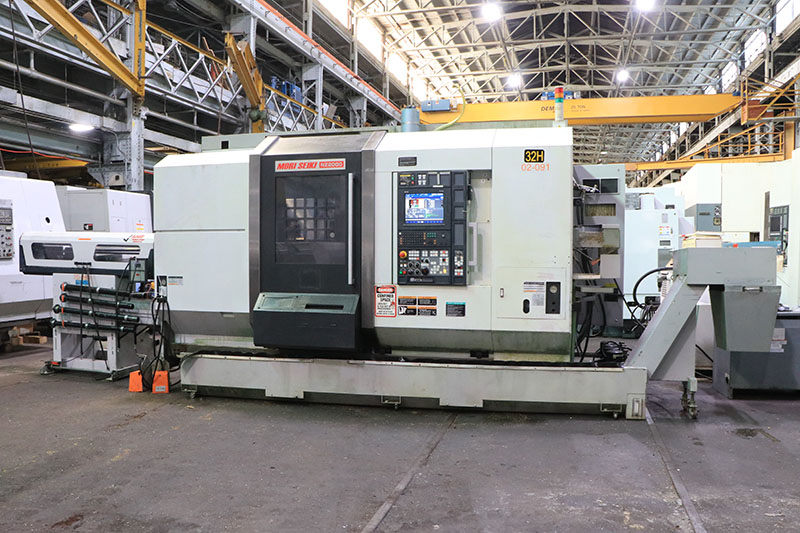

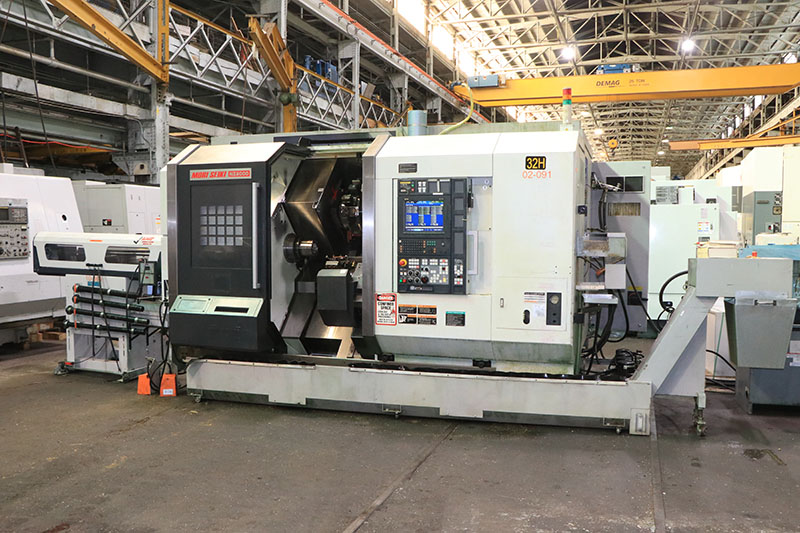

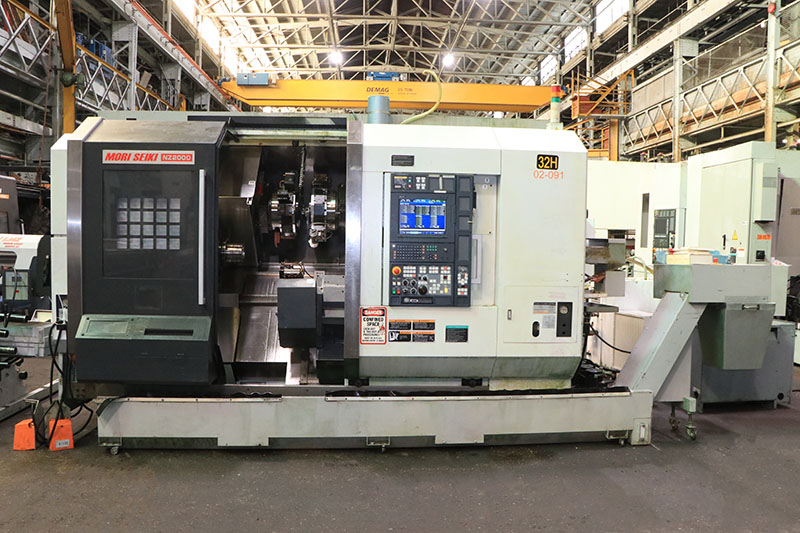

MORI SEIKI NZ-2000 T3Y3 MULTI AXIS CNC TURNING/MILLING CENTER
NEW: 12/2008

SPECIFICATIONS:
Max Diameter Bar Capacity ................ 2.56"
Max Swing Over Bed ....................... 31.5"
Turning Diameter (Max / Std) ............. 12.6" / 7.87"
Distance Between Spindles ................ 44.49"
Max Machining Length ..................... 31.89"
Spindle Speed (L & R) .................... 5000 RPM
Spindle Bore (L & R) ..................... 2.87"
Spindle Nose (L & R) ..................... A2-6
Spindle Motor (L & R) .................... 33.3 / 33.3 HP
Milling Speed ............................ 6000 RPM
Milling Motor ............................ 10 / 7.3 HP
Turret Type .............................. 16 Stations x 3 (All Live)
Turret Tool Mounting Capacity ............ 16 x 3 = 48
Rapid Traverse Rates (X / Z) ............. 1181 / 1968 IPM
X-Axis Travel (All Turrets) .............. 8.27"
Z1-Axis Travel ........................... 11.81"
Z2-Axis Travel ........................... 31.89"
Z3-Axis Travel ........................... 11.81"
Y-Axis Travel (All Turrets) .............. 4.3"
C-Axis Index (L & R Spindles) ............ .001 Degrees
B-Axis Travel (Right Spindle) ............ 34.25"
Machine Dimensions ....................... 201.6" x 107.1" x 91.3"
Machine Weight ........................... 20,900 lbs.

EQUIPPED WITH:

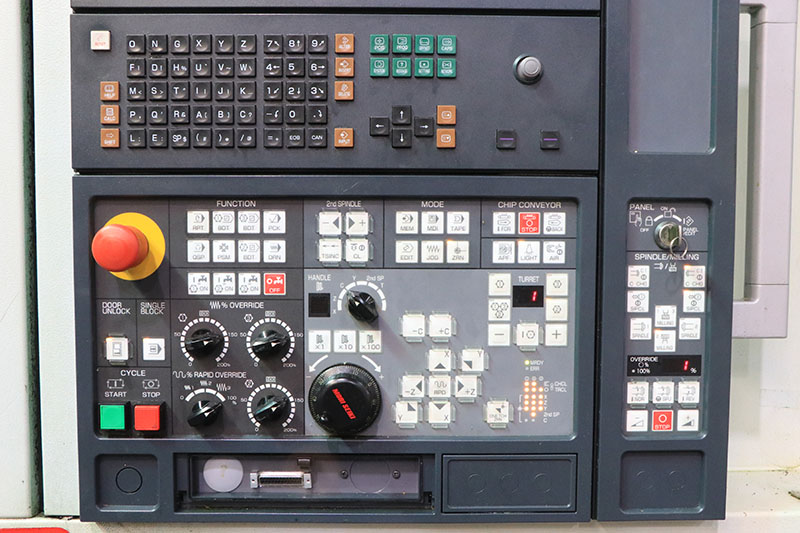

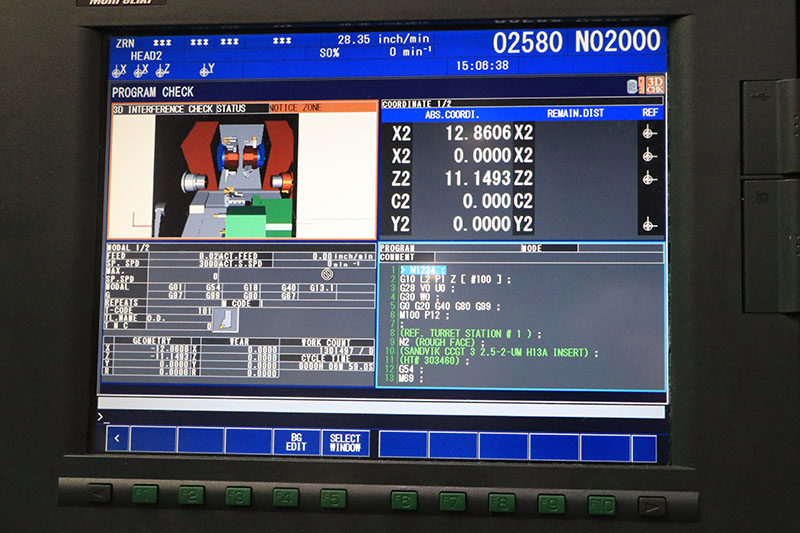

MORI MSX-701 III CNC CONTROL

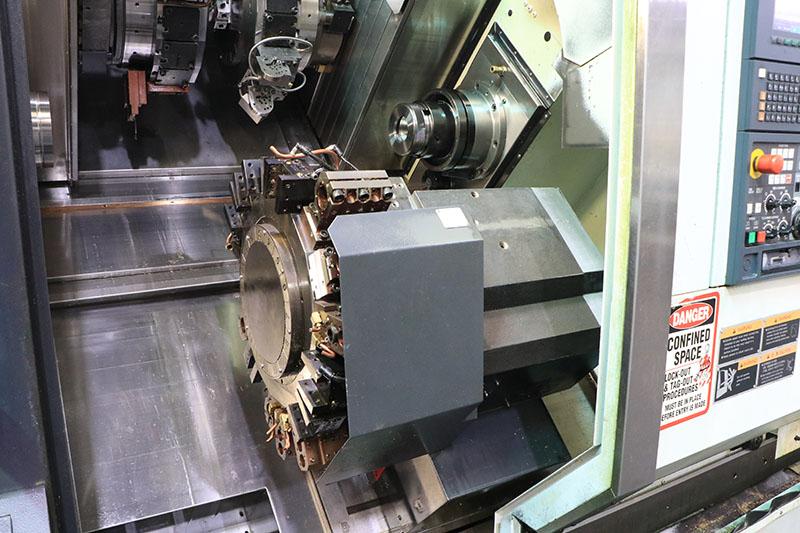

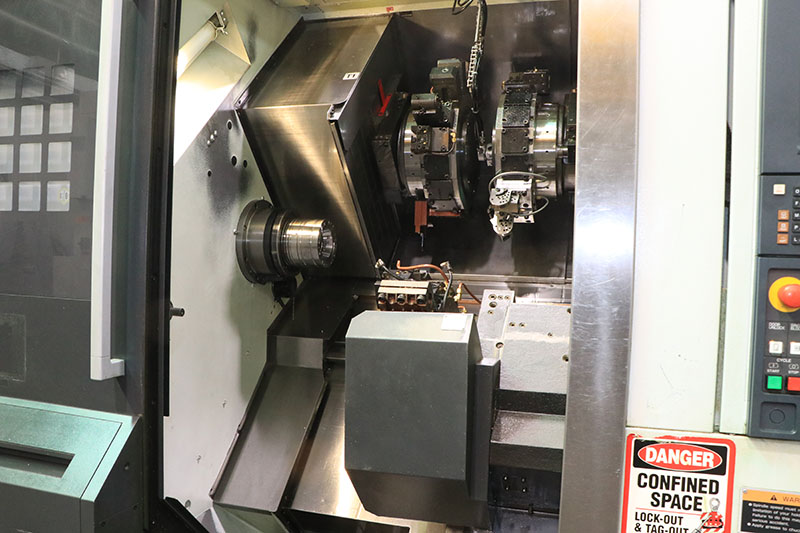

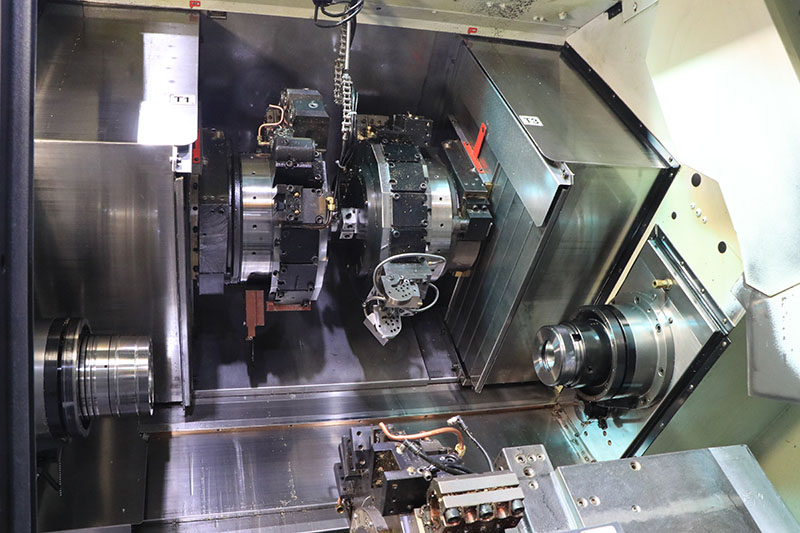

(2) Upper & (1) Lower Turret with Twin Opposed Spindles
Y-Axis Milling Capability on All (3) Turrets

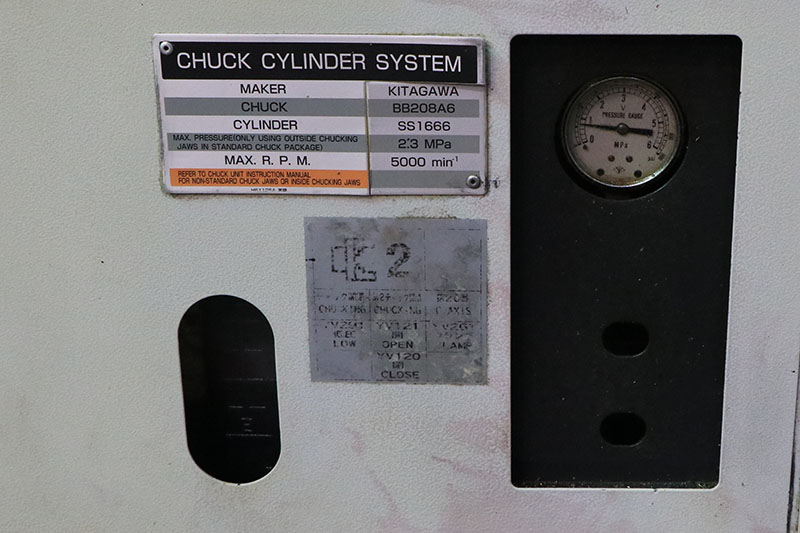

Collet Chucks on Main & Subspindles

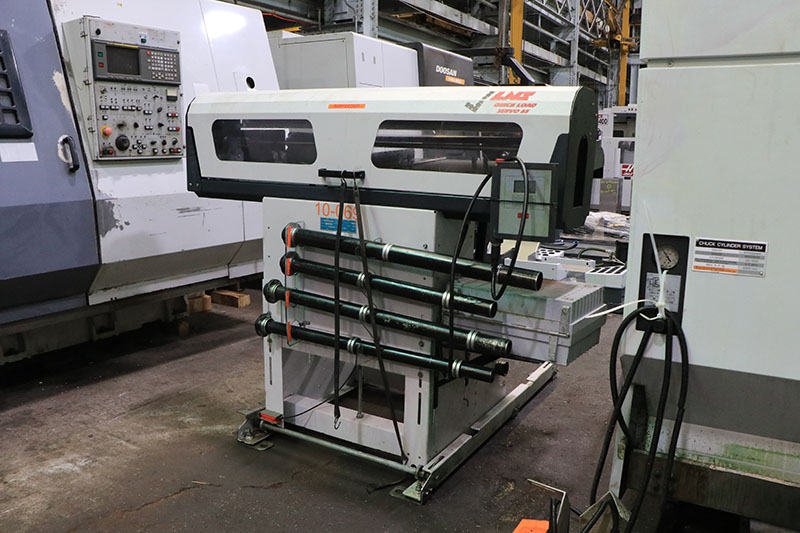

LNS SERVO 65 Magazine Barfeed
Overhead Auto Parts Catcher
Manual Tool Presetter (L & R)
Chip Conveyor
MP High Pressure Coolant Pump
All Available Standard Toolholders
All Available Manuals
