Myford MG12, HAND FEEDS, 1969, 10" WHEEL, PLAIN CYLINDRICAL GRINDERS

Price on Request

Make:
Myford
Model:
MG12, HAND FEEDS, 1969, 10" WHEEL,
Year:
1969
Ref #:
163593

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

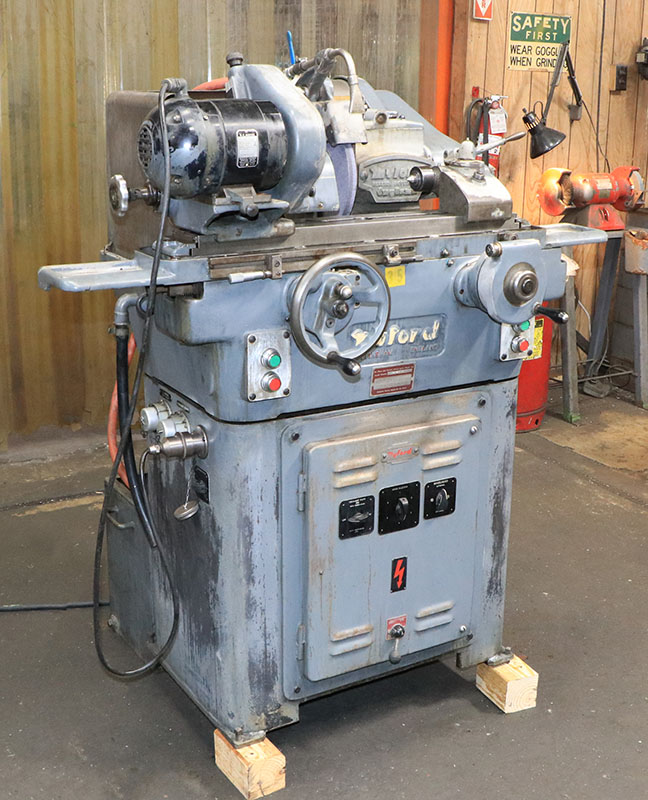

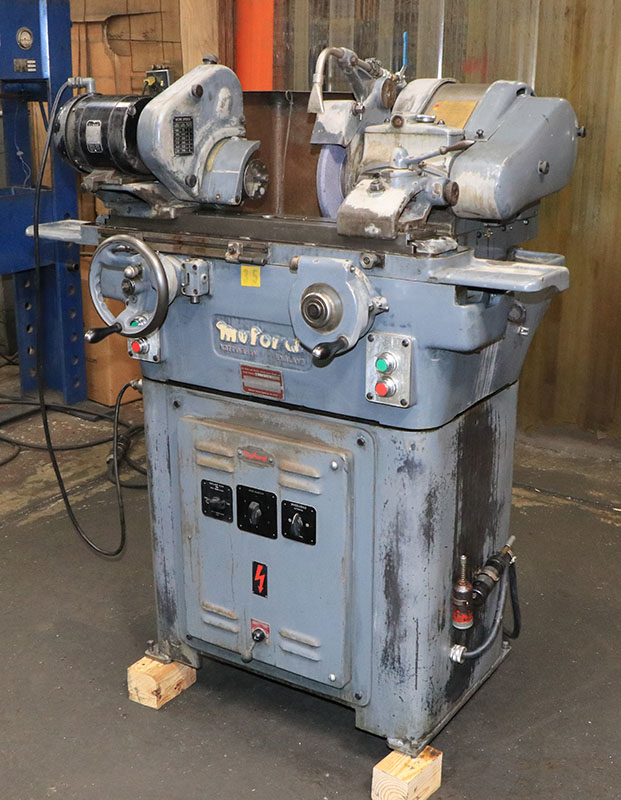

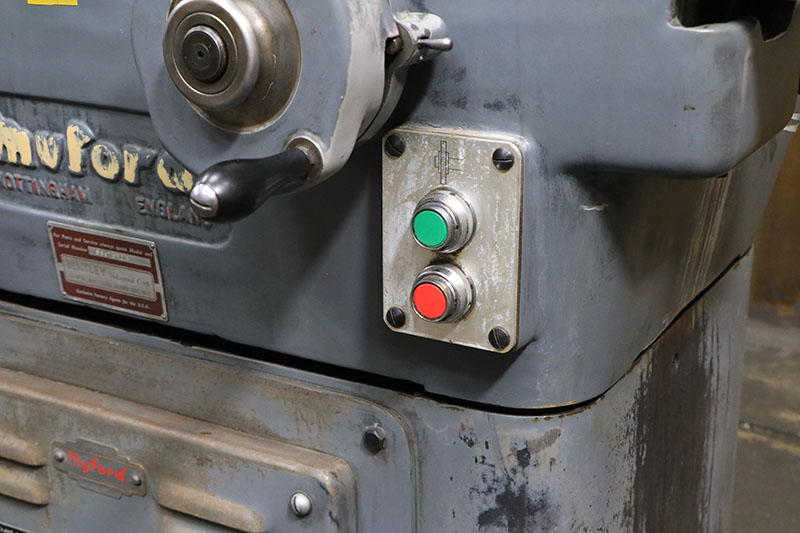

  5" X 12" MYFORD "MADE IN ENGLAND" "PRECISION"
I.D./O.D. CYLINDRICAL GRINDER, HAND FEEDS - ALL MANUAL OPERATION

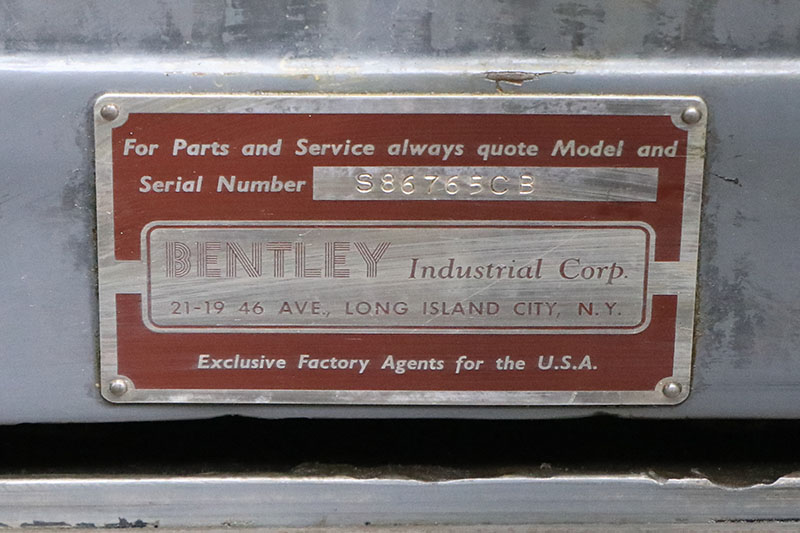

  MODEL: MG12    S/N: S86765CB     NEW: 1969

MAXIMUM GRINDING DIAMETER .................. 3"
SWING OVER TABLE ........................... 5"
MAXIMUM TABLE TRAVEL ....................... 13-3/4"
CAPACITY BETWEEN CENTERS ................... 12"
TABLE SWIVELS EITHER WAY ................... 7 DEGREES
TABLE TRAVEL PER REVOLUTION OF HANDWHEEL ... 2.04"& 0.51"

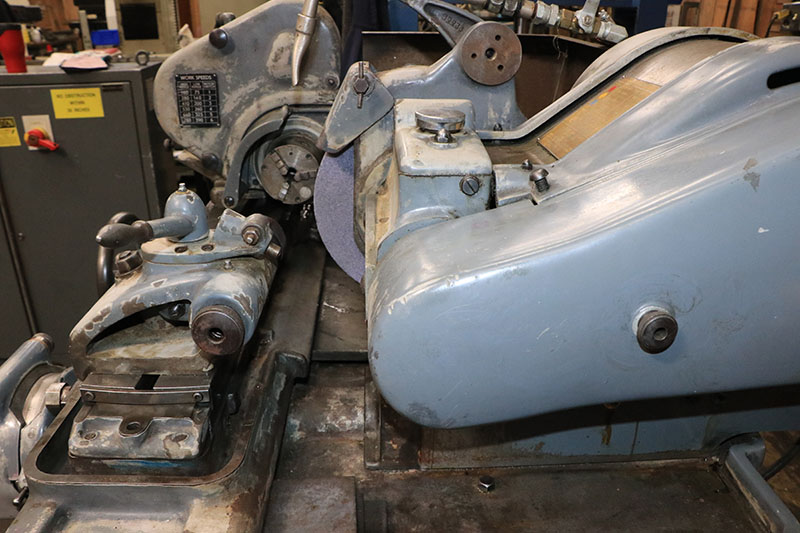

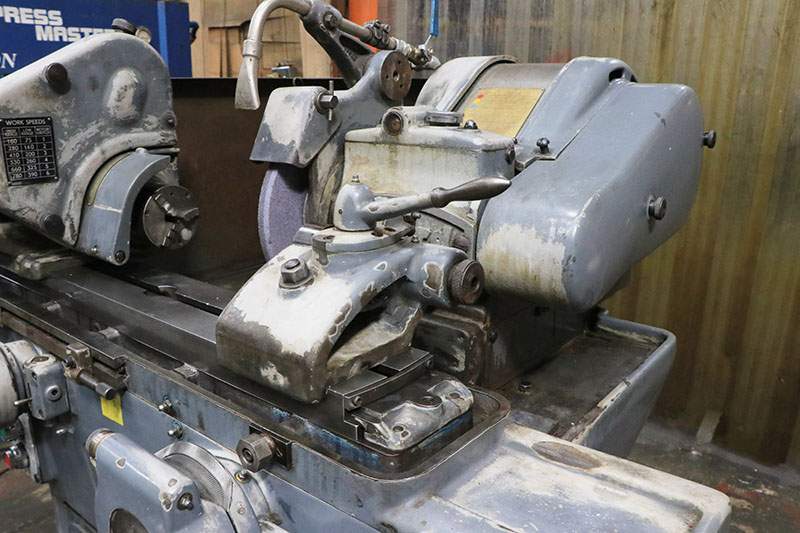

  WHEELHEAD:
TOTAL TRAVEL ............................... 3"
FINE FEED ADJUSTER (NUMBERED DIVISIONS) .... 0.0001"
WHEEL SPEEDS (2) ........................... 2200 & 2500 RPM

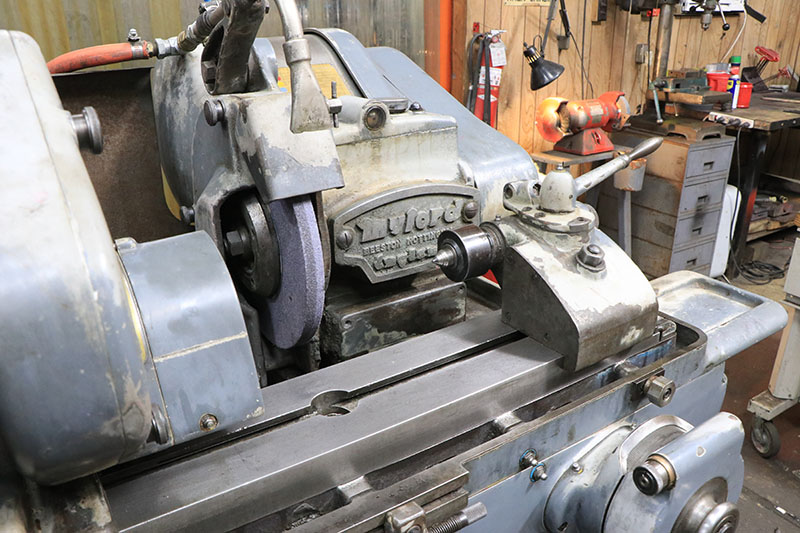

GRINDING WHEEL (RECESSED) .................. 10" X 1" X 3"
WHEELHEAD MOTOR ............................ 2 H.P.

  WORKHEAD:

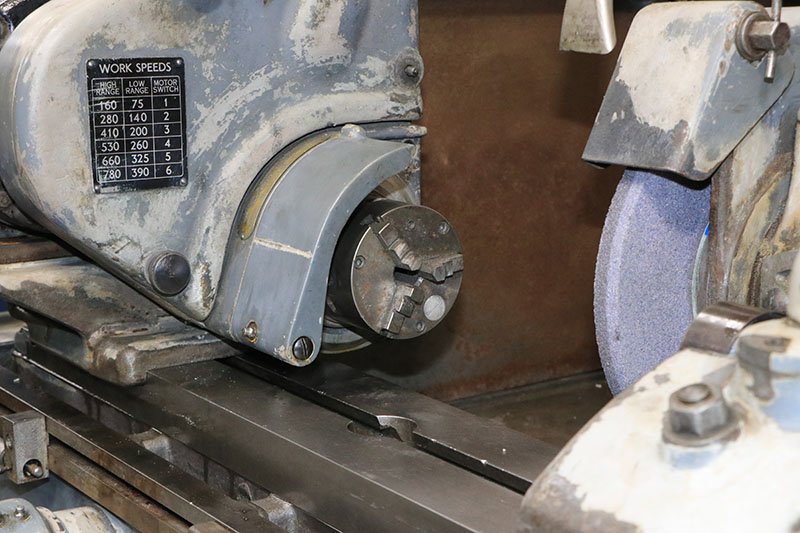

WORKSPEEDS, STEPLESSLY VARIABLE ............ 50 TO 900 RPM
CAPACITY THROUGH STANDARD DRAW TUBE ........ 3/4"
MAXIMUM COLLET CAPACITY .................... 3/4"

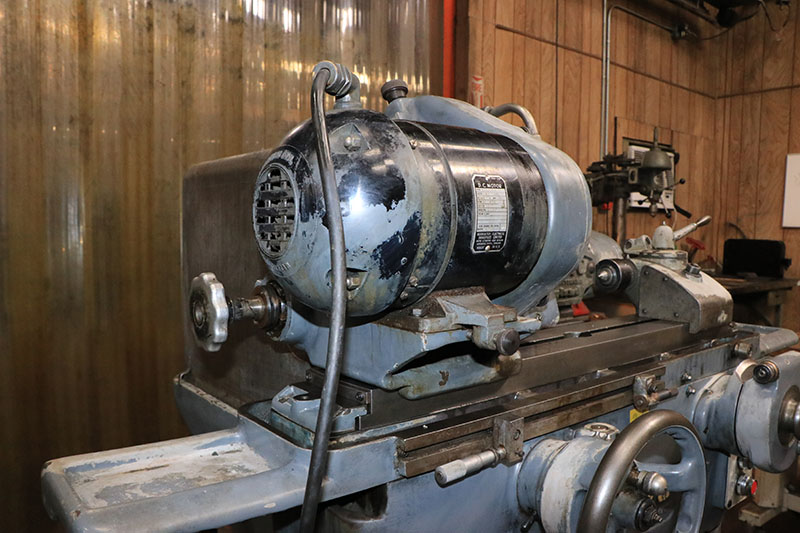

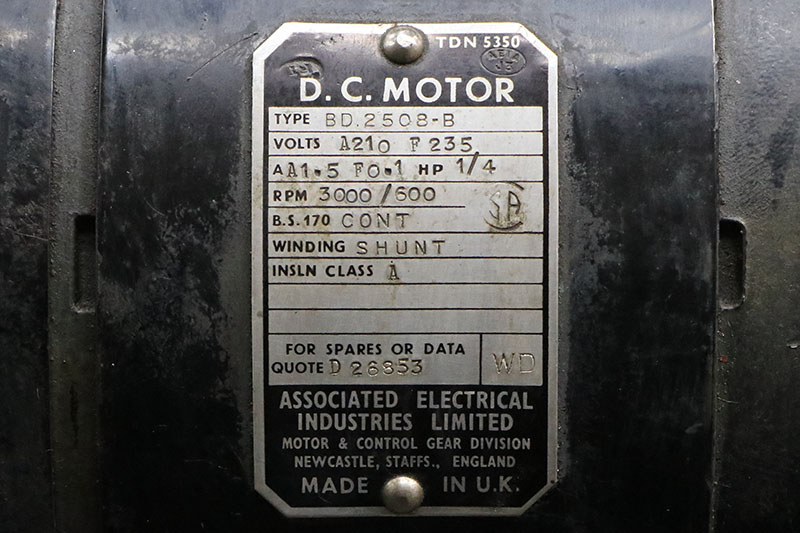

WORKHEAD MOTOR ............................. 1/2 H.P.

APPROXIMATE MACHINE WEIGHT ................. 1,500 LBS

  EQUIPPED WITH:

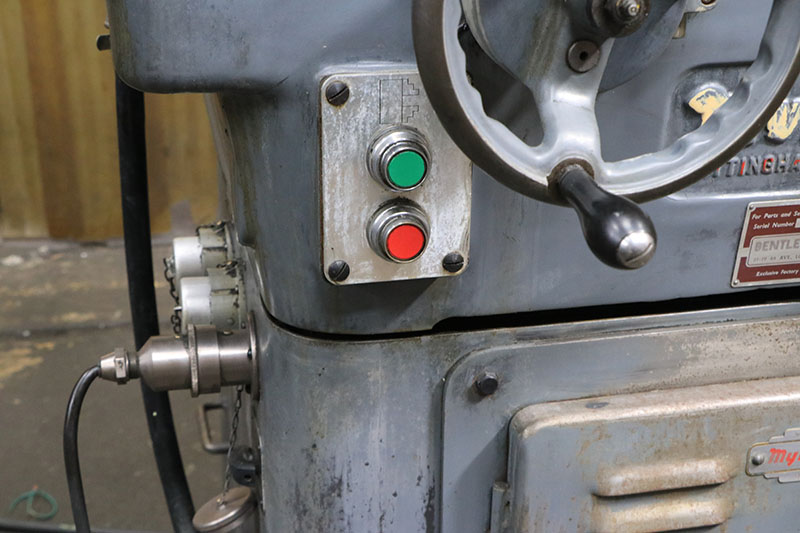

HAND FEEDS, ALL MANUAL
10" GRINDING WHEEL

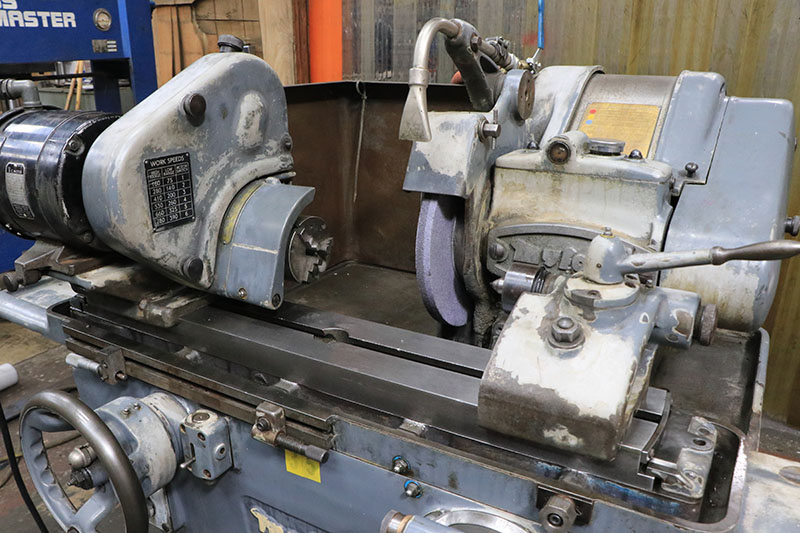

MYFORD DUAL LIVE/DEAD WORKHEAD
ACCESSORY FOR USING THE DEAD SPINDLE SET-UP

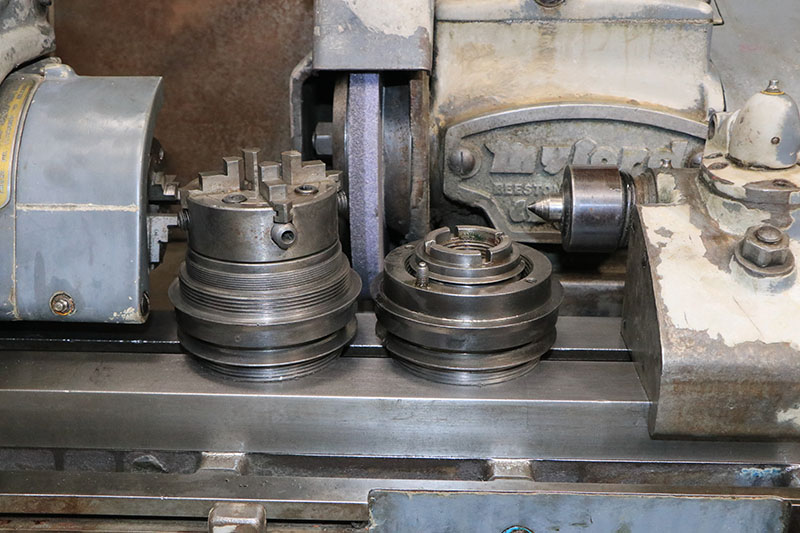

3-JAW & 4-JAW CHUCKS
DRAWBAR FOR 3C COLLET
TABLE MOUNTED WHEEL DRESSER

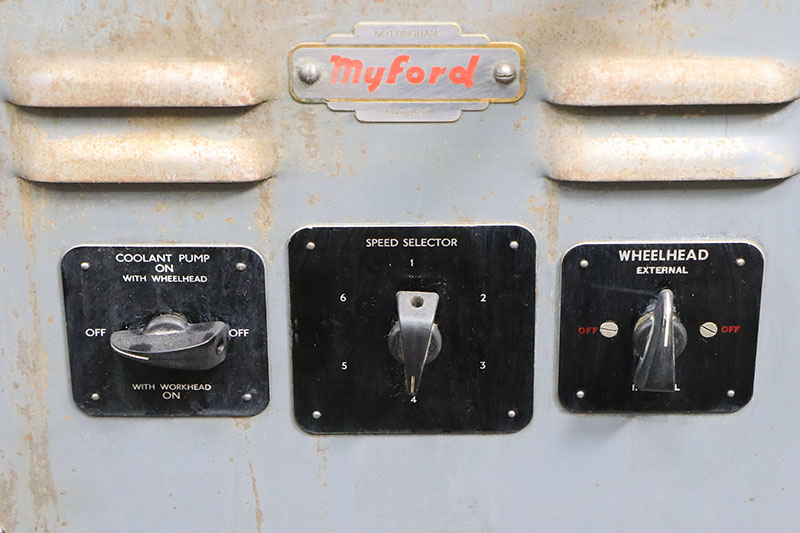

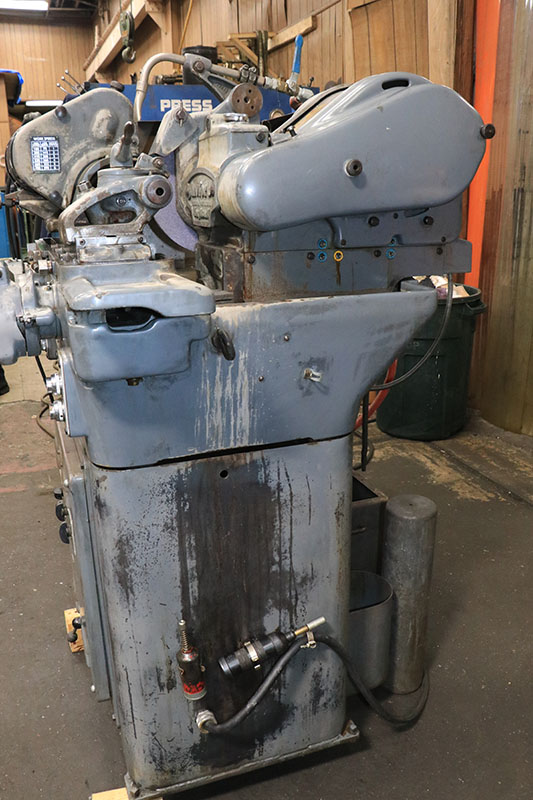

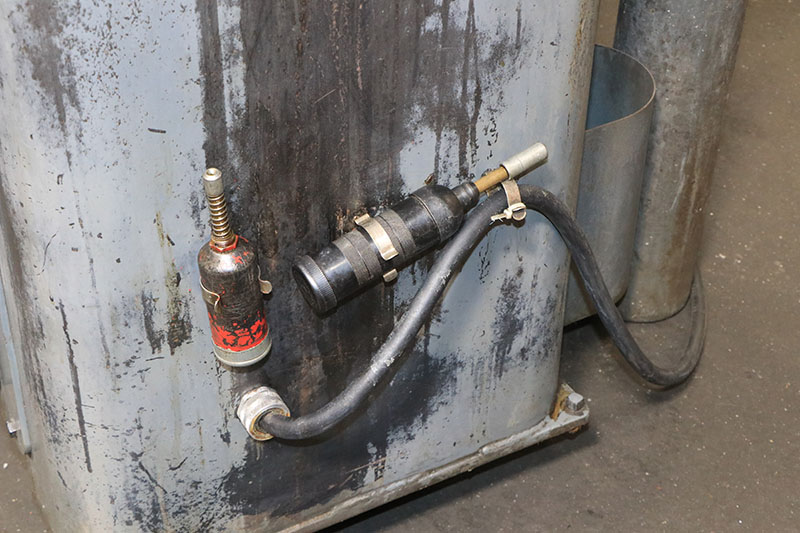

COOLANT SYSTEM, GOES BEHIND THE MACHINE
3/60/220-440 VOLT ELECTRICS
MACHINE IS PRESENTLY WIRED FOR 220-230 VOLTS

AVAILABLE TO PURCHASE ACCESSORIES FOR THIS MACHINE, P.O.R.:
MYFORD RADIUS DRESSER
MYFORD ANGLE DRESSER
MYFORD INTERNAL GRINDING ATTACHMENT



** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** QUIET WHEELHEAD & WORKHEAD **
** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
** SERVICED AND READY FOR DELIVERY **
