Okamoto ACC-1224-DXV, 2015, 3X AUTO FEEDS, AUTO IDF SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Okamoto

Model:: ACC-1224-DXV, 2015, 3X AUTO FEEDS, AUTO IDF

Year:: 2015

Ref #:: 178057

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

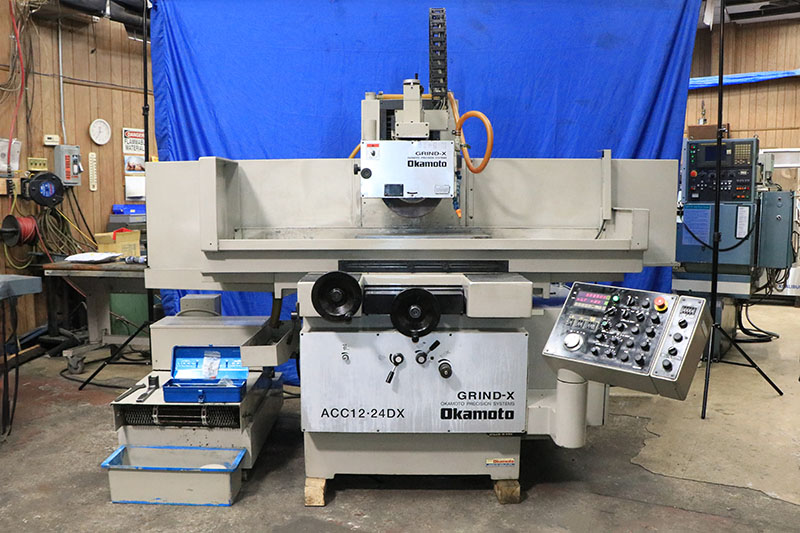

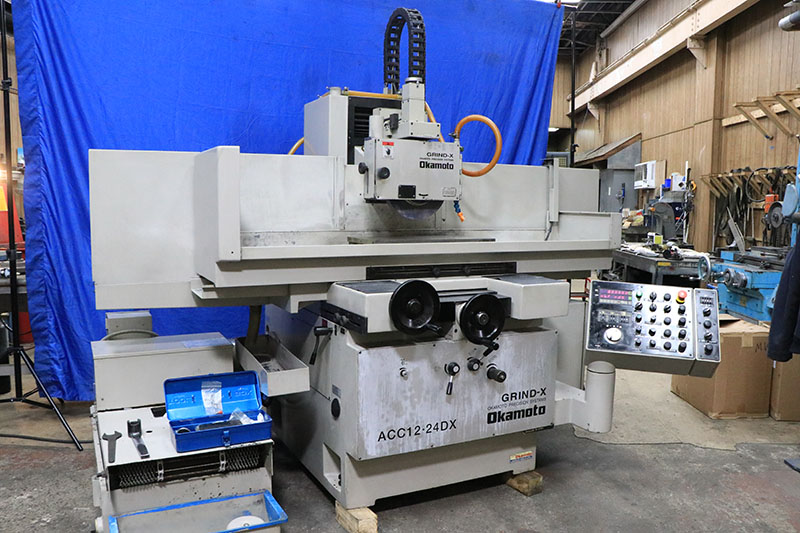

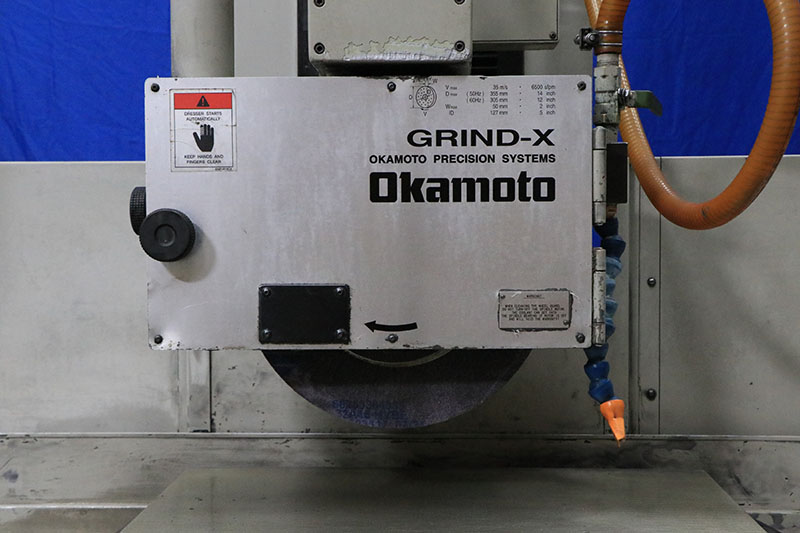

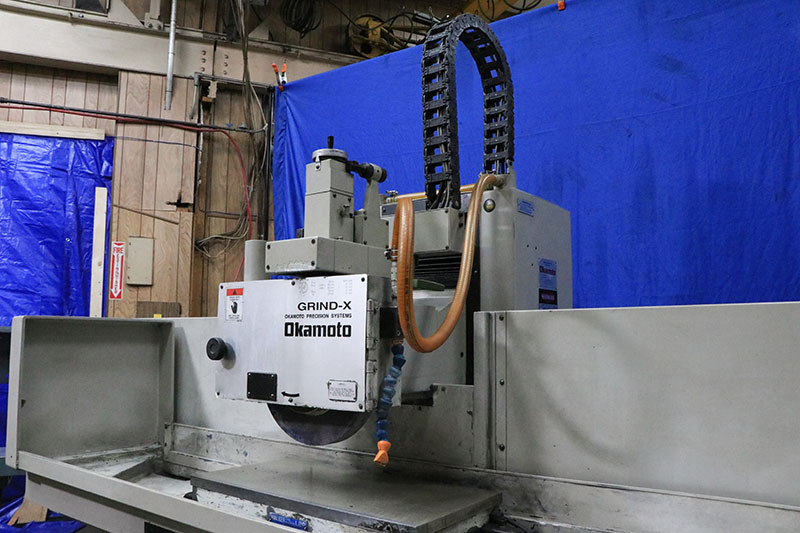

    12" X 24" OKAMOTO  MODEL: ACC-1224DXV
       HIGH-PRECISION" SURFACE GRINDER
WITH "DX" SERIES PROGRAMMABLE AUTO INCREMENTAL DOWNFEED

- WITH AUTO WHEEL DRESSING & AUTO WHEEL COMPENSATION

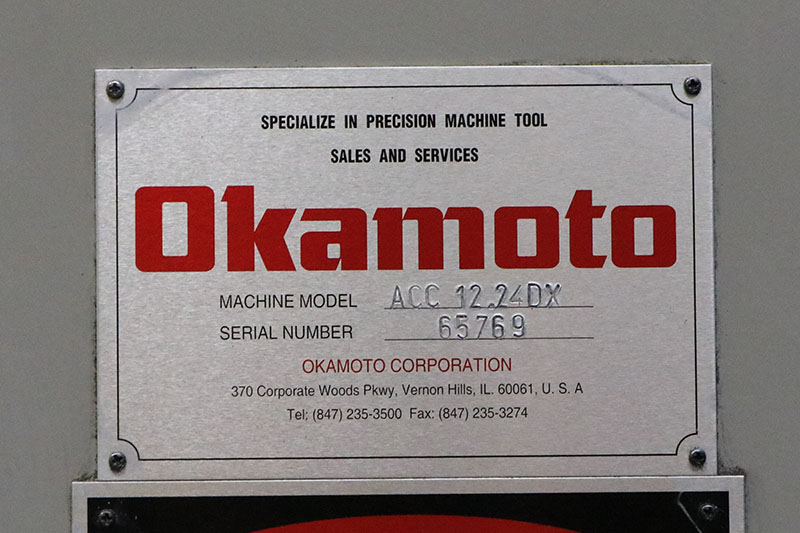

        S/N: 65769      MFG: 2015

NOMINAL GRINDING CAPACITY ......... 12" x 24"
MAXIMUM HEIGHT UNDER 12" WHEEL .... 13.7"
TABLE SPEED, INFINITELY VARIABLE .. UP TO 82' FPM
MAX. LONGITUDINAL TABLE MOVEMENT,
 MANUAL ........................... 30"
AUTO CROSS FEED INCREMENT ......... 0.002" TO .80"
AUTO CONINOUS CROSSFEED ........... 4' TO 40' FPM
CROSSFEED, MANUAL,
 HAND FEED PER REV. ............... 0.25"
 GRAD. OF HANDWHEEL ............... 0.001"
MAX. CROSSFEED, MANUAL ............ 14"
AUTO INCREMENTAL DOWNFEED
 INCREMENTS ....................... 0.00005" TO .0015"
POWER RAPID WHEEL POSITIONING
 RATE ............................. 16" IPM

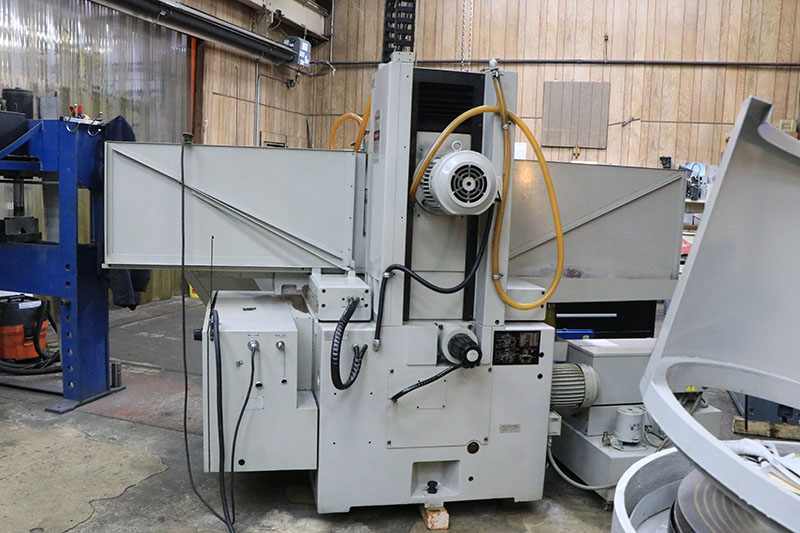

SPINDLE MOTOR ..................... 5 H.P.

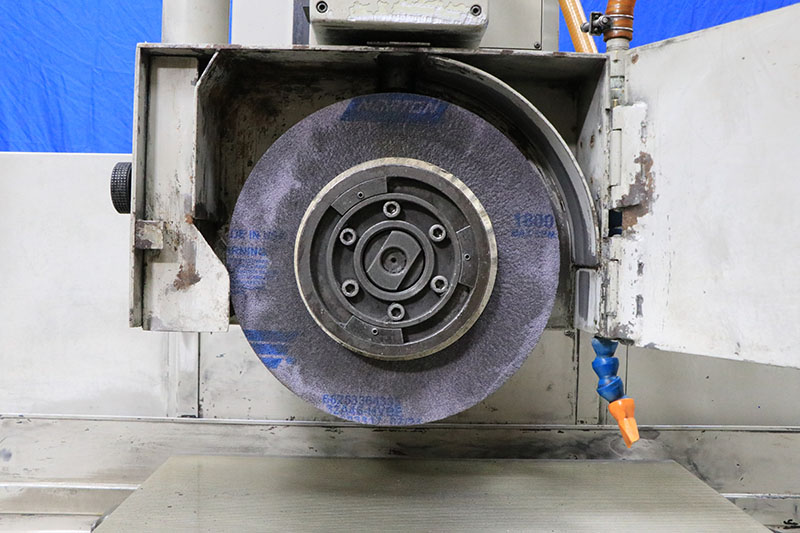

WHEEL SIZE ........................ 12" X 1.5" X 5"

APPROX. DIMS. FOR OPERATION ... 107" x 76"D x 70"H
APPROX. MACHINE WEIGHT ............ 5,500 LBS.

  EQUIPPED WITH:

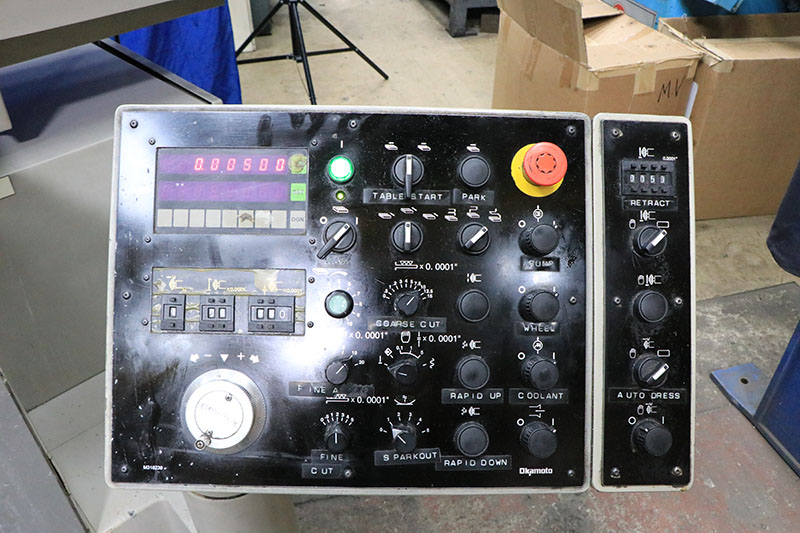

"DXV" PROGRAMMABLE ELECTRONIC
 AUTO INCREMENTAL DOWNFEED:
-SERVO DRIVEN DOWNFEED
-AUTO INCREMENTAL DOWNFEED FOR BOTH SURFACE
  & PLUNGE OPERATIONS
-DUAL RATE AUTO DOWNFEED WITH COARSE & FINE SELECTIONS
-DIGITAL DISPLAY FOR BOTH CROSS & VERTICAL AXES
-SPARKOUT PASSES (0 TO 5) W/AUTO TABLE PARK AT
  COMPLETION OF GRIND CYCLE

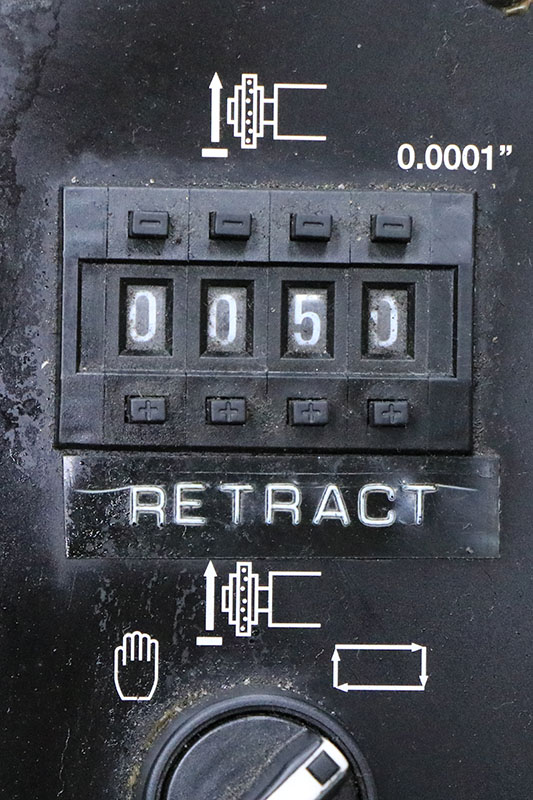

-ELECTRONIC HANDWHEEL FOR MANUAL VERTICAL
  MOVEMENT,  WITH EACH GRAD. EQUIVALENT
  TO 0.00001", .0001" OR .001"
-POWER RAPID WHEEL POSITIONING
-FULLY AUTOMATIC GRINDING CYCLE WITH
    PROGRAMMABLE DRESS INTERVAL

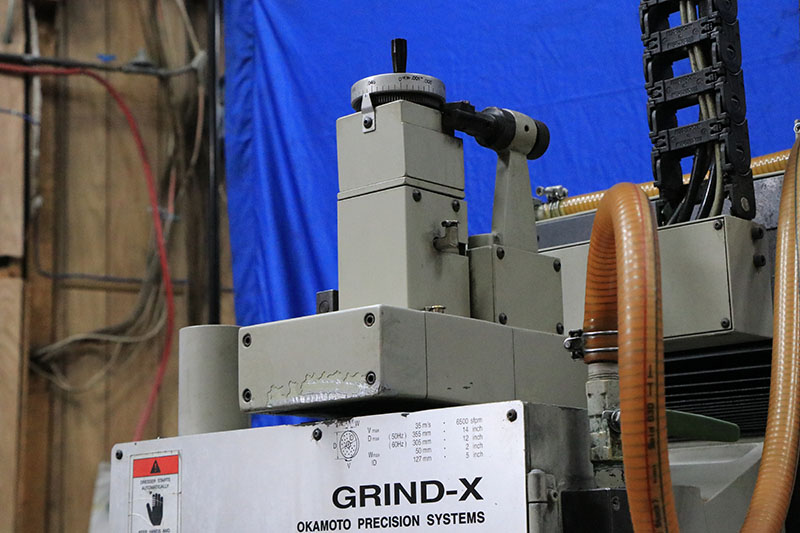

-AUTOMATIC DRESS CYCLE WITH DRESS COMPENSATION
  - ALLOWING WHEEL TO BE DRESSED DURING
    AUTOMATIC CYCLE AT DESIRED INTERVAL.
-AUTOMATIC WHEEL WEAR COMPENSATION IN
    AUTOMATIC CYCLE
  - ALLOWS FOR GREATER MACHINING ACCURACY.


HYDRAULIC TABLE TRAVERSE
AUTOMATIC CROSSFEED

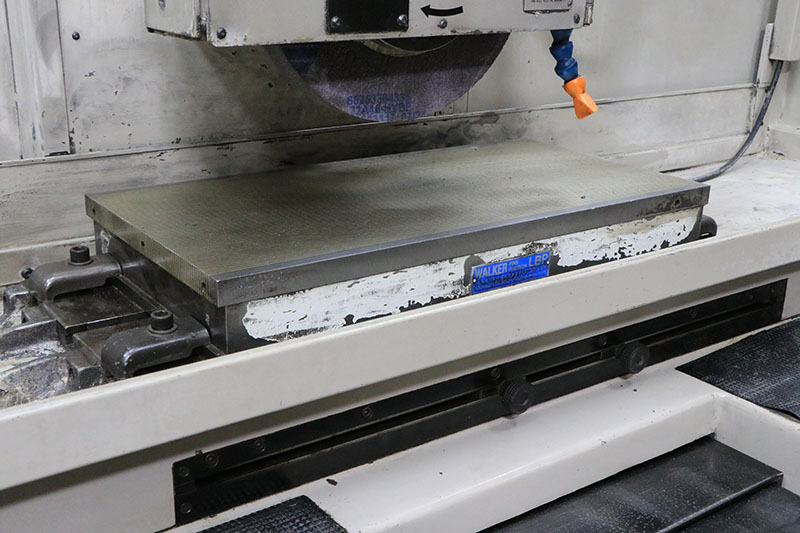

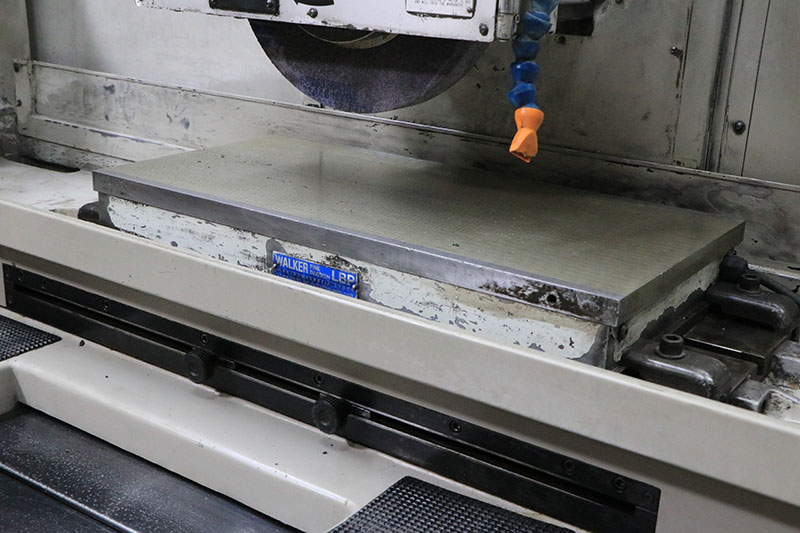

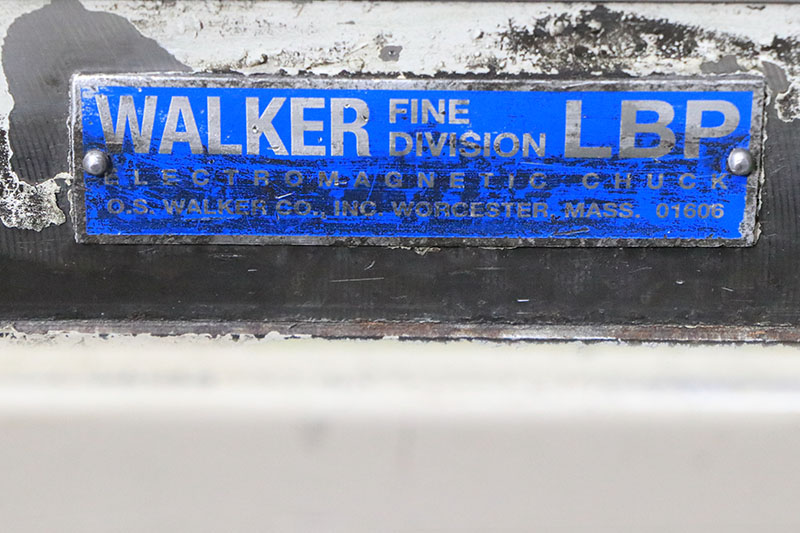

12" X 24" O.S. WALKER

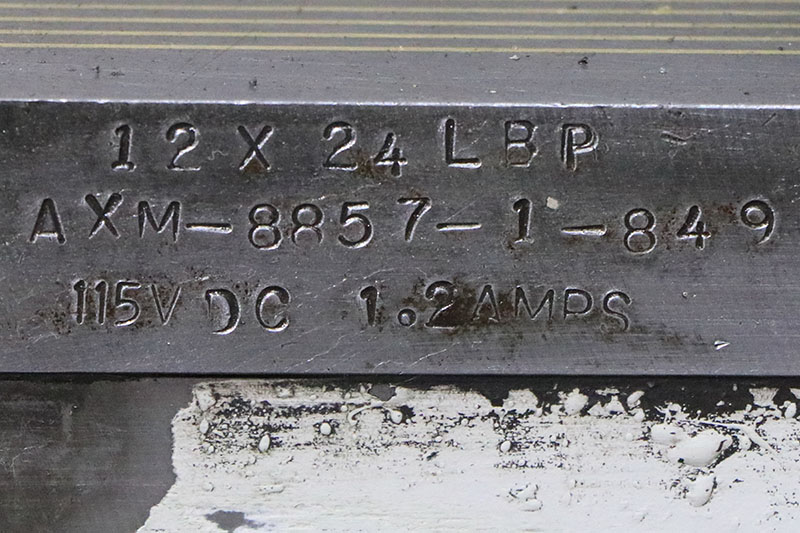

 "LBP" FINE-DIVISION ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL & DEMAGNETIZER

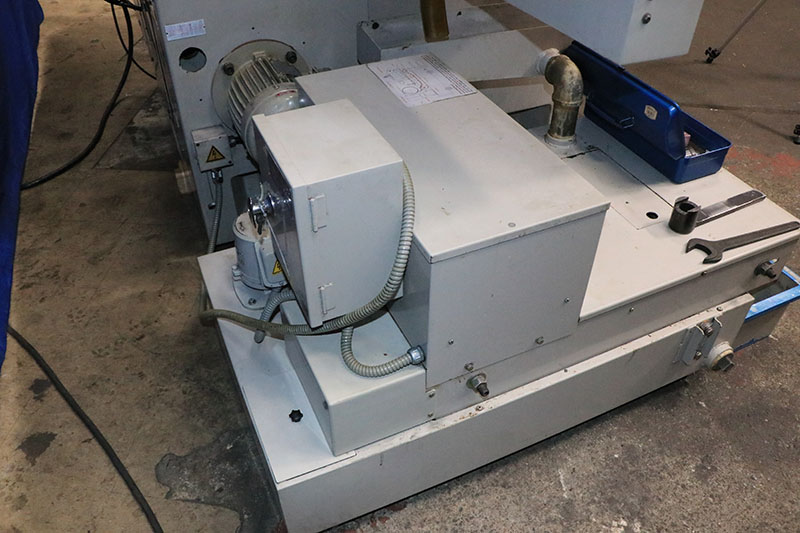

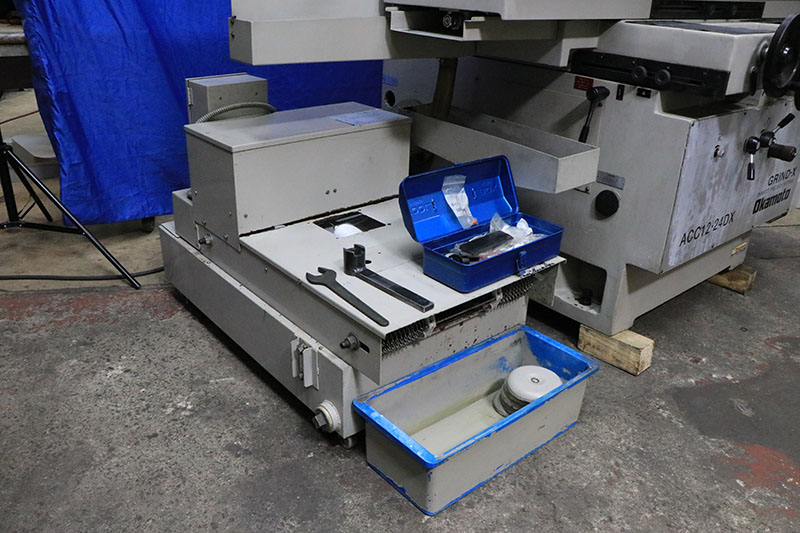

COOLANT SYSTEM WITH PAPER FILTRATION
SELF-CONTAINED HYDRAULIC SYSTEM
5 H.P. SPINDLE MOTOR/3/60/220-440 VOLTS
MACHINE IS WIRED PRESENTLY FOR 220 VOLTS


** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** SUPERIOR CONDITION & APPEARANCE - ORIGINAL PAINT **
