Okamoto ACC-1224-SA, 2018, PROG. AUTO IDF, 3X AUTO FEEDS, SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Okamoto

Model:: ACC-1224-SA, 2018, PROG. AUTO IDF, 3X AUTO FEEDS,

Year:: 2018

Ref #:: 179144

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

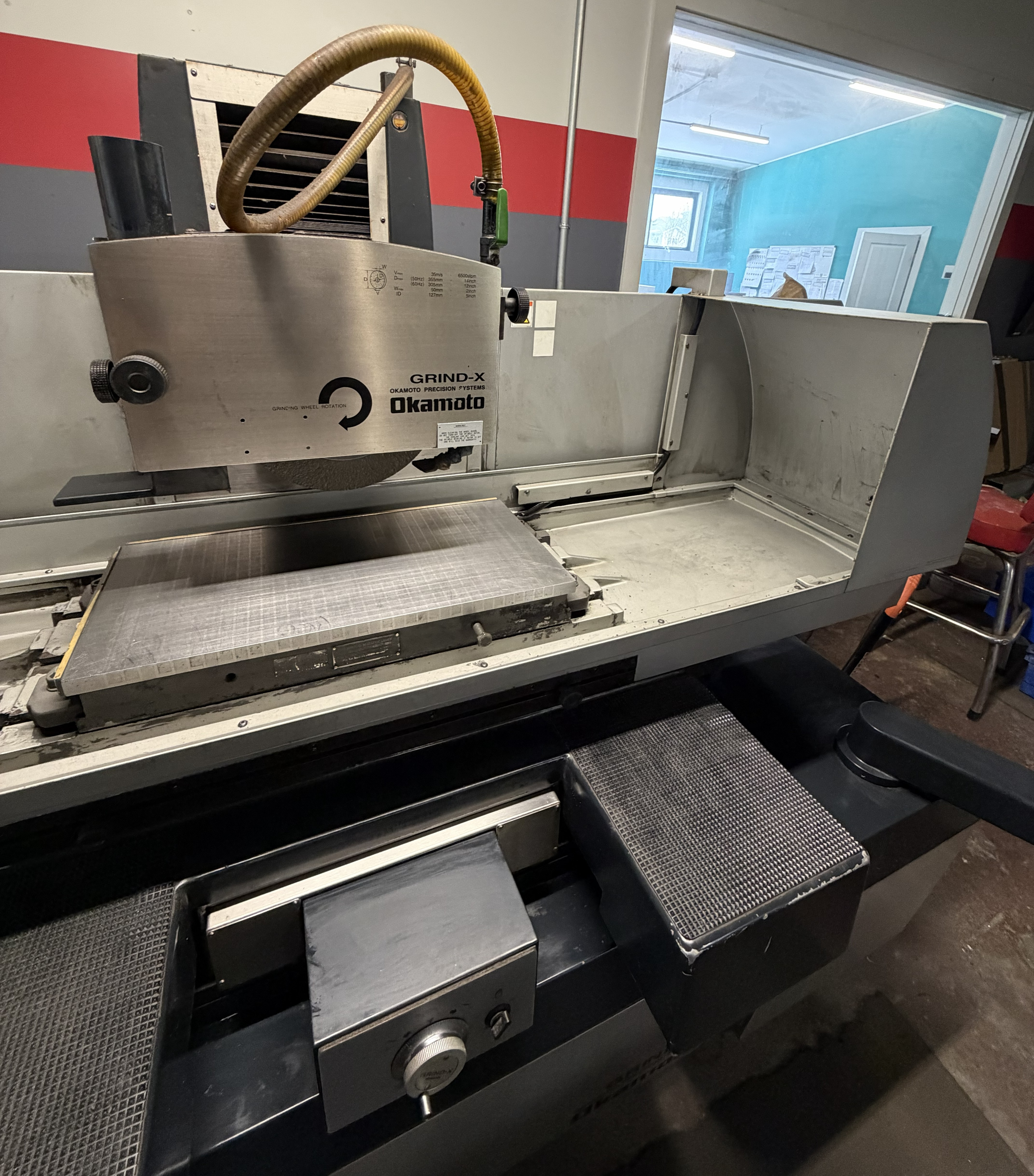

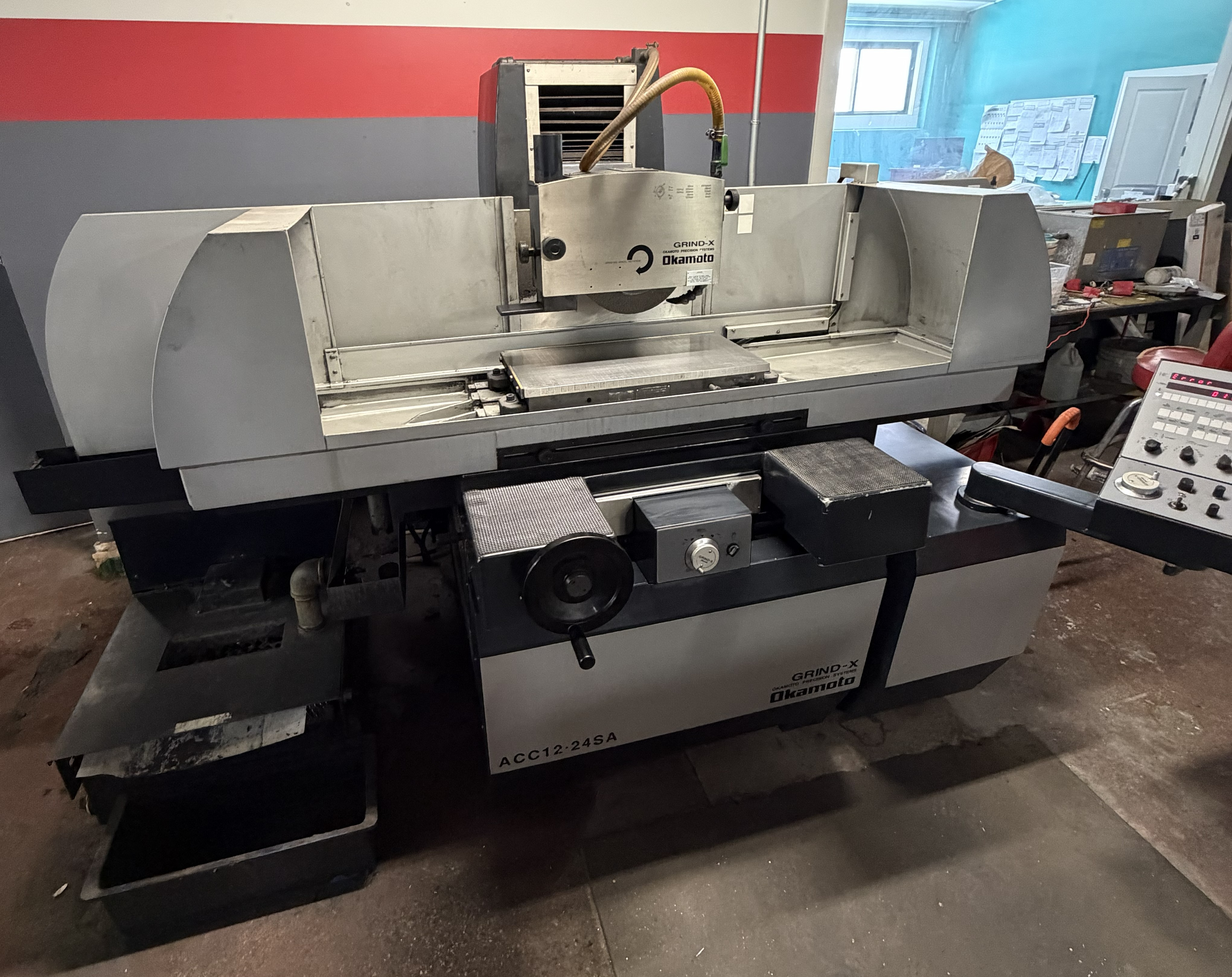

                12" X 24" Okamoto
     3-Axis Automatic Feeds Surface Grinder
         with Many Features (See Below)

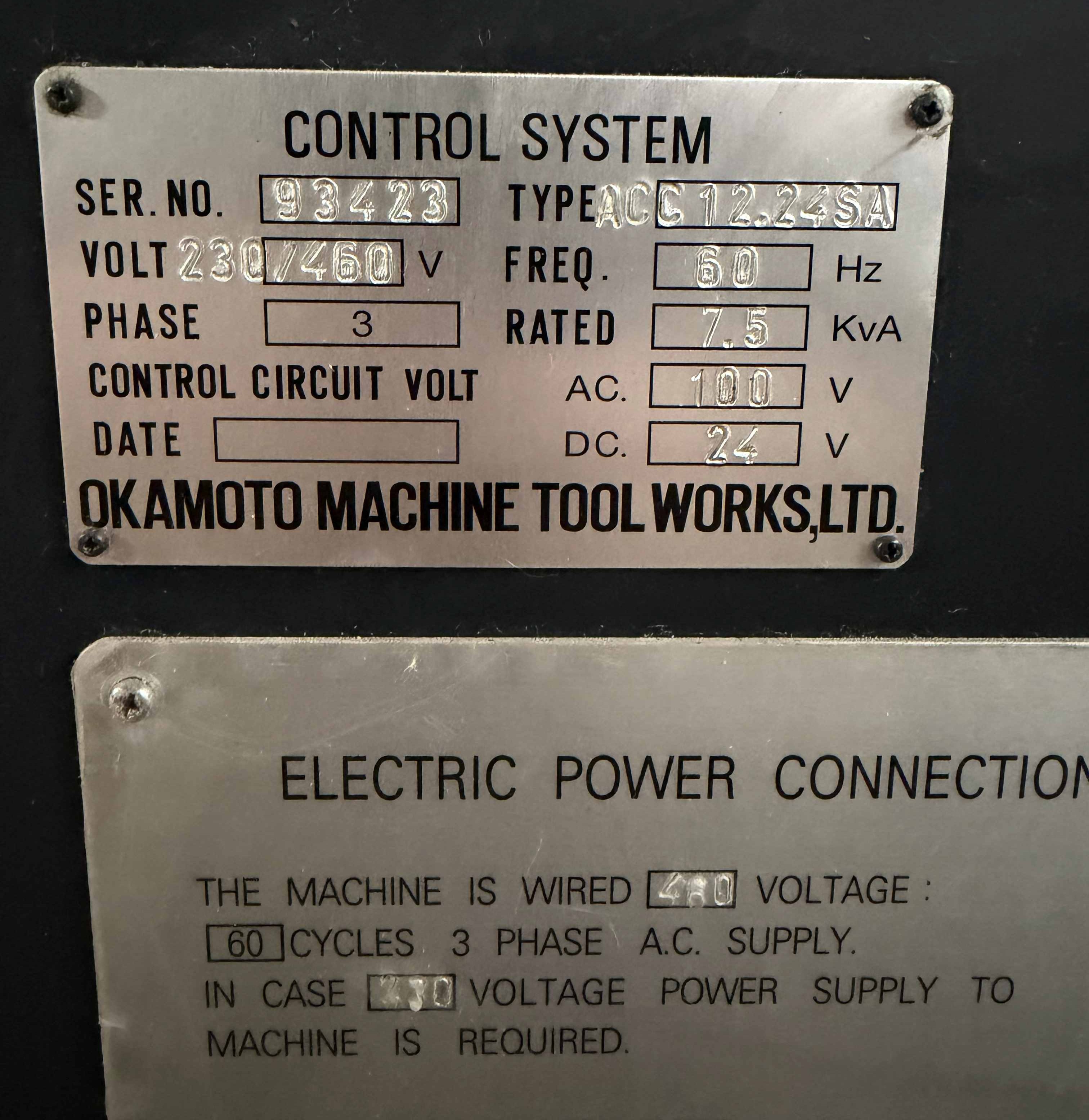

  MODEL:  ACC-1224SA  S/N:93423    New: 2018


SPECIFICATIONS:

Capacity:
Table Working Area .............. 11.8" X 23.8"
Travel - Maximum, Longitudinal .. 29.5"
Travel - Maximum,  Cross ........ 13.4"
Distance under Wheel to Table,
  Surface (Ø16" wheel)........... 1.9" to 13.7"
Magnetic Chuck Size.............. 11.8" x 23.6"

Longitudinal Feed:
Hydraulic Feed Rate.............. 1 - 82 fpm

Cross Feed:
Manual Cross Feed,
  per Rev. of Handwheel ......... 0.2"
Graduation of Hand Wheel......... 0.0008"
Automatic Feed (Intermittent).... 0.02" - 0.79"
Automatic Feed (Continous)....... 0.004" - 0.04" ipm

Vertical Feed:
Automatic Incremental Downfeed
 (Traverse & Plunge)
 (10 Steps) ................... 0.00005" - 0.0015"
Manual Pulse Feed ............. 0.001"/0.01"/0.05"
                            per revolution of hand wheel
Graduation of Hand Wheel
 (X0.1/X1/X5).................. 0.00001"/0.0001"/0.0005"
Number of Sparkout .............. 0 - 5
Rapid Feedrate .................. 23.6" ipm

Grinding Wheel:
Dia. x W x Bore ............... 12" x 1.5" x 5"
Max. Std. Width ................. 2"
Speed ........................... 1,800 RPM

Motors:
Grinding Wheel Spindle .......... 5 HP
Hydraulic Pump .................. 2 HP
Vertical Feed (AC servo) ........ 0.5 HP
Cross Feed (AC servo) ........... 1 HP

Dimensions - Approximate ..... 111"L x 76"W x 73"H
Weight - Approximate ............ 6,400 Lbs.


Machine Features:


 Highly rigid construction with wide
 frame that eliminates table overhang.
Double Vee table slides.

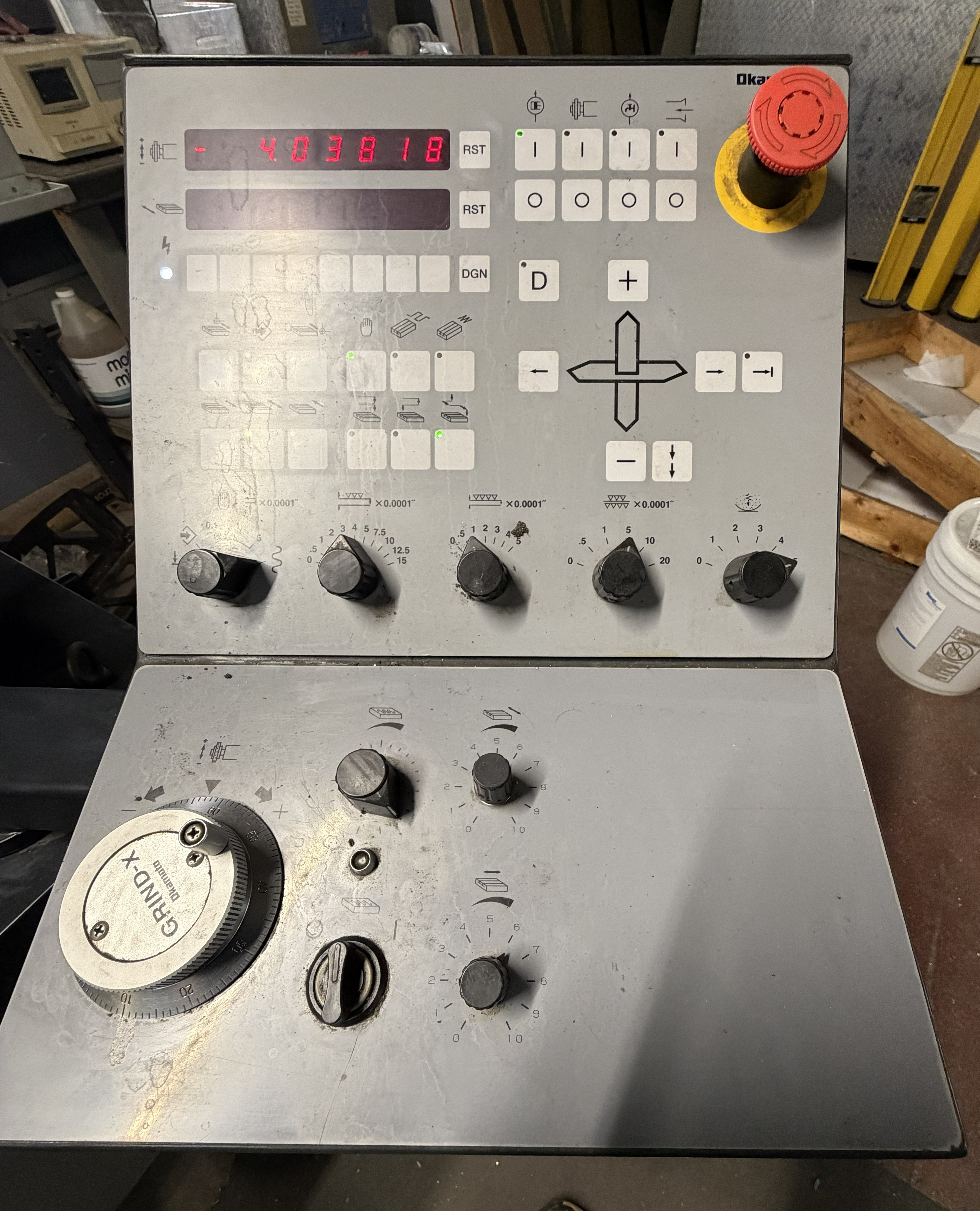

User-friendly MDI Control set-up.
Touch Pad Control for Cross and
 Vertical Rapid Feeds.
Teach Function for Crossfeed Position.
Micro Feeder standard. High-accuracy
 flat and form grinding with programmable
 dressing and dress compensation.
AC driven vertical feed with Manual Pulse
 Generator also built into control.
All functions integrated into control.



Operation Mode Select Switch:
Grinding depth setting (grinding & dressing),
- automatic grinding (automatic grinding
   cycle operation start)
- rapid feed (vertical fast feed)
- manual (manual vertical feed)
- all modes are interlocked for safe operation.

Step Grinding Button:
Simple one-touch operation gives precise
 dressing at the specified depth. It can
 be used for manual intervention during
 automatic operation.

Vertical Grind Feed:
The automatic dressand step dress feed
(manual intervention jog feed) can be set
 by the coarse and fine dress depth switch.
 The feed depth can be set between 0.00005″
 and 0.0015″ (10 steps) for coarse grinding,
 6 steps (0.00005″ to 0.0005″) for fine
 grinding.


EQUIPPED WITH:
Variable hold neutrofier chuck control
Coolant system with paper filtration

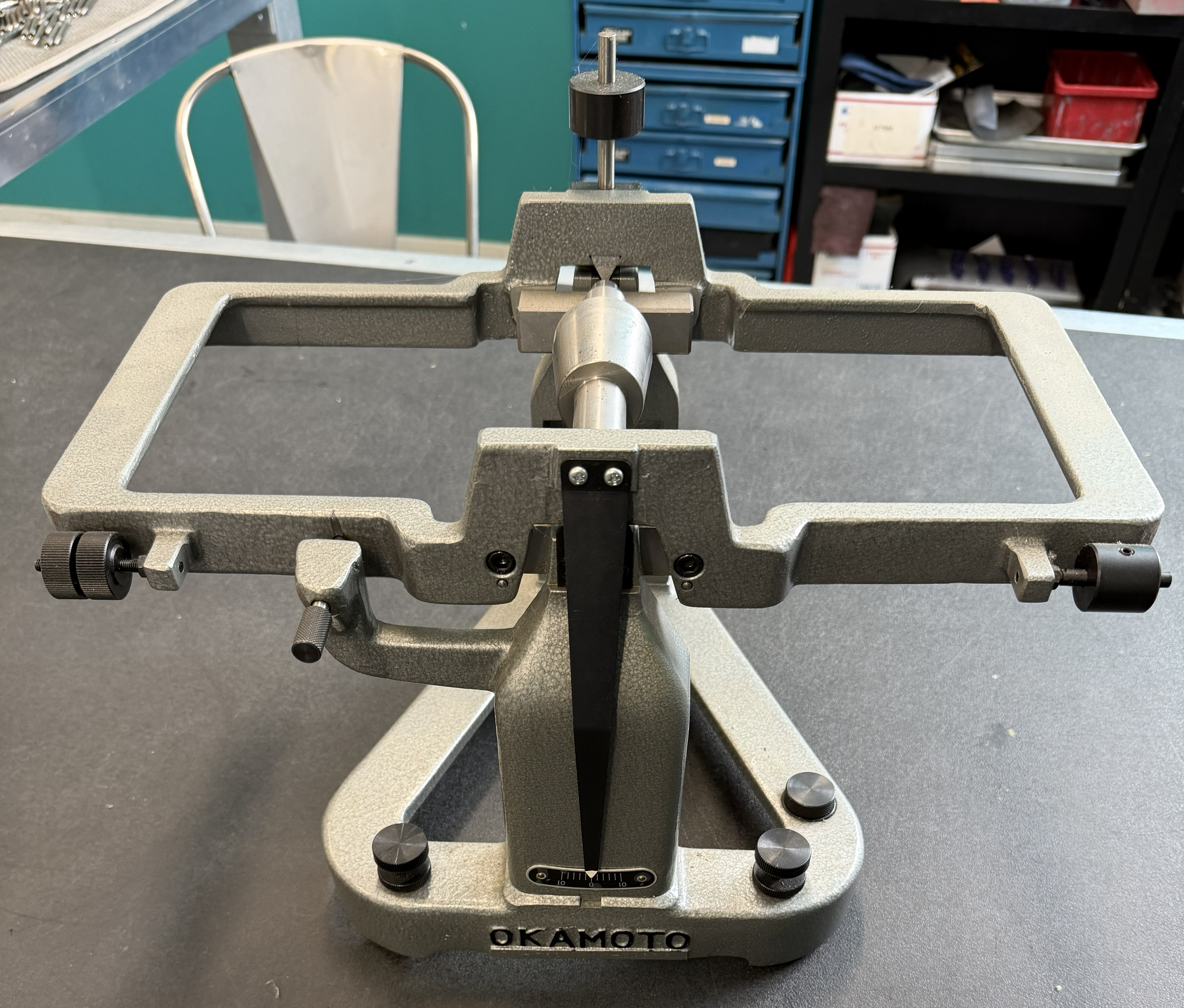

Wheel Balancing stand, with arbor

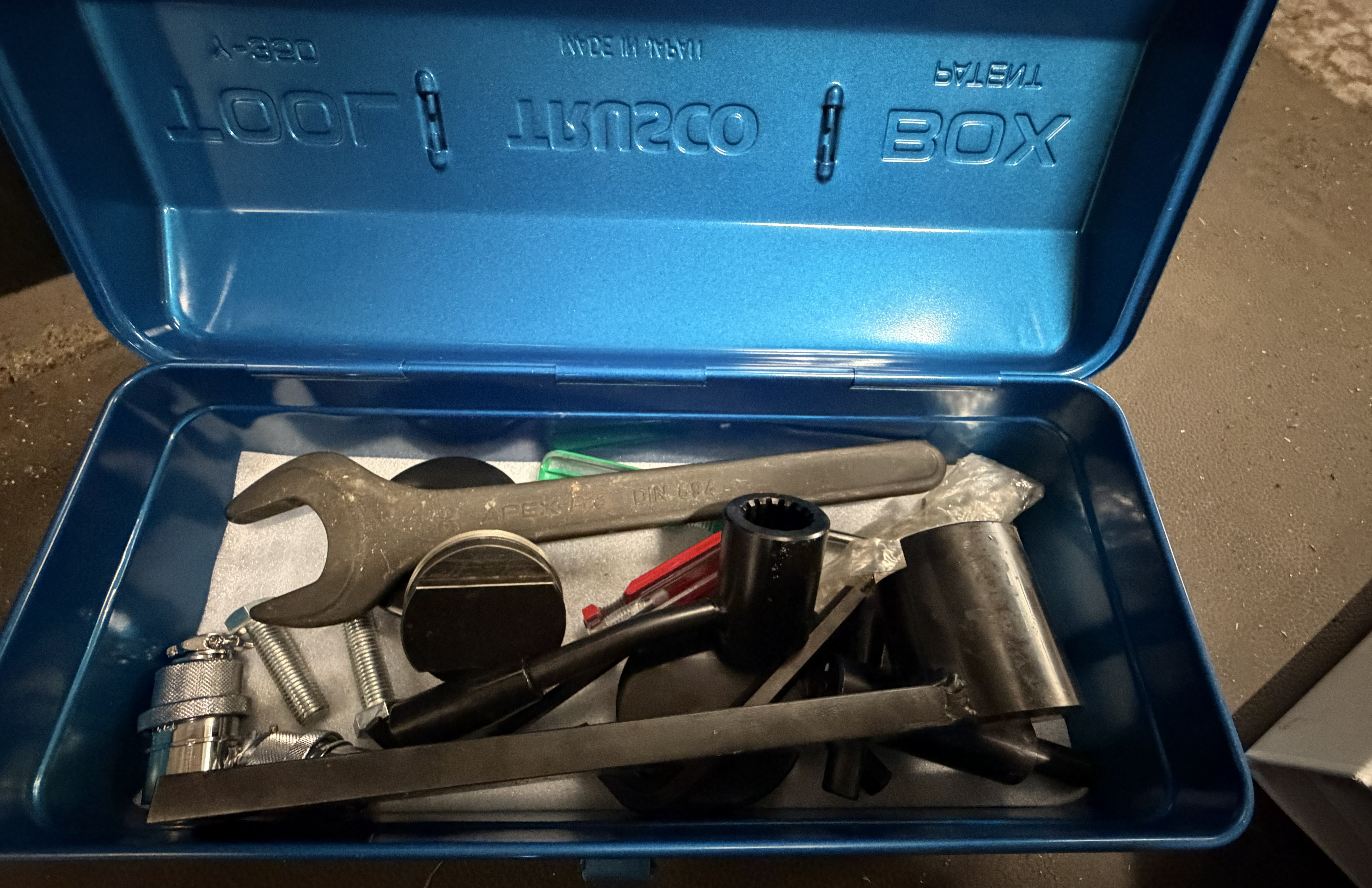

Tool box & tools

** Excellent Condition & Appearance - Original Paint **
** Inspect Under Power in our Harrison, NJ Warehouse **
