Okuma LB-3000BBEX-MY CNC TURNING CENTERS - CNC LATHES

$109,500

Make:
Okuma
Model:
LB-3000BBEX-MY
Year:
2011
Ref #:
167517

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

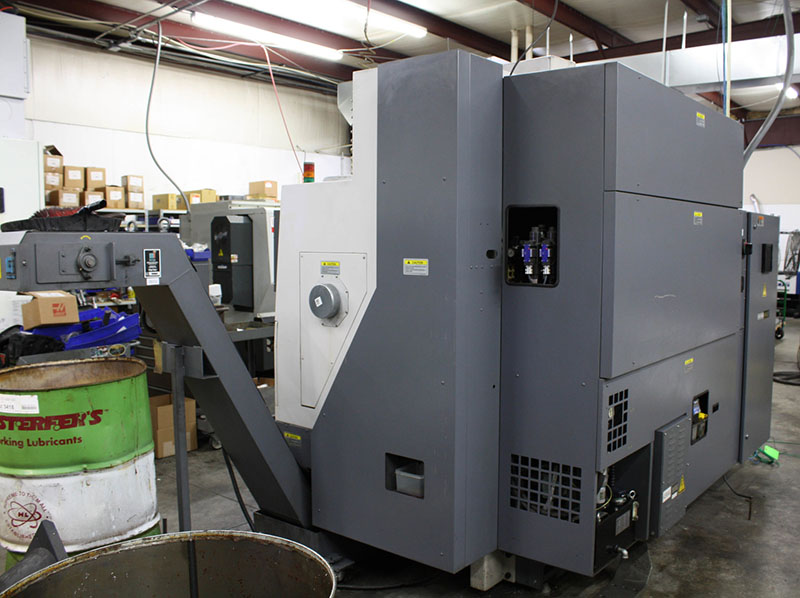

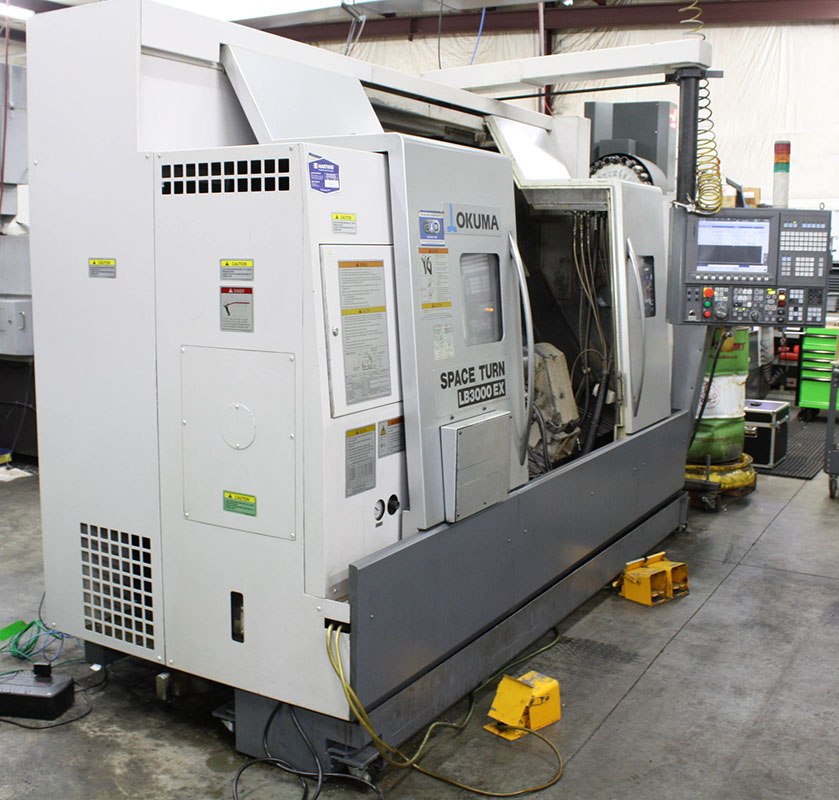

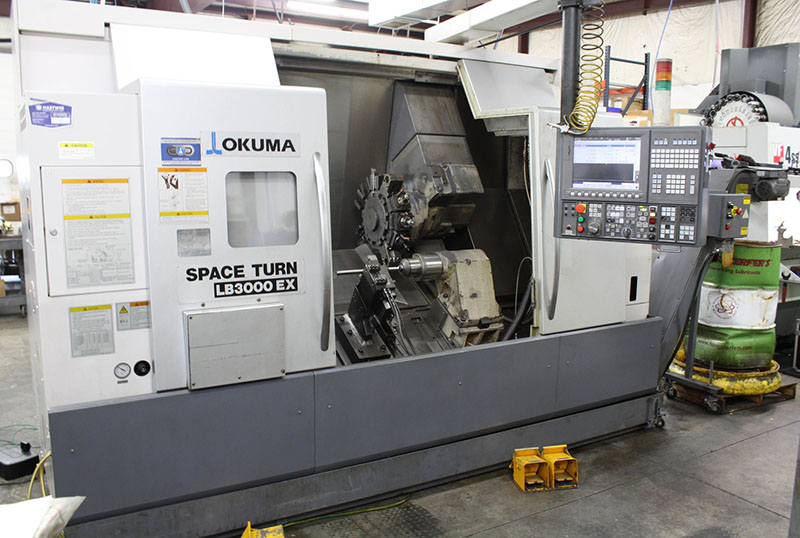

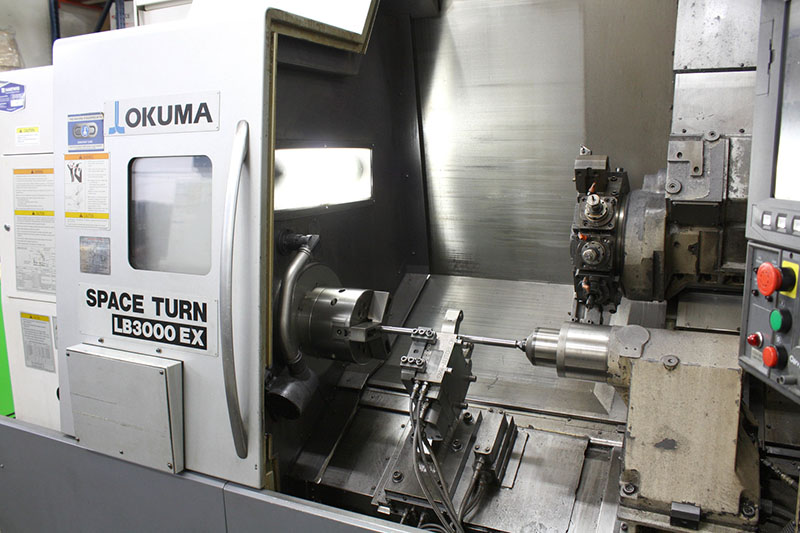

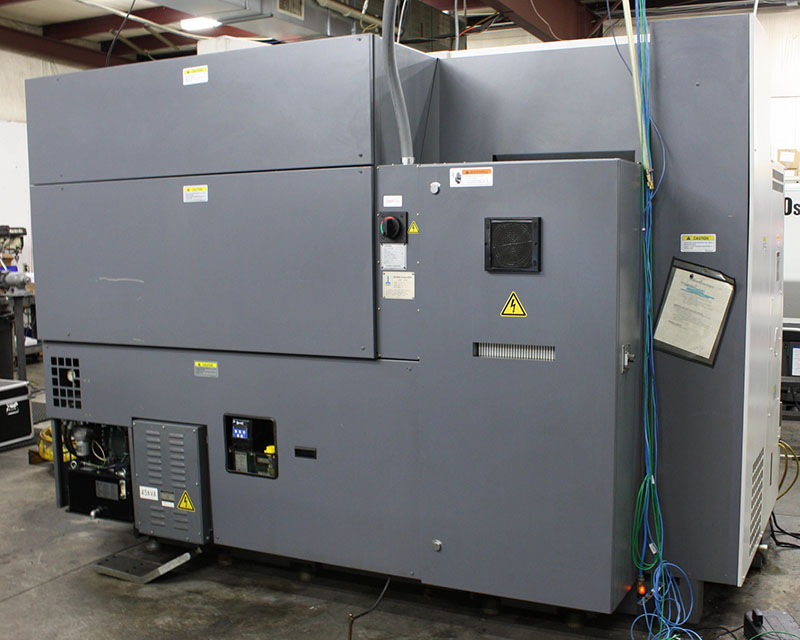

Okuma CNC Turning Center
Model: LB-3000BBEX-MY, New: 2011

Specifications:
Swing Over Bed ................. 22.83"
Swing Over Carriage ............ 18.5"
Distance Between Centers ....... 38.19"
Machining Length ............... 37.40"
Spindle Nose Type .............. A2-8
Chuck Size ..................... 12"
Through Spindle Hole ........... 3.58"
Spindle Drive Motor ............ 40/30 HP
Spindle Speed .................. 4,200 RPM
X-axis Travel .................. 10.24"
Z-axis Travel .................. 39.76"
Y-Axis Travel .................. +/- 4.72"
Turret Type .................... V12
Tool Size ...................... 0.98" x 0.98"
Rotary Spindle Speed ........... 45-6000 RPM
C-Axis Indexing ................ 0.001 Deg.
Tailstock Spindle Taper Hole ... MT#5
Tailstock Travel ............... 39.96"
Approx. Weight ................. 14,520 LBS.

Equipped With:

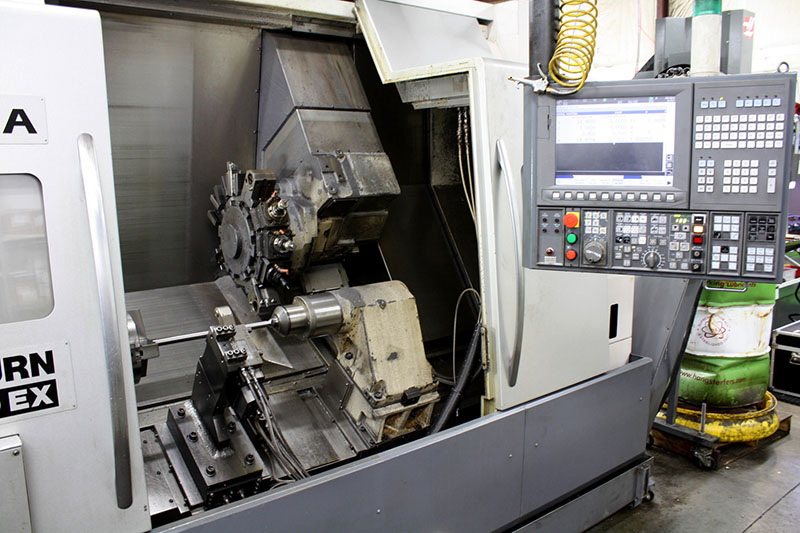

   Okuma OSP-200 CNC Control

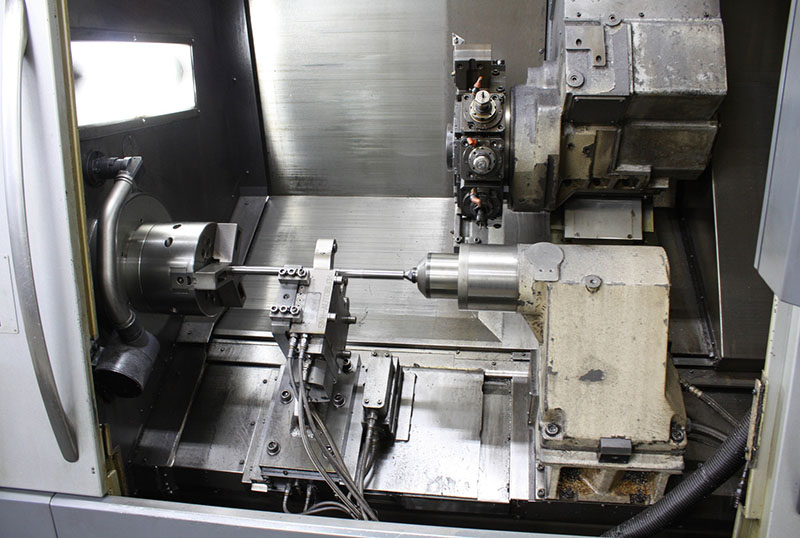

 NC Tailstock w/ Live Quill

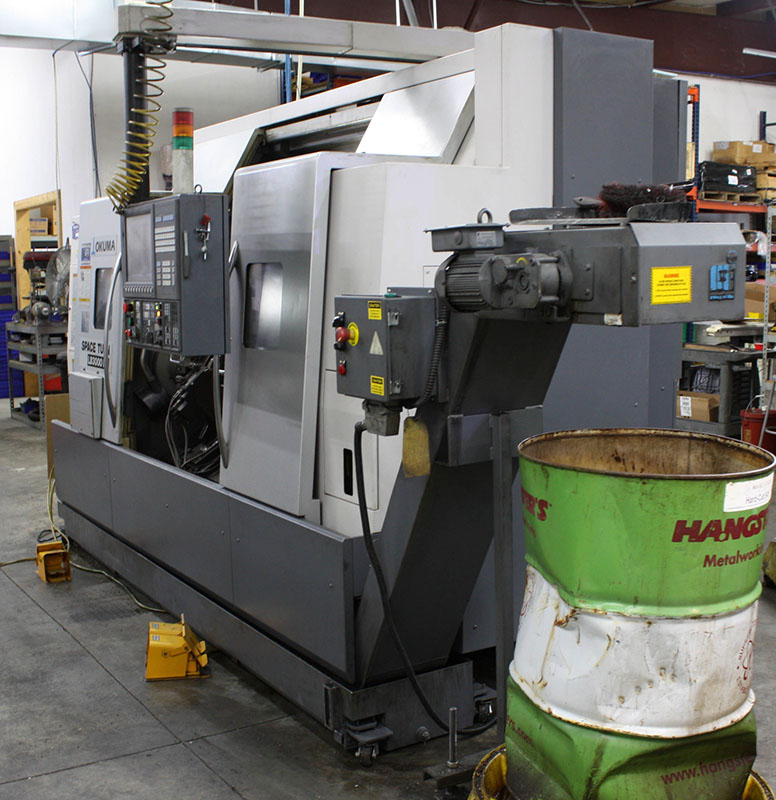

 Lift-Up Chip Conveyor
 Touchsetter
 Multi-Tap Transformer 45kVA 220-480,
 Cylinder & Drawtube Assembly for A2-8 Spindle
 Steady Rest Interface

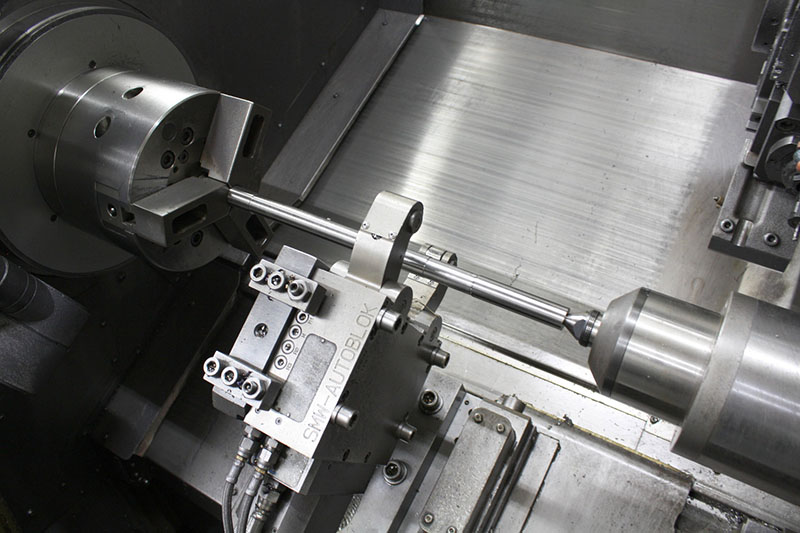

 Tow along programmable LNS Steady Rest
 8" 3-Jaw Hyd. Chuck
 All Available Static and Live Toolholders

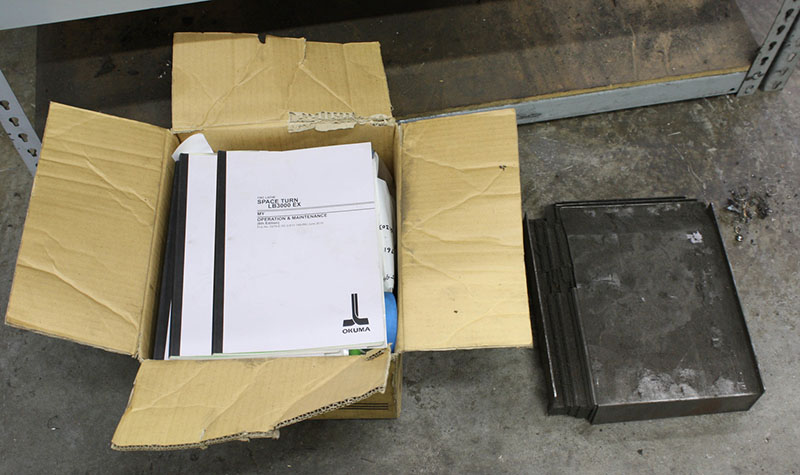

 All Available Manuals
