Pressmaster HFP-100 HYDRAULIC H-FRAME PRESSES

$14,500

Make:: Pressmaster

Model:: HFP-100

Year:: 2016

Ref #:: 178206

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

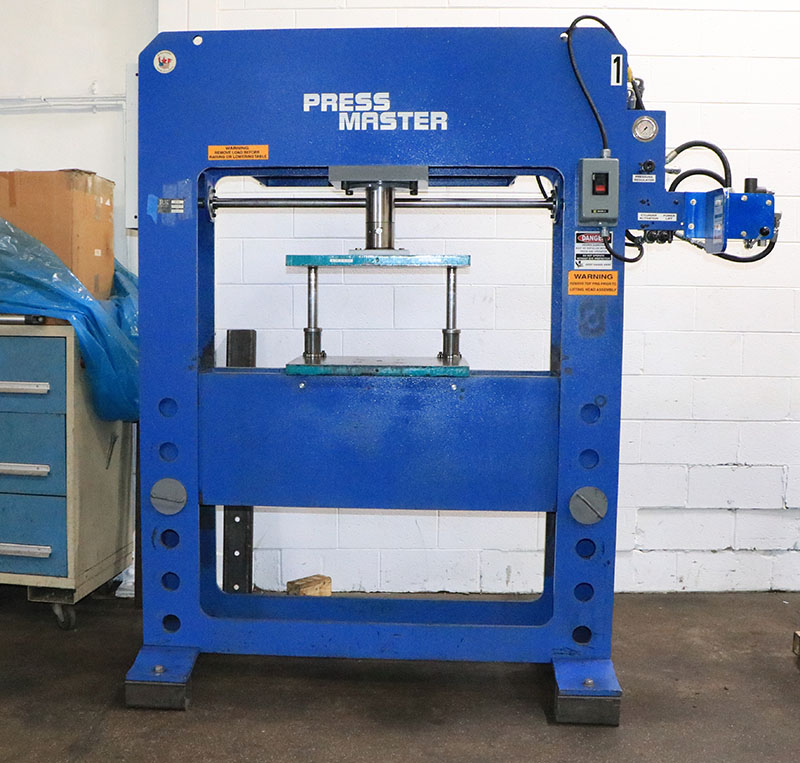

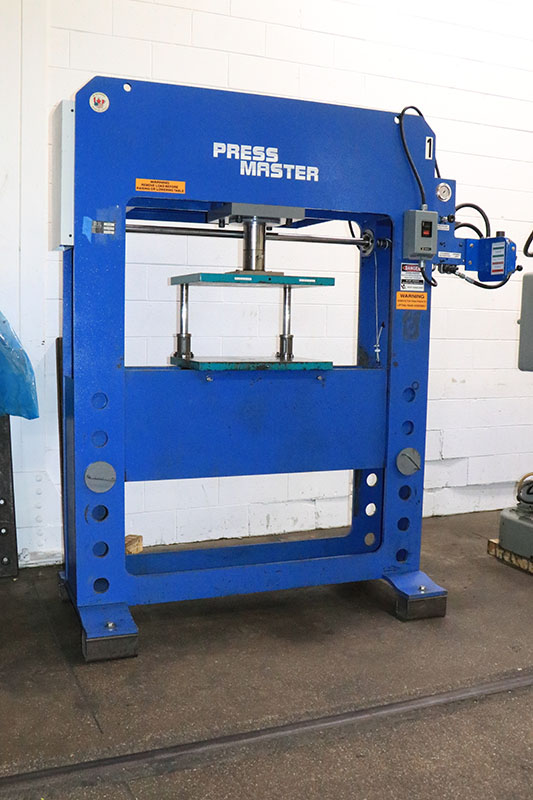

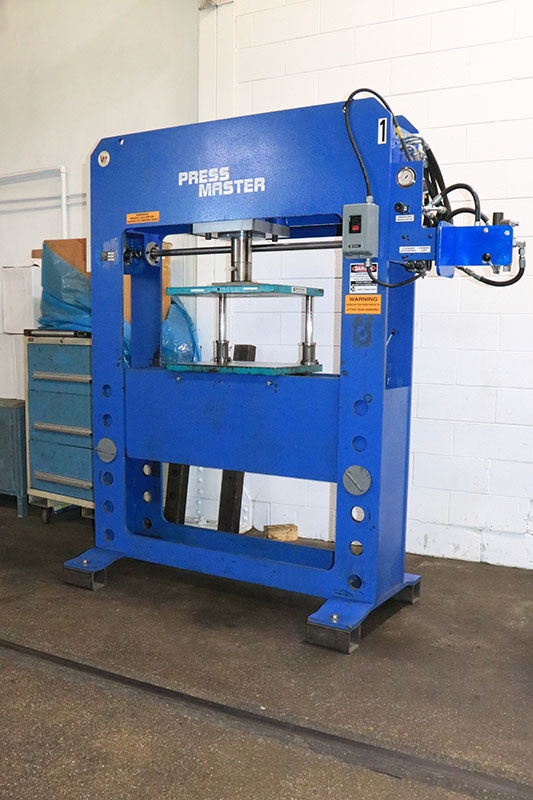

100 TON PRESSMASTER H-FRAME HYDRAULIC PRESS

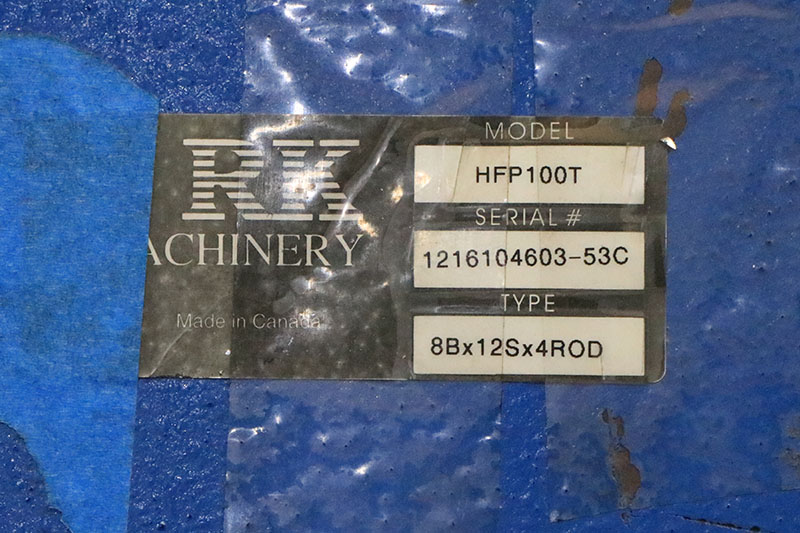

MODEL HFP-100       S/N 1216104603      NEW 2016

RATED CAPACITY, TONNAGE....................... 100
STROKE........................................ 12"
BORE.......................................... 8"
RAM SPEED PRESS .............................. 20 IPM
                      RETURN ................. 26 IPM
DISTANCE BETWEEN POSTS (RIGHT TO LEFT)........ 42"
DISTANCE BETWEEN POSTS (FRONT TO BACK)........ 13"
MAXIMUM DISTANCE FROM BED TO RAM ............. 33"

WEIGHT ................................. 2,400 LBS.
SHIPPING DIMENSIONS .................... 50" X 62" X 90"

STANDARD FEATURES:

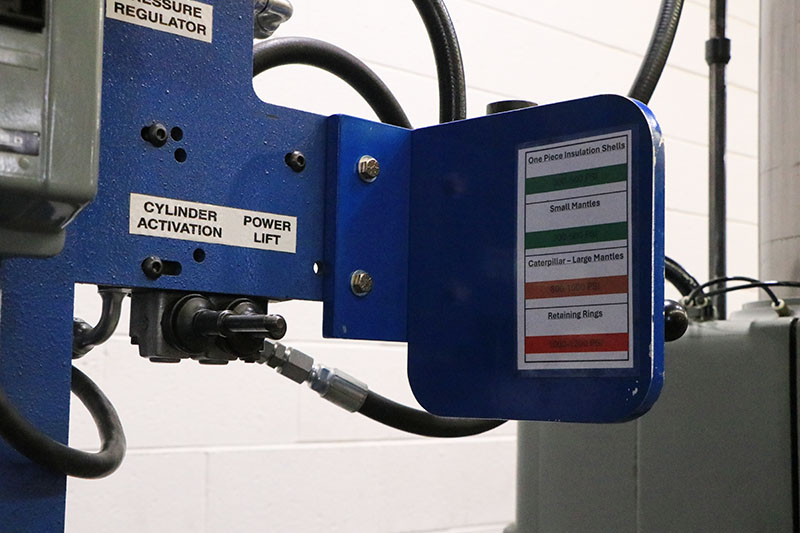

- CYLINDER ACTIVATION IS FINGER TIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE MORE THE RAM MOVEMENT INCREASES, ALLOWING THE OPERATOR TO
USE THE PROPER SPEED FOR THE TASK.

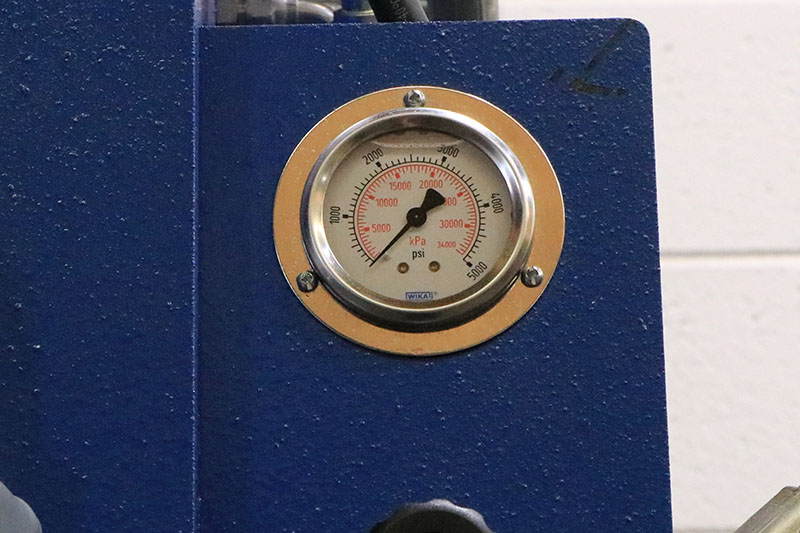

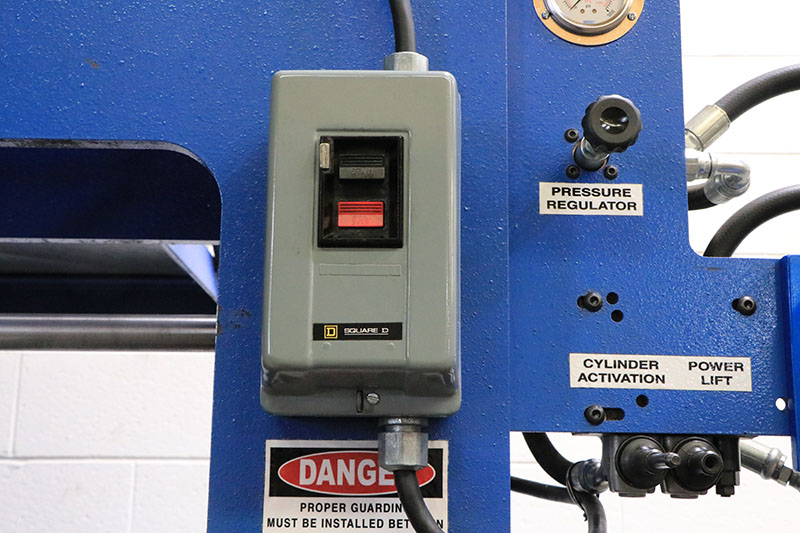

- PRESSURE REGULATOR - LIMITS RAM PRESSURE
- DOUBLE ACTING CYLINDER - PERMITS PULLING AND PRESSING

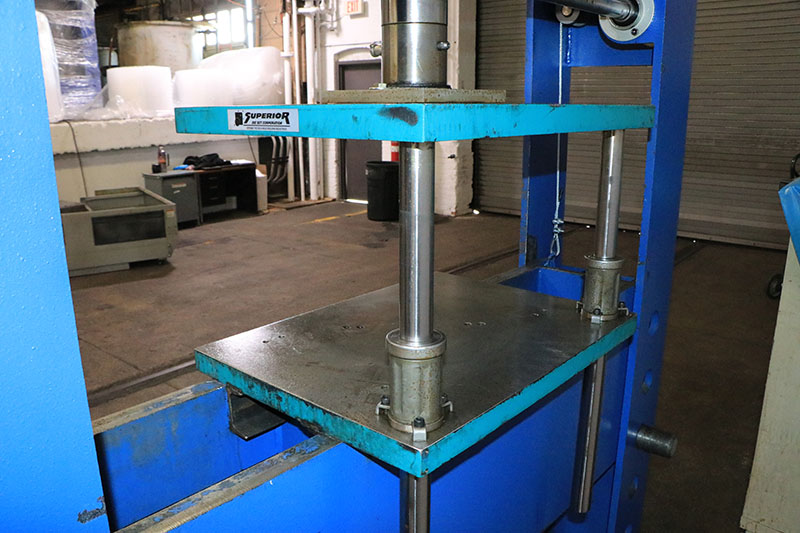

- HYDRAULIC POWER LIFT TABLE
- SELF LOCKING TABLE - ELIMINATES LATERAL MOVEMENT
- ELECTRIC/HYDRAULIC OPERATION

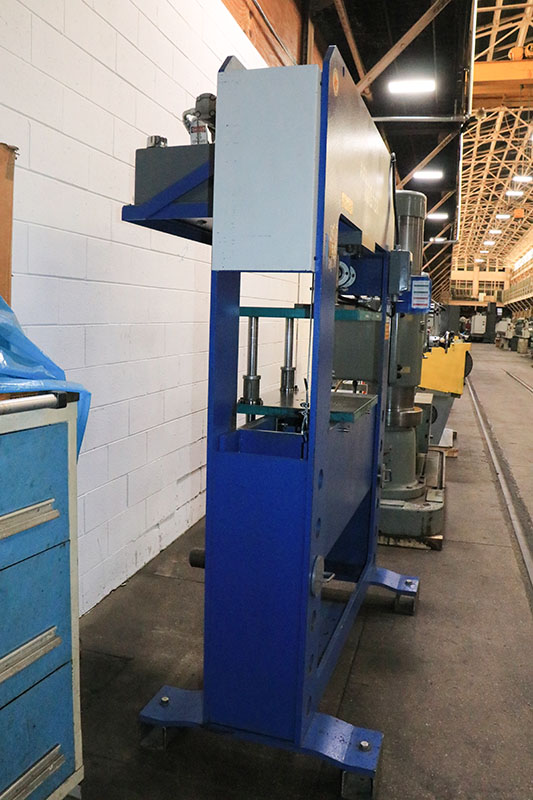

- HEAVY DUTY STEEL STRUCTURE
- OPEN SIDES TO FACILITATE WORK ON LONG PIECES

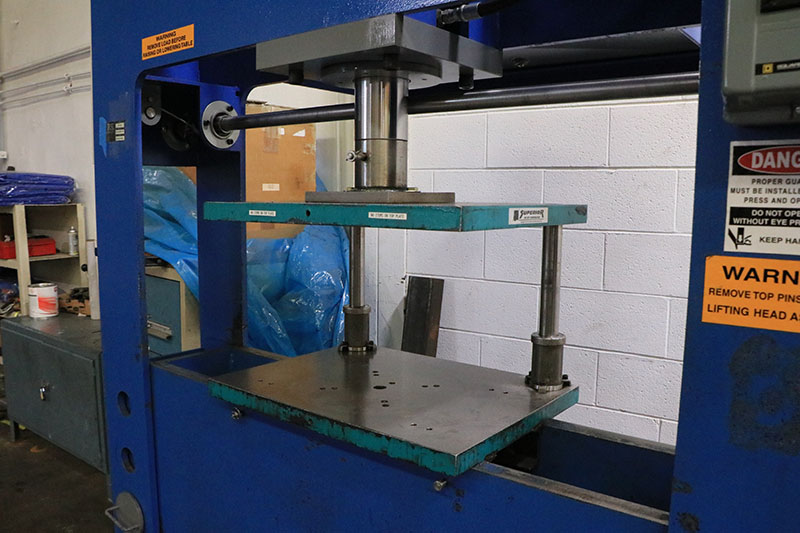

- FLAT RAM NOSE TO ALLOW USER TO ADAPT THE PRESS TO A SPECIFIC JOB.
- LOW SPEED PUMP

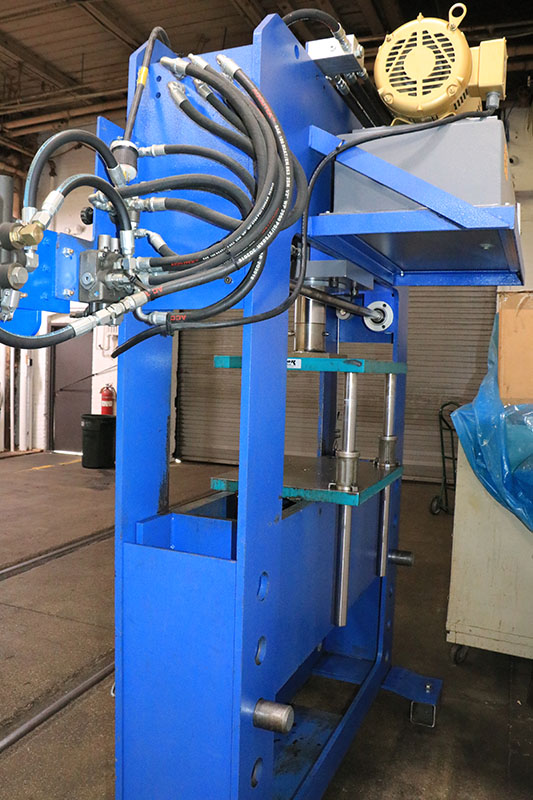

- LOW SPEED BALDOR 10 HP, 3 PHASE MOTOR, STANDARD VOLTAGES AVAILABLE
- HIGH CAPACITY 15 GALLON HYDRAULIC OIL RESERVOIR
- LOW PRESSURE HYDRAULIC SYSTEM RESULTS IN LOWER OIL TEMPERATURES FOR HIGHER EFFICIENCY AND SAFER OPERATION

NOT A CHEAP IMPORT.
MANUFACTURED IN CANADA WITH QUALITY US & CANADIAN COMPONENTS.
