Star SB-20R Type G ZERO HOURS USE CNC SWISS TYPE MULTI-AXIS LATHES

Price on Request

Make:: Star

Model:: SB-20R Type G ZERO HOURS USE

Year:: 2025

Ref #:: 179161

Or call us for a quote at (973) 497-7500 or send us an email at automatics@machineryvalues.com

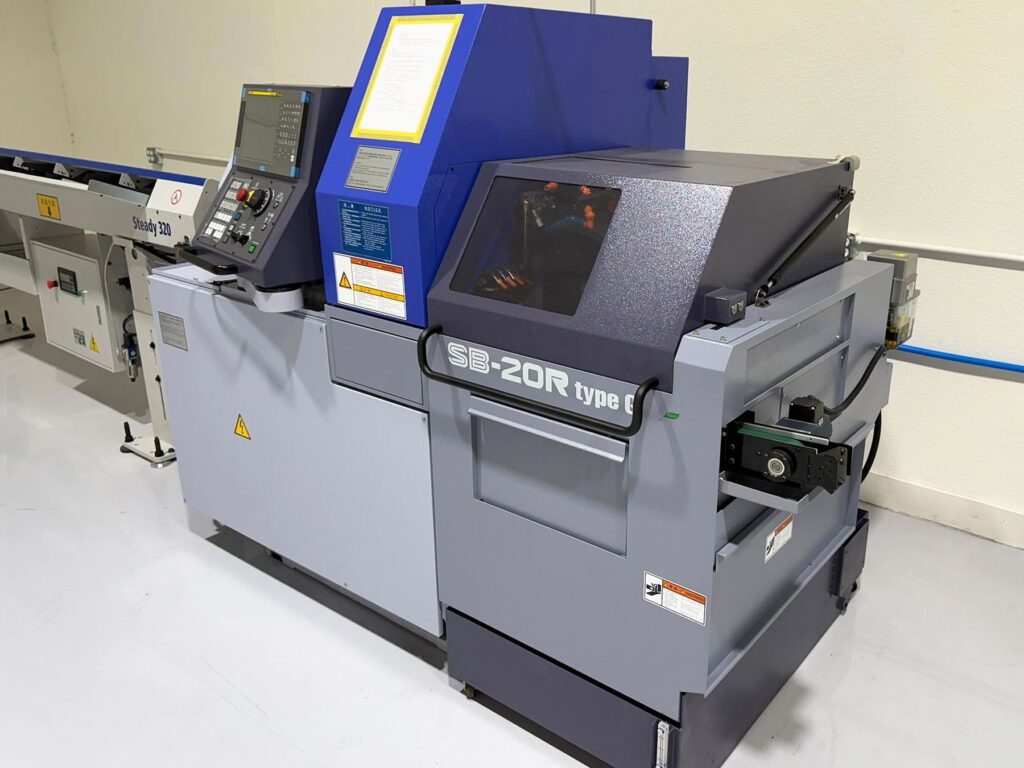

STAR SB-20R Type G CNC SWISS TYPE AUTOMATIC LATHE
NEW: 2025

THIS MACHINE HAS NEVER CUR A PART

Specifications
Max Machining Diameter: 25/32″
Max Headstock Stroke: 8″
Number of Turning Tools: 6 tools (ø12mm) / 7 tools (ø10mm)
4-Spindle Sleeve Holder # of Tools: 4 Front Tools / 4 Rear Tools
4-Spindle Sleeve Holder Drilling Capacity: 1/2″
4-Spindle Sleeve Holder Max Tapping Capacity: M10 × P1.5
4 Spindle Cross Drill Unit # of Tools: 4
4 Spindle Cross Drill Unit Drilling Capacity: 9/32″
4 Spindle Cross Drill Unit Max Tapping Capacity: ER 16: M6×P1.0
4 Spindle Cross Drill Unit Spindle Speed: ER 16: max.6,000min-1
4 Spindle Cross Drill Unit Drive Motor: 1.0kW (continuous) / 1.2kW (5min./30%ED)
5 Spindle Cross Drill Unit # of Tools: 5
5 Spindle Cross Drill Unit Drilling Capacity: 3/16″
5 Spindle Cross Drill Unit Max Tapping Capacity: ER 11: M5×P0.8
5 Spindle Cross Drill Unit Spindle Speed: ER 11: max.10,000min-1
5 Spindle Cross Drill Unit Drive Motor: 1.0kW (continuous) / 1.2kW (5min./30%ED)
Catridge Type Cross Drill Unit # of Tools: 2
Catridge Type Cross Drill Unit Drilling Capacity: ER 16: 5-Spindle & 5-Spindle High Speed: ø7mm (9/32in), ER 11: 5-Spindle: ø6mm; 5-Spindle High Speed: ø5mm
Catridge Type Cross Drill Unit Max Tapping Capacity: ER 16: M6×P1.0, ER 11: M5×P0.8
Catridge Type Cross Drill Unit Spindle Speed: ER 16: max. 6,000 min-1, ER 11: 5-Spindle: max. 8,000 min-1; 5-Spindle High Speed: max. 10,000 min-1
Catridge Type Cross Drill Unit Drive Motor: 1.0kw (continuous) / 1.2kw (5min./30%ED)
Rapid Feed Rate: 35m/min (X1,Y1,Z1,X2,Z2)
Main Spindle Indexing Angle: C-axis control
Main Spindle Speed: max. 10,000min-1
Main Spindle Motor: 2.2kw (continuous) / 3.7kw (10min./25%ED)
Coolant Tank Capacity: 180L

Equipped With

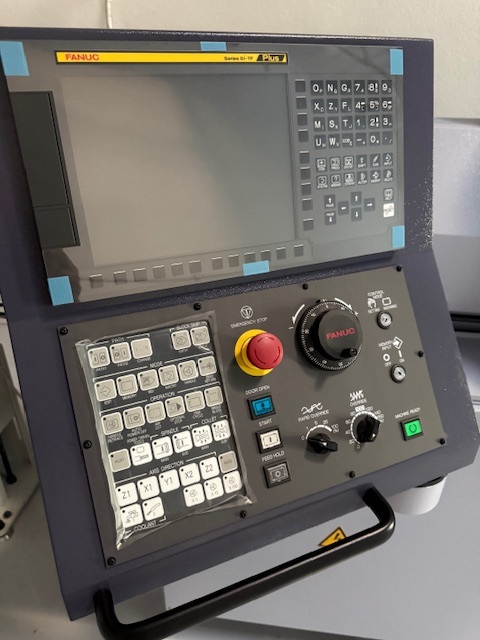

Fanuc 0i-TF Plus CNC Controller w/8.4″ color LCD display
Full C-axis control (Main/Sub)
Broken cutoff tool detector
Parts ejection detector
Drive unit for revolving guide bush
Revolving guide bush unit
Main/Sub collet
4-Spindle cross drilling unit
4-Spindle sleeve holder
Back 4-Spindle unit
Air purge for revolving guide bush
Air purge for main spindle
Sub spindle air purge unit
Sub spindle air blow unit
High Pressure Coolant

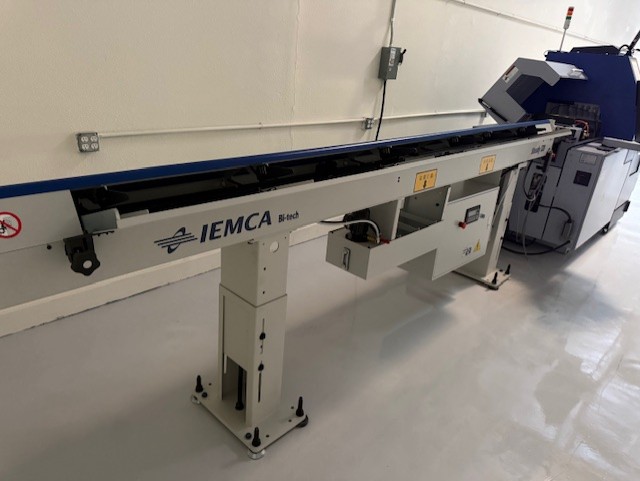

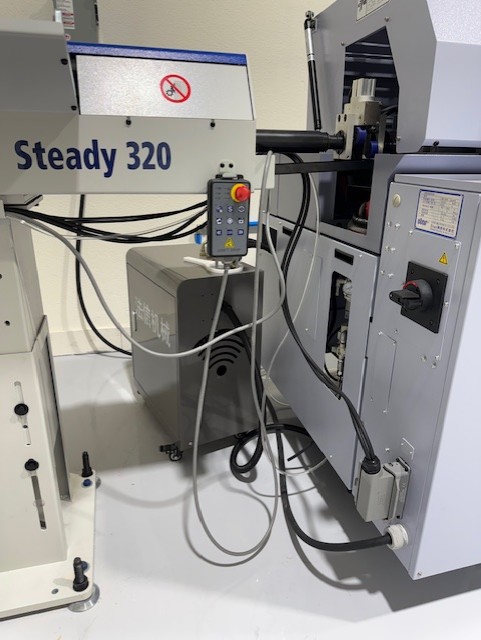

Iemca Steady 320 Bar Feeder
