Supertec STC-20, 1984, HYD. DRESSERS, SEVERAL WORK RESTS, CENTERLESS GRINDERS

Price on Request

Make:: Supertec

Model:: STC-20, 1984, HYD. DRESSERS, SEVERAL WORK RESTS,

Year:: 1984

Ref #:: 164262

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

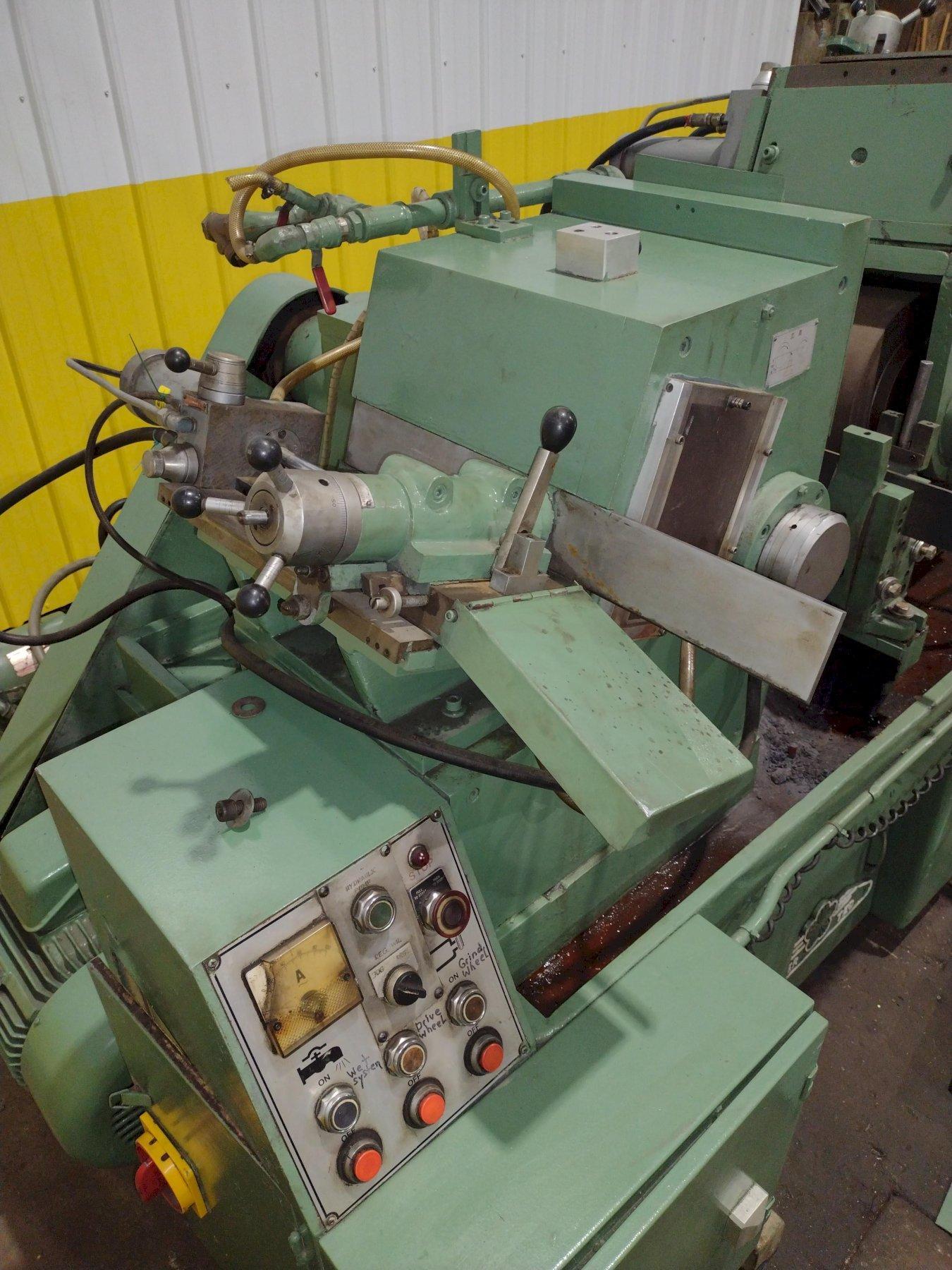

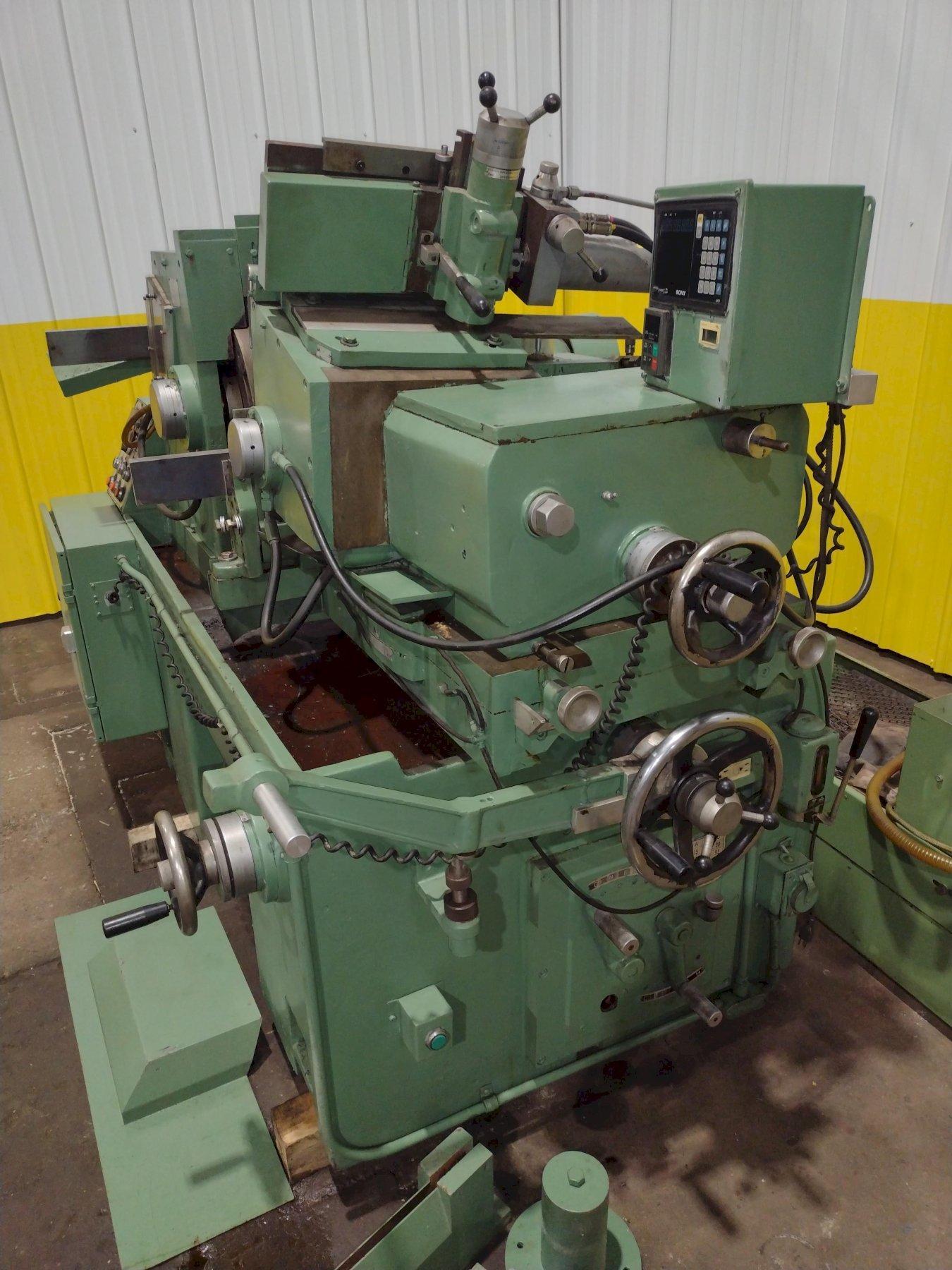

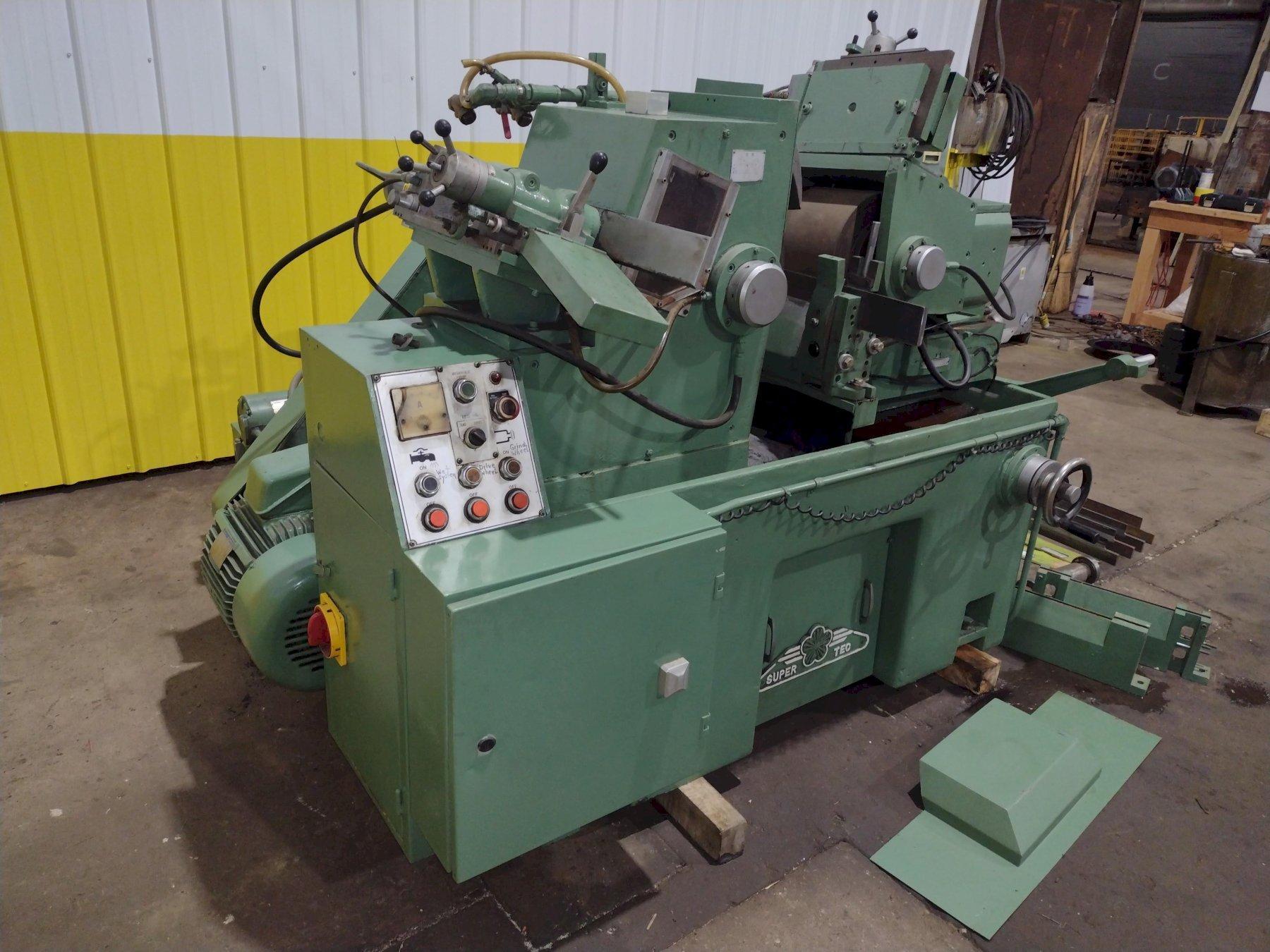

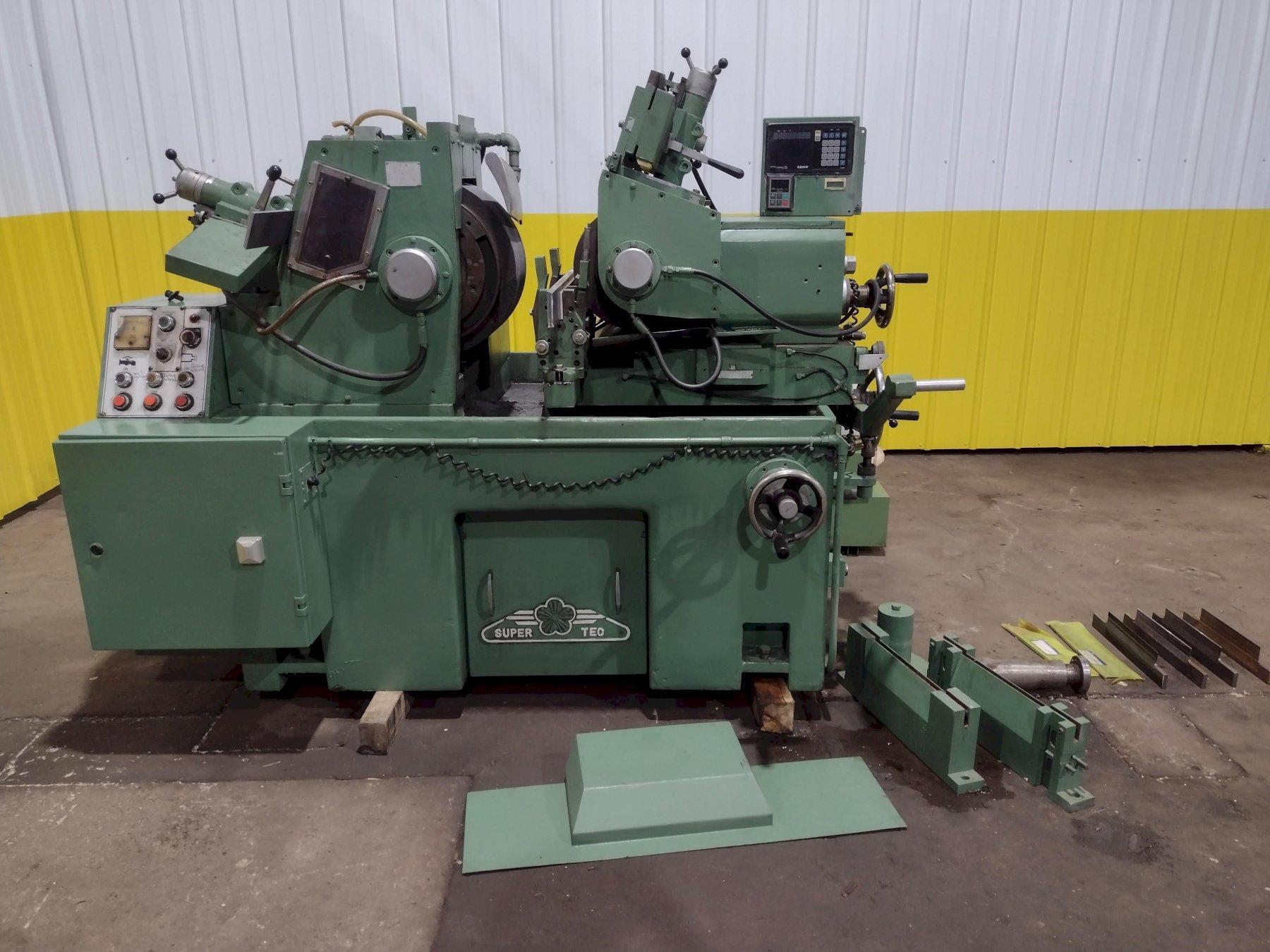

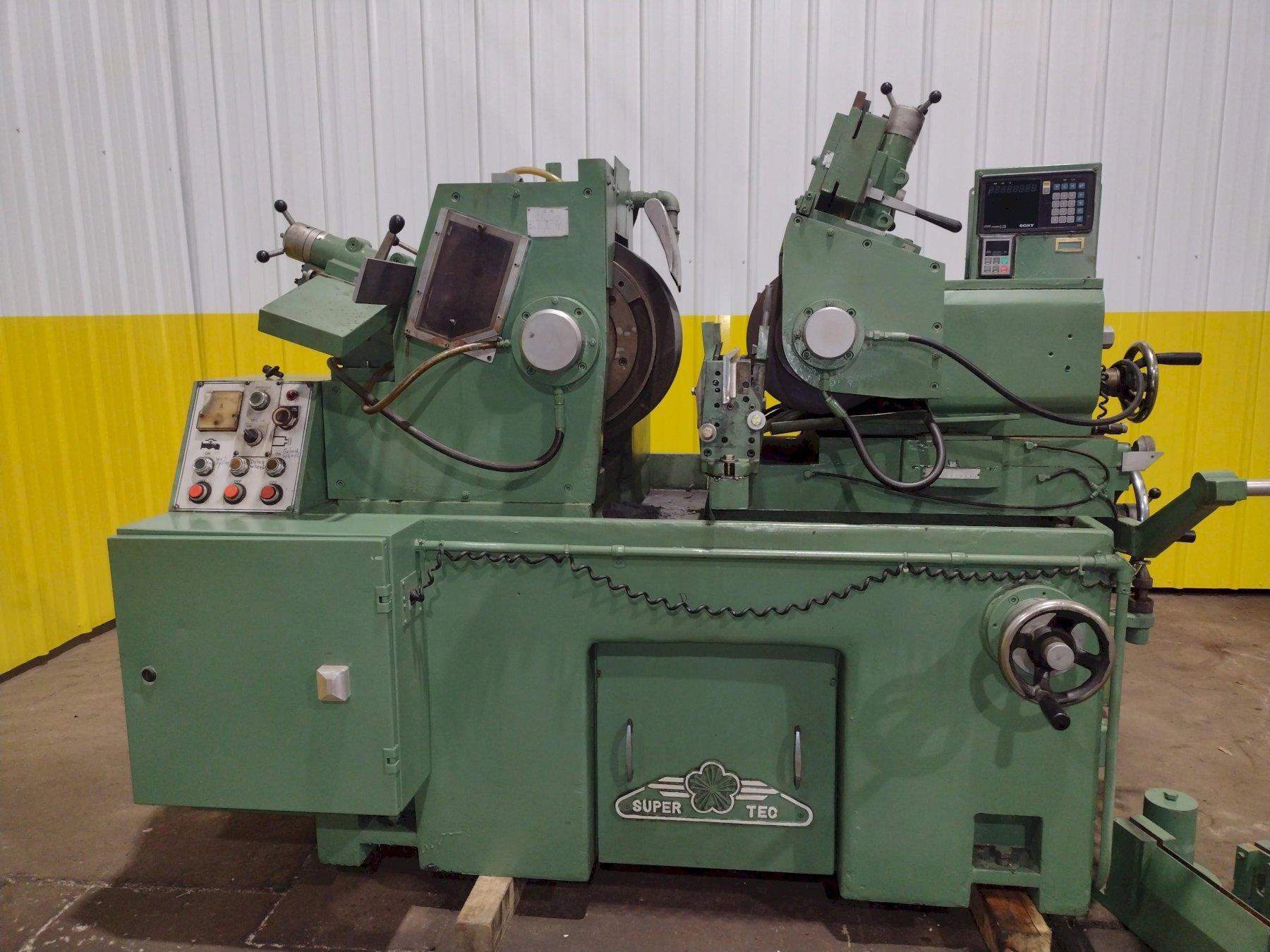

   SUPERTEC CENTERLESS GRINDER

  MODEL: STC-20       NEW: 1984

GRINDING DIAMETER (STANDARD WORKREST).... 0.04 TO 2"
GRINDING DIAMETER (SPECIAL WORKREST)..... 2" TO 3.54"

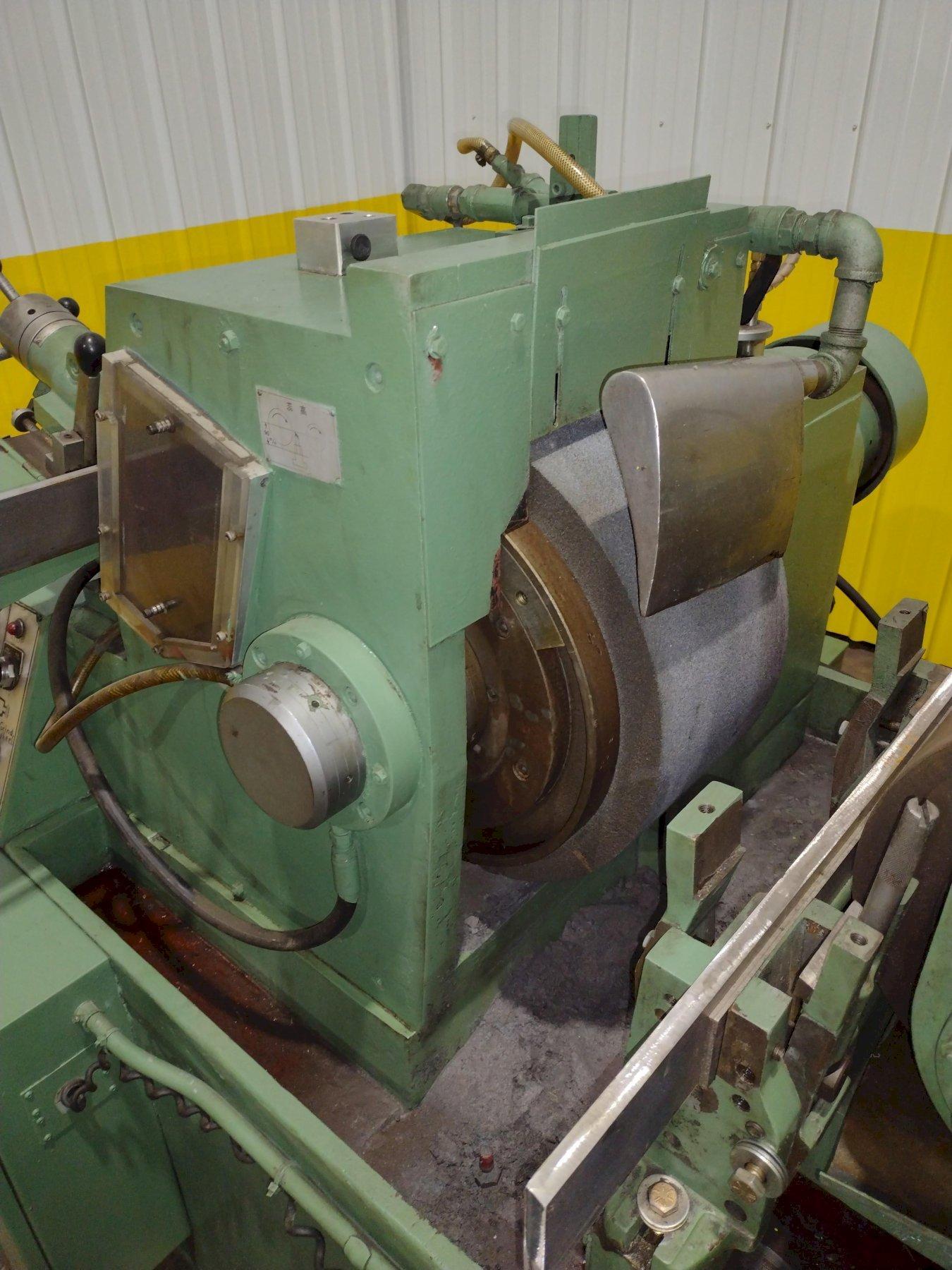

GRINDING WHEEL
DIAMETER X WIDTH X BORE.................. 20" x 8" x 12"
SPINDLE SPEED............................ 1,070 RPM
DRESSING INCREMENT, PER GRADUATION....... 0.0005"
DRESSING INCREMENT, PER REVOLUTION....... 0.0787"

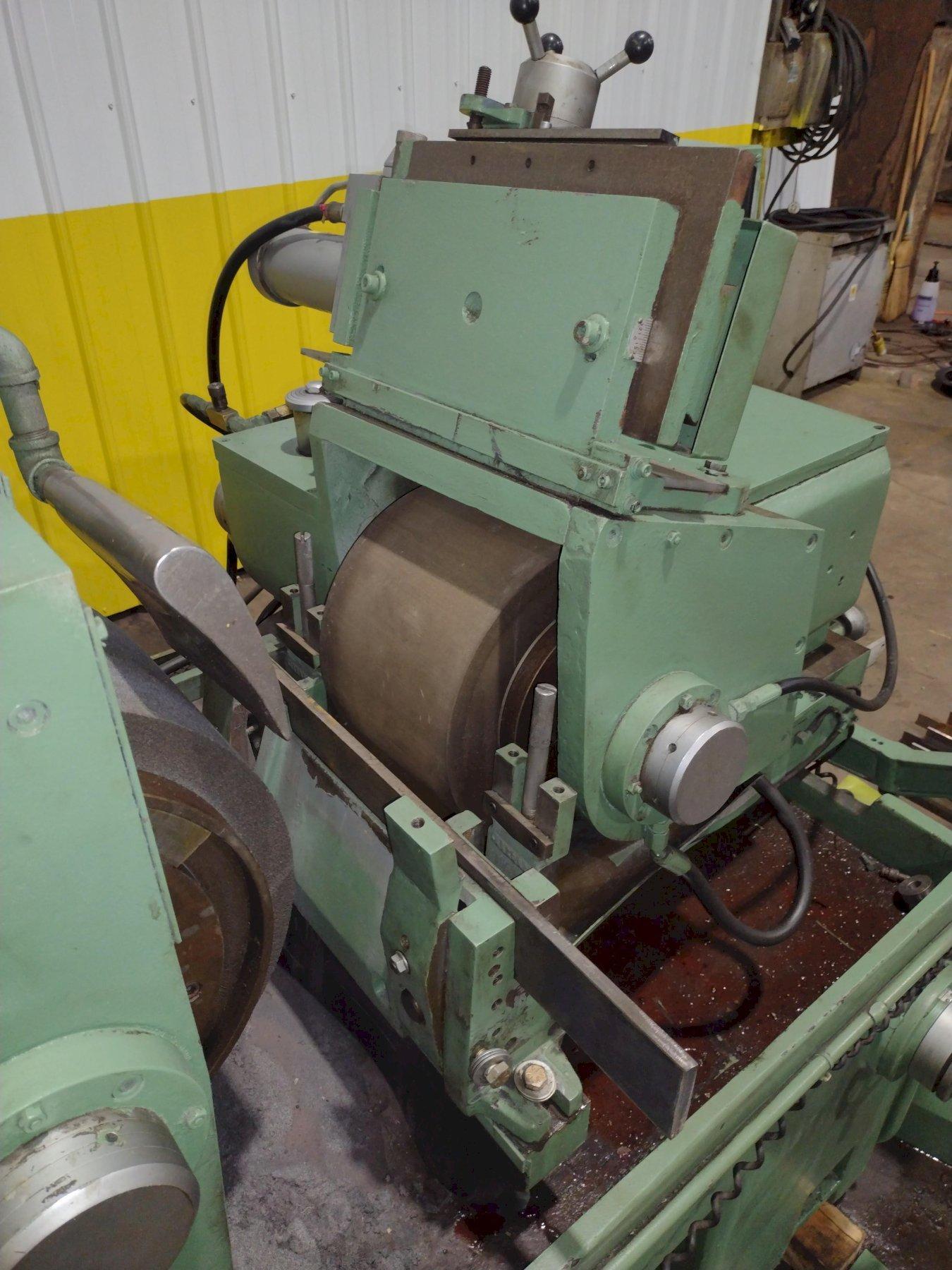

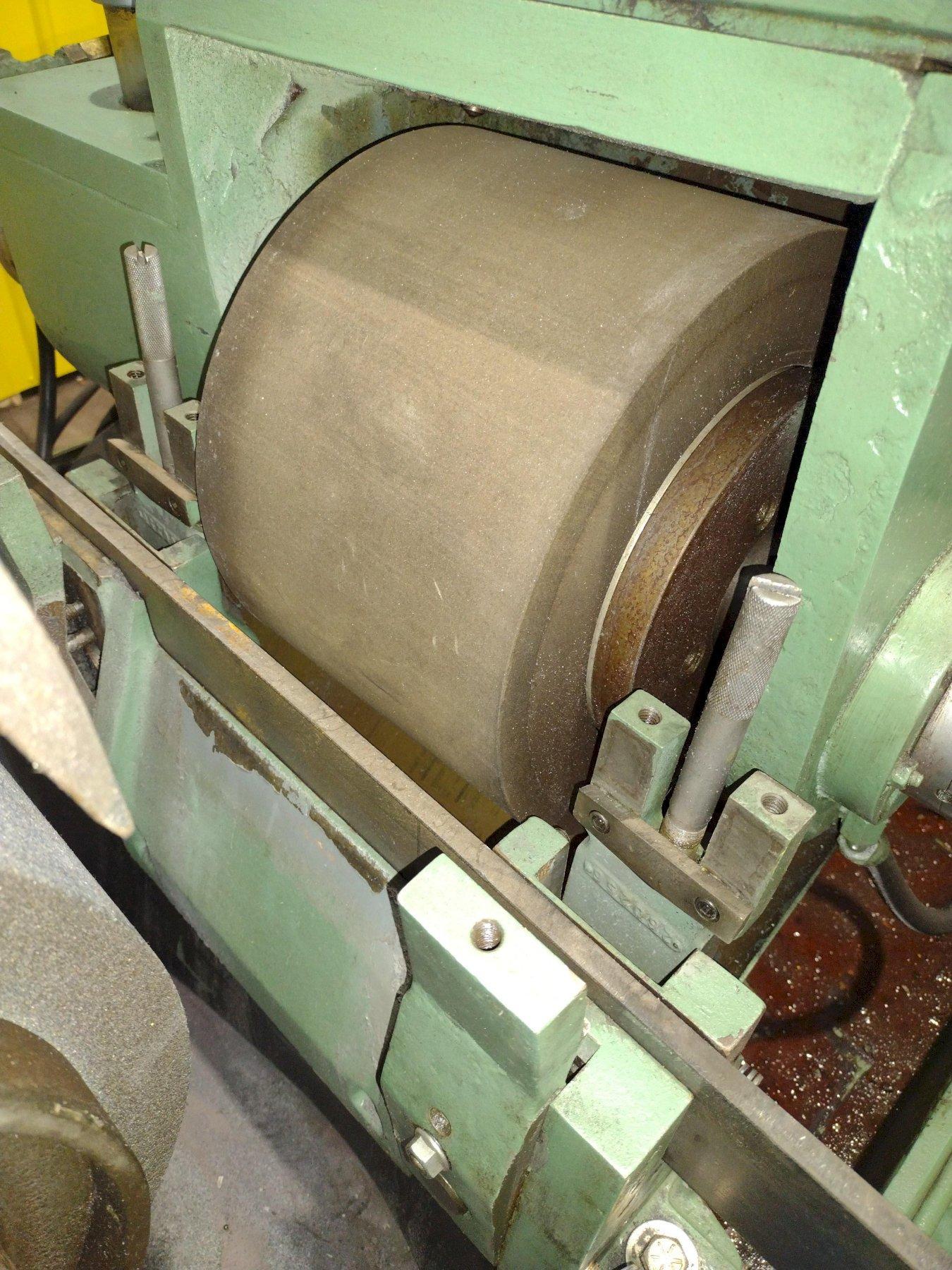

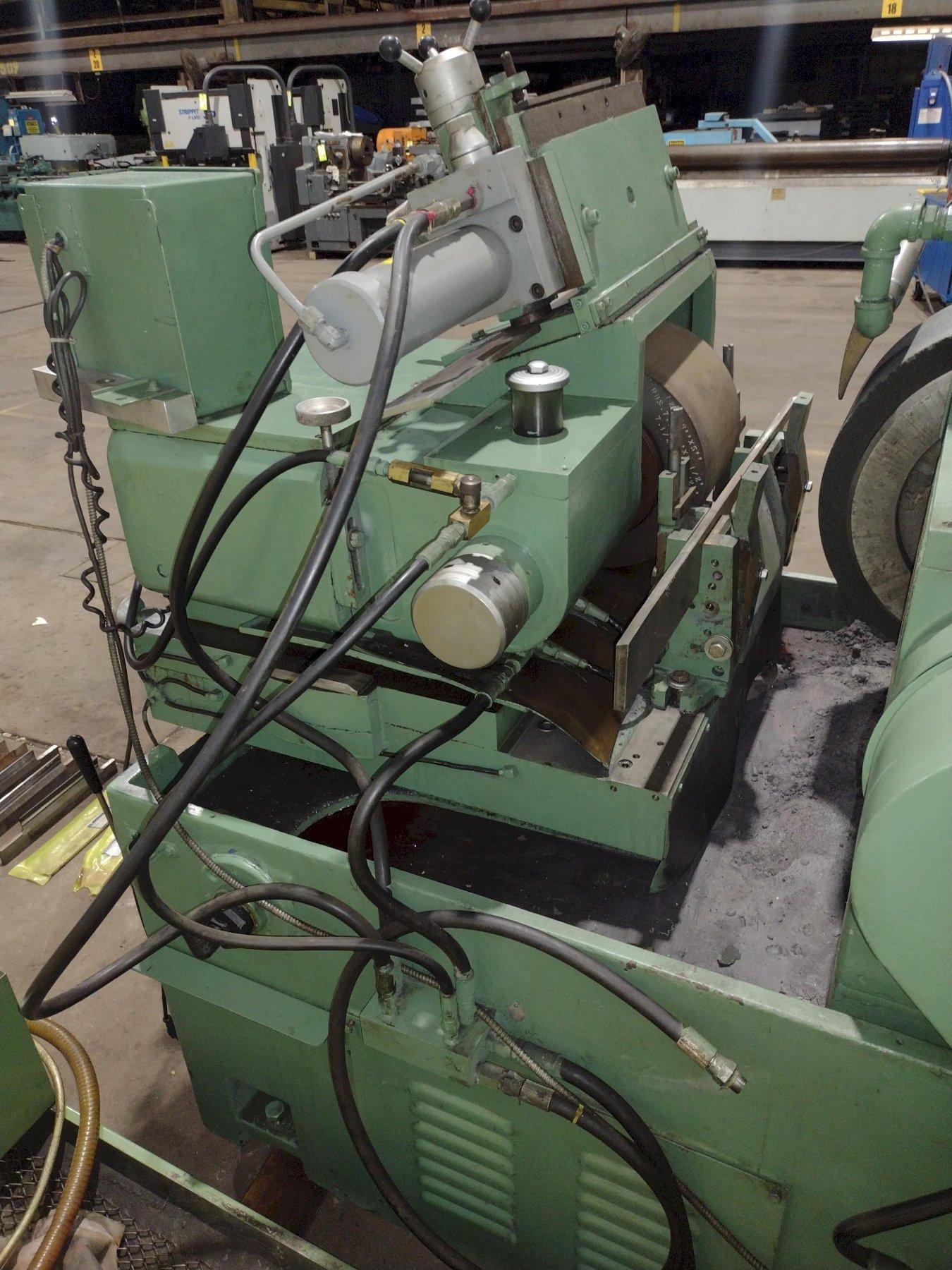

REGULATING WHEEL
DIAMETER X WIDTH X BORE.................. 12" X 8" X 5"

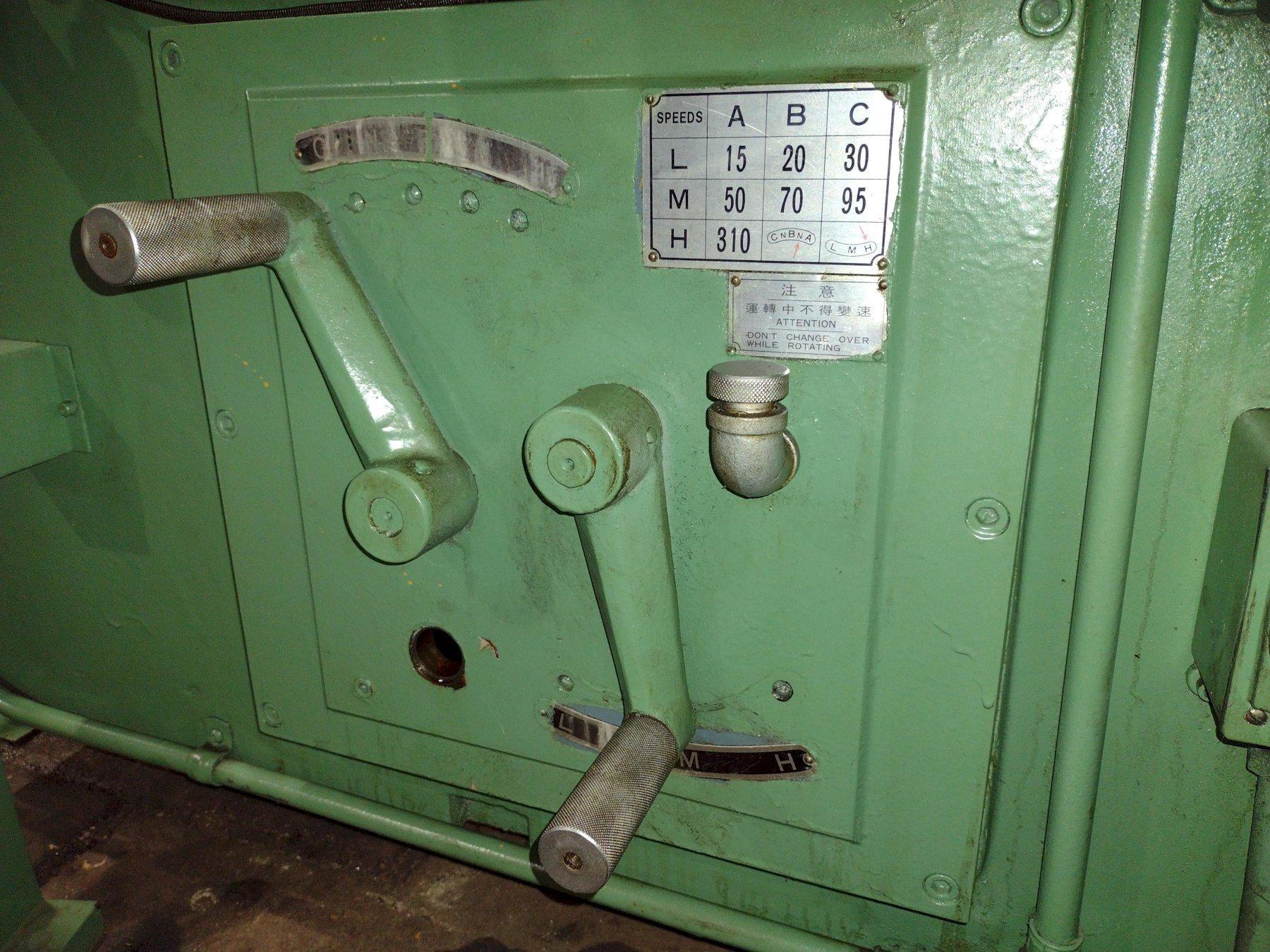

SPINDLE SPEEDS (10 STEPS)................ 13 - 308 RPM
FEED OF HANDWHEEL PER GRADUATION......... 0.0005"
FEED OF HANDWHEEL, PER REVOLUTION........ 0.006"
SWIVELLING ANGLE......................... +/- 5°
INCLINING ANGLE.......................... +/- 5°
DRESSING INCREMENT PER GRADUATION ....... 0.00005"
DRESSING INCREMENT PER REVOLUTION........ 0.0625
RAPID FEED OF SADDLE HANDWHEEL,
  PER GRADUATION......................... 0.0002"
  PER REVOLUTION......................... 0.25"
MICRO FEED OF SADDLE HANDWHEEL,
  PER GRADUATION......................... 0.00005"
MICRO FEED OF SADDLE HANDWHEEL,
  PER REVOLUTION......................... 0.00625"

GRINDING WHEEL MOTOR..................... 20 HP
HYDRAULIC MOTOR.......................... 2 HP

FLOOR SPACE WITH HYD. TANK & COOLANT .... 77" x 71"D x 59"H
WEIGHT................................... 7,000 LBS

EQUIPPED WITH:
HYDRO-STATIC "BABBIT" BEARINGS FOR GRINDING WHEEL AND THE
  REGULATING WHEEL SPINDLES, WITH AUTO LUBRICATION SYSTEM.
  AUTO LUBE CREATES OIL FILM BETWEEN THE SPINDLE AND
  BEARINGS, TO PREVENT ANY METAL TO METAL CONTACT,
  ENSURES ACCURACY AND SPINDLE LIFE.
  OIL DISPLAY FOR EACH SPINDLE.
VARI-SPEED SPINDLE SPEEDS, REGULATING WHEEL SPINDLE,
 WITH DIGITAL TACHOMETER SPEED DISPLAY
REGULATING WHEEL CAN BE SWIVELLED & INCLINED +/- 5°
SLIDE-WAYS OF REGULATING WHEEL ARE CASTED OF DOUBLE
 VEE AND HAND SCRAPED, THEN COATED WITH TURCITE B,
 ALLOWING FOR SMOOTH MOVEMENT AND INCREASED LONGEVITY.
ONE-SHOT LUBE, FOR SLIDE WAYS LUBRICATION

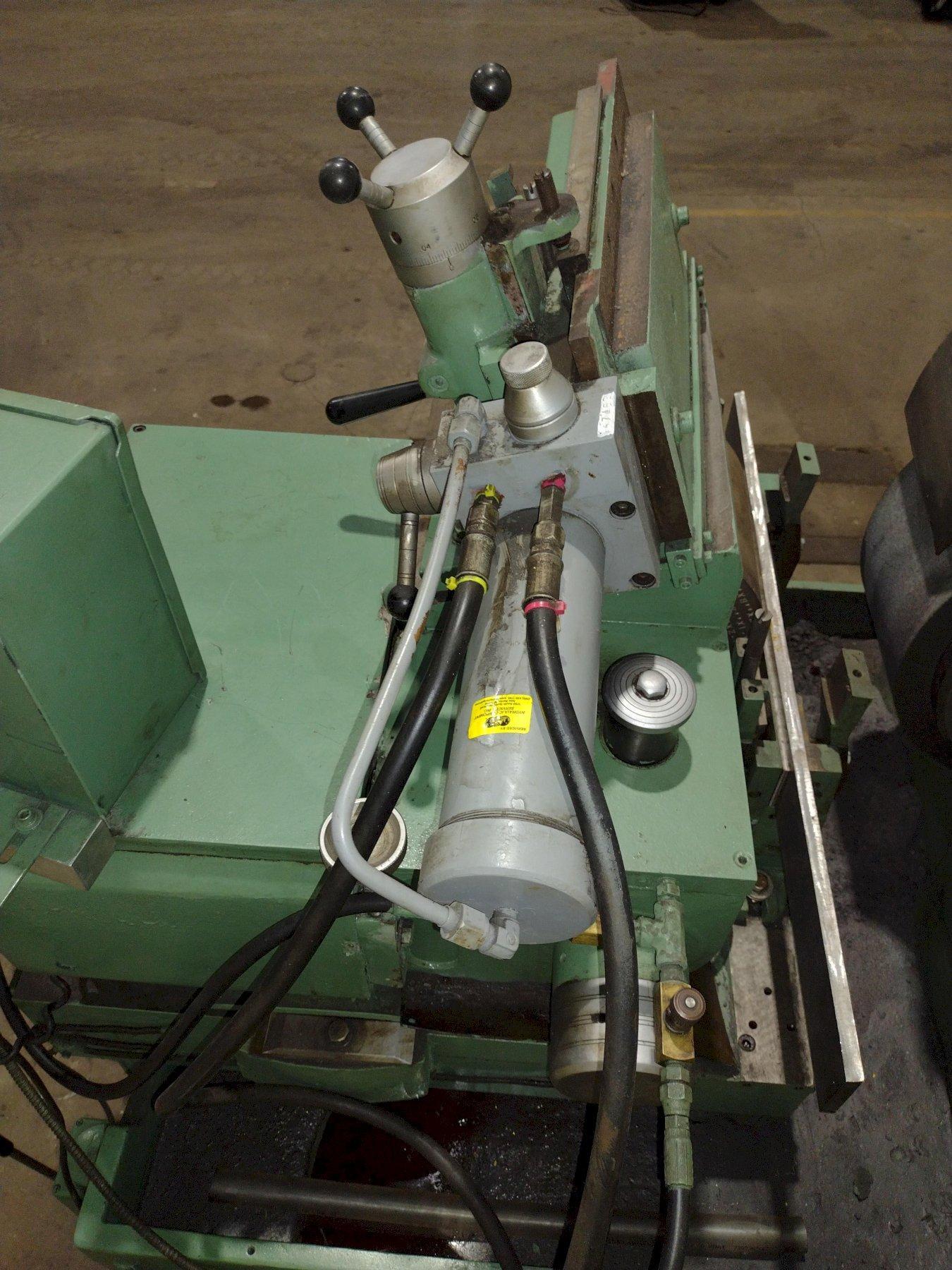

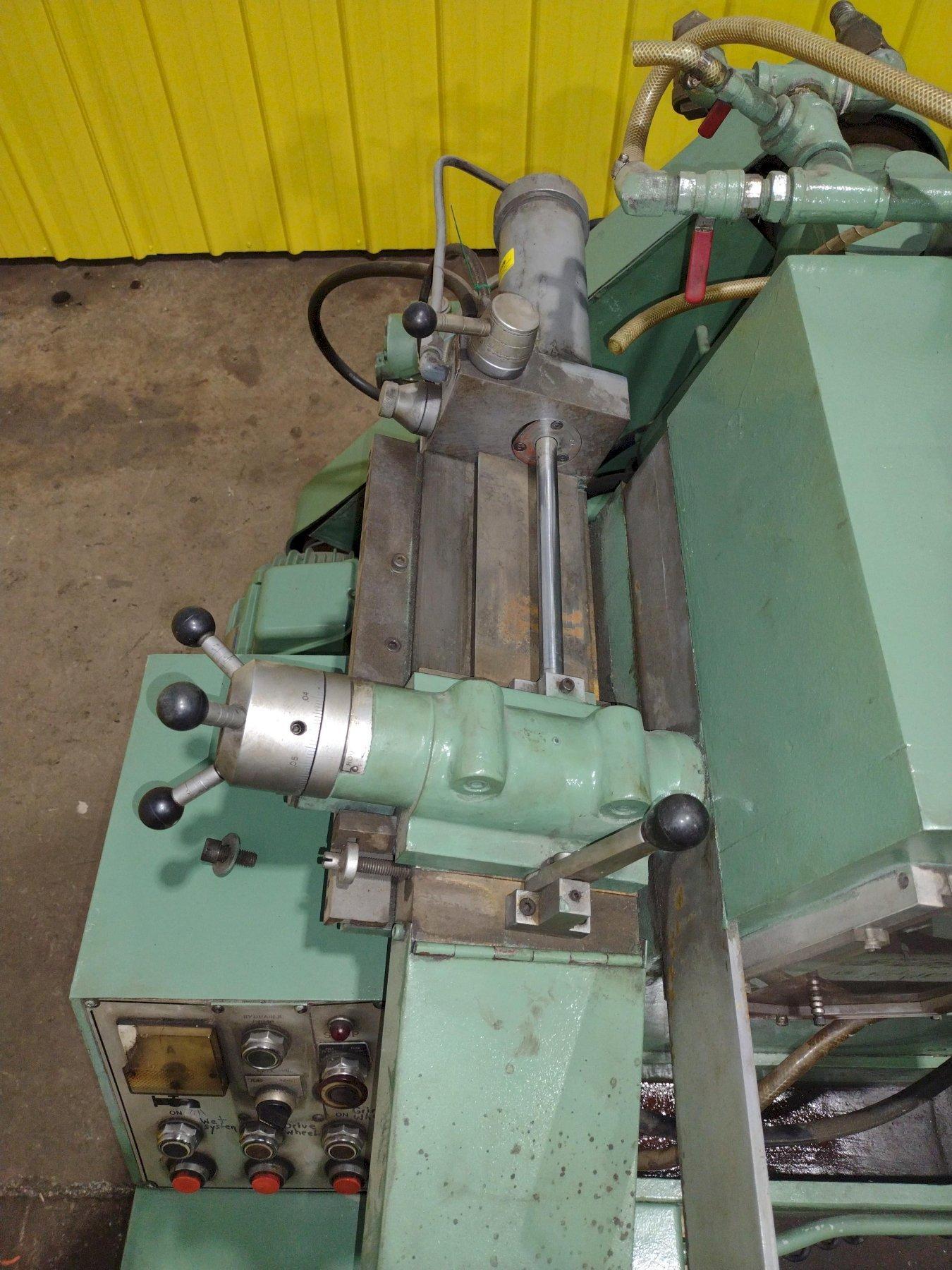

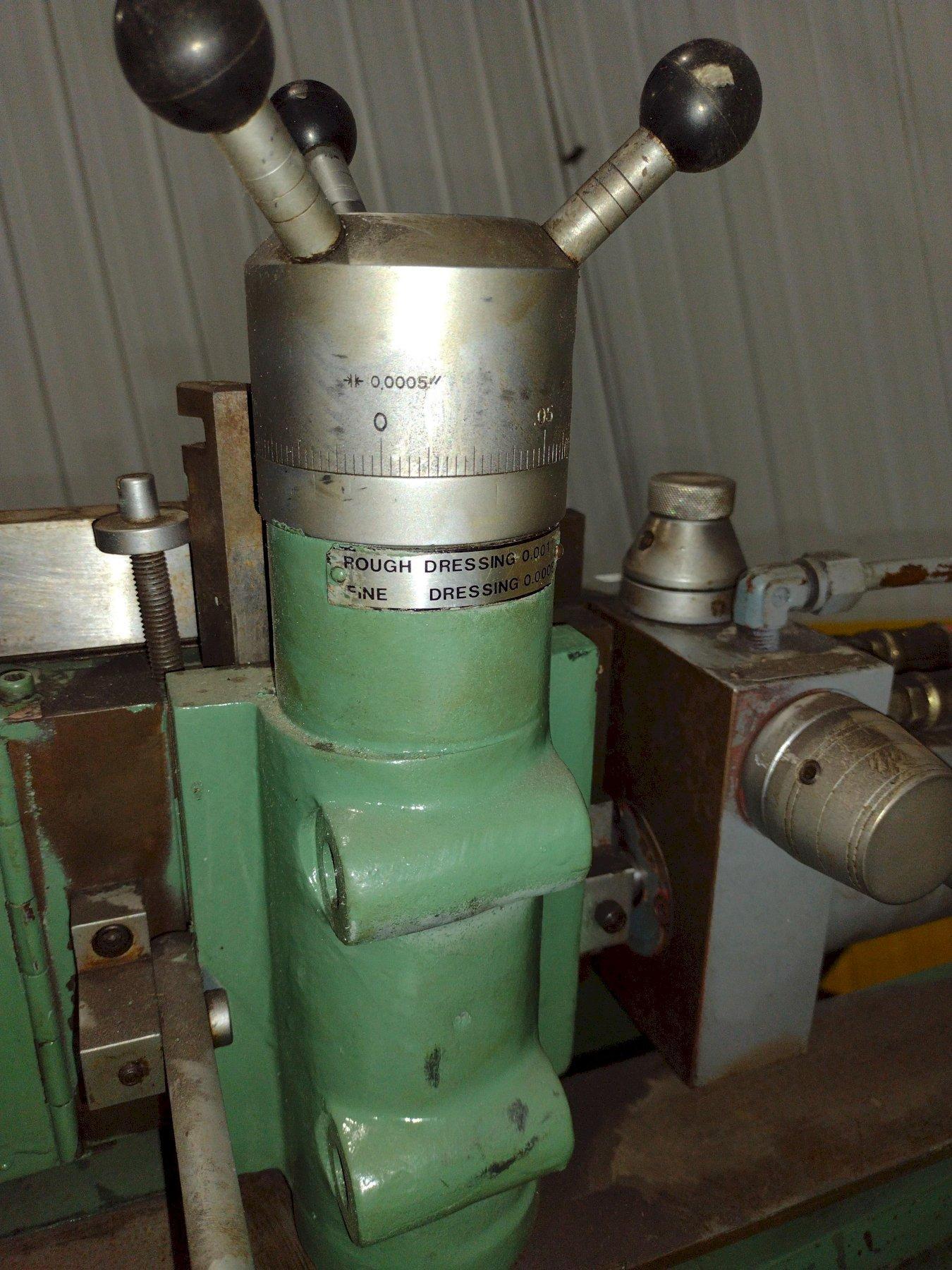

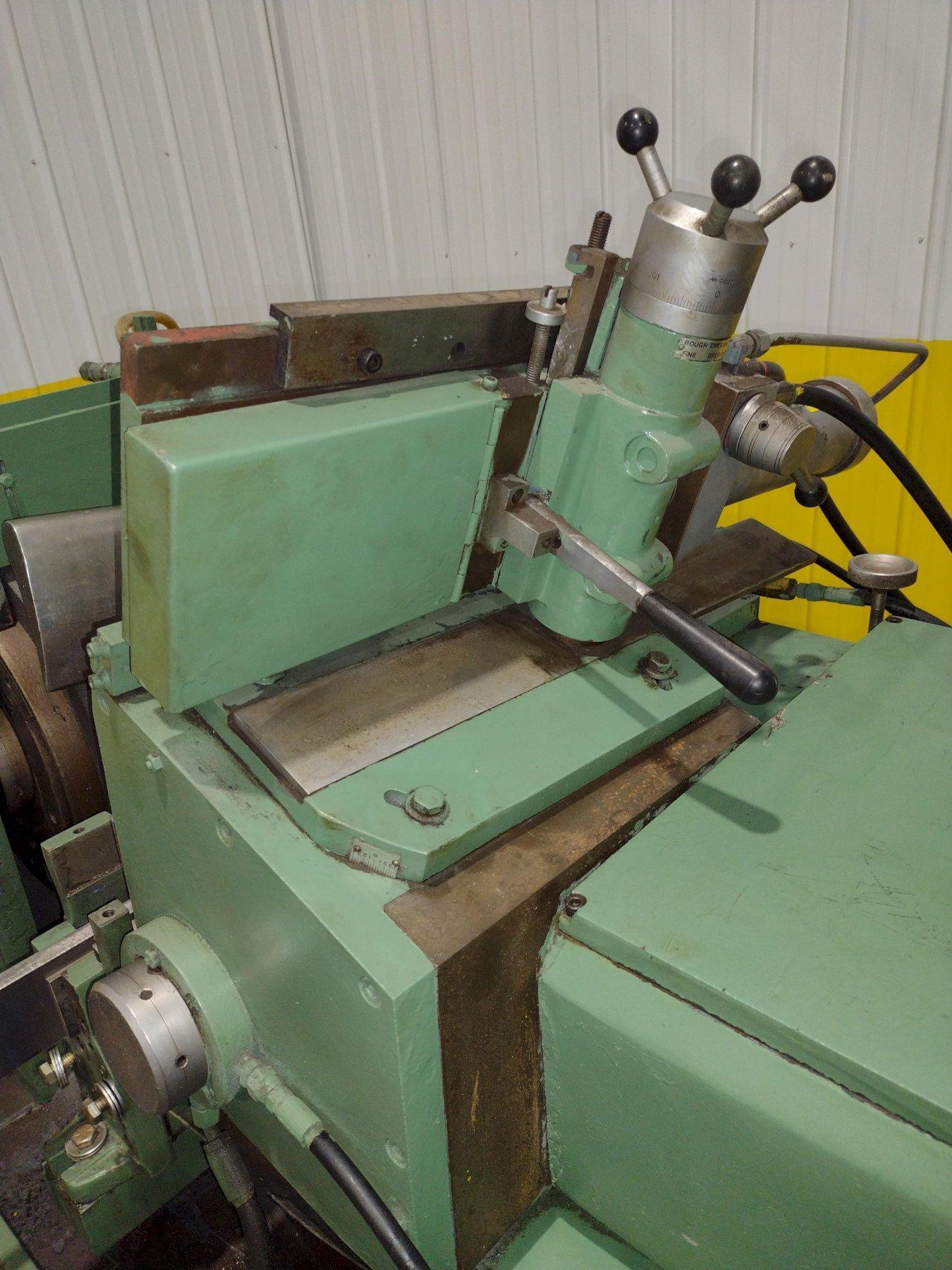

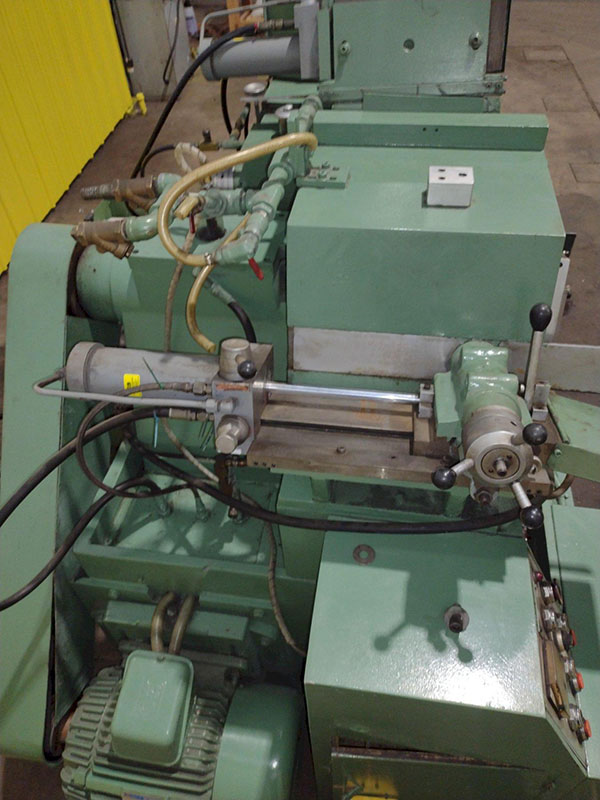

HYDRAULIC DRESSERS WITH +/- 3° SWIVEL ADJUSTMENT

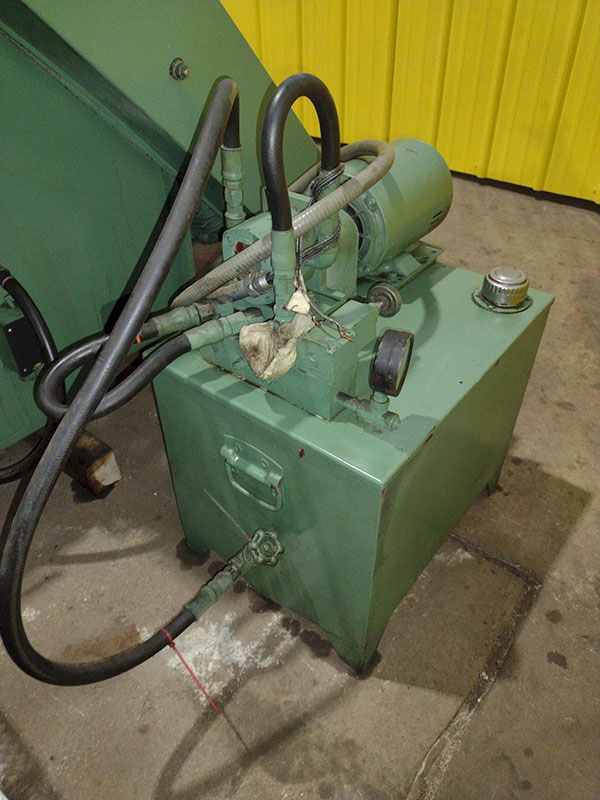

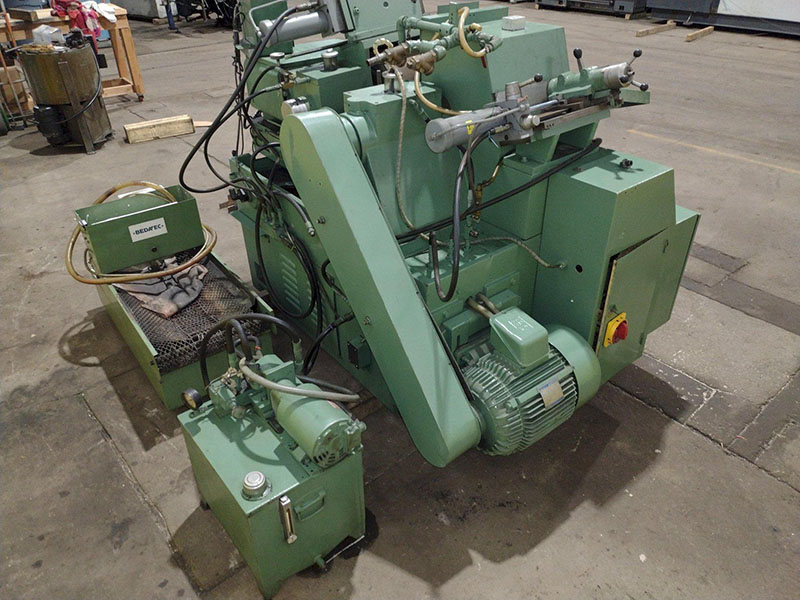

EXTERNAL HYDRAULIC SYSTEM

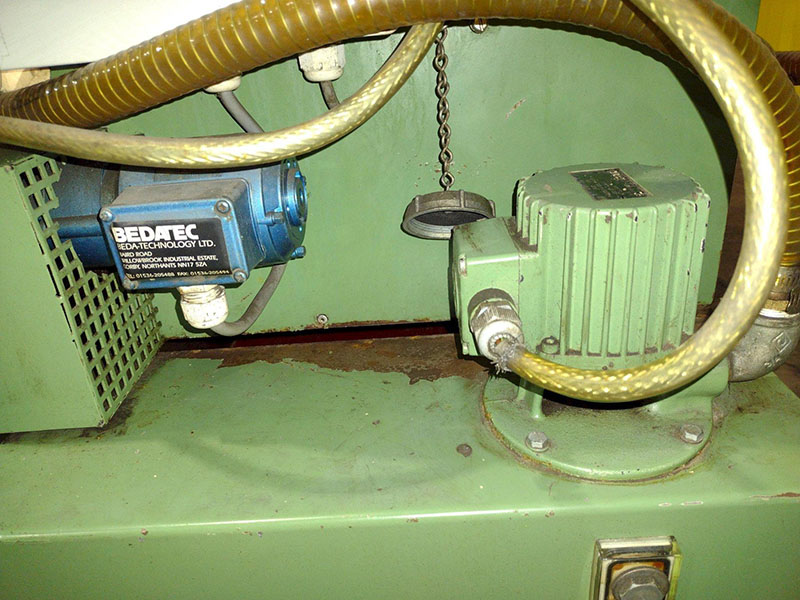

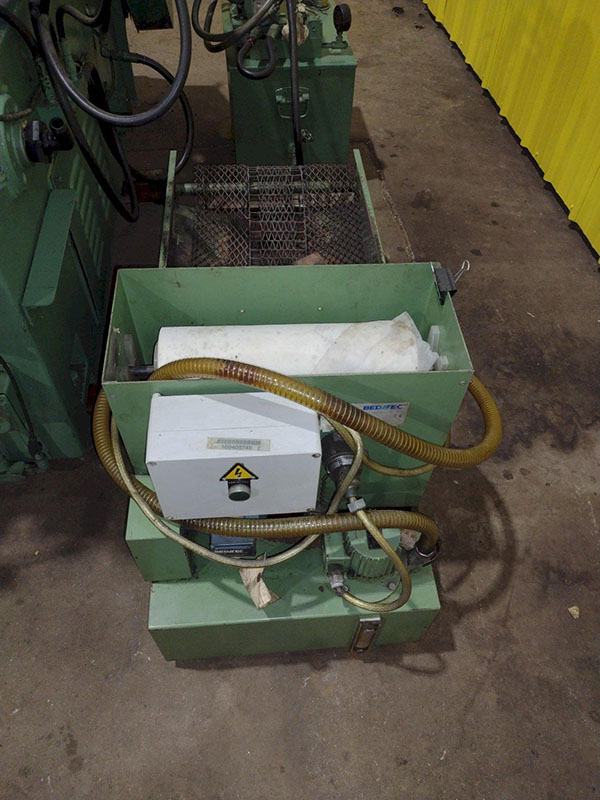

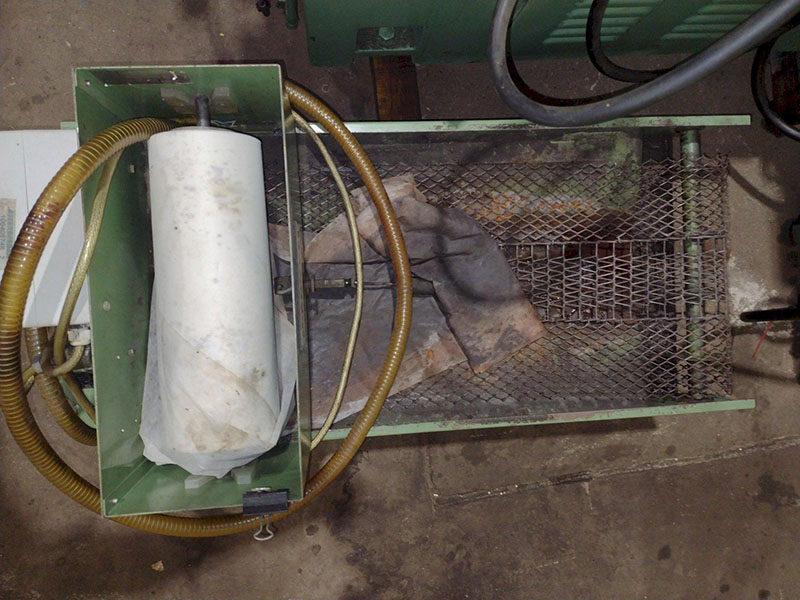

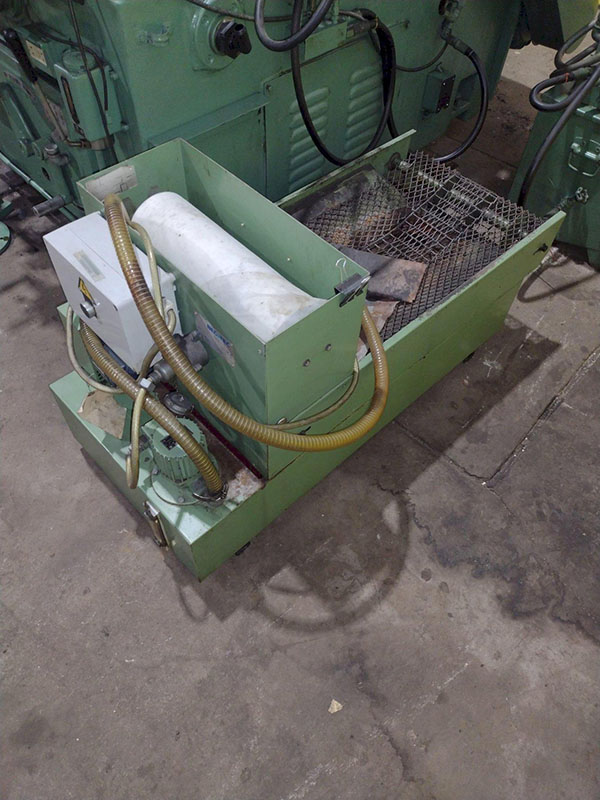

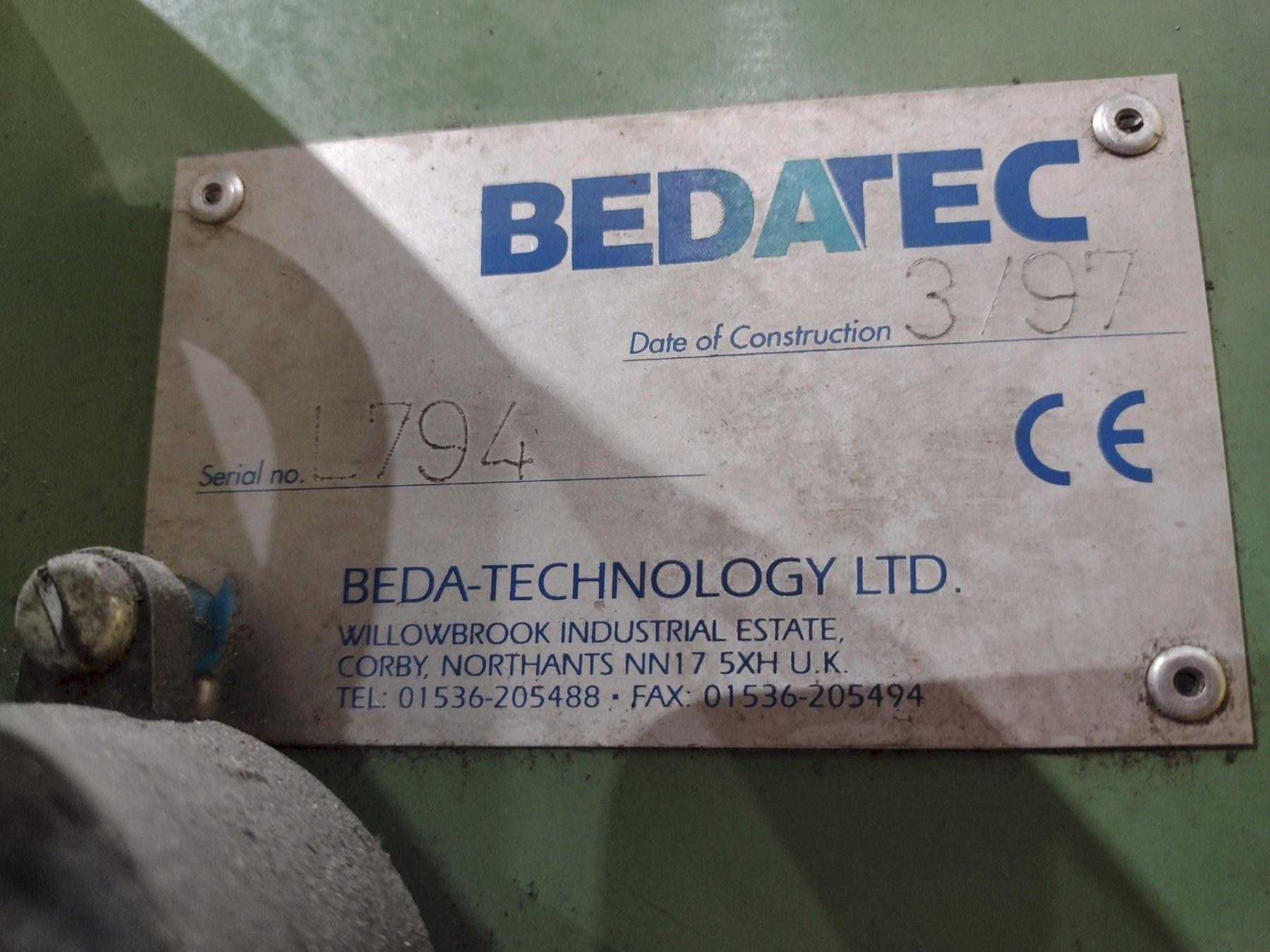

"BEDATEC" COOLANT SYSTEM WITH MOTORIZED
 PAPER FILTRATION, HIGH-END SYSTEM, NEW 1997

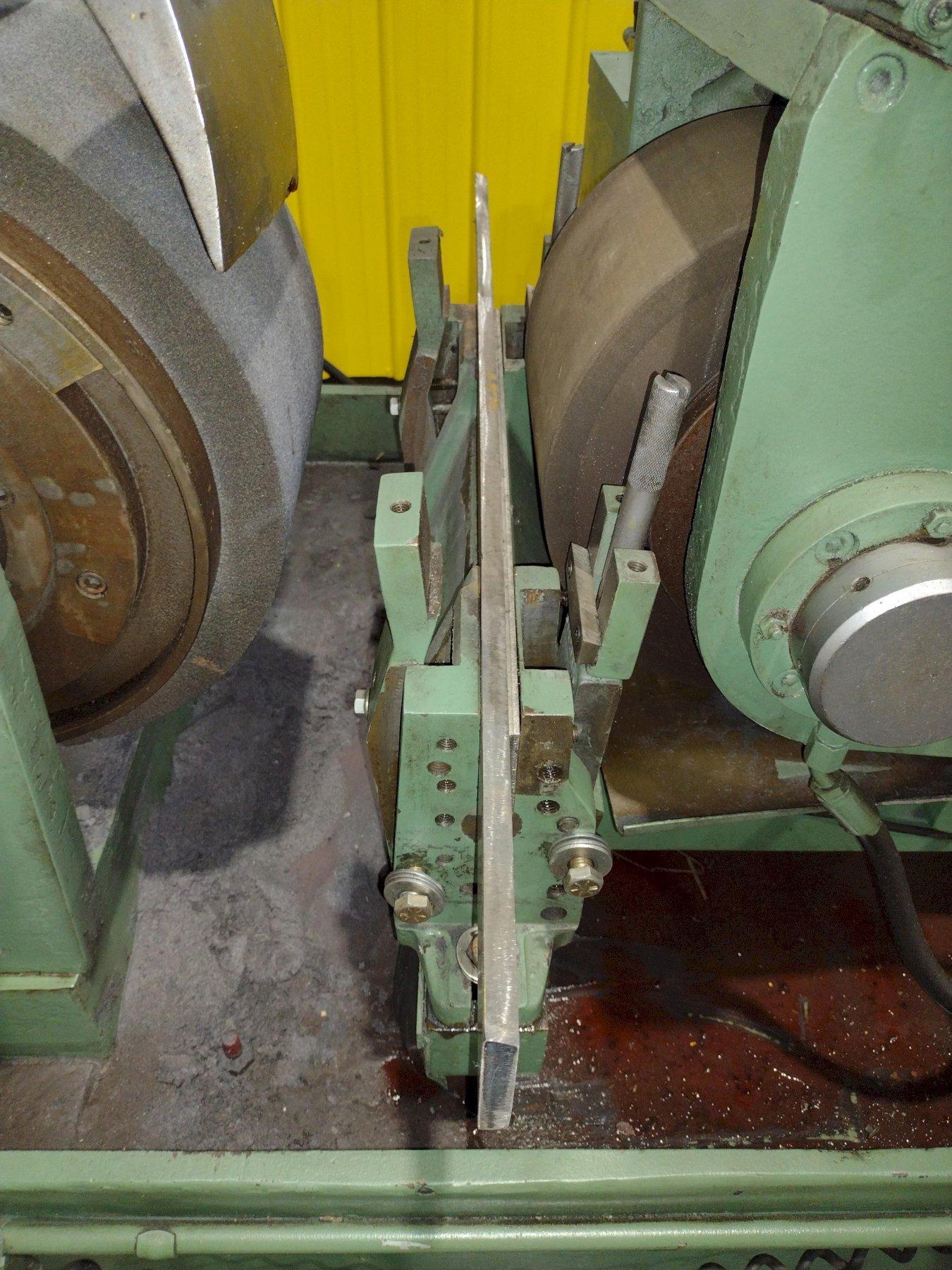

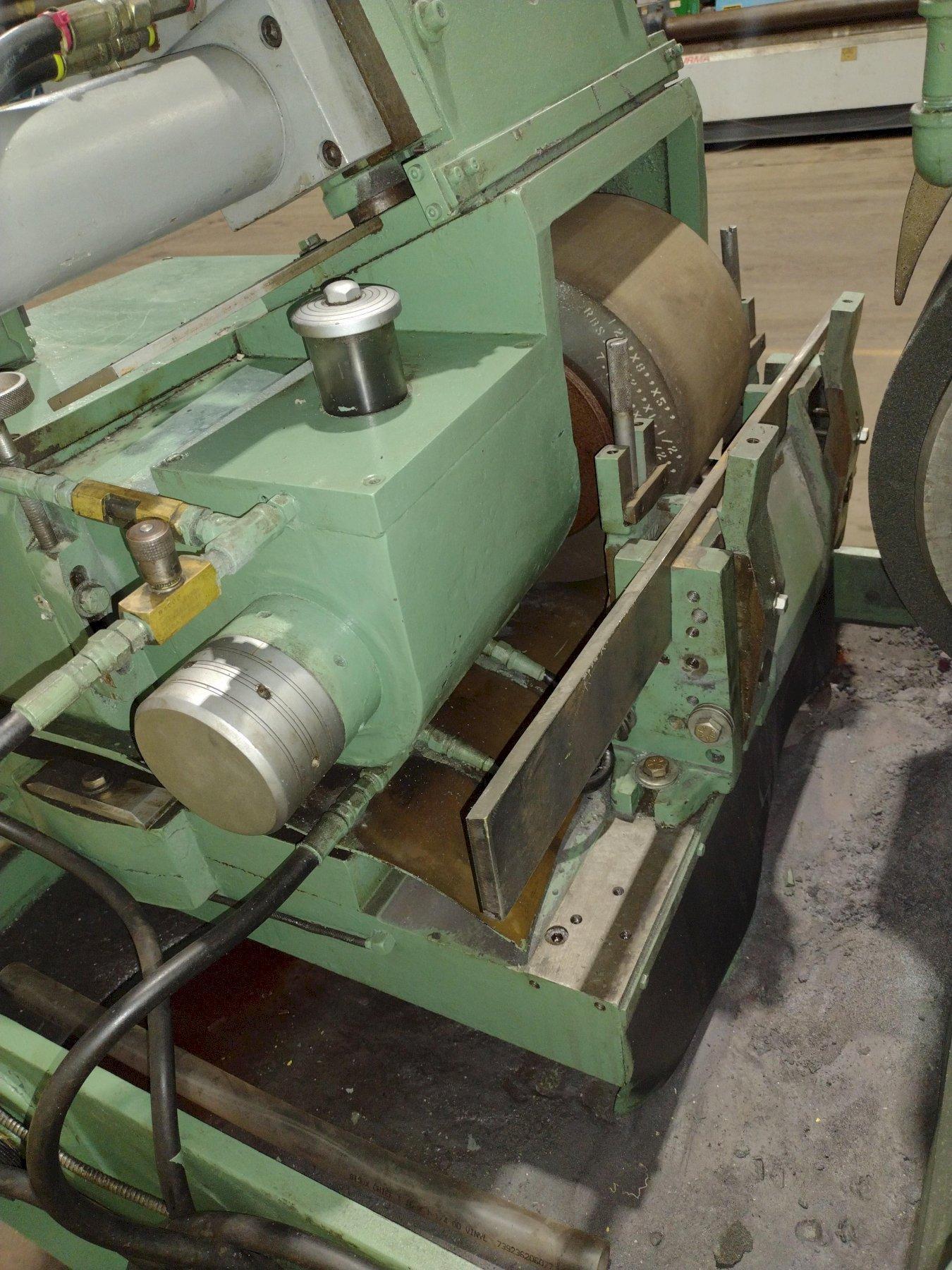

WORK REST WITH BLADE ON THE MACHINE

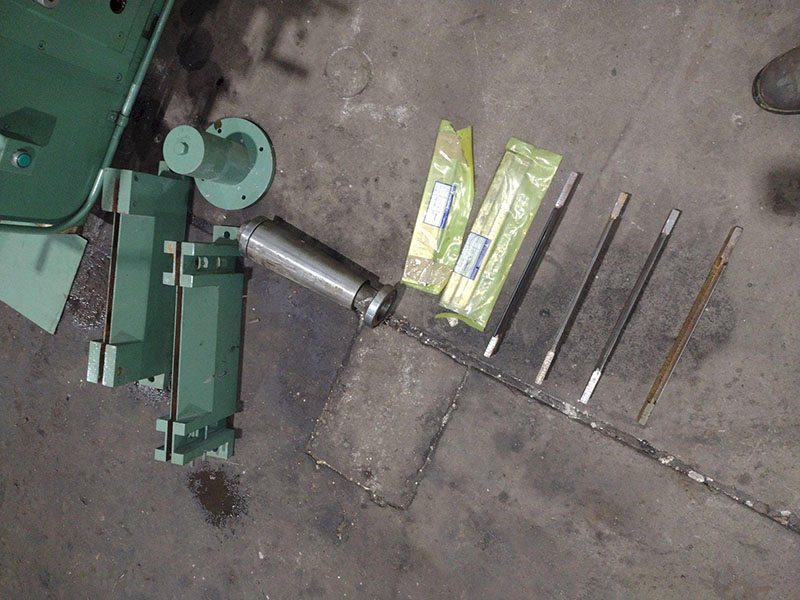

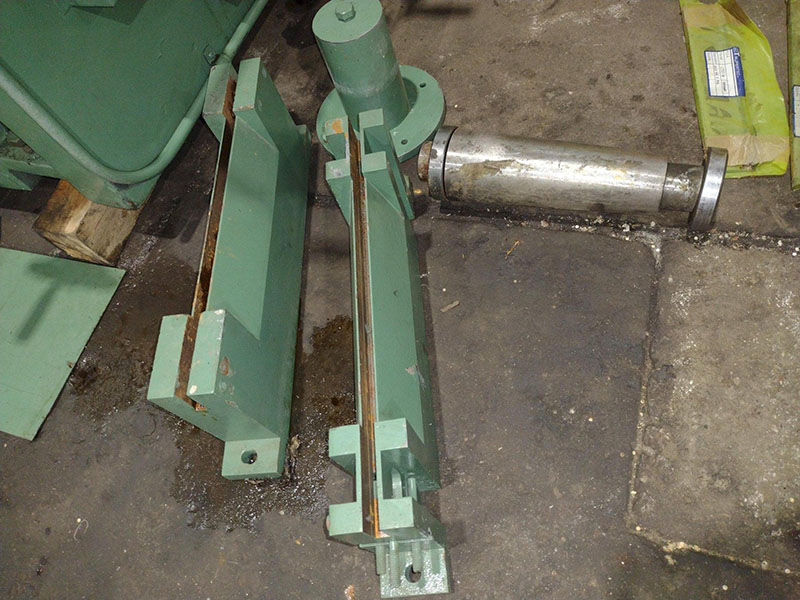

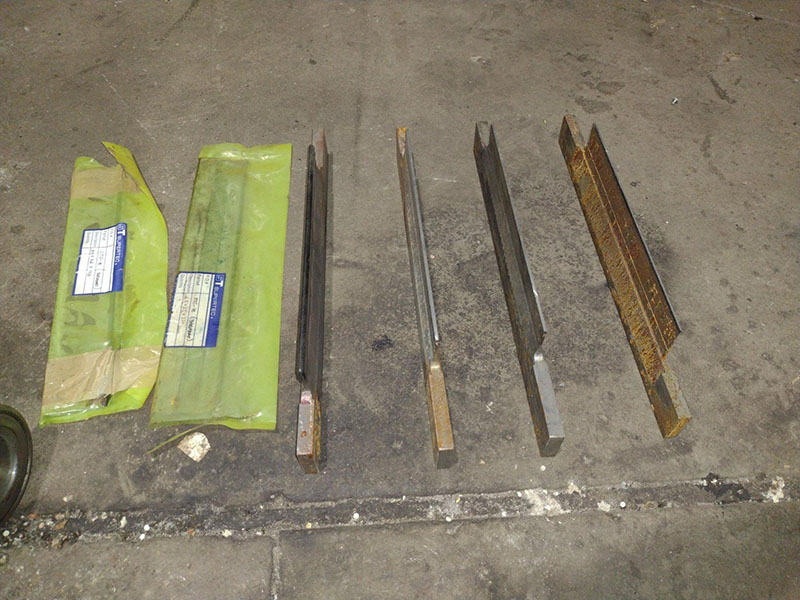

(2) ADDITIONAL WORK RESTS WITH EXTRA BLADES

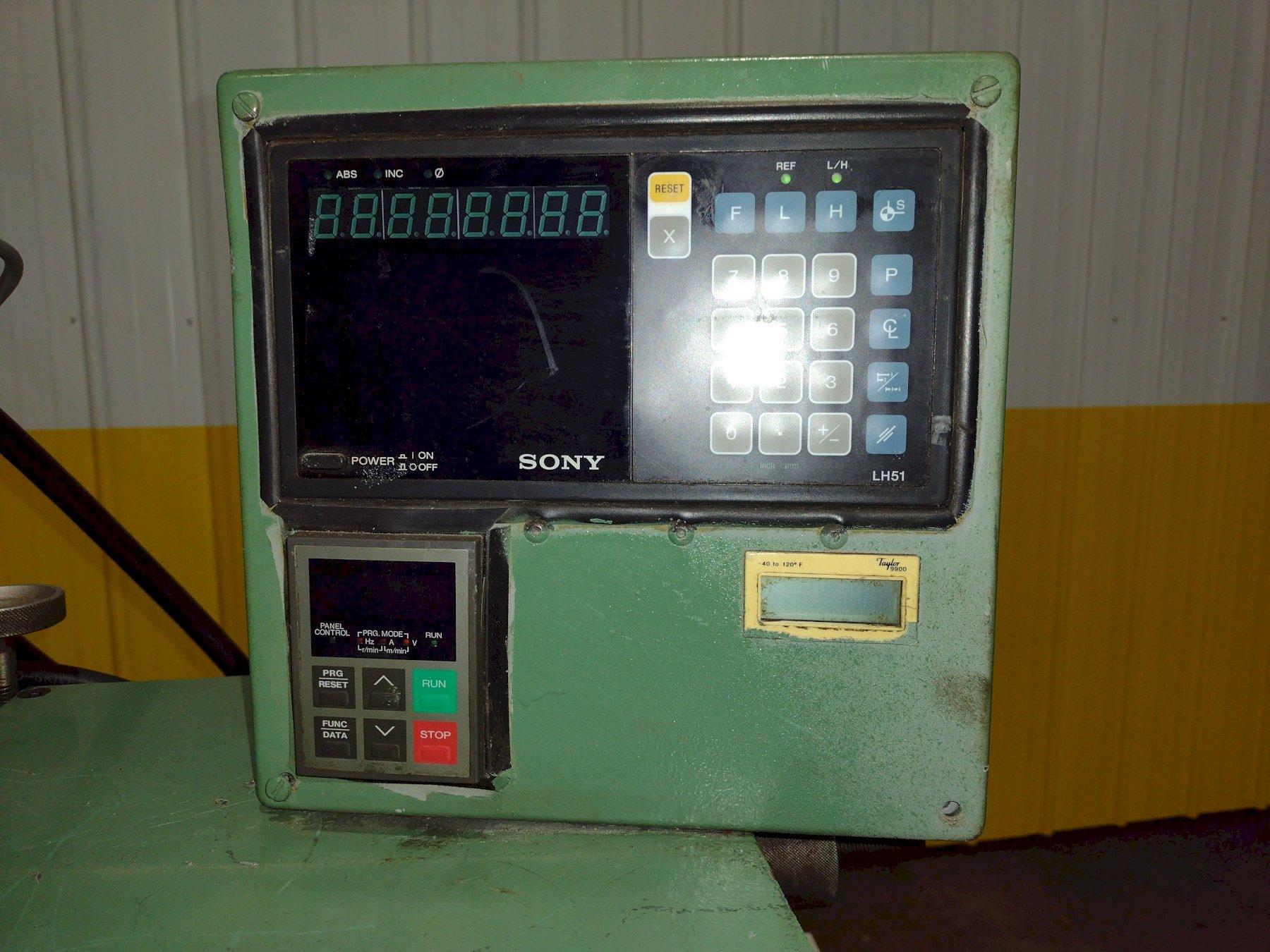

"SONY" "LH-51" DIGITAL READOUT DISPLAY,
  FOR REG. WHEEL SLIDE

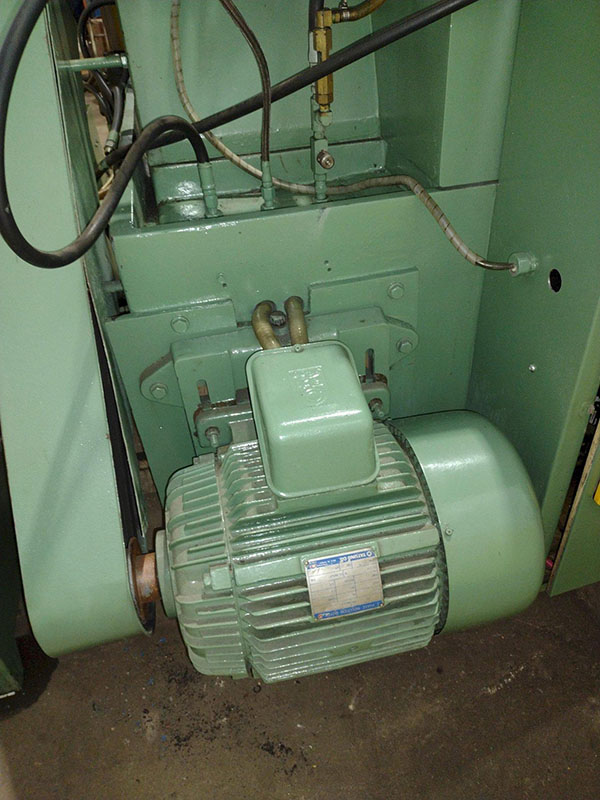

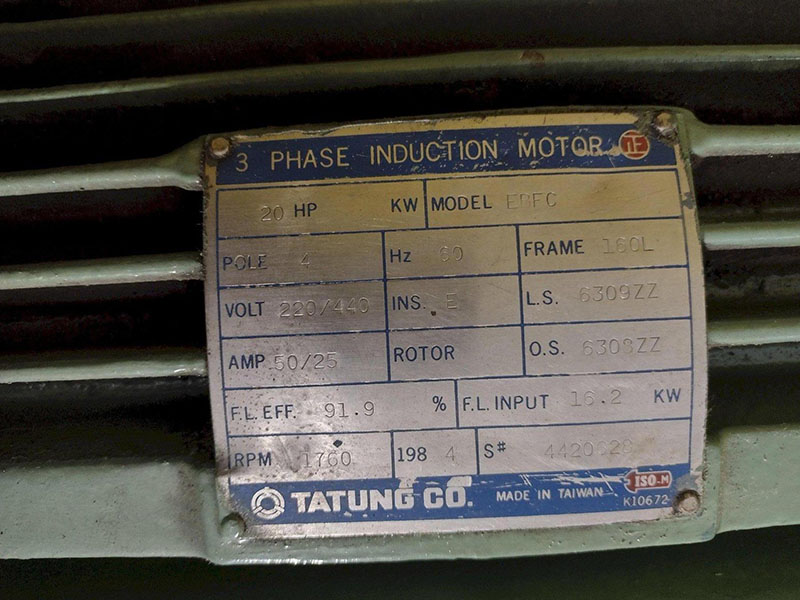

20 H.P./3/60/220-440 VOLT, 50/25 AMP MOTOR
  FOR THE GRINDING WHEEL


** INSPECT IN OUR ASSOCIATES FACILITY, NORTHEAST OHIO **
** SUPERB CONDITION & APPEARANCE **
** ALL HYDRAULIC LINES, COOLANT HOSES, COOLANT
    DISTRIBUTION PIPING, ETC., ARE EXCELLENT **
