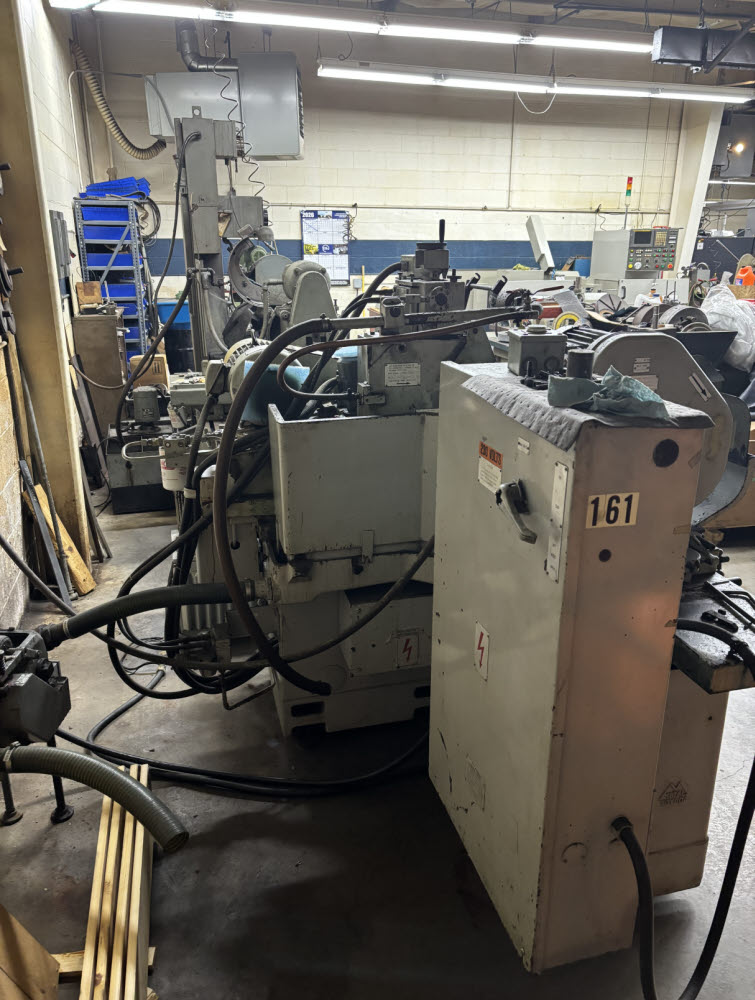

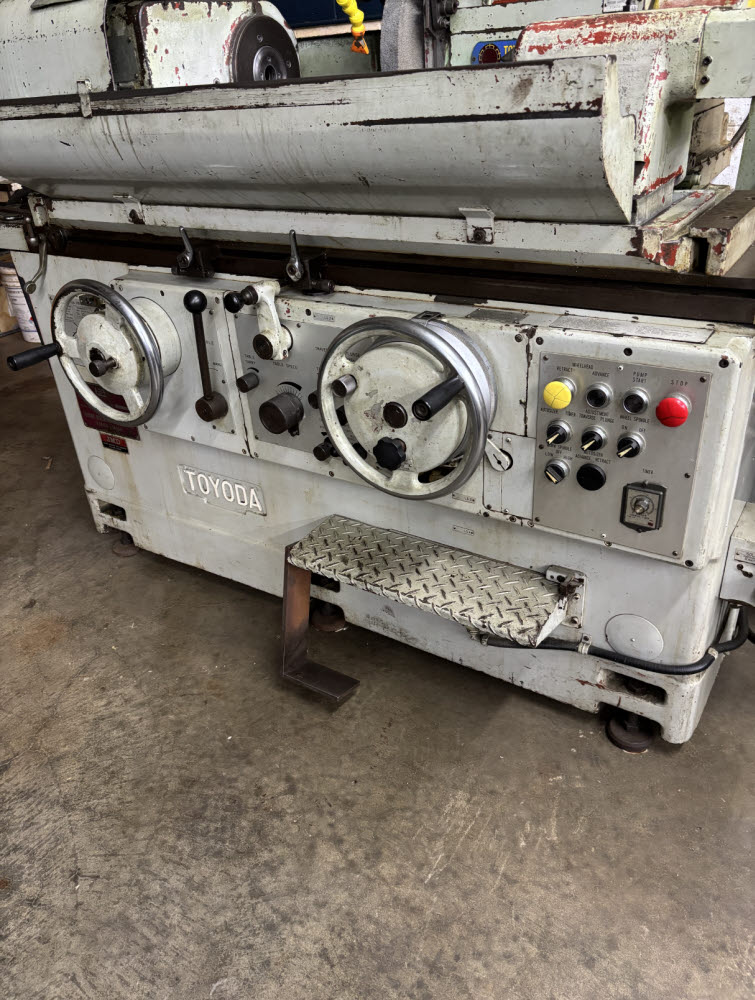

Toyoda GOP32x50, 1980, 16" x 3"W Wheel, Full Auto Cycle PLAIN CYLINDRICAL GRINDERS

Price on Request

Make:: Toyoda

Model:: GOP32x50, 1980, 16" x 3"W Wheel, Full Auto Cycle

Year:: 1980

Ref #:: 179165

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

    12.6" x  20" TOYODA
  "PLAIN" CYLINDRICAL GRINDER

*** THIS IS A HIGH-PRECISION
  JAPANESE MADE MACHINE TOOL! ***

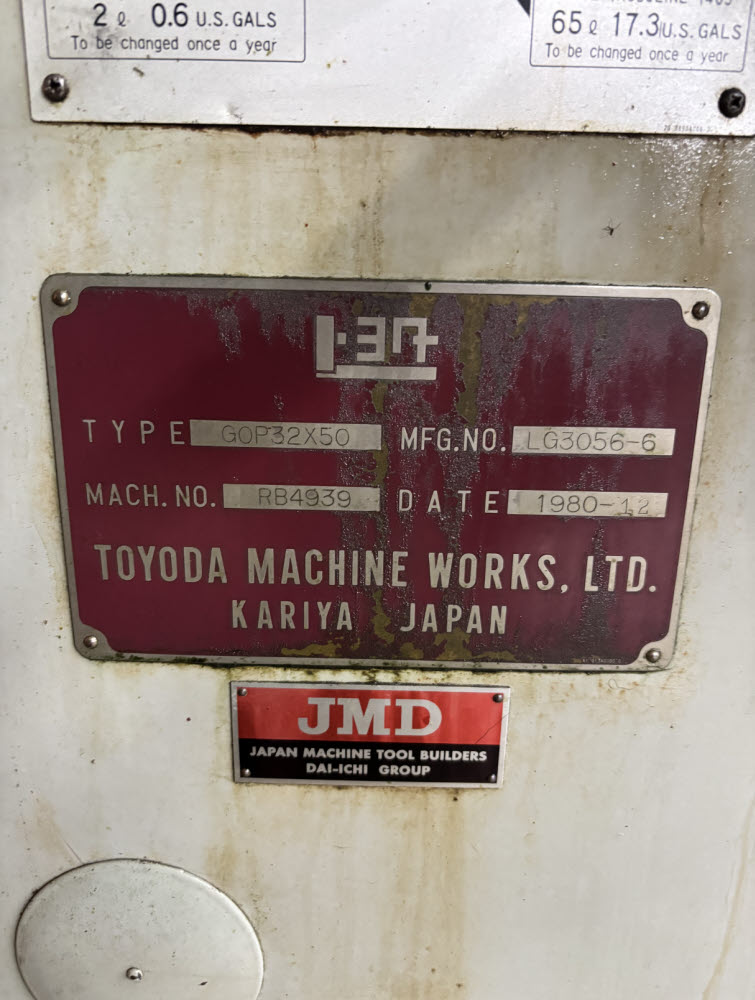

MODEL:GOP32x50     NEW: 1980

CAPACITY:
MAX. SWING OVER TABLE ................. 12.6"
DISTANCE BETWEEN CENTERS .............. 20"
MAX. LOAD BETWEEN CENTERS ............. 330 LBS.

TABLE:
TABLE SWIVELS, COUNTERCLOCKWISE ....... 12.5 DEG.
LONGITUDINAL TABLE TRAVERSE SPEED ..... 2" TO 157" IPM
MOVEMENT PER TURN OF HANDWHEEL ........ 0.78"

WHEELHEAD:
GRINDING WHEEL SIZE ................... 16" x 3" x 5"
WHEEL SPEEDS (2) ...................... 1,570/1,845 RPM
TOTAL STROKE .......................... 7.8"
HANDWHEEL INFEED STROKE ............... 6.3"
AUTOMATIC RAPID INFEED STROKE ......... 1.6"
AUTOMATIC INFEED AT TABLE REVERSALS ... 0.0001" TO .0016"
AUTOMATIC PLUNGE INFEED ............... YES
AUTO PLUNGE INFEED W/POSITIVE STOP .... 0 TO .0315"
MOVEMENT PER GRAD. OF HANDWHEEL ....... 0.0001"
MOVEMENT PER TURN OF HANDWHEEL ........ 0.040"

WORKHEAD & TAILSTOCK:
WORKHEAD SPINDLE TAPER ................ #4 MT
WORKHEAD, SPINDLE SPEEDS (8) .......... 30 TO 360 RPM
SPINDLE BORE .......................... 1.1"
TAILSTOCK SPINDLE CENTER .............. #4 MT
TAILSTOCK QUILL TRAVEL ................ 1"
TAILSTOCK, POWER ACTUATED ............. YES

APPROX. MACHINE WEIGHT ................ 5,060 LBS.
APPROX. MACHINE DIMENSIONS .......... 84" x 64" x 57"H

EQUIPPED WITH:

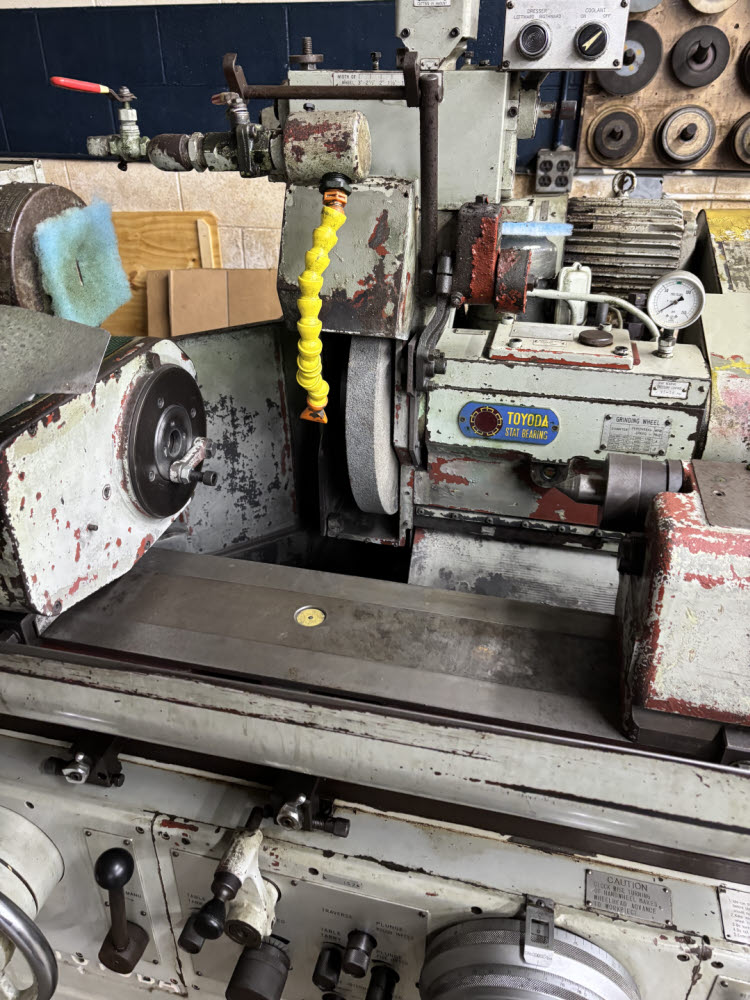

TOYODA "STAT" HYDROSTATIC WHEELHEAD BEARINGS
GRINDING WHEEL, 16" x 3"W x 5"B
FULLY AUTOMATIC GRINDING CYCLE FEATURING:
  HYDRAULIC TABLE TRAVERSE
  AUTOMATIC INFEED
  AUTOMATIC PLUNGE INFEED
  POWER RAPID WHEELHEAD ADVANCE & RETRACTION
  SPARKOUT TIMER
  ADJUSTABLE TABLE TARRY

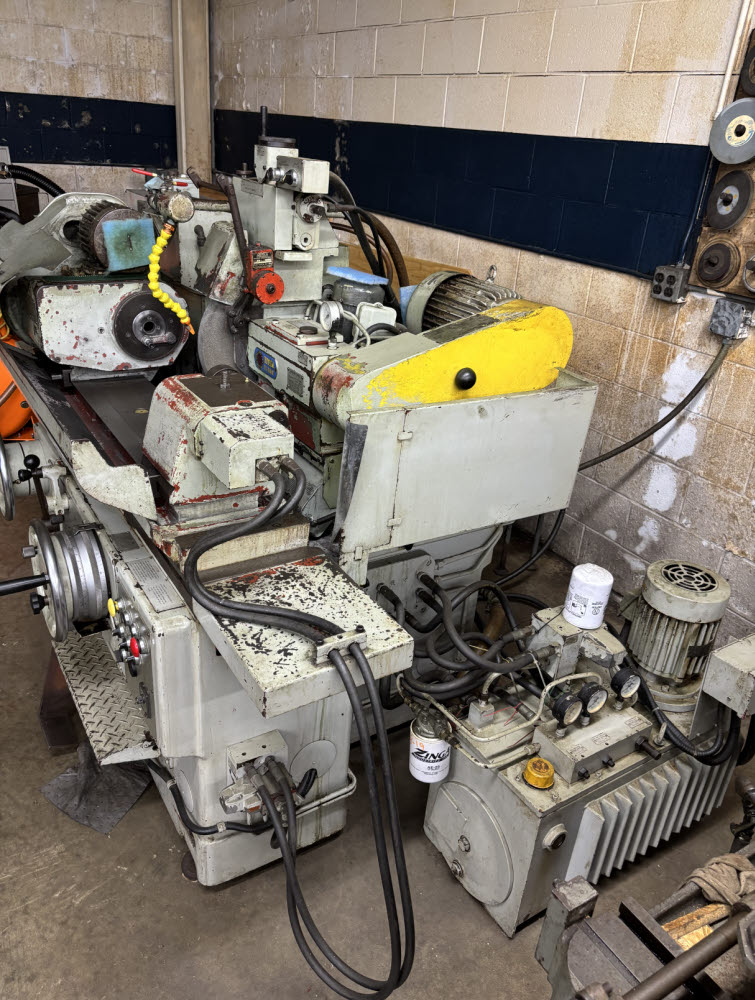

EXTERNAL HYDRAULIC SYSTEM
DUAL LIVE/DEAD WORKHEAD SPINDLE
TAILSTOCK, HYDRAULIC POWER ACTUATED
EXTERNAL COOLANT TANK, WITH MAGNETIC SEPARATOR
ELECTRICAL SYSTEM CONNECTED ON MACHINE (NOT SEPARATE)
MOTORS ARE FOR 3/60/220-440 VOLT ELECTRICS
MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS

** UNDER POWER IN OUR CUSTOMER'S SHOP **
** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
