Unison-Dedtru 2150A CNC FLEXIBLE GRINDING SYSTEM, 2009 CENTERLESS GRINDERS

Price on Request

Make:: Unison-Dedtru

Model:: 2150A CNC FLEXIBLE GRINDING SYSTEM, 2009

Year:: 2009

Ref #:: 174555

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

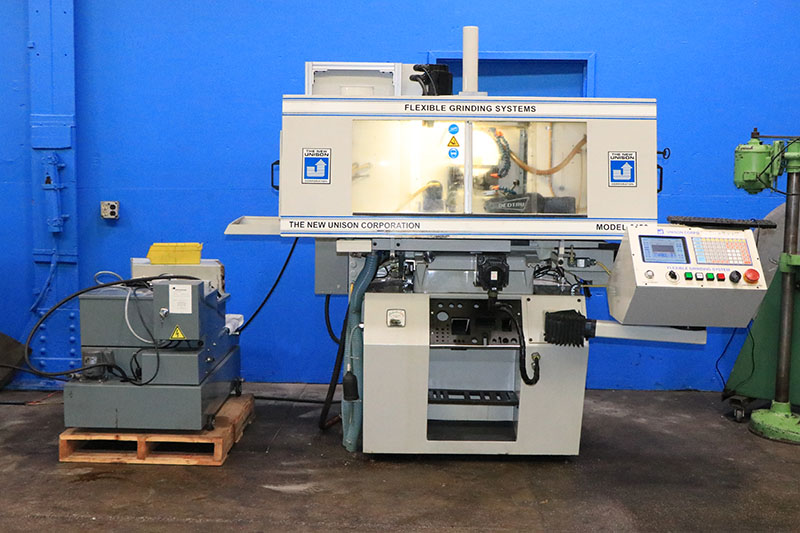

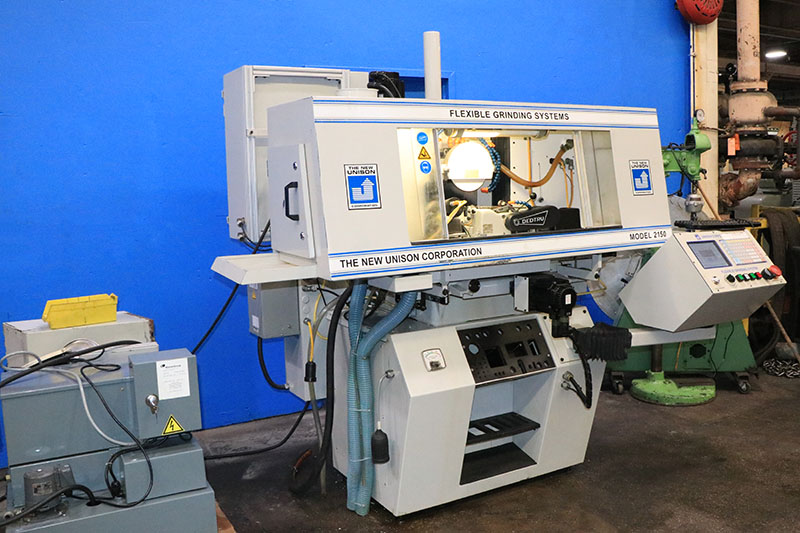

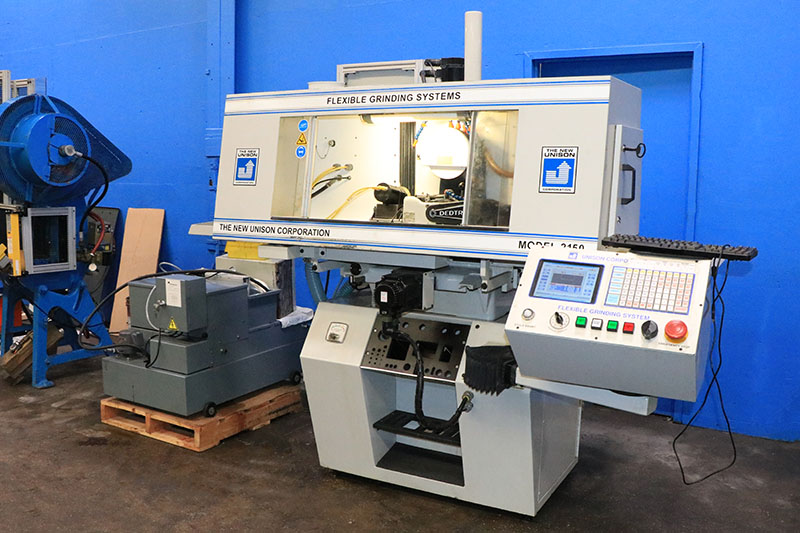

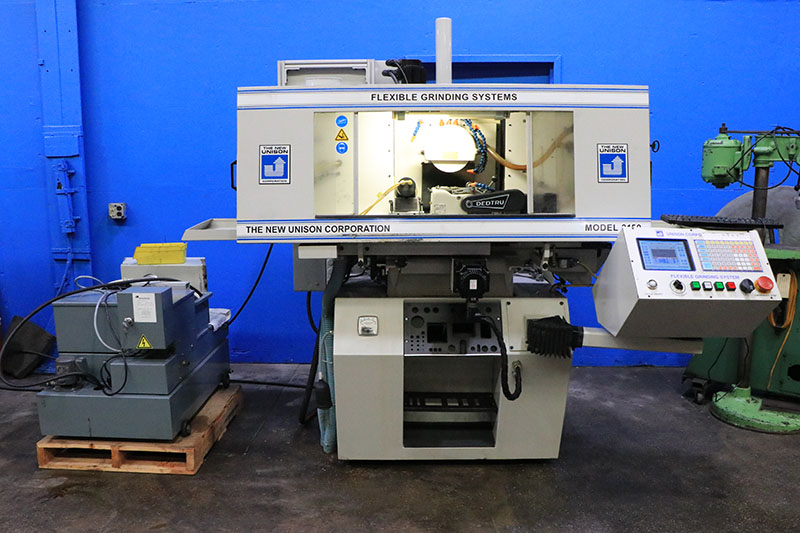

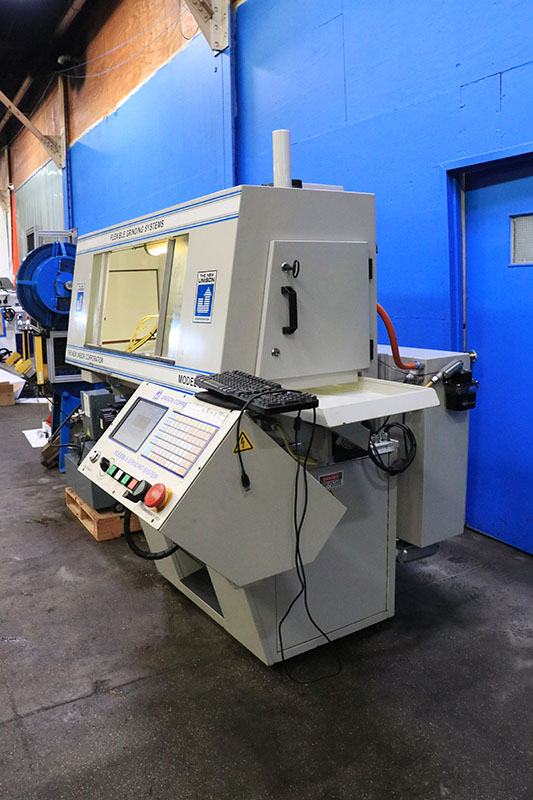

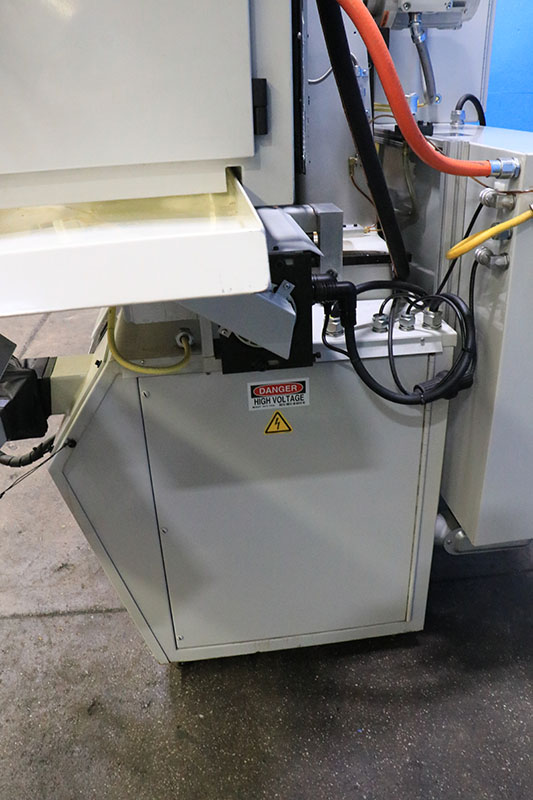

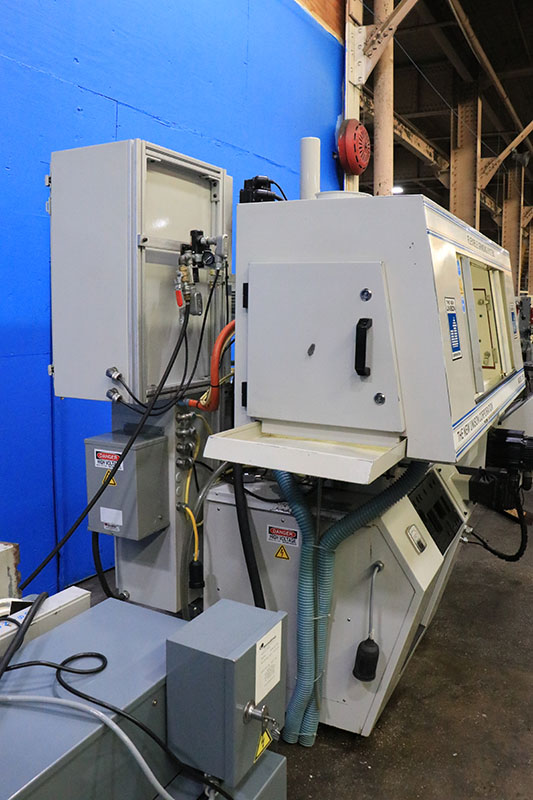

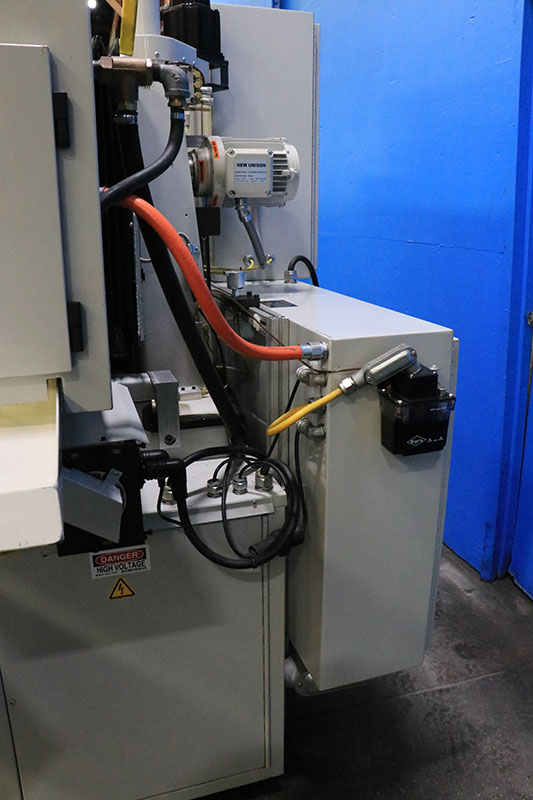

 UNISON Model 2150A "FLEXIBLE GRINDING SYSTEM",
 CNC CENTERLESS GRINDER WITH UNISON CNC CONTROL

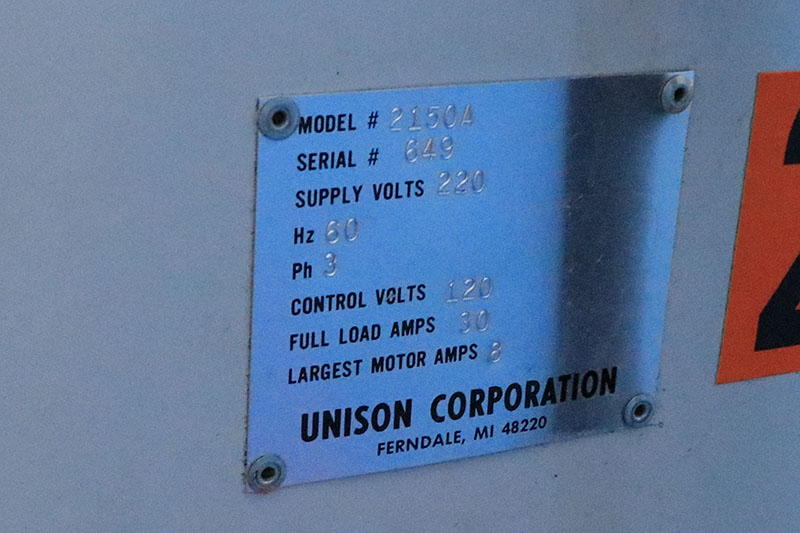

       S/N: 649     New: 2009

"The Model 2150 CNC DedTru is a precision 3-Axis CNC
 grinding system for centerless OD grinding.
 All of the DedTru CNC Grinding Systems combine
 the use of Unison's proprietary software/Machine
 Control.

The Model 2150 combines the use of Unison's proprietary
 software with our DedTru fixtures allowing the machine
 to perform throughfeed, infeed, secondary operation,
 tapers and profile chamfers for cylindrical parts from
 0.001 inch to 5 inch diameter. These CNC Grinders
 are ideal for prepping blanks used in manufacturing of
 precision cutting tools.

Unison's CNC DedTru Grinding Systems are constructed
 on a cast iron base which has been hand scraped to
 insure the highest level of accuracy. The Model 2150's
 are designed with a hole through the column housing for
 easy removal of completed parts as well as allows for
 the grinding of longer parts. All Model 2150's are
 constructed with precision ballscrews to increase both
 the accuracy and longevity of our machines. A closed
 loop positioning system is standard on all our
 FGS (Flexible Grinding System) machines which provide
 feedback to the motion control to maintain accuracy at
 all times. Over the years, as the machine's components
 wear, this system automatically compensates for such
 wear allowing you to consistently grind accurate parts.

Our FGS machines have the capability to dress grinding
 wheels on the machine with a wide range of dressing
 options and, as an added benefit, our software
 automatically compensates as the grinding wheel wears.
 The software also allows you to dress forms in the
 grinding wheel using a Single Point Diamond,
 Dual Point Diamond and/or Electric Roll Dresser.

Unison's software is easy to learn and a complete package
 is installed on every machine which allows our customers
 to use the Model 2150's for additional applications at a
 later date without incurring any further software charges.
 Our software package is highly versatile and includes
 applications for the following, and the ability to mix
 these modes in one cycle start.

ID Grinding
ID Profile Grinding,
Surface Profile Grinding
Plunge Grinding
Mulitistep Grinding
OD Profile Grinding
Throughfeed Grinding
Standard Surface Grinding

Standard software cycles include:
Centerless Through Feed Grinding Centerless Plunge Multiple Step
Centerless Plunge Grinding Profile Plunge Centerless Grinding
Centerless OD Profile Grinding
Centerless ID Grinding
Centerless ID Profile Grinding
Standard Surface Grinding
Creep feed Grinding
Peel Grinding"

Specifications:


Vertical "Z" Axis
Travel      5"
Drive       AC  Servo Motor.
            Precision Ballscrew
Feedback    Glass Scale .00002" resolution.
            Closed Loop
Feedrates   0-3.0 ips [0-75mps].
            Programmable

Longitudinal "X" Axis
Travel      18.0"
Drive       AC Servo Motor.
            Precision Ballscrew
Feedback    Rotary Encoder .00002" resolution.
            Closed Loop
Feedrates   0-6.0 ips [0-150 mps]. Programmable

Cross "Y" Axis
Travel      5" [127mm]
Drive       AC Servo Motor. Precision Ballscrew
Feedback    Glass Scale .00002" resolution.
            Closed Loop
Feedrates   0-6 ips [0-150mm]. Programmable

Equipped With:

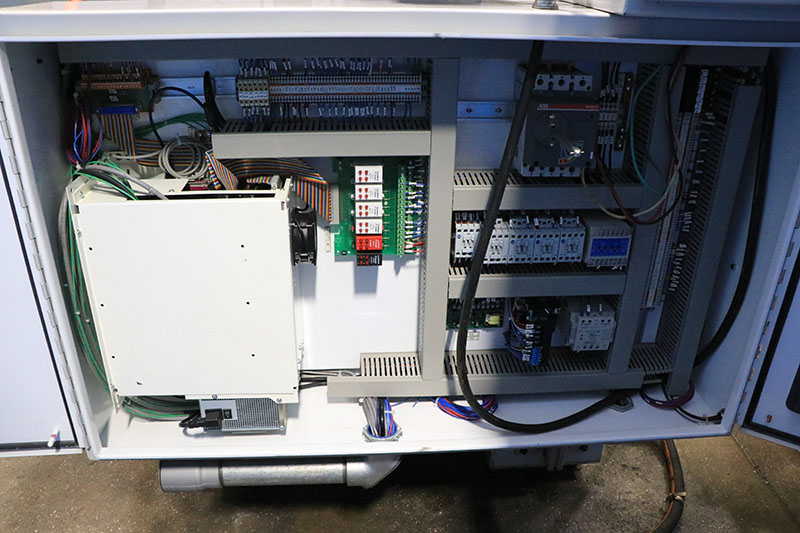

Unison Flexng Systems CNC Control
Software Described Above

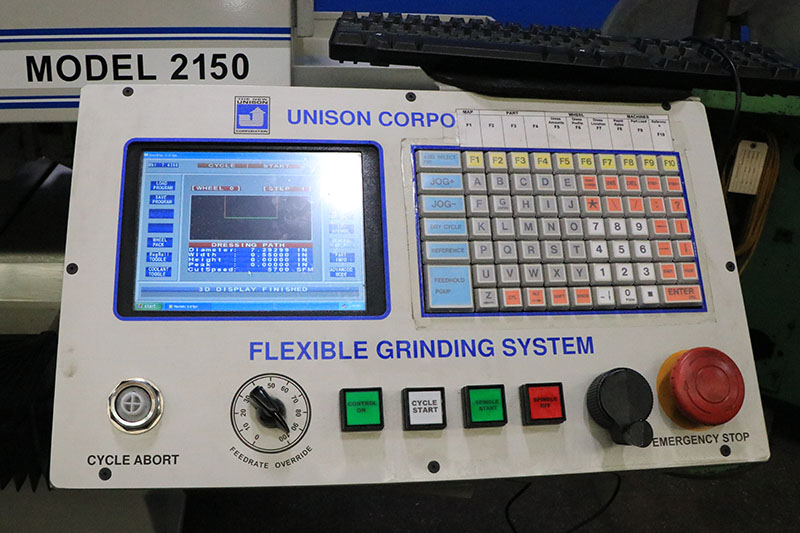

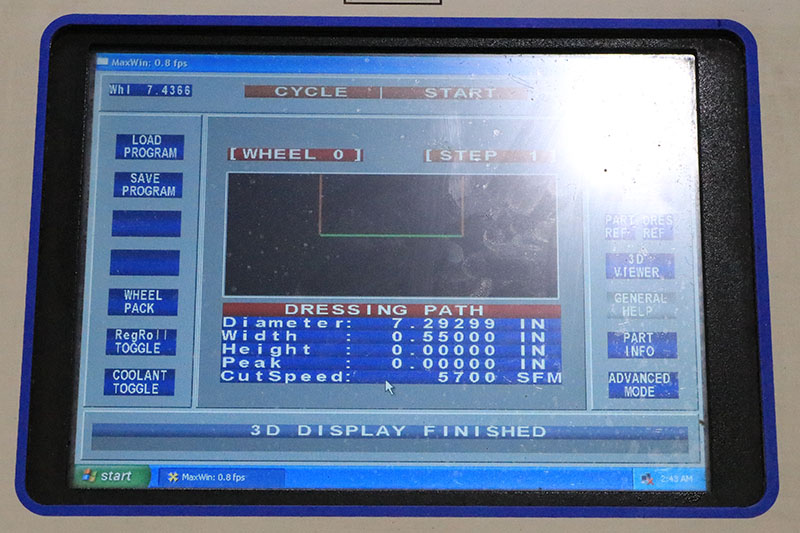

Touch Screen & Keyboard
Color Display

Machine Tool Enclosure

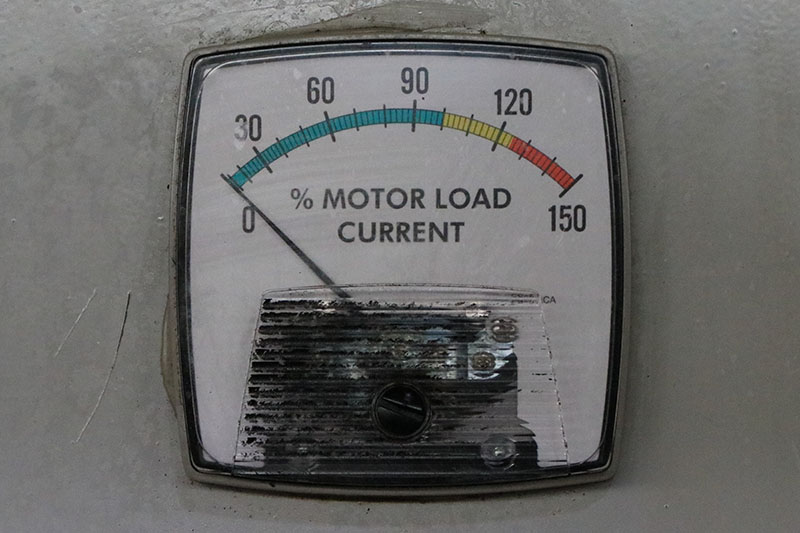

Unison 3 H.P. Super-Precision Spindle
 Model No. 07-2A-BM-3.0-002UN-KM
 S/N: 8274-4

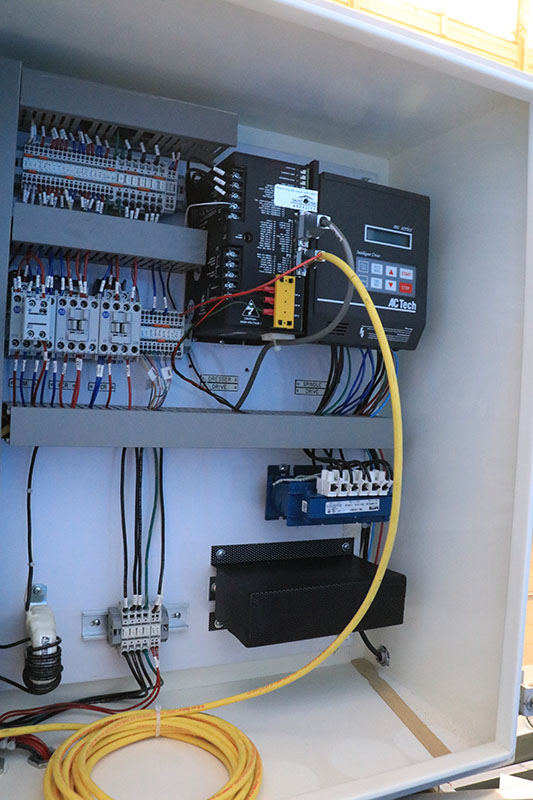

 "AC Tech" "Intelligent Drive" VFD

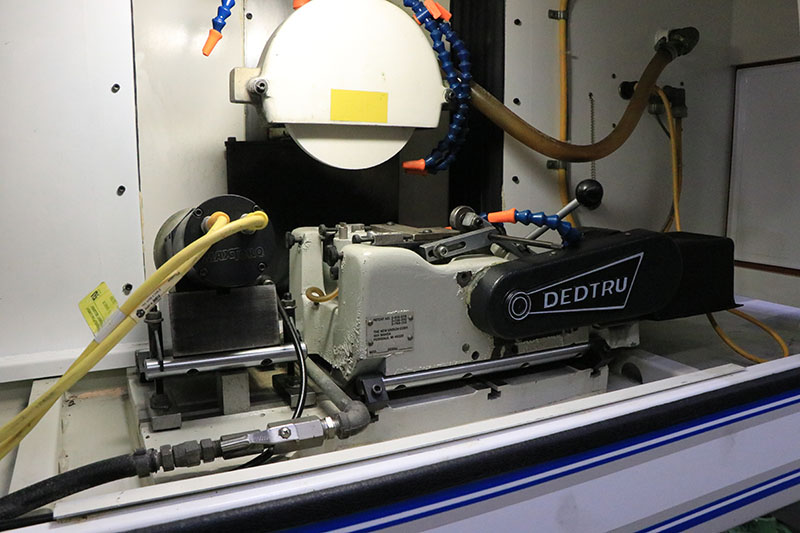

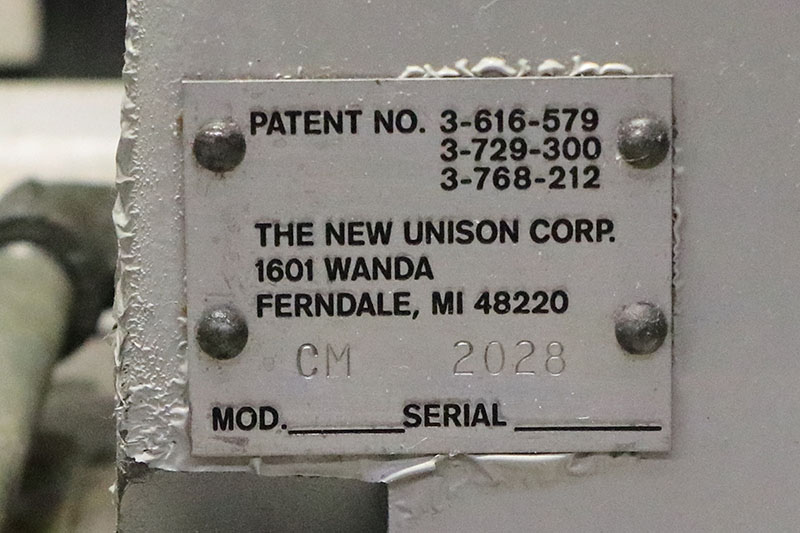

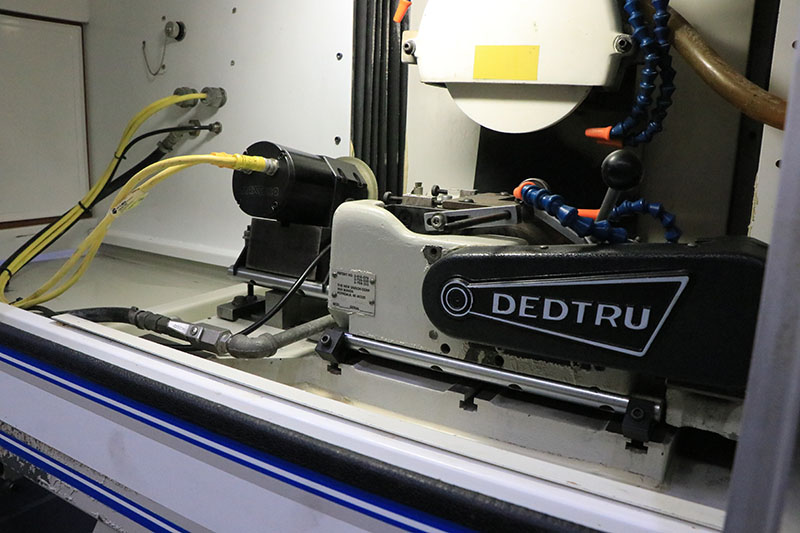

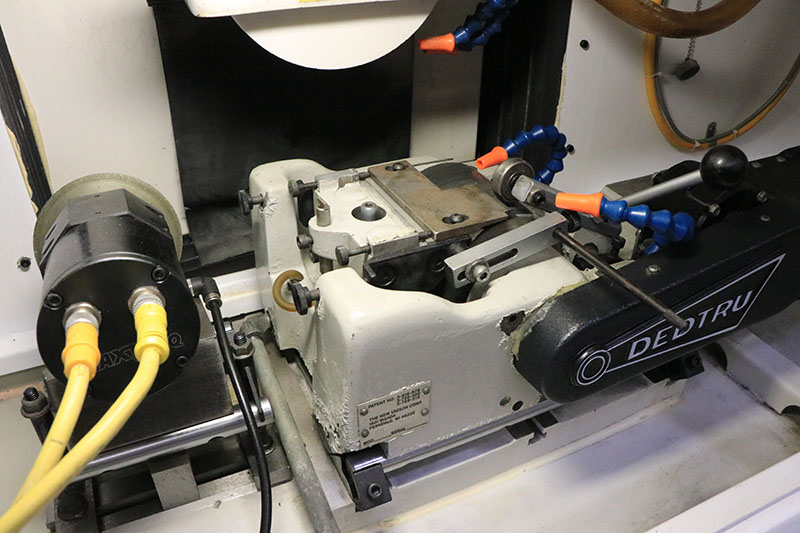

Unison Model CM "Dedtru" Unit
 S/N: 2028
 0 to 5" Dia. Capacity

"MaxTorq" Rotary Dresser, Integrated/Programmable
 with Unison "FGS" CNC Control
Saint Gobain Dresser Drive
Roll RPM 0 - 200 RPM

"Yaskawa Electric" AC Servo Motors
"Mitutoyo" Glass Scales
Precision Ball Screws

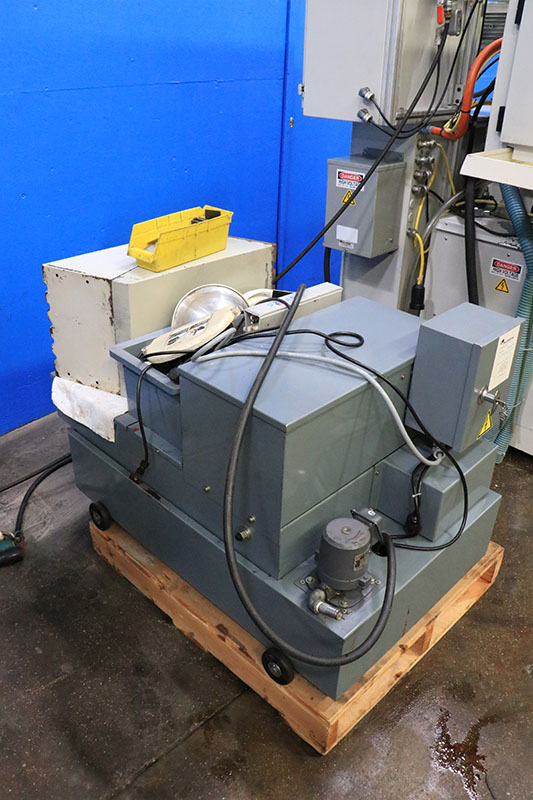

"Monlan" Model PFA-40 Coolant System
 with Paper Filtration

Machine is Wired for 3/60/220 Volts Electrics

Link to video: https://youtu.be/vPLDYGpGfVg?si=TIuZhfeFy0e8jpR6

*** Exceptional Condition - Entirely Original & Beautiful ***
** Owner Retired - the Reknown "Montana Gold Bullet Inc.," **
** Inspect Under Power in our Harrison, NJ Warehouse **
