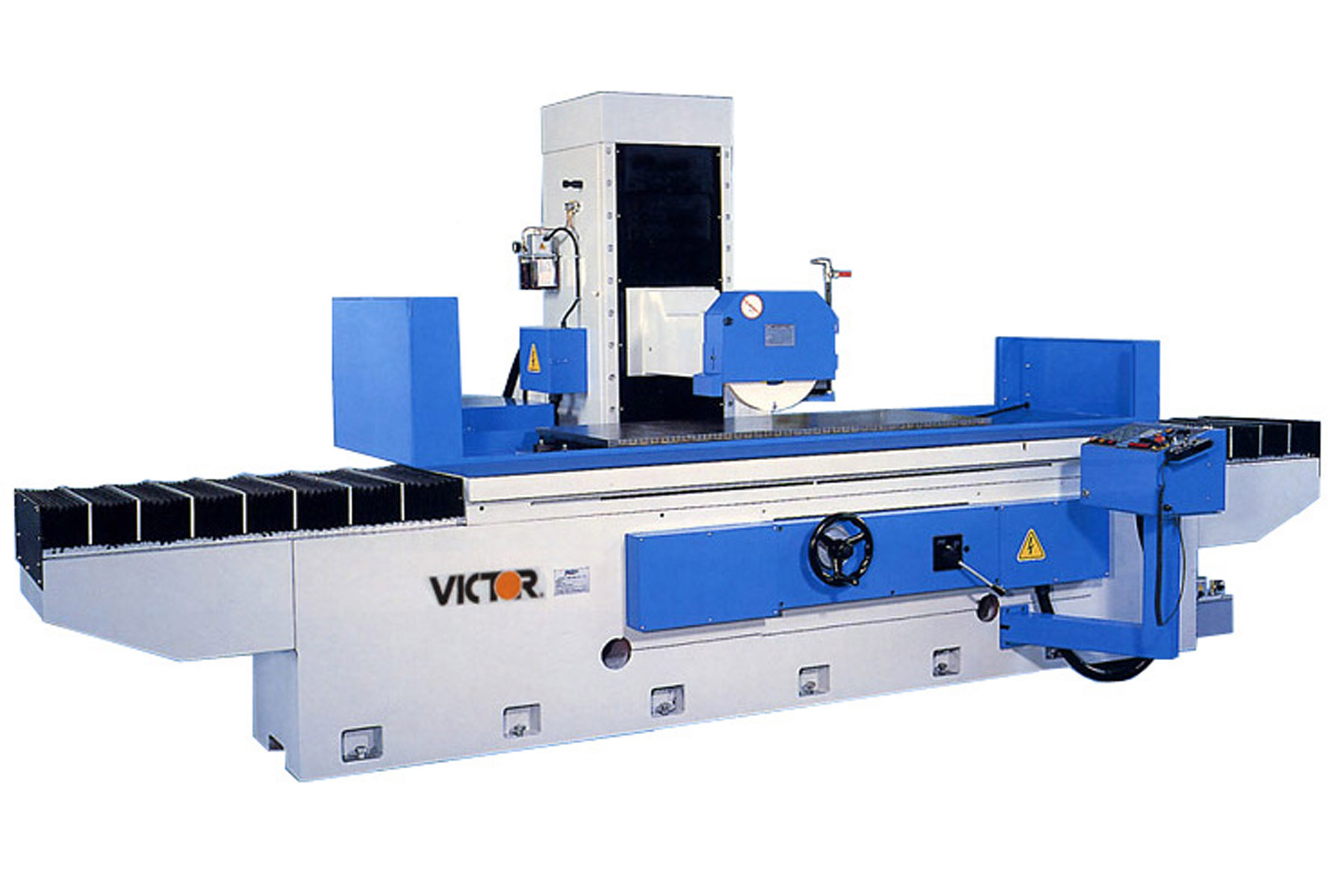

Victor PFG-2440AHR w/ Auto Down Feed NEW SURFACE GRINDERS
- PFG-2440AHR w/ Auto Down Feed
- Ref #:
MODEL: PFG-2440AHR w/AUTO DOWN FEED
*MADE IN TAIWAN*
* Auto down feed system
* Vertical travel driven by AC servo motor
* Vertical travel operated by MPG function handwheel with 3 graduation selections
* One piece base design to provide greater rigidity and
free twist deformation to ensure superior surface finish
and higher accuracy
* Column, base, and table adopt double wall
construction casting to ensure greater rigidity, accuracy,
and stability during heavy grinding. And through internal
stress elimination assures rigidity, stability, and accuracy
* High precision and heavy pre-compression ballscrews
on vertical and cross feeds to provide powerful and
precise grinding force
* Hydraulic driven longitudinal table movement
* Automatic cross feed powered by AC motor
transmitting through MCU. The travel distance set by
cam and limit switch installed on right side of machine
base. The feed volume can be adjusted by panel switch
* Optional automatic down feed with elevating micro-
feed and intuitive control panel to add more convenience
to grinding operations
Wheel balancing arbor
Wheel balancing base
Wheel dresser with diamond
Leveling screw and plates
Table size: 23" x 39"
Max. table travel: 26" x 45"
Max. surface ground: 24" x 40"
Max. distance from spindle center to table top: 24"
Electromagnetic chuck size: 24" x 39"
Table speed: 200" ~ 985" / min
Table slideway: V-Flat Way
Auto cross feed increment: 0.004" ~ 0.8"
Power cross feed: 44" / min
Cross handwheel feed per graduation: 0.001"
Cross handwheel feed per revolution: 0.2"
Rapid power head elevation (Optional): 31" / min
Auto down feed (including rapid) ( Optional): 0.0001" ~ 0.0999" / Time option
Vertical down handwheel feed per graduation: (x1) 0.0001", (x5) 0.0005", (x10) 0.0010" by MPG
Vertical down handwheel feed per revolution: (x1) 0.01", (x5) 0.05", (x10) 0.1" by MPG
Max wheel size (O.D x T x I.D.): 16" x 2" x 5"
Spindle wheel speed: 1,750 RPM
Spindle drive motor: 10 HP
Hydraulic pump motor: 3 HP
Auto cross feed motor: 1/5 HP
Rapid head elevation motor: AC servo motor
Coolant pump motor: 1/8 HP
Net weight (Approx.): 13,900 lbs
Gross weight (Approx.): 15,700 lbs
Packaging dimensions (L x W x H): 148" x 90" x 101"
OPTIONS(Call for prices!):
Angle forming attachment
Radius forming attachment
Tool makers vise
Extra wheel flange
Dust suction system
Dust suction system with coolant system
Magnetic separator with coolant
Auto paper strip filter
Auto paper strip filter with magnetic separator and coolant system
