Watch Video:

Wasino A-12 CNC TURNING CENTERS - CNC LATHES

$29,500

Make:
Wasino
Model:
A-12
Year:
2000
Ref #:
160823

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

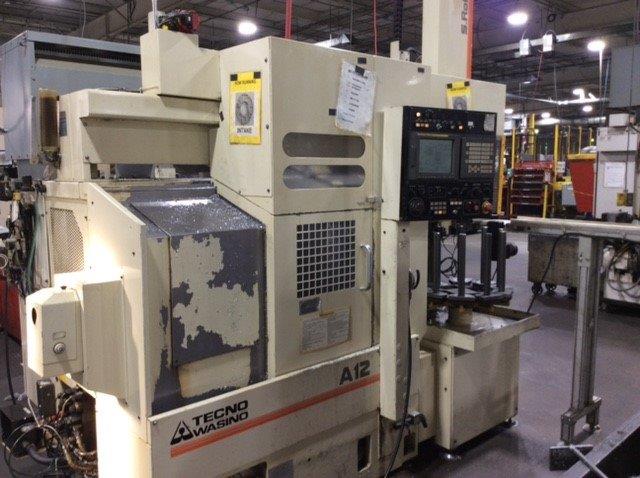

WASINO A-12 CNC LATHE w/ROBOT LOADER
DATE OF MANUFACTURE  2000


X AXIS TRAVEL 5.5″
Y AXIS TRAVEL 3.9″
Z AXIS TRAVEL 9.84″
C AXIS MIN INCREMENT 0.001º
RAPID TRAVERSE RATE X AXIS 630IPM
RAPID TRAVERSE RATE Y AXIS 236IPM
RAPID TRAVERSE RATE Z AXIS 787IPM
SPINDLE NOSE / SPINDLE BORE A2-6/ 2.12″
SPINDLE MOTOR 7.5HP
SPINDLE SPEED 4,000RPM
TURRET CAPACITY (ALL LIVE CAPABLE) 12 STATIONS
RADIAL TOOL MILLING SPEEDS 10000RPM
AXIAL TOOL MILLING SPEEDS 5000RPM
MILLING SPINDLE MOTOR 5HP
ROBOT LOADER SYSTEM
IDEAL WORK DIAMETER 6.0″
IDEAL WORK WEIGHT 6.6 LBS
APPROX LOAD/UNLOAD TIME 6.0 SECONDS
MACHINE WEIGHT (APPROX) 5500LBS

EQUIPPED WITH:
 - FANUC 18iT CNC CONTROL
 - S-ROBO1 GANTRY LOADER
